KC HiLiTES Chaselight Bar

Discussion in 'Product Reviews' started by erok81, Oct 3, 2017.

  1. Oct 3, 2017 at 12:36 PM
    #1
    erok81

    erok81 [OP] Well-Known Member

    Joined:
    Aug 15, 2016
    Member:
    #194699
    Messages:
    4,195
    Gender:
    Male
    Santa Cruz
    Vehicle:
    2016 Tacoma w/Superior Auto
    I recently installed a KC HiLiTES chase bar on my Tacoma (thanks @Taylor@KC HiLiTES) . I grabbed it for a few reasons. My tent is on full time so I wanted to move the third brake light out so I still had one. I wanted a bright reverse light. Plus the chaselight is cool. So why not. :notsure:

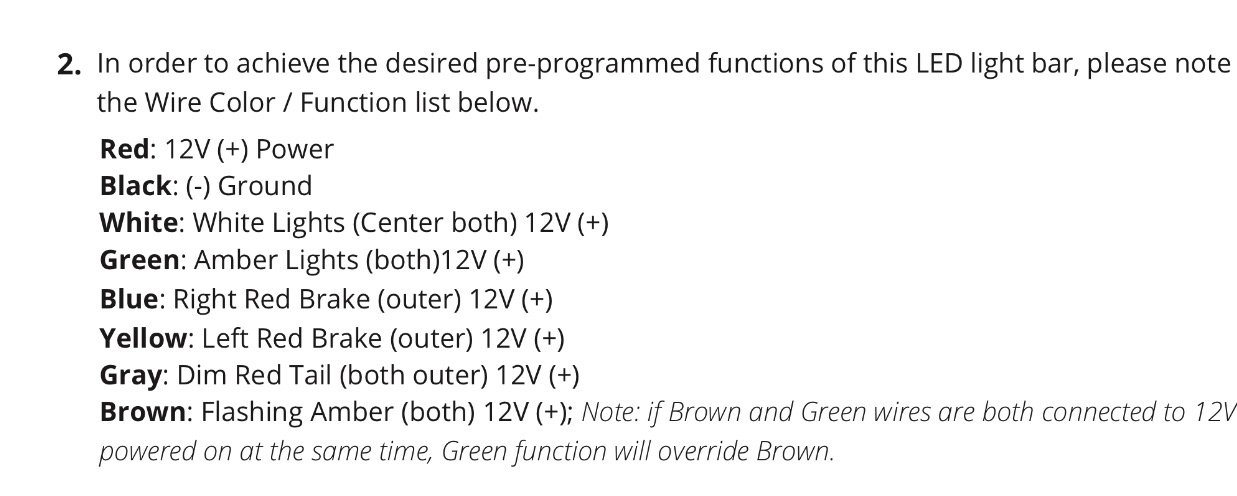

    Install is fairly straightforward. It has a main power wire then different wires for different setups. Here are the options they give you (I can't find the instruction page so you get an image instead):

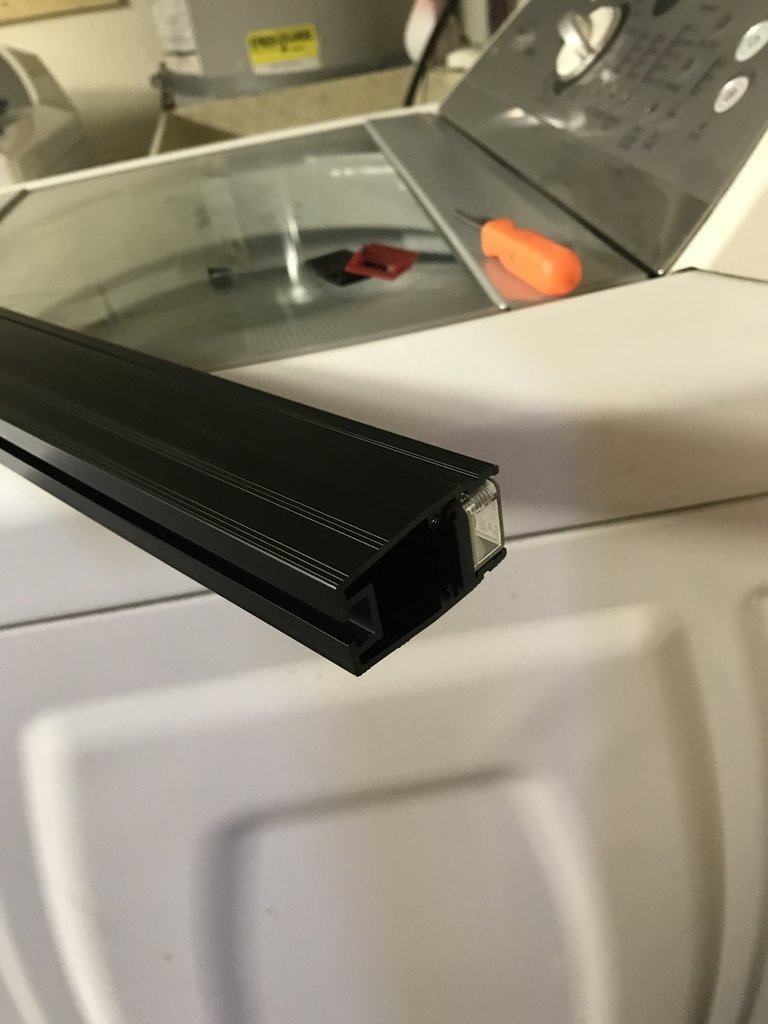

    I had to google the mfg'r of the light bar to figure out how to attach the brackets. I'll save you the trouble. You pull the non corded end off and slide the bolts in. Then the brackets (sold separately) bolt to those. You can either mount so they face out like in the pic or tucked in. I chose tucked but don't have a pic of that.

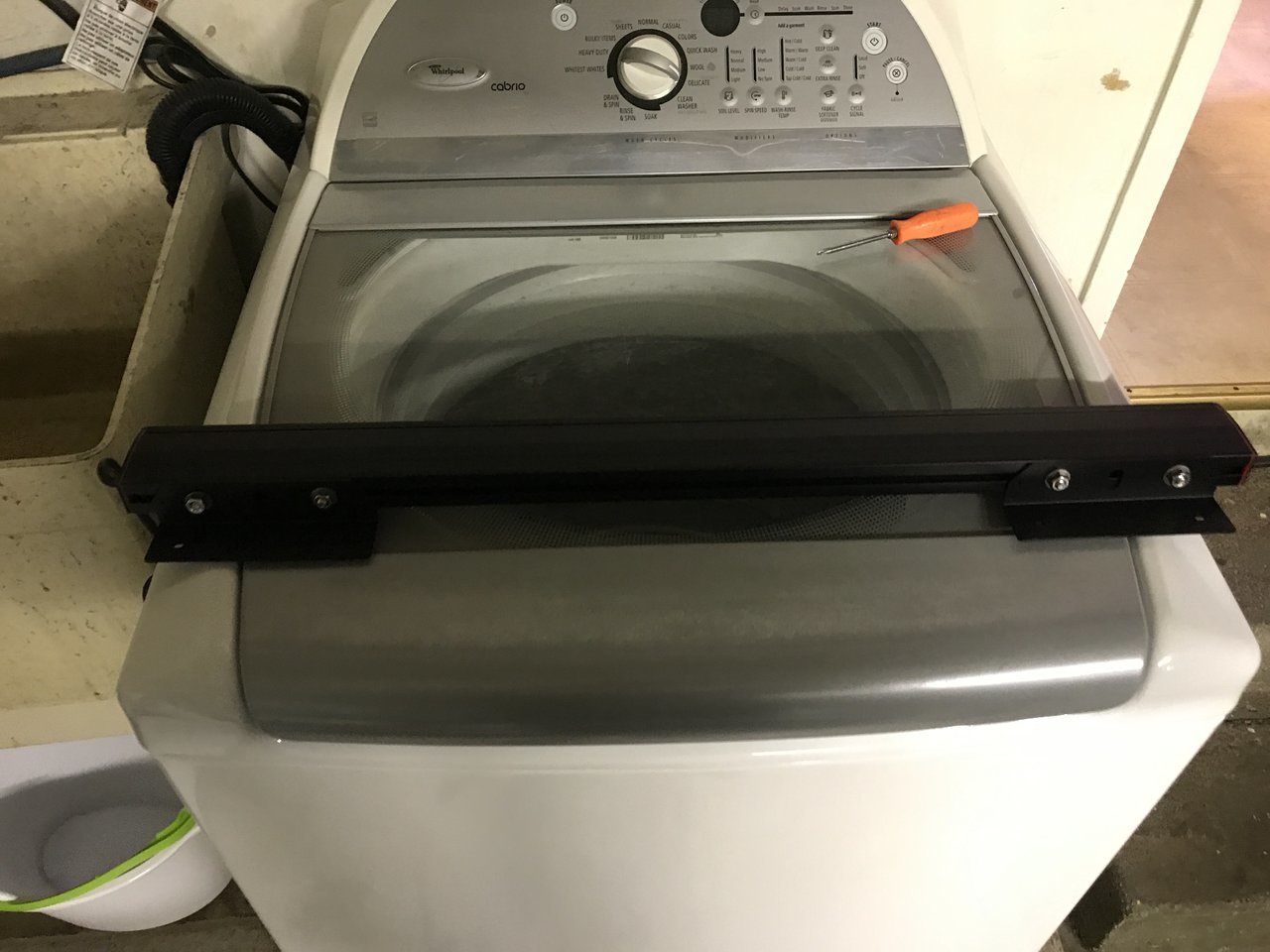

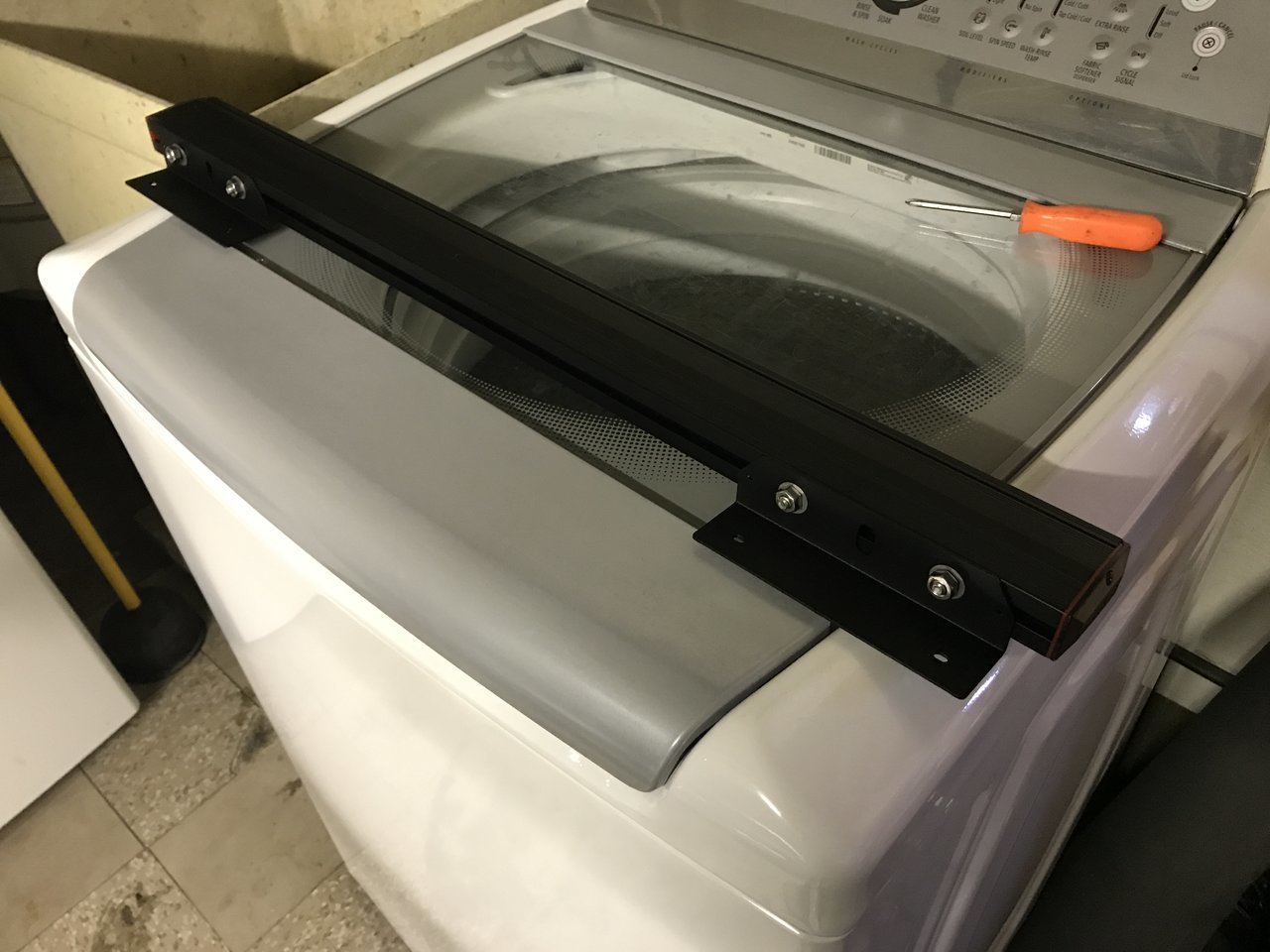

    Remove these:

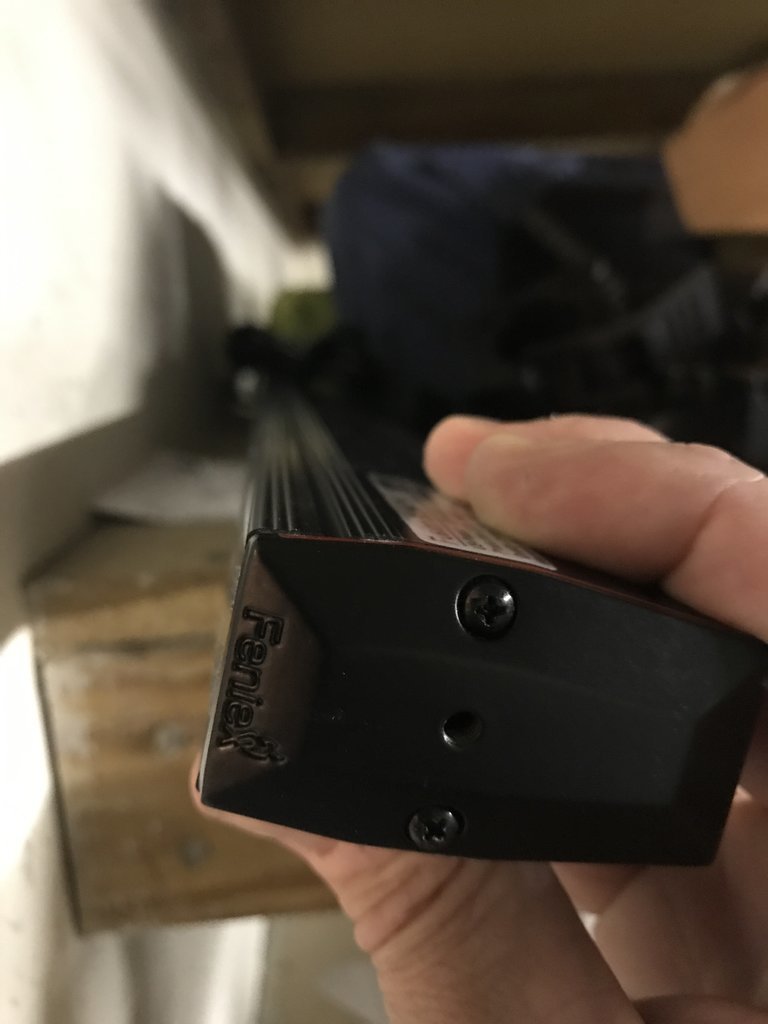

    Slide bolts here:

    Attach brackets:


    I hooked mine up to be switch for reverse and amber. But tails and brake lights for the two red options. You can't really tell from the photos but the two reds are quite different. Pictures of lights is kind of tough, so here go.

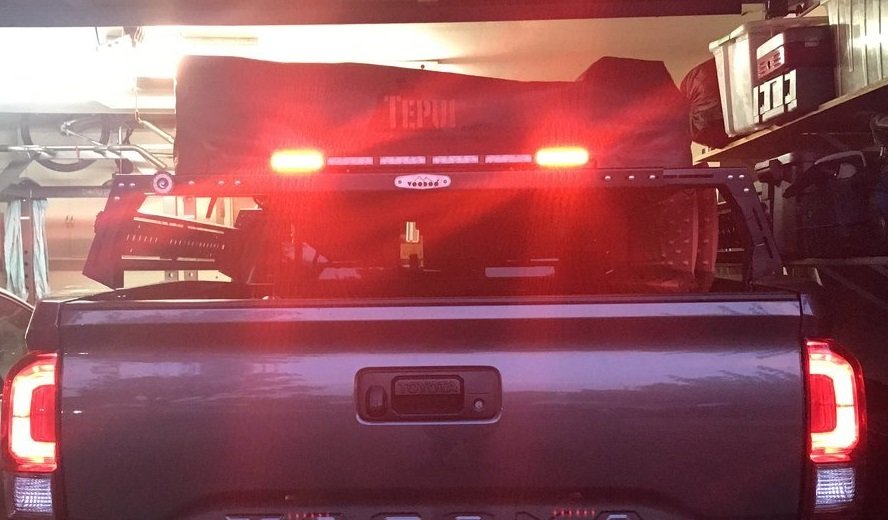

    Taillight at night:

    Brakelight at night:

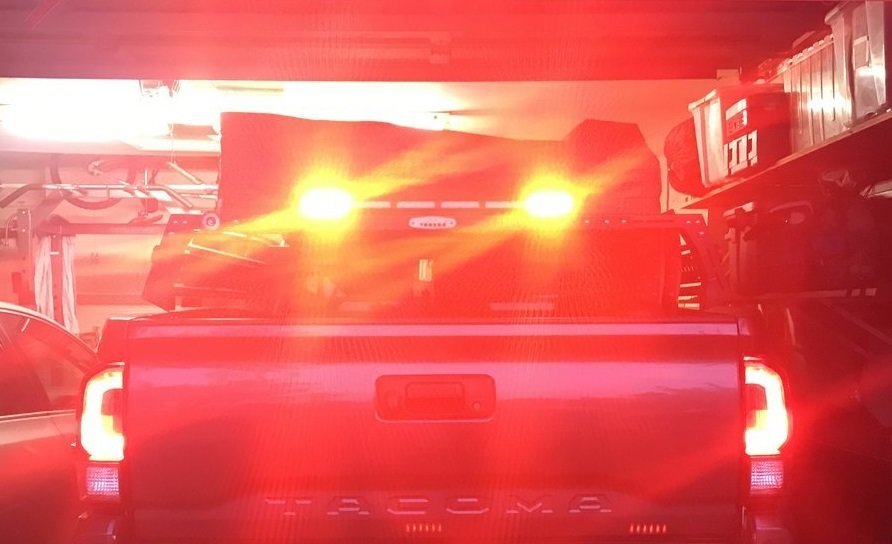

    Taillight daytime:

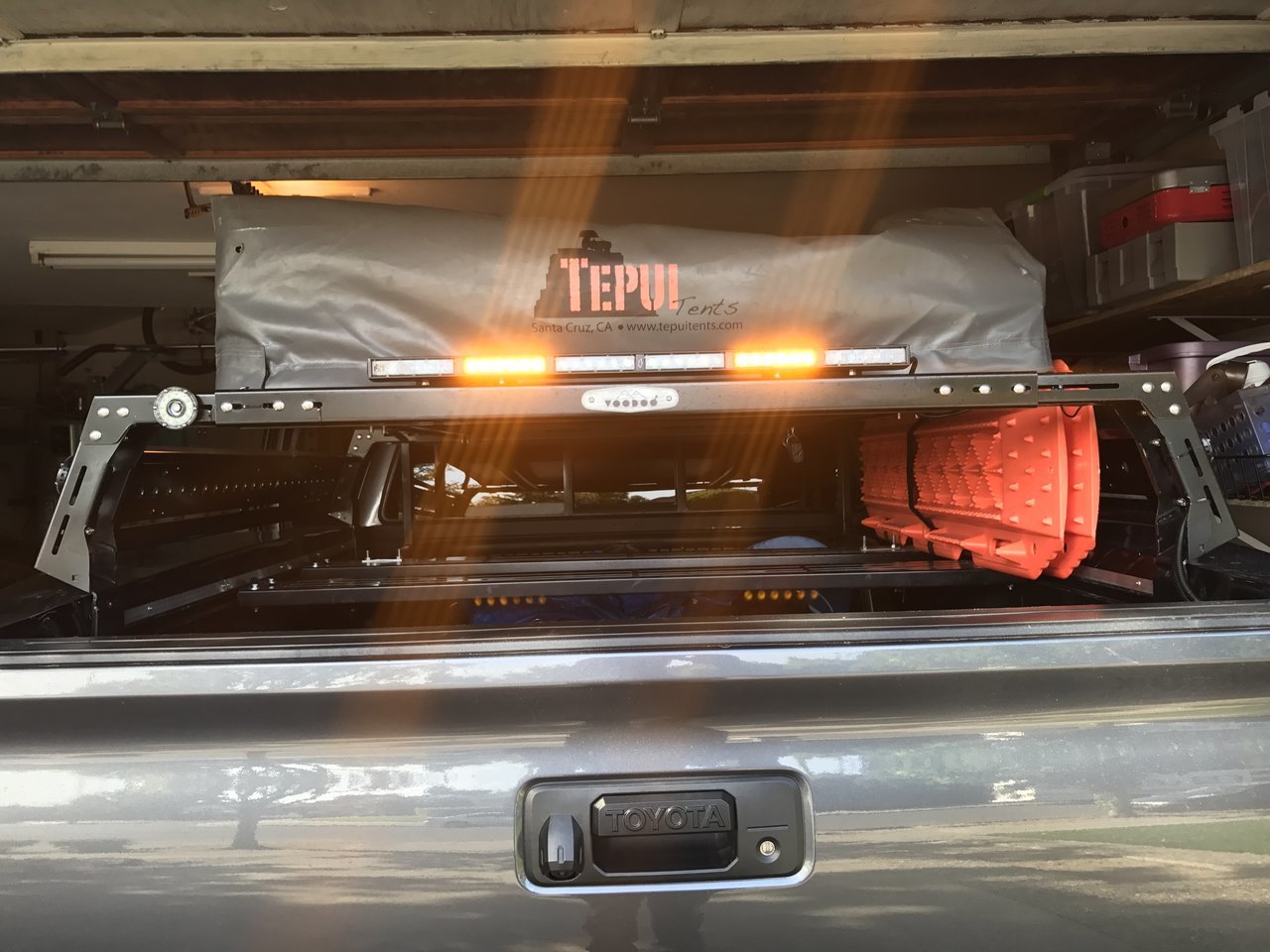

    Amber daytime:

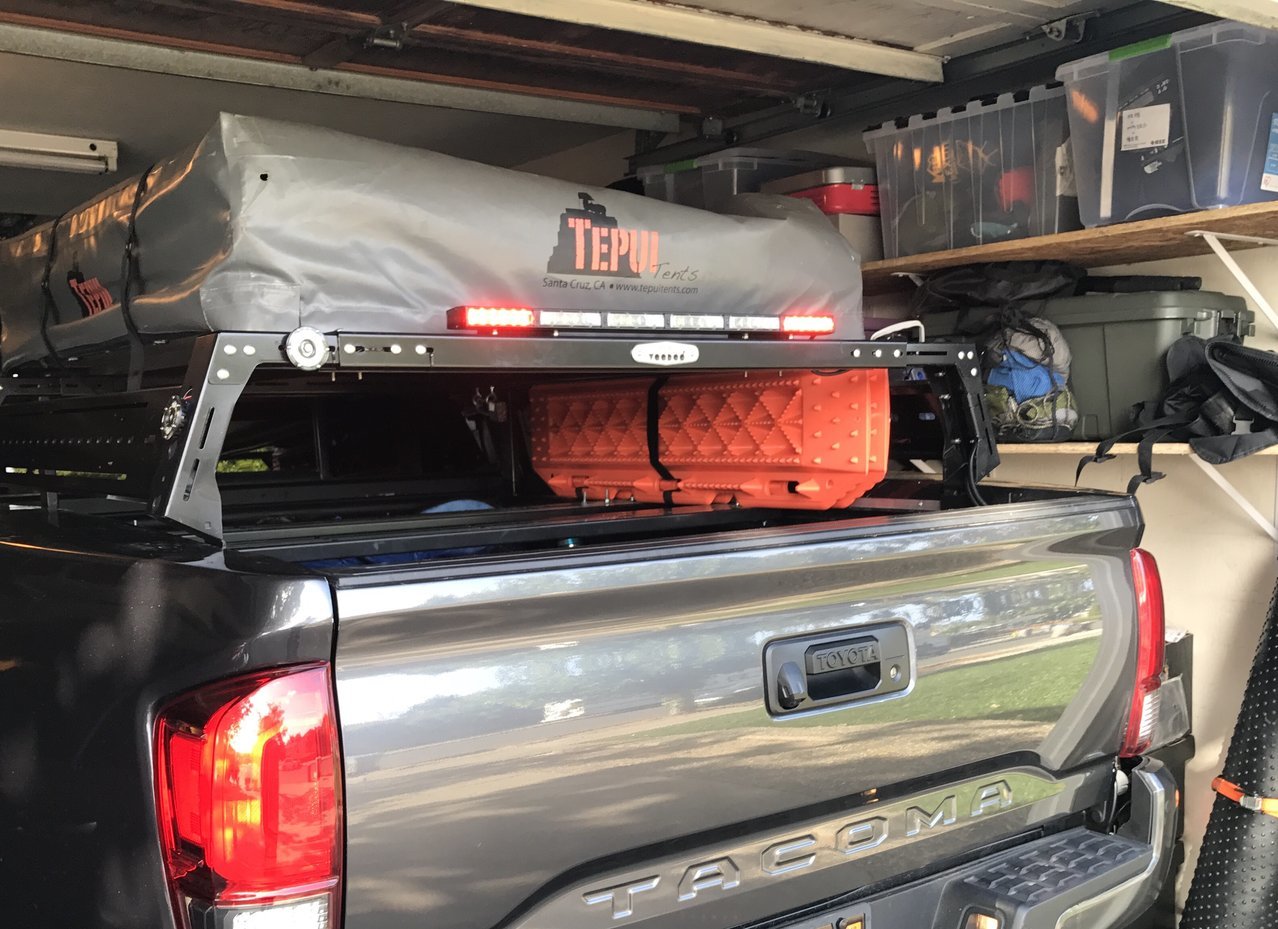

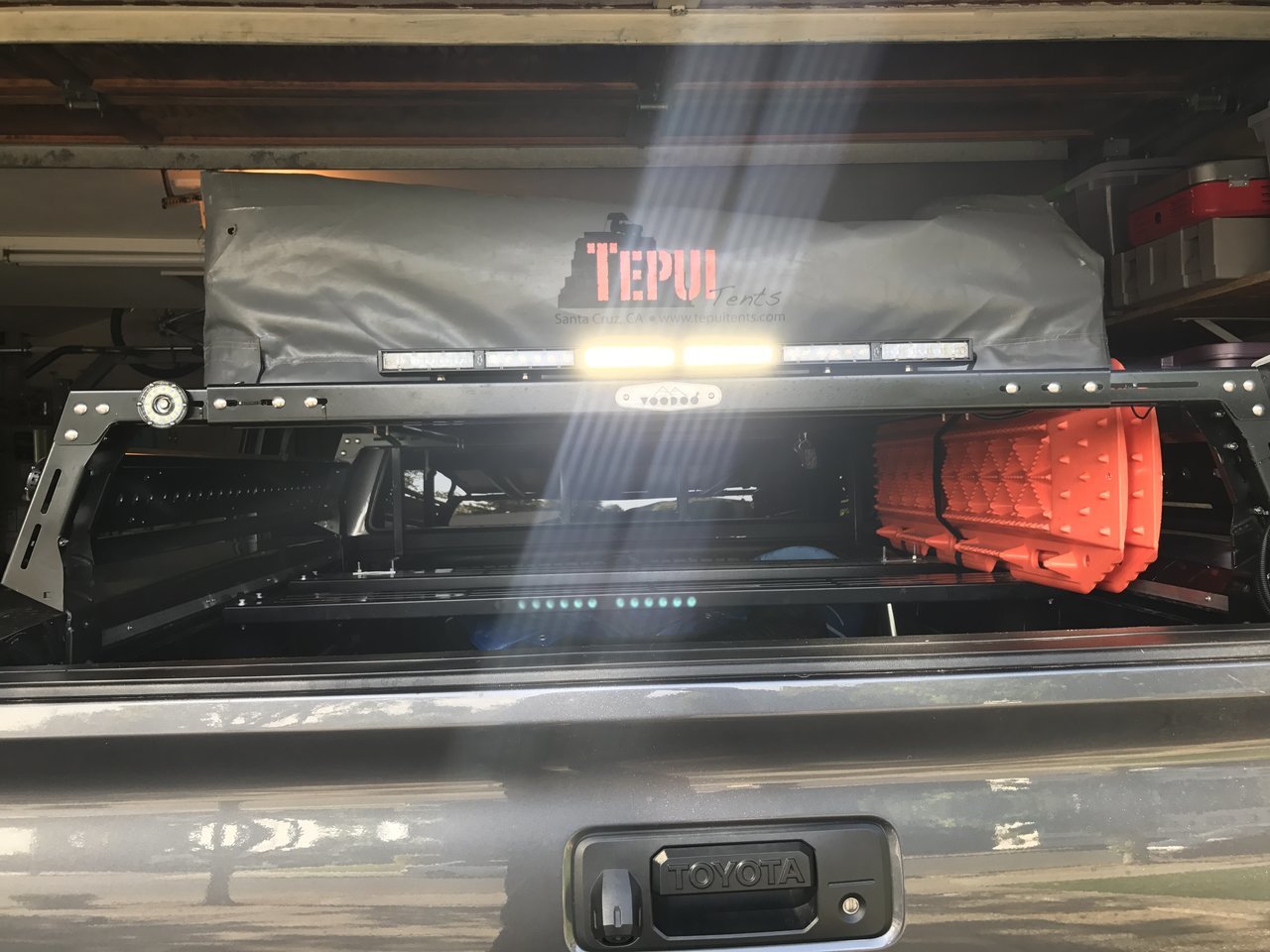

    Reverse daytime:

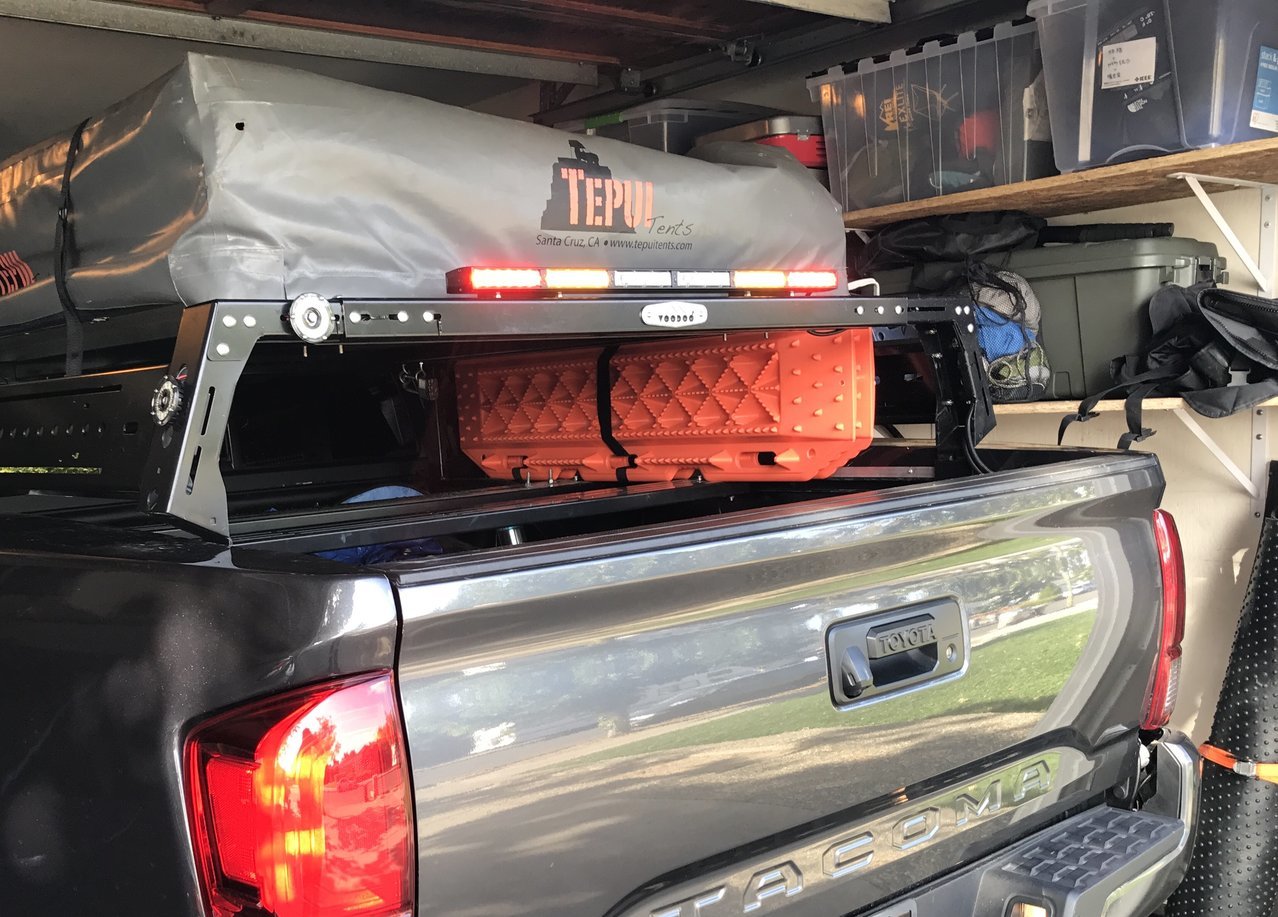

    Amber and taillight daytime:


    Specs from KC:
    -Multi Function Integration and Design:
    • Red LED Tail & Brake Lights with Blinker Capability
    • Amber LED Dust Lights with Strobe Capability
    • White LED FloodLights
    -Lightweight Extruded Aluminum Housing for Maximum Heat Dissipation and Durability
    -Weather Resistant Enclosure and Shatter-Proof Polycarbonate Lens for Maximum Durability
    -40° Spread and 180° Flood Beam Optics

    SPECIFICATIONS
    -LED Source: 4W Cree LED
    -Raw Lumens: 4,500 lm
    -LED Color: Red, Amber, and Clear LEDs
    -Amp Draw: 5.0A (max draw)
    -Voltage: 12V DC
    -Certifications: SAE J595, CT13, SAE J1119
    -Product Dimensions: H - 1.22" x L - 28.14" x W- 2.25"

    I think that's about it. I'm happy with it so far. Let me know if you have questions. :cheers:

    Rd62, mccombsworld and MostEpic like this.
  2. Oct 3, 2017 at 12:41 PM
    #2
    MostEpic

    MostEpic IG: letthemeatdust

    Joined:
    May 15, 2014
    Member:
    #129886
    Messages:
    1,480
    Gender:
    Male
    Los Angeles
    Vehicle:
    2013 PreRunner DCSB
    Party in the front Party in the rear
    What kind of switches are you running? Can you wire to flash one or both ambers?

    Thanks, been debating a bar or just singles.

    EDIT: just read you listed strobe capability

    erok81 [OP] likes this.
  3. Oct 3, 2017 at 12:52 PM
    #3
    erok81

    erok81 [OP] Well-Known Member

    Joined:
    Aug 15, 2016
    Member:
    #194699
    Messages:
    4,195
    Gender:
    Male
    Santa Cruz
    Vehicle:
    2016 Tacoma w/Superior Auto
    I am using a switch pros for everything.

    And yep. As you saw. You can only strobe both though. Not individually. I was going to use them as signals but decided as a light was better.

  4. Dec 6, 2017 at 1:01 AM
    #4
    OnlyTaco

    OnlyTaco Well-Known Member

    Joined:
    Dec 18, 2016
    Member:
    #205117
    Messages:
    126
    Gender:
    Male
    That's pretty cool. I was looking for a similar solution, I have a mid rack kb voodoo rack as well. Instead of the tent however, I'm going to put my spare tire up there and a couple of water/fuel jugs. This is a perfect solution to have a functional 3rd brake light again. Thanks! Would you mind letting me know how you wired it up for brake light function?

  5. Sep 22, 2018 at 8:30 AM
    #5
    Papadave418

    Papadave418 Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,550
    Gender:
    Male
    First Name:
    Dave
    Livermore CA
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Kings and a Pull Kitchen!
    I’ve been looking at these, and maybe @TaylorU can answer, are these the only street legal chase bars? There’s a couple of brands like xpsrites and rlbstore.com that sell similar for half price, but I want what’s quality. Just curious on your input.

  6. Oct 11, 2018 at 2:40 PM
    #6
    Papadave418

    Papadave418 Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,550
    Gender:
    Male
    First Name:
    Dave
    Livermore CA
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Kings and a Pull Kitchen!
    I bought one as well, did you ever do turn signals? Or just brake lights and switch on ambers?

  7. Oct 11, 2018 at 2:41 PM
    #7
    erok81

    erok81 [OP] Well-Known Member

    Joined:
    Aug 15, 2016
    Member:
    #194699
    Messages:
    4,195
    Gender:
    Male
    Santa Cruz
    Vehicle:
    2016 Tacoma w/Superior Auto
    Mine’s amber switched. Unless you take apart the bar and rewire it, the ambers are hooked together. I originally was going to use them as signals too.

  8. Oct 14, 2018 at 11:04 AM
    #8
    Rd62

    Rd62 Well-Known Member

    Joined:
    May 16, 2018
    Member:
    #253683
    Messages:
    366
    Gender:
    Male
    Vehicle:
    2014 DCLB TRD Sport
    I really like those

  9. Oct 24, 2018 at 11:15 AM
    #9
    dualstroke

    dualstroke Well-Known Member

    Joined:
    Oct 20, 2017
    Member:
    #233614
    Messages:
    53
    Gender:
    Male
    Vehicle:
    2017 OR AC
    Looks great. Good idea and multifunctional. Thx

  10. Mar 13, 2020 at 1:46 PM
    #10
    NewEnglandTaco

    NewEnglandTaco Member

    Joined:
    Jul 15, 2018
    Member:
    #259424
    Messages:
    9
    Gender:
    Male
    Vehicle:
    2016 Quicksand TRD Off Road
    Hi sorry to bring up a dead thread but could you go into more detail on how you wired it up? I have a Switch-Pros 9100 and ordered the chase bar today

  11. Mar 14, 2020 at 5:24 PM
    #11
    erok81

    erok81 [OP] Well-Known Member

    Joined:
    Aug 15, 2016
    Member:
    #194699
    Messages:
    4,195
    Gender:
    Male
    Santa Cruz
    Vehicle:
    2016 Tacoma w/Superior Auto
    I wired the reds into my tail lights. The amber and white into the switch pro.

    it’s really easy. Each color light has its own wire. So no different then hooking up multiple lights.

  12. Mar 14, 2020 at 5:24 PM
    #12
    erok81

    erok81 [OP] Well-Known Member

    Joined:
    Aug 15, 2016
    Member:
    #194699
    Messages:
    4,195
    Gender:
    Male
    Santa Cruz
    Vehicle:
    2016 Tacoma w/Superior Auto
    If you have questions when doing it let me know. :D

  13. Mar 25, 2020 at 11:01 AM
    #13
    NewEnglandTaco

    NewEnglandTaco Member

    Joined:
    Jul 15, 2018
    Member:
    #259424
    Messages:
    9
    Gender:
    Male
    Vehicle:
    2016 Quicksand TRD Off Road
    Did you run the red to where the brake light wire is under the hood or did you go all the way to the rear?

  14. Mar 25, 2020 at 10:19 PM
    #14
    erok81

    erok81 [OP] Well-Known Member

    Joined:
    Aug 15, 2016
    Member:
    #194699
    Messages:
    4,195
    Gender:
    Male
    Santa Cruz
    Vehicle:
    2016 Tacoma w/Superior Auto
    Mine is mounted on my rack at the rear after my tent. So it’s pretty close to the tail gate.

    All of the red lights (dim to tails and brights to brakes) I ran to the passenger side tail light. The reverse (white) and amber I ran up to my switch pros under the hood.
