KC | Rear Facing LED Tail-light Bar

Discussion in 'Lighting' started by Taylor@KC HiLiTES, Dec 29, 2017.

  1. Dec 29, 2017 at 10:10 AM
    #1
    Taylor@KC HiLiTES

    Taylor@KC HiLiTES [OP] Well-Known Member Vendor

    Joined:
    Nov 11, 2016
    Member:
    #202104
    Messages:
    1,051
    Gender:
    Male
    First Name:
    Taylor
    Arizona
    Vehicle:
    2010 DCSB TRD OR 4x4
    See build thread

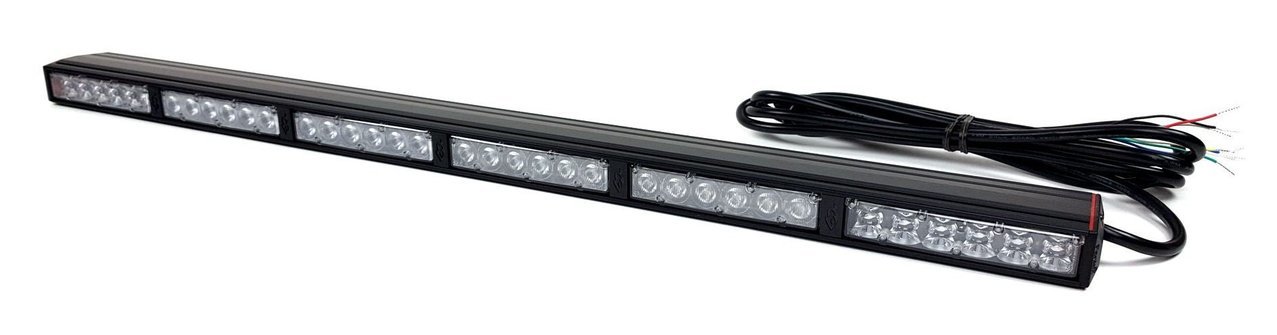

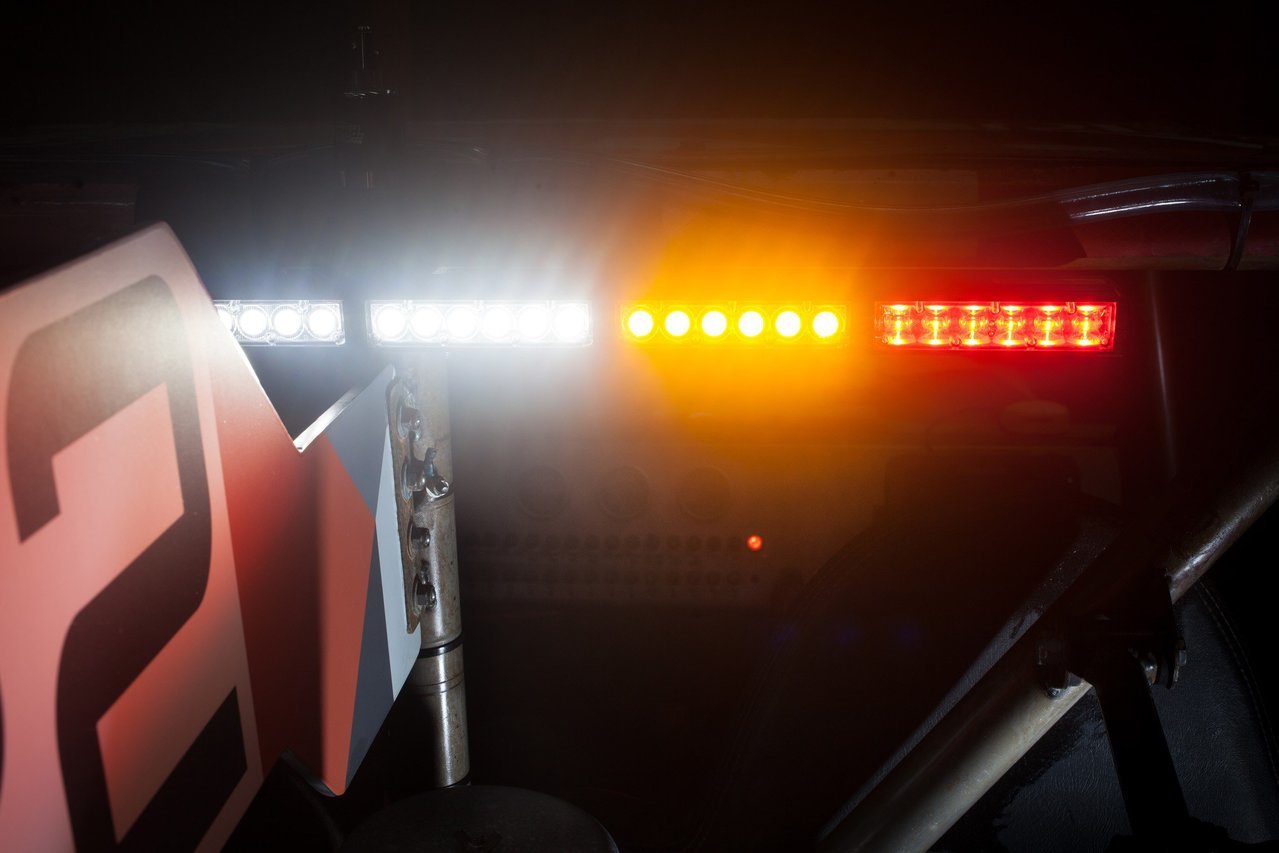

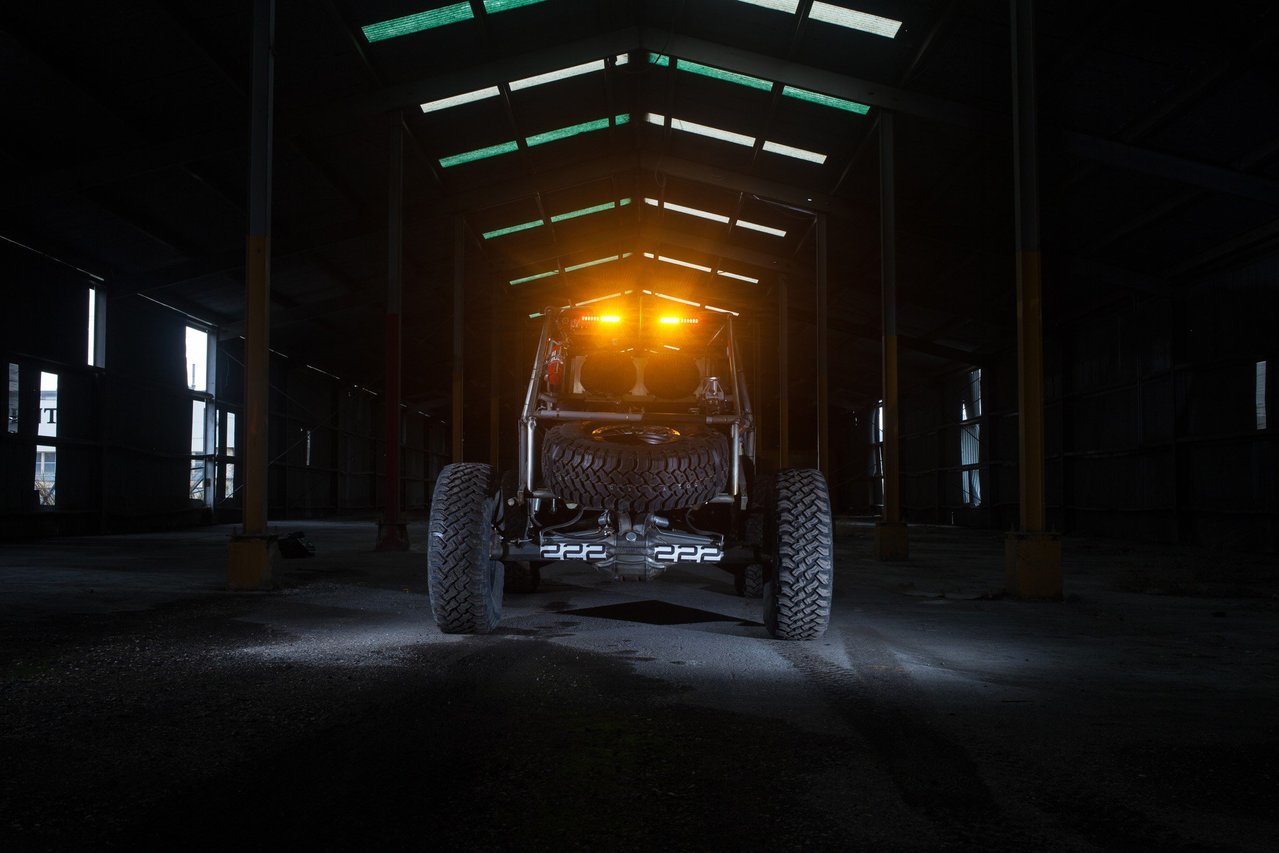

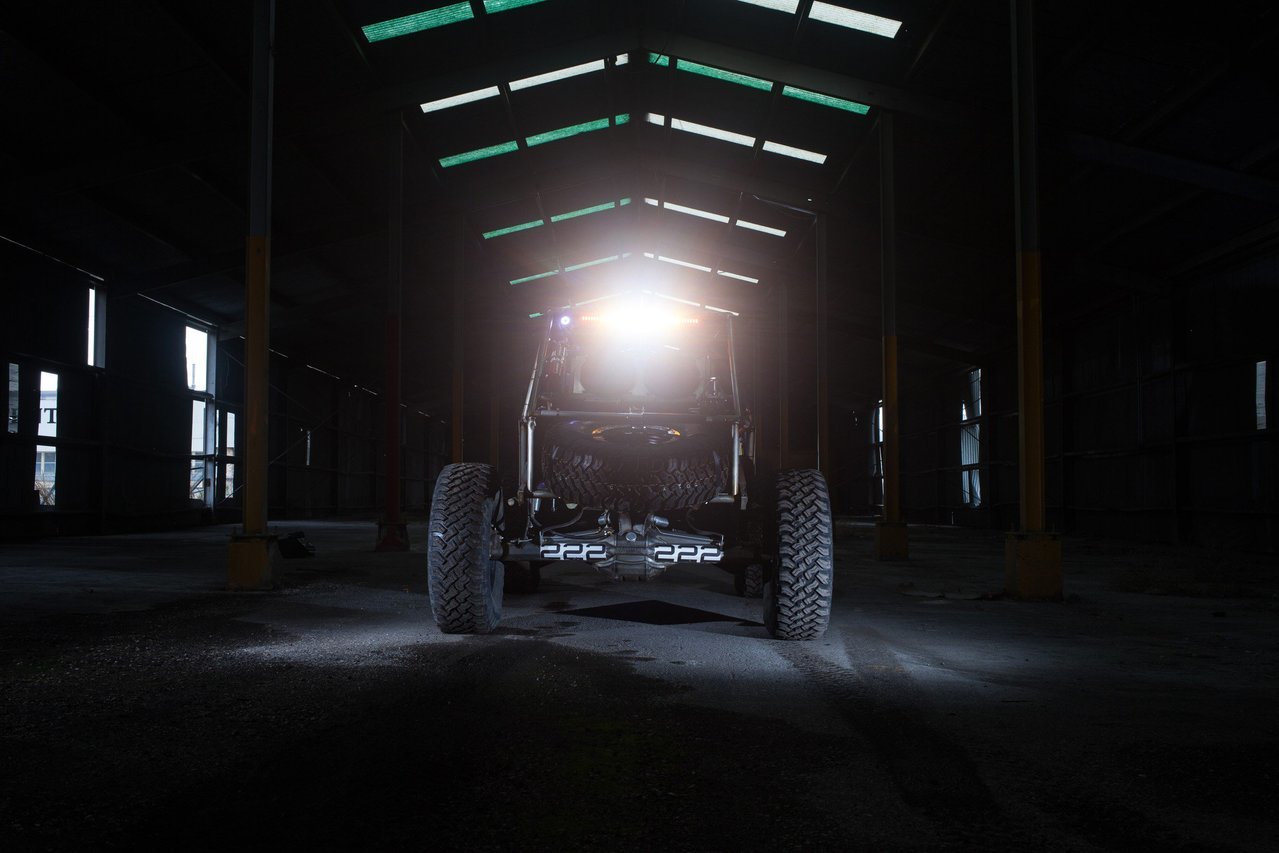

    As a new offering from us at KC HiLiTES, here is our 28" Multi-Function Rear Facing LED Chase Light Bar. This features integrated tail/brake lights, amber dust lights with strobe capability, along with white floodlights for added visibility, dramatically improving your safety on the trail and the street. For those of you that are racers, we also offer a race version (SKU 9802) which has a blue light and is the Best in the Desert legal option.

    This rear facing LED tail-light is equipped with standard functions and complies with street legal standards, perfect for use on your truck or UTV. It comes standard with our 23 year warranty.






    FEATURES

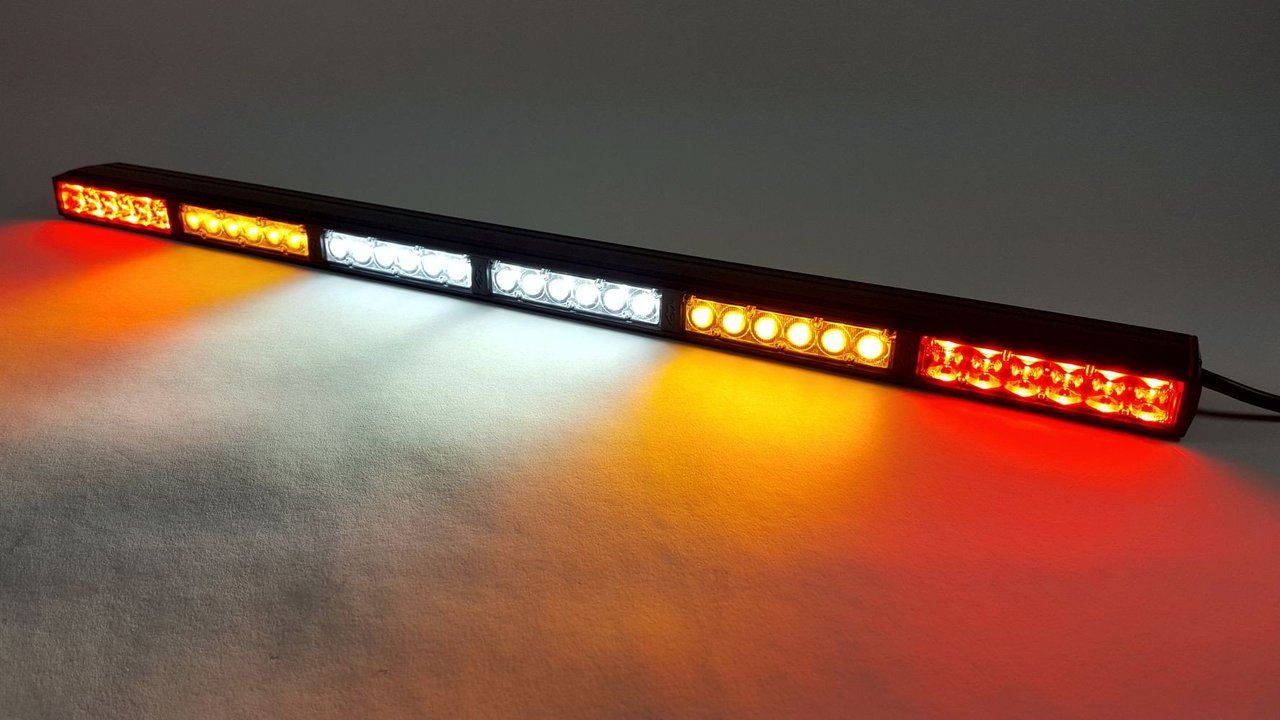

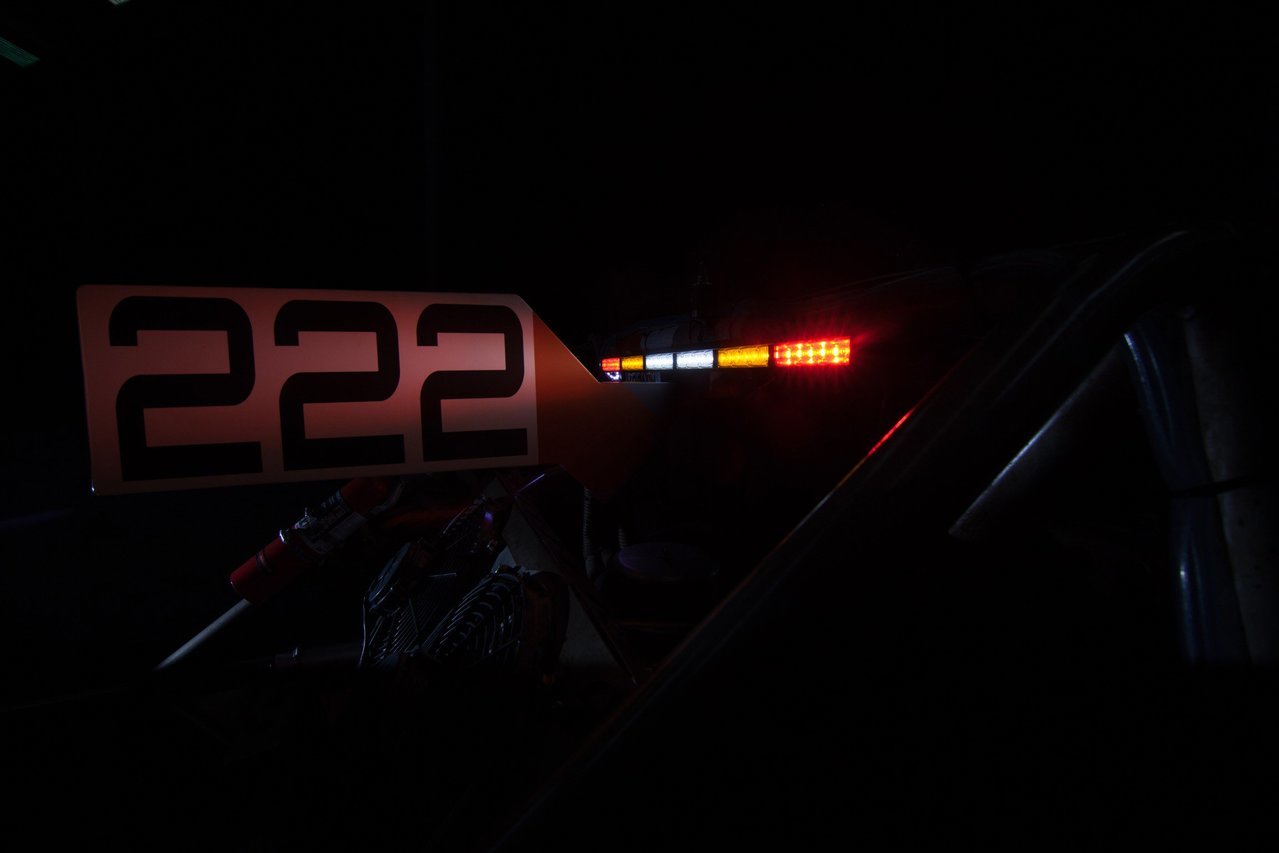

    • 28" Rear Facing LED Light Bar
    • Multi Function Integration and Design:
      • Red LED Tail & Brake Lights with Blinker Capability
      • Amber LED Dust Lights with Strobe Capability
      • White LED Flood Lights
    • Lightweight Extruded Aluminum Housing for Maximum Heat Dissipation and Durability
    • Weather Resistant Enclosure and Shatter-Proof Polycarbonate Lens for Maximum Durability
    • 40° Spread and 180° Flood Beam Optics

    SPECIFICATIONS
    • LED Source: 4W Cree LED
    • Raw Lumens: 4,500 lm
    • LED Color: Red, Amber, and Clear LEDs
    • Amp Draw: 5.0A (max draw)
    • Voltage: 12V DC
    • Certifications: SAE J595, CT13, SAE J1119
    • Product Dimensions: H - 1.22" x L - 28.14" x W- 2.25

    PARTS INCLUDED

    (1) 28" Rear Facing LED Light Bar with wire lead

    MOUNTING OPTIONS

    Featuring a full length adjustable bolt slot located on rear section of light bar or threaded end mounts for use with bolted or welded on vehicle mounting tabs.
    Optional Mounting L-Brackets Available - KC #9800


    PRODUCT LINKS
    Rear Facing LED bar product page
    Data Sheet
    Installation and Wiring Guide

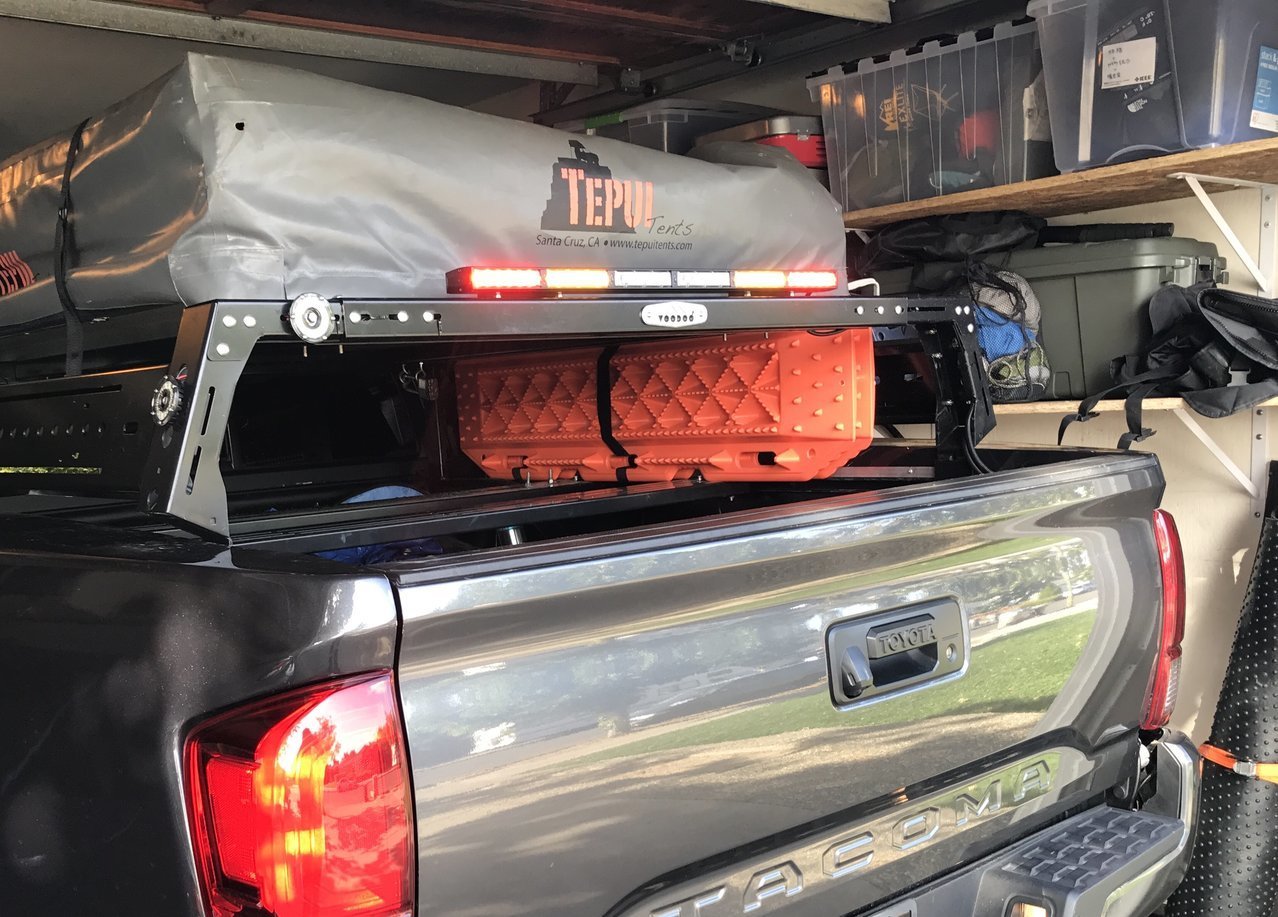

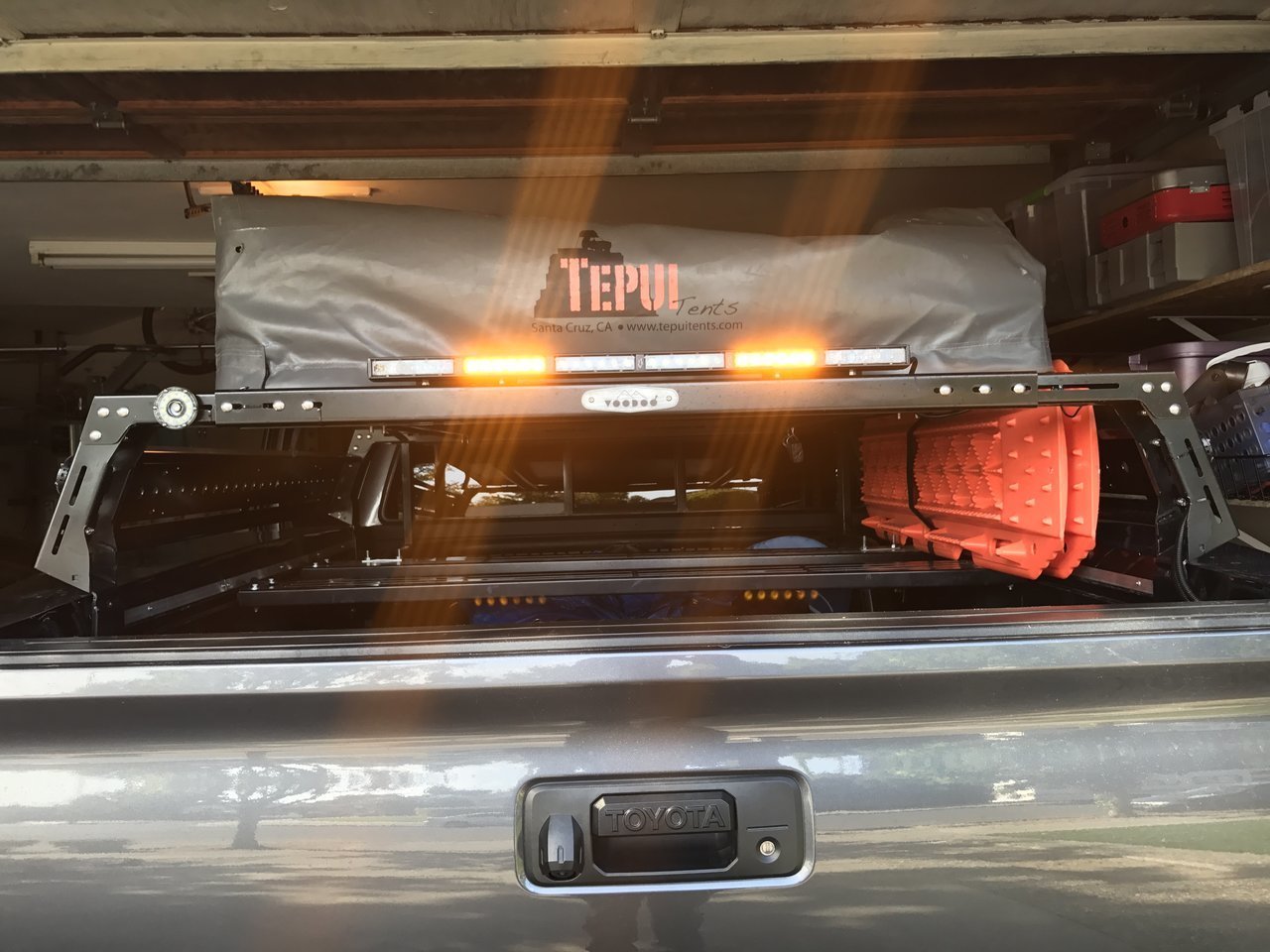

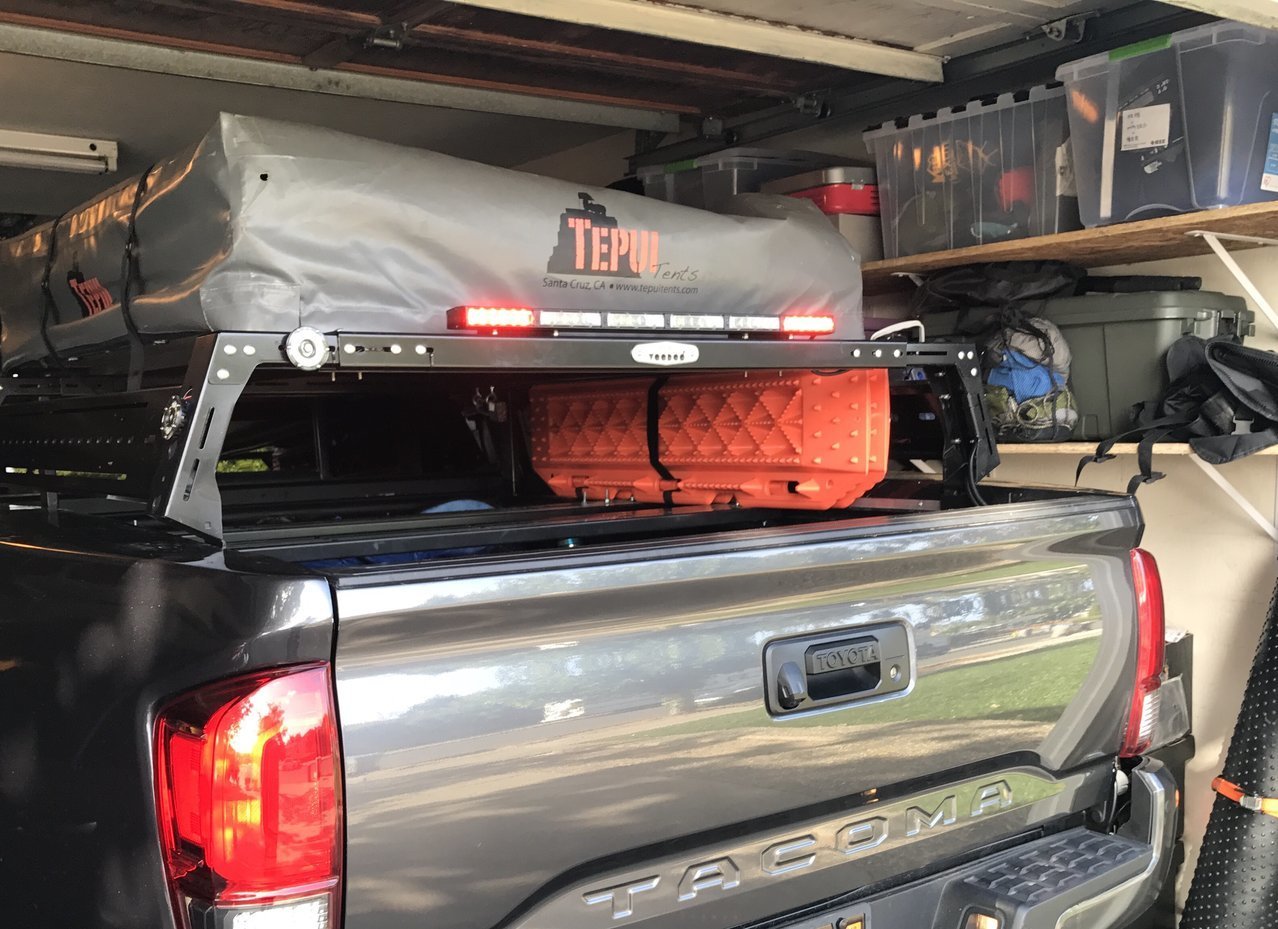

    Many people are beginning to use these as a third brake light is now required in many areas. When running an RTT on a bed rack or a similar setup, the stock third tail-light on Tacomas is covered. Placing this behind the RTT may save you a potential headache! Here is @erok81 with it installed on his Tacoma.





    Last edited: Dec 29, 2017
  2. Dec 29, 2017 at 3:15 PM
    #2
    solscooter

    solscooter Sh!t Outta Luck

    Joined:
    Nov 8, 2015
    Member:
    #169056
    Messages:
    1,985
    Gender:
    Male
    First Name:
    Brian
    Minnesota
    Vehicle:
    2016 TRD OR DCSB 4x4
    Mobtown Offroad
  3. Sep 13, 2018 at 9:43 PM
    #3
    Papadave418

    Papadave418 Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,373
    Gender:
    Male
    First Name:
    Dave
    Ripon, Ca
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Ray 10’s & Center Console Organizer!!
    My rack goes on and off, is there a connector you could recommend that I can plug it into for the full functionality when I have my rack and RTT on?

  4. Sep 13, 2018 at 10:03 PM
    #4
    fergyz

    fergyz Mmmm...Tacos

    Joined:
    Apr 25, 2012
    Member:
    #77624
    Messages:
    715
    Gender:
    Male
    49th State
    Vehicle:
    06' DBC 4x4 6spd
    Papadave418 likes this.
  5. Sep 13, 2018 at 10:18 PM
    #5
    fergyz

    fergyz Mmmm...Tacos

    Joined:
    Apr 25, 2012
    Member:
    #77624
    Messages:
    715
    Gender:
    Male
    49th State
    Vehicle:
    06' DBC 4x4 6spd
    while I posted a link for an idea of what you need... I have not used that particular product from that manufacturer.

    you are looking for an 8 pin weather pak connector. my suggestion is to make sure you have 2 sets of the connectors. you will use one full set to wire up the light. I would take the connector for light bar end out of the second set, modify it, and use that as a plug cap. this will help keep corrosion on the pins to a minimum when the rack is not installed.

    Papadave418 likes this.
  6. Sep 14, 2018 at 10:37 AM
    #6
    Taylor@KC HiLiTES

    Taylor@KC HiLiTES [OP] Well-Known Member Vendor

    Joined:
    Nov 11, 2016
    Member:
    #202104
    Messages:
    1,051
    Gender:
    Male
    First Name:
    Taylor
    Arizona
    Vehicle:
    2010 DCSB TRD OR 4x4
    See build thread
    Yes I agree with the above. You want an 8 pin connector (or if you can't find it, just use two 4 or 5 pin connectors) that is waterproof. If you have an electrical supply store near you that specializes in electrical they'll be able to help you out! Keep in mind that you'll need the actual plastic connector in make and female, AND the male and female metal pins (conductors) that you'll crimp and maybe sauter the the wires that will go into those plastic connectors. @tacozord has a really good thread that covers how to use plugs like this.

    https://www.tacomaworld.com/threads...n-rtmr-fuse-relay-block.399454/#post-11086089

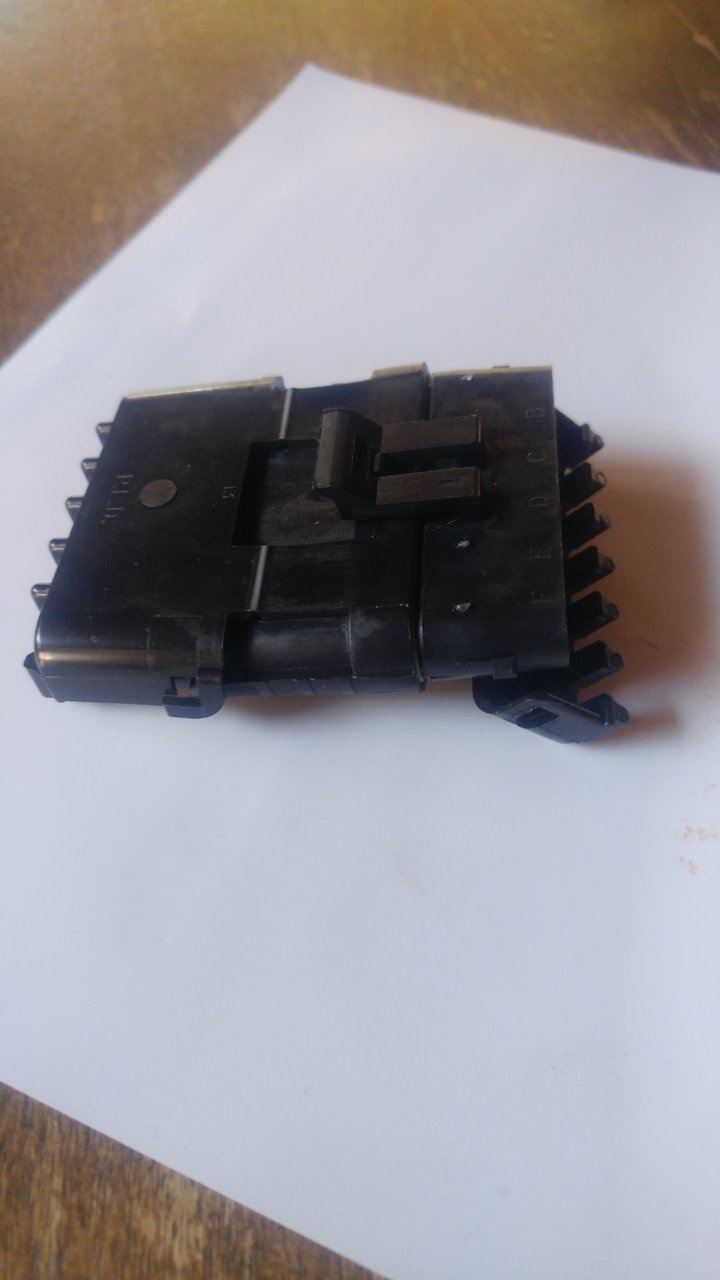

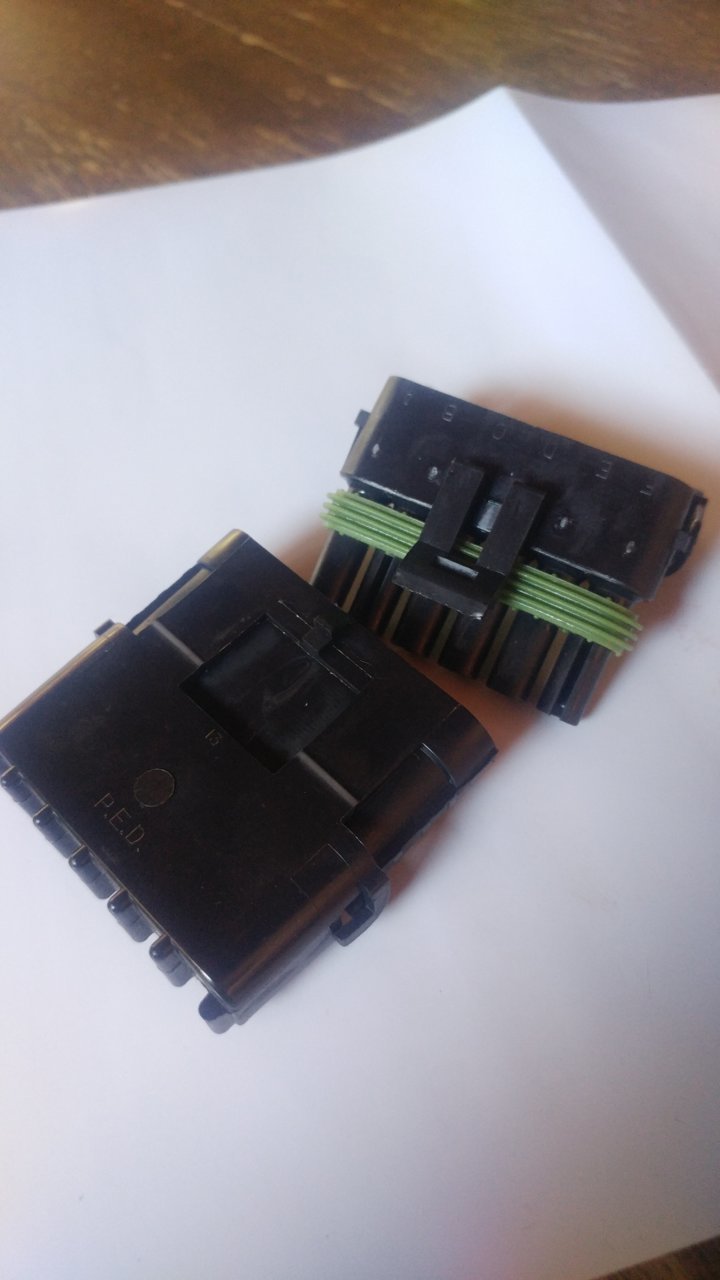

    I don't have any 8pins on hand, but it will look similar to this (which I use to wire all of my switches inside of my cab to my RTMR fuse block):

    0914181026.jpg 0914181027.jpg

    tacozord and Papadave418 like this.
  7. Sep 22, 2018 at 8:56 AM
    #7
    Papadave418

    Papadave418 Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,373
    Gender:
    Male
    First Name:
    Dave
    Ripon, Ca
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Ray 10’s & Center Console Organizer!!
    I got some harnesses for my build, though I haven’t purchased the bar yet. What does street legal entail? And do you have any Tacoma specific harnesses or plugs to make installation plug and play?

  8. Sep 23, 2018 at 2:45 AM
    #8
    Bruce988jl

    Bruce988jl Well-Known Member

    Joined:
    Oct 29, 2015
    Member:
    #168035
    Messages:
    4,444
    Gender:
    Male
    First Name:
    Jason
    Boston MA
    Vehicle:
    05 Mitsubishi Evo 08 Tacoma Dbl Cab TRD Off-Road
    Hm... I might have to look into this for my truck as my spare blocks the passengerside lights and this would mount up great to the rack. Time to do some research.

  9. Sep 23, 2018 at 7:40 AM
    #9
    Taylor@KC HiLiTES

    Taylor@KC HiLiTES [OP] Well-Known Member Vendor

    Joined:
    Nov 11, 2016
    Member:
    #202104
    Messages:
    1,051
    Gender:
    Male
    First Name:
    Taylor
    Arizona
    Vehicle:
    2010 DCSB TRD OR 4x4
    See build thread
    Street legal entails the product being in line with specific standards in order to be (those SAE certifications) street legal compliant. We do not make any plug and play applications right now, and I don't think we're planning on it either. It would take a knowledge of some pretty basic wiring skills/techniques to install.

    Let me know if you have any questions!
