Kenwood DMX906S with Maestro ??

Discussion in 'Audio & Video' started by seafur, Nov 2, 2019.

  1. Nov 2, 2019 at 3:02 PM
    #1
    seafur

    seafur [OP] Well-Known Member

    Joined:
    Jul 11, 2014
    Member:
    #133755
    Messages:
    115
    Gender:
    Male
    Pacific Northwest
    Vehicle:
    2014 DCSB MT TRD OR
    Sprinter bed tiedowns, Aux fuse box, AIO key, 3-way canopy light switch, 12V bed outlet, Dual Battery AGM G35, Viair OBA, Uni-filter mod
  2. Nov 2, 2019 at 9:27 PM
    #2
    Purpleman

    Purpleman Well-Known Member

    Joined:
    Aug 13, 2014
    Member:
    #136093
    Messages:
    539
    Gender:
    Male
    Anaheim
    Vehicle:
    15 PreRunner
  3. Nov 3, 2019 at 11:30 AM
    #3
    lil_buddy

    lil_buddy Well-Known Member

    Joined:
    Sep 1, 2019
    Member:
    #303898
    Messages:
    62
    Vehicle:
    2015 Taco_TRD_Pro (Offroad+Tow Pkg)

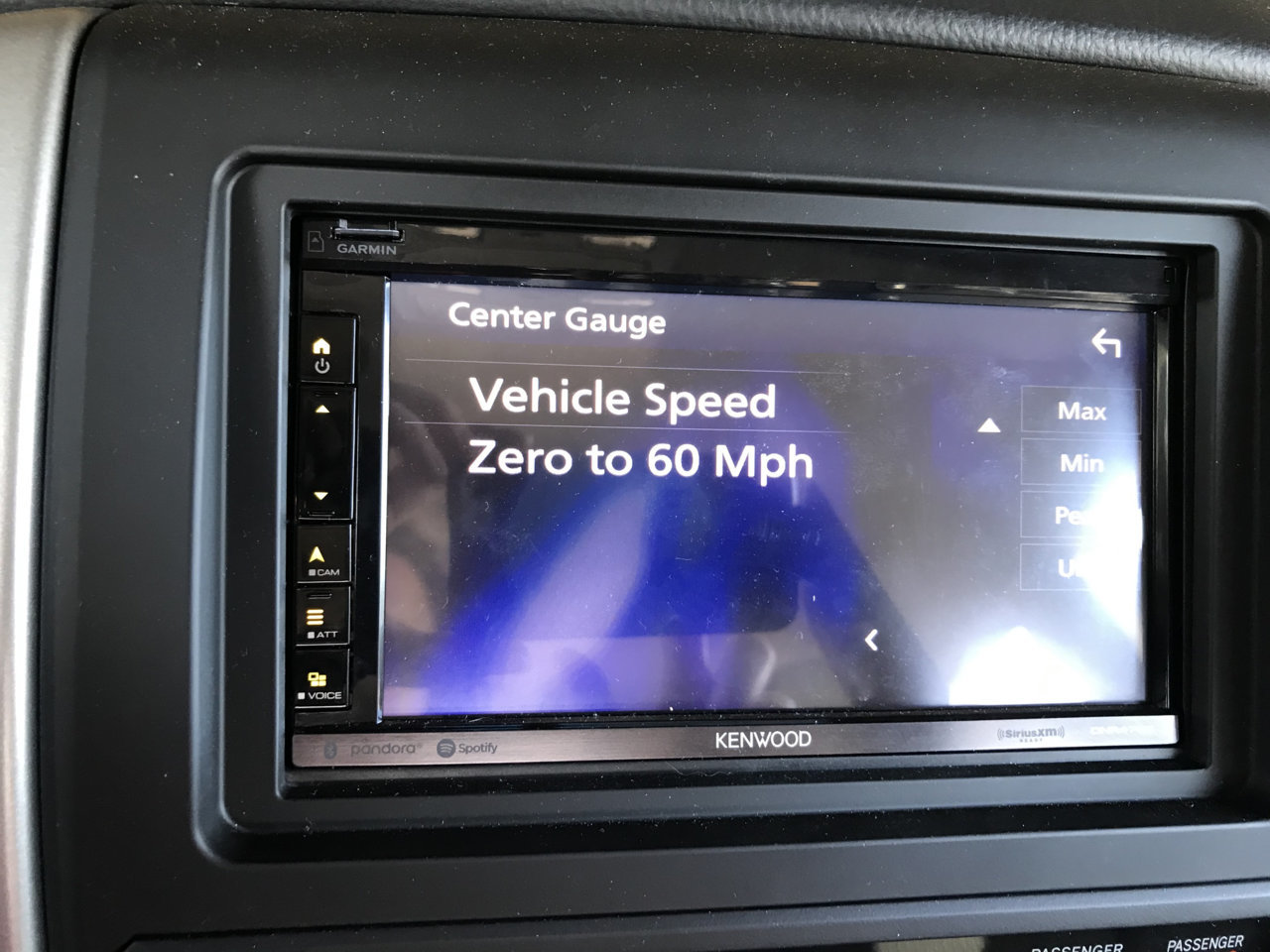

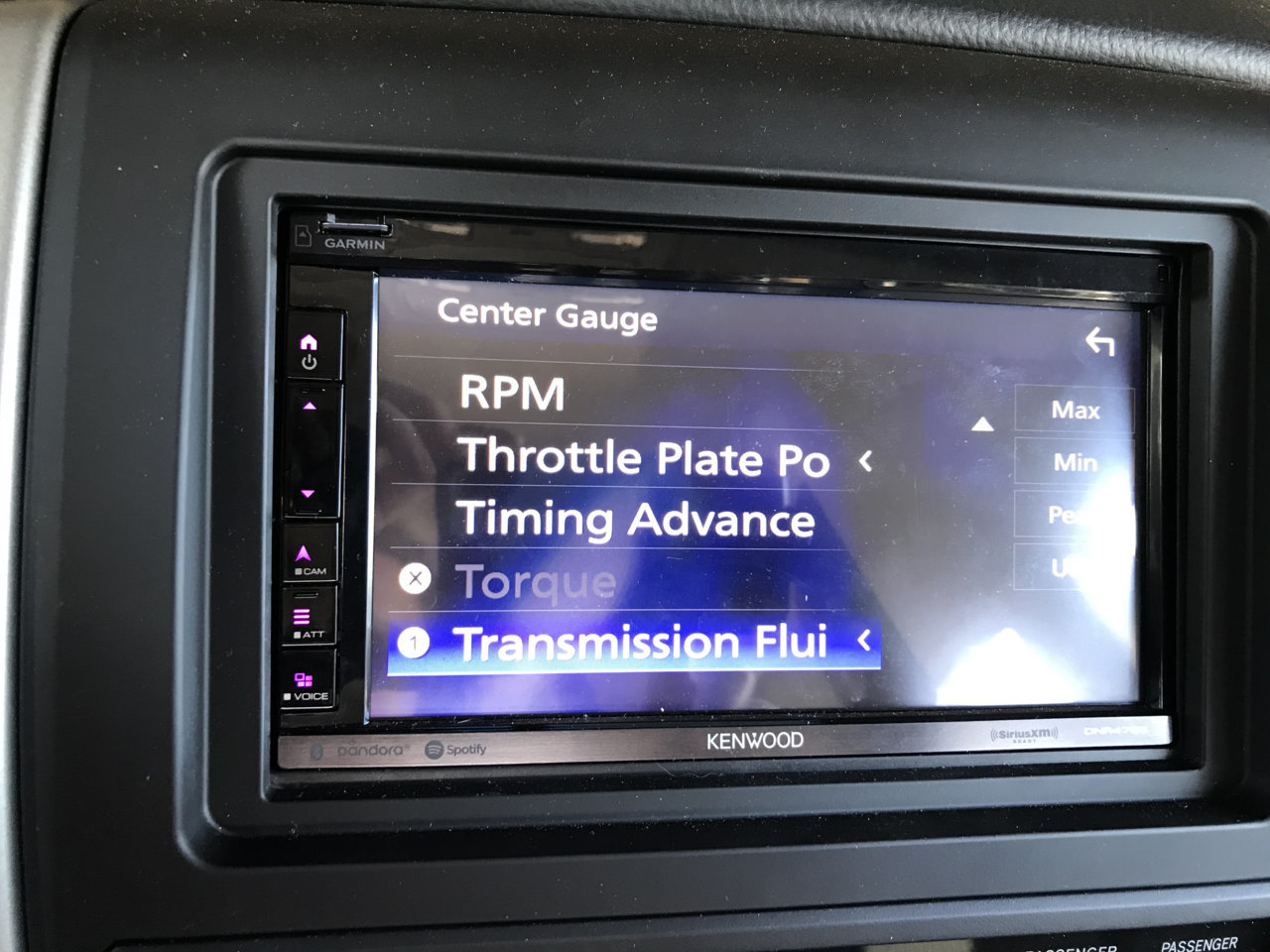

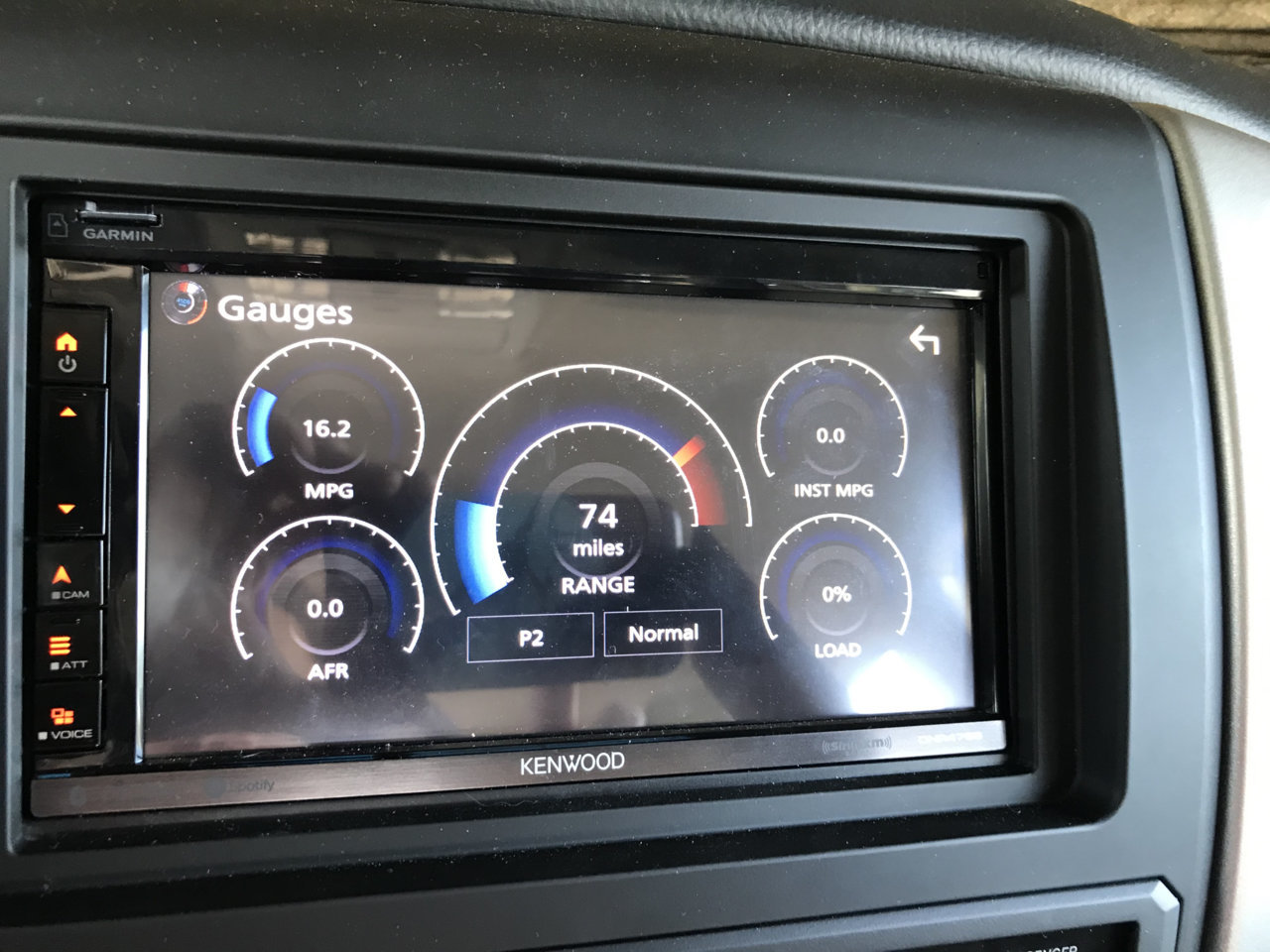

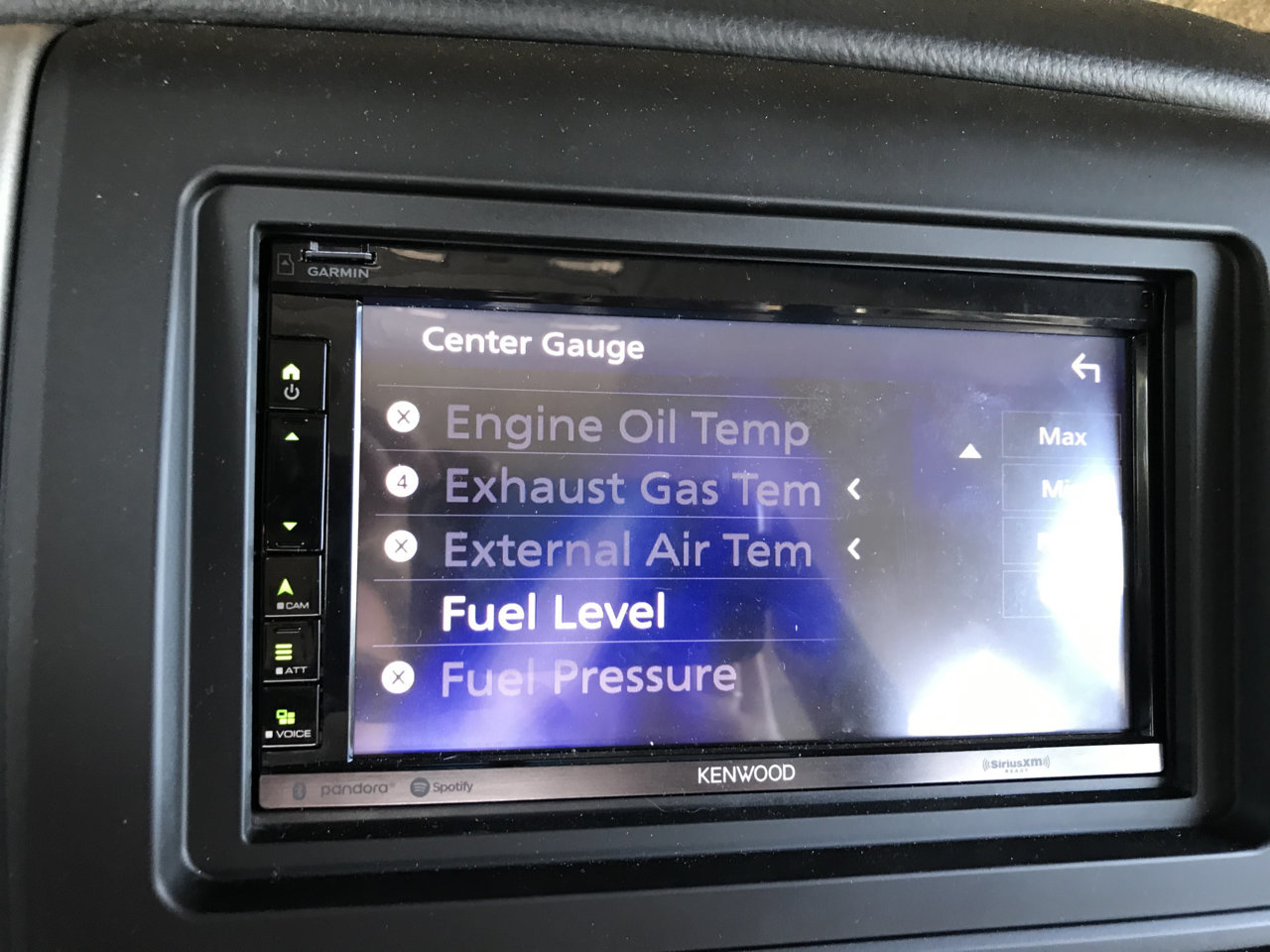

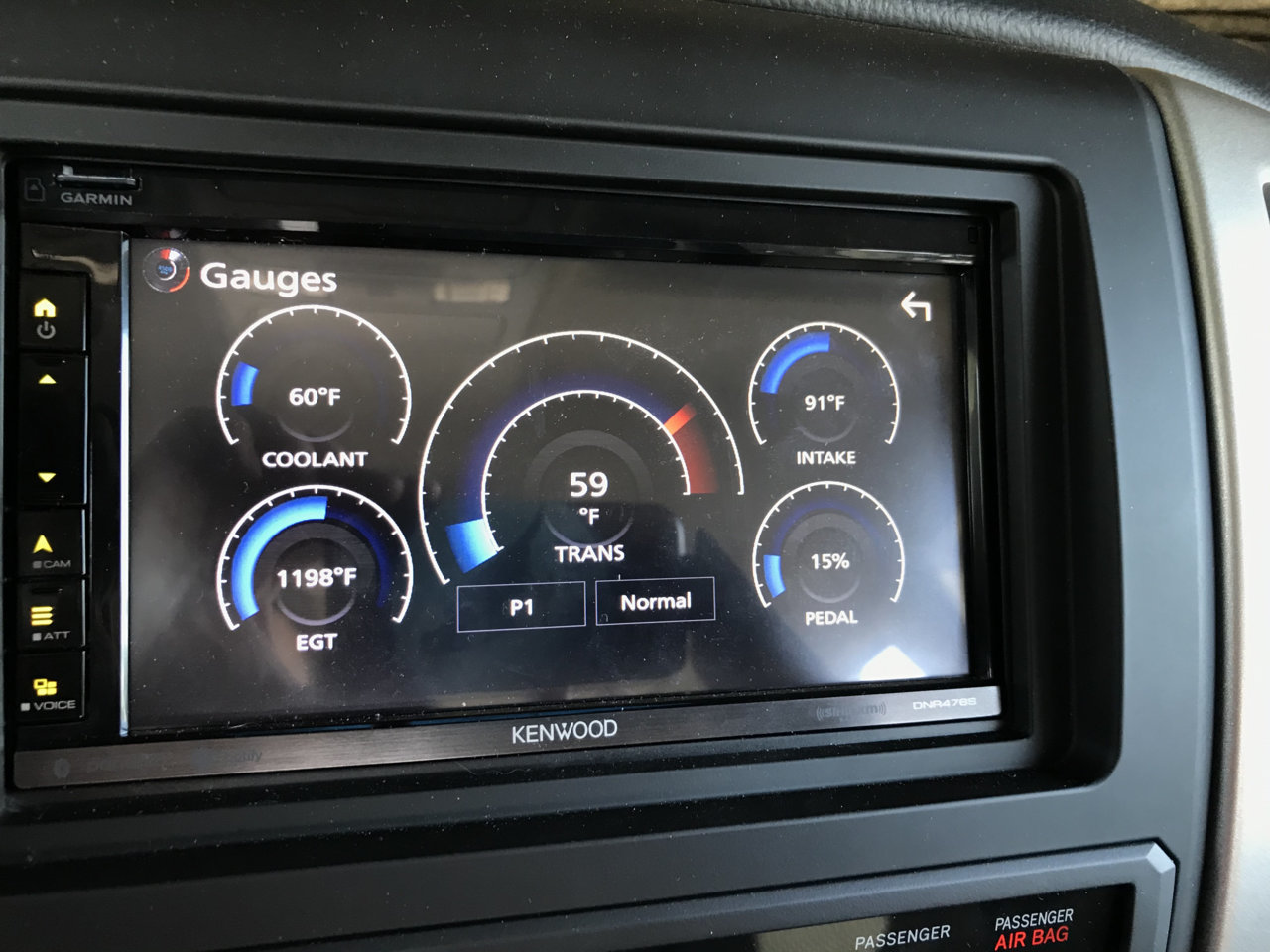

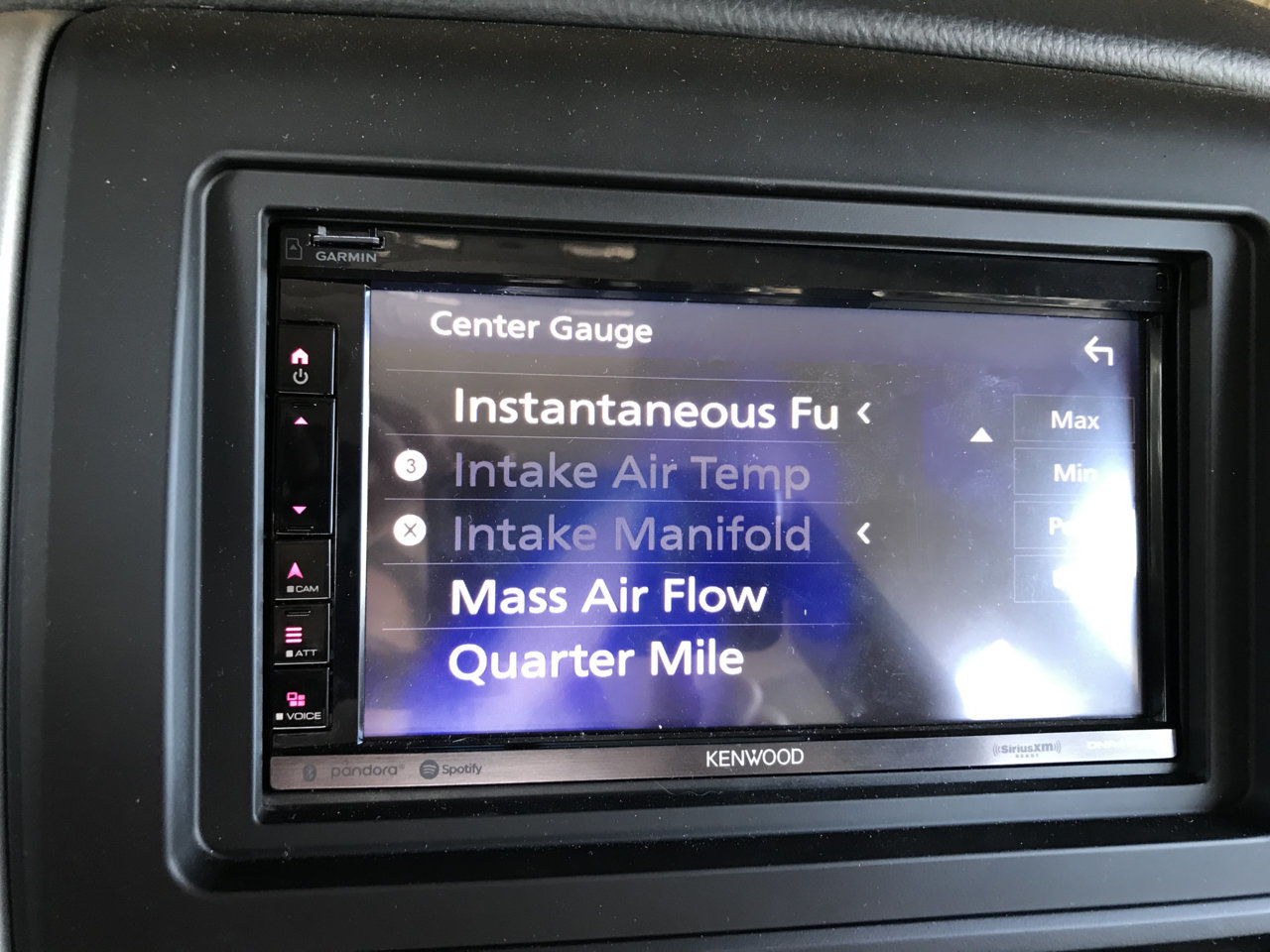

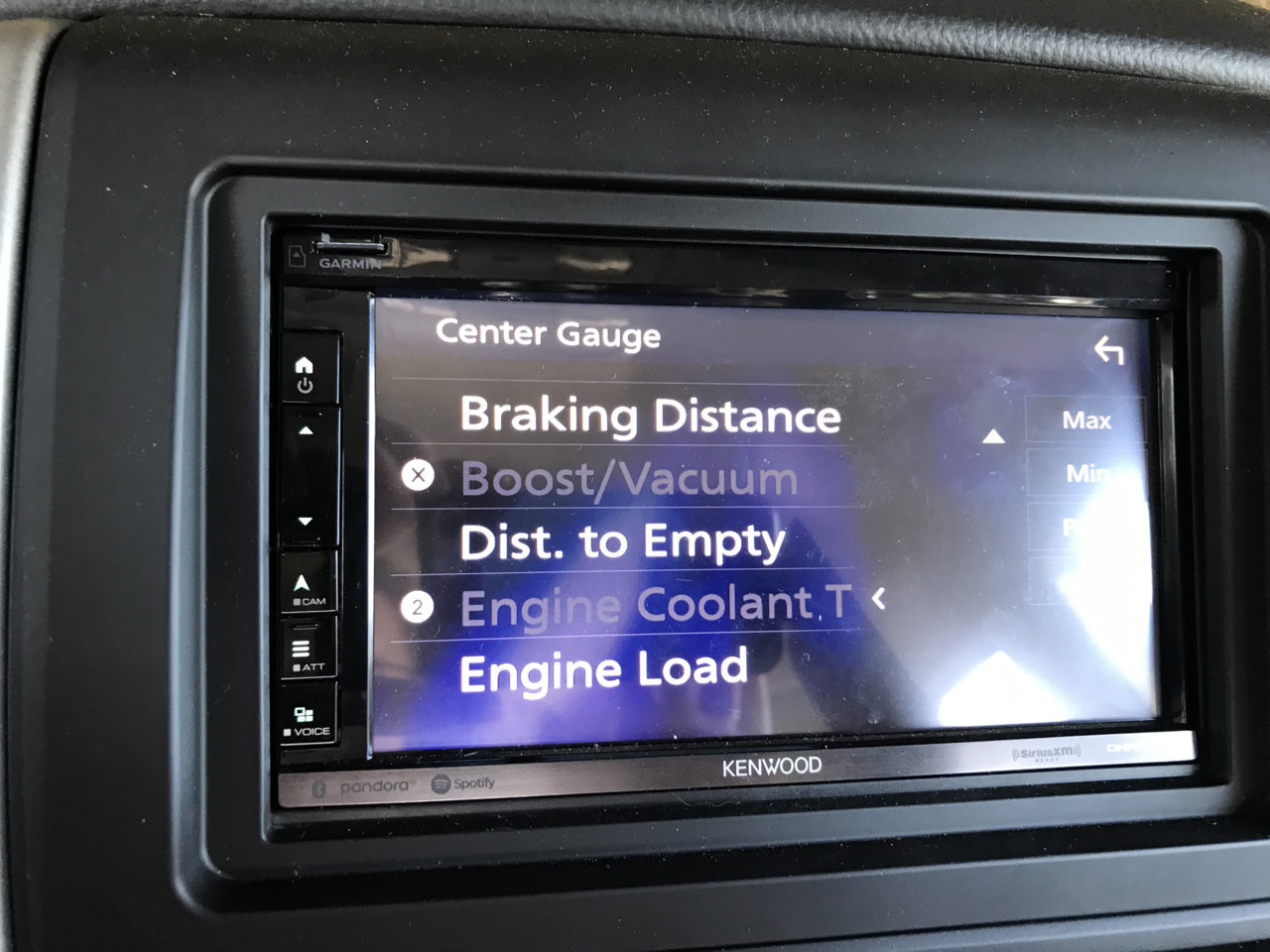

    Attaching photos of all menu pages for available gauges.

    I have the Kenwood dnr476s - I doubt the gauges available are different for the 2 different Kenwood units on our different vehicles, but it is possible.

    The non-highlighted gauges with the 'x' on the left are not available.

    IMG_5611.jpg IMG_5612.jpg IMG_5613.jpg IMG_5614.jpg IMG_5615.jpg IMG_5616.jpg IMG_5617.jpg IMG_5618.jpg

  4. Nov 3, 2019 at 11:36 AM
    #4
    lil_buddy

    lil_buddy Well-Known Member

    Joined:
    Sep 1, 2019
    Member:
    #303898
    Messages:
    62
    Vehicle:
    2015 Taco_TRD_Pro (Offroad+Tow Pkg)

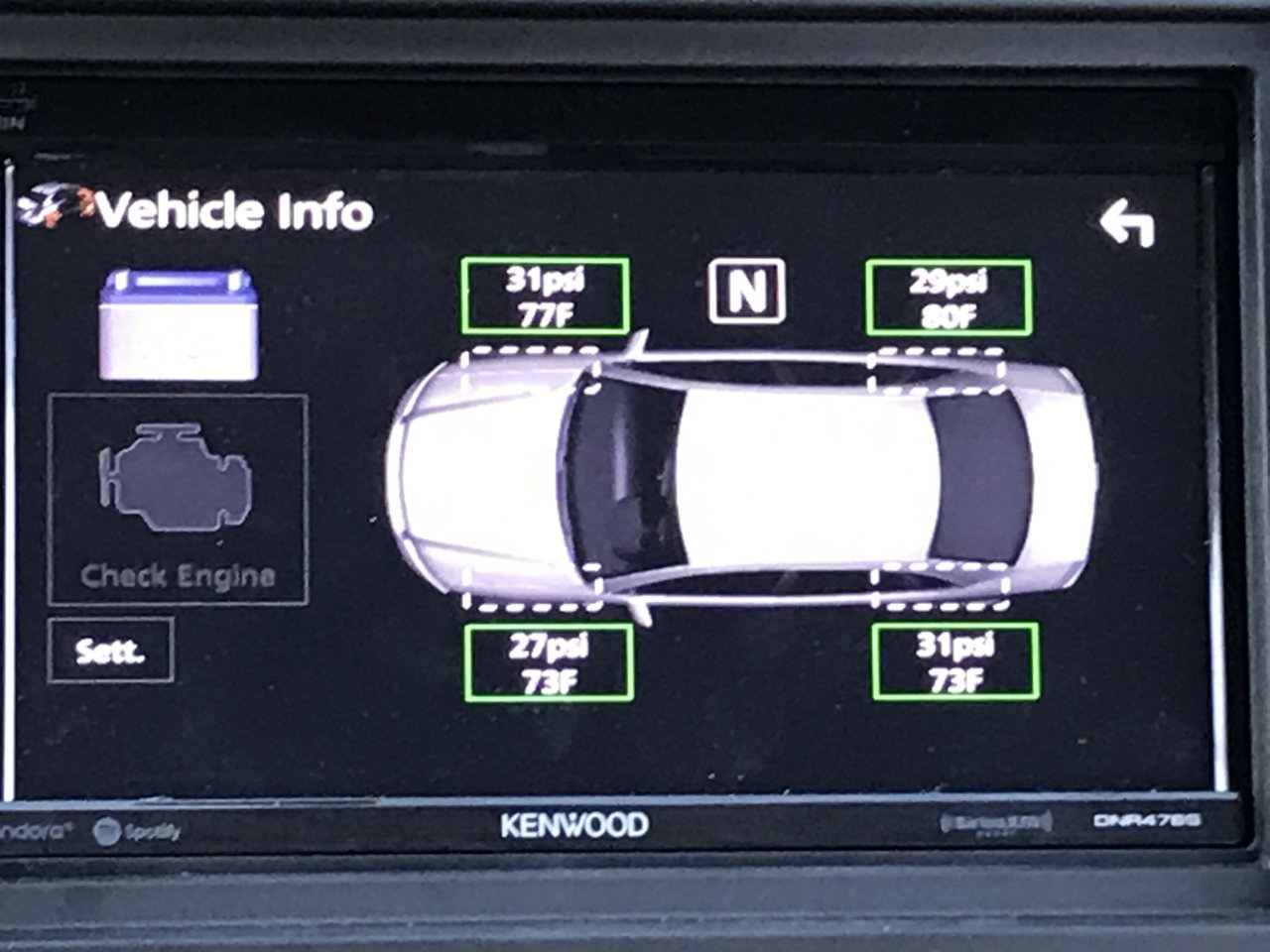

    The tire pressure and battery voltage are displayed on their own permanent screen which is not customizable...
    (sorry for the bad pic - somehow the battery voltage is not showing up due to the lighting conditions. It is viewable in that little battery icon on the upper left.)
