Keyless Entry Conversion

Discussion in '2nd Gen. Tacomas (2005-2015)' started by chaddawkins, Jul 3, 2011.

  1. Jul 3, 2011 at 10:35 AM
    #1
    chaddawkins

    chaddawkins [OP] Well-Known Member

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    292
    Gender:
    Male
    First Name:
    Chad
    Kaneohe, Hawaii
    Vehicle:
    PreRunner SR5
    PROJECT COMPLETE


    I have a 2005 Tacoma PreRunner SR5 Regular Cab; I just finished adding OEM cruise and am interested in adding OEM Keyless Entry.

    If you know of a write-up on this please provide me with a link or any other info you may have, I can't find much on it just others asking like myself.

    After doing a little research it seems all I need is the door actuators, door wire harnesses, wireless receiver, and key fob.

    How to program key fob
    Atermarket actuator Install

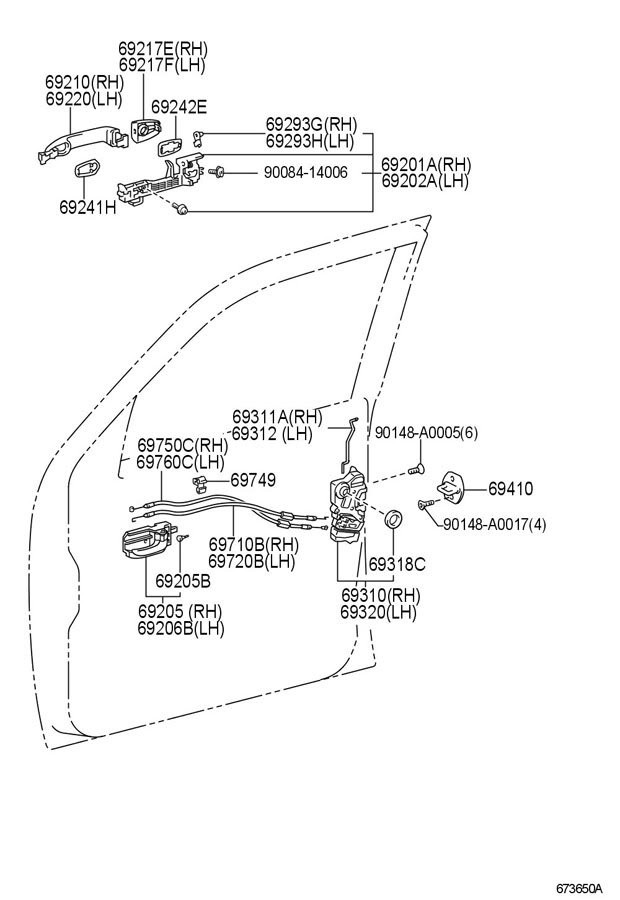

    6904004030 LOCK ASSY, FRONT DOOR, LH
    6903004030 LOCK ASSY, FRONT DOOR, RH
    6931804010 SEAL, DOOR LOCK WIRING HARNESS
    [​IMG]

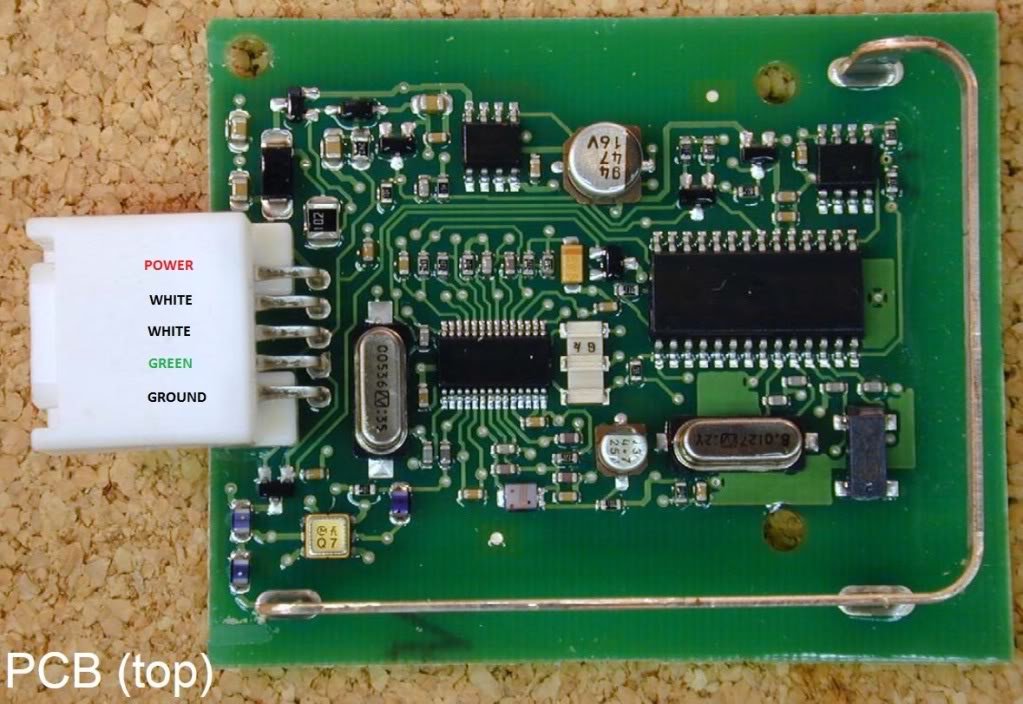

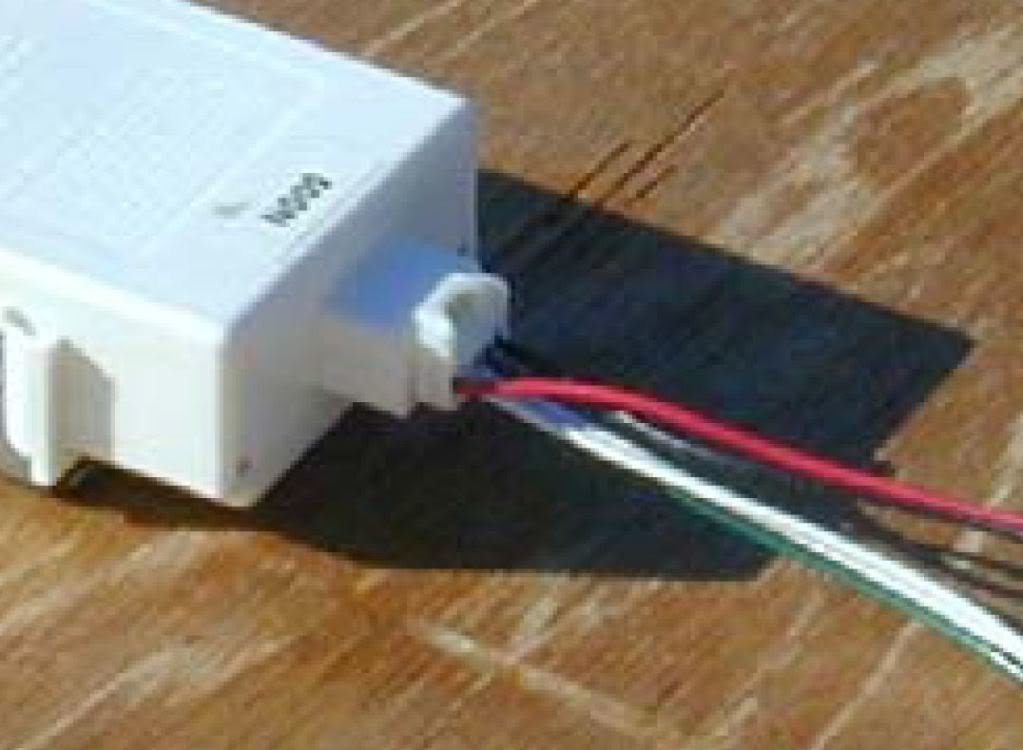

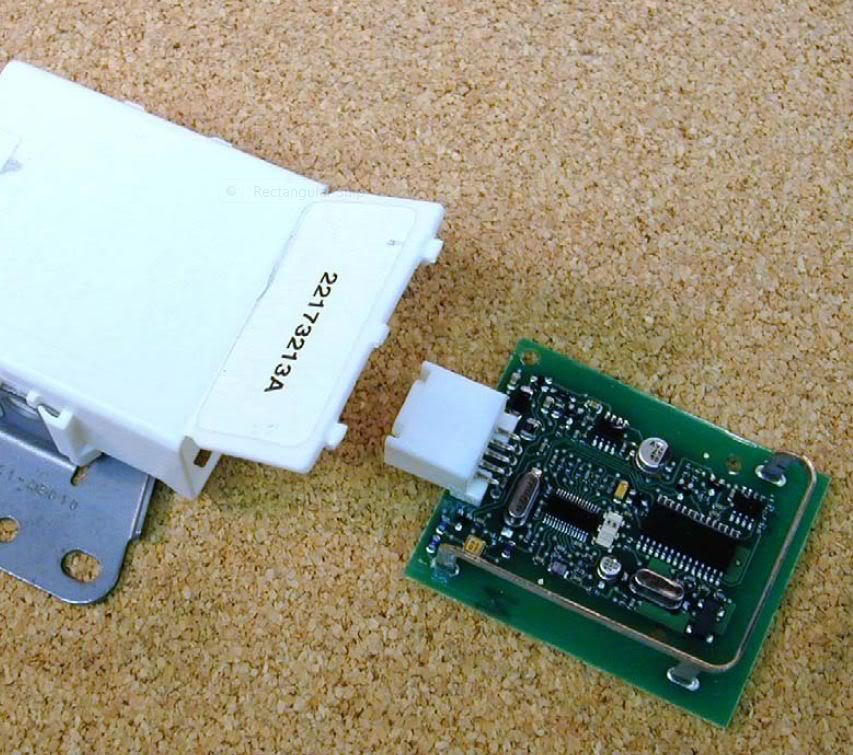

    89741-04010 RECEIVER, DOOR CONTROL, WIRELESS
    90159-50327 SCREW, W/WASHER
    89747AC010 BUZZER, WIRELESS DOOR LOCK
    [​IMG]

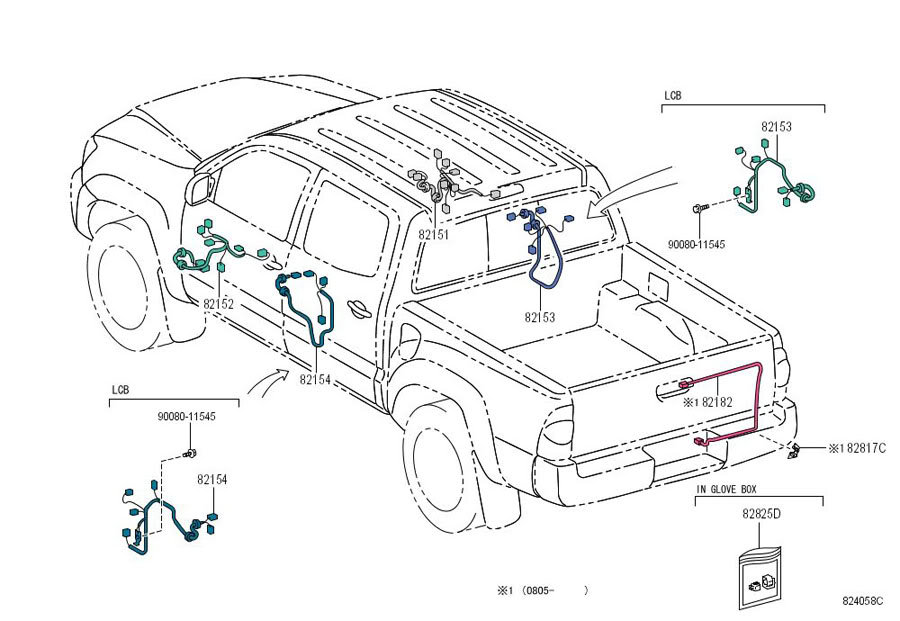

    Driver Side Door Wires 82152
    8215204170 WIRE, FRONT DOOR, LH
    8215204220 WIRE, FRONT DOOR, LH
    8215204230 WIRE, FRONT DOOR, LH
    8215204240 WIRE, FRONT DOOR, LH
    8215104220 WIRE, FRONT DOOR, LH; WIRE, FRONT DOOR, RH
    Passenger Side Door Wires 82151
    8215104220 WIRE, FRONT DOOR, LH; WIRE, FRONT DOOR, RH
    8215104280 WIRE, FRONT DOOR, RH
    8215104290 WIRE, FRONT DOOR, RH
    8215104300 WIRE, FRONT DOOR, RH
    [​IMG]
    The next step is finding a harness plug behind the glove box for the wireless receiver.
    [​IMG]
    [​IMG]


    I received the power actuators and installed them last night; i really had to stretch the wires to plug them in, nothing to spare. I hit the lock button and it worked!
    There was an unsuspected added bonus to this project: the dome light stays on after I shut the door for ~15 sec or untill I turn the key. This is great because the light would use to turn off as soon as I shut the door. You can imagine how annoying that is at night.


    Interesting link I found:
    How to add AUX to oem radio for ~$5

  2. Jul 6, 2011 at 4:45 PM
    #2
    chaddawkins

    chaddawkins [OP] Well-Known Member

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    292
    Gender:
    Male
    First Name:
    Chad
    Kaneohe, Hawaii
    Vehicle:
    PreRunner SR5
    I don't have the plugs in my harness for this :-(

    Does anyone have a part truck with this option that I could get the harness running the length of the dash- the green harness in the pic above? FML I'd have to replace the entire harness!

  3. Jul 7, 2011 at 6:24 AM
    #3
    Eldowr

    Eldowr Well-Known Member

    Joined:
    Jun 9, 2011
    Member:
    #57989
    Messages:
    163
    Gender:
    Male
    First Name:
    Donavon
    Georgia
    Vehicle:
    1999 ext 4wd 5 Speed
    Kenwood sound system
    Chaddawkins,

    I'm looking at adding power locks and keyless to my regular cab as well. With the OEM parts what kind of prices have you found?

    Next big question.. Even without the factory wire harness, would the wireless receiver only need +12v/ground? or is it more involved? My work comp won't let me see the wire diagrams you have up.

    In my mind the all that would be needed:
    R/L actuators and hardware to tie into the lock mechanism.
    Wireless receiver/control module.

    Wiring would involve:
    +12v/ground to the control/receiver module.
    two wire lead to each actuator.

    What am I missing?

    There should be a fuse location for the door locks in the fuse block even though we don't have locks from the factory. If we're lucky their is still wires running to that location. If not it would be easy to run constant +12v and a ground to that location, then tie into it with the control module.

    We should be able to run the wiring for the actuators through the boot that the speaker wires are ran through. At worst this might cause the slightest interference in the speaker sound when the power locks are actuated.

    Now the trick is to find quality actuators and a receiver/control module at a decent price.

    I'll post up if I find anything that seems feasible! Let me know if you find OEM for decent pricing. I'd go look for a wrecked AC/DC in a junkyard. I'll have to look after my deployment is over.

    Good luck!

    -Donavon

  4. Jul 7, 2011 at 7:52 AM
    #4
    Eldowr

    Eldowr Well-Known Member

    Joined:
    Jun 9, 2011
    Member:
    #57989
    Messages:
    163
    Gender:
    Male
    First Name:
    Donavon
    Georgia
    Vehicle:
    1999 ext 4wd 5 Speed
    Kenwood sound system
    This kit looks like a good deal. Complete kit and much cheaper than anything I've found for OEM.

    A1 Electric

    Hope this helps!

    -Donavon

  5. Jul 7, 2011 at 8:17 AM
    #5
    chaddawkins

    chaddawkins [OP] Well-Known Member

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    292
    Gender:
    Male
    First Name:
    Chad
    Kaneohe, Hawaii
    Vehicle:
    PreRunner SR5
    thanks for your comment. yeah, aftermarket would be really easy, i already have an aftermarket alarm and all i would need would be two actuators and a relay [~$35] but i want oem if possible. i've been lucky and found the wireless receiver and door harnesses for $80 shipped! i got a new fob for ~$30. I can't find the actuators anywhere for under ~$100... i'm going to be patient and wait to get a deal on these somehow.

  6. Jul 10, 2011 at 2:10 PM
    #6
    chaddawkins

    chaddawkins [OP] Well-Known Member

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    292
    Gender:
    Male
    First Name:
    Chad
    Kaneohe, Hawaii
    Vehicle:
    PreRunner SR5
    sourcing the wire harness

  7. Jul 15, 2011 at 4:32 PM
    #7
    chaddawkins

    chaddawkins [OP] Well-Known Member

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    292
    Gender:
    Male
    First Name:
    Chad
    Kaneohe, Hawaii
    Vehicle:
    PreRunner SR5
    fml, got one for $100 shipped... should be here sometime late next week... will probably install next weekend

  8. Jul 15, 2011 at 4:39 PM
    #8
    chaddawkins

    chaddawkins [OP] Well-Known Member

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    292
    Gender:
    Male
    First Name:
    Chad
    Kaneohe, Hawaii
    Vehicle:
    PreRunner SR5
    as far as i can figure, the receiver module doesn't control the locking/unlocking, it just relays the message to the ecu; the ecu tells the actuators to lock/unlock. I don't have an actuator yet and i can't even find a pic of one that shows what the wiring is like. I have a good pic of the receiver module from the fcc website from the trial tests they conducted. I can make out which pin is positive and negative but not much more after that. I hope to do this project with all correct oem parts, then figure out a "hack" of sorts for others to do with minimal parts.
    [​IMG]

    [​IMG]

    [​IMG]

  9. Jul 26, 2011 at 5:09 PM
    #9
    chaddawkins

    chaddawkins [OP] Well-Known Member

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    292
    Gender:
    Male
    First Name:
    Chad
    Kaneohe, Hawaii
    Vehicle:
    PreRunner SR5
    I received the harness last week. I may have time to install it this weekend.

  10. Jul 26, 2011 at 8:04 PM
    #10
    Eldowr

    Eldowr Well-Known Member

    Joined:
    Jun 9, 2011
    Member:
    #57989
    Messages:
    163
    Gender:
    Male
    First Name:
    Donavon
    Georgia
    Vehicle:
    1999 ext 4wd 5 Speed
    Kenwood sound system
    Good deal!

    Good luck with it, pics are a plus ;)

  11. Jul 31, 2011 at 9:47 PM
    #11
    chaddawkins

    chaddawkins [OP] Well-Known Member

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    292
    Gender:
    Male
    First Name:
    Chad
    Kaneohe, Hawaii
    Vehicle:
    PreRunner SR5
    I installed the new harness. The install is easy. All the bolts to the upper/main dash are up front, minus one on the passenger side. Open the passenger door and look to the side of the dash, pop off that panel and there is the bolt. Once all the bolts are off, i'd say 8~10, just pull the dash forward. Don't forget the two bolts holding the passenger airbag in place - there's no need to pull the airbag from the back of the dash. To install the harness simply start from one end, I started with the passenger side but either side will work, and unplug one at a time while plugging the new plug in it's place. From beginning to end it took me ~3 hours.

    Sorry, I don't have any pics, my camera has been screwed up for a few days now; i put in a charged battery but it cuts off after 2~3 sec as if the battery is dead - time for a new one, i've had this one for nearly 8 years; a fuji finepix z1, nice camera but a little dated now. I'm looking at the new Finepix x100; 3x the price of what i paid for the z1 but i like the retro feel/look. I'll more than likely end up getting another z series.

  12. Nov 23, 2011 at 7:39 PM
    #12
    chaddawkins

    chaddawkins [OP] Well-Known Member

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    292
    Gender:
    Male
    First Name:
    Chad
    Kaneohe, Hawaii
    Vehicle:
    PreRunner SR5
    I finally bought door lock actuators! I found some on eBay, auto salvage for $75/each!
    They should be here early next week. I should be able to have them in next weekend.
    A few weeks ago I got a RS3200+ system; this was to be bought last but I got it for a price i couldn't pass up. I have it installed and works fine, all i need now are the actuators installed!

    Progress to this point:
    Main wire harness
    Wireless receiver
    Door harnesses
    RS3200+
    Key FOB

  13. Nov 23, 2011 at 7:46 PM
    #13
    Johns Taco

    Johns Taco I'm not 4x4, and have an open diff. So i'm 4x1

    Joined:
    Dec 6, 2010
    Member:
    #47253
    Messages:
    2,085
    Gender:
    Male
    First Name:
    John
    Albuquerque, NM
    Vehicle:
    05 DSM Base SR5 Slug Taco
    Full custom stereo, onboard air compressor, train horns, spacer lift, 30" tires, optima yellow top, rear slider window & tailgate anti-theft mod, pop & lock, class 3 tow hitch, lights in bed, Ultra Gauge, Weather Tech mats, yellow fog lights, camper top, air lift rear airbags, rear diff breather mod, soon to be more...
    You are definitely dedicated, I would have went for the aftermarket kit out of pure lazyness.

  14. Nov 23, 2011 at 8:04 PM
    #14
    platinumb

    platinumb Well-Known Member

    Joined:
    Jul 23, 2011
    Member:
    #60397
    Messages:
    505
    Gender:
    Male
    First Name:
    Patrick
    denver
    Vehicle:
    11 TRD OR DC Supercharged
    supercharger, focal/jl audio sound system, trd cat back
    And for the better remote range, reliability and more features for less money. You certainly are committed to having it factory man good job looks like it took you a lot of research to find all the parts.

  15. Nov 23, 2011 at 8:58 PM
    #15
    chaddawkins

    chaddawkins [OP] Well-Known Member

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    292
    Gender:
    Male
    First Name:
    Chad
    Kaneohe, Hawaii
    Vehicle:
    PreRunner SR5
    The aftermarket actuators etc just seemed "jerry rigged", which i hate. Between this and the want to take on the challenge, here i am. I'm also a little ocd :) If I had an automatic I would probably have def went with the aftermarket alarm for the remote start.

  16. Dec 1, 2011 at 4:53 PM
    #16
    chaddawkins

    chaddawkins [OP] Well-Known Member

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    292
    Gender:
    Male
    First Name:
    Chad
    Kaneohe, Hawaii
    Vehicle:
    PreRunner SR5
    Door Lock Actuator Manufacturer:
    GECOM Corp

    Address: 1025 Barachel Ln
    Greensburg, IN,
    47240-1269
    Phone: 812-663-2270
    Fax: 812-663-2230
    Website: www.gecomcorp.com

  17. Dec 2, 2011 at 6:41 PM
    #17
    chaddawkins

    chaddawkins [OP] Well-Known Member

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    292
    Gender:
    Male
    First Name:
    Chad
    Kaneohe, Hawaii
    Vehicle:
    PreRunner SR5
    Project complete

  18. Dec 2, 2011 at 8:11 PM
    #18
    othater

    othater Well-Known Member

    Joined:
    Aug 22, 2009
    Member:
    #21558
    Messages:
    292
    Gender:
    Male
    SoCal-Walnut
    Vehicle:
    06 Prerunner SR5 TRD Sport
    Good job. Your very dedicated.

  19. Dec 12, 2011 at 5:59 PM
    #19
    PRERUNN

    PRERUNN Member

    Joined:
    Dec 10, 2011
    Member:
    #68530
    Messages:
    21
    Great job....what was the total cost?

  20. Dec 12, 2011 at 6:12 PM
    #20
    chaddawkins

    chaddawkins [OP] Well-Known Member

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    292
    Gender:
    Male
    First Name:
    Chad
    Kaneohe, Hawaii
    Vehicle:
    PreRunner SR5
    ~$450 and i used salvaged parts; actually, the alarm was new... and it took months/hours to do it for that price.
    the #1 thing i would look for first is if you have the harness for the receiver behide your passenger airbag; if you do, this project could be a lot easier. the hardess thing to source is someone that will split the door harnesses and actuators from the doors- people generally try to sell the door with all included hardware, they don't like splitting it up.
    good luck if you do try this; the only way i can see it being done quickly is if you throw money at it. if you want it done for just a few hundred you'd be lucky to get it done quicker than a few months
