Keyless Entry with automatic window close when locked.

Discussion in '1st Gen. Tacomas (1995-2004)' started by Billnis, May 31, 2020.

  1. May 31, 2020 at 6:45 PM
    #1
    Billnis

    Billnis [OP] Active Member

    Joined:
    Mar 23, 2020
    Member:
    #322835
    Messages:
    26
    Gender:
    Male
    First Name:
    Bill
    Menifee, CA
    Vehicle:
    2001 White Prerunner Extra Cab 3.4L V6
    Falken Wildpeak Tires, 5100 Bilstein Shocks, Android Head Unit with OBD2, Dash Camera, Backup Camera & Hands Free Microphone, Raptor Spray-on Bedliner, Remote Door Locks with Automatic Window Close, RFID Kill Switch, Custom NRT Off Road decals.
    I just got through installing these two items on my 2001 Tacoma. I thought I would share my installation with everyone. I wanted keyless entry especially since the door locks are already electronically activated with the key. I looked at a lot of options before I chose the one I did.
    There are 2 pieces for the way I installed it, one for the keyless entry and the second for the window close on lock feature.

    This possibly will work on all first gen Tacomas as long as it has electric door locks and the window up feature needs your truck to have electric windows. wire colors I can only verify for 2001 models, other years may have different wiring. 4 door models will need the 4 window version, Omega AU-93-4 for the Omega window up module, the AU-93 I link to only works for 2 windows.

    Keyless Entry: Banvie Model KS020
    https://www.amazon.com/BANVIE-4-Button-Controllers-Electrical-Pneumatic/dp/B07L4LTXSK
    The premium features of this unit:
    Can be wired to automatically lock the doors when driving and unlock when stopped.
    Optional Window close compatibility.
    Inline fuses for both the 12v constant and window lock wires.
    The remotes are really nice, the key ring hole and chrome portion is metal, not plastic.
    If you had and electric tailgate latch it could be wired to lock and unlock using the trunk wire and button.

    Here is a modified Tacoma Specific Wiring Diagram for the keyless entry that I made from the one that comes with the Banvie kit. You can see small 'X's on wires you don't use.

    All of the wire connections you need for the keyless entry can be found behind the bottom trim panel under the steering wheel behind and above the Body ECU / Fuse box.

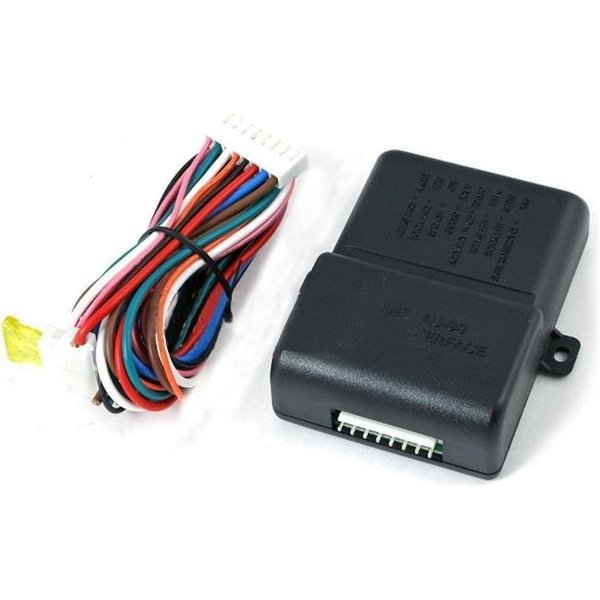

    Window Close (optional): Omega AU-93 Window Roll Up Module
    https://www.amazon.com/Omega-Au93L-Window-Module-Excalibur/dp/B01E55TAUQ

    This unit is installed with a lot of car alarm installation. This one can only open or close 2 windows, I use it to close my windows when I lock my car. I have on too many occasions locked my doors realizing I left my windows open and had to turn the key to the on position just to roll up the windows. It also has an inline fuse forthe power wire.

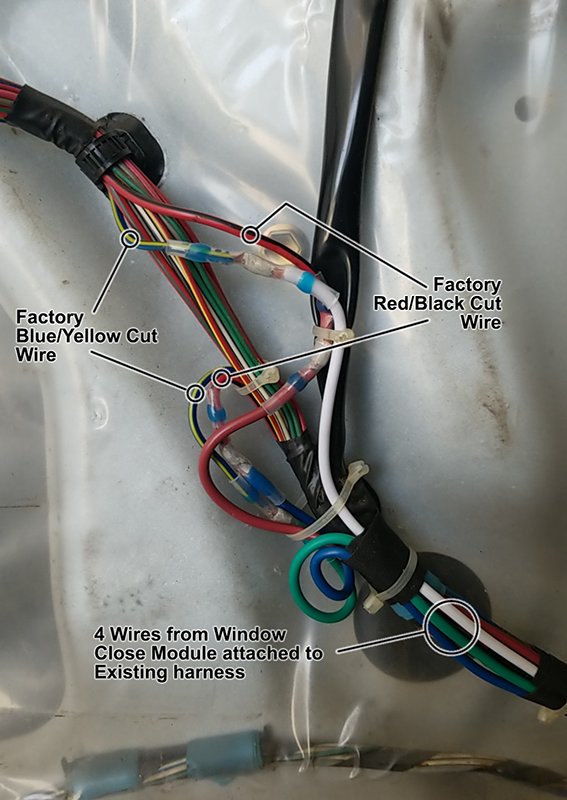

    Here is a modified Tacoma Specific Wiring Diagram for the window module that I made from the one that comes with the Omega kit.For the window close module, additional to the power, ground which connect the same as the Banvie unit, there is a signal wire that connects to the keyless entry directly and most daunting, you will need to open up the drivers door panel and cut 2 wires and connect 4 wires from the module to the 2 cut wires shown in this photo. This was easier than I thought it would be.


    Hopefully this will be helpful to someone looking for keyless entry

    Last edited: Jun 3, 2020
    Beater_Bimmer likes this.
  2. Jun 1, 2020 at 11:36 AM
    #2
    5amStevens

    5amStevens Well-Known Member

    Joined:
    Jul 29, 2017
    Member:
    #225322
    Messages:
    78
    Gilbert, Arizona
    Vehicle:
    2000 Tacoma 4x4 Prerunner TRD
    Very nice write up. About to install my keyless entry and this will help a lot!

  3. Jun 1, 2020 at 1:43 PM
    #3
    jbrandt

    jbrandt Made you look

    Joined:
    Feb 12, 2011
    Member:
    #51038
    Messages:
    15,741
    Gender:
    Male
    First Name:
    Justin
    Sacramento, CA
    Vehicle:
    '04 TRD Tacoma 4x4 DC
    Kings, J59's Total Chaos UCAs Custom skids Sticker mod
    Can you disable the window close function? There are times when I want to leave the windows cracked to minimize heat build up.

  4. Jun 2, 2020 at 11:45 PM
    #4
    Billnis

    Billnis [OP] Active Member

    Joined:
    Mar 23, 2020
    Member:
    #322835
    Messages:
    26
    Gender:
    Male
    First Name:
    Bill
    Menifee, CA
    Vehicle:
    2001 White Prerunner Extra Cab 3.4L V6
    Falken Wildpeak Tires, 5100 Bilstein Shocks, Android Head Unit with OBD2, Dash Camera, Backup Camera & Hands Free Microphone, Raptor Spray-on Bedliner, Remote Door Locks with Automatic Window Close, RFID Kill Switch, Custom NRT Off Road decals.
    The best place to turn off the roll up window module would be to put a switch on the orange wire that connects to the red trigger wire from the Banvie Keyless entry. Everything should still work except for the window not closing when the keyless lock button is pressed.
    I updated the AU-93 wiring diagram in the original post to show the optional switch.

    Last edited: Jun 3, 2020
    jbrandt likes this.
  5. Jun 14, 2020 at 9:19 AM
    #5
    Superhawk996

    Superhawk996 New Member

    Joined:
    Jun 14, 2020
    Member:
    #331380
    Messages:
    2
    Gender:
    Male
    First Name:
    Seth
    Vehicle:
    2002 Silver Tacoma Prerunner
    Radio Step bars Tow package
    I just received the Banvie kit and had a couple of questions.
    Where/what is @J/B?
    Did you use quick slices to connect to wires?

  6. Jun 14, 2020 at 7:13 PM
    #6
    Superhawk996

    Superhawk996 New Member

    Joined:
    Jun 14, 2020
    Member:
    #331380
    Messages:
    2
    Gender:
    Male
    First Name:
    Seth
    Vehicle:
    2002 Silver Tacoma Prerunner
    Radio Step bars Tow package
    Update: I was able to get the locks hooked up, before the rain came. My truck is a 2002, so the red/yellow did not work for the unlock. I had to hook the white/black wire up to the purple wire instead. Now to get the lights hooked up. It's a great mod for only $16.00.

  7. Jun 14, 2020 at 10:35 PM
    #7
    Billnis

    Billnis [OP] Active Member

    Joined:
    Mar 23, 2020
    Member:
    #322835
    Messages:
    26
    Gender:
    Male
    First Name:
    Bill
    Menifee, CA
    Vehicle:
    2001 White Prerunner Extra Cab 3.4L V6
    Falken Wildpeak Tires, 5100 Bilstein Shocks, Android Head Unit with OBD2, Dash Camera, Backup Camera & Hands Free Microphone, Raptor Spray-on Bedliner, Remote Door Locks with Automatic Window Close, RFID Kill Switch, Custom NRT Off Road decals.
    It's from the Toyota wiring manual, J/B=Junction Block Number One, which is under the steering wheel next to the door.
    The splices can be soldered, or use T Tap Electrical Connectors found at your local auto parts store. I like the Posi-Tap style connectors that pierce the wire insulation with a sharp pin.
