Kill Switch Mod Write Up.

Discussion in '2nd Gen. Tacomas (2005-2015)' started by SurfInferno, Apr 20, 2010.

  1. Apr 20, 2010 at 3:14 PM
    #1
    SurfInferno

    SurfInferno [OP] Dont be stupid, its not smart.

    Joined:
    Feb 14, 2010
    Member:
    #31393
    Messages:
    2,770
    Gender:
    Male
    First Name:
    Dylan
    Vehicle:
    2015 trd offroad
    Well i found out how to make a kill switch for out trucks. I have a 2nd gen so i dont know if it will work on a 1st gen. I found it by complete accident but has turned out pretty cool. In case you park in sketchy areas, well heres one more thing to secure your truck.

    First Buy a 2nd gen tacoma of your choice.
    [​IMG]

    Step one.
    If you have a non working dealer alarm system....remove it. its annoying anyways.
    [​IMG]

    [​IMG]

    There are lots of wire splices that just pop off if they are pulled. And there are two wires you have to cut. THIS is your ignition wire (sorry i didnt get a pic) so make sure you leave extra.

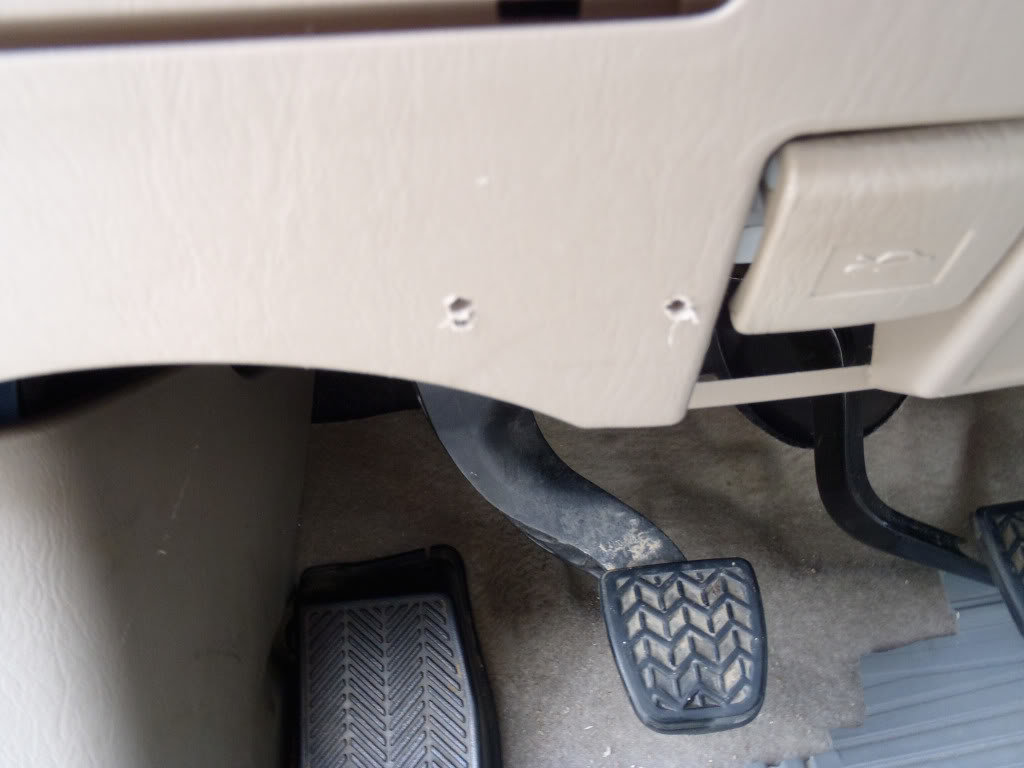

    With it removed

    [​IMG]
    [​IMG]

    Step two
    Freak out and think your starter is gone, push it pop the clutch and drive it to a dealer. Then pay $105 to have them tell you that the ignition wire is cut and that it will be another 100 to fix :eek:

    OR Follow step 3 (this is where you would start if you dont have the stupid alarm thing)

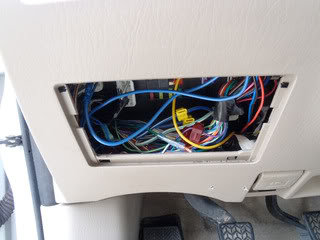

    Locate and remove the change holder, gun holder, knife holder, whatever you want to call it
    [​IMG]
    [​IMG]

    Step 4

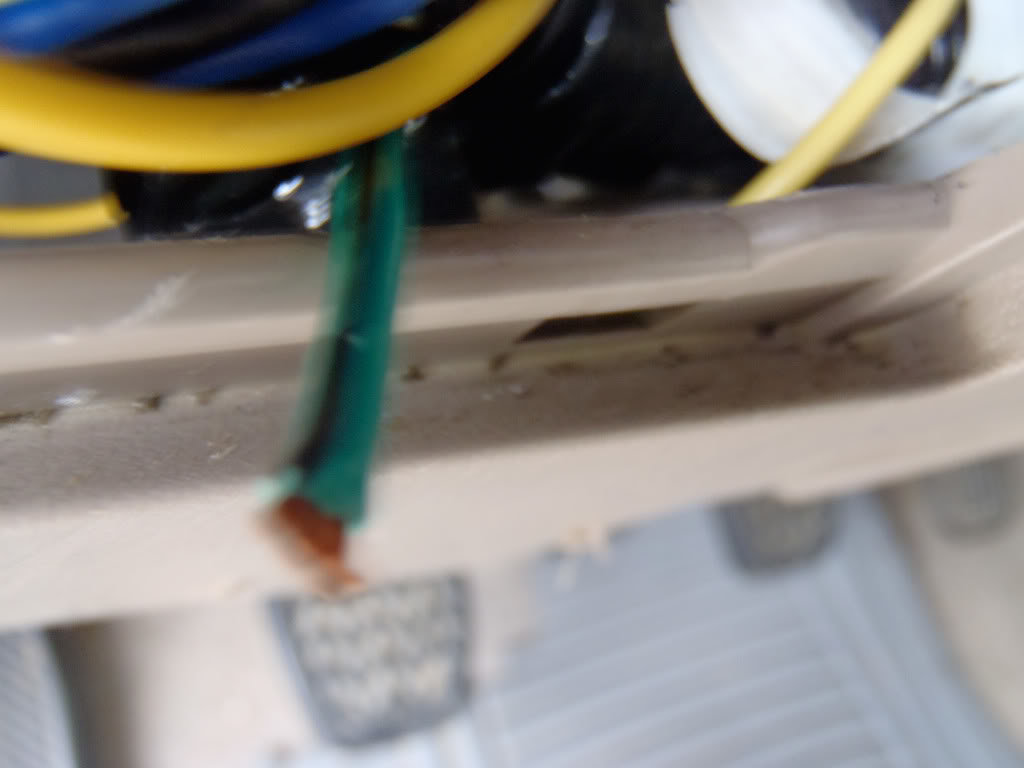

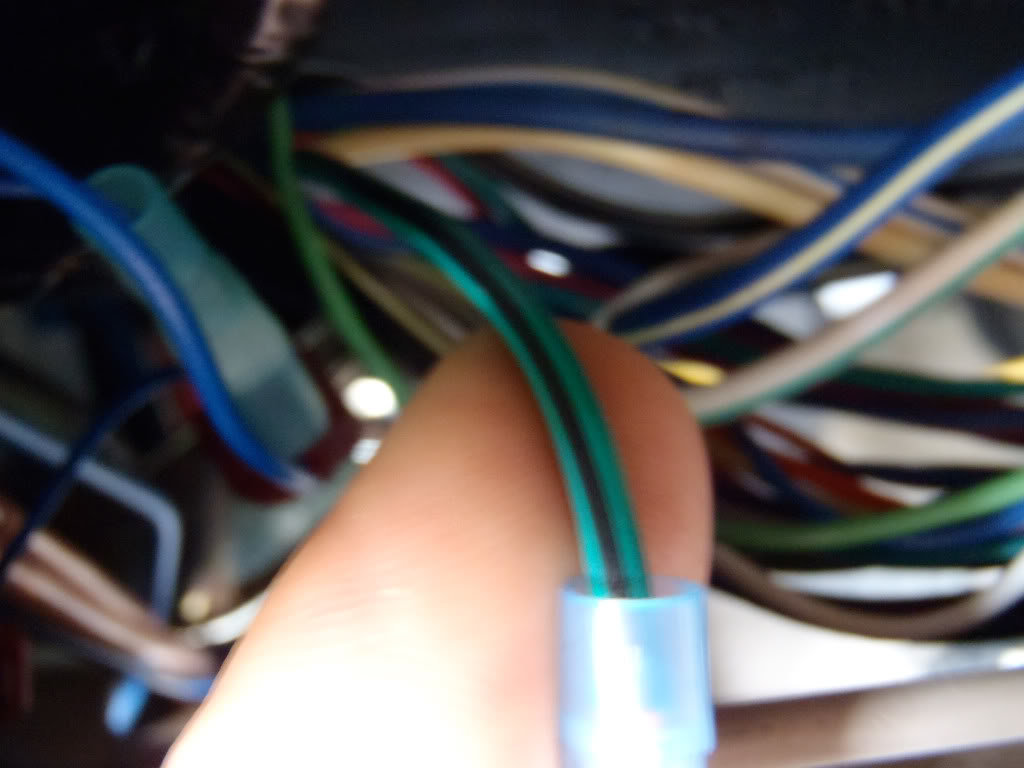

    In the cluster of wires there is a green wire with a black stripe. This is your ignition wire. To to this mod you have to cut it, if you dont feel comfortable, then dont. (for those with the alarm that was removed you had to cut two orange wires. these are attached to your ignition wires,by a butt splice.

    [​IMG]

    [​IMG]

    Step 5

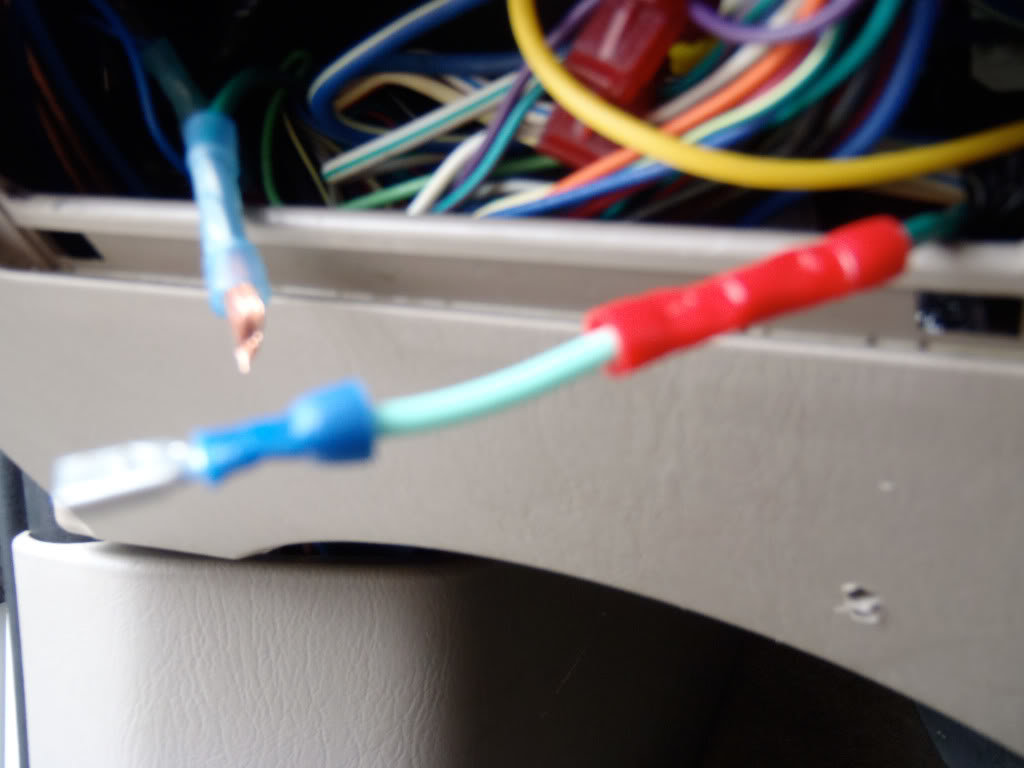

    Attach a butt splice to the wire if it is two short, adding exra wire in order to get a female crimp connector to it. The ones without the alarm might have enough slack you can skip this step.

    [​IMG]

    Step 6, repeat step 5 for the other wire.

    [​IMG]

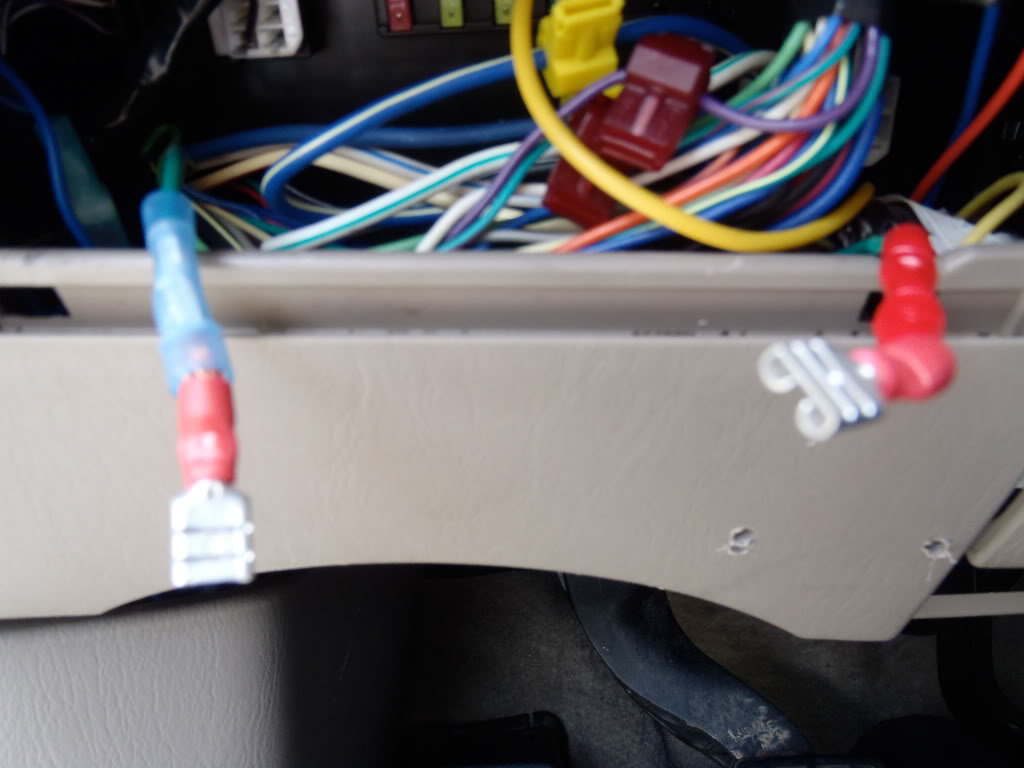

    Step 7, Attach a switch to the two wires. I used one i just had laying around, so i have to push the button in order to start the truck. I will change it later. You can use just and regular switch and turn it off and on when you want.

    If you are using a regular switch then congrats your done! Just put everything back together.But if your like me and you use the push button switch then there are two more steps.

    Step 8

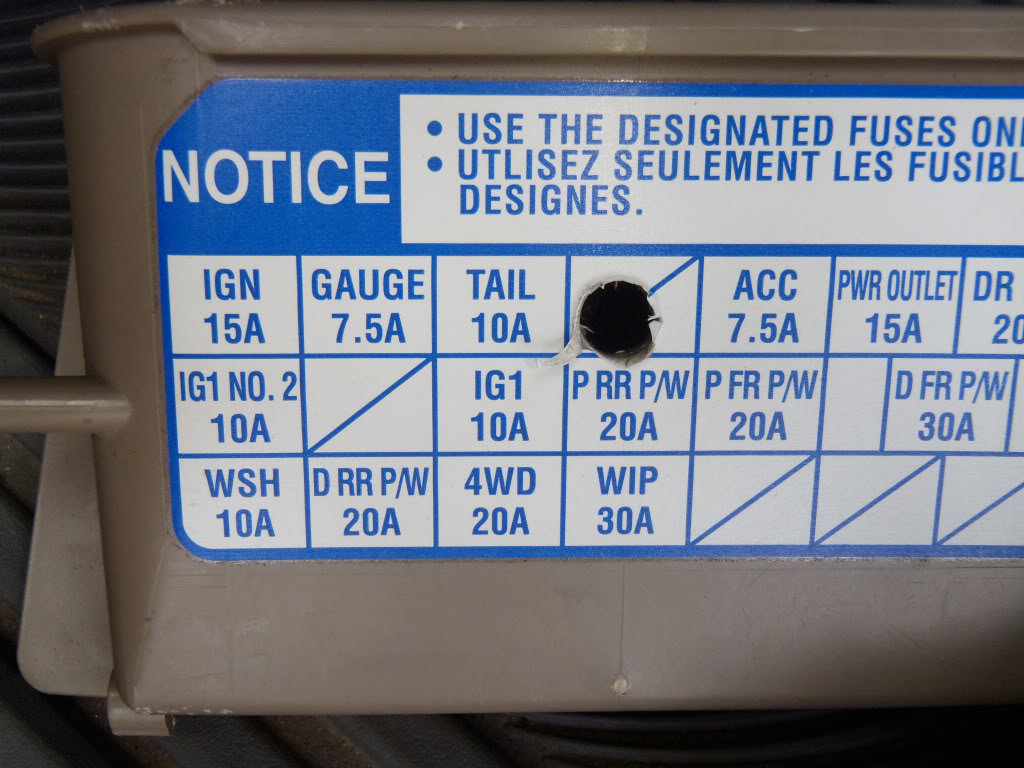

    Drill a hole in the back of the change holder.

    [​IMG]


    Step 9
    Put the switch in the hole, Test it, put everything back together

    [​IMG]

    [​IMG]

    Im going to get comments on how bad my blue switches are haha. I know, i was in a hurry, and ill but new ones some day

    I should probably add that I'm not responsible if you screw up your truck. So please do not screw up your truck! Do it at your own risk

    Camel51, jcody50 and Pirhett like this.
  2. Apr 20, 2010 at 3:28 PM
    #2
    nagelg

    nagelg Well-Known Member

    Joined:
    Mar 9, 2008
    Member:
    #5184
    Messages:
    445
    Gender:
    Male
    First Name:
    George
    Northern Wisconsin
    Vehicle:
    2015 TRD Sport
    [​IMG] Good write-up, thanks.

  3. Apr 20, 2010 at 3:35 PM
    #3
    SCFirefighter

    SCFirefighter on idiot patrol ;)

    Joined:
    Apr 20, 2010
    Member:
    #35670
    Messages:
    1,640
    Gender:
    Male
    First Name:
    Stephan
    Cary, NC
    Vehicle:
    Silver 2010 DC TRD Sport 4x4 5'
    MagnaFlow Performance Exhaust, ScanGauge II, Map, dome and license plate LED's, Custom Fire/Rescue decals, Weathertech deflectors, Removed mud flaps, Rear spring TSB, Spidertrax spacers, Tinted windows (5%/27%), Black Tacoma badges, 5100 Billstein x4, ToyTec Coilovers, ToyTec TSB AAL, Devil horns, Hose clamp tailgate mod, OEM bed mat, HomeLink module, Hardwire GPS, Weathertech digital fit floor lines, Front Diff drop, Rear Diff breather mod, 4xInnovation welded sliders, Pioneer AVH-X5800BHS+SiriusXM.
    Good one. Similar to how we wire up our police cars. They have a button in the area of the pedals that needs to be depressed before you can shift gears and get the car going. Speaking of those switches, what did you wire them to?

  4. Apr 20, 2010 at 3:35 PM
    #4
    Crom

    Crom Outside...

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    8,318
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Overland Build
    Millions
    If I read the wiring diagram for the starting circuit correctly, you have interrupted the signal that goes from the ignition switch (ST2) to the starter relay (Pin 5). This would definitely server as a kill switch. Nice!

    :proposetoast:

    [​IMG]

    Camel51 likes this.
  5. Apr 20, 2010 at 3:37 PM
    #5
    jandrews

    jandrews Carolina Alliance Southwest Region Ambassador

    Joined:
    Jun 7, 2009
    Member:
    #18122
    Messages:
    12,180
    Gender:
    Male
    Vehicle:
    '09 FourDubDee TRD OR
    A-TRUCK, Fat Kid in the Bed, Custom Pinstriping, Ported and Polished Muffler Bearing, Hi-Performance Bed Mat

    :rofl:

  6. Apr 20, 2010 at 3:48 PM
    #6
    Crom

    Crom Outside...

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    8,318
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Overland Build
    Millions
    haha butt spice. two short should also be too short. Where is jigzor?

  7. Apr 20, 2010 at 3:58 PM
    #7
    SurfInferno

    SurfInferno [OP] Dont be stupid, its not smart.

    Joined:
    Feb 14, 2010
    Member:
    #31393
    Messages:
    2,770
    Gender:
    Male
    First Name:
    Dylan
    Vehicle:
    2015 trd offroad
    I just put the switch in the circuit. Not sure on the question.

    And tioTaco No Problem!

  8. Apr 20, 2010 at 4:57 PM
    #8
    aficianado

    aficianado Well-Known Member

    Joined:
    Oct 27, 2009
    Member:
    #25015
    Messages:
    5,457
    Gender:
    Male
    bay area, california
    Vehicle:
    2006 access cab. 4x4, TRD-OR
    back to bone stock.
    hmmm...maybe you should keep the switch location secret?

    hahaahh..great write up.

  9. Apr 20, 2010 at 5:01 PM
    #9
    Timber

    Timber Crankey Old Yacht Jockey

    Joined:
    Feb 10, 2010
    Member:
    #31147
    Messages:
    237
    Gender:
    Male
    First Name:
    Tim
    San Pedro Bay Ports
    just a couple comfort items.
    I like it! Nice job.

  10. Apr 20, 2010 at 5:29 PM
    #10
    jefferson

    jefferson needs to stop cruising Buy/Sell/Trade....

    Joined:
    Jul 31, 2008
    Member:
    #8260
    Messages:
    5,269
    Gender:
    Male
    First Name:
    Sex Panther
    San Diego (North Park!), CA
    Vehicle:
    05 PreRunner SR5
    toyota brand hitch and uhaul wiring harness, fog lamps on anytime, bed lamps, map lights on with dome, day time running lamps, remove secondary air filter, painted bumper grill, Double Din touch screen stereo, Sockmonkey custom SR5 decal, door & seatbelt bells disabled, painted engine cover, installed compass/temperature overhead console, failed mod: passenger side auto down window switches, weathertech front mats, RedLine hood struts, Cheap Beep piezo buzzer locking beep, 5100s in the front set at 2.5, 5100s in the rear, AAL, hitch safe, revenge fab sliders, bed bar, prerunner light, cb wired
    FUN another cheap mod. i'll do it for shits and giggles

  11. Apr 20, 2010 at 7:26 PM
    #11
    SurfInferno

    SurfInferno [OP] Dont be stupid, its not smart.

    Joined:
    Feb 14, 2010
    Member:
    #31393
    Messages:
    2,770
    Gender:
    Male
    First Name:
    Dylan
    Vehicle:
    2015 trd offroad
    hahah sounds good. maybe itll save your truck one day

  12. Apr 20, 2010 at 7:42 PM
    #12
    jefferson

    jefferson needs to stop cruising Buy/Sell/Trade....

    Joined:
    Jul 31, 2008
    Member:
    #8260
    Messages:
    5,269
    Gender:
    Male
    First Name:
    Sex Panther
    San Diego (North Park!), CA
    Vehicle:
    05 PreRunner SR5
    toyota brand hitch and uhaul wiring harness, fog lamps on anytime, bed lamps, map lights on with dome, day time running lamps, remove secondary air filter, painted bumper grill, Double Din touch screen stereo, Sockmonkey custom SR5 decal, door & seatbelt bells disabled, painted engine cover, installed compass/temperature overhead console, failed mod: passenger side auto down window switches, weathertech front mats, RedLine hood struts, Cheap Beep piezo buzzer locking beep, 5100s in the front set at 2.5, 5100s in the rear, AAL, hitch safe, revenge fab sliders, bed bar, prerunner light, cb wired
    Yup. unless all you jackasses know where the switch is..

    Btw.. where do you live? :cool:

  13. Apr 20, 2010 at 7:46 PM
    #13
    BradleyScottETC

    BradleyScottETC Class IV Category 8 Elite VIP Member (Only)

    Joined:
    Aug 2, 2009
    Member:
    #20521
    Messages:
    1,754
    Gender:
    Male
    First Name:
    Bradley
    Lake County, FL
    Vehicle:
    10 4.0 AC 4x4
    :lalala:




    ...I love this idea, btw.

  14. Apr 20, 2010 at 7:48 PM
    #14
    SurfInferno

    SurfInferno [OP] Dont be stupid, its not smart.

    Joined:
    Feb 14, 2010
    Member:
    #31393
    Messages:
    2,770
    Gender:
    Male
    First Name:
    Dylan
    Vehicle:
    2015 trd offroad
    somewhere secret....and far away :p

  15. Apr 20, 2010 at 8:53 PM
    #15
    Viet2100

    Viet2100 Well-Known Member

    Joined:
    Jun 27, 2007
    Member:
    #1930
    Messages:
    2,512
    Gender:
    Male
    First Name:
    Viet
    Delray Beach, FL
    Vehicle:
    2007 Infiniti G35S
    Holy hell, did the dealer install that little box by your hood lever? And what is up with those rocker switches!?

  16. Apr 20, 2010 at 9:03 PM
    #16
    SurfInferno

    SurfInferno [OP] Dont be stupid, its not smart.

    Joined:
    Feb 14, 2010
    Member:
    #31393
    Messages:
    2,770
    Gender:
    Male
    First Name:
    Dylan
    Vehicle:
    2015 trd offroad
    yea....they did a really bad job, it pissed me off. haha

    HAHA i knew someone was going to comment on how bad they are hahah. They are for my grill lights, and my fogs.

    I even put a small disclaimer :p
    "Im going to get comments on how bad my blue switches are haha. I know, i was in a hurry, and ill but new ones some day"

  17. Apr 20, 2010 at 9:09 PM
    #17
    Baadboy11

    Baadboy11 Well-Known Member

    Joined:
    Jul 23, 2009
    Member:
    #20092
    Messages:
    65
    Gender:
    Male
    Lee's Summit, MO
    Vehicle:
    07 DC SB Offroad 4x4, 6spd
    I nominate this for a sticky in the cheap/free mods section!! Mainly so i can find it again!!:bananadance:

  18. Apr 20, 2010 at 9:12 PM
    #18
    joes06tacoma

    joes06tacoma Well-Known Member

    Joined:
    Jan 1, 2010
    Member:
    #28588
    Messages:
    3,056
    Gender:
    Male
    First Name:
    Joe
    Central Coast, CA
    Vehicle:
    06 4x4 Off Road Access Cab v6 6spd
    LEER Shell with dome lights operated with 3 way switches, aux backup lights with relay and 3 position switch, modified wiring to compass/temp display and clock to include switch that disables dimming function (poor man's DRL solution), Scan Gauge 2
    You guys that have an automatic trans should seriously consider putting your switch inline with the brake pedal interlock.

    That way the truck will start, but won't go into gear.

    My boss blew the brake light fuse on his 05 4cyl auto due to bad wiring job for his camper shell brake light. He was stranded. He called me for ideas on how to get the trans out of park. Had he been a thief he probably would have just given up.

    Plus, if you hear your truck start up, then you can run outside with weapon of your choice. :laser: The dumbass thief will be a sitting duck. With a starter kill there is less noise and therefore more time for a thief to look for your switch.

  19. Apr 20, 2010 at 10:02 PM
    #19
    yosh2000

    yosh2000 Well-Known Member

    Joined:
    Sep 18, 2007
    Member:
    #2733
    Messages:
    2,925
    Gender:
    Male
    Denver, CO
    Vehicle:
    '05 4runner SR5 v8
    nice...now everyone knows how to re-enable your truck...!!

  20. Apr 20, 2010 at 10:14 PM
    #20
    SurfInferno

    SurfInferno [OP] Dont be stupid, its not smart.

    Joined:
    Feb 14, 2010
    Member:
    #31393
    Messages:
    2,770
    Gender:
    Male
    First Name:
    Dylan
    Vehicle:
    2015 trd offroad
    Haha yea...but not everyone can drive manual :p
