Kill Switch Mod Write Up.

Discussion in '2nd Gen. Tacomas (2005-2015)' started by SurfInferno, Apr 20, 2010.

  1. Jun 27, 2010 at 1:45 AM
    #41
    YeahYeah

    YeahYeah Well-Known Member

    Joined:
    Apr 26, 2010
    Member:
    #36062
    Messages:
    303
    Gender:
    Male
    First Name:
    Thomas
    (My Home - Murrieta, CA) Now, Alexandria, VA
    Vehicle:
    07 Tacoma Pre-Runner
    mud flaps gone, second air-filter gone, DTRL, fog light whenever and work with hi-beams, cut exhaust (was wicked flow), flat black stock rims, ABS switch, cup holder led's (with switch), turning signal mod #45, Bilstien 5100's, grill mesh
  2. Jun 27, 2010 at 2:48 AM
    #42
    m0nster986

    m0nster986 ♥ Emergency Medicine

    Joined:
    May 25, 2010
    Member:
    #37794
    Messages:
    342
    Gender:
    Male
    SoCal
    wow you really hacked those customs switches up!

  3. Jun 27, 2010 at 7:34 AM
    #43
    skytower

    skytower Well-Known Member

    Joined:
    Jun 7, 2010
    Member:
    #38505
    Messages:
    3,268
    Gender:
    Male
    First Name:
    Dave
    virginia
    Vehicle:
    08 Tacoma 4x4
    Hitch and wiring, aux back-up light, rear strobe lights, radio and underseat sub.
    The switch and the wire need to be able to handle the current of the circuit. Take whatever size the fuse for that circuit is and add 20%. Fuse+20%=Wire and switch size.
    There are Ampacity charts for determining wire size. Google it.

  4. Jun 27, 2010 at 12:57 PM
    #44
    SurfInferno

    SurfInferno [OP] Dont be stupid, its not smart.

    Joined:
    Feb 14, 2010
    Member:
    #31393
    Messages:
    2,849
    Gender:
    Male
    First Name:
    Dylan
    Littleton, CO
    Vehicle:
    2001 DC
    yea...i know, they are only temporary though. And they work so its all good.

  5. Oct 16, 2010 at 3:59 PM
    #45
    BakoTruck

    BakoTruck Well-Known Member

    Joined:
    May 1, 2009
    Member:
    #16674
    Messages:
    2,848
    Gender:
    Male
    First Name:
    Matthew
    Bakersfield, CA
    Vehicle:
    05 PreRunner TRD
    Bump.

    Is anyone thinking about doing a fuel pump cutoff write up? I think that the magnetic kill switches are a cool idea.
    I would love to do something like this, just a little worried I'll mess something up.

  6. Apr 4, 2011 at 3:00 PM
    #46
    BradleyScottETC

    BradleyScottETC Class IV Category 8 Elite VIP Member (Only)

    Joined:
    Aug 2, 2009
    Member:
    #20521
    Messages:
    1,751
    Gender:
    Male
    First Name:
    Bradley
    Lake County, FL
    Vehicle:
    10 4.0 AC 4x4
    Just for everyone's information, the DC inrush current of the green/black wire that is interrupted in this mod is 11.8 amps, so pick a switch accordingly.

  7. Apr 4, 2011 at 8:01 PM
    #47
    anethema

    anethema Well-Known Member

    Joined:
    Feb 25, 2011
    Member:
    #51833
    Messages:
    1,004
    Gender:
    Male
    First Name:
    J
    Dawson Creek,BC
    Vehicle:
    08 TRD OR Access cab 4x4
    ARB Bumper,OEM Roof rack modded for access cab, Allpro Rock Sliders,Icon Adjustable coilovers,More Tie Downs in bed, Firestone Airbags in rear,Block heater
    Wow! Did the dealer put that tangled mess of wires in front of your fuse panel like that? I'd be taking it back and asking for it to be re-done. And why are they drilling into your dash ?

    My 08 has ZERO wires in front of my fuse panel. Any wiring should be put in neat parallel bundles, then ideally loomed and taped.

    The previous owner had Visions install my remote started, and even though you cant see it, I know what that looks like behind the dash and it makes me mad haha.

    Anyways thanks for the write up.

  8. Apr 4, 2011 at 8:04 PM
    #48
    meeestirg

    meeestirg Well-Known Member

    Joined:
    Sep 22, 2010
    Member:
    #43661
    Messages:
    1,437
    Gender:
    Male
    D15, CA
  9. Apr 4, 2011 at 8:10 PM
    #49
    joes06tacoma

    joes06tacoma Well-Known Member

    Joined:
    Jan 1, 2010
    Member:
    #28588
    Messages:
    3,186
    Gender:
    Male
    First Name:
    Joe
    Central Coast, CA
    Vehicle:
    06 4x4 Off Road Access Cab v6 6spd
    LEER Shell with dome lights operated with 3 way switches, aux backup lights with relay and 3 position switch, modified wiring to compass/temp display and clock to include switch that disables dimming function (poor man's DRL solution), Scan Gauge 2
    My company truck came from the dealer's lot brand new with the same rats nest of wiring stuffed under the dash. Glad it's not MY rig. I'd be pissed. Still wondering if I am gonna get to fix it in a customer's driveway one of these days.

  10. Apr 4, 2011 at 8:13 PM
    #50
    anethema

    anethema Well-Known Member

    Joined:
    Feb 25, 2011
    Member:
    #51833
    Messages:
    1,004
    Gender:
    Male
    First Name:
    J
    Dawson Creek,BC
    Vehicle:
    08 TRD OR Access cab 4x4
    ARB Bumper,OEM Roof rack modded for access cab, Allpro Rock Sliders,Icon Adjustable coilovers,More Tie Downs in bed, Firestone Airbags in rear,Block heater
    Ouch that sucks. Toyotas are some of the cleanest trucks I've seen from the factory, as far as wiring goes. Too bad the dealer scums it up so bad.

  11. Apr 4, 2011 at 8:24 PM
    #51
    PreRunnerSeth

    PreRunnerSeth Well-Known Member

    Joined:
    Aug 12, 2009
    Member:
    #21110
    Messages:
    4,447
    Gender:
    Male
    Apex, NC
    Vehicle:
    16 Super White Limited 4x4
    Don't Tacomas have Chipped keys? if i remember right they do. In this case, any thief smart enough to bypass the chip in the key is plenty smart enough to get past your switch and any thief not smart enough to do these things is going to bring a flat bed. In that case, you're screwed switch or not. I would be more worried about the damage when they break in to steal your stereo.

  12. Apr 4, 2011 at 8:30 PM
    #52
    GotLift37

    GotLift37 Bangers Runner

    Joined:
    Apr 25, 2008
    Member:
    #6185
    Messages:
    1,886
    Gender:
    Male
    First Name:
    Matt
    North East AL
    Vehicle:
    07 4Runner 4WD
    2.5" front lift (leeper coilover) 1" body 16" Dick Cepek DC1 Black/polished 295/75/16 General Grabber AT2 Tinted Taillights 5% tint OEM Acura TSX HID Retrofit White LED dash light conversion WMW roof rack
    Back in the day I done a Fuel cut off on my integra. i bet several friends hundreds of dollars they couldnt start my car.. but none of them wanted to pay.

  13. Apr 5, 2011 at 8:12 AM
    #53
    PreRunnerSeth

    PreRunnerSeth Well-Known Member

    Joined:
    Aug 12, 2009
    Member:
    #21110
    Messages:
    4,447
    Gender:
    Male
    Apex, NC
    Vehicle:
    16 Super White Limited 4x4
    You miss the point. Without a chipped key to match to the ECU it is very difficult to steal these trucks. Most thief are just going to bring a flat bed. You're not adding any more security than the chipped key has.

  14. Apr 5, 2011 at 10:47 AM
    #54
    GotLift37

    GotLift37 Bangers Runner

    Joined:
    Apr 25, 2008
    Member:
    #6185
    Messages:
    1,886
    Gender:
    Male
    First Name:
    Matt
    North East AL
    Vehicle:
    07 4Runner 4WD
    2.5" front lift (leeper coilover) 1" body 16" Dick Cepek DC1 Black/polished 295/75/16 General Grabber AT2 Tinted Taillights 5% tint OEM Acura TSX HID Retrofit White LED dash light conversion WMW roof rack
    I speak from experience. If i had done a fuel cut off on my tacoma. it could possible still be here today and never got stolen. yes it had a chipped key.

  15. May 8, 2011 at 1:13 PM
    #55
    primer

    primer Well-Known Member

    Joined:
    Sep 4, 2010
    Member:
    #42725
    Messages:
    317
    Gender:
    Male
    First Name:
    T
    OK
    Vehicle:
    06 SS Mica AC 4x4 TRD Off-Road
    (Mostly) debadged, Homelink mirror, Elevated rear diff breather, LED illuminated 4x4 switch, Color matched grill surround, Bed cover, Ivan Stewart wheels, Bridgestone 265/75 Dueler AT Revo 2 tires
    I still want to try this. Tempted to give it a shot. Unfortunately I'm still a little lost. I have only the most basic understanding of these diagrams. I assume I can't find just ANY yellow/blk wire in my truck and put a switch in the circuit. Where does one look to find these wires? Are they coming from the fuse box under and to the L of the steering wheel?

    Thanks

    TL

  16. May 8, 2011 at 6:19 PM
    #56
    ColtsTRD

    ColtsTRD Well-Known Member

    Joined:
    May 13, 2009
    Member:
    #17177
    Messages:
    17,873
    Gender:
    Male
    First Name:
    Scott
    AZ
    Vehicle:
    2005
  17. May 8, 2011 at 6:37 PM
    #57
    joes06tacoma

    joes06tacoma Well-Known Member

    Joined:
    Jan 1, 2010
    Member:
    #28588
    Messages:
    3,186
    Gender:
    Male
    First Name:
    Joe
    Central Coast, CA
    Vehicle:
    06 4x4 Off Road Access Cab v6 6spd
    LEER Shell with dome lights operated with 3 way switches, aux backup lights with relay and 3 position switch, modified wiring to compass/temp display and clock to include switch that disables dimming function (poor man's DRL solution), Scan Gauge 2
    Looks like you should be looking for a green wire with black stripe coming from the steering column and heading out under the hood to the starter relay.

    The black with yellow wire is going to be under the hood, not inside.

    Don't use a test light to ID wires, use a volt meter. Test light can trigger airbags. All airbag wiring SHOULD be covered in yellow loom, but no guarentees.

    Edit: if you go after the black with yellow wire as Caribe suggested, that will be low current and would be the better choice electrically, but will be harder to get to. Use a heavy duty switch on the green with black wire and it will work too.

  18. May 8, 2011 at 6:38 PM
    #58
    travelingman

    travelingman What would Scooby do?

    Joined:
    Jul 3, 2009
    Member:
    #19254
    Messages:
    645
    Gender:
    Male
    First Name:
    Brian
    Ohio
    Vehicle:
    07lb4x4DC
    ticking eng.mo,ventvisors,locking tailgate,wheelmasters ss spare tire inflation line,weathertech mats
    I'm happy with a chipped key.Secure enough.

  19. May 8, 2011 at 8:45 PM
    #59
    Crom

    Crom 2/3 way thru. I'll be back OCT 23, 2021

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    9,507
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Camp Supreme
    Millions
    Yup. Let's not use the green/black wire. Use the Black/Yellow as said below.

    I fully agree. Thanks for your post.

    The Black/Yellow wire is the way to go. If I read the diagram right, pin 1 of the starter relay goes to Engine room Junction block 2A and it is then on pin 8, The wire harness that plugs in R/B Jucnction connector is known as "2B" the Black/Yellow wire is now on pin 4 and from there it goes to connector P1 which is known as the Park/Neutral Posision Switch.

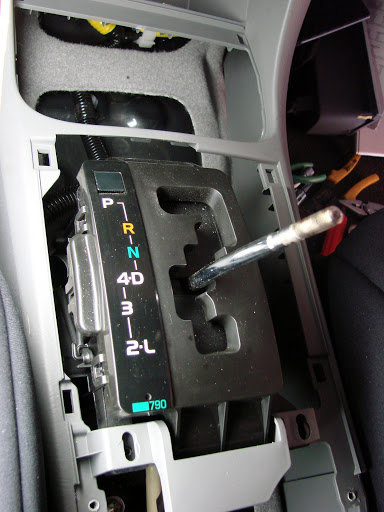

    I surmise that this Park/Neutral Position switch is located somewhere inside the transmission shifter assembly. If so, it would be super simple to access and splice in a hidden switch.

    Caribe can check my reading and make sure it's correct. I am not an EE but I do enjoy this stuff.

    Fun stuff.


    It's in the Engine junction block, that's where it starts, but I think it ends inside the automatic transmission shifter assembly,



    There is a position sensor that is needed to make sure that the truck is in Park or Neutral or the truck will not start.

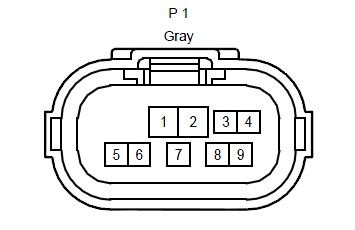

    If I am correct we are looking for a gray connector and that Black/Yellow wire would be pin #5


  20. May 8, 2011 at 10:17 PM
    #60
    Crom

    Crom 2/3 way thru. I'll be back OCT 23, 2021

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    9,507
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Camp Supreme
    Millions
    Thanks Caribe, I seemed to have misplaced that doc which shows where the connectors are...
