King rear shocks not fitting in lower shock mount.

Discussion in 'Suspension' started by Smitty93, Feb 9, 2017.

  1. Feb 9, 2017 at 8:49 AM
    #1
    Smitty93

    Smitty93 [OP] Well-Known Member

    Joined:
    Aug 3, 2016
    Member:
    #193634
    Messages:
    114
    Gender:
    Male
    First Name:
    Jacob
    Chandler, AZ
    Vehicle:
    2008 Off Road DCSB
    Tried installing rear king shocks on my 08 with all-pro standard leaf springs but the shock is hitting the back of the lower mount and causing it to not line up. The instructions say I may need to widen the mount but that doesn't seem to be the issue.

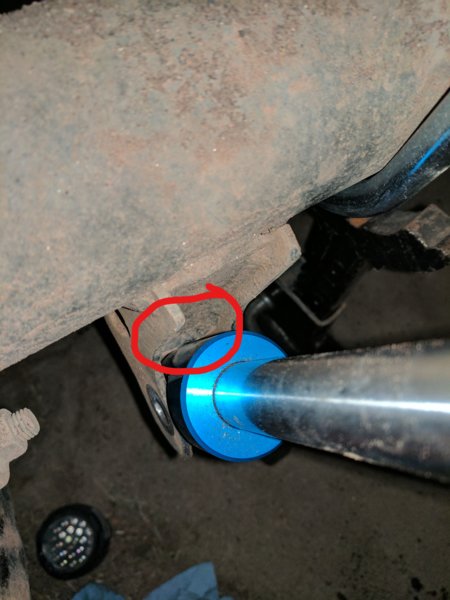

    Its hitting the back of the shock mount here...

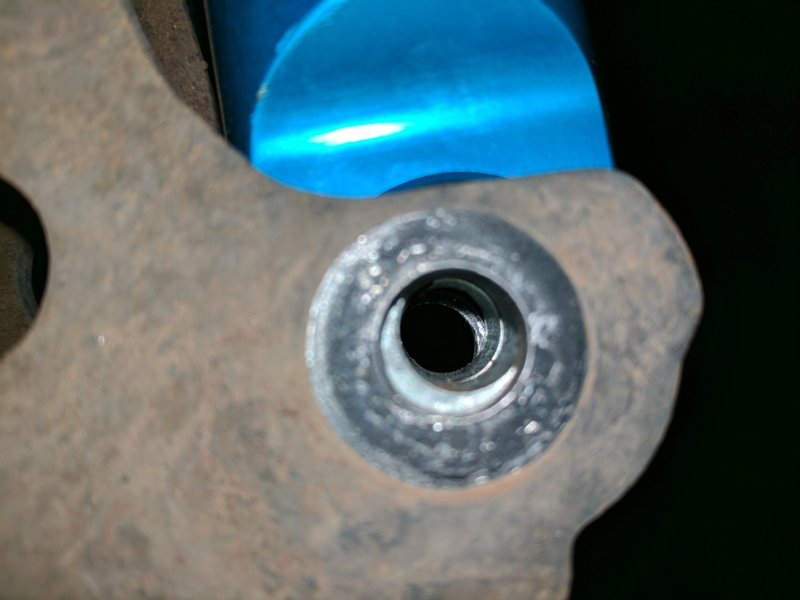

    Causing the bolt holes to not line up....

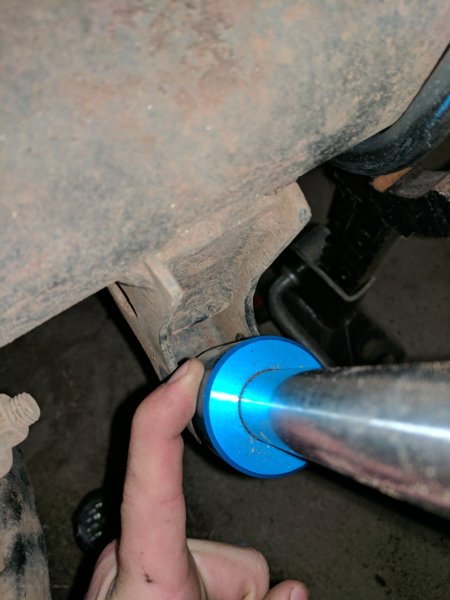

    This is with the shock pulled back to get a better view of what it is hitting. You can see where the dirt has been rubbed off...

    Did I receive the wrong shocks? I checked the tags and they are marked for 05+ tacoma but something is wrong here. Has anyone else had this issue?

  2. Feb 9, 2017 at 8:52 AM
    #2
    Adventurous

    Adventurous Well-Known Member

    Joined:
    Apr 22, 2014
    Member:
    #128214
    Messages:
    820
    Gender:
    Male
    Colorado
    Vehicle:
    15 DCLB SR5
    I encountered this issue with OME shocks on my 2015. Slightly different as the OME is not an inverted design like the Kings are, but the solution, according to the folks I spoke with at OME, is to grind away enough of the lip to clear the shock eyelet. Unfortunate solution but it is what it is. I ended up with Icon shocks that fit in there without grinding though you can see a witness mark on the eylet where it contacts that lip under compression.

  3. Feb 9, 2017 at 8:55 AM
    #3
    Matmo215

    Matmo215 Baylor ΣΑΕ

    Joined:
    Sep 15, 2016
    Member:
    #197333
    Messages:
    7,332
    Gender:
    Male
    First Name:
    Matthew
    Waco, TX
    Vehicle:
    2015 Sport DCSB
    are you sure they are not upside down and are in the right way?

  4. Feb 9, 2017 at 8:56 AM
    #4
    Smitty93

    Smitty93 [OP] Well-Known Member

    Joined:
    Aug 3, 2016
    Member:
    #193634
    Messages:
    114
    Gender:
    Male
    First Name:
    Jacob
    Chandler, AZ
    Vehicle:
    2008 Off Road DCSB
    Damn, I really don't want to put a notch in the mount and mess with the structural strength of the mount. I can't believe that is an acceptable method for replacement shocks. Guess I need to contact king and see what they have to say

  5. Feb 9, 2017 at 8:57 AM
    #5
    Smitty93

    Smitty93 [OP] Well-Known Member

    Joined:
    Aug 3, 2016
    Member:
    #193634
    Messages:
    114
    Gender:
    Male
    First Name:
    Jacob
    Chandler, AZ
    Vehicle:
    2008 Off Road DCSB
    They are installed correctly. It is impossible to install these upside down as they have completely different mounting methods on top and bottom

    AbunaiTaco likes this.
  6. Feb 9, 2017 at 9:00 AM
    #6
    scocar

    scocar Prebunking

    Joined:
    Nov 11, 2009
    Member:
    #25814
    Messages:
    37,056
    Crap.

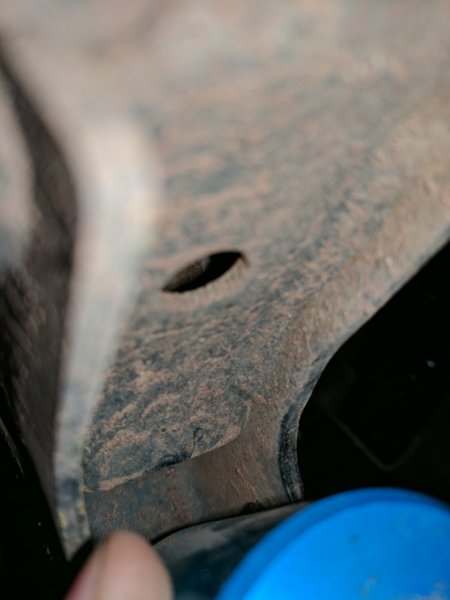

    Can you get a better pic with the shock pulled away so we can see more of where the contact area is and if it can be ground down without too much difficulty or compromise to the mount structure? I pic from head on with the shock rod out of the way would help too.

  7. Feb 9, 2017 at 9:01 AM
    #7
    scocar

    scocar Prebunking

    Joined:
    Nov 11, 2009
    Member:
    #25814
    Messages:
    37,056
    What is necessary for some of the OME trimming is really minimal and not in a critical area. It is just shaving down the outer radius of the ears a bit. And it is easy.

    This issues is more concerning because it looks difficult to access and deeper into the mount structure.

    AbunaiTaco likes this.
  8. Feb 9, 2017 at 9:08 AM
    #8
    boostedka

    boostedka Well-Known Member

    Joined:
    Sep 29, 2011
    Member:
    #64367
    Messages:
    5,073
    Gender:
    Male
    First Name:
    James
    NM
    Vehicle:
    2004 4Runner
    :sawzall:

    AbunaiTaco and Harry like this.
  9. Feb 9, 2017 at 9:09 AM
    #9
    Smitty93

    Smitty93 [OP] Well-Known Member

    Joined:
    Aug 3, 2016
    Member:
    #193634
    Messages:
    114
    Gender:
    Male
    First Name:
    Jacob
    Chandler, AZ
    Vehicle:
    2008 Off Road DCSB

    unfortunately that's the only other picture I have right now and won't be able to get anymore until I'm off work. But this does seem like an area that should not be cut or ground down.

  10. Feb 9, 2017 at 9:12 AM
    #10
    Texoma

    Texoma IG: Triple C Chop Shop

    Joined:
    Feb 1, 2011
    Member:
    #50374
    Messages:
    16,667
    Gender:
    Male
    First Name:
    Chris(Topher)
    Lago Vista, TX
    Vehicle:
    10 Taco 4x4
    A bunch a cool stickers, a bada ass MetalMiller Tx Longhorns grill emblem painted Hemi Orange, JBA long tube headers with o2 sims, Diff breather mod, Red LED interior lights, Fancy head unit that plays ipod n movies, Also DIY install factory stuff like, factory cruise control, factory intermittent wipers, OME nitro struts with 886x springs and toy tec top plate, JBA high caster UCA's for better alignmnet and dey beefier too, Old Man Emu Dakar leaf springs in da rear with the gear, U bolt flipper, Ivan Stewart TRD rims with 33" K Bro 2's, some bad ass weather tech floor liners so I don't muck up my interior, an ATO shackle flipper for mo travel in da rear wit the gear, also super shiny Fox 2.0 shocks back there too, all sorts of steal armor for bouncing off of the rocks like demello sliders, AP front skid, trans skid, n transfer skid, demello gas tank skid, and a tough as nails ARB bumper with warn 8k winch, I'm sure there's more
    Maybe instead of grinding away at the truck mount, grind at the shock mount. That way it isn't permanent.

    ZachPrerunner likes this.
  11. Feb 9, 2017 at 9:13 AM
    #11
    scocar

    scocar Prebunking

    Joined:
    Nov 11, 2009
    Member:
    #25814
    Messages:
    37,056
    Understood. But please try to take more possibly this weekend if you can. That isn't the axle, is it?

    Edit: nevermind, clearly it is not, looking at other pics above. Whew.

  12. Feb 9, 2017 at 9:16 AM
    #12
    scocar

    scocar Prebunking

    Joined:
    Nov 11, 2009
    Member:
    #25814
    Messages:
    37,056
    This was my first thought, not only at the low point where it is contacting, but once that is solved, it looks the "OME conflict" would come into play next on the ears and prevent them from coming down enough to align with the bolt holes. Shame to do this on bran new shiny Kings, but at least it will never be visible and it is very beefy aluminum.

    [​IMG]

  13. Feb 9, 2017 at 9:28 AM
    #13
    Texoma

    Texoma IG: Triple C Chop Shop

    Joined:
    Feb 1, 2011
    Member:
    #50374
    Messages:
    16,667
    Gender:
    Male
    First Name:
    Chris(Topher)
    Lago Vista, TX
    Vehicle:
    10 Taco 4x4
    A bunch a cool stickers, a bada ass MetalMiller Tx Longhorns grill emblem painted Hemi Orange, JBA long tube headers with o2 sims, Diff breather mod, Red LED interior lights, Fancy head unit that plays ipod n movies, Also DIY install factory stuff like, factory cruise control, factory intermittent wipers, OME nitro struts with 886x springs and toy tec top plate, JBA high caster UCA's for better alignmnet and dey beefier too, Old Man Emu Dakar leaf springs in da rear with the gear, U bolt flipper, Ivan Stewart TRD rims with 33" K Bro 2's, some bad ass weather tech floor liners so I don't muck up my interior, an ATO shackle flipper for mo travel in da rear wit the gear, also super shiny Fox 2.0 shocks back there too, all sorts of steal armor for bouncing off of the rocks like demello sliders, AP front skid, trans skid, n transfer skid, demello gas tank skid, and a tough as nails ARB bumper with warn 8k winch, I'm sure there's more
    It doesn't look like it would need much material removed to do the job either

    AbunaiTaco and scocar like this.
  14. Feb 9, 2017 at 9:42 AM
    #14
    Smitty93

    Smitty93 [OP] Well-Known Member

    Joined:
    Aug 3, 2016
    Member:
    #193634
    Messages:
    114
    Gender:
    Male
    First Name:
    Jacob
    Chandler, AZ
    Vehicle:
    2008 Off Road DCSB
    Would really prefer to not grind away at anything, especially new $800 shocks. I've sent an e-mail to king and will see what they have to say. Wanted to see if anyone else had this problem and it doesn't seem like it so I'm hoping I just received the wrong shock or something of that nature.

  15. Feb 9, 2017 at 10:03 AM
    #15
    scocar

    scocar Prebunking

    Joined:
    Nov 11, 2009
    Member:
    #25814
    Messages:
    37,056
    Agreed
    it seems it has gone either way with the OMEs, too. Might even depend on the truck model and type of OEM axle/suspension setup, but I've not been able to discern any consistent pattern there when we were looking at the OME issue.

  16. Feb 9, 2017 at 10:11 AM
    #16
    Htnswches

    Htnswches Well-Known Member

    Joined:
    Mar 28, 2010
    Member:
    #34166
    Messages:
    509
    Gender:
    Male
    First Name:
    E
    Lost Angels
    Vehicle:
    2006 Precummer Tacoma
    225,000 and counting
    I wouldn't grind or even beat them into submission (position). Have you tried installing them bottom side first then rotating upward? Or spin them 180 degrees? Perhaps the bottom shock mount is proprietary?

  17. Feb 9, 2017 at 10:29 AM
    #17
    Smitty93

    Smitty93 [OP] Well-Known Member

    Joined:
    Aug 3, 2016
    Member:
    #193634
    Messages:
    114
    Gender:
    Male
    First Name:
    Jacob
    Chandler, AZ
    Vehicle:
    2008 Off Road DCSB
    I haven't tried installing bottom first and rotating up. Will have to try that tonight.

    Cannot rotate them 180 degrees due to the external resi's. although I did try swapping the passenger and driver side shocks but ran into the same issue.

  18. Feb 9, 2017 at 10:30 AM
    #18
    Mr Salty

    Mr Salty "Give up the good to go for the great"

    Joined:
    Jan 31, 2011
    Member:
    #50297
    Messages:
    2,294
    Gender:
    Male
    First Name:
    Hermmy
    SoCal (Bro Capital of the world)
    Vehicle:
    White SR5 Pre-runner
    Lots of chrome
    I didn't see that you did, but have you tried calling KING. It's maybe an easy fix, like they installed the wrong lower mount by accident and just need to get you the correct one. They just screw on and off, so this could be changed. I will say they are not fun to change as they use thread locker when installed.

    scocar likes this.
  19. Feb 9, 2017 at 10:34 AM
    #19
    Smitty93

    Smitty93 [OP] Well-Known Member

    Joined:
    Aug 3, 2016
    Member:
    #193634
    Messages:
    114
    Gender:
    Male
    First Name:
    Jacob
    Chandler, AZ
    Vehicle:
    2008 Off Road DCSB
    I haven't called yet because I'm at work but have sent an e-mail to them, will call if I don't hear back before my lunch break.

    This is what I was hoping it would be...

  20. Feb 9, 2017 at 11:43 AM
    #20
    Smitty93

    Smitty93 [OP] Well-Known Member

    Joined:
    Aug 3, 2016
    Member:
    #193634
    Messages:
    114
    Gender:
    Male
    First Name:
    Jacob
    Chandler, AZ
    Vehicle:
    2008 Off Road DCSB
    Got in contact with DSM, they think it may be my housing and pinion angle has changed causing the angle on the lower mount to change. Pretty sure this is the problem since the housing did move during the leaf spring install.

    Great customer service from DSM, they've been helpful and in contact with me through out the whole process from ordering, shipping, and install.

    On a side note does anyone who has all-pro standard leafs have any pictures of them installed? want to make sure those aren't whats causing the change in angle.

    AbunaiTaco likes this.
