Kyle's SR Access Cab Build

Discussion in '3rd Gen. Builds (2016+)' started by kmorgan3, Sep 24, 2019.

  1. Sep 24, 2019 at 11:47 AM
    #1
    kmorgan3

    kmorgan3 [OP] Well-Known Member

    Joined:
    Aug 22, 2019
    Member:
    #302994
    Messages:
    1,046
    Gender:
    Male
    First Name:
    Kyle
    Vehicle:
    2019 Tacoma SR | 2020 4Runner SR5 Premium
    Introduction and Progress
    Vehicle

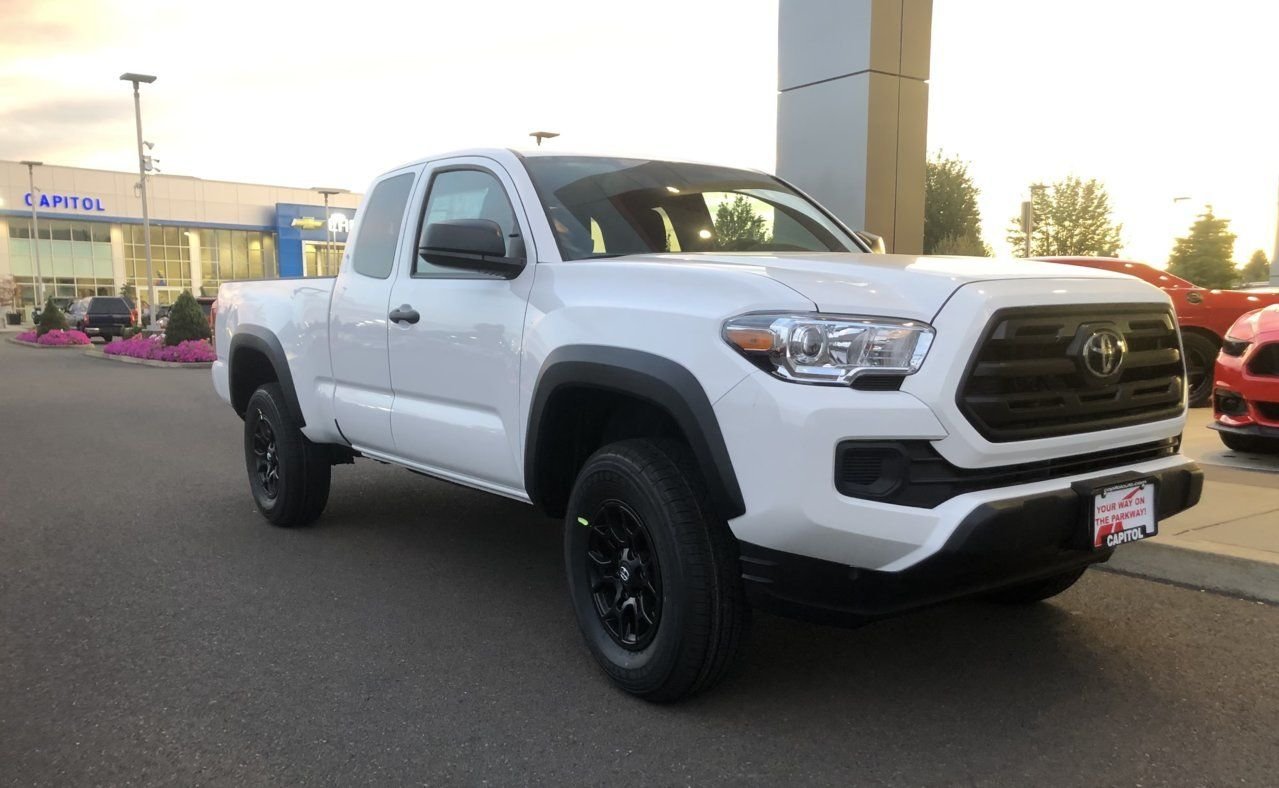

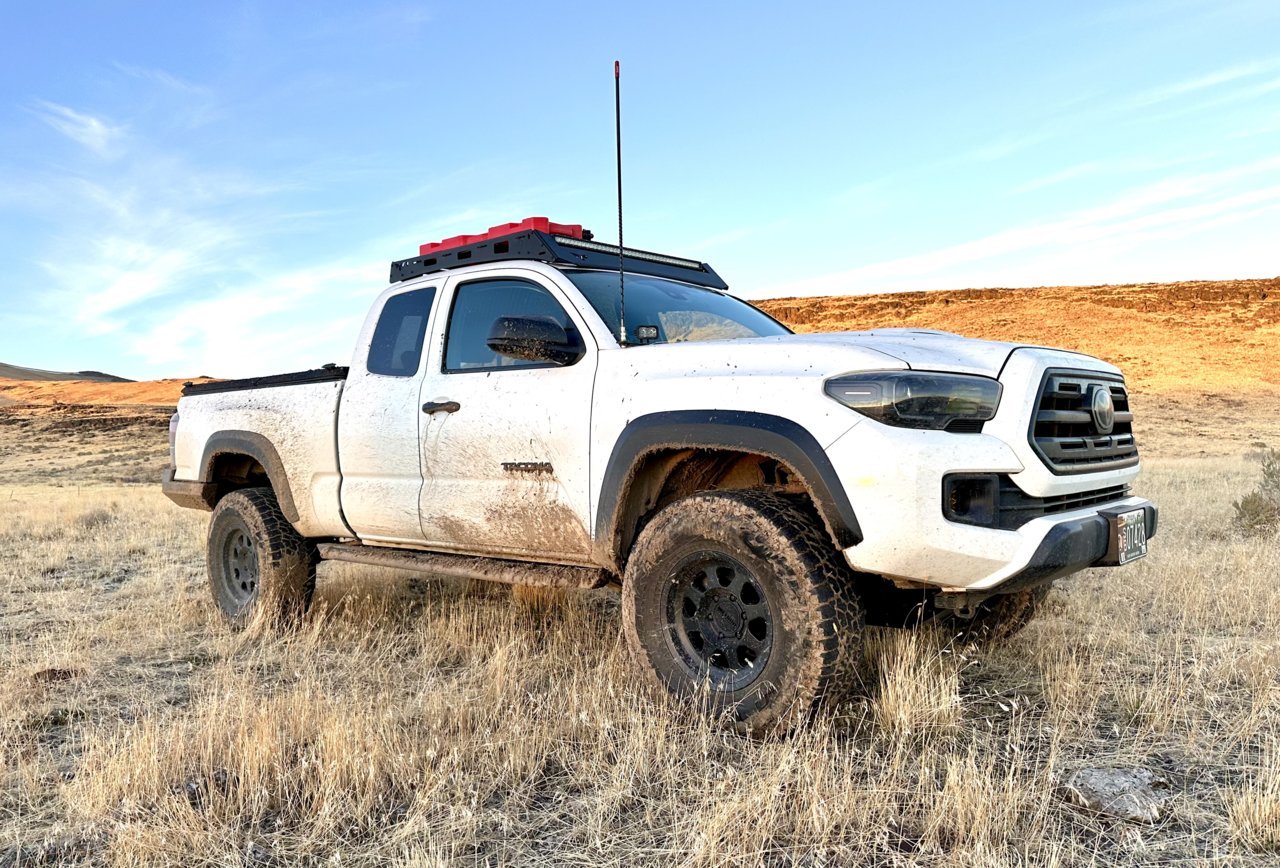

    2019 Tacoma SR V6 4x4 in Super White purchased August 20, 2019 in Salem, OR

    I bought the SR because I wanted a canvas to work with. My only requirements were that the truck is a long bed, 4x4, and a V6 to tow. Purchasing the SR meant doing away with a couple convenience features that need to be added later.

    Current as of 02/14/2021
    ~14,500 miles on odometer


    Starting point 08/20/2019

    ~4 miles on odometer


    Build Components
    Suspension

    • Bilstein 5100 Shocks -- front + rear
    • OME 888 Strut Coils -- set on notch 0
    • 1/4" Strut Top Spacer / Anti-Taco-Lean Device
    • JBA Offroad Upper Control Arms
    • HeadStrong 3-Leaf Progressive Add-A-Leaf -- overload leaf left in
    Drivetrain
    • Nitro 4.88 Axle Gears
    • ARB RD132 Air Locker (Rear)
    • Rear Diff Breather Relocate
    Wheels/Tires
    Lighting/Electrical
    • LED Reverse and license plate lights
    • MESO Ultimate Map Lights
    • MESO Ultimate Dome Lights
    • Custom Bed Lighting
    • Keyless Entry
    • Diode Dynamics SS3 Sport Amber Fog Lights
    • Custom Bussmann RTMR
    • MESO Switch Panel (Left of Steering Wheel)
    • 3D Printed Overhead Console Switch Panel
    • Cali Raised Low-Pro Ditch Light Brackets
    • Cali Raised CB Antenna Extension
    • 3' Firestik CB Radio Antenna
    • Diode Dynamics SSC2 Driving Pattern Ditch Lights (Amber Backlight)
    • LED Bumper Lights
    • 40” Single-Row Lightbar (Roof Rack Mounted)
    • MESO Extended Fuse Cover
    • DIY Underhood Lighting
    • Thinkware F70 Dash Camera w/ Hardwire Kit (Park Mode!)
    • Custom Retrofit Headlights:
      • Morimoto M LED 2.0 Projectors
      • Custom Amber DRL Boards
        • V LED Load Resistors for Turn Signal Function
      • MESO Side Markers (Amber LEDs)
      • Acrylic Turn Signal Cover
      • Matte Black Krylon Paint
      • Custom Wire Harness (TRD -> SR/SR5 Conversion)
    • Custom T-Harnesses to Illuminate Switches:
      • Left of Steering Wheel (Cargo Light)
      • Below Head Unit (ECT PWR Switch)
      • Overhead Console (R44 Connector)
    • Custom Aftermarket Switches (OE Blue)
    • License Plate Light Disable In Reverse
    • MESO Ultimate 3rd Brake Light
      • 2 amber KC Cyclones
      • 2 red KC Cyclones
    Habitat
    • Smittybilt Overlander Roof Top Tent
    • Diamondback SE Bed Cover
    • KB Voodoo Hi Rise Crossbars (Steel)
    Truck Bed
    • BAMF Bed Accessory Mounts
    • Full-size Shovel + Axe
    • At The Helm Bed Channel Stiffeners
    • OEM Bed Mat
    • Mountain Hatch Tailgate Insert (Red)
    • Expedition Essentials Bed Cubby Mount
    • ARB Single Air Compressor
    Exterior
    • Victory 4x4 Access Cab Rack w/ Cutout
    • Victory 4x4 Strike Rock Sliders
    • Gray Grille Emblem Decal
    • Black TACOMA Tailgate Lettering
    • Black TACOMA Door Emblems
    • At the Helm High Clearance Rear Bumper
    • Ko'o Gas Cap Cradle
    • Redline Tuning Gas Hood Struts
    • MESO Puddle Pods
    • Fumoto 133S Oil Valve Body
    • Toyota Aluminum Oil Filter Housing
    • RCI Offroad Front Steel Skidplate
    Interior
    • The Taco Garage DSM
    • RAM X-Grip Mount
    • Clazzio Seat Covers (Black/Black/Black)
    • Victory 4x4 Center Console MOLLE Panels
    • Uniden Pro 505XL Bearcat CB Radio
    • MESO Steering Wheel Logo Cover
    • Custom TRD Pro Shift Knob
    Taken Off/Sold
    • SOS Concepts Bed Bars - were uneven
    • Faux Predator Tube Steps - flimsy
    • SPC Upper Control Arms - defective bushing and poor customer service
    • TRD Pro Fog Lights - just not bright enough
    • Stock SR5 Black Wheels - not the correct back-spacing for 285's
    • Spidertrax 1.25" Wheel Spacers - kind of a hazard
    • Tacoma Beast headlights - flat-out terrible.
    • Interior LEDs - replaced with MESO
    • Custom Fuse/Relay Block - Replaced with a Bussmann
    • Cheap 3" LED Ditch Lights
    Purchased (Awaiting Install)
    • Archive Garage 12" Shock Relocation Towers (2.0 series)
    • Archive Garage Hammer Hangers
    • Archive Garage U-Bolt Flip Kit
      • Archive Garage Yellow Speed Bumps
    • Fox 12” 2.0 Remote Reservoir Rear Shocks (from Accutune)
    • Dobinson's Medium-Duty Leaf Pack
      • Dobinson's Bushing Kit
      • Dobinson's Greasable Pin Kit x2

    Planned (Misc.)

    Front Bumper (unsure which one)
    Aluminum Skid Plates
    Rear Bed Track (ripped from a 2nd gen)
    Recovery Boards (mounted to bed track)
    Sound Dampening

    Planned Suspension Overhaul (Longer-Term)
    Total Chaos Spindle Gussets
    Total Chaos Alignment Tab Reinforcements
    Accutune Fox 2.5 Remote Reservoir Front Shocks

    Service Log
    • 3,000 Miles: New springs (OME), shocks (5100), and leafs (Headstrong)
    • 3,100 Miles: New tires (Falken Wildpeak AT3W 285/75/16)
    • 3,300 Miles: 4-wheel alignment
    • 5,000 Miles: Engine oil change @ dealer
    • 7,400 Miles: 4-wheel alignment
    • 8,400 Miles: 4.88 Nitro Gears + ARB Air Locker
    • 9,100 Miles: Axle gear oil change + T-Case oil change (w/ new gaskets)
    • 9,700 Miles: JBA Upper Control Arms installed + greased
    • 9,730 Miles: Engine oil change + tire rotation @ dealer
    • 9,810 Miles: 4-Wheel alignment
    • 10,700 Miles: New seals in front differential assembly
    • 14,865 Miles: 15K service; tires rotated
    • 14,885 Miles: Engine oil change; Fumoto + Aluminum oil filter housing installed | New cabin air filter (OEM)
    • 14,895 Miles: New engine air filter (OEM)
    • 16,621 Miles: Replaced all 3 seals inside ARB Air Locker
    • 16,621 Miles: Rear differential oil drain + fill
    IG: @FishTacoNW

    Last edited: Jul 20, 2021
  2. Sep 24, 2019 at 11:53 AM
    #2
    kmorgan3

    kmorgan3 [OP] Well-Known Member

    Joined:
    Aug 22, 2019
    Member:
    #302994
    Messages:
    1,046
    Gender:
    Male
    First Name:
    Kyle
    Vehicle:
    2019 Tacoma SR | 2020 4Runner SR5 Premium
    I have run this truck through its paces this past month. So far, I have decided to keep the truck fully stock as I went through the tail-end of a summer steelhead season and a full archery elk season here in Oregon. I wanted to get a feel for all the quirks of the vehicle -- what I like and what I don't like as I abuse it the way I have abused my vehicles in the past. So far I can say that I am extremely impressed with this truck and am surprised the stock tires held up against the dirt and gravel roads it has run the past 5 weeks.

    Here she is at 2,600 miles (I usually don't drive that much in a month -- it's just this time of year) on 9/24/2019:


    This weekend I will be doing a CMC and installing Bilstein 5100s w/ OME 888's, SPC UCAs, and a 3-leaf AAL with my dad. Any tips would be appreciated. We have the grinder and welder ready as well as all the tools to get the suspension swapped over.

    Next week I will be putting the 33's on.

    Last edited: Oct 28, 2019
    irayfz6 and trackdaybro like this.
  3. Sep 28, 2019 at 12:35 PM
    #3
    kmorgan3

    kmorgan3 [OP] Well-Known Member

    Joined:
    Aug 22, 2019
    Member:
    #302994
    Messages:
    1,046
    Gender:
    Male
    First Name:
    Kyle
    Vehicle:
    2019 Tacoma SR | 2020 4Runner SR5 Premium

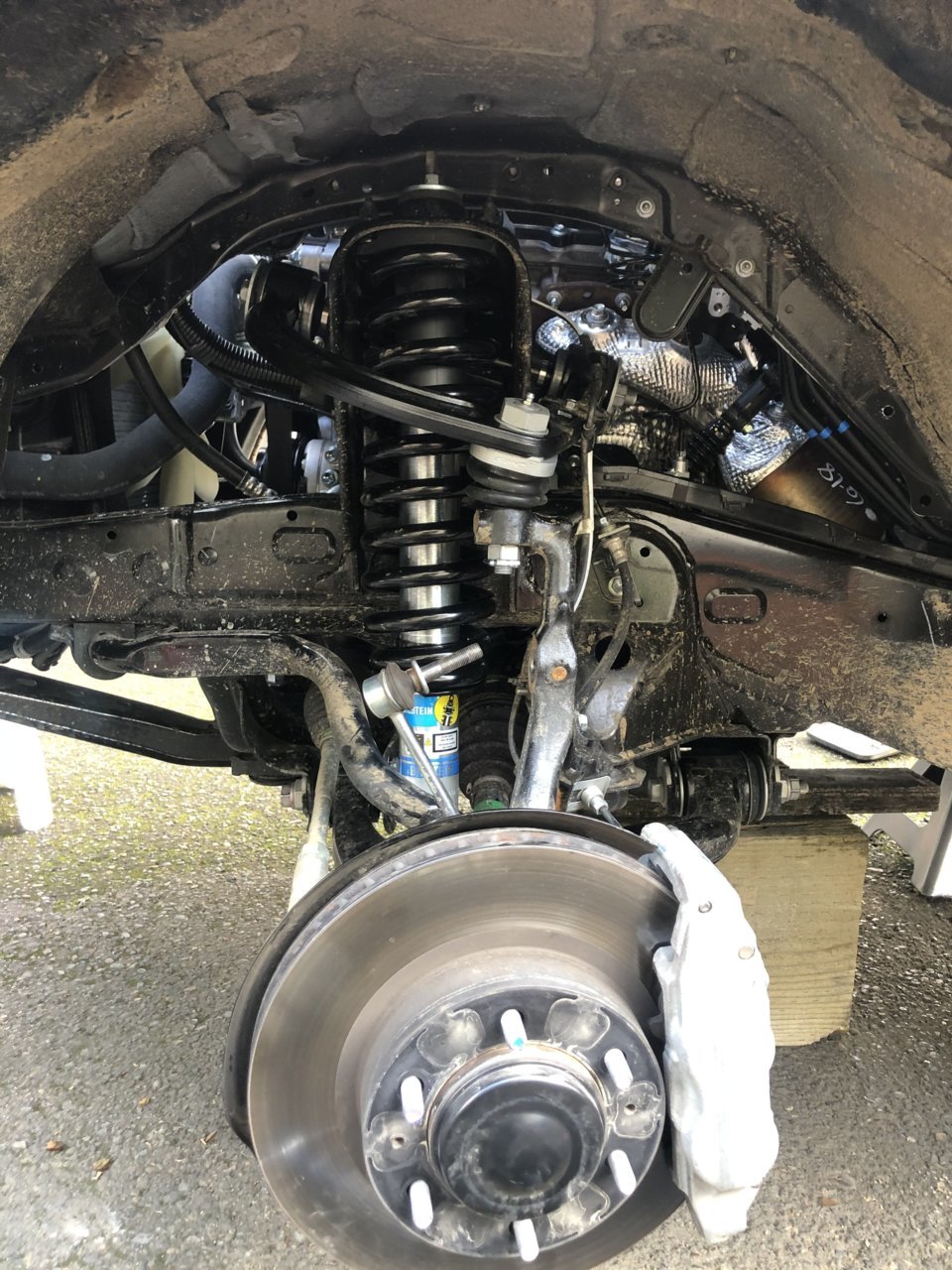

    Driver side strut and control arm is done. Wasn’t too bad except for that stupid UCA bolt. That thing was a nightmare to get out. We used the method without spring compressors to get the new coil and 5100 mated together. Worked way easier than using compressors.

    Last edited: Oct 28, 2019
    irayfz6 likes this.
  4. Sep 29, 2019 at 8:05 AM
    #4
    kmorgan3

    kmorgan3 [OP] Well-Known Member

    Joined:
    Aug 22, 2019
    Member:
    #302994
    Messages:
    1,046
    Gender:
    Male
    First Name:
    Kyle
    Vehicle:
    2019 Tacoma SR | 2020 4Runner SR5 Premium

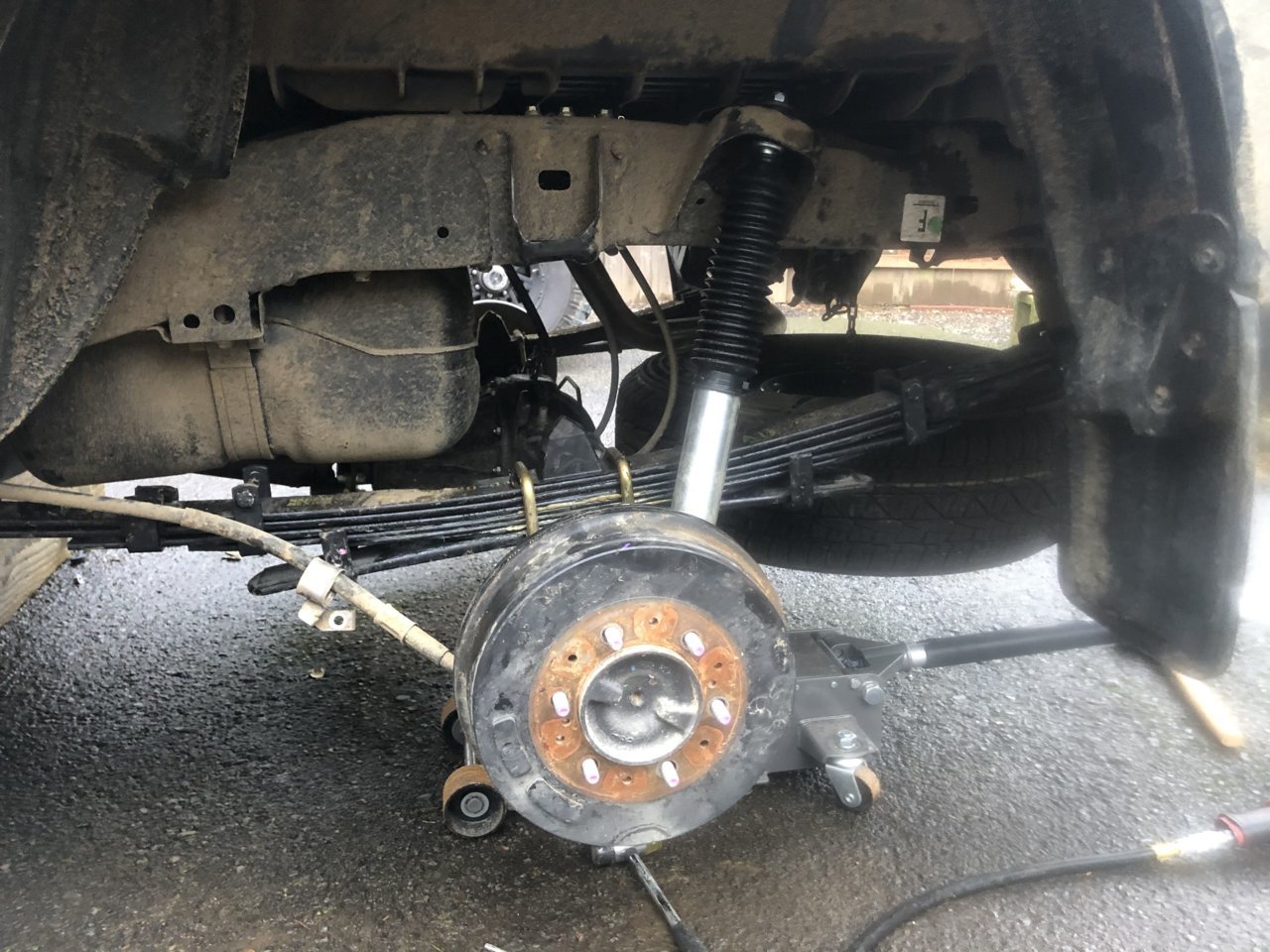

    Long day yesterday. Ended up getting the two fronts and one rear done. The leaf springs weren’t as hard as advertised. We got sidelined by rain otherwise I think we would have finished. I got the stock wheels wrapped in the 33’s.

    Today: finish passenger rear. Torque rear shock nuts when vehicle is on the ground. Torque the rear leaf spring bolt when truck is on the ground. Grease new ball joints. Check all rub points and then CMC + trim all necessary plastic.

    irayfz6 likes this.
  5. Sep 29, 2019 at 3:30 PM
    #5
    kmorgan3

    kmorgan3 [OP] Well-Known Member

    Joined:
    Aug 22, 2019
    Member:
    #302994
    Messages:
    1,046
    Gender:
    Male
    First Name:
    Kyle
    Vehicle:
    2019 Tacoma SR | 2020 4Runner SR5 Premium

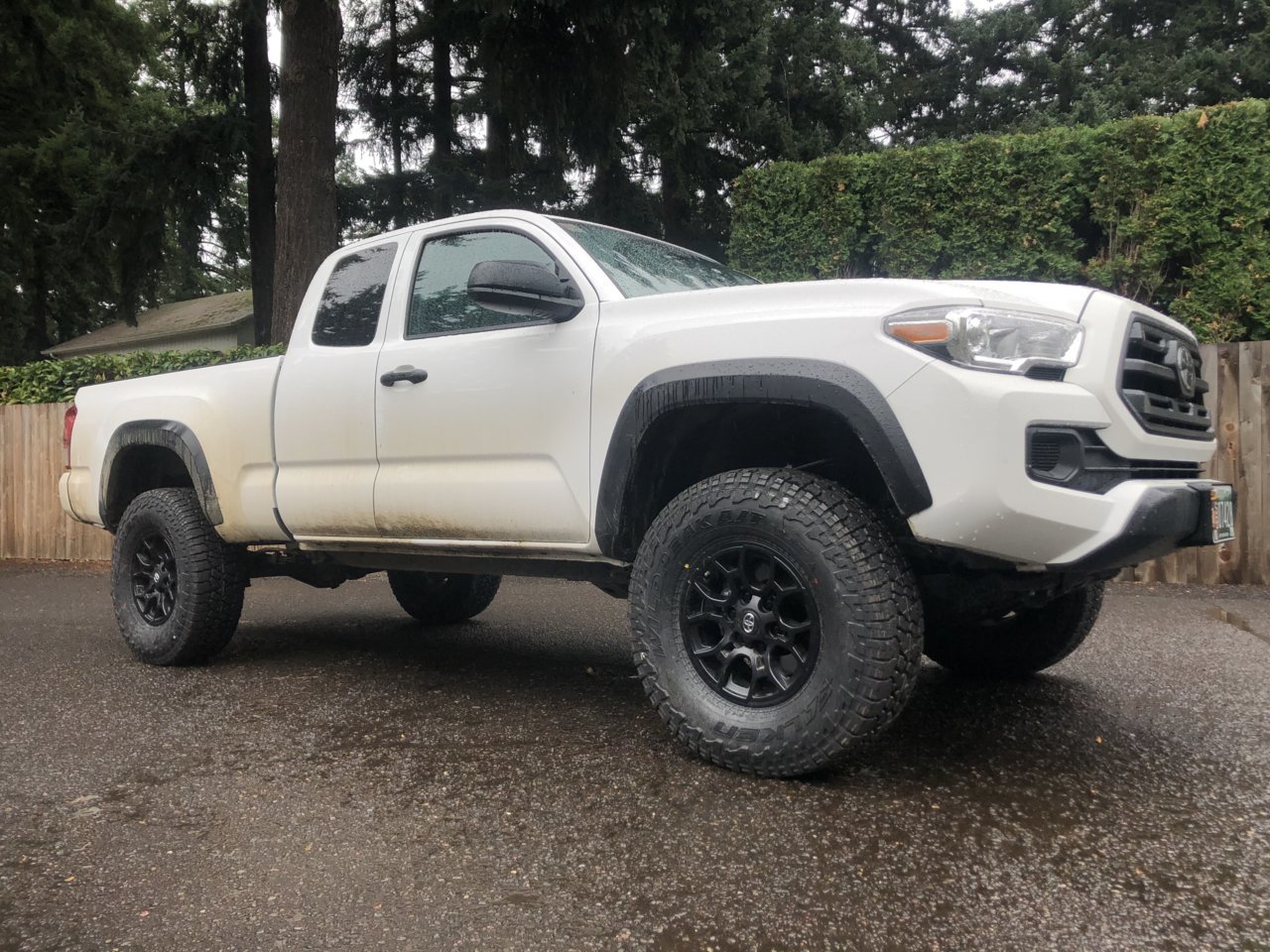

    That’s all she wrote. Got the wheels and tires mounted and balanced. Doctored up the rest of the suspension and took it for a few joy rides. Haven’t noticed any rubbing yet. We’ll hold off on the CMC until the suspension settles and we notice rubbing. For now there’s been 0 need for trimming. We’ll see after I get the alignment, but theoretically that should only push it further from the cab mount.

  6. Sep 30, 2019 at 9:28 AM
    #6
    kmorgan3

    kmorgan3 [OP] Well-Known Member

    Joined:
    Aug 22, 2019
    Member:
    #302994
    Messages:
    1,046
    Gender:
    Male
    First Name:
    Kyle
    Vehicle:
    2019 Tacoma SR | 2020 4Runner SR5 Premium

    SOS Concepts bed bars installed. Took a full day to get a decent rattle can job on them, but I think they'll hold my tent nicely.

    irayfz6 likes this.
  7. Oct 3, 2019 at 6:50 PM
    #7
    kmorgan3

    kmorgan3 [OP] Well-Known Member

    Joined:
    Aug 22, 2019
    Member:
    #302994
    Messages:
    1,046
    Gender:
    Male
    First Name:
    Kyle
    Vehicle:
    2019 Tacoma SR | 2020 4Runner SR5 Premium

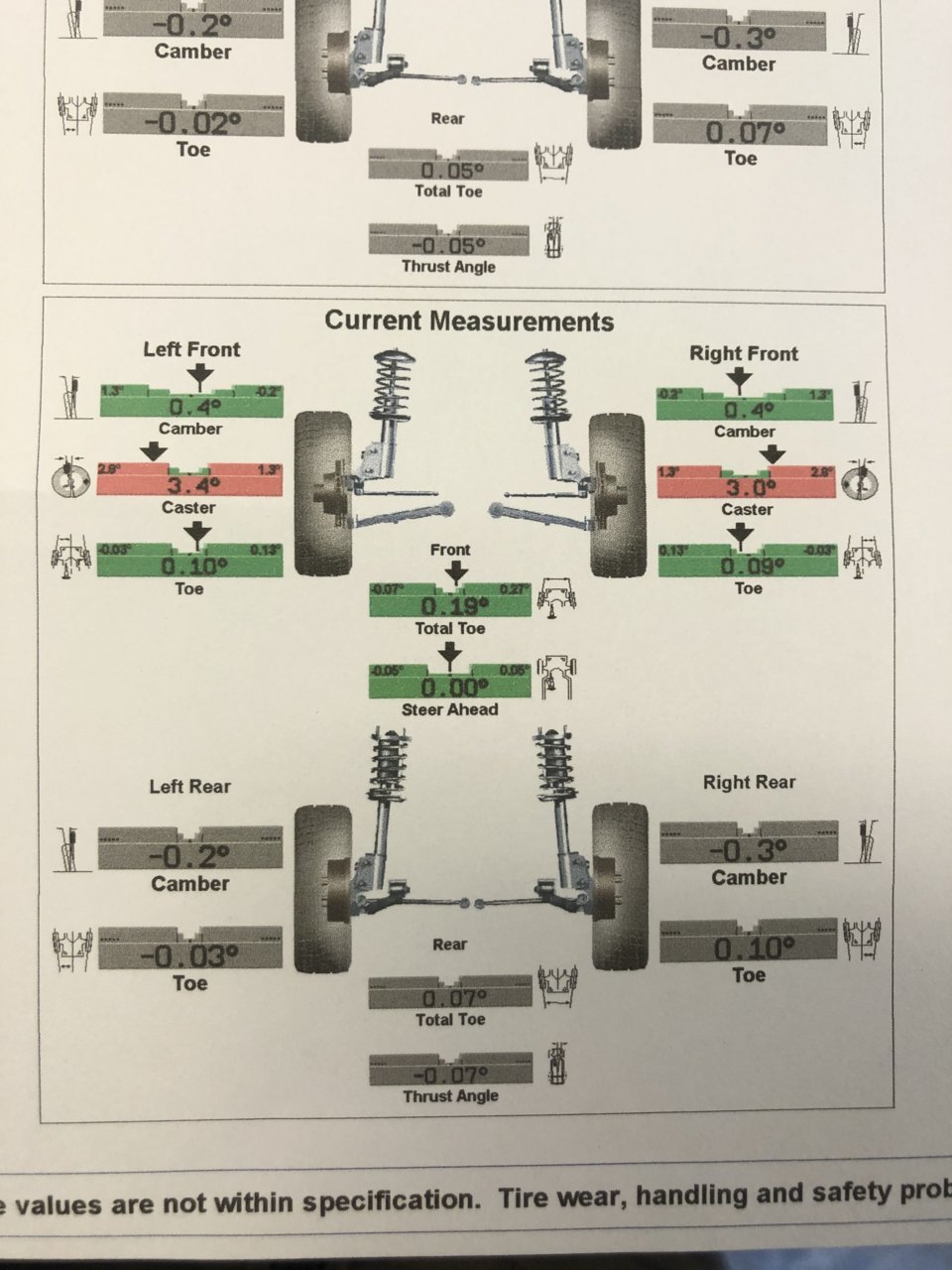

    Custom alignment done today. I had them keep toe and camber within factory spec and then set caster to a minimum of +3°. Looks like they barely had to touch the UCA’s to achieve those numbers, but overall pretty happy with it.

    irayfz6 likes this.
  8. Oct 10, 2019 at 8:32 PM
    #8
    kmorgan3

    kmorgan3 [OP] Well-Known Member

    Joined:
    Aug 22, 2019
    Member:
    #302994
    Messages:
    1,046
    Gender:
    Male
    First Name:
    Kyle
    Vehicle:
    2019 Tacoma SR | 2020 4Runner SR5 Premium
    Put some black door emblems on so now it actually looks like a Tacoma. Not sure why Toyota decided that door emblems were a place to cut costs on the SR, but whatever. Also got my tent on but had to use shims since my bed bars are very uneven. New bars should be on the way.


    irayfz6 likes this.
  9. Oct 16, 2019 at 1:57 PM
    #9
    kmorgan3

    kmorgan3 [OP] Well-Known Member

    Joined:
    Aug 22, 2019
    Member:
    #302994
    Messages:
    1,046
    Gender:
    Male
    First Name:
    Kyle
    Vehicle:
    2019 Tacoma SR | 2020 4Runner SR5 Premium
    Update:

    Ordered new headlight projectors so that I can have LED DRLs and blacked-out reflectors. Installed some knock-off predator tube steps temporarily until I absolutely need sliders (won't be for a while -- I don't wheel much in the winter). I really need to install my keyless entry...

    irayfz6 likes this.
  10. Oct 16, 2019 at 2:07 PM
    #10
    cubie

    cubie Aznrednek

    Joined:
    Jan 9, 2019
    Member:
    #278739
    Messages:
    12,559
    Gender:
    Male
    First Name:
    Jonny
    Sweet home Alabama
    Vehicle:
    '06 and '18 TRD OR 4x4 Access Cab
    Lookin' good so far!

    irayfz6 and kmorgan3 [OP] like this.
  11. Oct 16, 2019 at 10:06 PM
    #11
    kmorgan3

    kmorgan3 [OP] Well-Known Member

    Joined:
    Aug 22, 2019
    Member:
    #302994
    Messages:
    1,046
    Gender:
    Male
    First Name:
    Kyle
    Vehicle:
    2019 Tacoma SR | 2020 4Runner SR5 Premium

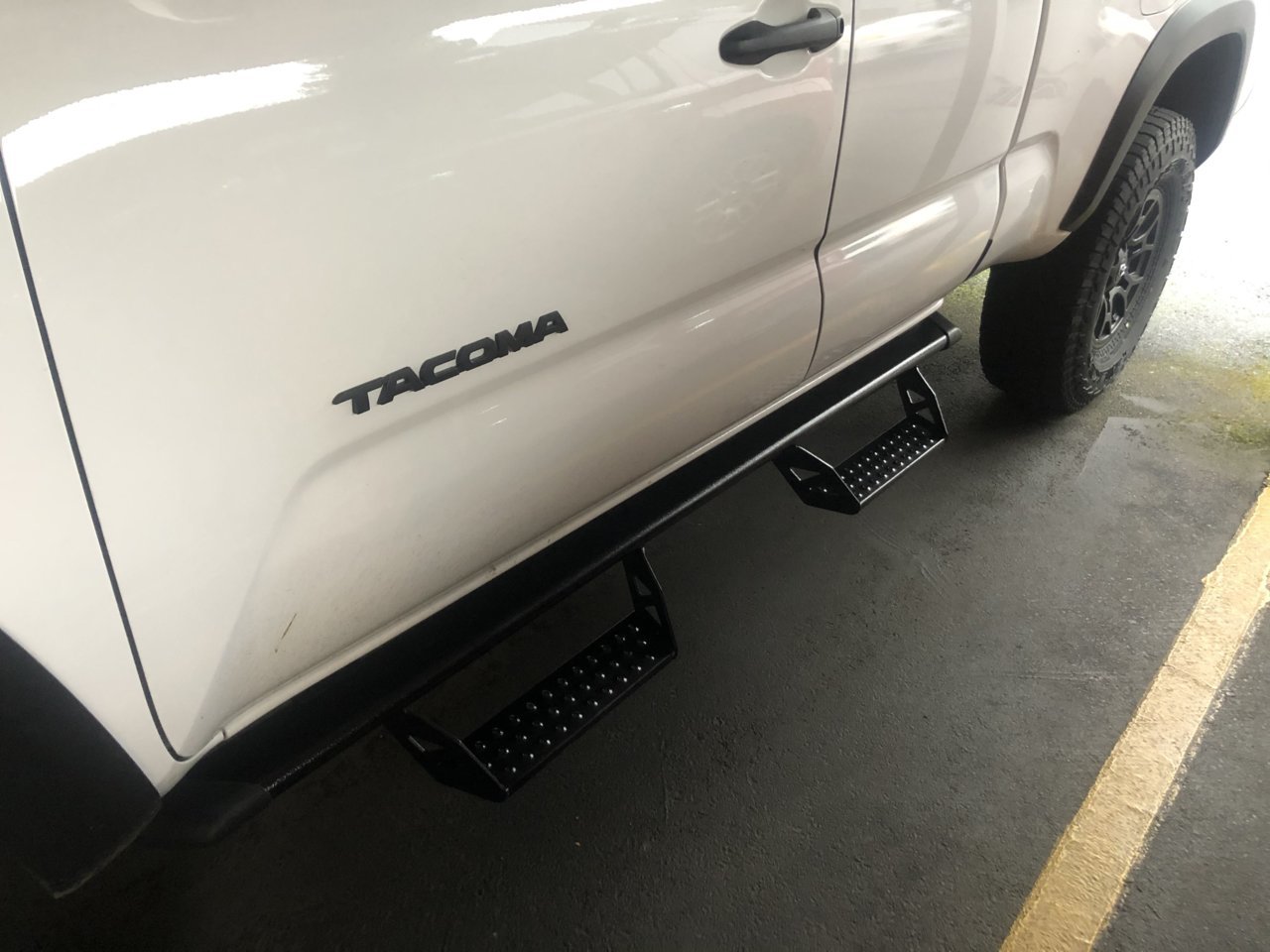

    Here’s the cheap predator tubes from eBay — they work fine for now and look great.
