Leaf Spring Shackle Polyurethane Bushings *Solved*

Discussion in '2nd Gen. Tacomas (2005-2015)' started by TacoCasa, Jan 27, 2019.

  1. Jan 27, 2019 at 5:11 PM
    #1
    TacoCasa

    TacoCasa [OP] Well-Known Member

    Joined:
    May 28, 2018
    Member:
    #254729
    Messages:
    79
    Gender:
    Male
    First Name:
    Tim
    The 719
    Vehicle:
    2013 Black Tacoma OR DCSB
    Bilstein 6112/5160, Camburg UCAs, HD Dakars, Uni filter, diff breather relocated.
    Hey all,

    I am currently installing some OME Dakar (EL096R) HD leaf springs. I believe the bushing kit is from Energy Suspension. Like most without a press, I had a difficult time getting the old bushings out. It was also a bitch to get these new polyurethane bushings to be fitted in the leaf spring shackles. I managed to press the sleeve and bushings using the bottle jack and the weight of the truck. However, after fully pressing the bushings in, they tend to bulge out to a point where I cant seat them back on the truck.

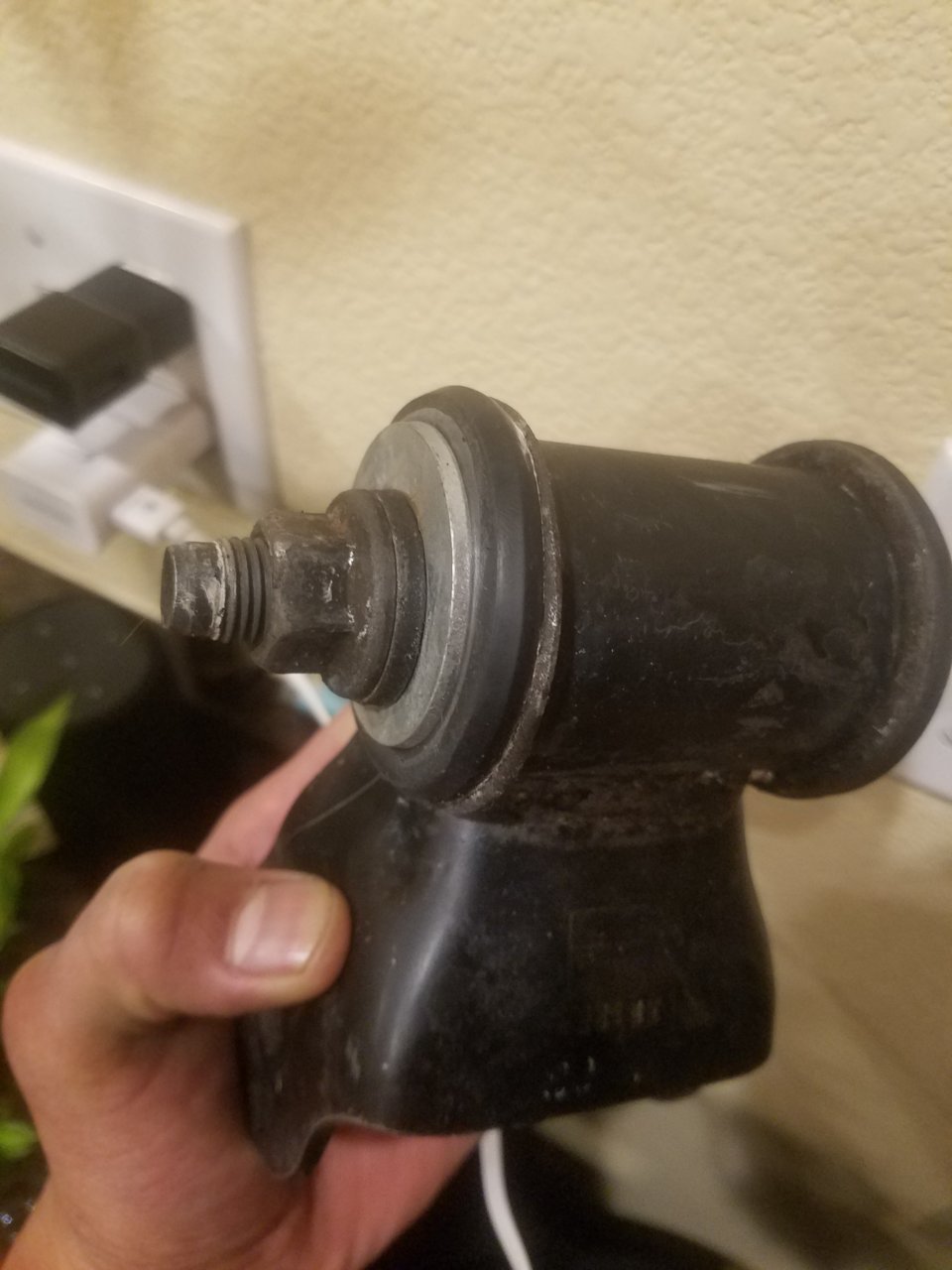

    My wife had the idea to use the leaf spring bolt with several washers to tighten the bushings onto the shackle. After initially doing this, the bushing seems to sit right. However, after loosening the bolt, the bushings want to bulge out slightly again.

    We re-tightened the bolt back onto the bushings to "press" it for a longer period of time, hoping the bushings will remain fully seated.

    What are good ways to keep the bushings seated so I can fit the shackle back in place?


  2. Jan 27, 2019 at 8:25 PM
    #2
    6 gearT444E

    6 gearT444E CEO & CFO @BPF

    Joined:
    Feb 3, 2018
    Member:
    #243372
    Messages:
    664
    Deep South
    Herculiner Hootus
    I think you are supposed to remove that metal sleeve, that is likely why they aren't sitting right

    EDDO likes this.
  3. Jan 27, 2019 at 8:52 PM
    #3
    TacoCasa

    TacoCasa [OP] Well-Known Member

    Joined:
    May 28, 2018
    Member:
    #254729
    Messages:
    79
    Gender:
    Male
    First Name:
    Tim
    The 719
    Vehicle:
    2013 Black Tacoma OR DCSB
    Bilstein 6112/5160, Camburg UCAs, HD Dakars, Uni filter, diff breather relocated.
    I'm not quite sure what you are referencing in the picture. To clarify what is going on, I used the leaf spring bolt with some washers to press the bushings and metal sleeve (not pictured) into the shackle. However, the bushings immediately start bulging out as soon as I relieve pressure from the bolt.

  4. Jan 27, 2019 at 9:07 PM
    #4
    EDDO

    EDDO                         

    Joined:
    Mar 12, 2014
    Member:
    #125165
    Messages:
    3,715
    Gender:
    Male
    First Name:
    Eric
    San Jose, CA
    Vehicle:
    13 DC TRD OR MG
                                                                                        CBI Moab 2.0 front bumper CBI Trail Rider 2.0 rear bumper B.A.M.F. sliders Exhaust crossover relocate Icon 2.5 front and 2.0 rear Camburg balljoint UCAs Welded stock alignment tabs Dakar Leaf Springs and 14" x 650 lb. coils Wheeler's SuperBumps (front) Icon Hydro Bumps with U-bolt flip Relentless Fab tailgate plate Total Chaos Bed Stiffeners 265/75R16 BFG T/A KO2 on black TRD faux beadlocks PTR18-35090 Custom Double Cardan Driveshaft from South Bay Driveline 2.5" dia .134" wall front, 3.0" dia .125" wall rear. Spicer 1310 joints, Spicer CB
    The outer metal sleeves from the old bushings needed to be removed from the shackles prior to installing the new bushings.

    SilverSurfer likes this.
  5. Jan 27, 2019 at 9:20 PM
    #5
    EDDO

    EDDO                         

    Joined:
    Mar 12, 2014
    Member:
    #125165
    Messages:
    3,715
    Gender:
    Male
    First Name:
    Eric
    San Jose, CA
    Vehicle:
    13 DC TRD OR MG
                                                                                        CBI Moab 2.0 front bumper CBI Trail Rider 2.0 rear bumper B.A.M.F. sliders Exhaust crossover relocate Icon 2.5 front and 2.0 rear Camburg balljoint UCAs Welded stock alignment tabs Dakar Leaf Springs and 14" x 650 lb. coils Wheeler's SuperBumps (front) Icon Hydro Bumps with U-bolt flip Relentless Fab tailgate plate Total Chaos Bed Stiffeners 265/75R16 BFG T/A KO2 on black TRD faux beadlocks PTR18-35090 Custom Double Cardan Driveshaft from South Bay Driveline 2.5" dia .134" wall front, 3.0" dia .125" wall rear. Spicer 1310 joints, Spicer CB
    TacoCasa [OP] likes this.
  6. Jan 27, 2019 at 9:21 PM
    #6
    TacoCasa

    TacoCasa [OP] Well-Known Member

    Joined:
    May 28, 2018
    Member:
    #254729
    Messages:
    79
    Gender:
    Male
    First Name:
    Tim
    The 719
    Vehicle:
    2013 Black Tacoma OR DCSB
    Bilstein 6112/5160, Camburg UCAs, HD Dakars, Uni filter, diff breather relocated.
    Now that you mentioned it, I dont remember taking out an outer sleeve after I took out the bushings and inner sleeves. Although, I didnt see anything unusual in the shackle eyelet. Is there a special way to them out?

  7. Jan 27, 2019 at 9:23 PM
    #7
    EDDO

    EDDO                         

    Joined:
    Mar 12, 2014
    Member:
    #125165
    Messages:
    3,715
    Gender:
    Male
    First Name:
    Eric
    San Jose, CA
    Vehicle:
    13 DC TRD OR MG
                                                                                        CBI Moab 2.0 front bumper CBI Trail Rider 2.0 rear bumper B.A.M.F. sliders Exhaust crossover relocate Icon 2.5 front and 2.0 rear Camburg balljoint UCAs Welded stock alignment tabs Dakar Leaf Springs and 14" x 650 lb. coils Wheeler's SuperBumps (front) Icon Hydro Bumps with U-bolt flip Relentless Fab tailgate plate Total Chaos Bed Stiffeners 265/75R16 BFG T/A KO2 on black TRD faux beadlocks PTR18-35090 Custom Double Cardan Driveshaft from South Bay Driveline 2.5" dia .134" wall front, 3.0" dia .125" wall rear. Spicer 1310 joints, Spicer CB

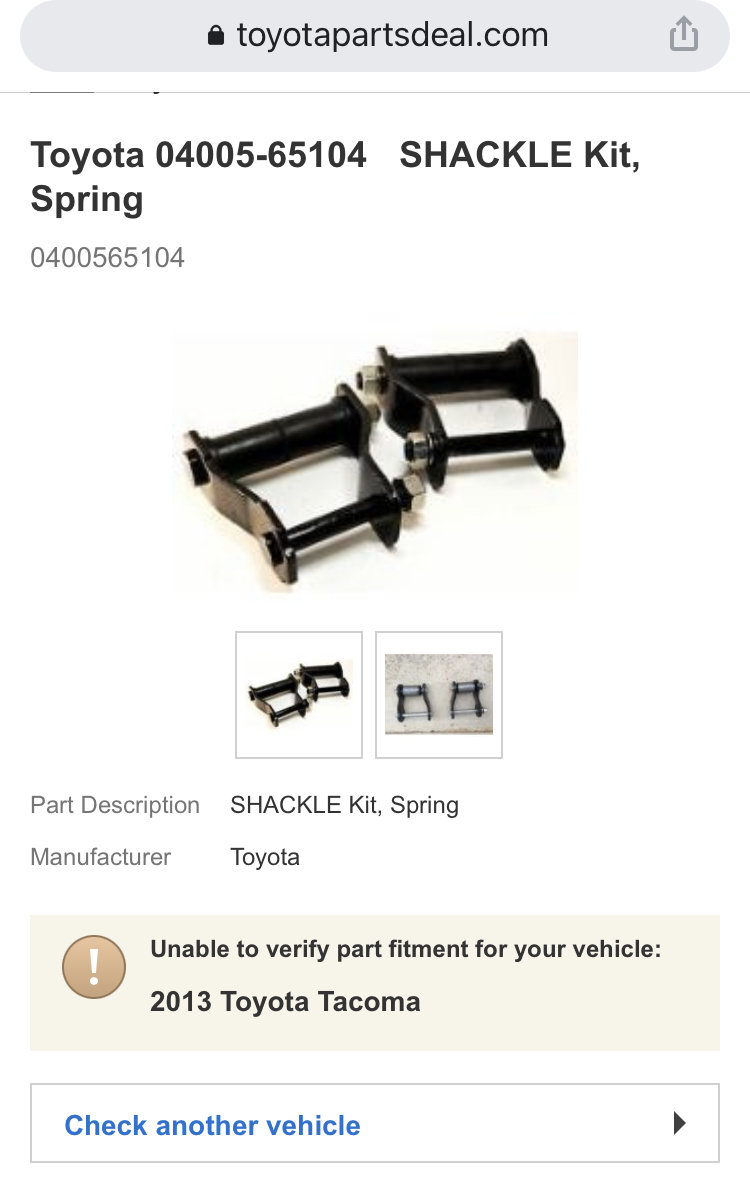

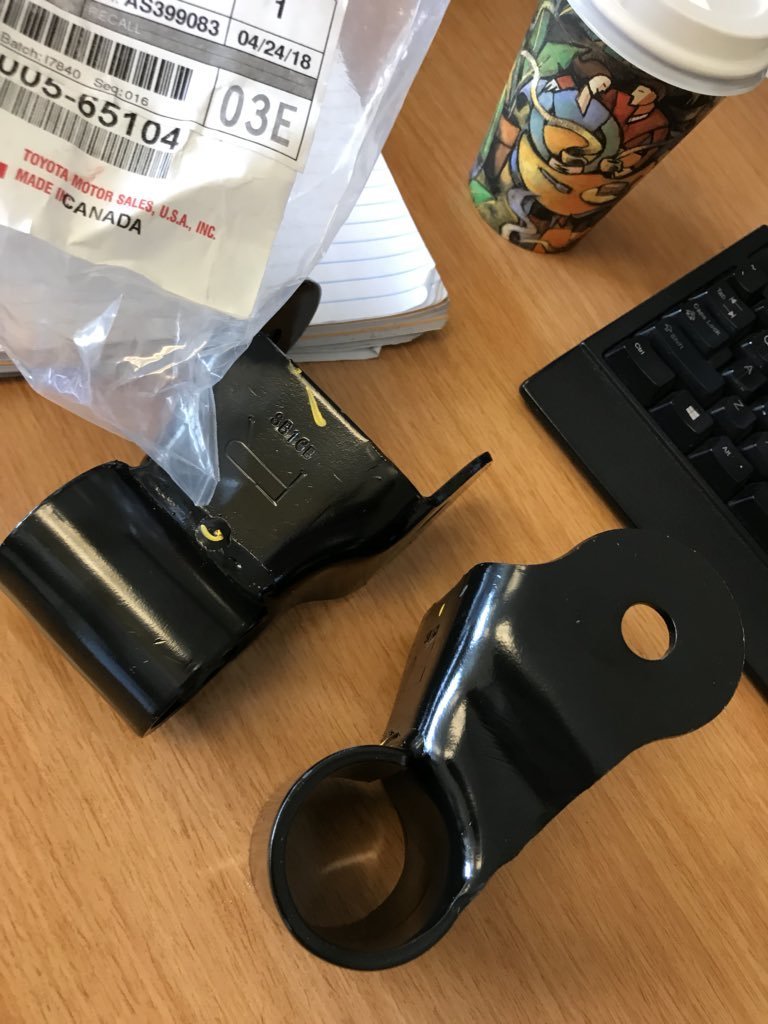

    That metal sleeve has to be chopped out. I just bought the naked shackles I posted above.

  8. Jan 27, 2019 at 9:49 PM
    #8
    TacoCasa

    TacoCasa [OP] Well-Known Member

    Joined:
    May 28, 2018
    Member:
    #254729
    Messages:
    79
    Gender:
    Male
    First Name:
    Tim
    The 719
    Vehicle:
    2013 Black Tacoma OR DCSB
    Bilstein 6112/5160, Camburg UCAs, HD Dakars, Uni filter, diff breather relocated.
    Thanks for that input! I just assumed that these bushings were plug and play.

  9. Jan 27, 2019 at 10:48 PM
    #9
    gotblika

    gotblika Well-Known Member

    Joined:
    Apr 28, 2011
    Member:
    #55716
    Messages:
    229
    Gender:
    Male
    Maui
    Vehicle:
    2015 DCLB Sport 4X4
    5100'S 887 SPC B110 EL096R
  10. Jan 28, 2019 at 4:58 AM
    #10
    TacoCasa

    TacoCasa [OP] Well-Known Member

    Joined:
    May 28, 2018
    Member:
    #254729
    Messages:
    79
    Gender:
    Male
    First Name:
    Tim
    The 719
    Vehicle:
    2013 Black Tacoma OR DCSB
    Bilstein 6112/5160, Camburg UCAs, HD Dakars, Uni filter, diff breather relocated.
    @gotblika thanks for that post! For some reason, I have seen this post a while before conducting my install. Everything seemed gibberish to me, until I've actually worked with the part. Looks to me that @EDDO helped me figure this out by looking at a stock shackle and compared mine with it.

    Getting that flange out looks like it sucks. Either I haven't done enough research, failed to comprehend the instructions, or both.

    Anyways, thanks all!

    EDDO likes this.
  11. Jan 28, 2019 at 8:35 AM
    #11
    gotblika

    gotblika Well-Known Member

    Joined:
    Apr 28, 2011
    Member:
    #55716
    Messages:
    229
    Gender:
    Male
    Maui
    Vehicle:
    2015 DCLB Sport 4X4
    5100'S 887 SPC B110 EL096R
    @EDDO That shackles come in a pair right? For ~$20 I think that’s the way to go.

  12. Jan 28, 2019 at 9:07 AM
    #12
    EDDO

    EDDO                         

    Joined:
    Mar 12, 2014
    Member:
    #125165
    Messages:
    3,715
    Gender:
    Male
    First Name:
    Eric
    San Jose, CA
    Vehicle:
    13 DC TRD OR MG
                                                                                        CBI Moab 2.0 front bumper CBI Trail Rider 2.0 rear bumper B.A.M.F. sliders Exhaust crossover relocate Icon 2.5 front and 2.0 rear Camburg balljoint UCAs Welded stock alignment tabs Dakar Leaf Springs and 14" x 650 lb. coils Wheeler's SuperBumps (front) Icon Hydro Bumps with U-bolt flip Relentless Fab tailgate plate Total Chaos Bed Stiffeners 265/75R16 BFG T/A KO2 on black TRD faux beadlocks PTR18-35090 Custom Double Cardan Driveshaft from South Bay Driveline 2.5" dia .134" wall front, 3.0" dia .125" wall rear. Spicer 1310 joints, Spicer CB
    They’re $20 each. Sold individually.

  13. Jan 28, 2019 at 9:38 AM
    #13
    gotblika

    gotblika Well-Known Member

    Joined:
    Apr 28, 2011
    Member:
    #55716
    Messages:
    229
    Gender:
    Male
    Maui
    Vehicle:
    2015 DCLB Sport 4X4
    5100'S 887 SPC B110 EL096R
    Ahh ok... by them calling it a kit I thought it’d be a pair.

    Last edited: Jan 28, 2019
  14. Jan 28, 2019 at 1:43 PM
    #14
    gotblika

    gotblika Well-Known Member

    Joined:
    Apr 28, 2011
    Member:
    #55716
    Messages:
    229
    Gender:
    Male
    Maui
    Vehicle:
    2015 DCLB Sport 4X4
    5100'S 887 SPC B110 EL096R

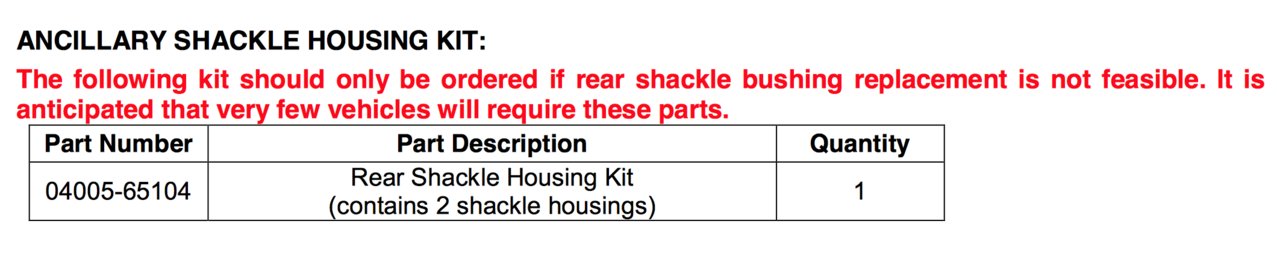

    according to the recall, should be 2 shackles in the kit.
