Leaking coolant - suggestions

Discussion in '1st Gen. Tacomas (1995-2004)' started by JakesTacoTRD, Oct 26, 2019.

  1. Oct 26, 2019 at 12:07 PM
    #1
    JakesTacoTRD

    JakesTacoTRD [OP] "Winona the Tacoma"

    Joined:
    Aug 26, 2017
    Member:
    #228090
    Messages:
    252
    Gender:
    Male
    First Name:
    Jacob
    Gainesville, FL
    Vehicle:
    2001 White Tacoma SR5 TRD 4x4 5 speed
    Hey guys,

    So I have been leaking coolant ever since I changed the coolant about 6 months ago. Since then I have replaced the radiator cap, water pump, coolant, and thermostat (Had my mechanic do the water pump, thermostat and timing belt). My truck passed a pressure check for the coolant system but now after the trip to the mechanic it is at about 200 F around town (was at 190-195F) and I noticed it was again leaking coolant. Maybe I just need a new radiator but wanted to see if any of you have experienced this. (All parts were OEM and I went from red to red and used distilled water to clean out the system before the change). I appreciate any advice!
    Jacob

    Last edited: Oct 26, 2019
    GQ7227 likes this.
  2. Oct 26, 2019 at 12:15 PM
    #2
    Timmah!

    Timmah! Well-Known Member

    Joined:
    Feb 25, 2016
    Member:
    #179385
    Messages:
    1,133
    Gender:
    Male
    First Name:
    TIM
    If the cap is new and the gasket is intact, the top of your radiator might be cracking. When they get old, the plastic can get brittle and it's not uncommon for the top of the radiator to crack and leak sometimes dramatically.

    GQ7227 and JakesTacoTRD [OP] like this.
  3. Oct 26, 2019 at 12:19 PM
    #3
    JakesTacoTRD

    JakesTacoTRD [OP] "Winona the Tacoma"

    Joined:
    Aug 26, 2017
    Member:
    #228090
    Messages:
    252
    Gender:
    Male
    First Name:
    Jacob
    Gainesville, FL
    Vehicle:
    2001 White Tacoma SR5 TRD 4x4 5 speed
    Yeah that was kinda what I was thinking just would think that would cause the system to fail a pressure test. Also the coolant is not being pulled from the reservoir either. Always scared of the head gasket but no bubbles when running cold with the cap off and not oil in coolant/vise versa

    GQ7227 likes this.
  4. Oct 26, 2019 at 12:24 PM
    #4
    BillsSR5

    BillsSR5 Looking out for #1

    Joined:
    Apr 12, 2017
    Member:
    #216032
    Messages:
    8,710
    First Name:
    bill
    Vehicle:
    2014 SR5
    I would try a new cap, unless you see a crack in that area

    GQ7227 and JakesTacoTRD [OP] like this.
  5. Oct 26, 2019 at 12:25 PM
    #5
    JakesTacoTRD

    JakesTacoTRD [OP] "Winona the Tacoma"

    Joined:
    Aug 26, 2017
    Member:
    #228090
    Messages:
    252
    Gender:
    Male
    First Name:
    Jacob
    Gainesville, FL
    Vehicle:
    2001 White Tacoma SR5 TRD 4x4 5 speed
    Hmm, even though it is already a new cap? (The old one was doing the same thing).

    GQ7227 likes this.
  6. Oct 26, 2019 at 12:30 PM
    #6
    JakesTacoTRD

    JakesTacoTRD [OP] "Winona the Tacoma"

    Joined:
    Aug 26, 2017
    Member:
    #228090
    Messages:
    252
    Gender:
    Male
    First Name:
    Jacob
    Gainesville, FL
    Vehicle:
    2001 White Tacoma SR5 TRD 4x4 5 speed
    Yeah, I have a scan gauge and just replaced the water pump and thermostat and it seemed to increase the running temp (193–>200). I read somewhere that sometimes if the thermostat is installed incorrectly they won’t operate, but my mechanic is normally pretty good.

  7. Oct 26, 2019 at 12:30 PM
    #7
    BillsSR5

    BillsSR5 Looking out for #1

    Joined:
    Apr 12, 2017
    Member:
    #216032
    Messages:
    8,710
    First Name:
    bill
    Vehicle:
    2014 SR5
    kind of unusual since all major cooling parts are replaced with OEM stuff, try getting it up to operating temp pull off the road pop the hood with engine running see if u can spot the leak

  8. Oct 26, 2019 at 12:31 PM
    #8
    JakesTacoTRD

    JakesTacoTRD [OP] "Winona the Tacoma"

    Joined:
    Aug 26, 2017
    Member:
    #228090
    Messages:
    252
    Gender:
    Male
    First Name:
    Jacob
    Gainesville, FL
    Vehicle:
    2001 White Tacoma SR5 TRD 4x4 5 speed
    But it would get past 200 easy on the highway before so I can’t say that wasn’t a thing. But now it is 200 a lot faster

  9. Oct 26, 2019 at 12:31 PM
    #9
    JakesTacoTRD

    JakesTacoTRD [OP] "Winona the Tacoma"

    Joined:
    Aug 26, 2017
    Member:
    #228090
    Messages:
    252
    Gender:
    Male
    First Name:
    Jacob
    Gainesville, FL
    Vehicle:
    2001 White Tacoma SR5 TRD 4x4 5 speed
    I’m almost positive it is out of the cap

    BillsSR5 likes this.
  10. Oct 26, 2019 at 12:31 PM
    #10
    JakesTacoTRD

    JakesTacoTRD [OP] "Winona the Tacoma"

    Joined:
    Aug 26, 2017
    Member:
    #228090
    Messages:
    252
    Gender:
    Male
    First Name:
    Jacob
    Gainesville, FL
    Vehicle:
    2001 White Tacoma SR5 TRD 4x4 5 speed

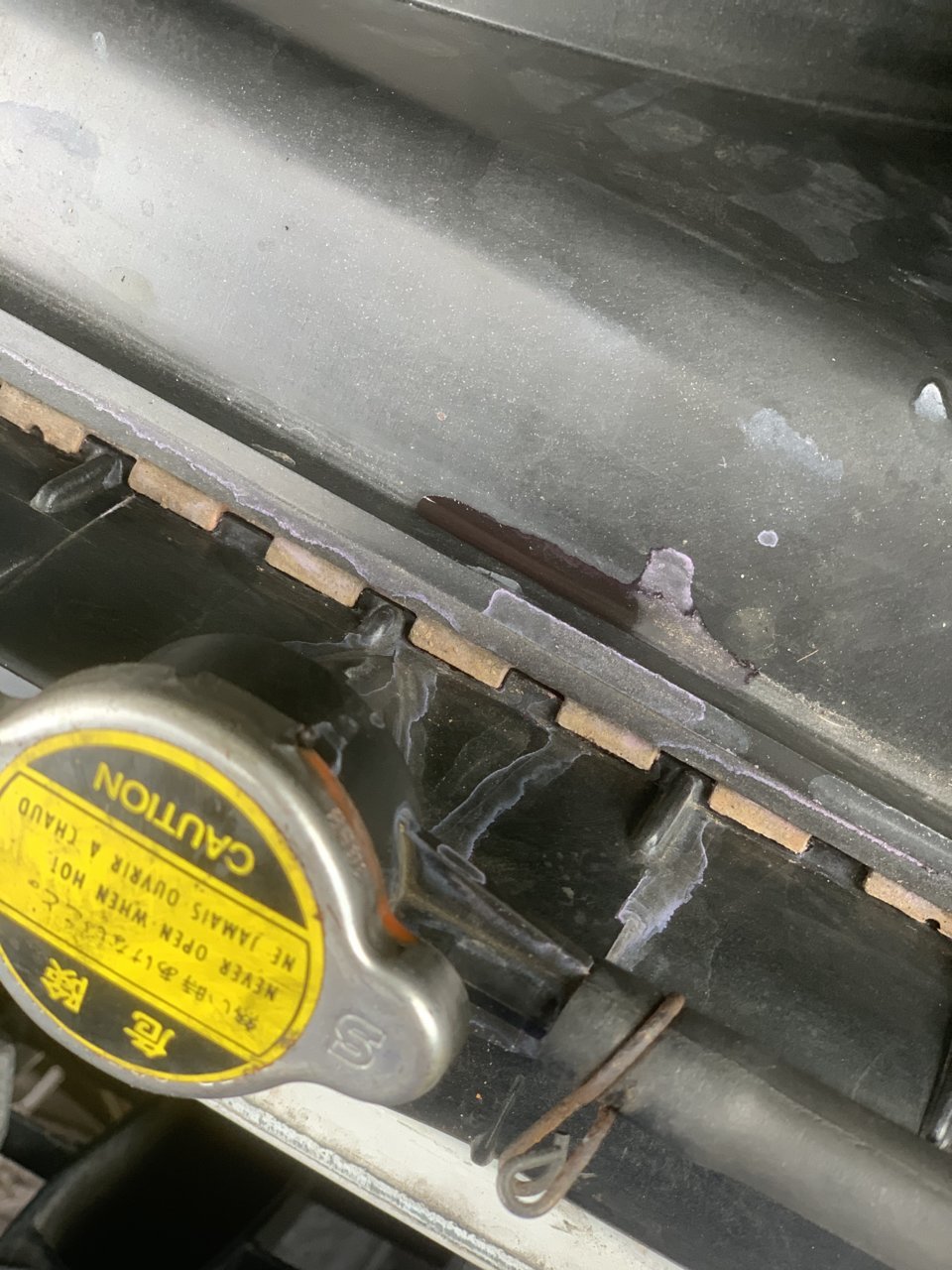

    Or at that radiator neck

  11. Oct 26, 2019 at 12:32 PM
    #11
    BillsSR5

    BillsSR5 Looking out for #1

    Joined:
    Apr 12, 2017
    Member:
    #216032
    Messages:
    8,710
    First Name:
    bill
    Vehicle:
    2014 SR5
    true

    JakesTacoTRD [OP] likes this.
  12. Oct 26, 2019 at 12:33 PM
    #12
    BillsSR5

    BillsSR5 Looking out for #1

    Joined:
    Apr 12, 2017
    Member:
    #216032
    Messages:
    8,710
    First Name:
    bill
    Vehicle:
    2014 SR5
    try an OEM replacement those aftermarket STANT aren't as good

    Wyoming09 likes this.
  13. Oct 26, 2019 at 12:34 PM
    #13
    JakesTacoTRD

    JakesTacoTRD [OP] "Winona the Tacoma"

    Joined:
    Aug 26, 2017
    Member:
    #228090
    Messages:
    252
    Gender:
    Male
    First Name:
    Jacob
    Gainesville, FL
    Vehicle:
    2001 White Tacoma SR5 TRD 4x4 5 speed
    I got everything from the stealership

    GQ7227 and BillsSR5 like this.
  14. Oct 26, 2019 at 12:53 PM
    #14
    cruiserguy

    cruiserguy Well-Known Member

    Joined:
    Jul 31, 2016
    Member:
    #193416
    Messages:
    19,072
    Gender:
    Male
    First Name:
    Elijah
    SLC
    Vehicle:
    2000 ext cab, 2.7L, auto, 4x4
    Yeah the leaking is one thing and it might be a seperate issue with running 10 degrees hotter. As the guy above posted, the thermostat in the V6, the 3.4 L, actually is supposed to be installed with the bubbler valve/jiggle valve at the 6 o'clock position, which is opposite of any other thermostats I've worked on and seen. We know through experience here in the forum that folks that run the jiggle valve in the 'traditionally correct' position, at 12 o'clock will run hotter. Many mechanics do not know this about this engine as its contrary to pretty much everything they're taught or have seen. But it is true. We've seen it plenty of times with guys here in the forum.

    But the leak looks like the leak I had in upper tank. Microcrack that when engine is heated up and coolant is hot then crack expands and you can see the coolant. If Check for the crack in tank after it's cooled off and shrank back down you're left staring going wtf did that coolant come from. It's a common leak, the upper tank splitting or losing seal to core, with our tacos

    JakesTacoTRD [OP] likes this.
  15. Oct 26, 2019 at 12:58 PM
    #15
    JakesTacoTRD

    JakesTacoTRD [OP] "Winona the Tacoma"

    Joined:
    Aug 26, 2017
    Member:
    #228090
    Messages:
    252
    Gender:
    Male
    First Name:
    Jacob
    Gainesville, FL
    Vehicle:
    2001 White Tacoma SR5 TRD 4x4 5 speed
    Great advice, I may bring it back and have him flip it unless I can find time to change it myself. I will also likely replace the radiator for good measure. Got off the phone with the dealership and they told me they no longer sell radiators for our truck which is a bummer. Also by upper tank you mean upper tank within the radiator?

  16. Oct 26, 2019 at 2:14 PM
    #16
    BillsSR5

    BillsSR5 Looking out for #1

    Joined:
    Apr 12, 2017
    Member:
    #216032
    Messages:
    8,710
    First Name:
    bill
    Vehicle:
    2014 SR5
  17. Oct 26, 2019 at 2:44 PM
    #17
    1997tacomav6

    1997tacomav6 V6 5sp,RegCab,TRD Supercharger,2"pulley,meth, 650k

    Joined:
    Oct 5, 2013
    Member:
    #113940
    Messages:
    7,832
    Gender:
    Male
    First Name:
    John
    Denver
    Vehicle:
    97 reg cab, v6 5sp 300hp supercharged, Methonal Injection, 650,001 plus miles, Original Owner
    V6 5sp,RegCab,TRD Supercharger, 2" pulley, methanol injected AC TRD supercharger,(MUST DO) TRD supercharger ported, rebuilt 3 times over 500,000 miles, every 125,000- 150,000 needs rebuild Projector headlights HID 5 speed manual Amsoil for all drive train Smaller 2” pulley,(300hp) (MUST DO) 2004 DESNO fuel injectors, zero ping ping, 2004 side door mirrors Dick Cepek Rims, Michelin tires LTX, ( that last 100,000 miles) Now running Dynopro ATM mud and snow tires KN cold air intake Cat back exhaust with ss exhaust tip, Raised exhaust tail pipe to 2" below body line Optima*dry cell battery,red top Alpine sirius radio, 200 watt amp, focal is165 split door pod speakers Focal door speakers Subwoffer behind seat Viper alarm, Electric Locks Dark tinted windows, 4runner bucket seats, Tacoma Rubber floor mats TRD fender extenders, Bilstien shocks chrome push bar, chrome nerf bars, add a leaf for rear springs trailer iv hitch, electric brake control, Drilled slotted brakes, High carbon steel (MUST DO) EBS green stuff 7000 series pads(MUST DO) TRD engine oil cap TRD stick shift, Rear sliding window 2002 4Runner functional hood scoop cut into Tacoma hood, 4Runner dual overhead map light Gentex Auto dim + Compass + Temp, garage,rearview mirror Corbeau bucket seats Snow Methonal kit stage 2 Champion 3 core aluminum radiator Linex bed liner
    Guaranteed to run 5-8 degrees hotter if the stat is in the 12 o’clock position if you have the stock radiator

    JakesTacoTRD [OP] and cruiserguy like this.
  18. Oct 26, 2019 at 2:52 PM
    #18
    cruiserguy

    cruiserguy Well-Known Member

    Joined:
    Jul 31, 2016
    Member:
    #193416
    Messages:
    19,072
    Gender:
    Male
    First Name:
    Elijah
    SLC
    Vehicle:
    2000 ext cab, 2.7L, auto, 4x4
    Yeah the plastic upper tank is what usually splits. The lower tank is also plastic and not as common of a problem area.
    As these tacos were made in 'Murica, the OEM radiator was made and provided by Harrison. For replacement, folks have found the Denso aftermarket radiators to be acceptable, myself included. I think there is another brand of radiator that guys have had good luck with here as well. Checking to see if thermostat is correctly oriented could be an easy diagnostic step for you. Even with slight leaking the cooling system should be able to keep the engine cooled off enough

  19. Dec 16, 2019 at 10:00 AM
    #19
    Sreppep

    Sreppep Well-Known Member

    Joined:
    Feb 15, 2015
    Member:
    #148700
    Messages:
    553
    Gender:
    Male
    First Name:
    Philip
    Fort Worth, TX
    Vehicle:
    2001 SR5 4x4 V6 5spd 264k - 2005 T4R V8 4x4 139k
    5100/Toytec, F5s/w KO2 285s, ARB, 4x skids/sliders

    Did you end up replacing the radiator? I have a crack in mine and am wanting to replace with denso but most seem to be for the autos.

  20. Dec 16, 2019 at 5:00 PM
    #20
    JakesTacoTRD

    JakesTacoTRD [OP] "Winona the Tacoma"

    Joined:
    Aug 26, 2017
    Member:
    #228090
    Messages:
    252
    Gender:
    Male
    First Name:
    Jacob
    Gainesville, FL
    Vehicle:
    2001 White Tacoma SR5 TRD 4x4 5 speed
    I didn’t, it ended up being the cap but I may replace it soon
