LED BAR 24INCH

Discussion in '1st Gen. Tacomas (1995-2004)' started by tdi200, Dec 1, 2016.

  1. Dec 1, 2016 at 7:39 AM
    #1
    tdi200

    tdi200 [OP] Member

    Joined:
    Dec 1, 2016
    Member:
    #203743
    Messages:
    9
    Gender:
    Male
    could you please give me advice as i want some changes on my current setup which is below:

    Car uses negative polarity on Headlights

    so i have installed 24inch led light bar comes on when you cycle the high beams on and cuts off when you cycle them off my current wiring is below,

    Using a standard 30 amp 4 pin relay, the wiring is as follows:

    *Pin 30 goes right to the battery with a 15 amp fuse in-line
    *Pin 87 goes to the 12+ input of the LED light bar
    *Pins 85 and 86 go directly to the wires in the plug for the high beam light bulb. Polarization doesn't matter with these wires (doesn't matter which is + and which is - either way they're just completing the circuit and tripping the relay)

    Then i have ground the - wire on the LED light bar and that is it, they kick on with the high beams.

    that is what i am trying to achieve now

    I want to be able to have the bar;
    - Come on automatically when the high beams are flicked on (this option i have it and dont wanna loose)
    - Be able to turn the bar on and off while high beams are engaged for in town driving
    - On a switch so that it can come on independently when the high beams are off

    can you please advice me how to make this happen?

    thank you

  2. Dec 1, 2016 at 8:18 AM
    #2
    benrpd

    benrpd Well-Known Member

    Joined:
    Jan 10, 2016
    Member:
    #174539
    Messages:
    267
    Gender:
    Male
    First Name:
    Ben
    Vehicle:
    2003 Tacoma Xtra Cab
    None

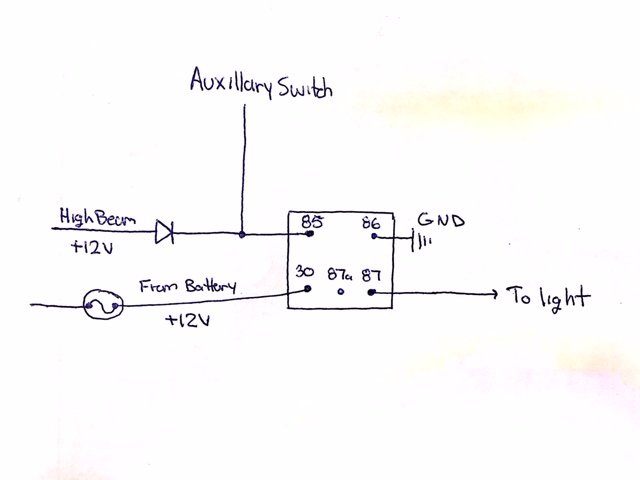

    I did something similar with my reverse lights. Rather than explaining it, I'll just post a picture below. I used a 1000V diode to do this. For me, though, I can't turn my LEDs off while reverse lights are off.

    new doc 1_1.jpg

    tdi200 [OP] likes this.
  3. Dec 1, 2016 at 8:30 AM
    #3
    tdi200

    tdi200 [OP] Member

    Joined:
    Dec 1, 2016
    Member:
    #203743
    Messages:
    9
    Gender:
    Male
    thank you i am still looking for more options/ways to do this like u said u cant turn your leds on when reverse is off

  4. Dec 1, 2016 at 8:33 AM
    #4
    benrpd

    benrpd Well-Known Member

    Joined:
    Jan 10, 2016
    Member:
    #174539
    Messages:
    267
    Gender:
    Male
    First Name:
    Ben
    Vehicle:
    2003 Tacoma Xtra Cab
    None
    Why not just run the lights whenever your high beams are on? My logic on my old setup was that if my high beams are on I'm likely blinding anyone ahead of me anyway so may as well run the bar at the same time lol. I'll do some thinking and post back if I can't figure something out without a ton of relays and diodes.

    tdi200 [OP] likes this.
  5. Dec 1, 2016 at 9:01 AM
    #5
    TooMuchToDo

    TooMuchToDo Well-Known Member

    Joined:
    Jul 22, 2016
    Member:
    #192615
    Messages:
    401
    Gender:
    Male
    Vehicle:
    2002 Gold Tacoma XtraCab with 192k
    ...we'll get there.
    i agree with benrpd, but if you really want to go your way you'll have to throw a switch into what you've already got, then get another switched power line to the lights that will bypass the high-beam relay business.

    tdi200 [OP] and Wulf like this.
  6. Dec 1, 2016 at 9:08 AM
    #6
    tdi200

    tdi200 [OP] Member

    Joined:
    Dec 1, 2016
    Member:
    #203743
    Messages:
    9
    Gender:
    Male
    That is the setup i currently have they come on when high beams are on,

    I want to do this because i want to be able to use the light bar with my high beams and low beams while driving. i want to be able to have it come on whenever i demand it

    I also want to be able to use the light as a spot light independant of the headlights. Since the led has such a low draw, i will probably, at times, use it with the car off and want to be able to turn it on independant of whatever else i have on or off.

    Last edited: Dec 1, 2016
  7. Dec 1, 2016 at 9:10 AM
    #7
    tdi200

    tdi200 [OP] Member

    Joined:
    Dec 1, 2016
    Member:
    #203743
    Messages:
    9
    Gender:
    Male
    i know the fact i do need an on off on switch (DPDT but how to wire it to my current setup

  8. Dec 1, 2016 at 9:20 AM
    #8
    benrpd

    benrpd Well-Known Member

    Joined:
    Jan 10, 2016
    Member:
    #174539
    Messages:
    267
    Gender:
    Male
    First Name:
    Ben
    Vehicle:
    2003 Tacoma Xtra Cab
    None
    The diagram I have above allows you to turn the LED bar on either with your high beams, or with a switch when your high beams are off and not have power backfeed into your high beams. For my setup, I have a diode there because I don't want my reverse lights on when my LED lights in the back turn on. No real reason other than it looks half-assed when both sets come on with a switch.

  9. Dec 1, 2016 at 9:40 AM
    #9
    tdi200

    tdi200 [OP] Member

    Joined:
    Dec 1, 2016
    Member:
    #203743
    Messages:
    9
    Gender:
    Male
    ok thank you just to confirm does the polarity of my headlights being negative makes any difference in wiring

  10. Dec 1, 2016 at 9:41 AM
    #10
    tdi200

    tdi200 [OP] Member

    Joined:
    Dec 1, 2016
    Member:
    #203743
    Messages:
    9
    Gender:
    Male
    as currently Pins 85 and 86 go directly to the wires in the plug for the high beam light bulb

  11. Dec 1, 2016 at 9:53 AM
    #11
    tdi200

    tdi200 [OP] Member

    Joined:
    Dec 1, 2016
    Member:
    #203743
    Messages:
    9
    Gender:
    Male
    so will i need DPDT switch?

  12. Dec 1, 2016 at 8:21 PM
    #12
    Wulf

    Wulf a̴̜̯̜̥̱̓̅͐̉ŝ̵̡̛̻̠̫̗͇̮̃̌̓̍͆̒̿͐̽̀̕͝͠s̵̡̳͒͌̎̄̓̉͛́͘ͅ

    Joined:
    Jan 30, 2015
    Member:
    #147523
    Messages:
    33,553
    First Name:
    Jake
    24400 E Smoky Hill Rd, Aurora, CO 80016
    Vehicle:
    96 Tacoma WIP
    yes
    I'm waiting on led pods in the mail to do the same and didn't even think about the diode but that's a great idea :)

    tdi200 [OP] likes this.
  13. Dec 2, 2016 at 6:08 AM
    #13
    benrpd

    benrpd Well-Known Member

    Joined:
    Jan 10, 2016
    Member:
    #174539
    Messages:
    267
    Gender:
    Male
    First Name:
    Ben
    Vehicle:
    2003 Tacoma Xtra Cab
    None
    I'm not entirely sure what you mean by this. Polarity in diodes matters because current can only pass one way through diodes (LEDs included). The control side of the relay (85 and 86) are not polarity specific, no. You can ground either 85 or 86 and the relay will energize.

    For my setup, no. I used an illuminated SPST switch.

    I know it's not the end of the world having both the reverse lights and the auxiliary lights come on, but I find it looks sloppy when you're only wanting to use the auxiliary lights.

    Wulf and tdi200 [OP] like this.
  14. Dec 2, 2016 at 6:20 AM
    #14
    tdi200

    tdi200 [OP] Member

    Joined:
    Dec 1, 2016
    Member:
    #203743
    Messages:
    9
    Gender:
    Male
