LED Bed Lighting Setups

Discussion in '3rd Gen. Tacomas (2016+)' started by thndrbrd324, Mar 10, 2019.

  1. Mar 10, 2019 at 3:35 PM
    #1
    thndrbrd324

    thndrbrd324 [OP] Active Member

    Joined:
    Mar 5, 2019
    Member:
    #285423
    Messages:
    35
    Gender:
    Male
    Vehicle:
    2017 Inferno Tacoma TRD Sport
    Bull bar, Sport bar, LEDs all round, vinyls, Blackout

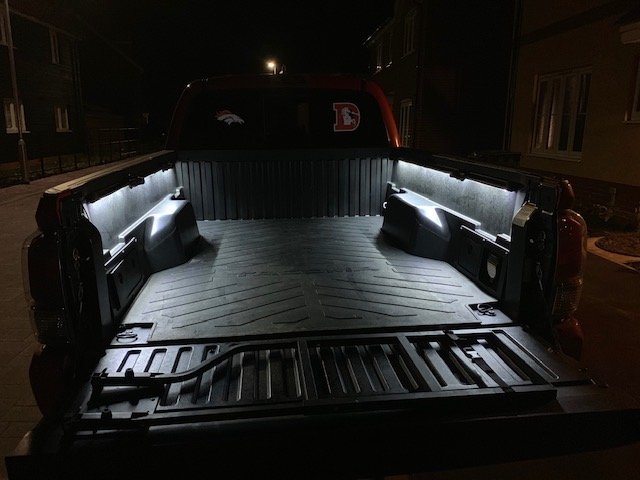

    Just curious how people set up their own bed lighting. Build your own or Kit?

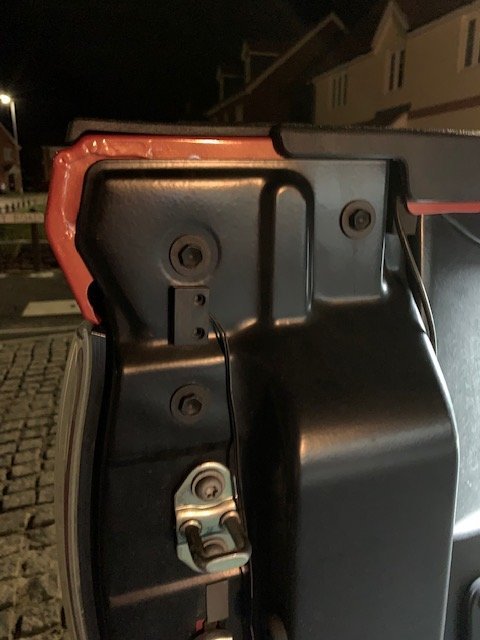

    I bought parts and wired my own with a magnetic switch so it automatically kicks on when I open the tail gate. Whats the slickest way you've seen/done?

  2. Mar 10, 2019 at 3:37 PM
    #2
    Cudgel

    Cudgel “Tonka”

    Joined:
    Mar 28, 2017
    Member:
    #214640
    Messages:
    1,888
    Gender:
    Male
    Live in: A Plastic Trash Floating Ocean Continent
    Vehicle:
    2017 OR DCLB
    ICON8 Lift -285s on FUEL Recoils -KCs on bars (+).
    Pic?

  3. Mar 10, 2019 at 3:42 PM
    #3
    thndrbrd324

    thndrbrd324 [OP] Active Member

    Joined:
    Mar 5, 2019
    Member:
    #285423
    Messages:
    35
    Gender:
    Male
    Vehicle:
    2017 Inferno Tacoma TRD Sport
    Bull bar, Sport bar, LEDs all round, vinyls, Blackout
  4. Mar 10, 2019 at 3:47 PM
    #4
    HawkShot99

    HawkShot99 Well-Known Member

    Joined:
    Oct 20, 2015
    Member:
    #167182
    Messages:
    1,697
    Gender:
    Male
    Poughkeepsie, NY
    Vehicle:
    13' Silver DCLB TRD Sport
    20181026_221121.jpg built my own kit.
    Used a led strip attached to a long piece of flat stock with holes in it. The flat stock is drilled to match the mounting holes for the cap's windows.
    Controlled by a switch in the upper left corner. This allows me to turn on the lights while the door is closed(camping) or leave them off when opening the door.
    I'd guess I have less than $50 into it.

  5. Mar 10, 2019 at 3:51 PM
    #5
    thndrbrd324

    thndrbrd324 [OP] Active Member

    Joined:
    Mar 5, 2019
    Member:
    #285423
    Messages:
    35
    Gender:
    Male
    Vehicle:
    2017 Inferno Tacoma TRD Sport
    Bull bar, Sport bar, LEDs all round, vinyls, Blackout
    The pricey-ness of kits was the deciding factor for me. While the potential for electrical gremlins is a bit daunting, doing it yourself for fairly cheap is easier than people think.

  6. Mar 10, 2019 at 4:05 PM
    #6
    BookieBob

    BookieBob Well-Known Member

    Joined:
    Feb 26, 2017
    Member:
    #211749
    Messages:
    998
    Gender:
    Male
    Racine,Wisconsin
    Vehicle:
    2017 blazing blue pearl Trd sport 4x4

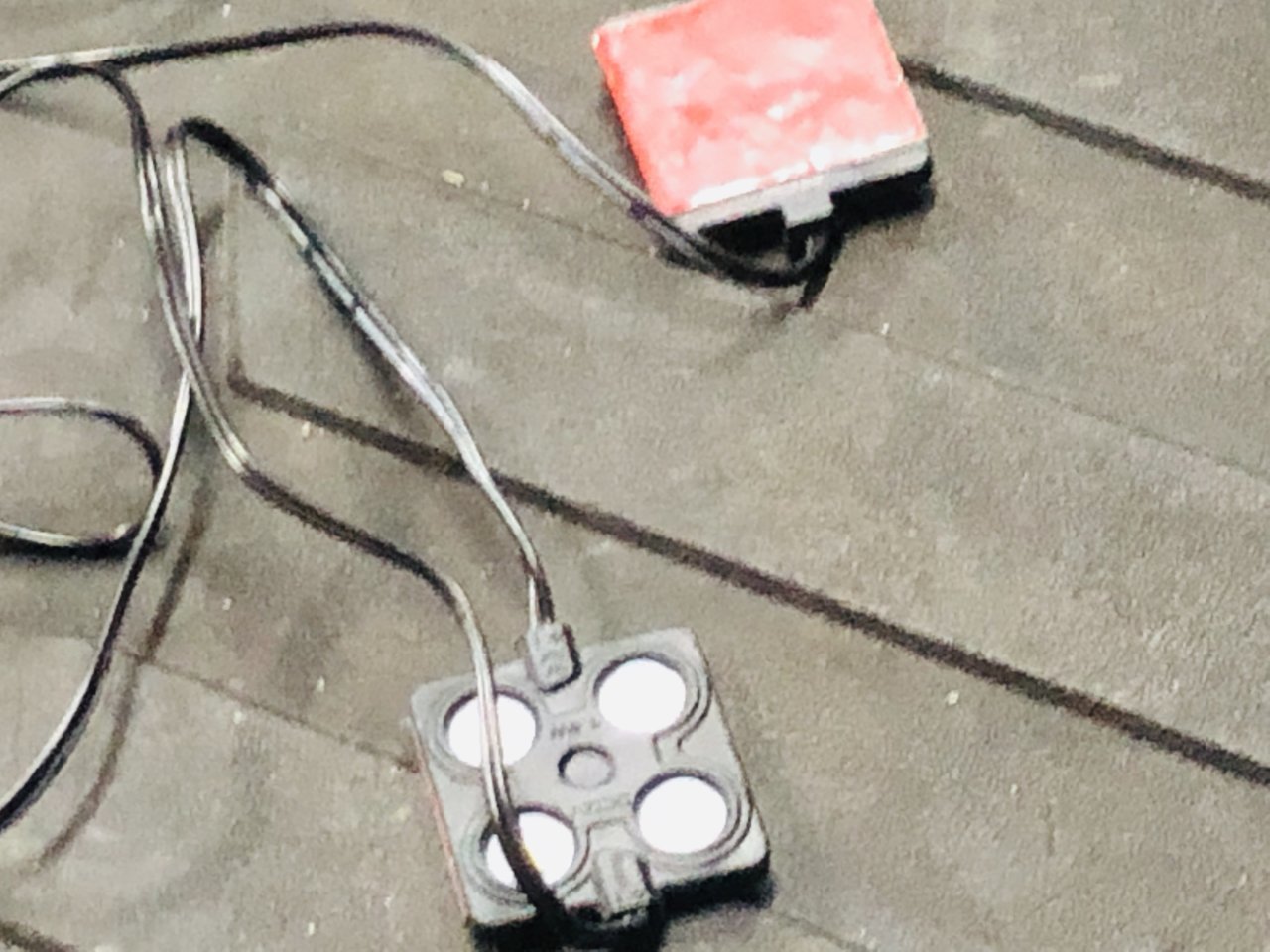

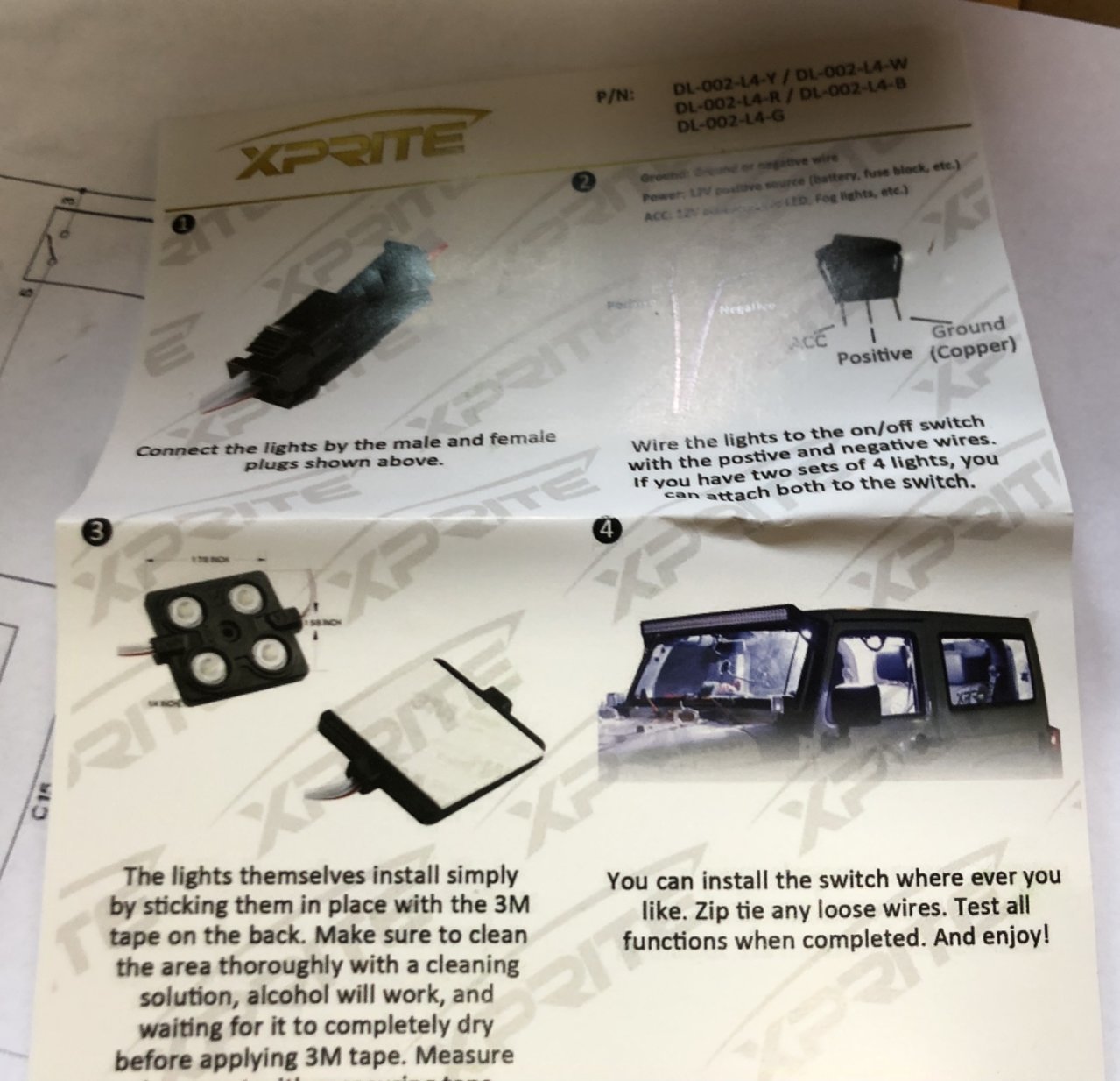

    My neighbor bought these as a Christmas gift on Amazon. They are a 4 led flat pod . 4 squares per side.

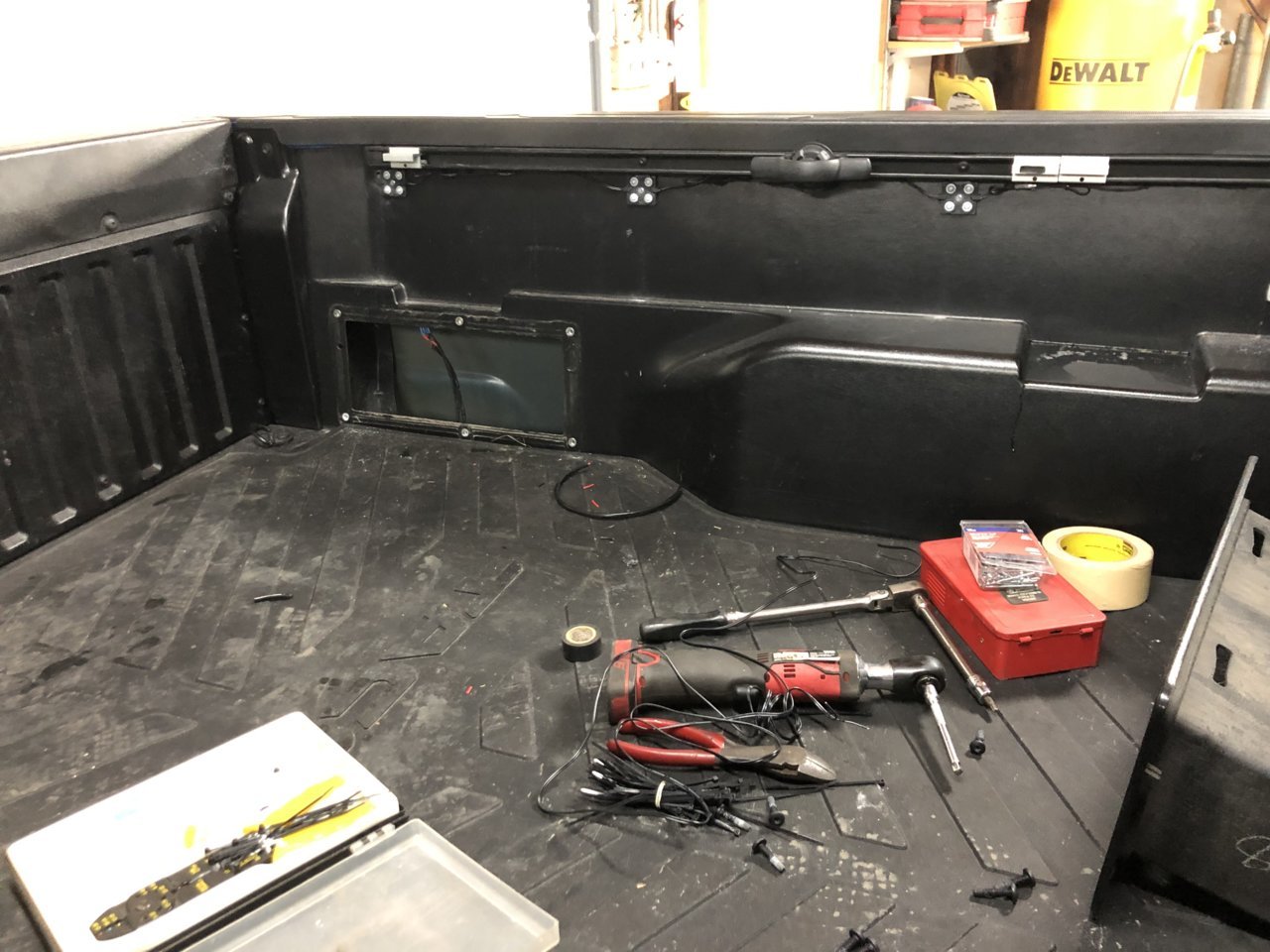

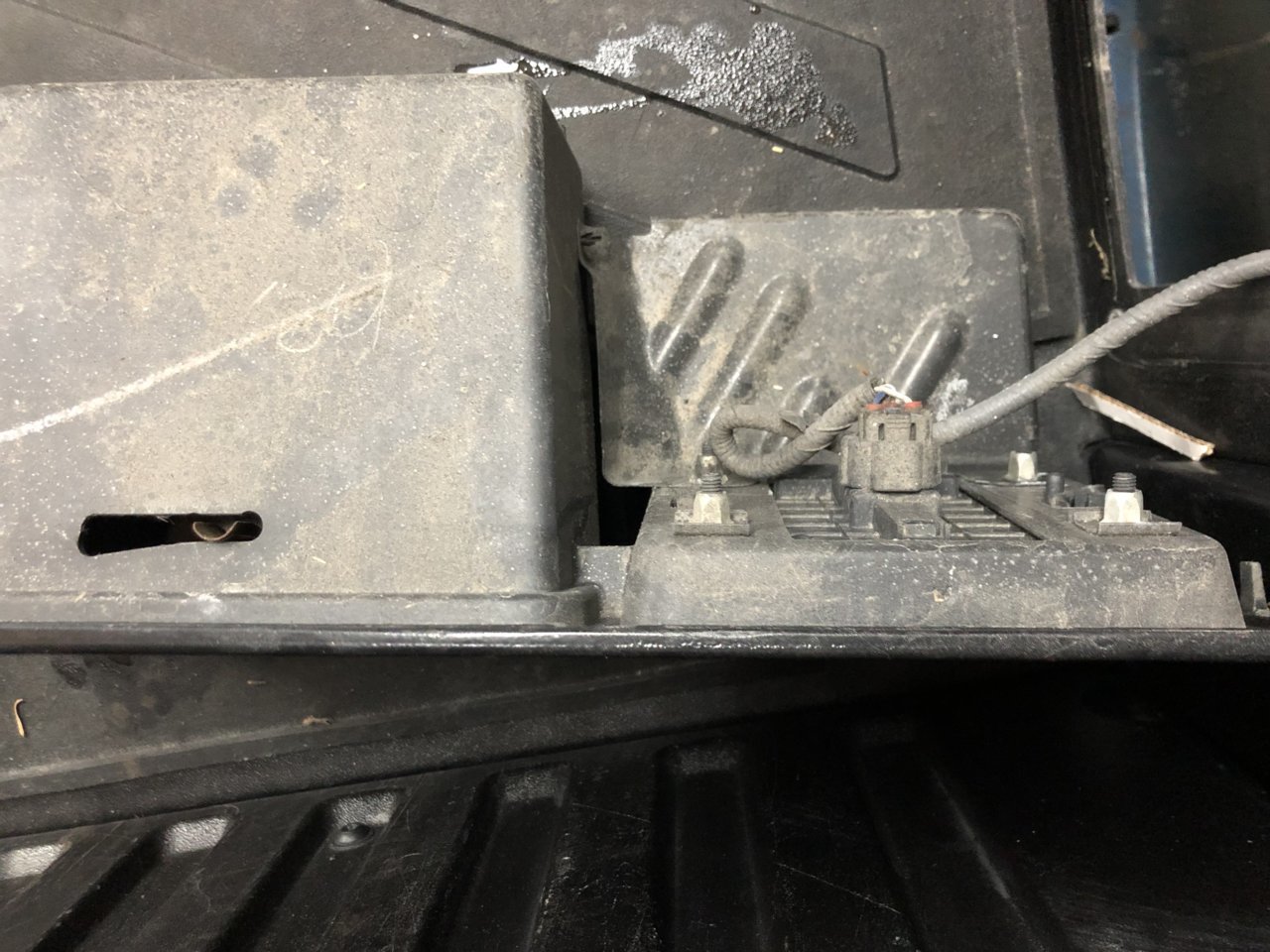

    Removed the cubby boxes(‘17 had 1 on each side ) to access the backside of the bed.
    Unscrewed the rail system so it was loose but not removed.

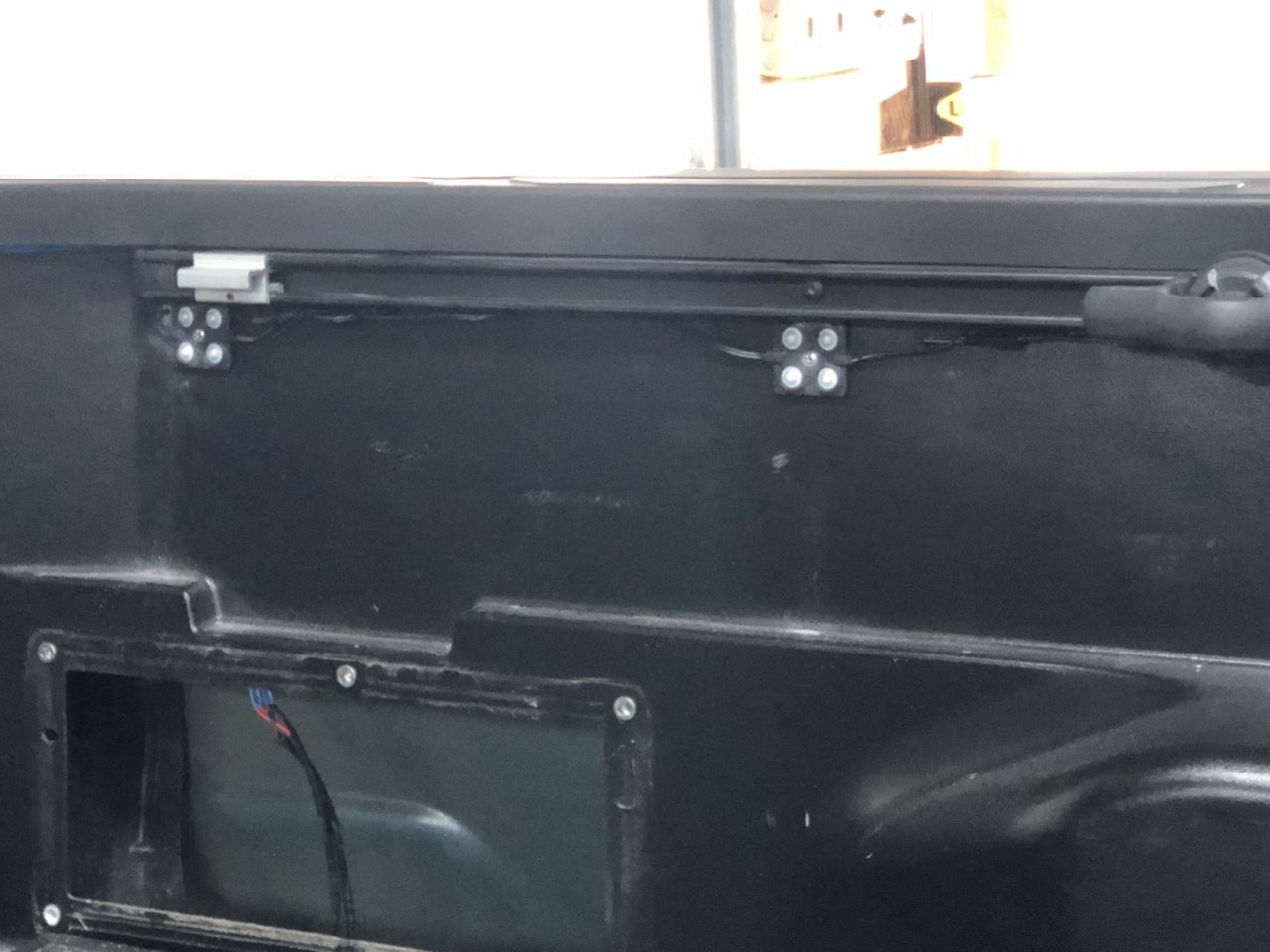

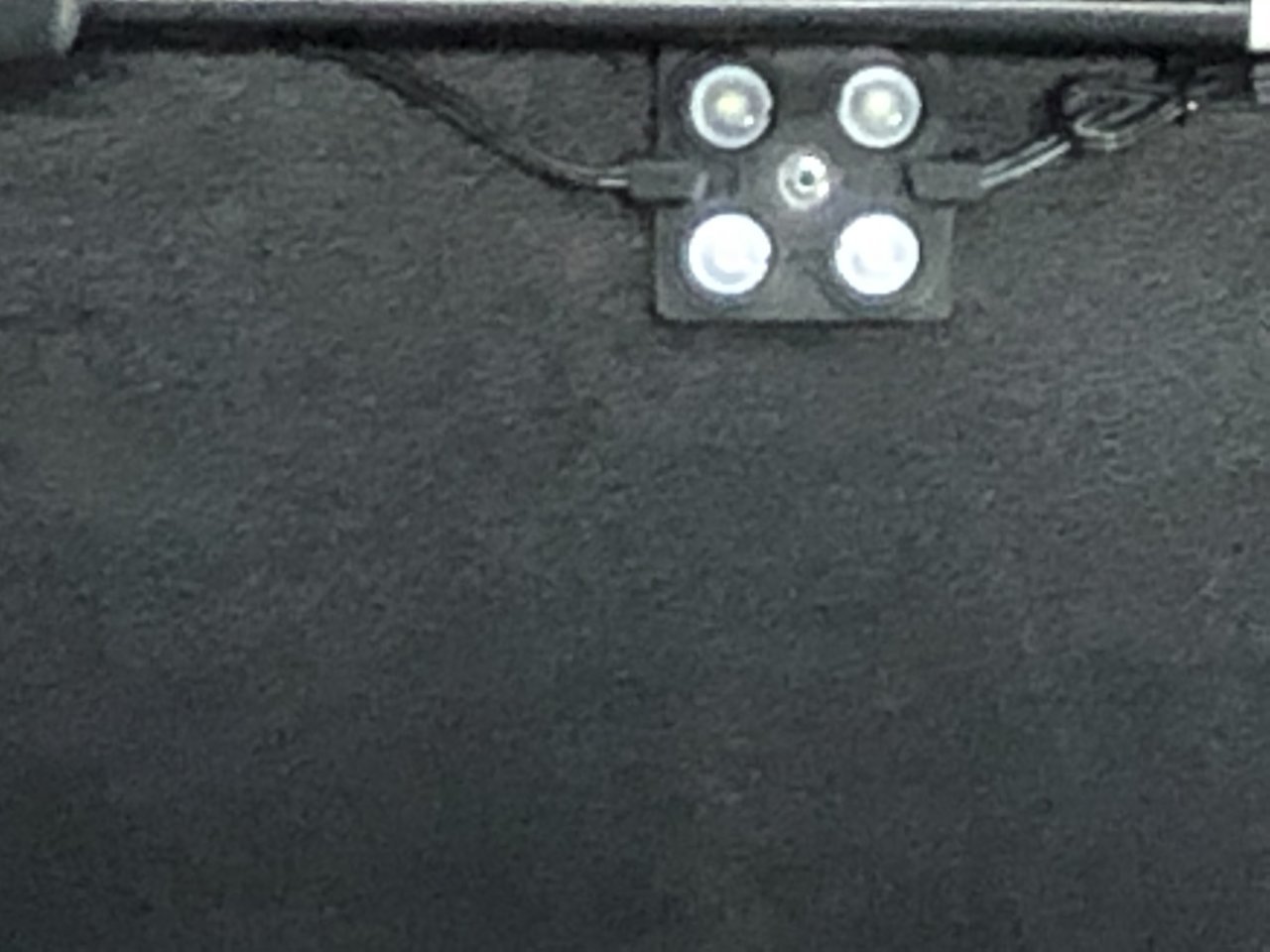

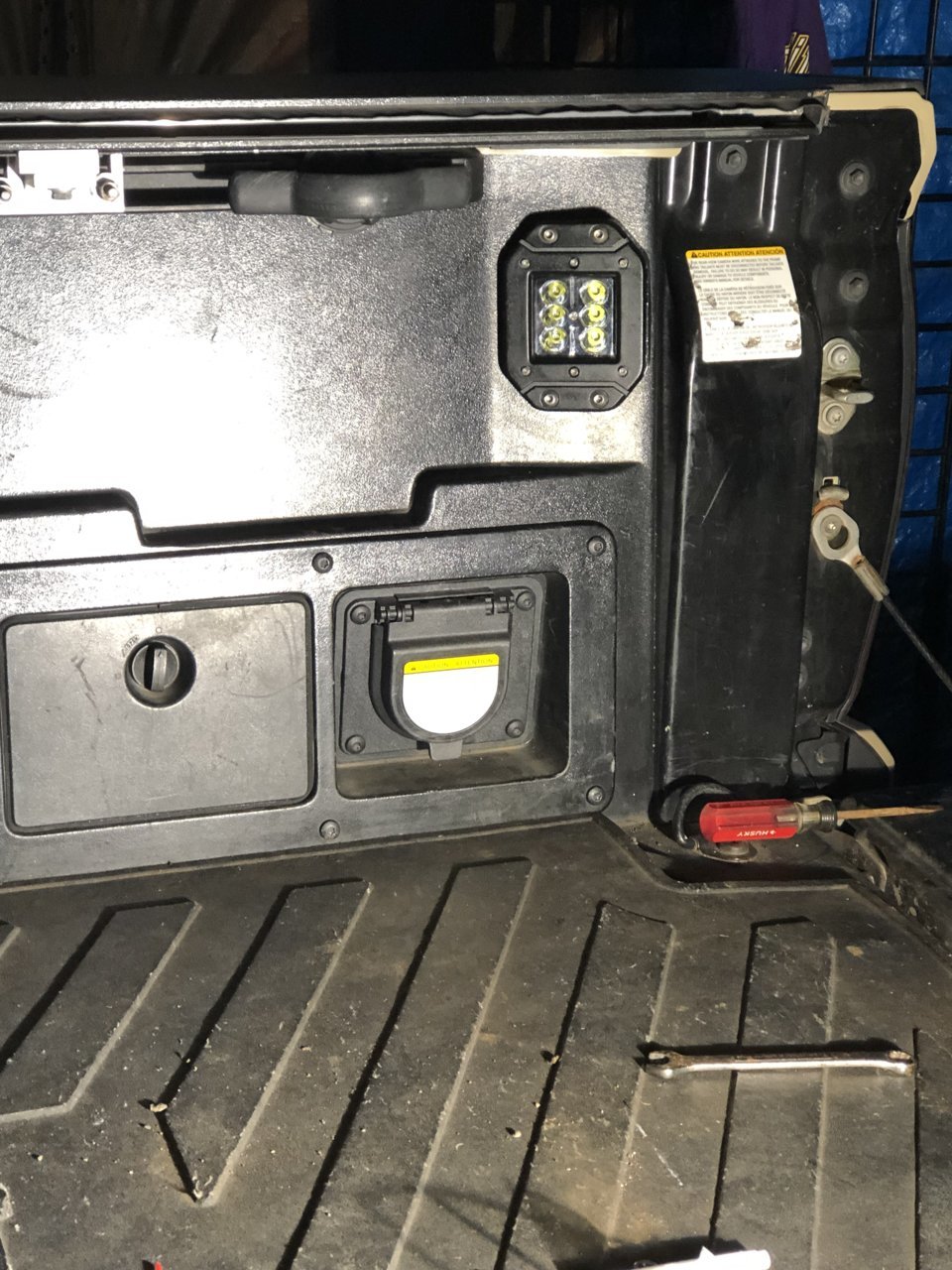

    Tucked excess wires behind the rail system and used the screws 18597CBB-C6BA-4ED4-A2BA-1E729272E7F1.jpg in the track system as my guide to position mount the lightsC36C915C-6022-4429-AF35-9C92138CF826.jpg
    Riveted in place.https://youtu.be/MJIyop-qexQ

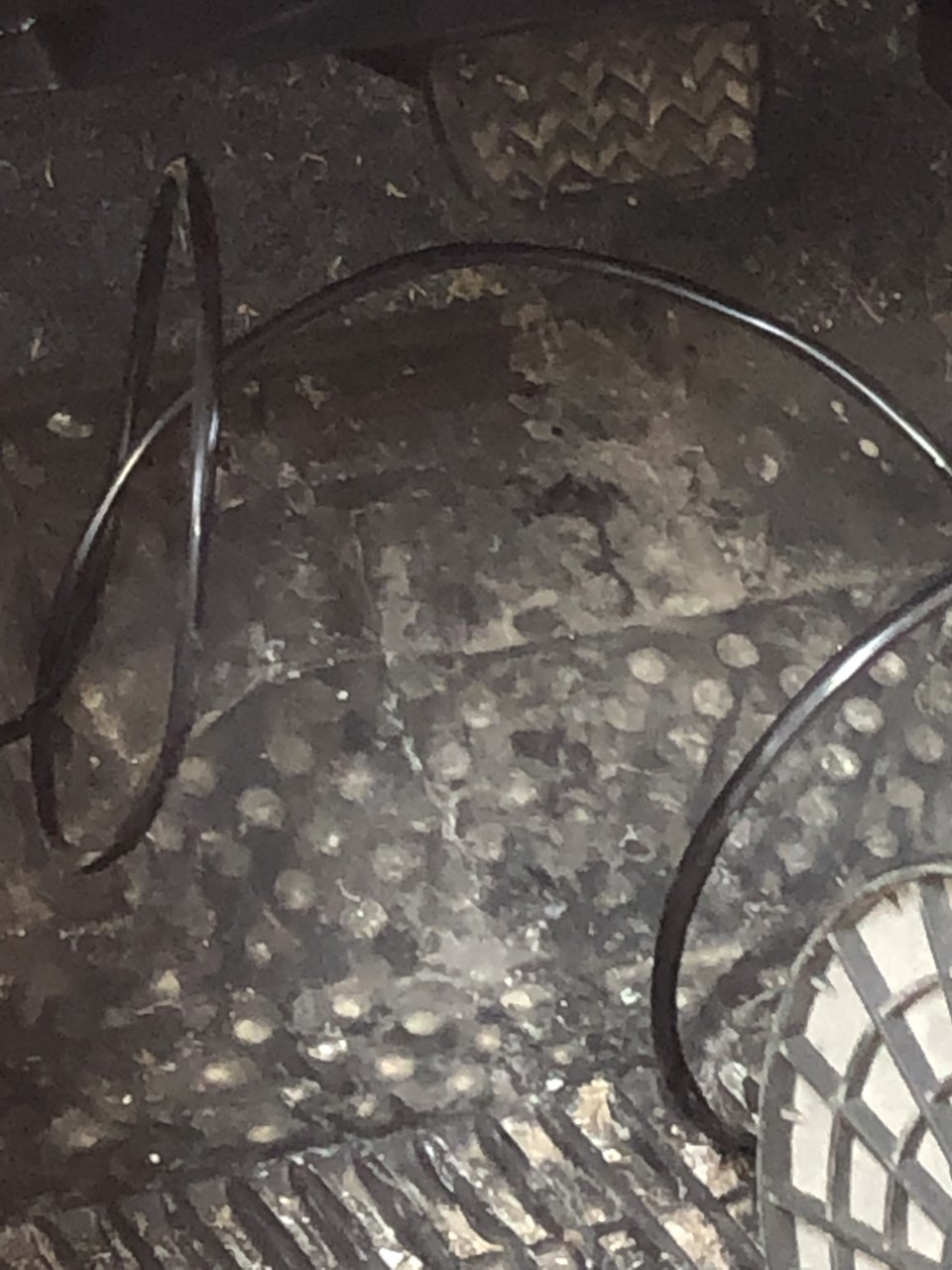

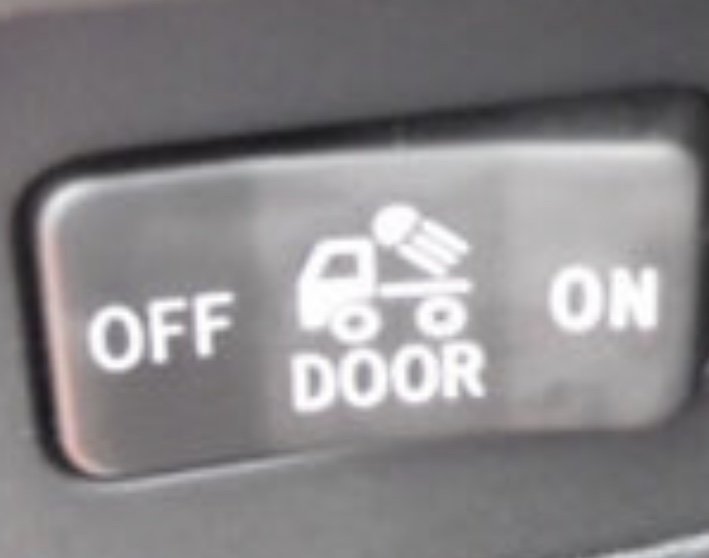

    Ran it up to the cab and wired it in to the door switch .6CCDC587-D72D-4AF7-B401-D036EBF8797E.jpg It can turn on with the doors open or use the switch to turn lights on.

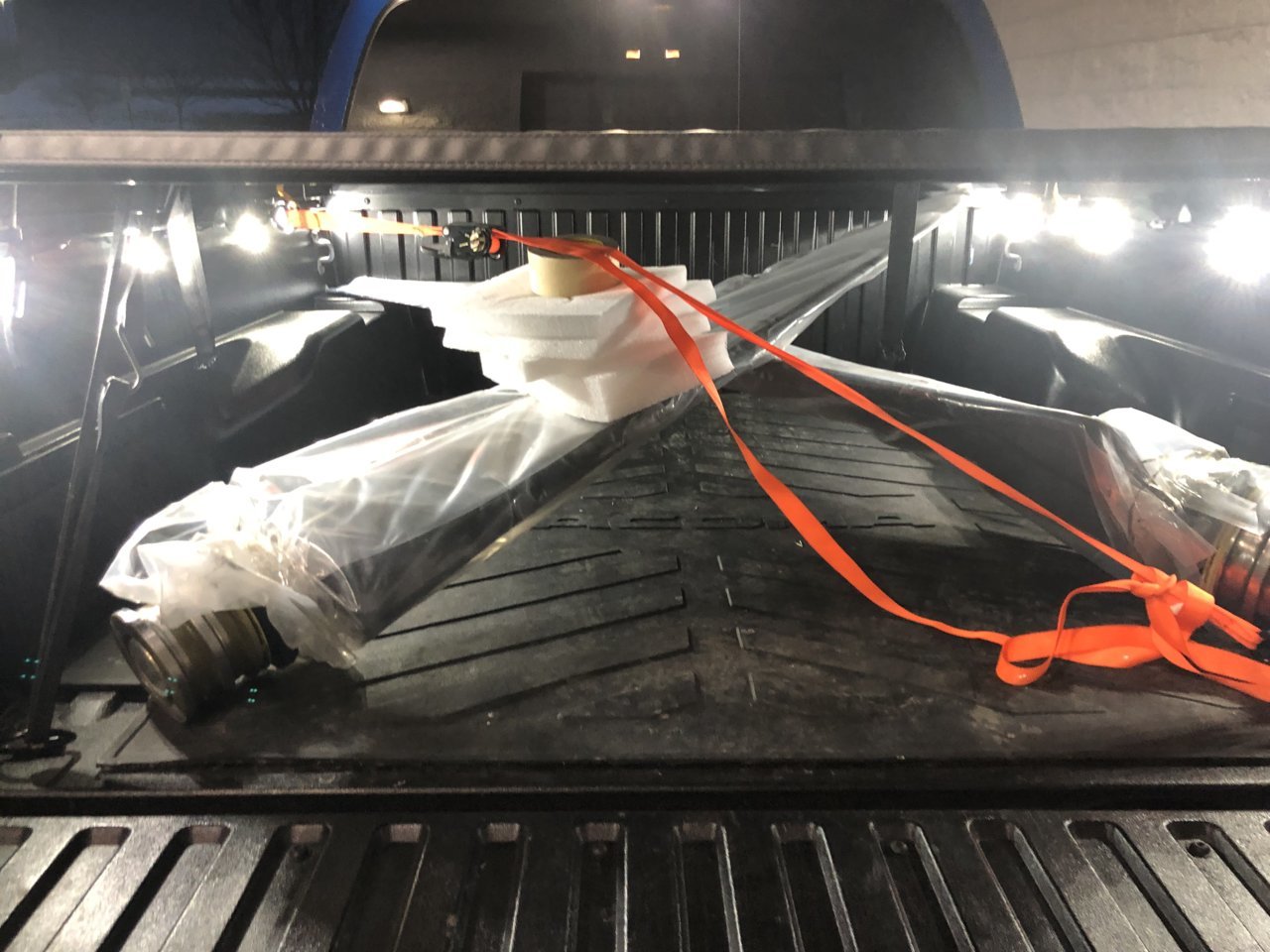

    Awesome lights for the price.3FBEC3A4-72FF-4A3F-BE14-F8F9357D6F2D.jpg
    A shot with the tonneau on


    Last edited: Mar 10, 2019
  7. Mar 10, 2019 at 4:35 PM
    #7
    HawkShot99

    HawkShot99 Well-Known Member

    Joined:
    Oct 20, 2015
    Member:
    #167182
    Messages:
    1,697
    Gender:
    Male
    Poughkeepsie, NY
    Vehicle:
    13' Silver DCLB TRD Sport
    I looked into the kits. They still require you connecting wires and such so potential for gremlins still exist.
    The bug plus of a kit is you get everything you need, and can't forget 1 small piece.

    The LEDs I used
    WenTop Waterproof Led Strip...
    Connectors
    LightingWill 10pcs Pack Strip...

  8. May 15, 2019 at 11:45 PM
    #8
    MaukatoMakai4V6tacoma

    MaukatoMakai4V6tacoma Well-Known Member

    Joined:
    Dec 6, 2016
    Member:
    #204179
    Messages:
    90
    Gender:
    Male
    First Name:
    Eric
    Vehicle:
    2016 4V6 DCLB TRD Sport heavy hitter
    I did my own.



    \000/ likes this.
  9. May 16, 2019 at 1:53 AM
    #9
    HiProofProducts

    HiProofProducts Well-Known Member

    Joined:
    Mar 28, 2019
    Member:
    #288305
    Messages:
    171
    Gender:
    Male
    First Name:
    Mike
    NE Ohio
    Vehicle:
    2017 Tacoma TRD Sport

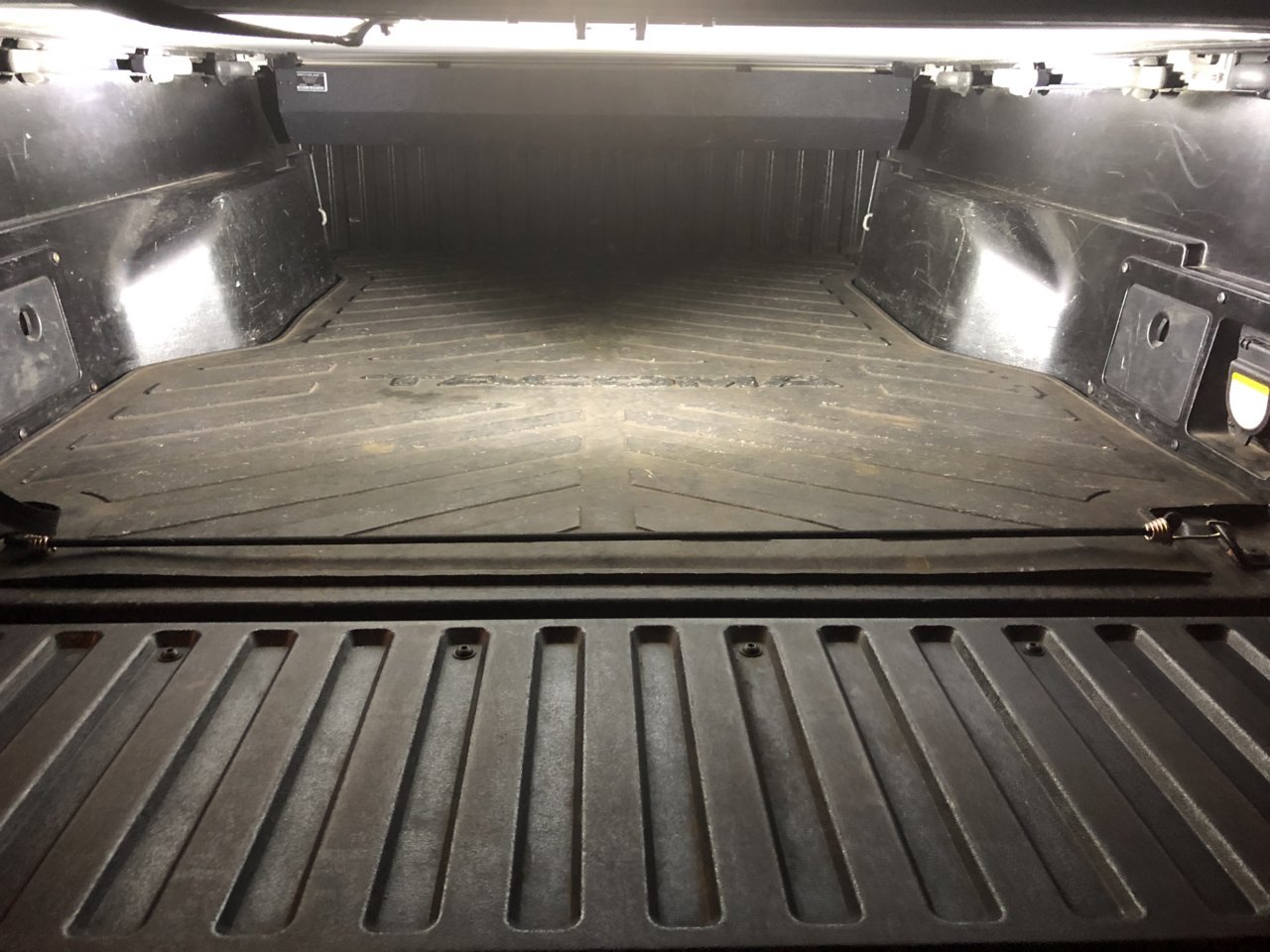

    I purchased a set of 5 LED strips from AliExpress on the cheap. Mounted them on both sides of the bed. I then got one of those magnetic switches used for overhead garage doors to turn them on automatically when the bed cover is raised. Since nothing is attached to the cover with the exception of the magnet it can still easily be removed if need be. I already had power running to the bed for a air compressor that is used for air horns, loud ass train horns. Magnetic switch can be seen in the picture.

    Lots of light now.


    Last edited: May 16, 2019
    Cipher94, pro fan and Tacospike like this.
  10. May 16, 2019 at 5:43 AM
    #10
    slowlane

    slowlane Well-Known Member

    Joined:
    May 7, 2014
    Member:
    #129313
    Messages:
    1,289
    Gender:
    Male
    mesa az
    Vehicle:
    16 double cab MGM
    Posting to see all of your creativeness.

  11. May 16, 2019 at 7:34 AM
    #11
    matt636

    matt636 Well-Known Member

    Joined:
    Oct 20, 2012
    Member:
    #89430
    Messages:
    497
    Gender:
    Male
    Central, IL
    Vehicle:
    2017 TRD Sport 4x4 DCSB Inferno
  12. May 16, 2019 at 8:28 AM
    #12
    slowlane

    slowlane Well-Known Member

    Joined:
    May 7, 2014
    Member:
    #129313
    Messages:
    1,289
    Gender:
    Male
    mesa az
    Vehicle:
    16 double cab MGM
    Do you have your switch mounted in the bed? If you do, do you see disadvantage mounting in the bed versus mounting inside the truck?

  13. May 16, 2019 at 10:04 AM
    #13
    HawkShot99

    HawkShot99 Well-Known Member

    Joined:
    Oct 20, 2015
    Member:
    #167182
    Messages:
    1,697
    Gender:
    Male
    Poughkeepsie, NY
    Vehicle:
    13' Silver DCLB TRD Sport
    I think a bed mounted switch is much better then cab. I go into the bed a decent amount without coming from the cab so saves me that effort. If I was to camp in the bed I'd like the switch to be handy.

    El Chivo Norteño likes this.
  14. May 16, 2019 at 11:55 AM
    #14
    matt636

    matt636 Well-Known Member

    Joined:
    Oct 20, 2012
    Member:
    #89430
    Messages:
    497
    Gender:
    Male
    Central, IL
    Vehicle:
    2017 TRD Sport 4x4 DCSB Inferno
    i mounted my switch in my truck, next to where the outlet is. most of the time when i need/want the light i'm at the tailgate, so it's very convenient there. I thought about splicing init to my cargo light switch inside, and glad i didn't. much easier to open my gate, hit the light, do what i need to do then turn it off and never open the cab. the cargo light is completely useless IMHO

  15. May 16, 2019 at 12:02 PM
    #15
    wing103

    wing103 Well-Known Member

    Joined:
    Jul 8, 2008
    Member:
    #7807
    Messages:
    1,150
    Gender:
    Male
    Boston
    Vehicle:
    Tacoma TRD Sport / Dark Gray
    Grill Craft upper & Lower Grill WetOK Seat Cover, Devil Horn, Bug, Windows Deflector, Side step Bar, HID 55W 8000K Headlight, HID 35W 4000K Foglight, Fog Light Mod, Interior LED Map Light Mod, Electric Tail Gate Lock, Leer Cab, Key ring light, Bed LED lights Mod, Kenwood DNX5120, Signal Mirror with Heat
    I install a car alarm security push pin, so when I open the tailgate, the light will automatic turn on, when I close the tailgate it will turn off.

  16. May 16, 2019 at 12:23 PM
    #16
    Technique

    Technique Well-Known Member

    Joined:
    Nov 4, 2017
    Member:
    #235046
    Messages:
    1,082
    Gender:
    Male
    First Name:
    Alex
    Utah
    Vehicle:
    2017 Silver Offroad DCSB
    5100s with 885 coils
    I also have Matt's lighting kit with the switch in the bed. I find it most useful there as when you need to turn it on, you have access to do so right there when you're at the tail vs setting your stuff down and going inside the truck to turn it on. I also opted not to do the automatic turn on when you open the tailgate as I didn't want my lights to be on if I have to carry something with the tailgate down, especially if its night time. Or if I'm camping, I leave the tailgate down a lot so I didn't wanna have to worry about that as well. A manual button worked best for me.

  17. May 16, 2019 at 1:05 PM
    #17
    Tullie D

    Tullie D Well-Known Member

    Joined:
    Mar 5, 2019
    Member:
    #285417
    Messages:
    633
    Gender:
    Male
    First Name:
    Tullie
    Wilson, NC
    Vehicle:
    2019 SR5 V6 AC 2WD
    Extang Encore, Bed lights, Grill lights, Flux Capacitor
  18. May 16, 2019 at 1:27 PM
    #18
    thndrbrd324

    thndrbrd324 [OP] Active Member

    Joined:
    Mar 5, 2019
    Member:
    #285423
    Messages:
    35
    Gender:
    Male
    Vehicle:
    2017 Inferno Tacoma TRD Sport
    Bull bar, Sport bar, LEDs all round, vinyls, Blackout
    Instead of the push pin that can get caught corroded or broken you might look on Amazon for a magnetic one. That’s what I did and it doesn’t work off of a mechanical thing that can wear out

  19. May 16, 2019 at 5:26 PM
    #19
    slowlane

    slowlane Well-Known Member

    Joined:
    May 7, 2014
    Member:
    #129313
    Messages:
    1,289
    Gender:
    Male
    mesa az
    Vehicle:
    16 double cab MGM
  20. May 16, 2019 at 8:09 PM
    #20
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    1,616
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

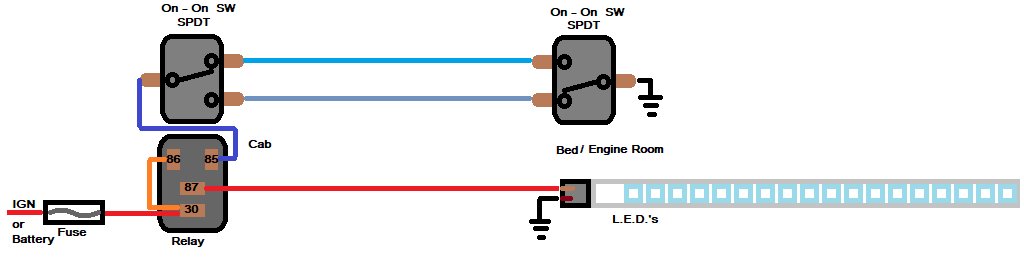

    Tinker...

    Tullie D likes this.
