LED Gauge change, PRNDL still lighting up amber

Discussion in 'Lighting' started by Jones, Dec 16, 2010.

  1. Dec 16, 2010 at 9:13 PM
    #1
    Jones

    Jones [OP] Well-Known Member

    Joined:
    Aug 10, 2008
    Member:
    #8460
    Messages:
    239
    Gender:
    Male
    Texas DFW
    Vehicle:
    06 SSM Prerunner TRD-OFFROAD
    Front: 5100@1.75 with SR5 coils; Rear: 5100 and 1.5 Toytec aal; Tires: Hankook 265/75R16 RF08 ATM; Wheels: powdercoated off-road wheels with FJ TRD center caps
    I changed out the LEDs on my gauge cluster on the PRNDL432L to blue, except for the Reverse. When shifting the selector lights up blue but when not selected they are still amber. I know it is possible to get the amber to go way, just how. My thoughts are there is another LED that is back lighting them up or I have to color the overlay, like with the MPH on the speedo.

    My gauge:
    [​IMG]

    What I was trying to get on the PRNDL
    [​IMG]

  2. Dec 18, 2010 at 2:35 PM
    #2
    memario1214

    memario1214 Vivid Illumination Vendor

    Joined:
    Oct 1, 2009
    Member:
    #23628
    Messages:
    12,984
    Gender:
    Male
    First Name:
    Colton
    MT recently relocated to Willmar, MN
    Vehicle:
    05 Dub Cab TRD Sport 4x4
    TRD Cold Air Intake, rear cat delete with Aero Turbine 2525, Maglite mount mod, white LED's all around, white gauges w/blue needles, Tinted Tails, Morimoto 32" XBAR LED Bar, Truxedo Lo-Pro QT Tonneau, Pioneer AVIC X-920 BT touchscreen, FX-R Retrofit, LR UCAs, OME 3" Lift w/ Dakar leafs, DTLT Headers, Walbro 255 fuel pump, TRD S/C, Hankook Dynapro ATM tires
    Yes, there is one more LED that many people fail to swap when they do the change. Take it all apart and just hook the circuit board up to the truck. Turn it on, you'll see which one turns on orange.

  3. Dec 19, 2010 at 12:09 PM
    #3
    Jones

    Jones [OP] Well-Known Member

    Joined:
    Aug 10, 2008
    Member:
    #8460
    Messages:
    239
    Gender:
    Male
    Texas DFW
    Vehicle:
    06 SSM Prerunner TRD-OFFROAD
    Front: 5100@1.75 with SR5 coils; Rear: 5100 and 1.5 Toytec aal; Tires: Hankook 265/75R16 RF08 ATM; Wheels: powdercoated off-road wheels with FJ TRD center caps
    Thanks memario1214.

    I took the little plastic cover off before taking the white plastic piece off this time and saw how it was working.

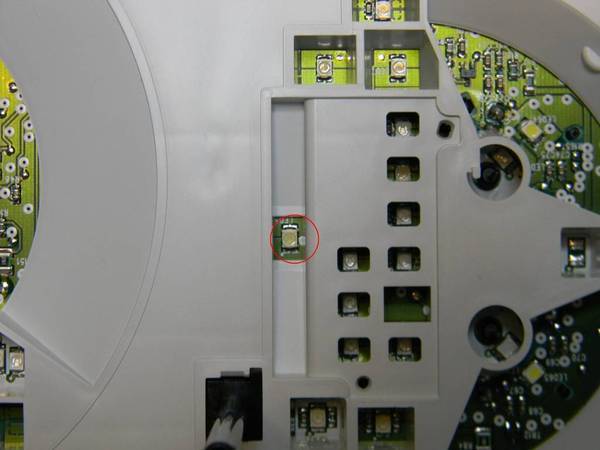

    here was my culprit.
    [​IMG]

  4. Dec 19, 2010 at 12:23 PM
    #4
    memario1214

    memario1214 Vivid Illumination Vendor

    Joined:
    Oct 1, 2009
    Member:
    #23628
    Messages:
    12,984
    Gender:
    Male
    First Name:
    Colton
    MT recently relocated to Willmar, MN
    Vehicle:
    05 Dub Cab TRD Sport 4x4
    TRD Cold Air Intake, rear cat delete with Aero Turbine 2525, Maglite mount mod, white LED's all around, white gauges w/blue needles, Tinted Tails, Morimoto 32" XBAR LED Bar, Truxedo Lo-Pro QT Tonneau, Pioneer AVIC X-920 BT touchscreen, FX-R Retrofit, LR UCAs, OME 3" Lift w/ Dakar leafs, DTLT Headers, Walbro 255 fuel pump, TRD S/C, Hankook Dynapro ATM tires
    :thumbsup: When it is all apart, that one just looks too far away to be an issue, but once that white plastic piece is back on there, you can see it easy.

  5. Aug 21, 2011 at 3:09 PM
    #5
    08pretaco

    08pretaco Almost there

    Joined:
    Sep 26, 2008
    Member:
    #9502
    Messages:
    9,160
    Gender:
    Male
    First Name:
    Oliver
    az
    Vehicle:
    2014 Tundra 4x4 CM 5.7L SR5
    AFE pro dry s, Husky X-act Contour
    Where did you get the LED's and what size were they? Also how did you get needles to change color?

    Thanks in advance

  6. Aug 21, 2011 at 3:20 PM
    #6
    Jones

    Jones [OP] Well-Known Member

    Joined:
    Aug 10, 2008
    Member:
    #8460
    Messages:
    239
    Gender:
    Male
    Texas DFW
    Vehicle:
    06 SSM Prerunner TRD-OFFROAD
    Front: 5100@1.75 with SR5 coils; Rear: 5100 and 1.5 Toytec aal; Tires: Hankook 265/75R16 RF08 ATM; Wheels: powdercoated off-road wheels with FJ TRD center caps
    PLCC2 surface mount LEDs
    from
    http://www.oznium.com/plcc-2
    This post lists pretty much all of it http://www.tacomaworld.com/forum/li...q-please-read-before-posting.html#post1602008

    LEDs on the board for the needle color when lights are on. When the lights are off, scraping the paint off the backside and repainting where the orange paint was at. This link helps explain it the basics http://www.scionlife.com/forums/showthread.php?t=110694

  7. Aug 21, 2011 at 3:23 PM
    #7
    memario1214

    memario1214 Vivid Illumination Vendor

    Joined:
    Oct 1, 2009
    Member:
    #23628
    Messages:
    12,984
    Gender:
    Male
    First Name:
    Colton
    MT recently relocated to Willmar, MN
    Vehicle:
    05 Dub Cab TRD Sport 4x4
    TRD Cold Air Intake, rear cat delete with Aero Turbine 2525, Maglite mount mod, white LED's all around, white gauges w/blue needles, Tinted Tails, Morimoto 32" XBAR LED Bar, Truxedo Lo-Pro QT Tonneau, Pioneer AVIC X-920 BT touchscreen, FX-R Retrofit, LR UCAs, OME 3" Lift w/ Dakar leafs, DTLT Headers, Walbro 255 fuel pump, TRD S/C, Hankook Dynapro ATM tires
    Weird thread to put this question in, but I shall answer it for you anyway! The LEDs are surface mount LEDs (the part is called a PLCC-2). They can be ordered off of Oznium.com for $.49 a piece. As for the needles, their color is determined by what color the light is underneath them. When you take the needles off, you have two options as how to proceed. The backs of the needles are red so some people sand the red off and are good to go. I didn't want my needles to look cloudy so I used rubbing alcohol and rubbed the red off with some cotton swabs. I then painted them silver. The light underneath my needles is blue.

    Hope that is what you were looking for
