Led hood lights!

Discussion in 'Lighting' started by DWreck, May 31, 2010.

  1. DWreck

    DWreck [OP] Famous Fabrication Vendor

    Joined:
    May 18, 2010
    Member:
    #37368
    Messages:
    5,113
    Gender:
    Male
    First Name:
    Derek
    Las Vegas, NV
    Vehicle:
    2010 TRD Off Road 4x4
    Debadged, k&n cai, tc uca, billy 5100, led hood lights, redline hood struts, tailgate ez-down, ddm hid heads, Piaa 510 hid fogs, procomp 7089, dunlop fierce mt, cb and ham radios, hideaway strobes, ff front bumper, ff sliders, bed rack,
    Been roughly 9 months. Only issue I have had was when I pressure washed the engine bay, the water caused connection so the lights came on. I disconnected the one wire from the push pin, drove it home, it dried and everything started working fine again.
    If attempted by others, I hold no responsibility if you mess this up. Do your own research. Do not solely rely on my post as an accurate method!

    I have read a couple of posts on folks putting under hood lighting in. Great idea! However, they ways I've seen it done did not satisfy me. I started thinking of something I could do.

    I ended up doing some really nice LED lights for right around $30 with all the wire and connectors. I got everything from my local Autozone store. I bought 24" LED strips (2 12" strips in same pack) for right at $20. I got a door switch for a '79 Caprice. Ran the wires through the inner skeleton of the hood as to hide them as much as possible. Everything works and looks great! If interested in further details please PM.

    I have had these installed for 40 days now and have had no issues with heat or anything else. They still work great and the 3M tape that they come with factory is still holding nicely!

    Process;

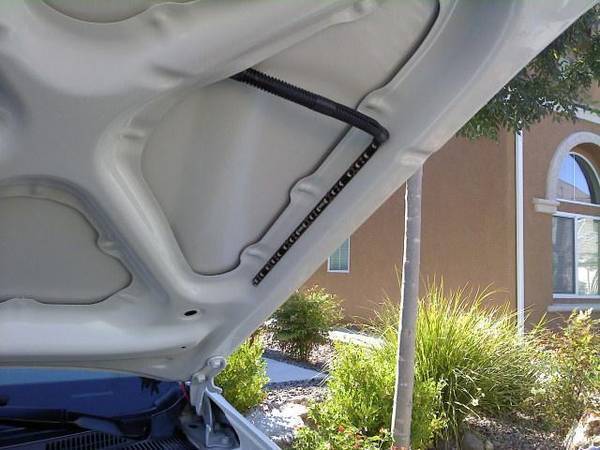

    I began by planning on the best location for the lights. In deciding this I factored in exposure to heat and effectiveness of light. I decided on putting them here...
    [​IMG]

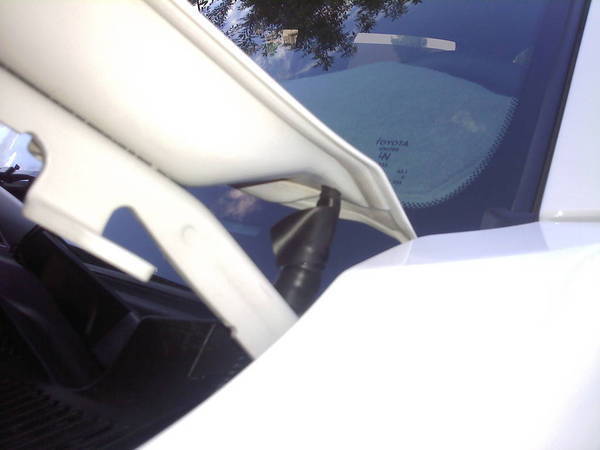

    Next, I used a 3ft piece of tie wire and fed it up through a small hole in the lower driver corner of the hood. I fed it in until I saw it pop out somewhere and then guided it up towards the latch of the hood. I then taped the ends of two wire spools, 14 guage but 18 guage should work, to the end of this wire, one black and one red. I pulled the wires down the channel in the skeleton of the hood that ran directly to that corner. Once the wires reached that hole, I had to fish for them a little with needle nose pliars as they would not pull through the hole just by the wire and tape. Once through I pulled and extra 5ft so there was enough to reach the switch and fuse block.
    [​IMG]

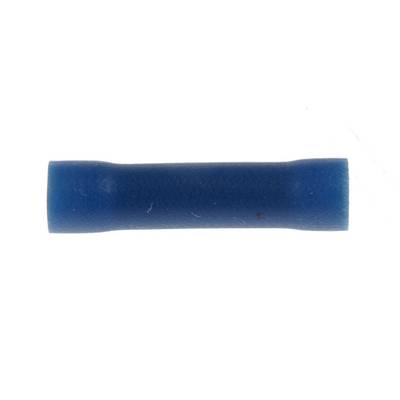

    I then connected the two positive(+) wires from the lights to the red wire I had ran using a blue butt connector.
    [​IMG]

    I also did the same with the negative(-) to the black wire I ran. I cut them both to the size I desired before crimping them.

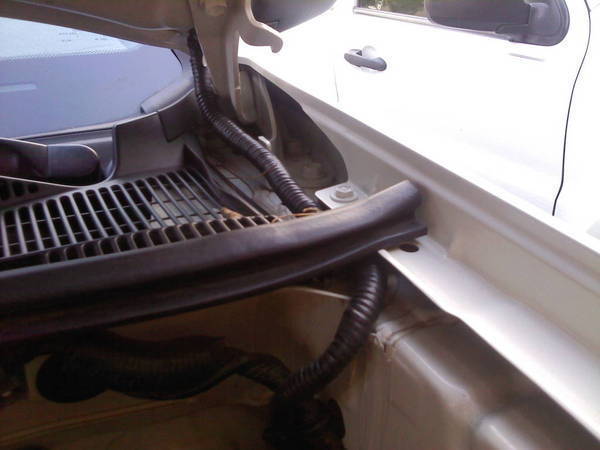

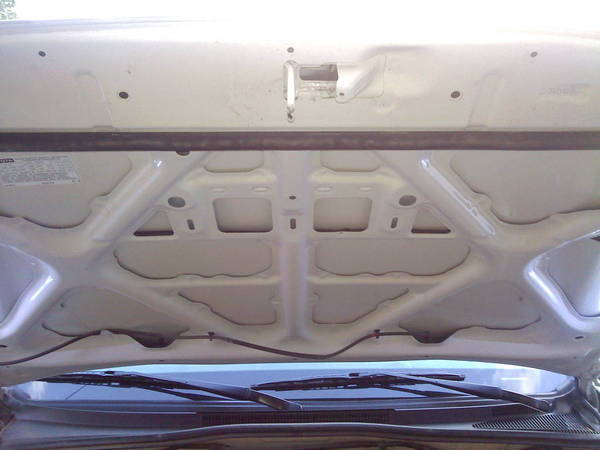

    I then ran the wires at the bottom of the hood along the same path as the original loom on that inside fender...
    [​IMG]

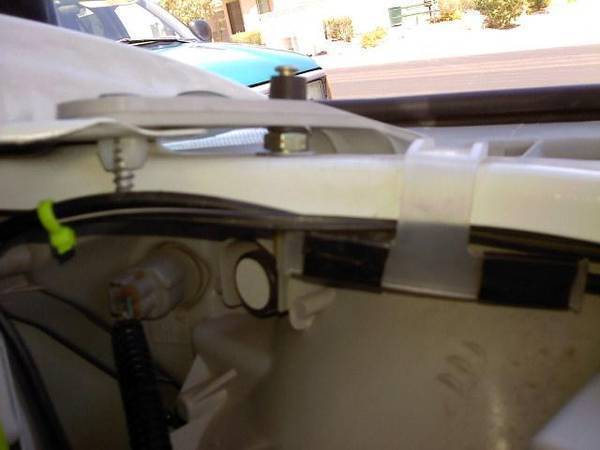

    I placed the naturally closed switch, part number SW90 from Autozone, into the existing hole on the core support. All I had to do was drill through the headlight bracket. I also removed the headlight to put the switch in place so I didn't have to drill too big of a hole.
    [​IMG]

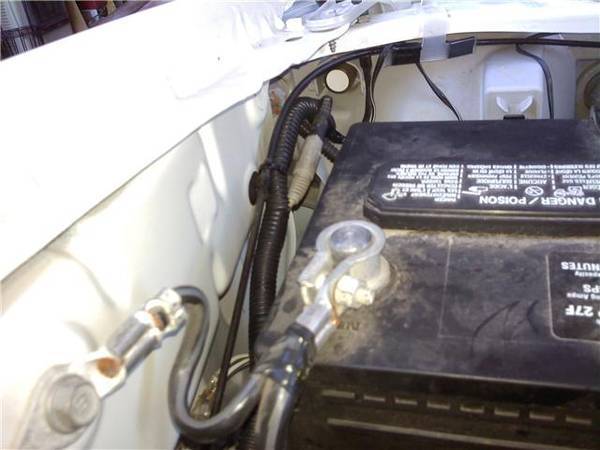

    I ran the negative(-) black wire to this switch. Cut to size and with a female connector I attached the wire to one post on the switch.
    [​IMG]
    [​IMG]

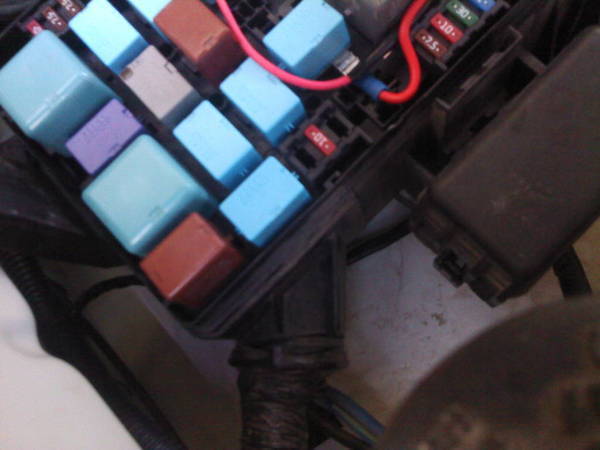

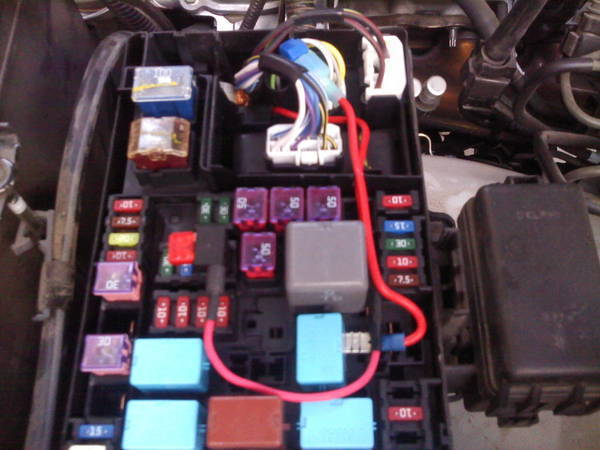

    I fed the positive(+) red wire under the fuse block, up through a void on the motor side, and connected it to an add-a-fuse on a constant circuit and inserted a 10amp fuse. I cut a groove out of the wall on the block so my wires could fit down into it and the lid would fit without pinching.

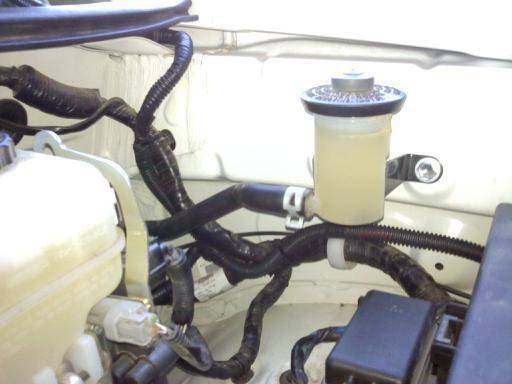

    The wire ran under the block...
    [​IMG]
    The wire tucked into my groove and tied in. The wire coming from the relay is my "fog anytime" mod.
    [​IMG]

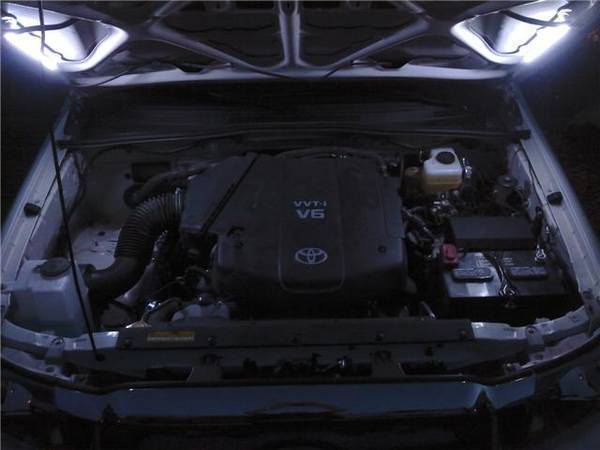

    After this the lights will work. Mine shut off once the hood was closed. They also come on when the hood is just popped, note the glow in the crack in the last picture. I had to do no adjusting to the switch what so ever. As it sits in the hole, it works great. I did however take mine a little further. I ended up soldering all of my connections. I also used heat shrink and wire loom to clean up my engine compartment.

    I certainely hope this helps anyone who is tired of holding a flashlight in their teeth when working under the hood. The following are more pictures of the mod and after I cleaned everything up.

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  2. steve o 77

    steve o 77 braaap

    Joined:
    Nov 29, 2009
    Member:
    #26726
    Messages:
    19,890
    Gender:
    Male
    First Name:
    Steven
    In a corn field, OH
    Vehicle:
    2001 4x4 SR5 Xtra Cab V6
    265/75/16 BFG A/T's, OME 881's, Wheelers 5 leaf pack, 5100's, Home Made Sliders
    Very nice.

  3. Gr8WhiteTaco

    Gr8WhiteTaco bishes love my haircut

    Joined:
    Dec 28, 2008
    Member:
    #11964
    Messages:
    2,390
    Gender:
    Male
    First Name:
    Aaron
    Knoxville, TN
    Vehicle:
    SOLD 02 Double Cab TRD 4x4
    2005 Mazda 3S hatchback
    thats cool! :thumbsup:

  4. DWreck

    DWreck [OP] Famous Fabrication Vendor

    Joined:
    May 18, 2010
    Member:
    #37368
    Messages:
    5,113
    Gender:
    Male
    First Name:
    Derek
    Las Vegas, NV
    Vehicle:
    2010 TRD Off Road 4x4
    Debadged, k&n cai, tc uca, billy 5100, led hood lights, redline hood struts, tailgate ez-down, ddm hid heads, Piaa 510 hid fogs, procomp 7089, dunlop fierce mt, cb and ham radios, hideaway strobes, ff front bumper, ff sliders, bed rack,
    Last pic when it's totally black out...20 more mins

  5. Rufus

    Rufus Well-Known Member

    Joined:
    Apr 17, 2010
    Member:
    #35486
    Messages:
    438
    Gender:
    Male
    SoCal
    Vehicle:
    2010 TRD PreRunner Sport
    OEM Truck Bed Extender, Window Tint, Tailgate Security Mod, OEM Spare Tire Lock, Cam Locks (storage compartments), OEM Bed Mat, OEM Skid Plate, Stant 11504 Locking Gas Cap, TW Edrin55 OEM Running Boards, Pop & Lock w/Back-Up Cam, Black WeatherTechs, Red Line Quick Lift Plus Hood Struts, Wet Okole Front Seat Covers-black/charcoal with red & white TRD graphic & back seat pockets, DIY Satoshi Grillcraft & Old School Toyota Badge, TW ZonKs Black UWS Low Pro Truck Box, Rear Suspension TSB, 3M Scotch Guard Paint & Headlight Protection Film 8mm Urethane, Flyzeye V2 Wired Amber/White/Amber Interior LED Lights w/Silver Case, Sleek Looking Black LED Tail Lights from K2 Motors (Identical to OEM, but black).
    Nice. Very nice. Share your details with us. What holds LED's in place? Maybe this can become a permanent mod.

  6. TacoRun

    TacoRun Subd for later..

    Joined:
    Mar 8, 2010
    Member:
    #32808
    Messages:
    2,611
    Gender:
    Male
    First Name:
    Luis
    Edinburg,Texas
    Vehicle:
    TRD off road, Magnetic Gray
    Pop Lock, Ranch Hand brush guard
    Nice work. It really lights up the dirt on your engine.

  7. DWreck

    DWreck [OP] Famous Fabrication Vendor

    Joined:
    May 18, 2010
    Member:
    #37368
    Messages:
    5,113
    Gender:
    Male
    First Name:
    Derek
    Las Vegas, NV
    Vehicle:
    2010 TRD Off Road 4x4
    Debadged, k&n cai, tc uca, billy 5100, led hood lights, redline hood struts, tailgate ez-down, ddm hid heads, Piaa 510 hid fogs, procomp 7089, dunlop fierce mt, cb and ham radios, hideaway strobes, ff front bumper, ff sliders, bed rack,
    How Rude!

  8. DWreck

    DWreck [OP] Famous Fabrication Vendor

    Joined:
    May 18, 2010
    Member:
    #37368
    Messages:
    5,113
    Gender:
    Male
    First Name:
    Derek
    Las Vegas, NV
    Vehicle:
    2010 TRD Off Road 4x4
    Debadged, k&n cai, tc uca, billy 5100, led hood lights, redline hood struts, tailgate ez-down, ddm hid heads, Piaa 510 hid fogs, procomp 7089, dunlop fierce mt, cb and ham radios, hideaway strobes, ff front bumper, ff sliders, bed rack,
    The LED's come with a 3M tape on the back. The only drilling or other "body mod" is just drilling through the headlight bracket. What else?

  9. topgun155

    topgun155 Well-Known Member

    Joined:
    Dec 18, 2008
    Member:
    #11728
    Messages:
    2,782
    Gender:
    Male
    First Name:
    Zack
    Richmond, TX or College Station, TX
    Vehicle:
    08 Prerunner V6 Black
    Viper Alarm, In Pro Car Wear L.E.D. Tail Lights, Fog Lights, ScanGuageII, AvidOffroad Light Bar, Ammo Box Mod, Tailgate Theft Prevention Mod, Satoshi Grill, Hella 500ff behind the grill, blendmount, Cruise Control Mod, Fog Light Mod, 5100's @1.75, Toytec TSB AAL 1.5".
    Awesome. About how much did you spend (if you don't mind). Also how many LEDs on each strip.

  10. DWreck

    DWreck [OP] Famous Fabrication Vendor

    Joined:
    May 18, 2010
    Member:
    #37368
    Messages:
    5,113
    Gender:
    Male
    First Name:
    Derek
    Las Vegas, NV
    Vehicle:
    2010 TRD Off Road 4x4
    Debadged, k&n cai, tc uca, billy 5100, led hood lights, redline hood struts, tailgate ez-down, ddm hid heads, Piaa 510 hid fogs, procomp 7089, dunlop fierce mt, cb and ham radios, hideaway strobes, ff front bumper, ff sliders, bed rack,
    I ended up doing some really nice LED lights for right around $30 with all the wire and connectors.

    There are 18 led's per strip

  11. Blue

    Blue You're my boy blue

    Joined:
    Mar 14, 2010
    Member:
    #33255
    Messages:
    3,053
    Gender:
    Male
    First Name:
    Dylan
    Sierras
    Vehicle:
    ex 99 current 04 TRD
    awesome man

  12. TacoRun

    TacoRun Subd for later..

    Joined:
    Mar 8, 2010
    Member:
    #32808
    Messages:
    2,611
    Gender:
    Male
    First Name:
    Luis
    Edinburg,Texas
    Vehicle:
    TRD off road, Magnetic Gray
    Pop Lock, Ranch Hand brush guard
    Haha. I ment it as a compliment. Goes to show how bright those LED's are.

  13. DWreck

    DWreck [OP] Famous Fabrication Vendor

    Joined:
    May 18, 2010
    Member:
    #37368
    Messages:
    5,113
    Gender:
    Male
    First Name:
    Derek
    Las Vegas, NV
    Vehicle:
    2010 TRD Off Road 4x4
    Debadged, k&n cai, tc uca, billy 5100, led hood lights, redline hood struts, tailgate ez-down, ddm hid heads, Piaa 510 hid fogs, procomp 7089, dunlop fierce mt, cb and ham radios, hideaway strobes, ff front bumper, ff sliders, bed rack,
    I know...;) Thx

  14. Rufus

    Rufus Well-Known Member

    Joined:
    Apr 17, 2010
    Member:
    #35486
    Messages:
    438
    Gender:
    Male
    SoCal
    Vehicle:
    2010 TRD PreRunner Sport
    OEM Truck Bed Extender, Window Tint, Tailgate Security Mod, OEM Spare Tire Lock, Cam Locks (storage compartments), OEM Bed Mat, OEM Skid Plate, Stant 11504 Locking Gas Cap, TW Edrin55 OEM Running Boards, Pop & Lock w/Back-Up Cam, Black WeatherTechs, Red Line Quick Lift Plus Hood Struts, Wet Okole Front Seat Covers-black/charcoal with red & white TRD graphic & back seat pockets, DIY Satoshi Grillcraft & Old School Toyota Badge, TW ZonKs Black UWS Low Pro Truck Box, Rear Suspension TSB, 3M Scotch Guard Paint & Headlight Protection Film 8mm Urethane, Flyzeye V2 Wired Amber/White/Amber Interior LED Lights w/Silver Case, Sleek Looking Black LED Tail Lights from K2 Motors (Identical to OEM, but black).
    Wiring up the lights. What's the procedure?

  15. DWreck

    DWreck [OP] Famous Fabrication Vendor

    Joined:
    May 18, 2010
    Member:
    #37368
    Messages:
    5,113
    Gender:
    Male
    First Name:
    Derek
    Las Vegas, NV
    Vehicle:
    2010 TRD Off Road 4x4
    Debadged, k&n cai, tc uca, billy 5100, led hood lights, redline hood struts, tailgate ez-down, ddm hid heads, Piaa 510 hid fogs, procomp 7089, dunlop fierce mt, cb and ham radios, hideaway strobes, ff front bumper, ff sliders, bed rack,
  16. Zombie Runner

    Zombie Runner Are these black helicopters for me?

    Joined:
    Mar 13, 2008
    Member:
    #5246
    Messages:
    15,109
    Gender:
    Male
    First Name:
    Kevin
    Wichita Falls, TX
    Vehicle:
    Tundra, double cab.
    LED interior lights, stubby antenna, Pioneer in dash screen
    looks great!

  17. SManZ

    SManZ el tráfico más lento se queda derecha

    Joined:
    Sep 15, 2009
    Member:
    #22817
    Messages:
    1,339
    Gender:
    Male
    Centreville, VA
    Vehicle:
    '10 Supercharged 4x4 Sport 6-spd
    TRD Supercharger, King 2.5" extended travel remote-resi coilovers, OME Dakar leaf packs, King 2.5" extended travel rear shocks, Total Chaos UCAs, MBRP turndown exhaust, TRD intake, TRD Quickshifter, Goodridge SS brake lines, EBC Sport Rotors, Hawk HPS pads, TRD FJ Cruiser Special Edition 16" Anthracite Rims, Spidertrax wheel spacers, 265/75R16 A/T, Autometer oil pressure, oil temp gauges, TRD boost gauge, PLX DM-100 OBD II scanner, flexpod mounts, A-pillar gauge pods
    Excellent mod! This should go in that mod list sticky post!

  18. DWreck

    DWreck [OP] Famous Fabrication Vendor

    Joined:
    May 18, 2010
    Member:
    #37368
    Messages:
    5,113
    Gender:
    Male
    First Name:
    Derek
    Las Vegas, NV
    Vehicle:
    2010 TRD Off Road 4x4
    Debadged, k&n cai, tc uca, billy 5100, led hood lights, redline hood struts, tailgate ez-down, ddm hid heads, Piaa 510 hid fogs, procomp 7089, dunlop fierce mt, cb and ham radios, hideaway strobes, ff front bumper, ff sliders, bed rack,
    Just added!

  19. yosh2000

    yosh2000 Well-Known Member

    Joined:
    Sep 18, 2007
    Member:
    #2733
    Messages:
    2,890
    Gender:
    Male
    Denver, CO
    Vehicle:
    '05 4runner SR5 v8
    red to power, black to ground...

  20. DWreck

    DWreck [OP] Famous Fabrication Vendor

    Joined:
    May 18, 2010
    Member:
    #37368
    Messages:
    5,113
    Gender:
    Male
    First Name:
    Derek
    Las Vegas, NV
    Vehicle:
    2010 TRD Off Road 4x4
    Debadged, k&n cai, tc uca, billy 5100, led hood lights, redline hood struts, tailgate ez-down, ddm hid heads, Piaa 510 hid fogs, procomp 7089, dunlop fierce mt, cb and ham radios, hideaway strobes, ff front bumper, ff sliders, bed rack,
    DOH! Nice!
