LED Light Bar on Factory Fog Light Switch

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Colt562, Nov 14, 2013.

  1. Nov 14, 2013 at 8:55 PM
    #1
    Colt562

    Colt562 [OP] Well-Known Member

    Joined:
    Aug 2, 2013
    Member:
    #109659
    Messages:
    529
    Gender:
    Male
    First Name:
    Brett
    SoCal
    Vehicle:
    13' TRD Sport 4x4
    Icon Stage 3 Lift Kit...Dakars
  2. Nov 14, 2013 at 9:21 PM
    #2
    muisejt

    muisejt Well-Known Member

    Joined:
    Nov 12, 2011
    Member:
    #66923
    Messages:
    235
    Gender:
    Male
    YMM
    Vehicle:
    08 TRD Sport DC LB
    Katzkin, Bi-xenon Morimoto Mini Stage III Kit (D2S), 4Runner Mirrors, Complete Stereo Upgrade with Backup Camera, Pop&Lock PL5400, Extang Solid Fold Tonneau, TRD OR Tow Hook, rcbs204 4x4 Illuminated Switch, Grillcraft, 10" Rigid light bar behind grill, relocated horns, Redline Tuning hood struts, 5100's with 883 and Wheeler 5 leaf, OME carrier barring drop kit, ECGS Bushing, MarionB2B front hubs
    take the two wires that go to the switch and connect them to pins 3 and 4 on the fog switch

  3. Nov 14, 2013 at 9:32 PM
    #3
    Jerez

    Jerez SoCal LED Dash Swap

    Joined:
    Feb 1, 2010
    Member:
    #30488
    Messages:
    17,850
    Gender:
    Male
    First Name:
    Rod
    Diamond Bar/Ontario, CA
    Vehicle:
    08 TRD 2wd converted to 4wd/2019 4runner SR5 premium 4x4
    Estock
    where are you located in so cal...i can help you with the wiring later if youd like

    simple, take the wire from the relay for the "switch" to one of the switch ends then the other to a power source...

    the 2 remaining pins on the switch are for the back light, which is a simple splice into any existing stock buttons

  4. Nov 14, 2013 at 9:41 PM
    #4
    Colt562

    Colt562 [OP] Well-Known Member

    Joined:
    Aug 2, 2013
    Member:
    #109659
    Messages:
    529
    Gender:
    Male
    First Name:
    Brett
    SoCal
    Vehicle:
    13' TRD Sport 4x4
    Icon Stage 3 Lift Kit...Dakars
    I'm in the Lakewood/long beach area

  5. Nov 14, 2013 at 10:02 PM
    #5
    Jerez

    Jerez SoCal LED Dash Swap

    Joined:
    Feb 1, 2010
    Member:
    #30488
    Messages:
    17,850
    Gender:
    Male
    First Name:
    Rod
    Diamond Bar/Ontario, CA
    Vehicle:
    08 TRD 2wd converted to 4wd/2019 4runner SR5 premium 4x4
    Estock
    We sometimes have meets around there we can maybe do it then or just do the install at a mod day

  6. Nov 15, 2013 at 11:11 AM
    #6
    Colt562

    Colt562 [OP] Well-Known Member

    Joined:
    Aug 2, 2013
    Member:
    #109659
    Messages:
    529
    Gender:
    Male
    First Name:
    Brett
    SoCal
    Vehicle:
    13' TRD Sport 4x4
    Icon Stage 3 Lift Kit...Dakars
    Ok, I'll see what I can find first.

  7. Nov 15, 2013 at 11:25 AM
    #7
    Jerez

    Jerez SoCal LED Dash Swap

    Joined:
    Feb 1, 2010
    Member:
    #30488
    Messages:
    17,850
    Gender:
    Male
    First Name:
    Rod
    Diamond Bar/Ontario, CA
    Vehicle:
    08 TRD 2wd converted to 4wd/2019 4runner SR5 premium 4x4
    Estock
    But it's really easy to wire. I just did one on a spare foglight switch I had (rigid duallys with relay)

  8. Nov 15, 2013 at 3:25 PM
    #8
    Colt562

    Colt562 [OP] Well-Known Member

    Joined:
    Aug 2, 2013
    Member:
    #109659
    Messages:
    529
    Gender:
    Male
    First Name:
    Brett
    SoCal
    Vehicle:
    13' TRD Sport 4x4
    Icon Stage 3 Lift Kit...Dakars
    Do you by chance have a wire diagram of what you did? That would help me out a lot.

  9. Nov 15, 2013 at 5:16 PM
    #9
    Bsheriff11

    Bsheriff11 Remember Your ABC's. Always. Be. Casual.

    Joined:
    Apr 6, 2013
    Member:
    #101499
    Messages:
    5,358
    Gender:
    Male
    First Name:
    Brandon
    Virginia livin', South Carolina raised
    Vehicle:
    2000 Limited T4R
    Click My Sig Homie
  10. Nov 23, 2013 at 9:22 PM
    #10
    Colt562

    Colt562 [OP] Well-Known Member

    Joined:
    Aug 2, 2013
    Member:
    #109659
    Messages:
    529
    Gender:
    Male
    First Name:
    Brett
    SoCal
    Vehicle:
    13' TRD Sport 4x4
    Icon Stage 3 Lift Kit...Dakars

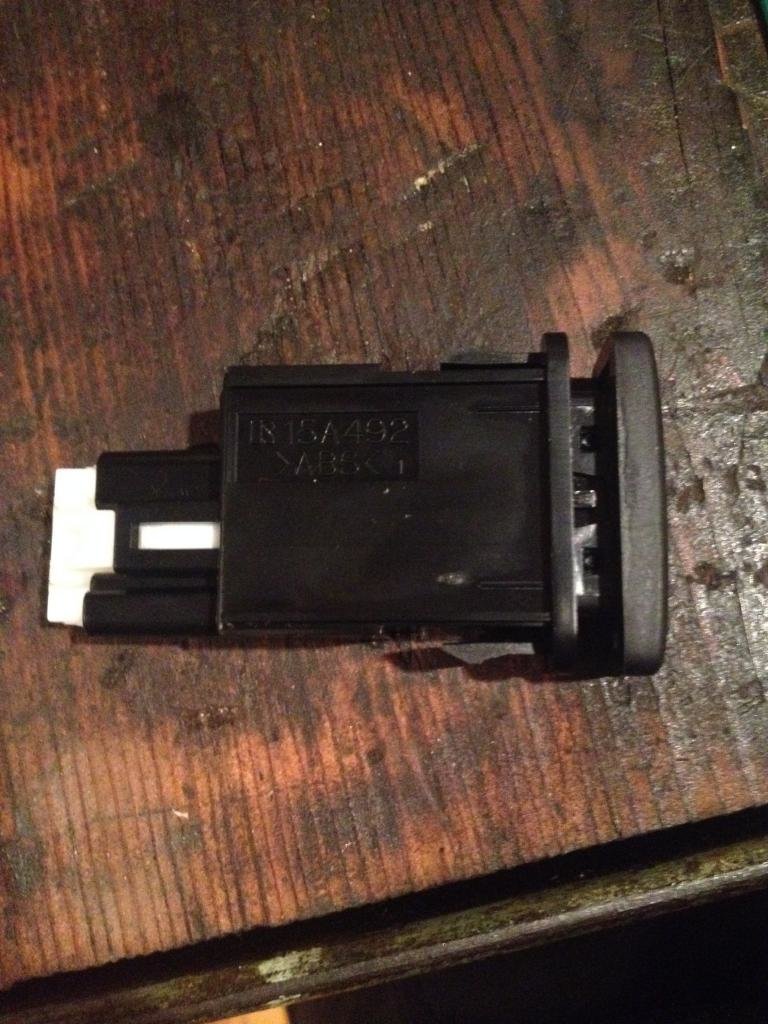

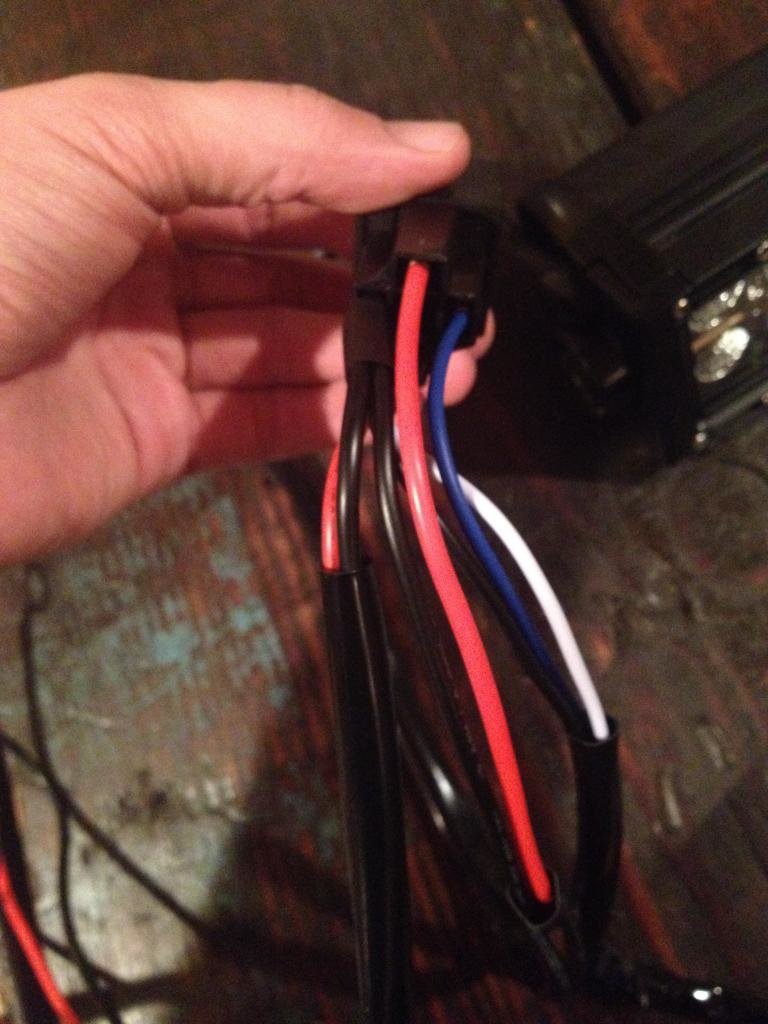

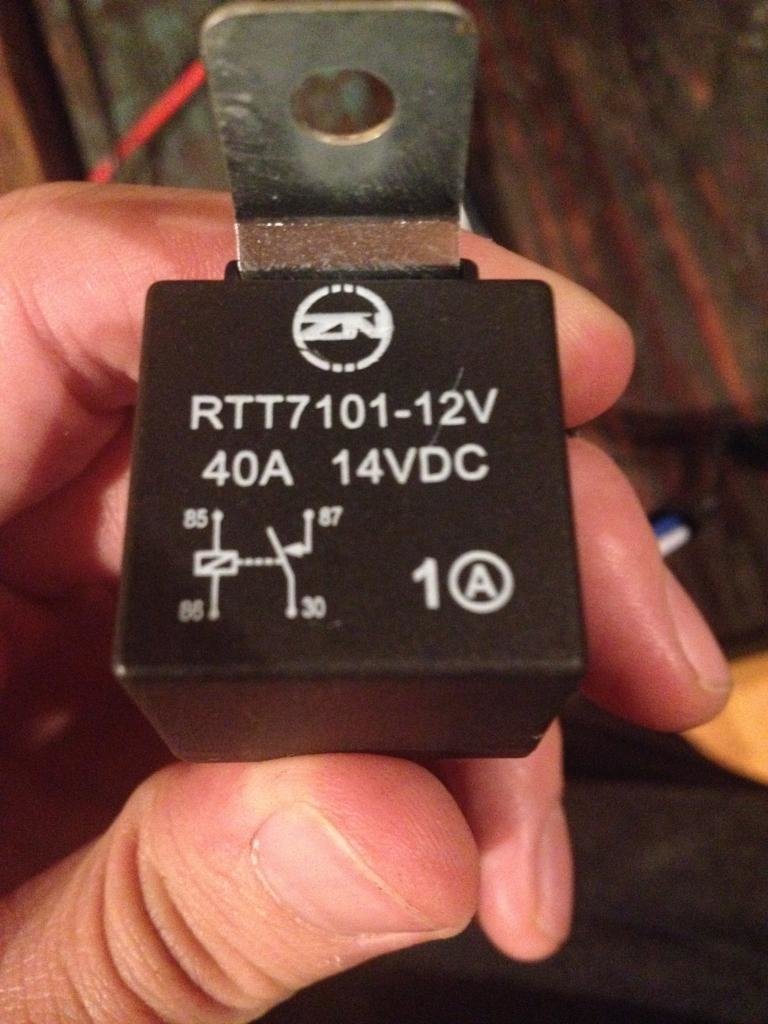

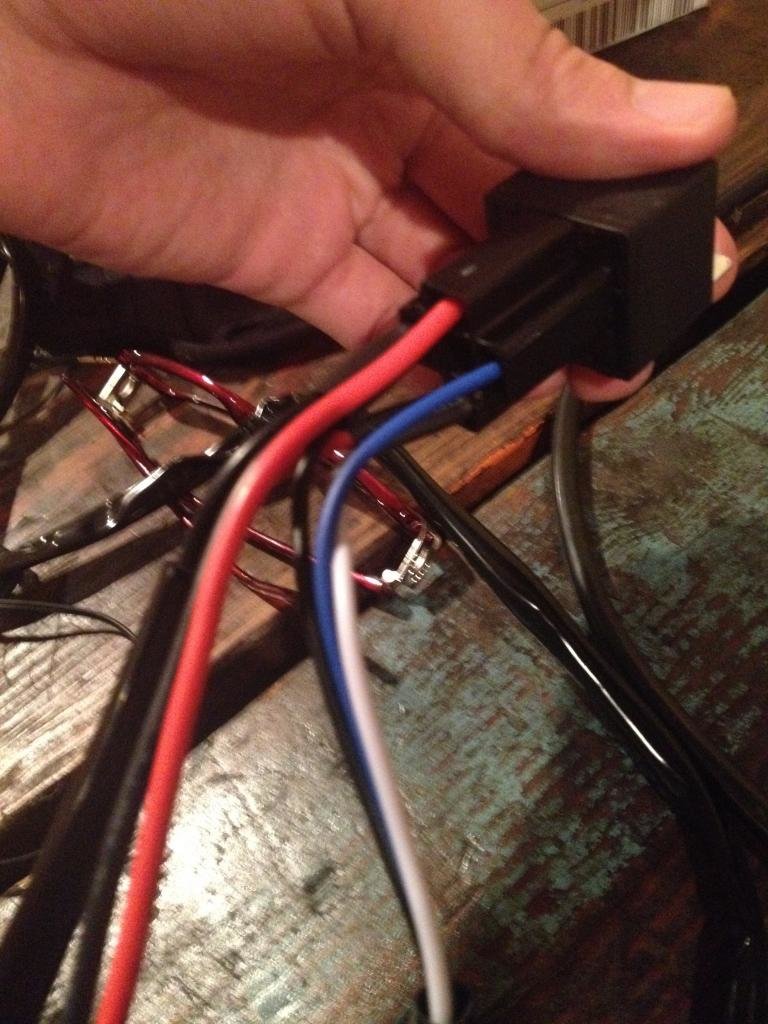

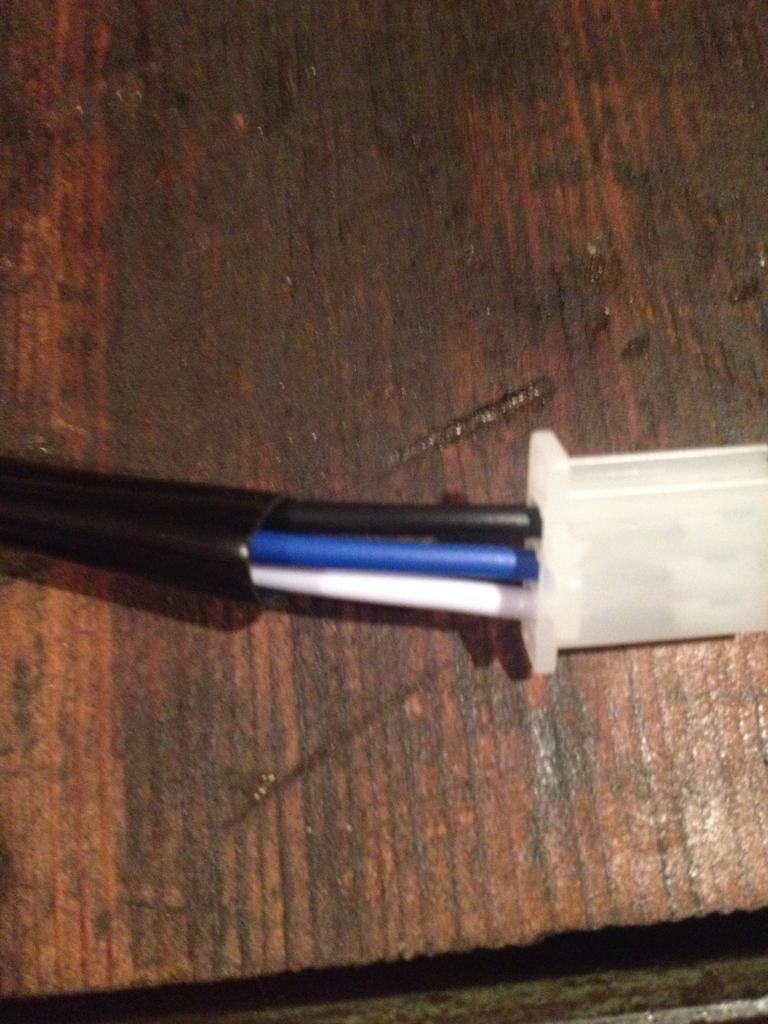

    Added some pics to see if someone can visually walk me through wiring the switch.


    zerotimeouts likes this.
  11. Nov 24, 2013 at 7:22 AM
    #11
    Colt562

    Colt562 [OP] Well-Known Member

    Joined:
    Aug 2, 2013
    Member:
    #109659
    Messages:
    529
    Gender:
    Male
    First Name:
    Brett
    SoCal
    Vehicle:
    13' TRD Sport 4x4
    Icon Stage 3 Lift Kit...Dakars
  12. Nov 24, 2013 at 7:46 AM
    #12
    Bsheriff11

    Bsheriff11 Remember Your ABC's. Always. Be. Casual.

    Joined:
    Apr 6, 2013
    Member:
    #101499
    Messages:
    5,358
    Gender:
    Male
    First Name:
    Brandon
    Virginia livin', South Carolina raised
    Vehicle:
    2000 Limited T4R
    Click My Sig Homie
    You need the oem fog light switch wiring harness too I believe

  13. Jan 18, 2014 at 3:31 PM
    #13
    Shauncho

    Shauncho Embrace your inner Bro-ness

    Joined:
    Sep 19, 2012
    Member:
    #87284
    Messages:
    4,509
    Gender:
    Male
    First Name:
    Shaun
    Thousand Oaks, CA
    Vehicle:
    '13 DCLB TRDSport PreRunner & '99 4Runner 4x4
    Tailgate Anti-theft Anytime Foglights Removed/Relocated Badges BHLM Window tint Goodyear Duratracs Satoshi Grill from Customcargrills.com

    Here's my situation: I've got stock fogs with OEM switch and I added a light bar that is wired straight off the battery so it's hot all the time. I got another OEM fog switch that I'm trying to use for the light bar.

    Ok so I tried tapping the illumination pin off of the illumination wire on my existing fog switch and Its not illuminating. Any ideas? If I tap pin 2 off of pin 4 won't that make the illumination on all the time since my lightbar is wired straight to the battery? If this won't work then what's the nearest line I could splice into?

  14. Jan 18, 2014 at 9:21 PM
    #14
    Shauncho

    Shauncho Embrace your inner Bro-ness

    Joined:
    Sep 19, 2012
    Member:
    #87284
    Messages:
    4,509
    Gender:
    Male
    First Name:
    Shaun
    Thousand Oaks, CA
    Vehicle:
    '13 DCLB TRDSport PreRunner & '99 4Runner 4x4
    Tailgate Anti-theft Anytime Foglights Removed/Relocated Badges BHLM Window tint Goodyear Duratracs Satoshi Grill from Customcargrills.com
    anyone? ^^^

  15. Jan 18, 2014 at 9:37 PM
    #15
    FigNewton

    FigNewton Well-Known Member

    Joined:
    Jan 9, 2014
    Member:
    #120280
    Messages:
    92
    Gender:
    Male
    First Name:
    Mike
    Greeley, CO
    Vehicle:
    14 DCSB TRD Sport
  16. Jan 18, 2014 at 9:55 PM
    #16
    Shauncho

    Shauncho Embrace your inner Bro-ness

    Joined:
    Sep 19, 2012
    Member:
    #87284
    Messages:
    4,509
    Gender:
    Male
    First Name:
    Shaun
    Thousand Oaks, CA
    Vehicle:
    '13 DCLB TRDSport PreRunner & '99 4Runner 4x4
    Tailgate Anti-theft Anytime Foglights Removed/Relocated Badges BHLM Window tint Goodyear Duratracs Satoshi Grill from Customcargrills.com
  17. Jan 18, 2014 at 10:32 PM
    #17
    FigNewton

    FigNewton Well-Known Member

    Joined:
    Jan 9, 2014
    Member:
    #120280
    Messages:
    92
    Gender:
    Male
    First Name:
    Mike
    Greeley, CO
    Vehicle:
    14 DCSB TRD Sport
  18. Jan 19, 2014 at 7:17 AM
    #18
    RedNeck D

    RedNeck D Well-Known Member

    Joined:
    Aug 31, 2013
    Member:
    #111586
    Messages:
    1,267
    Gender:
    Male
    First Name:
    Dylan
    San Leon, Tx
    Vehicle:
    Multi
    [​IMG]

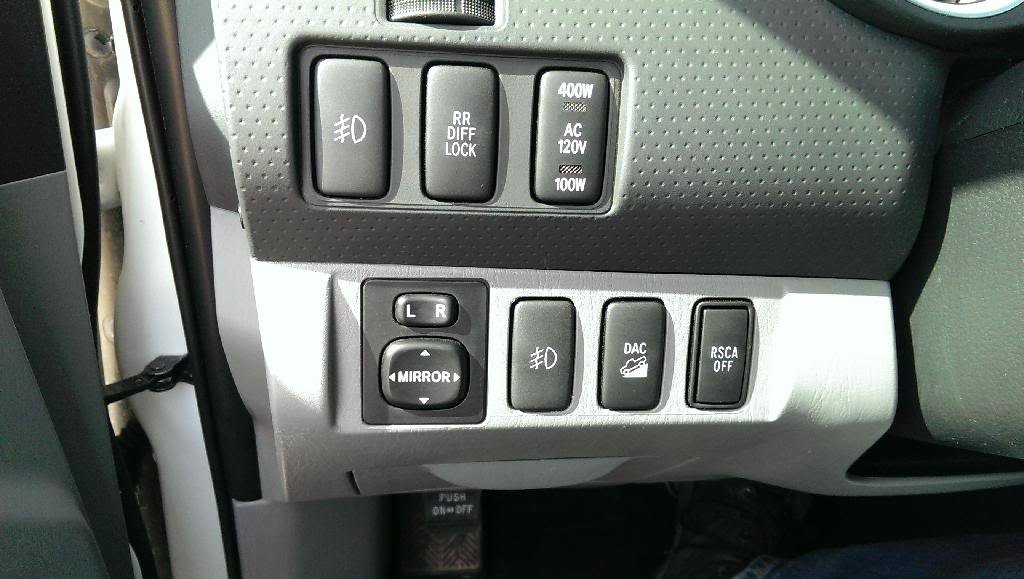

    I did this yesterday. Since I did the diff lock anytime mod that turns off TCS/ABS I didn't need my TCS button and replaced it with another fog switch for my roof lights. Used the factory illumination wires, very easy to pin-out. I should have the part numbers for the plug and pig tails from Toyota if you want them. The switch I got, like most lights up amber instead of green. I don't know if the bulb is a serviceable part but it's just a tiny green rubber cover over the bulb that makes it green. It's the little brown tab on the side near the front of the switch you can just unscrew and pop out.

  19. Jan 19, 2014 at 8:36 AM
    #19
    Jerez

    Jerez SoCal LED Dash Swap

    Joined:
    Feb 1, 2010
    Member:
    #30488
    Messages:
    17,850
    Gender:
    Male
    First Name:
    Rod
    Diamond Bar/Ontario, CA
    Vehicle:
    08 TRD 2wd converted to 4wd/2019 4runner SR5 premium 4x4
    Estock
  20. Nov 10, 2016 at 7:11 PM
    #20
    Zanone_taco

    Zanone_taco Tacoma bruhhh

    Joined:
    Aug 6, 2016
    Member:
    #193950
    Messages:
    720
    Gender:
    Male
    First Name:
    Blane
    Humboldt county
    Vehicle:
    2010 white access cab Trd off-road
    Need more...
    Hey i know this is from awhile ago lol, but i wanted to do this same thing with my mic tuning light bar and led light bar switch. I have no idea on how to do it and no one has yet to give me a straight answer, if ya could help me out that'd be very appreciated, thanks for your time!
