LED lighting on door locks....!!!!

Discussion in '2nd Gen. Tacomas (2005-2015)' started by mizicko705, Oct 31, 2011.

  1. Oct 31, 2011 at 12:34 AM
    #1
    mizicko705

    mizicko705 [OP] Im that one guy!!! Who did that one thing...

    Joined:
    Sep 23, 2011
    Member:
    #64012
    Messages:
    119
    Gender:
    Male
    First Name:
    Kevin
    Socal
    Vehicle:
    05 Prerunner TRD V6
    (2) 12" rocksford Fosgate P3SD412 1000 watts RMS Sony explode deck Tinted Windows Blacked out Emblems Black hood scoop, valince bar and sleeved fog lights. FlowMaster 40 series BHLM Head lights Led lit door locks
    So i got tired of the little yellow/red faded stickers on the door locks and had an idea to put plexie glass in where the stickers and back light it with a LED. It turned out pretty good, and i never seen anyone do it so i figured id give it a crack. :D this is how it turned out...... what do you guys think?:confused:

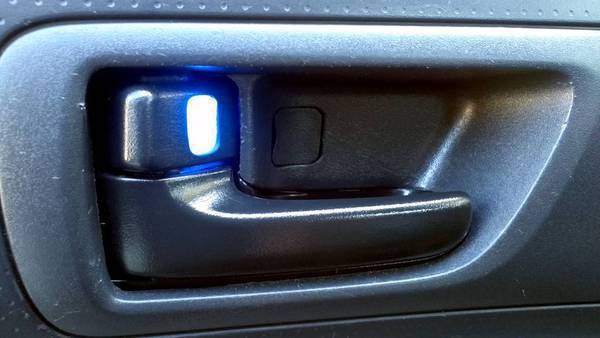

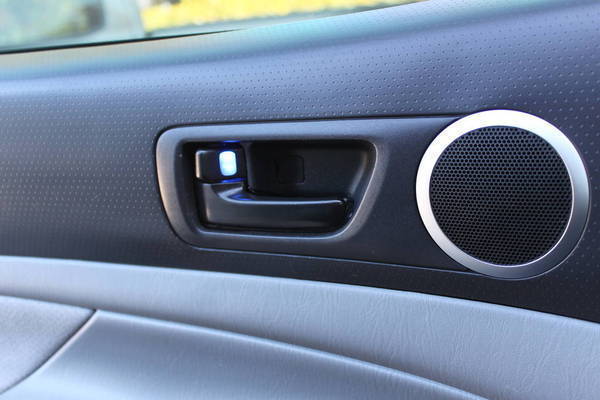

    So This will be the final result of all the hard work.
    [​IMG]

    Edit: So I finally finshed the walk through, thanks for all the REPs and comments...... now get to moddin.:D

    Supplys:
    • Drimmle or Drill and bit
    • LED lights
    • Sand paper
    • plexie glass
    • Patience......haha

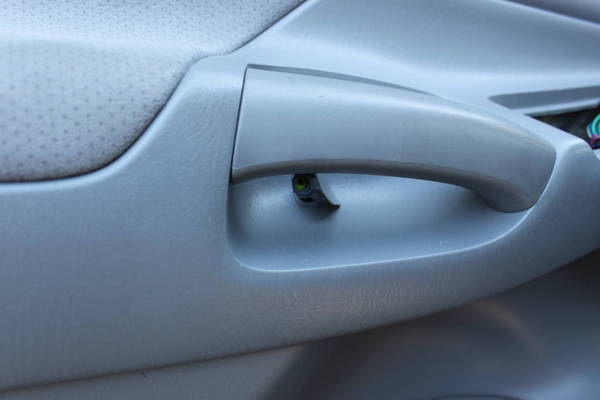

    So start by taking the screws out of the door.
    [​IMG]

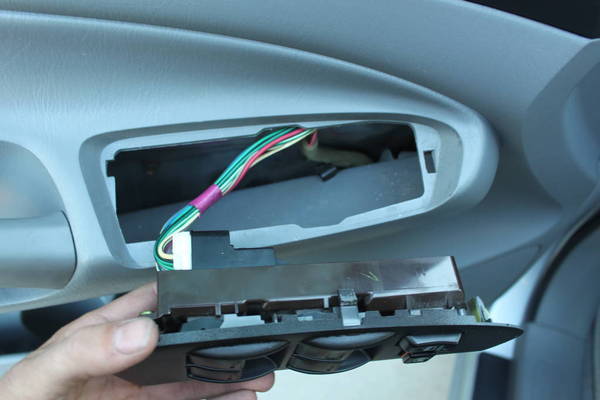

    Unplug and pull out the controle panel.
    [​IMG]

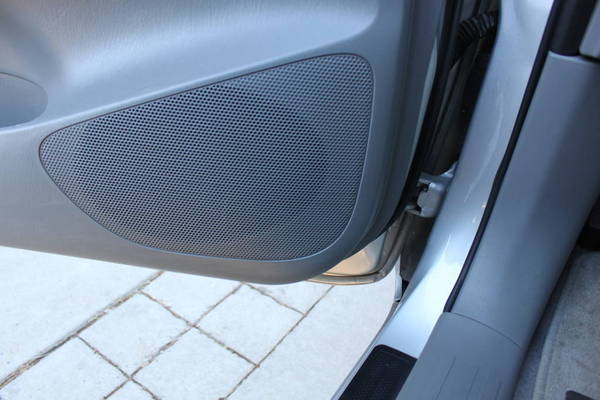

    After all thats done start pulling the door down by the speaker and keep following the bottom.
    [​IMG]

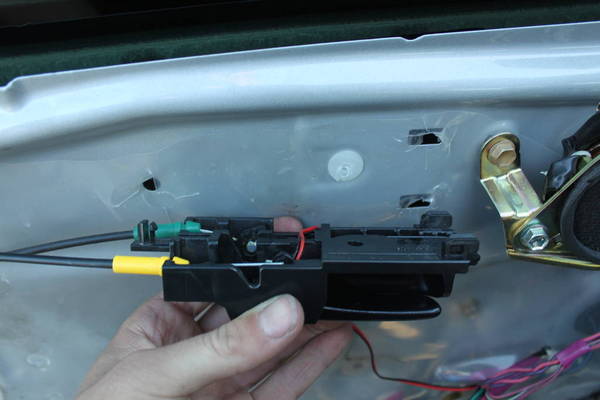

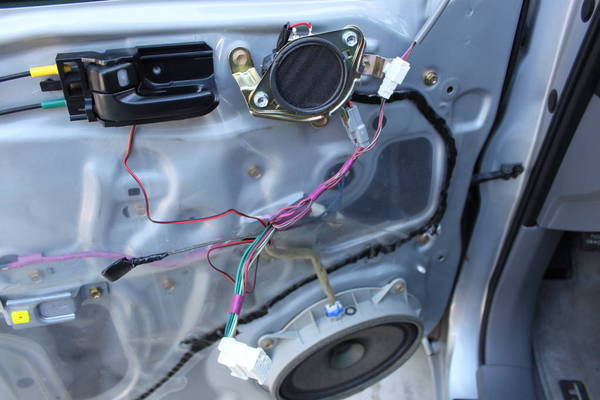

    Now your gonna wanna pull of the black lock/handle unit so you can get the lock piece off.
    [​IMG]

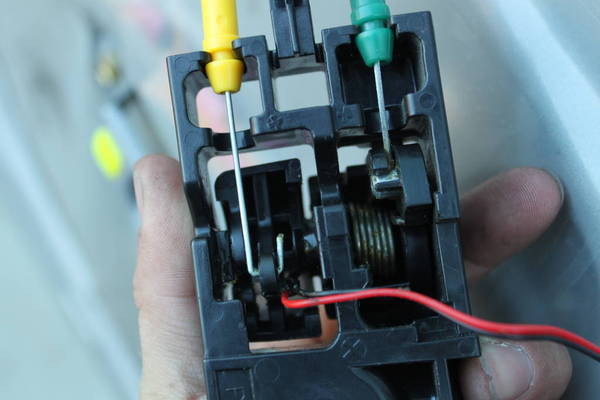

    Start by pulling the green and yellow cables of the unit so you can get it free.
    [​IMG]

    You know need to get the lock piece out (dont mind the yellow cable that should be off by now) Theres a tab on each side so jut pry the lock piece in and push.:eek:
    [​IMG]

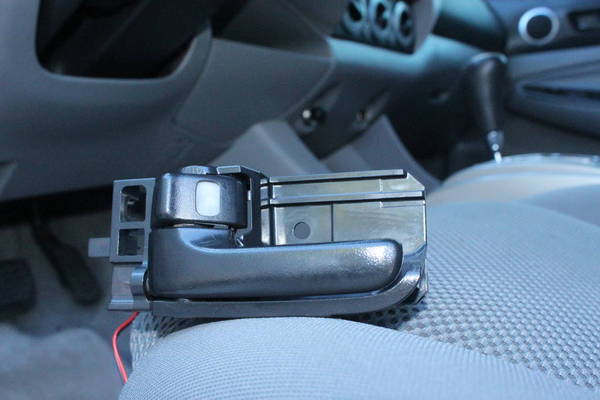

    You should now have this little bad boy free and ready to be cut.
    [​IMG]

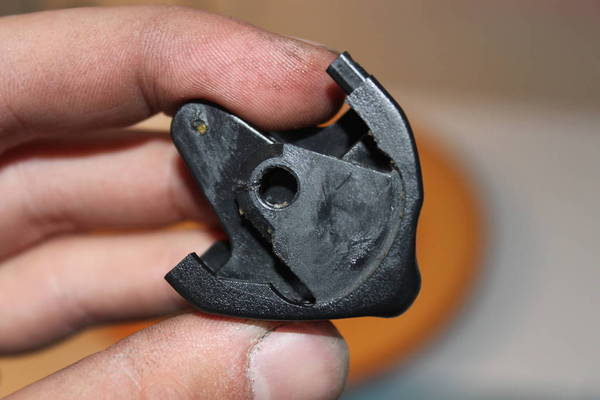

    This is the side we will be drilling so the plexie glass can fit in.
    [​IMG]

    Your gonna wanna drill out the side so the plexie glass can slide in. Try and drill extra on the side so theres no gaps seen from the front.
    [​IMG]

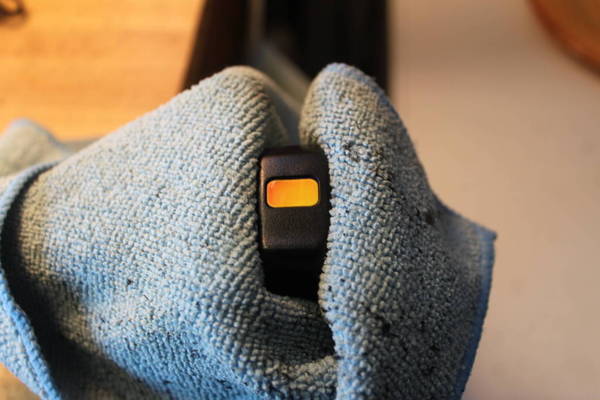

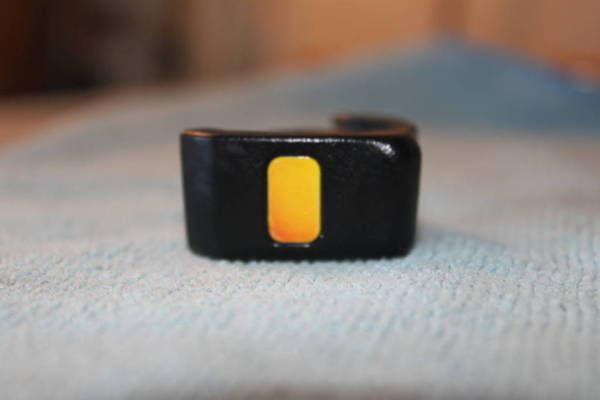

    Now for the front, you can leave the sticker on or jerk it off, hahaha, either way its going bye bye.
    [​IMG]

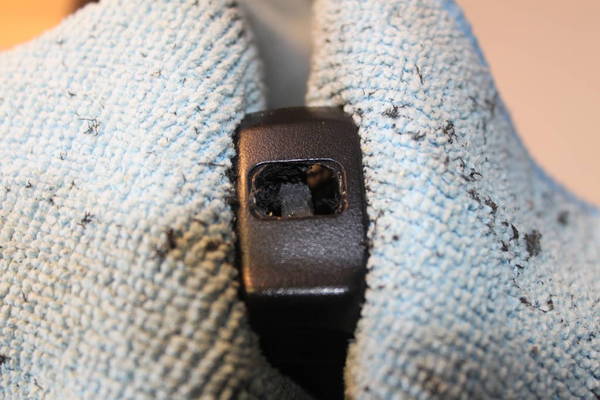

    Start drillin her...... It should now look rough like this.
    [​IMG]

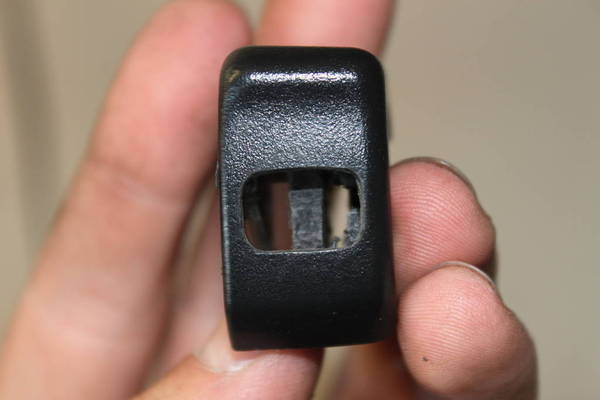

    Make a couple more soft passes, then take a razor to to to clean it up abit. After those have been done take a very fine grit sand paper to the back edge of the cut and clean it up (DO NOT TAKE IT TO THE FRONT, YOU WILL SCRATCH THE CRAP OUT OF IT.) it should look alot cleaner.:)
    [​IMG]

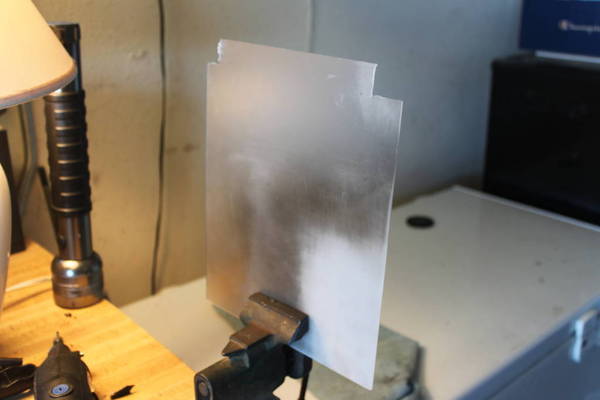

    Now for the plexie glass, if you bought it clear your gonna wanna frost it buy snading down both sides with fine grit sand paper. should look like the corner in the bottom.
    [​IMG]

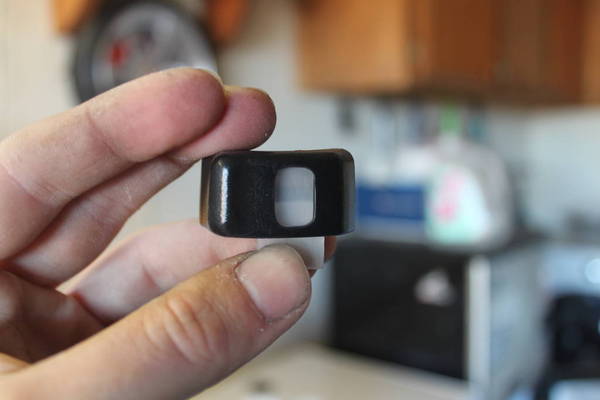

    Cut the plexie glass bigger then the hole where the sticker was so you dont have a visable gap from the front.
    [​IMG]

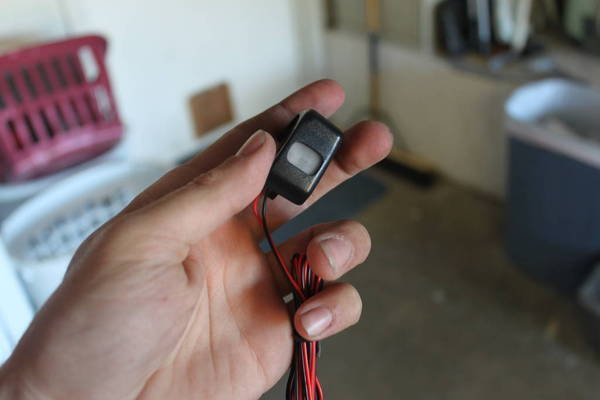

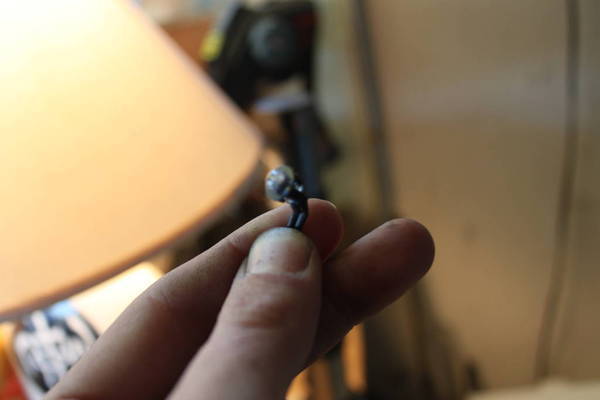

    Now for the lighting. i bought single LED lights from Pepboys for 7 bucks.
    [​IMG]
    [​IMG]

    Now drill a hole in the plastic lock, right behind the plexie glass just big enough for the light to fit. glue the light and plexie in place with poxy or glue and this should be your final unit.[​IMG]

    [​IMG]

    Off
    [​IMG]

    On
    [​IMG]

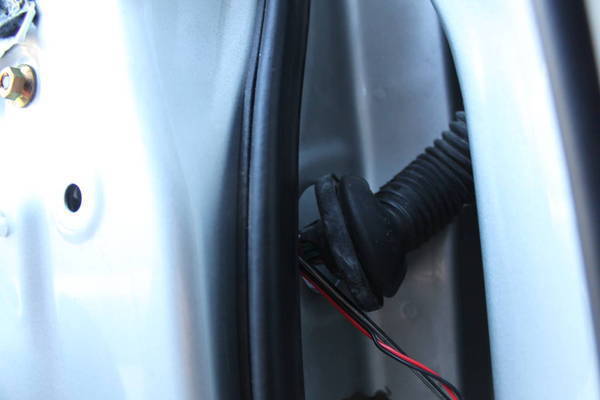

    Now run the wire down the door and through the grommet to the cab fuse box. :rolleyes:
    [​IMG]

    [​IMG]

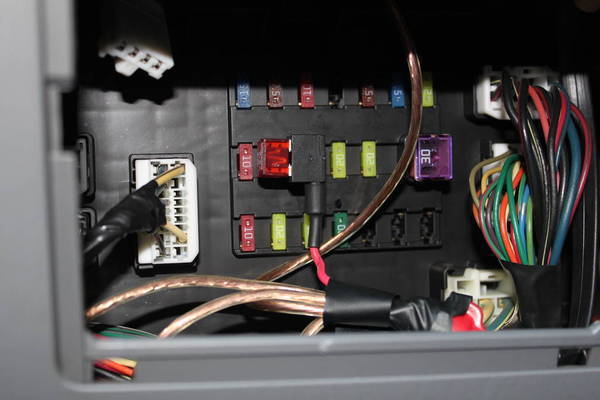

    Also bought this fuse splitter at the store, great buy..... :D wire it into that so the lights turn on and off with the ignition.
    [​IMG]

    Plug her in...
    [​IMG]

    Reapply the door panel and screws.........
    [​IMG]

    And BAM!!!!! Your done....... :bananadance: :yay:

    [​IMG]

    [​IMG]

    [​IMG]

    nevenelestate, Alex2815 and UssMoGn like this.
  2. Oct 31, 2011 at 12:35 AM
    #2
    DeeKay21

    DeeKay21 Lieutenant Dan.

    Joined:
    Nov 11, 2008
    Member:
    #10651
    Messages:
    14,188
    Gender:
    Male
    Nevada/Utah
    Vehicle:
    06' TRD Sport 4x4
    Hey cool idea!! It looks pretty sick!! You should write a DIY thread on this.;)

  3. Oct 31, 2011 at 12:36 AM
    #3
    ToyComa92

    ToyComa92 Write your love, Then your anger.

    Joined:
    Sep 9, 2011
    Member:
    #63168
    Messages:
    6,266
    Gender:
    Male
    First Name:
    Jon
    Conifer, Colorado
    Vehicle:
    2006 Tacoma TRD sport Debadged
    Heated katzskin leather, Black TRD sport wheels, Bilstein 5100s, Toytec 2" Springs, Deaver 2" AAL, Pioneer AVH4400BH, Ultragauge, Weathertechs front/rear,
    Thats pretty clean not going to lie! Does it shut off when the doors lock? Id love to see a write-up on this. Would be cool if you had Blue on one side for unlocked and dremeled out another square and made it red for locked. Thatd be super clean!

  4. Oct 31, 2011 at 12:36 AM
    #4
    TACOMA TRD

    TACOMA TRD Well-Known Member

    Joined:
    Apr 9, 2010
    Member:
    #34897
    Messages:
    2,207
    Gender:
    Male
    First Name:
    Tom
    PA
    Vehicle:
    2011 MGM SPORT DC 4x4
    Alpine HU, Apline 6.5 3 way Speakers, Access Cover.
    Looks good, looks like its bright enough to light the cab up at night...

  5. Oct 31, 2011 at 12:40 AM
    #5
    DeeKay21

    DeeKay21 Lieutenant Dan.

    Joined:
    Nov 11, 2008
    Member:
    #10651
    Messages:
    14,188
    Gender:
    Male
    Nevada/Utah
    Vehicle:
    06' TRD Sport 4x4
    That might be a good thing though, reminds you to lock your doors even if you are driving!! I lock mine all the time for safety reasons.:cool:

  6. Oct 31, 2011 at 12:40 AM
    #6
    mizicko705

    mizicko705 [OP] Im that one guy!!! Who did that one thing...

    Joined:
    Sep 23, 2011
    Member:
    #64012
    Messages:
    119
    Gender:
    Male
    First Name:
    Kevin
    Socal
    Vehicle:
    05 Prerunner TRD V6
    (2) 12" rocksford Fosgate P3SD412 1000 watts RMS Sony explode deck Tinted Windows Blacked out Emblems Black hood scoop, valince bar and sleeved fog lights. FlowMaster 40 series BHLM Head lights Led lit door locks
    Ya ill put and DIY on tomorrow, and they just turn on with the ignition (for now). Now im thinking maybe put a red bulb in with the blue so its red when locked and blue when not.

  7. Oct 31, 2011 at 12:42 AM
    #7
    Konaborne

    Konaborne Pineapples on pizza Hawaiian does not it make.

    Joined:
    Nov 21, 2010
    Member:
    #46536
    Messages:
    31,748
    Gender:
    Male
    First Name:
    Cody
    Kealakekua, Hawaii
    Vehicle:
    Lifted 00 TRD Off-Road
    fox extended travel remote resivoir coilovers, 14" eibach 600lb coils, All Pro tubular chromoly 1" uniball upper control arms, All Pro expedition leaf packs, 10" bilstein 5150 piggyback reservoir shocks 265/75r16 Goodyear wrangler MT/R kevlars wrapped around 16" Helo 791 gloss black, Mini H1 retrofits with 6000k bulbs, 18" magnaflow w/custom exhaust reroute various decals, Sockmonkey retro hood stripes
    that....
    is cool

  8. Oct 31, 2011 at 12:44 AM
    #8
    TnRedNeck721

    TnRedNeck721 GO VOLS!

    Joined:
    Mar 10, 2011
    Member:
    #52731
    Messages:
    19,142
    Gender:
    Male
    First Name:
    Zach
    TN
    Vehicle:
    07 TRD off road 4WD
    No mud flaps, plasti dipped emblems, and rear bumper, Weather tech digital fit, Bed mat from tractor supply. Pioneer 4400BH head unit. B.A.M.F bed rail tie downs. AVS vent visors.
    NICE i like. may add it to the list of mods.

    X2 i keep mine locked when in driving. i’ll unlock if i’m picking someone up and they need to get in but they get locked right back. :cool:

  9. Oct 31, 2011 at 12:45 AM
    #9
    Tat2dTaco

    Tat2dTaco He who breaks things.

    Joined:
    Oct 13, 2009
    Member:
    #24260
    Messages:
    364
    Gender:
    Male
    First Name:
    Ricker
    San Antonio, TX
    Vehicle:
    05 SWB Prerunner
    Camburg Spindles All-Pro Expo Leafs Bilstein 5100s and 7100s DTF Pre-Runner Bumper Tons of other crap
  10. Oct 31, 2011 at 12:53 AM
    #10
    mizicko705

    mizicko705 [OP] Im that one guy!!! Who did that one thing...

    Joined:
    Sep 23, 2011
    Member:
    #64012
    Messages:
    119
    Gender:
    Male
    First Name:
    Kevin
    Socal
    Vehicle:
    05 Prerunner TRD V6
    (2) 12" rocksford Fosgate P3SD412 1000 watts RMS Sony explode deck Tinted Windows Blacked out Emblems Black hood scoop, valince bar and sleeved fog lights. FlowMaster 40 series BHLM Head lights Led lit door locks
    I dont know if the 2 gens do, i know mine doesnt :eek:

  11. Oct 31, 2011 at 12:54 AM
    #11
    PerfectTekniq

    PerfectTekniq I'm undefeated in the UFC.

    Joined:
    Feb 22, 2011
    Member:
    #51683
    Messages:
    8,630
    Gender:
    Male
    First Name:
    Pepe Silvia
    Claremont, CA
    Vehicle:
    2009 Super White 4x4 DC SB Sport
    AllPro Front, AllPro Rear w/ wraps, AllPro IFS Skid, 5100 w/ 885's upfront, Duratracs, Front Superbumps, BuiltRight UCAs, Dakar Leaf Pack, Extended 5100's, AllPro Flip Kit, Rear Superbumps, Extended SS brake lines WeatherTech Floormats, TRD Intake, ScanGaugeII, TRD SoCal, Grillcraft, Wet Okoles, Cobra 75 w/ 4' whip
    I noticed my truck doesn't automatically lock which is annoying...
    My 1990 Z would auto lock after going over 10 mph...my moms '93 Lumina locks as soon as you put it in drive.

    I always lock my 2009 Taco at a stoplight when I see a weirdo about to cross.

  12. Oct 31, 2011 at 1:15 AM
    #12
    Maverick904

    Maverick904 Resident Fishing Expert

    Joined:
    Sep 21, 2009
    Member:
    #23084
    Messages:
    4,894
    Gender:
    Male
    First Name:
    Kameron
    Northeast Florida
    Vehicle:
    08 TRD Rugged Trail 4x4
    3" Procomp Lift, BDF Light Bar, Borla Stainless Cat-Back System, 2 10" Polk MM Subs, LED Interior Lighting, Pioneer Touch Screen, Kicker Speakers up front, Sonys in the back, Grillcraft grill, 20% tint, Weathertechs, Projector Retrofit Headlights. BHLM
    i drive with my windows down...locking is pointless

  13. Oct 31, 2011 at 2:02 AM
    #13
    ratrod

    ratrod Well-Known Member

    Joined:
    Mar 8, 2010
    Member:
    #32779
    Messages:
    514
    Gender:
    Male
    Los Angeles
    Vehicle:
    2006 Toyota Tacoma Dbl Cab TRD SR5 4x4
    Bilstein 5100s @ 1.75 with 1.5 AAL, Satoshi Grill Mod with 2 Hella 500s behind the grill, LED dome and map lights, custom made (by me) 10" subwoofer box behind the dbl cab seat, DVD/iPod/Bluetooth/GPS/TV/USB/Stereo, Yakima rack, Shell, tinted front windows to match the factory backs. Backup cam in the tailgate handle mod.
    Very cool!

  14. Oct 31, 2011 at 2:20 AM
    #14
    eagle5521

    eagle5521 Member

    Joined:
    Feb 8, 2011
    Member:
    #50775
    Messages:
    377
    Gender:
    Male
    First Name:
    Scott
    Louisiana
    Vehicle:
    `11 PreRunner DCSB TX
    Very nice, great to see a new and unseen mod.

  15. Oct 31, 2011 at 2:40 AM
    #15
    Texio

    Texio Well-Known Member

    Joined:
    Aug 3, 2011
    Member:
    #61067
    Messages:
    341
    Gender:
    Male
    Austin, TX
    Vehicle:
    11 4WD DBCab SB
    Really nice, I'll look forward to the install thread.

    Do they stay on at all times when the ignition is on, or only when the doors are unlocked? The lights would be hidden when the door is locked, right? If the side of the lock with the light goes in when the door is locked, would the heat cause some damage? I know LEDs are not very hot, but I'm curious, does it get hot at all?

    I would think that it would almost be more useful to have lights on the other side, to be able to find the lock in the dark when the doors are locked. Seems to always happen when I'm giving a ride to someone at night and they can't find their way out in the dark...

    Congrats on a unique mod, it sure got me thinking!

  16. Oct 31, 2011 at 2:52 AM
    #16
    Davtopgun

    Davtopgun Weeeee mod time!

    Joined:
    Feb 17, 2011
    Member:
    #51350
    Messages:
    3,982
    Gender:
    Male
    First Name:
    David
    Central Alabama
    Vehicle:
    2014 TRD Off-Road
    TacoAlaMode Custom grill, SCS Gunmetal F5's, Treadwright guard dogs, OME 3" Lift w/OME Dakars. LRUCA's. Allpro off-road plate rear bumper with high clearance hitch, SOS concepts bolt on rock sliders with top plate, Pelfreybuilt front plate bumper, rci skid plates.
  17. Oct 31, 2011 at 3:03 AM
    #17
    Texio

    Texio Well-Known Member

    Joined:
    Aug 3, 2011
    Member:
    #61067
    Messages:
    341
    Gender:
    Male
    Austin, TX
    Vehicle:
    11 4WD DBCab SB
    You know, I can't remember!... Would the dome turn on upon hitting the unlock button or upon actually opening the door? Is the unlock button itself lighted?

    I have been gone for work so much since I bought the truck this summer, I feel like we barely got to know each other... :pout: That's why I keep buying gifts for it on TW! :D

  18. Oct 31, 2011 at 3:11 AM
    #18
    DeeKay21

    DeeKay21 Lieutenant Dan.

    Joined:
    Nov 11, 2008
    Member:
    #10651
    Messages:
    14,188
    Gender:
    Male
    Nevada/Utah
    Vehicle:
    06' TRD Sport 4x4
    my 06 doesnt have auto locks.:eek:

  19. Oct 31, 2011 at 3:24 AM
    #19
    Texio

    Texio Well-Known Member

    Joined:
    Aug 3, 2011
    Member:
    #61067
    Messages:
    341
    Gender:
    Male
    Austin, TX
    Vehicle:
    11 4WD DBCab SB
    I'll take your word for it! It won't be until Wednesday before I can check in person...

  20. Oct 31, 2011 at 4:05 AM
    #20
    T@co_Pr3runn3r

    T@co_Pr3runn3r XXXXXXXXXXXXXXXXXXX

    Joined:
    Jan 20, 2009
    Member:
    #12767
    Messages:
    11,923
    Gender:
    Male
    <----------------->
    Vehicle:
    08 RC Prerunner SR5
    I'm thinkin red if unlocked and off when locked. Wouldn't really want it on all the time. Maybe use a lock symbol when lit up. Cool idea tho.
