LED lights under truck

Discussion in 'Lighting' started by STEVESTRUCK, Mar 10, 2013.

  1. Mar 10, 2013 at 9:43 AM
    #1
    STEVESTRUCK

    STEVESTRUCK [OP] Member

    Joined:
    Mar 10, 2013
    Member:
    #99384
    Messages:
    12
    Gender:
    Male
    First Name:
    Steve
    Alexandria, AL
    Vehicle:
    2011 Prerunner
    Remote start, nerf bars, Retrax tonneau cover, interior LED's
    I bought some waterproof led lights I would like to put under my truck on both sides to come on when my dome light comes on, such as when I start it, or when I exit the truck, to light up the step rails. Can anyone tell me the best place to connect them?

  2. Mar 10, 2013 at 11:09 AM
    #2
    acdronin

    acdronin Well-Known Member

    Joined:
    Dec 2, 2010
    Member:
    #47036
    Messages:
    19,686
    Gender:
    Male
    .
    Interesting idea, haven't seen this before so i went out to the truck and checked it out. Ok, first thing to do is to see what the amperage of those LEDs are in total, this will determine if you can do this. I have an 07 but this stuff should be the same. One the packaging there should be a spec saying what the amp draw is, 3-4 amps, whatever it is. If there is no amp spec but there is a wattage spec you can use that, if it's say 25 watts total then divide by 12 volts of your system and that gives you the amps (25 divided by 12 = 2.08 amps).
    This next part I'm not totally sure on so you'll have to play it by ear unless someone else here knows this number.
    You'll have to figure out the wattage of the dome light, I found replacement bulbs online that say 5 watts which comes out to .41 amps.
    Next, I don't believe there is anything else and no other lights on that circuit if there is you will have to figure out what their amp draw is too.
    So lets say your lights draw 3 amps and your dome light bulb draws .41 amps, so that's 3.41 amps total.

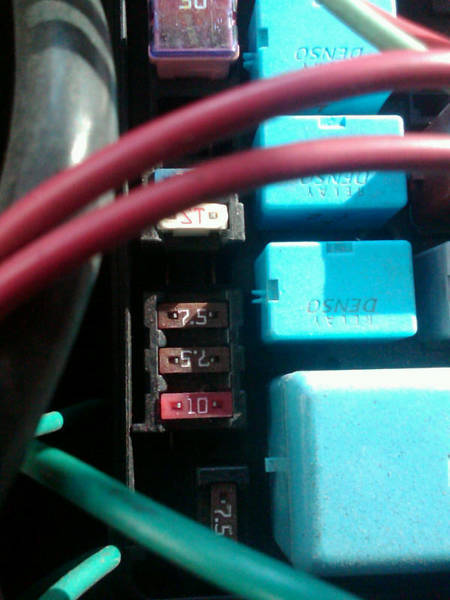

    next, pop the hood and pull the cover off the fuse block which is the black box thingy right behind your battery : [​IMG] On the block in the lower left and corner you will see these fuses, if you look on the inside of the cover there is a diagram which tells you which one is the Dome light, in my case it's the brown middle fuse with the 7.5 upside down, that's yer dome light fuse.
    next get something like this , it's called an add-a-circuit or fuse tap : http://search.yahoo.com/r/_ylt=A0oGdSWryDxRrEsAb2tXNyoA;_ylu=X3oDMTE1aGhzbWk0BHNlYwNzcgRwb3MDNgRjb2xvA3NrMQR2dGlkA01TWTAxMF8xOTY-/SIG=12m1rh23g/EXP=1362966827/**http%3a//www.amazon.com/Bussmann-BP-HHH-ATM-Add-A-Fuse/dp/B000GKEXK2
    Look at the pics and you see where the tap fits into the slot on your block and it has a wire coming off of it for a new circuit. Disconnect your battery before you start any electrical work on your truck! You install your old 7.5 fuse into it and wire the hot lead to your rock lights.
    I would do this part before I put the lights on the truck to make sure it's going to work first. If you did your math right hopefully there is enough extra amperage capacity on that circuit to run the rock lights.
    If not, you may be able to do the same thing on one of the ignition circuits but I'm not sure which one would work. NEVER put a higher amp fuse into a block, you're begging for an electrical fire.
    There is not a whole lotta space on that part of the fuse block so you'll have to figure out which design will work for you and you'll have to cut a teeny tiny slot in the plastic edge of the block to get the wire out with out the cover pinching it.
    Other than that, hang the lights, use lots of zip ties for the wires underneath, keep the wires away from hot pipes are engine components and it should work fine.
    Good Luck

  3. Mar 10, 2013 at 11:22 AM
    #3
    STEVESTRUCK

    STEVESTRUCK [OP] Member

    Joined:
    Mar 10, 2013
    Member:
    #99384
    Messages:
    12
    Gender:
    Male
    First Name:
    Steve
    Alexandria, AL
    Vehicle:
    2011 Prerunner
    Remote start, nerf bars, Retrax tonneau cover, interior LED's
    Thanks for the info. I have already changed the dome light to an LED bulb, and with the LED flexible strip, I should be okay on the amp draw. The main thing I'm trying to do is tie it in so it is switched with the dome light.

  4. Mar 10, 2013 at 11:24 AM
    #4
    acdronin

    acdronin Well-Known Member

    Joined:
    Dec 2, 2010
    Member:
    #47036
    Messages:
    19,686
    Gender:
    Male
    .
    I forgot to mention that, yeah that's a great way to get some more capacity

  5. Mar 10, 2013 at 11:26 AM
    #5
    STEVESTRUCK

    STEVESTRUCK [OP] Member

    Joined:
    Mar 10, 2013
    Member:
    #99384
    Messages:
    12
    Gender:
    Male
    First Name:
    Steve
    Alexandria, AL
    Vehicle:
    2011 Prerunner
    Remote start, nerf bars, Retrax tonneau cover, interior LED's
    I saw this once on a Tundra, and it looked great at night. Whenever the truck cranked, doors unlocked, or doors opened and the dome light lit, the LED's under the truck lit up and lit up the nerf bars. When you closed the door and the dome light went off, so did the LED's.

  6. Mar 10, 2013 at 11:28 AM
    #6
    acdronin

    acdronin Well-Known Member

    Joined:
    Dec 2, 2010
    Member:
    #47036
    Messages:
    19,686
    Gender:
    Male
    .
    Post some pics when you finish:)

  7. Mar 10, 2013 at 11:29 AM
    #7
    STEVESTRUCK

    STEVESTRUCK [OP] Member

    Joined:
    Mar 10, 2013
    Member:
    #99384
    Messages:
    12
    Gender:
    Male
    First Name:
    Steve
    Alexandria, AL
    Vehicle:
    2011 Prerunner
    Remote start, nerf bars, Retrax tonneau cover, interior LED's
    I'm just trying to figure out where to connect them to achieve this without adding a switch. The guy with the Tundra said he connected his to the dome light connector, wherever that is.....

  8. Mar 10, 2013 at 11:30 AM
    #8
    STEVESTRUCK

    STEVESTRUCK [OP] Member

    Joined:
    Mar 10, 2013
    Member:
    #99384
    Messages:
    12
    Gender:
    Male
    First Name:
    Steve
    Alexandria, AL
    Vehicle:
    2011 Prerunner
    Remote start, nerf bars, Retrax tonneau cover, interior LED's
    I will, if I can figure where to connect it up.

  9. Mar 10, 2013 at 11:31 AM
    #9
    acdronin

    acdronin Well-Known Member

    Joined:
    Dec 2, 2010
    Member:
    #47036
    Messages:
    19,686
    Gender:
    Male
    .
    I gotta think that's in the cab somewhere probably behind the dash

  10. Mar 10, 2013 at 11:32 AM
    #10
    mynewtoy

    mynewtoy Well-Known Member

    Joined:
    Apr 16, 2011
    Member:
    #55023
    Messages:
    377
    Gender:
    Male
    First Name:
    greg
    Brandon,mississippi
    Vehicle:
    09 double cab 4x4
    ome 3" lift, light racing uca's ,moto metal 951 wheels with 285/75/r16 gaurd dogs,bhlm,black tail lights,Satoshi Grill,4-low trac ,autoPage C3 RS-665 alarm with remote start,flowmaster 40 series exhaust,cruise control,bed/ground effect lights,cup holder leds,12-volt always on,wet okole seat covers,custom rock sliders built by me, tinted,windows,weather tech floor mats,avs vent shades,debadged, smoked fogs,hidden cobra 19 cb, 7" offroad lights behind grill, rear diff breather relocate, abs kill switch , future mods-front and rear plate bumpers, skids
  11. Mar 10, 2013 at 11:32 AM
    #11
    acdronin

    acdronin Well-Known Member

    Joined:
    Dec 2, 2010
    Member:
    #47036
    Messages:
    19,686
    Gender:
    Male
    .
    Since you need to get power to it and you're not putting a switch in the cab, off the fuse block makes the most sense to me

  12. Mar 10, 2013 at 11:46 AM
    #12
    AnTiFuBaR

    AnTiFuBaR Well-Known Member

    Joined:
    Feb 22, 2013
    Member:
    #98191
    Messages:
    105
    Gender:
    Male
    Grand Junction, CO
    Vehicle:
    '13 TRD OR 4x4 DCSB
    BHLM
  13. Mar 10, 2013 at 11:53 AM
    #13
    STEVESTRUCK

    STEVESTRUCK [OP] Member

    Joined:
    Mar 10, 2013
    Member:
    #99384
    Messages:
    12
    Gender:
    Male
    First Name:
    Steve
    Alexandria, AL
    Vehicle:
    2011 Prerunner
    Remote start, nerf bars, Retrax tonneau cover, interior LED's
    Thanks, mynewtoy. I checked it out and it helped some. The only thing I'll have to figure out is WHICH blue wire to tap into

  14. Mar 10, 2013 at 12:04 PM
    #14
    snoope

    snoope Well-Known Member

    Joined:
    Jun 13, 2009
    Member:
    #18414
    Messages:
    2,315
    Gender:
    Male
    Ft.myers,FL
    Vehicle:
    2003 Lexus ES300

    Sub'd for this ...hopefully you find an EASY way to get them powered up...;)

    My question is ,are these LED's from Fulkerson Fabrication ??? 4WD Toyota Owner Mag installed a few of these on their '96 Tacoma and really praised them up....

    Always looking for another "view" point on "New products" :cool:

  15. Mar 10, 2013 at 12:07 PM
    #15
    battlescars

    battlescars Professionull1

    Joined:
    Jan 5, 2009
    Member:
    #12256
    Messages:
    2,458
    Gender:
    Male
    First Name:
    Alex
    Escondido, CA
    Vehicle:
    2003 5-lug Prerunner
    Couple shocks, some old tires, and a bad paint job
    Just splice them into the dome light wire and add a higher amp fuse to the box.

    Don't make it anymore difficult then it should be.

    Last edited: Mar 10, 2013
  16. Mar 10, 2013 at 12:30 PM
    #16
    caribe makaira

    caribe makaira Lurker No More

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    508
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    No.
    All the lamps in the circuit are LED's.
    Stay within the OEM dimming circuit's amp range if you add more LED.

    [​IMG]

    Tap the negative side of the added LED's to this wire.

    7.5A DOME fuse powers: Clock; Interior Light; Wireless Door Lock Control. ('05 Tacoma)

    Last edited: Mar 10, 2013
  17. Mar 10, 2013 at 1:27 PM
    #17
    STEVESTRUCK

    STEVESTRUCK [OP] Member

    Joined:
    Mar 10, 2013
    Member:
    #99384
    Messages:
    12
    Gender:
    Male
    First Name:
    Steve
    Alexandria, AL
    Vehicle:
    2011 Prerunner
    Remote start, nerf bars, Retrax tonneau cover, interior LED's
    I don't have a black connector. All of mine are white. I found the connector that controls the dome light, but none of the blue wires seem to be the one for the dome light. I can take a meter and check voltage on the wires, but the voltage stays, even when I close the door and the light fades off.

  18. Mar 10, 2013 at 4:44 PM
    #18
    caribe makaira

    caribe makaira Lurker No More

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    508
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    The 3 connectors you see after removing the cab fuse cover/pocket aren't the ones...they are to the left, covered by the remaining lower panel...

    [​IMG]

    Last edited: Mar 10, 2013
  19. Mar 10, 2013 at 7:43 PM
    #19
    untuckedtaco

    untuckedtaco Well-Known Member

    Joined:
    Dec 23, 2012
    Member:
    #93632
    Messages:
    447
    Gender:
    Male
    First Name:
    Kyle
    Chesapeake 23323
    Vehicle:
    DCSB 08 SAS'ed/REBUILDING
    Surprises
    once tapped into the dome light, can a circuit be added to come on with the reverse lights as well?

  20. Mar 10, 2013 at 7:46 PM
    #20
    battlescars

    battlescars Professionull1

    Joined:
    Jan 5, 2009
    Member:
    #12256
    Messages:
    2,458
    Gender:
    Male
    First Name:
    Alex
    Escondido, CA
    Vehicle:
    2003 5-lug Prerunner
    Couple shocks, some old tires, and a bad paint job
    Yuup I quoted myself because my exterior and interior lights are connected on the same circuit as my dome light. AND since my dome light was originally a halogen, I had swapped to LED which pulls much less amperage then a halogen where I kept the same amp fuse because I know it is more then enough to handle it.

    Just remember to disconnect the positive battery terminal when working on it so you don't blow the fuses.

    Last edited: Mar 10, 2013
