LED, or Halogen lights?

Discussion in 'Lighting' started by HawkShot99, Mar 9, 2016.

  1. Mar 9, 2016 at 12:50 PM
    #1
    HawkShot99

    HawkShot99 [OP] Well-Known Member

    Joined:
    Oct 20, 2015
    Member:
    #167182
    Messages:
    1,992
    Gender:
    Male
    Poughkeepsie, NY
    Vehicle:
    13' Silver DCLB TRD Sport
    I am looking to add some auxiliary lights to the front of my truck. I will be adding a mesh grill, and hiding the light behind the grill.

    I prefer a old school round light look over a light bar, so I am looking to use 6 or 7" round lights.

    One of the lights I was looking at was the Hella 500 Black Magic lights. I really like the blacked out look, that is more hidden when not in use.
    http://www.amazon.com/HELLA-005750991-12-Volt-55-Watt-Halogen/dp/B00318JTCS

    While looking at lights I see a bunch of round LED lights in the size I like as well.
    A light that is a example of this would be
    http://www.amazon.com/Nilight®-Round-Light-Driving-Bumper/dp/B00MDFOP1K/ref=pd_sbs_263_3?ie=UTF8&dpID=414jLjAGiwL&dpSrc=sims&preST=_AC_UL160_SR160,160_&refRID=0A7DCD6YVPDW1XAXTG38
    or
    http://www.ebay.com/itm/2X-7-70W-RO...ash=item2a61a719df:g:ufwAAOSwx-9WxEC0&vxp=mtr

    The LED lights seem to put off more Lumens, but some reviews I read say they dont have the distance of a traditional Halogen.

    My reasons for wanting them, are mostly night time drives up country highways. Hook the lights to trigger with the highbeams, just to lengthen my viewing range. Also they look cool.....:rolleyes::D

    What would be a better style?

  2. Apr 5, 2016 at 12:16 AM
    #2
    DevL

    DevL Well-Known Member

    Joined:
    Feb 23, 2010
    Member:
    #31952
    Messages:
    1,914
    Gender:
    Male
    Well putting lights behind the grill kills 20-30% of your output. Black magics are weak to start then putting em behind the grill...why bother? Though I must admit, I considered the same when I first got my truck... just made no sense. LED can be diffused or focused and powerful or weak. I have 5000 per lumen flood replacements that don't throw far. There are nice LED spots that shine hundreds of yards. Pick what is appropriate for your needs.

  3. Apr 5, 2016 at 11:57 AM
    #3
    crashnburn80

    crashnburn80 Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    11,251
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
  4. Apr 5, 2016 at 7:37 PM
    #4
    Primo 95

    Primo 95 Well-Known Member

    Joined:
    Jun 23, 2012
    Member:
    #81207
    Messages:
    718
    Gender:
    Male
    First Name:
    Primo!
    San Antonio, TX
    Vehicle:
    2012 DCSB 4X4
    265/75/16 S/T Maxx 16X8.5 Level 8 Trackers 5100 1.75 HID, LED interior, 3" N-Fab step bars
    I just got these "Rounds" and I am super happy with them (I just pasted a recent post of mine).

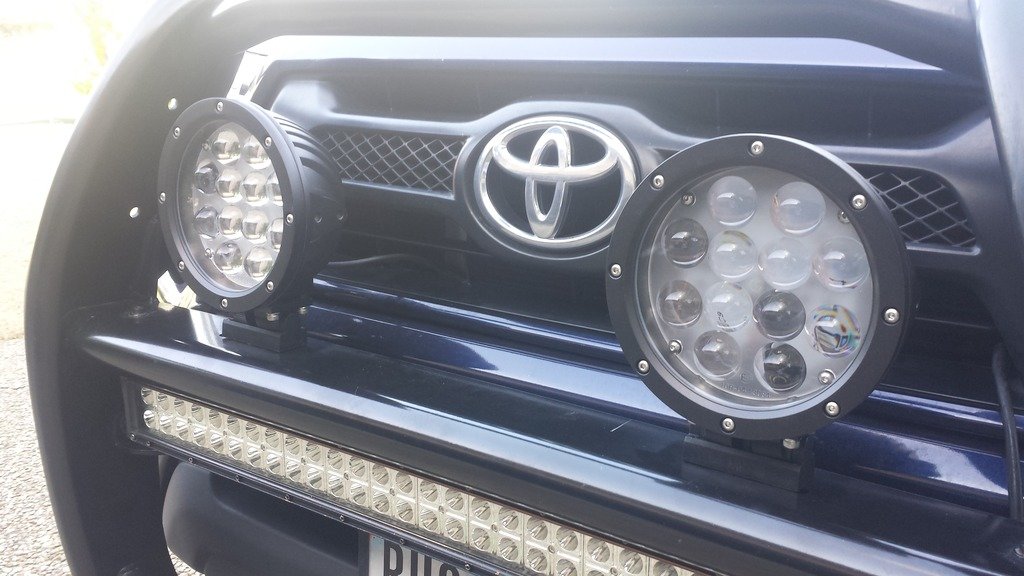

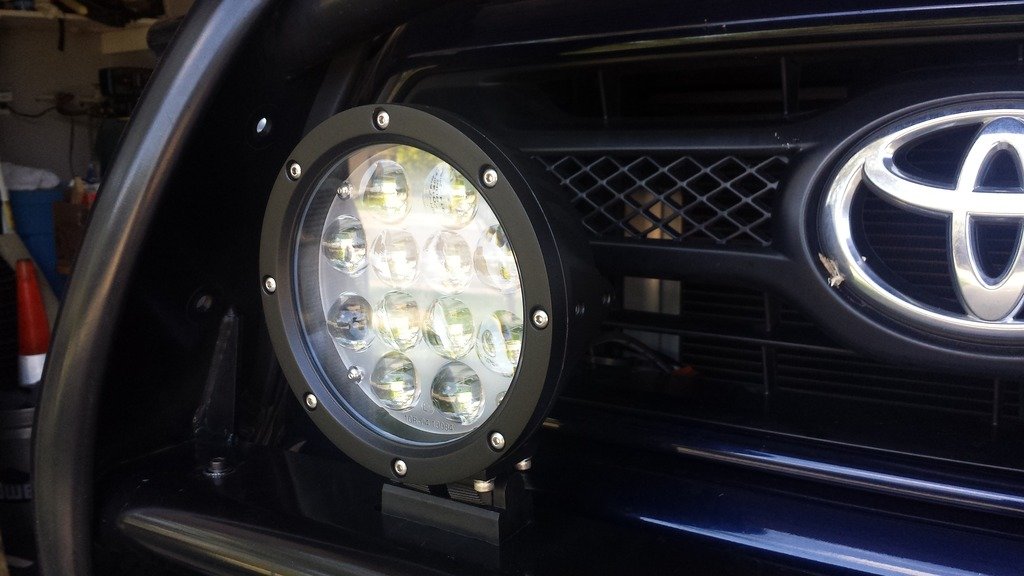

    So I just picked up these 120W 7" Round Spot lights (10Wx12). You mostly see this design with only 60W (5Wx12)....but I happen to come across these for $134/pair with 10,200 lumens each..so why not. These were to replace my horrible Hella 700FF HID conversions. They might have been a decent idea 5 years ago...but the beam pattern was always horrible and the cheapo DDM ballast took a full minute to warm up. I was never happy with them.

    Any who these lights are bad ass. Just what I was looking for. I need something with a thinner profile than the Cannons to fit my grill guard. I have a 300W double row 32" Cree Spot light bar...which produces more of a Euro-beam in my opinion. So I was looking for a concentrated long range spot for long distance. The construction seems top notch and they are very heavy. The only negative comment I can say is the adjustment up and down doesn't have much fine tuning. It has this plastic gear/cog wheel. I wasn't able to set the vertical where I wanted, so I ended up putting some shims in the front to get them to aim up just were I wanted.

    http://www.ebay.com.au/itm/Pair-7In...ad-4WD-Lamp-/400743474724?hash=item5d4e2c2624

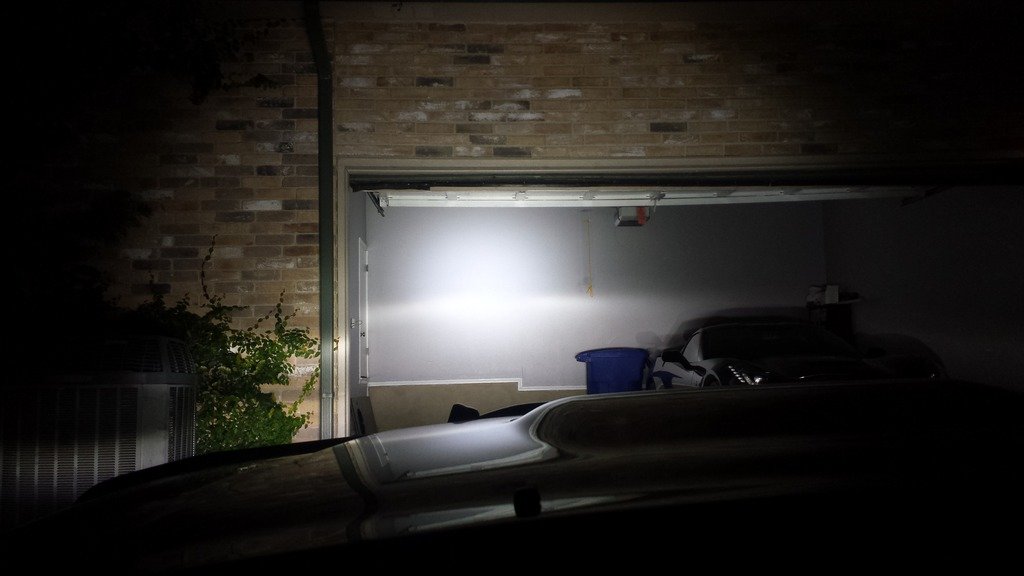

    Headlights and 32" LED Bar

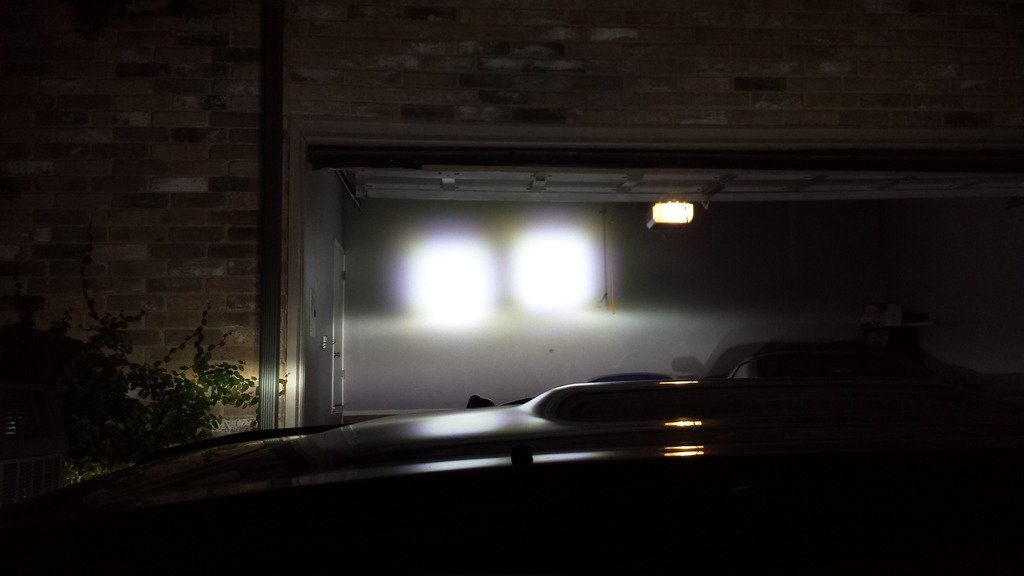

    32" LED light bar and the new 120W x2 LED Spot light . Yes they completely over power the 300W 32" LED Bar.

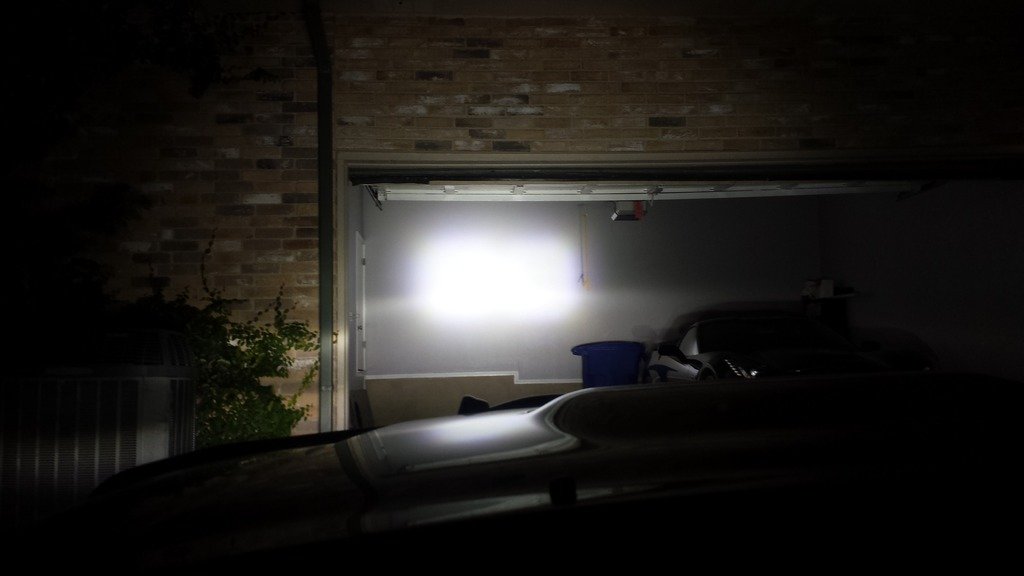

    Headlights and the new 120W x2 LED Spot light . This after I optimized the aiming at a long distance. Bottom of the spot on top of the headlight beam and at a distance the gap in between completely closed and the spread is perfect at a distance. I will try to get some long range photos this weekend.


    HawkShot99 [OP] likes this.
  5. Apr 6, 2016 at 9:09 AM
    #5
    boogie3478

    boogie3478 Tacomaholic & Hollywood

    Joined:
    Oct 12, 2014
    Member:
    #140179
    Messages:
    25,699
    Gender:
    Male
    Northern Virginia
    Vehicle:
    14 TRD Off-Road V6
    All the mods
    I love my Rigid Duallys.

  6. Apr 9, 2016 at 4:54 PM
    #6
    HawkShot99

    HawkShot99 [OP] Well-Known Member

    Joined:
    Oct 20, 2015
    Member:
    #167182
    Messages:
    1,992
    Gender:
    Male
    Poughkeepsie, NY
    Vehicle:
    13' Silver DCLB TRD Sport
    Im, liking the looks of those. They do not come with a wiring harness. Did you buy one or make your own? If bought anything particular?

  7. Apr 9, 2016 at 5:30 PM
    #7
    Primo 95

    Primo 95 Well-Known Member

    Joined:
    Jun 23, 2012
    Member:
    #81207
    Messages:
    718
    Gender:
    Male
    First Name:
    Primo!
    San Antonio, TX
    Vehicle:
    2012 DCSB 4X4
    265/75/16 S/T Maxx 16X8.5 Level 8 Trackers 5100 1.75 HID, LED interior, 3" N-Fab step bars
    I had a wiring harness already in place from my previous lights and just used that. But the same store sells the standard ebay harness + the switch for $18 which is a great deal.
    http://www.ebay.com/itm/40A-Wiring-...hts-/191662278179?vxp=mtr&hash=item2c9ff64623

    I think this switch is labeled for 2 spots :
    http://www.ebay.com/itm/40A-Wiring-...af843d8&pid=100005&rk=2&rkt=6&sd=191662278179

    HawkShot99 [OP] likes this.
  8. Apr 9, 2016 at 6:00 PM
    #8
    HawkShot99

    HawkShot99 [OP] Well-Known Member

    Joined:
    Oct 20, 2015
    Member:
    #167182
    Messages:
    1,992
    Gender:
    Male
    Poughkeepsie, NY
    Vehicle:
    13' Silver DCLB TRD Sport
    Does that switch pop into the Tacoma's blanks? That seems to easy...
