LED Strip lighting installed under bed rails

Discussion in '3rd Gen. Tacomas (2016-2023)' started by wingfiry, Jan 4, 2017.

  1. Jan 4, 2017 at 12:54 PM
    #1
    wingfiry

    #1
    wingfiry [OP] Well-Known Member

    Joined:
    Sep 14, 2015
    Member:
    #164235
    Messages:
    109
    Gender:
    Male
    Atlanta
    Vehicle:
    2016 TRD Sport 4x4 AC MT White

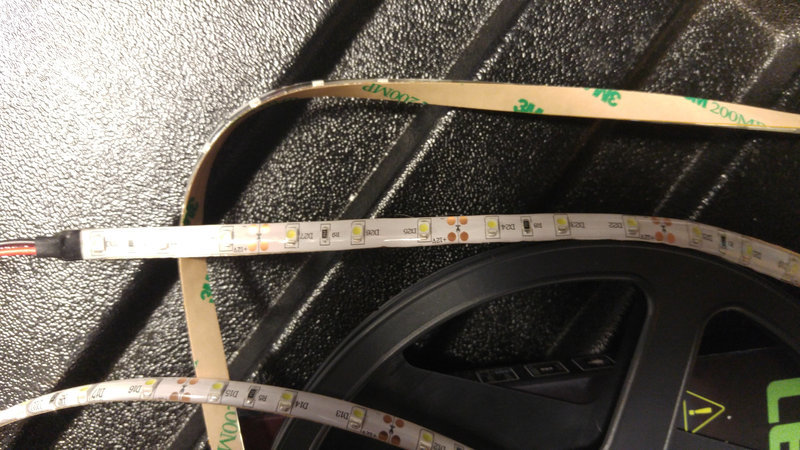

    So... I just installed some LED Tape that I got from Amazon (
    $28 Lepro 12V LED Strip Light, Flexible, Waterproof, SMD 2835, 16.4ft Tape Light for Christmas, Home, Kitchen and More, Daylight White（Power Adapter not Include）
    https://www.amazon.com/gp/product/B00HSF66JO) under my bed rails. Being a network monkey, I had some extra Cat5e cable and used that for the wire runs. already shielded and, having 8 24 gauge wires, I used 4 for power and 4 for ground.

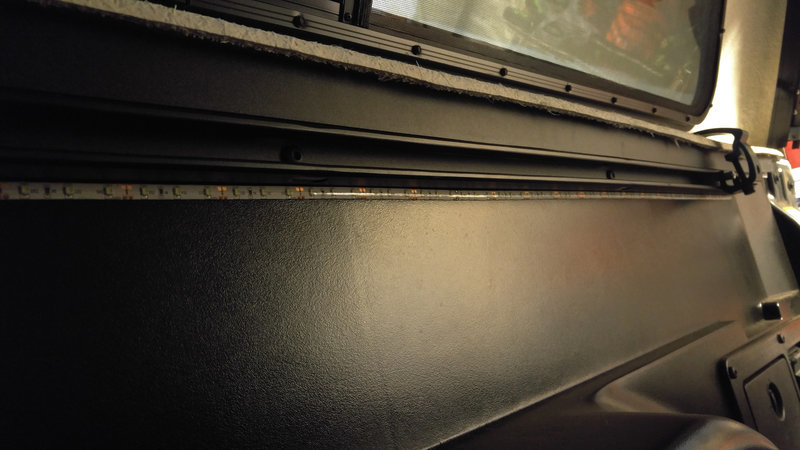

    [​IMG][​IMG]

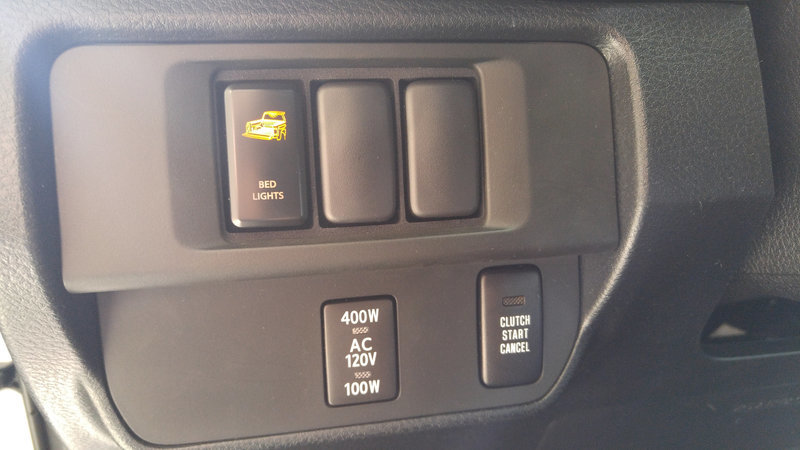

    I replaced the pocket on the left lower dash with the three switch plate, and plugged into the unused Bed light harness (It didn't come with the light or switch since I have an access cab) with some mini-fuse taps (
    $9 WirthCo 30100 Battery Doctor Tap for Vacant Energized Slots in ATM/Mini-Fuse Block Kit
    https://www.amazon.com/gp/product/B000CQDRRA) which let me plug right into the harness without tapping or splicing wires. ;-)

    [​IMG]

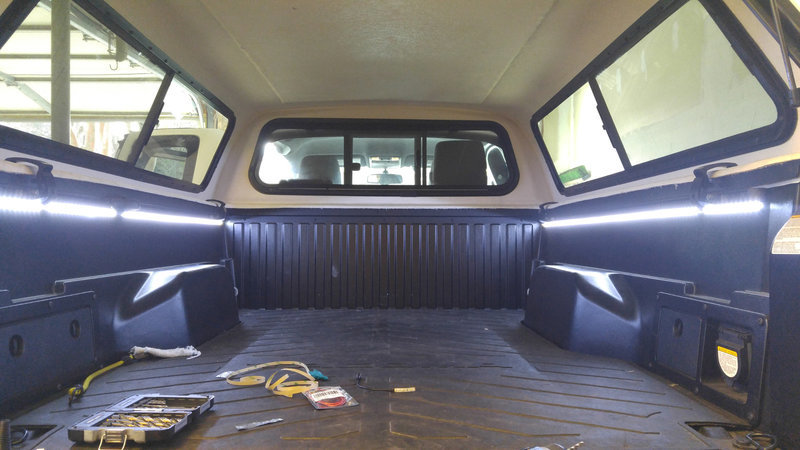

    with both strips lit up, you can certainly see them during the day, but *really* lights everything up at night!
    [​IMG]

    Last edited by a moderator: Feb 20, 2018
    wingfiry, Jan 4, 2017
    #1
    matt636, Benzdriver81, gpb and 1 other person like this.
  2. Jan 4, 2017 at 2:32 PM
    #2
    ChasVS

    #2
    ChasVS Well-Known Member

    Joined:
    Oct 10, 2016
    Member:
    #199367
    Messages:
    812
    Gender:
    Male
    Vehicle:
    2017 Tacoma ACLB TRD Off Road
    Do you have any pics of the switch tap and how you wired it? I've got the same Cab and would love to wire some bed LEDs this way!!! Any details would be great to have! Thanks in advance.

    Last edited by a moderator: Feb 20, 2018
    ChasVS, Jan 4, 2017
    #2
  3. Jan 4, 2017 at 2:36 PM
    #3
    Rattletrap66

    #3
    Rattletrap66 (ノಠ益ಠ)ノ彡┻━┻

    Joined:
    Aug 25, 2014
    Member:
    #136901
    Messages:
    23,774
    Gender:
    Male
    First Name:
    Frank
    Tampa, FL ☜(ﾟヮﾟ☜)
    Vehicle:
    2014 TRD Off Road DCSB
    ╭∩╮(ಠ۝ಠ)╭∩╮
    Rattletrap66, Jan 4, 2017
    #3
  4. Jan 4, 2017 at 4:27 PM
    #4
    tonytsai0429

    #4
    tonytsai0429 Well-Known Member

    Joined:
    Sep 9, 2013
    Member:
    #112196
    Messages:
    182
    Gender:
    Male
    SoCal
    Vehicle:
    Racy Inferno
    yes, please share where you tap into constant power source. my previous one, i mount the switch inside the one of the two small compartment at the truck bed.

    tonytsai0429, Jan 4, 2017
    #4
  5. Jan 4, 2017 at 6:43 PM
    #5
    Brokinarrow

    #5
    Brokinarrow Well-Known Member

    Joined:
    Sep 10, 2016
    Member:
    #196947
    Messages:
    373
    Gender:
    Male
    First Name:
    Brian
    Garner, NC
    Vehicle:
    2017 Tacoma TRD Offroad
    Thangs and stuff

    how did you remove that panel to install that switch panel in the dash?

    Last edited by a moderator: Feb 20, 2018
    Brokinarrow, Jan 4, 2017
    #5
  6. Jan 5, 2017 at 6:49 AM
    #6
    wingfiry

    #6
    wingfiry [OP] Well-Known Member

    Joined:
    Sep 14, 2015
    Member:
    #164235
    Messages:
    109
    Gender:
    Male
    Atlanta
    Vehicle:
    2016 TRD Sport 4x4 AC MT White
    There are three bolts on the bottom of the panel that you need to remove, and then just pull around the edges. It'll pop off.

    wingfiry, Jan 5, 2017
    #6
  7. Jan 5, 2017 at 6:50 AM
    #7
    ChasVS

    #7
    ChasVS Well-Known Member

    Joined:
    Oct 10, 2016
    Member:
    #199367
    Messages:
    812
    Gender:
    Male
    Vehicle:
    2017 Tacoma ACLB TRD Off Road
    switch panel.jpg

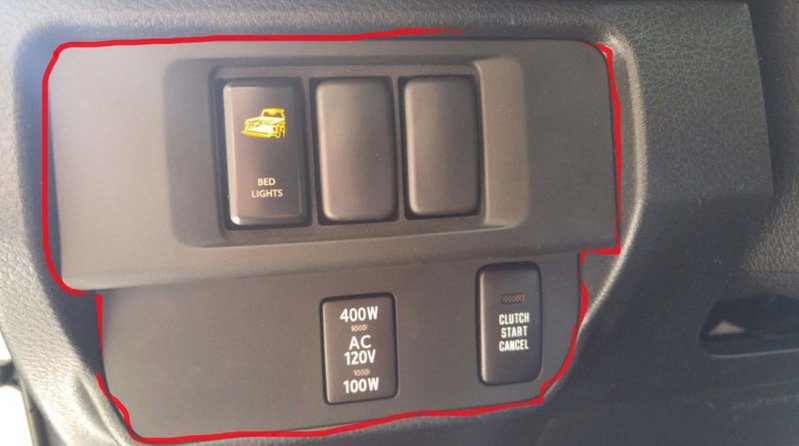

    That small panel with the switches and cubby just unsnaps if you carefully pry around the outside with a plastic interior removal tool or something similar to protect from scratching the dash area. The Cubby and lower switches are all on the same piece. Cubby is screwed on from the back of the that piece. I added a switch for my Dash Cam where he has the Clutch Start Cancel switch.

    ChasVS, Jan 5, 2017
    #7
  8. Jan 5, 2017 at 7:00 AM
    #8
    Brokinarrow

    #8
    Brokinarrow Well-Known Member

    Joined:
    Sep 10, 2016
    Member:
    #196947
    Messages:
    373
    Gender:
    Male
    First Name:
    Brian
    Garner, NC
    Vehicle:
    2017 Tacoma TRD Offroad
    Thangs and stuff

    thank you! i am about to order the piece for the switches was just unsure of how it came out. "pull just dont break lol"

    Brokinarrow, Jan 5, 2017
    #8
