LED Switchback Help

Discussion in '2nd Gen. Tacomas (2005-2015)' started by deltacoma, Jul 11, 2017.

  1. Jul 11, 2017 at 1:06 PM
    #1
    deltacoma

    deltacoma [OP] Member

    Joined:
    Jun 6, 2017
    Member:
    #220881
    Messages:
    9
    Lyon Estates near Hill Valley
    Vehicle:
    2013 Tacoma Sport
    I'm trying to fix the hyper flashing of my switchback LED lights in the front of my 2013 Taco. Did the rear lights with resistors and have no problems. I'm not sure which wires to spice in to in the front. It's the 3157 bulb, so 3 filament. Each filament is numbered and is a different color. Just trying to find out which ones to splice without buying a multimeter. Any help?

    ChadsPride likes this.
  2. Jul 12, 2017 at 12:47 PM
    #2
    Kels70

    Kels70 Member

    Joined:
    Jul 11, 2017
    Member:
    #223750
    Messages:
    23
    Gender:
    Male
    First Name:
    Kelsey
    New Jersey
    Vehicle:
    2011 Toyota Tacoma Sport
    Tires- 265x70x17 Cooper Discoverer AT3's on Raceline Clutch wheels. Rough Country 2 inch leveling kit. Lund textured bull bar with 20 inch LED light. All lights are LED except for headlights. FireWire LED rear bar.
    BassAckwards and ChadsPride like this.
  3. Jul 12, 2017 at 12:53 PM
    #3
    TRD-ED

    TRD-ED Well-Known Member

    Joined:
    Sep 12, 2016
    Member:
    #197086
    Messages:
    2,193
    Gender:
    Male
    First Name:
    Eddie
    High Point NC.
    Vehicle:
    2020 Army Green TRD PRO - 2020 Mercedes GLC
    Stock FOX 275/65/18 At3w 18X9 Fuel Vapor's
    +1 on the VLED's work perfect on my 2012. All plug and play with built in resistors so no hyper flash.



    BassAckwards, Kels70 and ChadsPride like this.
  4. Jul 12, 2017 at 12:58 PM
    #4
    Clearwater Bill

    Clearwater Bill Sometimes when I close my eyes, I can't see.

    Joined:
    Oct 11, 2014
    Member:
    #140097
    Messages:
    16,913
    Gender:
    Male
    First Name:
    Billy
    Largo Florida
    Vehicle:
    '13 5 lug base AC w/convenience package
    A few OE parts from fancy trucks
    Selecting wires to cut/splice, or wiring work in general, w/o a multimeter is, well, silly.

    $6 bucks at HF will get you one. Not that you want to make a living with as an electrician, but will work for the home hobbyist ok.

    ChadsPride likes this.
  5. Jul 12, 2017 at 1:01 PM
    #5
    TRD-ED

    TRD-ED Well-Known Member

    Joined:
    Sep 12, 2016
    Member:
    #197086
    Messages:
    2,193
    Gender:
    Male
    First Name:
    Eddie
    High Point NC.
    Vehicle:
    2020 Army Green TRD PRO - 2020 Mercedes GLC
    Stock FOX 275/65/18 At3w 18X9 Fuel Vapor's
    Also your Taco has a 2 wire wiring harness. 3157 require a 3 wire system and will not work or at least none I could find. Tried 3 different brands.
    VLED's No splicing no cutting. Plug the controller directly into your original bulb socket...plug the Trident bulb into the controller... plug the resistor into the controller... plug the bulb into you housing socket. DONE... They are expensive but well worth it. Had mine for almost 3 years now with zero problem.

    ChadsPride likes this.
  6. Jul 12, 2017 at 1:16 PM
    #6
    Kels70

    Kels70 Member

    Joined:
    Jul 11, 2017
    Member:
    #223750
    Messages:
    23
    Gender:
    Male
    First Name:
    Kelsey
    New Jersey
    Vehicle:
    2011 Toyota Tacoma Sport
    Tires- 265x70x17 Cooper Discoverer AT3's on Raceline Clutch wheels. Rough Country 2 inch leveling kit. Lund textured bull bar with 20 inch LED light. All lights are LED except for headlights. FireWire LED rear bar.

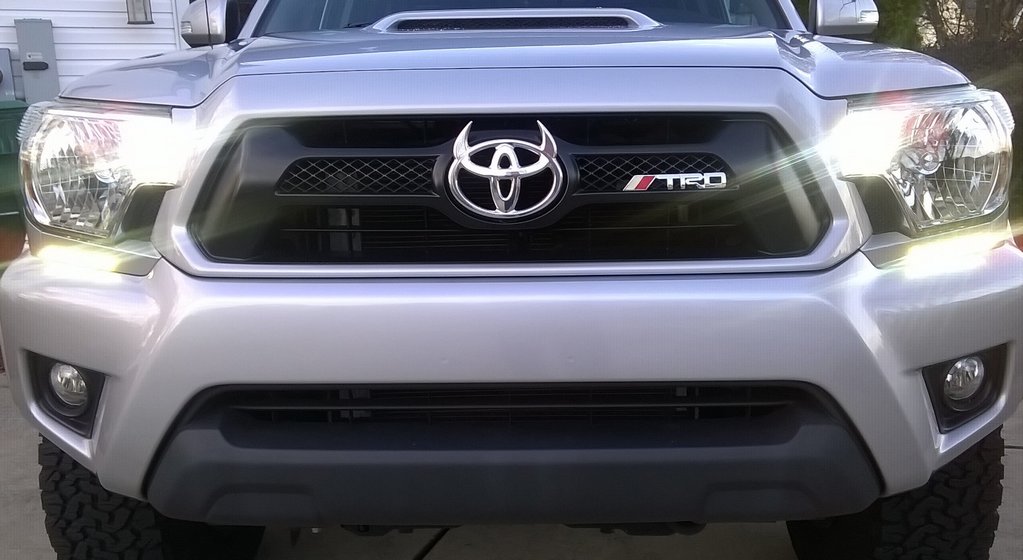

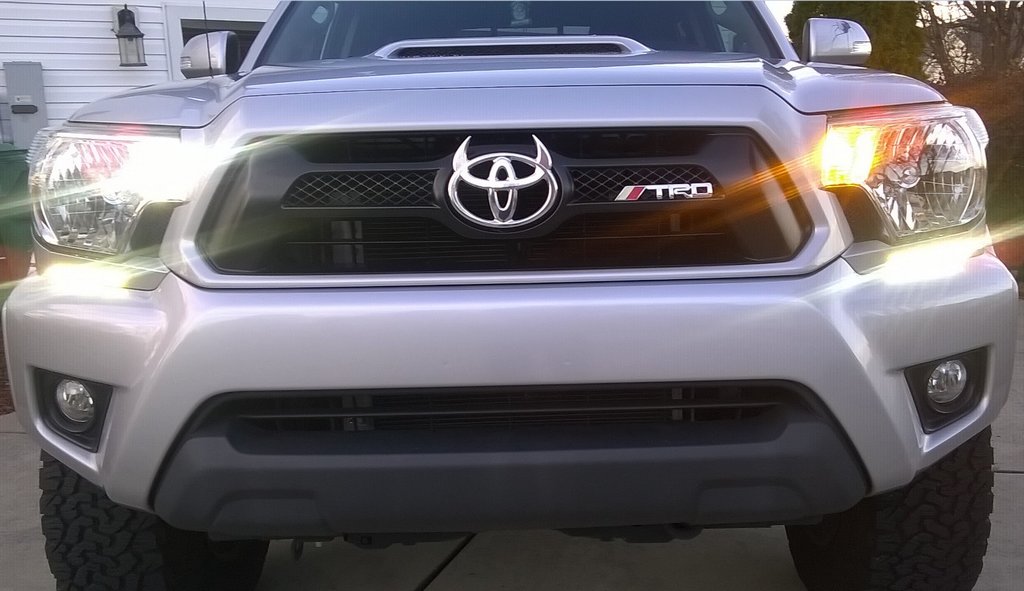

    All my lights in the front of my truck are from Vled's. Only thing left is the headlights. Still pondering on which ones to go with....

    TRD-ED likes this.
  7. Jul 12, 2017 at 3:26 PM
    #7
    deltacoma

    deltacoma [OP] Member

    Joined:
    Jun 6, 2017
    Member:
    #220881
    Messages:
    9
    Lyon Estates near Hill Valley
    Vehicle:
    2013 Tacoma Sport
    I just figured of the thousands of members, someone would know which wire was which. They're literally numbered.

  8. Jul 12, 2017 at 3:27 PM
    #8
    deltacoma

    deltacoma [OP] Member

    Joined:
    Jun 6, 2017
    Member:
    #220881
    Messages:
    9
    Lyon Estates near Hill Valley
    Vehicle:
    2013 Tacoma Sport
    My Tacoma has a three wire harness.

  9. Jul 12, 2017 at 7:33 PM
    #9
    sundene

    sundene Active Member

    Joined:
    Sep 18, 2014
    Member:
    #138589
    Messages:
    34
    Gender:
    Male
    Jenks, OK
    Vehicle:
    2012 Tacoma White 4x4
    I have SRCK switchback LED's in the front turn signals - BUT I also did the disable DRL's mod I found on this site a couple of years ago.
    On my 2012 to install these LED's in the front turn signal the LOAD RESISTOR is connected to these 2 wires.
    One end connected to the yellow wire and the other end connected to the white w/ black stripe wire. The green wire wasn't used and is still connected
    to housing. What's nice about doing the disable of the DRL's is that the LED's aren't on unless I turn on the parking lights with the steering column switch.

    I'm using these srck Switchback LED's - you must use SRCK/CK wired LED's in a Tacoma - These have lasted me 3 years.
    http://www.ebay.com/itm/2-pcs-3157-...e=STRK:MEBIDX:IT&_trksid=p2055119.m1438.l2649

  10. Jul 12, 2017 at 8:37 PM
    #10
    Muddinfun

    Muddinfun Well-Known Member

    Joined:
    Apr 17, 2017
    Member:
    #216500
    Messages:
    7,509
    Only the fronts are CK. The rear tail/brake lights are NOT CK. The rear turnsignals don't matter, because there's only 2 terminals in the socket.

  11. Jul 13, 2017 at 3:54 AM
    #11
    TRD-ED

    TRD-ED Well-Known Member

    Joined:
    Sep 12, 2016
    Member:
    #197086
    Messages:
    2,193
    Gender:
    Male
    First Name:
    Eddie
    High Point NC.
    Vehicle:
    2020 Army Green TRD PRO - 2020 Mercedes GLC
    Stock FOX 275/65/18 At3w 18X9 Fuel Vapor's
    You 2013 has 3 wires running to the turn signal /daytime running lights?

    Last edited: Jul 13, 2017
  12. Jul 14, 2017 at 6:28 AM
    #12
    ensaladas

    ensaladas Well-Known Member

    Joined:
    Jul 13, 2015
    Member:
    #159346
    Messages:
    1,543
    Gender:
    Male

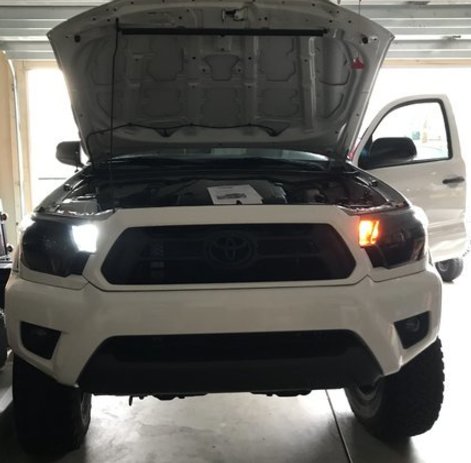

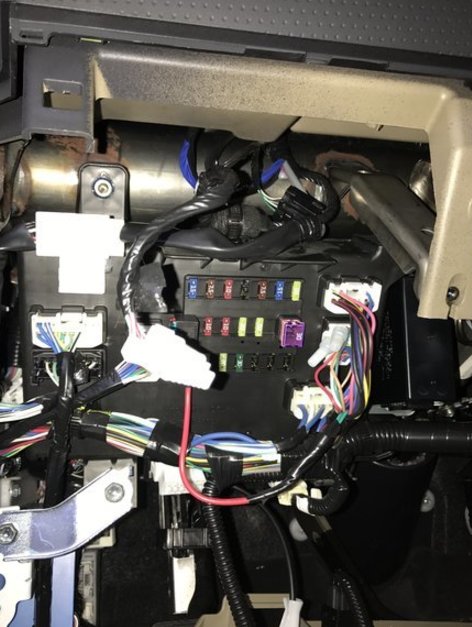

    @csjumper2003 helped me with mine, if he doesn't chime in. I'll look at the sheet he sent that tells you exactly what wire(s) to cut/cap/splice.



    Attached Files:

  13. Dec 26, 2019 at 6:08 PM
    #13
    TacomaOC714

    TacomaOC714 Well-Known Member

    Joined:
    Apr 27, 2019
    Member:
    #291484
    Messages:
    246
    Gender:
    Male
    Vehicle:
    2015 Tacoma TRD OR 4x4 silver sky metallic
    H
    Sorry to dig up an old post. How did the switchback drls end up working out long term? I have a 2015 and thinking about doing this.
