License plate light Disable while In Reverse (DIR)

Discussion in '3rd Gen Tacoma Parts Marketplace (2016+)' started by daveeasa, Feb 11, 2021.

  1. Feb 11, 2021 at 11:03 AM
    #1
    daveeasa

    daveeasa [OP] Slowest crimp in the West

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    1,613
    Gender:
    Male
    First Name:
    David
    San Diego
    Vehicle:
    2016 OR 4x4 DCSB MGM 6MT
    This mod consists of a custom plug and play harness to disable the license plate lights when the vehicle is in reverse.
    The purpose of the modification is to suppress glare on the backup camera and increase safety at night when reversing.


    Backup camera with license plate lights on (DD HP3 5000K)
    Same view with mod engaged while in reverse

    Expand the spoiler below to view additional photos from others who have installed this harness.
    Before - Neutral
    Before - Reverse
    After - Neutral
    After - Reverse
    Video of DIR in action at the end of 3rd brake light demo.
    https://youtu.be/4svbQUf7-2k

    Design information and DIY thread is located here.

    Cost is $85 shipped to the US, $90 to Canada.

    This harness is specific to a 3rd gen Tacoma for now.

    Purchasing instructions

    Fan Club

    Installation instructions

    FAQ

    Last edited: Apr 13, 2021 at 10:28 AM
  2. Feb 11, 2021 at 11:03 AM
    #2
    daveeasa

    daveeasa [OP] Slowest crimp in the West

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    1,613
    Gender:
    Male
    First Name:
    David
    San Diego
    Vehicle:
    2016 OR 4x4 DCSB MGM 6MT
    Purchasing:

    If the form below allows responses you may order.

    Current Inventory (4/15): 3

    DIR Order form
    • The order process is two steps. Step one is filling out the google form above to provide your address. Step 2 is sending payment as instructed in the form.
    • I typically pack at night and ship in the morning. You should receive an email as soon as the shipping label is generated. It would be great to review the shipping address from the email promptly to ensure it is correct and contact me if you see any problems, I may be able to fix it before sending.
    • I will track receipt of payment, the date I send your package and the tracking number.

    Payment:

    I will only accept orders when product is ready to ship. This protects both of us. It protects you from any frustration due to delays and allows you to change your mind on interest. It protects me from ending up in a situation where I am unable to source connectors or any other requisite parts at the prices I need to keep costs reasonable. I don’t want either of us unhappy. Inventory will be kept up to date on a daily basis. If inventory reaches zero I will temporarily disable the form until I have built more.

    Shipping:

    I promise to ship within 3 business days of receiving payment. Under normal conditions I will ship the business day following payment. I currently ship via USPS in a small box.

    Please be very careful opening the shipping box so that you do not damage the harness. To cut the tape use light pressure and keep the blade as shallow as possible.

    Last edited: Apr 15, 2021 at 8:10 AM
    Glaese and corgimas like this.
  3. Feb 11, 2021 at 11:03 AM
    #3
    daveeasa

    daveeasa [OP] Slowest crimp in the West

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    1,613
    Gender:
    Male
    First Name:
    David
    San Diego
    Vehicle:
    2016 OR 4x4 DCSB MGM 6MT
    Last edited: Apr 15, 2021 at 8:11 AM
  4. Feb 11, 2021 at 11:03 AM
    #4
    daveeasa

    daveeasa [OP] Slowest crimp in the West

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    1,613
    Gender:
    Male
    First Name:
    David
    San Diego
    Vehicle:
    2016 OR 4x4 DCSB MGM 6MT
    Installation

    Tools:

    1. ¼” socket driver and 10mm socket or 10mm box wrench (ratcheting preferred)
    2. Some tool to cut the ends of zip ties (diamond cutters, flush cutters, etc)

    Steps:

    1. Remove driver side rear taillight
      1. Remove top and bottom 10mm bolts and place on tailgate
      2. Wearing a soft cotton shirt, press chest on the back of the taillight
      3. Grab top and bottom edges of taillight with left and right fingers
      4. Firmly pull towards your chest using your chest as a bump stop until you hear two pops, one for the top retaining pin and one for the bottom
      5. Be careful with finger placement so you do not remove skin from your knuckles as the bumper end caps have sharp inside edges
      6. Disconnect all 3 connectors and place the taillight on a soft towel on the tailgate

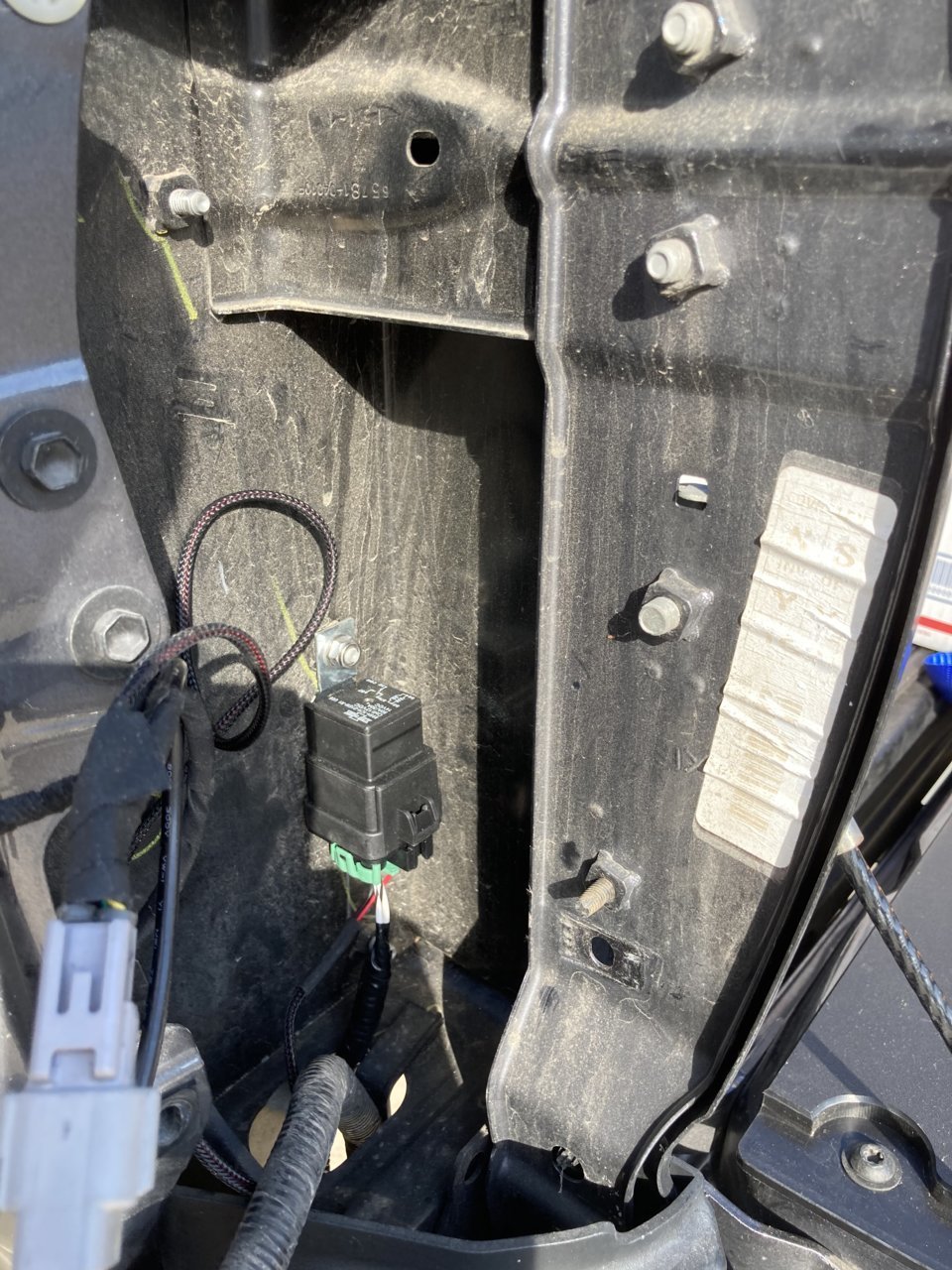

    2. Mount relay
      1. Cut off and remove the zip tie holding M6 stainless washer and lock nut to the relay mounting bracket
      2. Place the relay mounting bracket onto the lower stud in the taillight cavity
      3. Add the washer and hand thread the lock nut being careful not to cross thread
      4. Finish tightening the lock nut using 10mm socket or box wrench to 10Nm or 88 inch pounds
    3. Connect reverse T harness
      1. Plug the male end of the 2 pin reverse T harness into the factory harness female connector
      2. Plug the female end of the 2 pin reverse T harness into the bulb or MESO total tail harness 2 pin reverse male connector.

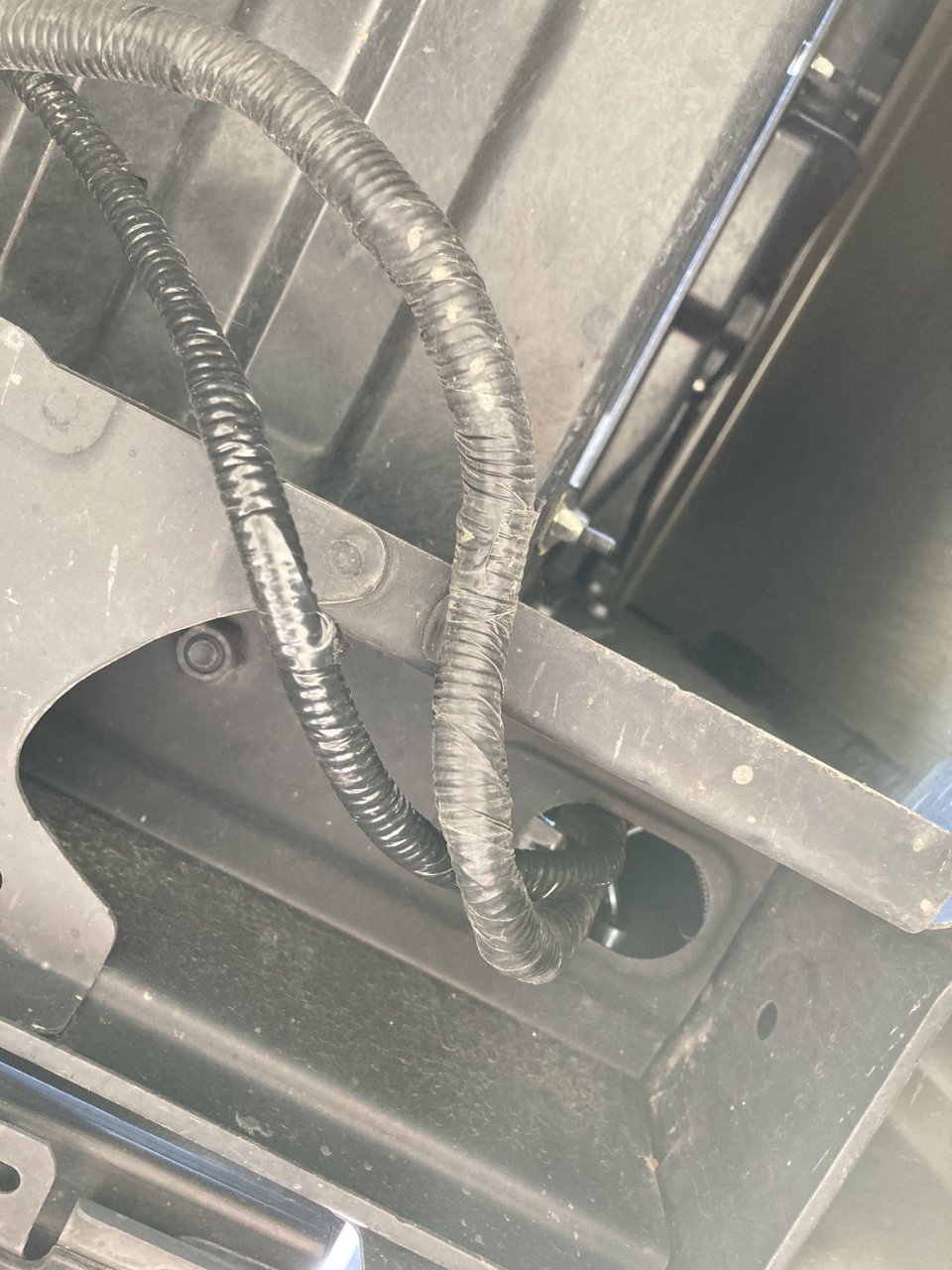

      3. Feed the longer end of the harness through the hole at the bottom where the factory harness exits the tailgate cavity
      4. Use one zip tie to secure the plate light intercept branch of the DIR harness to the factory harness below the relay. This is the longer of the two segments feeding into 4 pin connectors.
      5. Use one zip tie to secure the relay trigger branch of the DIR harness. This is the shorter of the two segments feeding into 2 pin connectors which were connected in step 2.
      6. Use additional zip ties to secure the reverse T harness to the OEM harness to protect against unnecessary vibration.
    4. Replace driver side rear taillight
      1. Be careful not to pinch any wires when reinstalling the taillight
      2. Note the OEM white tape indicates the position on the OEM loom where it engages with the plastic notches in the taillight
      3. Push gently once aligned to re-engage the push-in connectors, hand thread the bolts, and tighten to 10Nm or 88 inch pounds
    5. Connect license plate light T harness

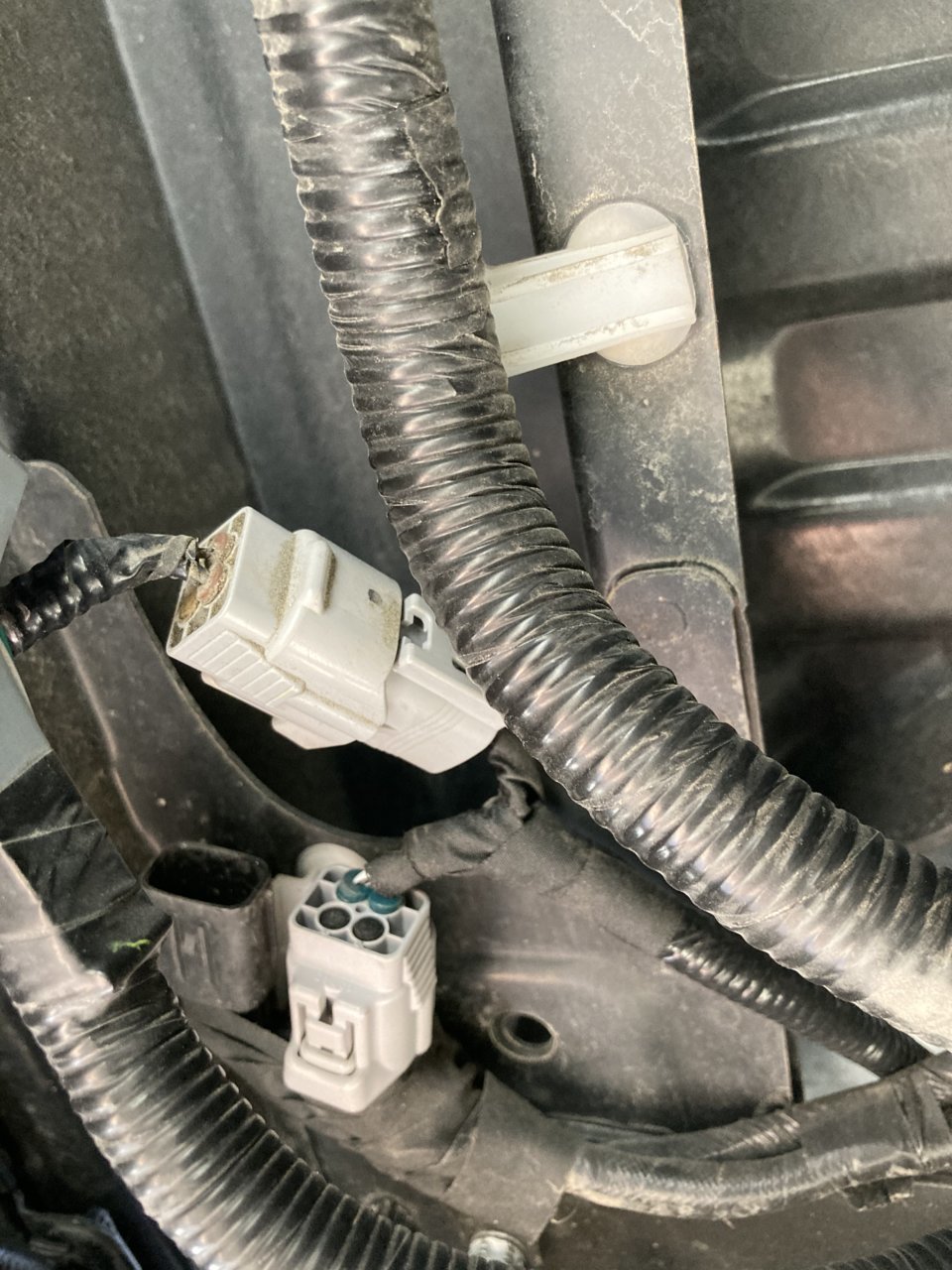

      1. Locate the grey 4 pin connector under the driver side bumper near the 7 pin trailer harness connector.
      2. If you have BSM this connector should have all 4 positions pinned, if you have no BSM you should see 2 positions pinned and 2 plugs. The colors of the wires should all match up.
      3. Feed the license plate T harness from the hole to the connector
      4. Disconnect the 4 pin connector and snap the T in between the two pieces
      5. Use zip ties to secure the DIR plate light intercept harness to the OEM harness. Attempt to secure the floating T portion of the harness to existing harnesses as much as possible to prevent vibration from causing fatigue. Try to position zip ties as close as possible to factory retention clips where the OEM harness attaches to the chassis.

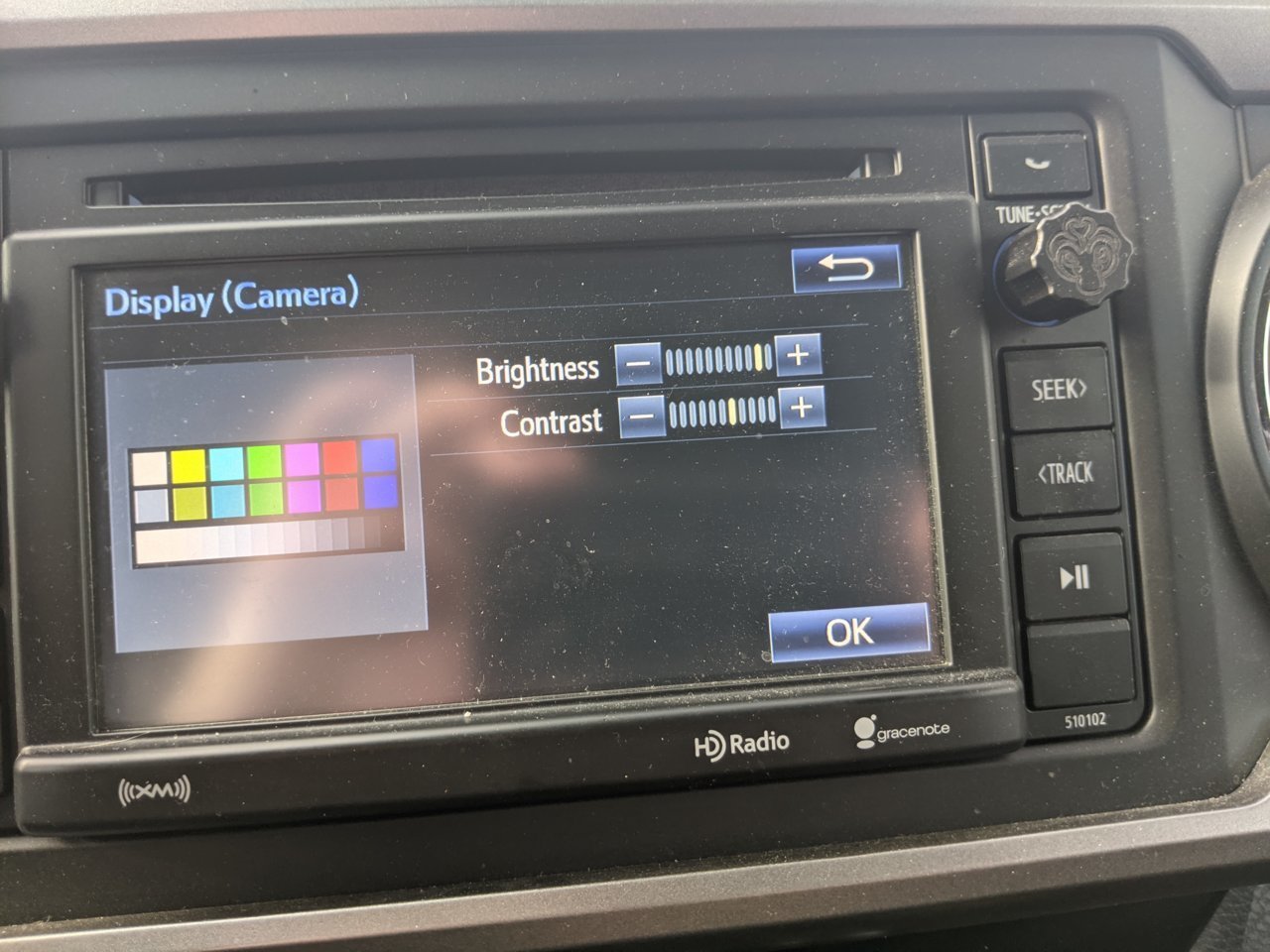

    6. Adjust camera brightness and contrast settings
      1. Click the gear icon to enter settings on the OEM Etune head unit
      2. Click Display to reach Display Settings
      3. Click Camera under Adjust Contrast/Brightness
      4. To adjust daytime settings, have your lights off
      5. To adjust nighttime settings, have your lights on
      6. Refer to nighttime configuration photo below as provided by @Tacosrus
    • Test and confirm proper operation
      1. If license plate lights do not turn on with parking lights while in park/neutral, disconnect license plate T and re-connect to confirm it seats properly. If, after that step, license plate lights work properly with the T disconnected but don’t with it connected, there is a problem with the harness, contact me for advanced troubleshooting / replacement.
      2. If license plate lights do not turn off when shifting to reverse, check the relay to confirm it is properly seated and the reverse T harness to confirm it is properly seated as well. The colors should match up as well. If you observe trouble with this, contact me for replacement.
    NOTE: The 3 installation photos are from an initial prototype which used wire loom. The final product uses PVC tubing and will look a little different. Also, wire colors are subject to change based on stock. You can, of course, apply your own loom and/or tape if you so desire. The harness is not visible once installed. Last, the photos below were taken before any zip ties were used. Please remember to secure your DIR harness from vibration as much as possible using zip ties.

    Last edited: Feb 27, 2021
    Criera and corgimas like this.
  5. Feb 11, 2021 at 11:03 AM
    #5
    daveeasa

    daveeasa [OP] Slowest crimp in the West

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    1,613
    Gender:
    Male
    First Name:
    David
    San Diego
    Vehicle:
    2016 OR 4x4 DCSB MGM 6MT
    FAQ:

    1. Is this modification street legal?

    a. Probably not. The vehicle codes I’ve read give no exception for reverse. However, with reverse lights properly engaged, it takes a very good eye to notice the license plate lights are off while a vehicle is in reverse when not looking through the camera. Also note that the T harness can be disconnected to resolve any fixit tickets (see below).

    2. Will I get a ticket for this?

    a. I don’t expect any police officer would ticket for this. If you do get such a ticket please post about the experience and we can discuss how we might improve things to avoid that in the future.

    3. How do I disable for vehicle inspections or other reasons?

    a. Unplug the license plate T and leave it disconnected. Tape off the ends if you plan to do this for an extended period or in inclement weather. If you intend to do this frequently you can purchase a pair of sealed caps from me for $10 extra at time of purchase or $15 after the fact.

    4. Is there a product for 2nd gen Tacoma or 3rd gen + Tundra?

    a. We expect to produce these in the near future, look for relevant threads in the appropriate forum.

    5. How long will it take after payment to receive?

    a. I should be able to ship within 2-3 business days via USPS. If you prefer a different shipper please contact me for rates.

    6. Do you ship internationally?

    a. Contact me with specifics and we’ll see if we can work something out.

    7. How do I resolve a dispute?

    a. Please contact me first if you have concerns or a problem with the product or delivery. If, however, you feel I haven’t resolved your concern adequately, you may use @memario1214 as an escalation path.

    8. Do you have any additional photos?

    a. Please review the additional pictures “spoiler” section in post 1.

    9. Will this work with aftermarket taillights and/or MESO total tails?

    a. Yes. This harness is designed to connect directly to the OEM reverse connector feeding the driver's taillight. Any downstream aftermarket taillight systems will be unaffected as they will simply plug into the female connector of the T harness rather than the female OEM connector.

    10. How do you pronounce DIR?

    a. Just like a pirate says Arrr, DIR is pronounced Drrr.

    Last edited: Apr 13, 2021 at 10:36 AM
  6. Feb 11, 2021 at 11:04 AM
    #6
    McRib

    McRib Thy Sauceynezz!

    Joined:
    May 3, 2016
    Member:
    #185980
    Messages:
    16,110
    ... I just got rid of the License Plate lights! :anonymous:

  7. Feb 11, 2021 at 11:05 AM
    #7
    304_Taco

    304_Taco Well-Known Member

    Joined:
    Aug 8, 2017
    Member:
    #226250
    Messages:
    817
    Gender:
    Male
    First Name:
    Curtis
    Morgantown, WV
    Vehicle:
    16 TRD Sport DCSB MT
    In!.. again :anonymous:

  8. Feb 11, 2021 at 11:34 AM
    #8
    Khoadattran

    Khoadattran Well-Known Member

    Joined:
    Jul 7, 2019
    Member:
    #298519
    Messages:
    726
    Gender:
    Male
    First Name:
    Khoa
    Also in again

  9. Feb 11, 2021 at 11:43 AM
    #9
    19trdoffroad

    19trdoffroad Well-Known Member

    Joined:
    Dec 13, 2019
    Member:
    #313196
    Messages:
    155
    Gender:
    Male
    First Name:
    Chava
    Wasco, CA
    Vehicle:
    19 TRD OR 4x4 MT
    Make a video!

    JRLYON likes this.
  10. Feb 11, 2021 at 11:58 AM
    #10
    stiles88

    stiles88 Well-Known Member

    Joined:
    May 15, 2018
    Member:
    #253552
    Messages:
    713
    Gender:
    Male
    Seattle (Bothell WA)
    Vehicle:
    2018 Cement TRD OR, 2008 FJ
  11. Feb 11, 2021 at 2:23 PM
    #11
    19QUICKSANDTACOTRD

    19QUICKSANDTACOTRD OUTLIER

    Joined:
    Jan 22, 2020
    Member:
    #316973
    Messages:
    32
    Gender:
    Male
    Vehicle:
    19 DCSB TRD SPORT
    Please add me. I’m in for one.

  12. Feb 11, 2021 at 7:07 PM
    #12
    playdixie

    playdixie Miss'ippi fella

    Joined:
    Apr 2, 2020
    Member:
    #323619
    Messages:
    765
    Gender:
    Male
    First Name:
    Jason
    Mississippi
    Vehicle:
    2016 Blazing Blue TRD Sport DCSB 4x4
    Sign me up please.

  13. Feb 11, 2021 at 11:03 PM
    #13
    ixnay

    ixnay Well-Known Member

    Joined:
    Jun 2, 2018
    Member:
    #255299
    Messages:
    363
    Gender:
    Male
    First Name:
    Mark
    Portland, Oregon
    Vehicle:
    2021 MGM TRD O/R DCSB
  14. Feb 13, 2021 at 10:17 PM
    #14
    brkncly

    brkncly Well-Known Member

    Joined:
    Nov 17, 2020
    Member:
    #346969
    Messages:
    51
    Gender:
    Male
    Vehicle:
    2017 White Tacoma TRD Offroad
    For those of us that our on the pre-order list, how will we know ours is ready?

  15. Feb 14, 2021 at 5:33 AM
    #15
    Cement_trk

    Cement_trk Member

    Joined:
    Feb 3, 2021
    Member:
    #354978
    Messages:
    9
    Gender:
    Male
    First Name:
    Addison
    Vehicle:
    2018 TRD sport
    Are you still taking pre orders ?

  16. Feb 14, 2021 at 7:00 AM
    #16
    daveeasa

    daveeasa [OP] Slowest crimp in the West

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    1,613
    Gender:
    Male
    First Name:
    David
    San Diego
    Vehicle:
    2016 OR 4x4 DCSB MGM 6MT
    I will post clear instructions in post #2 as each batch is ready.

    I assumed interest so I added you to the list.

  17. Feb 14, 2021 at 9:06 AM
    #17
    Tacodude2020

    Tacodude2020 Well-Known Member

    Joined:
    Dec 9, 2020
    Member:
    #349086
    Messages:
    45
    Gender:
    Male
    Vehicle:
    2021 TRD Off Road
    Put me down on your list. Thanks.

  18. Feb 14, 2021 at 10:08 AM
    #18
    19trdoffroad

    19trdoffroad Well-Known Member

    Joined:
    Dec 13, 2019
    Member:
    #313196
    Messages:
    155
    Gender:
    Male
    First Name:
    Chava
    Wasco, CA
    Vehicle:
    19 TRD OR 4x4 MT
  19. Feb 14, 2021 at 10:57 AM
    #19
    RadioTaco

    RadioTaco Well-Known Member

    Joined:
    Feb 21, 2020
    Member:
    #319945
    Messages:
    102
    SoCal
    Vehicle:
    2019 MGM TRD OR DCSB
    Stock Suspension nothing fancy. CB and HAM Radio Mods.
    I’m in! Do I pay now or wait until 3 months or so down the road?

  20. Feb 14, 2021 at 12:48 PM
    #20
    daveeasa

    daveeasa [OP] Slowest crimp in the West

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    1,613
    Gender:
    Male
    First Name:
    David
    San Diego
    Vehicle:
    2016 OR 4x4 DCSB MGM 6MT
    Added all 3 of you and updated post 2. No payment until product is ready to ship.
