Light Racing UCA question

Discussion in 'Suspension' started by Eman5pt0, Dec 30, 2011.

  1. Dec 30, 2011 at 9:55 PM
    #1
    Eman5pt0

    Eman5pt0 [OP] Well-Known Member

    Joined:
    Sep 19, 2009
    Member:
    #23003
    Messages:
    331
    Gender:
    Male
    First Name:
    E
    NY

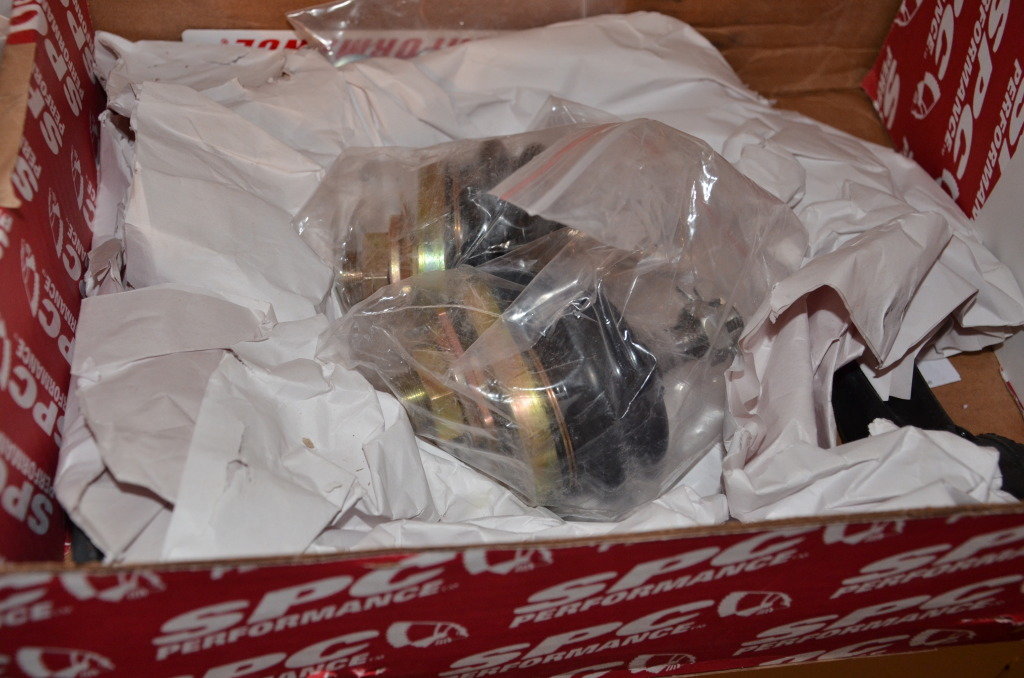

    the bolt that attaches the boot to the control arm, in pic, does it have specific torque specs? or just tighten it up
    [​IMG]

  2. Dec 30, 2011 at 9:57 PM
    #2
    Zac808

    Zac808 Custom User Title

    Joined:
    Aug 31, 2009
    Member:
    #22040
    Messages:
    2,819
    Gender:
    Male
    First Name:
    Zac
    Viva Las Vegas
    Vehicle:
    08 TRD DC SB 4x4
    In my sig
    There is a torque. I will try and find it.

    Sent frum mobul fone soe don't freek out about my speling and grahmar. ;)

  3. Dec 30, 2011 at 9:58 PM
    #3
    Banff2007Tacoma

    Banff2007Tacoma Well-Known Member

    Joined:
    May 6, 2011
    Member:
    #56157
    Messages:
    1,719
    Gender:
    Male
    First Name:
    Dave
    Alberta
    Vehicle:
    2007 Tacoma Black Sand Pearl TRD Offroad.
    GPS Navigation System, Old Man Emu complete lift with Dakar springs. Light Racing UCA's. BFG AT tires, KMC Enduro rims, Allpro E-locker guard. ARB Portable Air Compressor CKMP12. Backflip Tonneau Cover. Wet Okole seat covers.

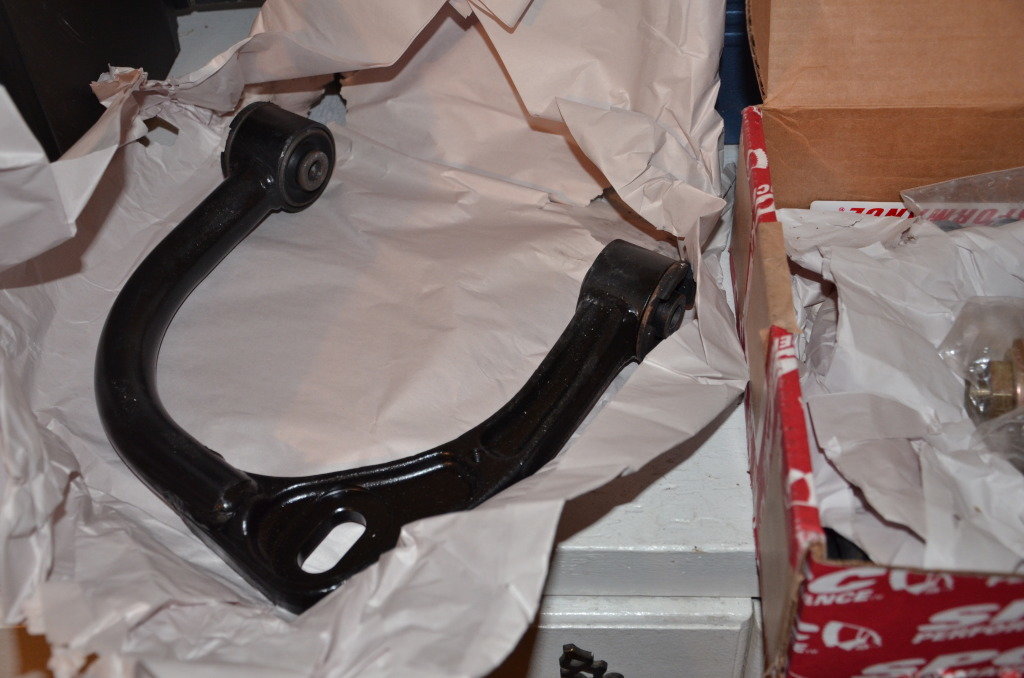

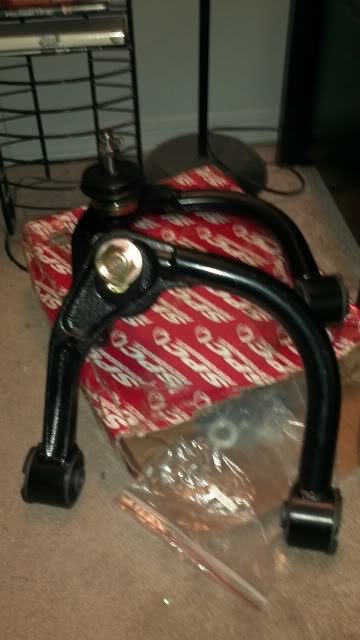

    Just got mine so I am interested in the answer as well. Subed.

    [​IMG]
    [​IMG]

  4. Dec 30, 2011 at 10:18 PM
    #4
    Zac808

    Zac808 Custom User Title

    Joined:
    Aug 31, 2009
    Member:
    #22040
    Messages:
    2,819
    Gender:
    Male
    First Name:
    Zac
    Viva Las Vegas
    Vehicle:
    08 TRD DC SB 4x4
    In my sig
    Should be on the install instructions. If not use the search. My phone sux at searching.

    Sent frum mobul fone soe don't freek out about my speling and grahmar. ;)

  5. Dec 30, 2011 at 10:21 PM
    #5
    jflan

    jflan Well-Known Member

    Joined:
    Dec 26, 2008
    Member:
    #11901
    Messages:
    1,019
    Vancouver, WA
    Vehicle:
    09 Access 4x4 2.7L manual SR5
    SnugTop SuperSport Sportsman keyless cap Weathertech mats - OEM skidplate - OEM hitch
    You should have received an instruction sheet.
    I think it's 120 ft lbs......verify that.

    I'll attach the .pdf


    Attached Files:

  6. Dec 30, 2011 at 11:12 PM
    #6
    Banff2007Tacoma

    Banff2007Tacoma Well-Known Member

    Joined:
    May 6, 2011
    Member:
    #56157
    Messages:
    1,719
    Gender:
    Male
    First Name:
    Dave
    Alberta
    Vehicle:
    2007 Tacoma Black Sand Pearl TRD Offroad.
    GPS Navigation System, Old Man Emu complete lift with Dakar springs. Light Racing UCA's. BFG AT tires, KMC Enduro rims, Allpro E-locker guard. ARB Portable Air Compressor CKMP12. Backflip Tonneau Cover. Wet Okole seat covers.

    Ahh yes I did receive that. Thanks.

  7. Dec 30, 2011 at 11:18 PM
    #7
    jflan

    jflan Well-Known Member

    Joined:
    Dec 26, 2008
    Member:
    #11901
    Messages:
    1,019
    Vancouver, WA
    Vehicle:
    09 Access 4x4 2.7L manual SR5
    SnugTop SuperSport Sportsman keyless cap Weathertech mats - OEM skidplate - OEM hitch
    It will also show how to "clock" the ball joints.
    Most are pulling the BJ all the way outboard, then torquing and turning over to the alignment shop.

    So there are two motions that you must understand and get correct on each BJ.

  8. Dec 31, 2011 at 12:34 AM
    #8
    Eman5pt0

    Eman5pt0 [OP] Well-Known Member

    Joined:
    Sep 19, 2009
    Member:
    #23003
    Messages:
    331
    Gender:
    Male
    First Name:
    E
    NY
    Baught mine from someone on here they were never used but instructions were not included
    Thankss for the pdf

  9. Dec 31, 2011 at 12:56 AM
    #9
    Eman5pt0

    Eman5pt0 [OP] Well-Known Member

    Joined:
    Sep 19, 2009
    Member:
    #23003
    Messages:
    331
    Gender:
    Male
    First Name:
    E
    NY
    im confused on how to record the the alignment readings before installing them and how do i know how much caster im going to need ?!

  10. Dec 31, 2011 at 1:02 AM
    #10
    maxamillion2345

    maxamillion2345 Go home if you don't like guns liquor and whores.

    Joined:
    Feb 20, 2010
    Member:
    #31761
    Messages:
    7,809
    Gender:
    Male
    First Name:
    Max
    Nevada
    Vehicle:
    Ferd Fteenthousand 6.4
    Tuner.
    If you have a 6 lug and you have a 2-3" lift face the SPC logo directly out.

    If you have a 6 lug and maybe 1" of lift try facing the SPC logo one notch towards the rear of the truck from directly out. That is to say if directly out were 9 o'clock try about 7:30 lol or 145*

  11. Dec 31, 2011 at 1:20 AM
    #11
    Eman5pt0

    Eman5pt0 [OP] Well-Known Member

    Joined:
    Sep 19, 2009
    Member:
    #23003
    Messages:
    331
    Gender:
    Male
    First Name:
    E
    NY
    thank u sir, going to go at it tomorrow hopefully i will get everything installed and get it to the shop for alignment before they close.
    also on the PDF they have a link for video instructions. :thumbsup:

  12. Feb 7, 2012 at 4:49 PM
    #12
    jjudd

    jjudd Member

    Joined:
    Nov 2, 2011
    Member:
    #66351
    Messages:
    11
    Gender:
    Male
    First Name:
    Justin
    Temecula
    Vehicle:
    09 tacoma 4x4 longbed sport pkg
    3inch front 2 inch rear lift using spacers in front and add a leaf in rear
    I had alot of confusion with the ball joint positioning in the charts. Hope this helps everyone. This is after talking to SPC directly.:D

    The install paper:
    Assume the grey rectangle in the install picture is the special washer (this is because it has to be square in its slot) and the white behind it is the ball joint itself showing the round and square spc logo sides, the front of the truck is to the right in the picture charts for a-g.

    SPC LOGO Facing towards the front of the truck will add -2* caster which is essentially your stock UCA as the arm already has 2* more caster than stock. So 0* change

    SPC Logo facing the wheel (so perpendicular to the wheel and away from the vehicle) is going to give an additional 2* caster above the stock uca and is the neutral position for the LR UCA. So 2* change from stock

    SPC logo towards the rear of the vehicle gives you and additional 4* caster. So a total of 4* change from stock

    You can now see where the adjustments in between add up to using the chart if that helped make sense

    The camber is adjusted on the control arm itself in the slot the ball joint mounts too and using the vehicle camber adjustment.

    One thing they say will help get the uca adjusted best is to wait to torque the uca bolt until the vehicle is physically back on the ground with tires on per the represntative. I came upon the issue when loading the suspension with the jack on the lca then tightening the uca bolt before putting the tires back on and I ended up with more negative caster than before:eek:. Doing the above fixed it. All the forums people say to place the spc logo facing out and i would say this is the best start as it is going to fix most issues people have with a 2-3 inch lift but tighten the uca when its on ground with tires!:cool:

    Justin

  13. Feb 8, 2012 at 7:41 PM
    #13
    maxamillion2345

    maxamillion2345 Go home if you don't like guns liquor and whores.

    Joined:
    Feb 20, 2010
    Member:
    #31761
    Messages:
    7,809
    Gender:
    Male
    First Name:
    Max
    Nevada
    Vehicle:
    Ferd Fteenthousand 6.4
    Tuner.
    Yes tighten the UCA bolt to the frame after you have the truck sitting at ride height on it's own weight. This puts the bushing in a neutral position. If you torque at full droop then you're putting extra strain on the bushing.

  14. May 6, 2012 at 7:10 AM
    #14
    hard2kill

    hard2kill Well-Known Member

    Joined:
    Apr 28, 2011
    Member:
    #55714
    Messages:
    3,860
    Gender:
    Male
    First Name:
    John
    Rhinebeck NY
    Vehicle:
    06 4door trd sport white 6spd
    ...315's,2in bora wheel spacers,safari snorkel,wheel spacers,bruteforcefab rear bumper and sliders,afe filter,hi-lift jack,5100 with OME 886 & 1/2in spacer,allpro expo's,icon 10in rear shox,flip kit,ss brake lines,cobra cb,fog light mod,yellow fogs,weathertech mats,fullsize spare tire and extra sport rim,tinted windows,aeroturbine 2525 muffler dumped over axle...rear diff breather mod...removed factory spare...removed 2nd air filter...THULE roof rack and fairing....bud builts front to back,allpoo front bumper,BAMF lca skids,overland Offroad roof and bed racks,
    finding a good allignment shop is tuff
