Lightbar wiring to fog lights

Discussion in 'Lighting' started by Texan Tacoma, Jul 25, 2015.

  1. Jul 25, 2015 at 11:32 AM
    #1
    Texan Tacoma

    Texan Tacoma [OP] Texas Tech University

    Joined:
    Jan 8, 2014
    Member:
    #120223
    Messages:
    56
    Gender:
    Male
    First Name:
    Chris
    Lubbock, Texas
    Vehicle:
    07 PreRunner v6
    SAW 2.5s , mb vortex wheels, AeroTurbine 2525 with dump, Spyder headlights, Rocklights, custom bumper, SOS offroad carrier, etc..
    Hey guys, this is my first write up so bear with me.

    This method works great for bumper mounted lightbars or any lighting near the front our trucks.

    MATERIALS:
    ~lightbar (I used a 20" cheapo Amazon bar)
    Link: http://www.amazon.com/Penton-Lights-Waterproof-10v-30v-Offroad/dp/B00RV83UUG

    ~22-18 gauge butt connectors

    ~wire cutters

    ~low profile micro fuses greater than 15 amps.

    First disconnect your fog lights, if you have an aftermarket bumper this is already done from when you took the stock one off.
    You'll be left with these connectors. uploadfromtaptalk1437848522186.jpg

    These have two wires, the green one is positive, and the black/white is your negative.

    Cut off the connector and strip the wires. They are 18 gauge wires. Connect your lightbars positive to green wire and negative to white wire with the butt connectors. uploadfromtaptalk1437848715799.jpg

    Lastly, since the lightbars pulls more amperage than the stock fogs, replace the 15 amp fuse with a higher rated one. In my case I used a 25 amp uploadfromtaptalk1437848870818.jpg

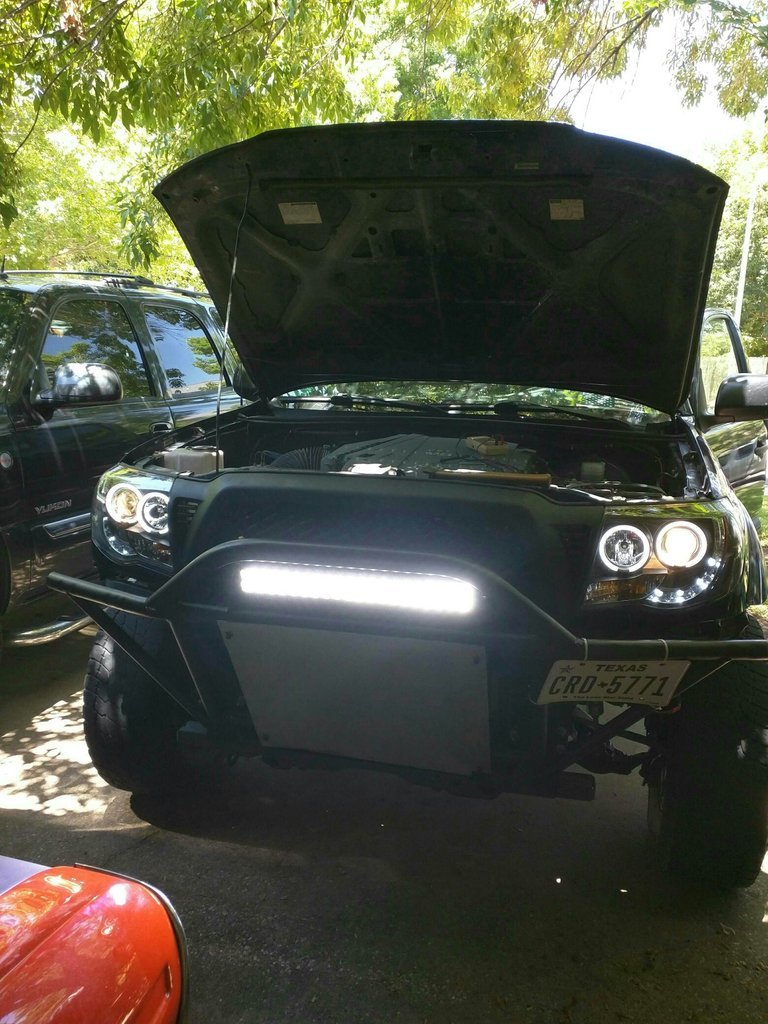

    And you're done! No other wiring, just use the fog light button to turn off and on your lights.


  2. Jul 25, 2015 at 11:47 AM
    #2
    mjackson92rs

    mjackson92rs Well-Known Member

    Joined:
    Aug 3, 2014
    Member:
    #135360
    Messages:
    121
    Gender:
    Male
    SE PA
    Vehicle:
    '15 TRD Sport
    Not to bash your thread but you really shouldn't be increasing a fuse rating to 25 Amps on a circuit that was only designed to handle 10. Everything in that circuit was designed to handle a 10a Max load (wire size).

    You'll probably be fine, but just saying...

    greeneggsnspam likes this.
  3. Jul 25, 2015 at 11:49 AM
    #3
    Texan Tacoma

    Texan Tacoma [OP] Texas Tech University

    Joined:
    Jan 8, 2014
    Member:
    #120223
    Messages:
    56
    Gender:
    Male
    First Name:
    Chris
    Lubbock, Texas
    Vehicle:
    07 PreRunner v6
    SAW 2.5s , mb vortex wheels, AeroTurbine 2525 with dump, Spyder headlights, Rocklights, custom bumper, SOS offroad carrier, etc..
    Thanks for the tip, it was a 15 amp however and 20 amp fuses work on it but I didn't have any, do you think a 5amp increase is fine?

  4. Jul 25, 2015 at 9:45 PM
    #4
    mjackson92rs

    mjackson92rs Well-Known Member

    Joined:
    Aug 3, 2014
    Member:
    #135360
    Messages:
    121
    Gender:
    Male
    SE PA
    Vehicle:
    '15 TRD Sport
    I wouldn't sweat it. Maybe swap the 25a out for a 20a whenever you get a chance just to be on the safe side. Looks good by the way!

  5. Jul 30, 2015 at 9:35 AM
    #5
    Texan Tacoma

    Texan Tacoma [OP] Texas Tech University

    Joined:
    Jan 8, 2014
    Member:
    #120223
    Messages:
    56
    Gender:
    Male
    First Name:
    Chris
    Lubbock, Texas
    Vehicle:
    07 PreRunner v6
    SAW 2.5s , mb vortex wheels, AeroTurbine 2525 with dump, Spyder headlights, Rocklights, custom bumper, SOS offroad carrier, etc..
    Update: still working perfectly and no problems whatsoever with a 20 amp fuse.

  6. Jul 30, 2015 at 9:38 AM
    #6
    HAVVOKK

    HAVVOKK Blazin Doobies for Noobies

    Joined:
    Apr 1, 2015
    Member:
    #152280
    Messages:
    9,096
    Gender:
    Male
    First Name:
    John
    lakeside
    Vehicle:
    2014 DGAF Long Bed
    Fucking look it up
    Great idea will be doing this as soon as my bumper is done and I get a light bar thanks for the tip

  7. Jul 30, 2015 at 11:34 AM
    #7
    fergyz

    fergyz Mmmm...Tacos

    Joined:
    Apr 25, 2012
    Member:
    #77624
    Messages:
    735
    Gender:
    Male
    49th State
    Vehicle:
    06' DBC 4x4 6spd
    i would suggest not cutting the stock connector off... you can easly put a male connector on the LED bar wiring. this will make it a plug and play deal.

    Texan Tacoma [OP] likes this.
  8. Jul 30, 2015 at 11:35 AM
    #8
    Texan Tacoma

    Texan Tacoma [OP] Texas Tech University

    Joined:
    Jan 8, 2014
    Member:
    #120223
    Messages:
    56
    Gender:
    Male
    First Name:
    Chris
    Lubbock, Texas
    Vehicle:
    07 PreRunner v6
    SAW 2.5s , mb vortex wheels, AeroTurbine 2525 with dump, Spyder headlights, Rocklights, custom bumper, SOS offroad carrier, etc..
    Great idea!

  9. Jul 30, 2015 at 1:02 PM
    #9
    theblindchicken

    theblindchicken Well-Known Member

    Joined:
    Mar 13, 2014
    Member:
    #125243
    Messages:
    152
    Gender:
    Male
    First Name:
    Christian
    Long Beach
    Vehicle:
    '74 K10
    HID's, LED Dash swap, LED reverse lights, 15"x10" 5 slot mags, sliding rear window, 20gal aux. DS fuel tank,
    I don't think it would be a very good idea to use the existing wiring for your light bar.

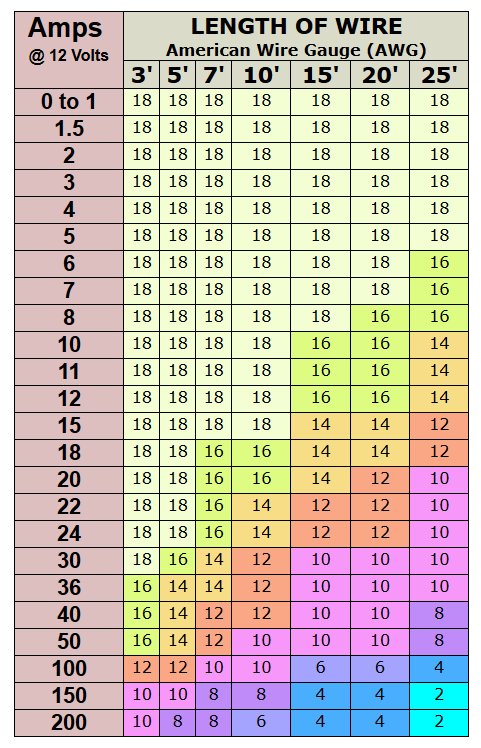

    Considering this wiring chart (http://www.offroaders.com/tech/12-volt-wire-gauge-amps.htm):

    I wouldn't feel safe knowing that the wiring is undersize and more than likely overheating.

    This idea would be great for a pair of pods, but not a full sized bar.

  10. Aug 7, 2015 at 10:57 PM
    #10
    Texan Tacoma

    Texan Tacoma [OP] Texas Tech University

    Joined:
    Jan 8, 2014
    Member:
    #120223
    Messages:
    56
    Gender:
    Male
    First Name:
    Chris
    Lubbock, Texas
    Vehicle:
    07 PreRunner v6
    SAW 2.5s , mb vortex wheels, AeroTurbine 2525 with dump, Spyder headlights, Rocklights, custom bumper, SOS offroad carrier, etc..
    Works fine for me and still has yet to fail :bananadance::crapstorm:

  11. Aug 11, 2015 at 9:26 PM
    #11
    HAVVOKK

    HAVVOKK Blazin Doobies for Noobies

    Joined:
    Apr 1, 2015
    Member:
    #152280
    Messages:
    9,096
    Gender:
    Male
    First Name:
    John
    lakeside
    Vehicle:
    2014 DGAF Long Bed
    Fucking look it up
    So I stole your idea and used the fog light switch since I don't have them anymore any ways and used it to finish install on my ditch lights with my pods I'll take pics when finished tomorrow and post them here so others can see

  12. Aug 12, 2015 at 12:42 PM
    #12
    boogie3478

    boogie3478 Tacomaholic & Hollywood

    Joined:
    Oct 12, 2014
    Member:
    #140179
    Messages:
    25,532
    Gender:
    Male
    Northern Virginia
    Vehicle:
    14 TRD Off-Road V6
    All the mods
    Lol, the thing with wiring is that they will work fine right up to the point where they catch fire.

    holyfield19 likes this.
  13. Aug 12, 2015 at 12:56 PM
    #13
    HAVVOKK

    HAVVOKK Blazin Doobies for Noobies

    Joined:
    Apr 1, 2015
    Member:
    #152280
    Messages:
    9,096
    Gender:
    Male
    First Name:
    John
    lakeside
    Vehicle:
    2014 DGAF Long Bed
    Fucking look it up
    Good way to check is open hood turn light bar on feel wires if wires are hot your running too much current and need to change your set up if wires aren't hot your good but must run light for minimum of 5 mins and feel wires at random intervals

  14. Aug 12, 2015 at 2:18 PM
    #14
    Texan Tacoma

    Texan Tacoma [OP] Texas Tech University

    Joined:
    Jan 8, 2014
    Member:
    #120223
    Messages:
    56
    Gender:
    Male
    First Name:
    Chris
    Lubbock, Texas
    Vehicle:
    07 PreRunner v6
    SAW 2.5s , mb vortex wheels, AeroTurbine 2525 with dump, Spyder headlights, Rocklights, custom bumper, SOS offroad carrier, etc..
    Yeah I left it on for about 45 mins when I first did this and they didn't warm up. People still think I'm crazy though :confused:

  15. Aug 12, 2015 at 2:46 PM
    #15
    Texan Tacoma

    Texan Tacoma [OP] Texas Tech University

    Joined:
    Jan 8, 2014
    Member:
    #120223
    Messages:
    56
    Gender:
    Male
    First Name:
    Chris
    Lubbock, Texas
    Vehicle:
    07 PreRunner v6
    SAW 2.5s , mb vortex wheels, AeroTurbine 2525 with dump, Spyder headlights, Rocklights, custom bumper, SOS offroad carrier, etc..
    Y'all were right I should have listened.


  16. Aug 12, 2015 at 3:17 PM
    #16
    wing103

    wing103 Well-Known Member

    Joined:
    Jul 8, 2008
    Member:
    #7807
    Messages:
    1,153
    Gender:
    Male
    Boston
    Vehicle:
    Tacoma TRD Sport / Dark Gray
    Grill Craft upper & Lower Grill WetOK Seat Cover, Devil Horn, Bug, Windows Deflector, Side step Bar, HID 55W 8000K Headlight, HID 35W 4000K Foglight, Fog Light Mod, Interior LED Map Light Mod, Electric Tail Gate Lock, Leer Cab, Key ring light, Bed LED lights Mod, Kenwood DNX5120, Signal Mirror with Heat
    I suggest you put the 15 amps fuse back, the fuse is to protect the wire and the devices..... not to make it not blow out the fuse...... Also if you put a biggest fuse in there you should change out the wire too. this is my suggestion. I do not want to see your truck on fire. By the way you have a nice truck.
