Lights mounted behind "Grillcraft" Grill...

Discussion in 'Lighting' started by ilovetacos, Jan 28, 2008.

  1. Jan 28, 2008 at 7:31 PM
    #1
    ilovetacos

    ilovetacos [OP] Well-Known Member

    Joined:
    Jan 27, 2008
    Member:
    #4464
    Messages:
    2,323
    Gender:
    Male
    First Name:
    Gavin
    Sacramento/Woodland
    Vehicle:
    2006 TRD Sport 4x4 DC
    Sold!
    The lights I used are 6" Hella 500 Driving Lights which can be found at most automotive stores for about $60...These lights come with everything you will need to install them and get them hooked up. I went with aftermarket switches purchased at rallylights.com (http://www.rallylights.com/hella/switches_illuminated_rocker.asp)

    The grill is a Grillcraft which retails for about $160 and can be purchased at Performance Products, 4WheelParts, etc...

    I did not go into detail about how I wired the lights or installed the Grillcraft Grill. I followed the step by step instructions that are provided by the manufacturer of each item.

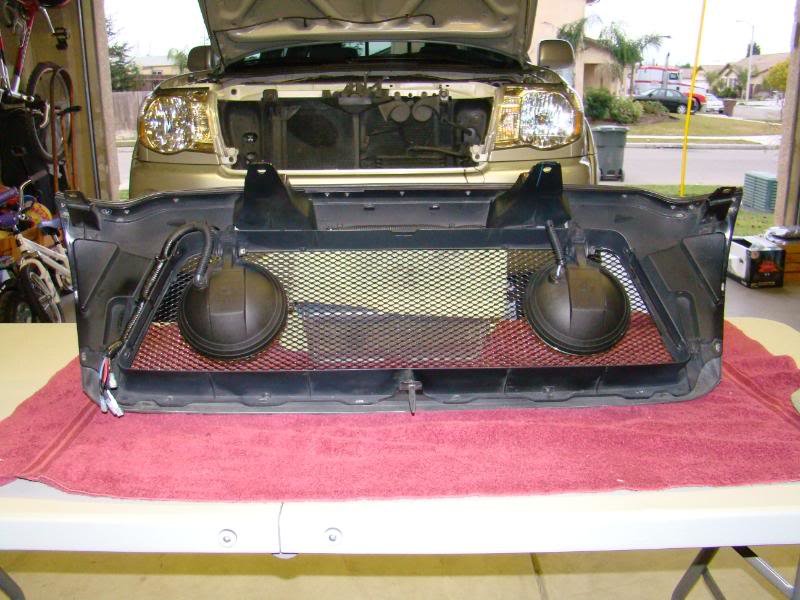

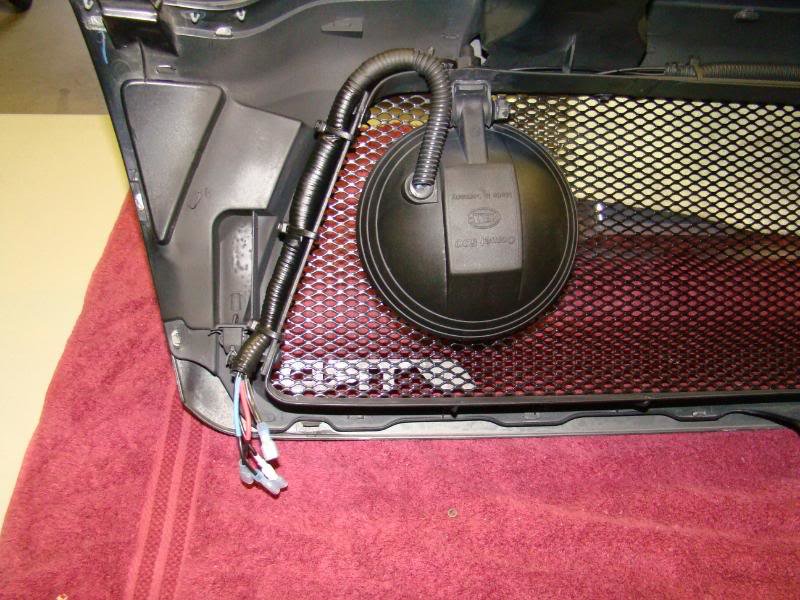

    Lights are mounted to the top of the grill frame. I used 1/2" flat steel to reinforce the each side and top.
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

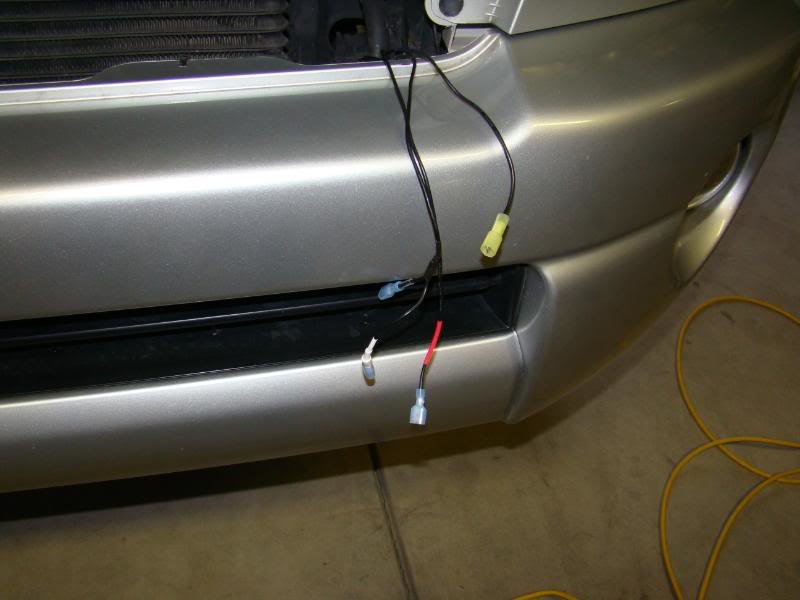

    Color coded each wire so I can easily remove the grill if needed.
    [​IMG]



    SEARCH: hellas,hella 500,hella's,grillcraft,mesh,lights,grill.

  2. Jan 28, 2008 at 7:33 PM
    #2
    ilovetacos

    ilovetacos [OP] Well-Known Member

    Joined:
    Jan 27, 2008
    Member:
    #4464
    Messages:
    2,323
    Gender:
    Male
    First Name:
    Gavin
    Sacramento/Woodland
    Vehicle:
    2006 TRD Sport 4x4 DC
    Sold!
    ....Continued

    [​IMG]

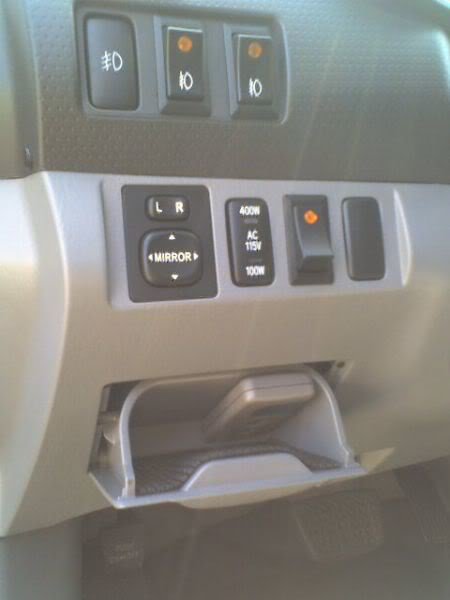

    Relocated the bed outlet button and installed 2 switches next to factory fog light button.
    [​IMG]

    [​IMG]

  3. Jan 28, 2008 at 7:34 PM
    #3
    humanoid

    humanoid bite me

    Joined:
    Jun 27, 2007
    Member:
    #1932
    Messages:
    2,747
    Gender:
    Male
    Sunny SoCal
    Vehicle:
    I had a '99 Xtra Cab PreRunner SR5 V6
    That looks really sweet, nice job!

  4. Jan 28, 2008 at 8:07 PM
    #4
    L_Jackson

    L_Jackson Well-Known Member

    Joined:
    Jul 14, 2007
    Member:
    #2093
    Messages:
    450
    Houston, TX
    Vehicle:
    2007 Black Sand Pearl PreRunner Acce
    Tinted Windows, Tow Hitch, 3" Toytec Lift, American Racing Outlaw II Wheels, Cooper Discoverer 33's, Aries Bull Bar w/ (2) 5" Lights, Nerf Bars, Fog Lights as DTR Lights, Roll Bar w/ (4) 5" Lights, Sony Speakers, 2 Extra Tie Downs
    that's awesome!!!! never thought of it, that is what i need!!! good job.

  5. Jan 28, 2008 at 8:13 PM
    #5
    Evil Monkey

    Evil Monkey There's an evil monkey in my truck

    Joined:
    Aug 8, 2007
    Member:
    #2352
    Messages:
    8,383
    Gender:
    Male
    First Name:
    Robert
    Escondido, CA
    Vehicle:
    07 4x4 DC SR5 TRD Off-road
    Weathertech front & rear mats, rear suspension TSB, Toytec AAL for TSB, Hi-Lift Jack, Bilstein 5100 & Toytec Adjustable coilovers, Built Right UCAs, KMC XD 795 Hoss Wheels, Definity Dakota MTs 285/75R16, Leer XR, Thule Tracker II & Thule MOAB basket
    It looks great! Fantastic mod. I have a Grillcraft grill coming; I may do this for mine. Thanks for the post. Why two switches?

  6. Jan 28, 2008 at 8:16 PM
    #6
    Toy4Life

    Toy4Life 668: The Neighbor of the Beast

    Joined:
    Aug 29, 2007
    Member:
    #2566
    Messages:
    4,974
    Gender:
    Male
    First Name:
    Chad
    Slippery Rock, PA
    Vehicle:
    96 Subaru Outback 2.2 5mt
    92 4Runner SR5 3.0v6 4x4(sold) 02 Tacoma SR5 TRD Offroad 4x4 (sold)
    That does look good. Clean installation. Are the lights behind the mesh, or is it cut out?

    You also need chrome or stainless tail light gaurds.

  7. Jan 28, 2008 at 8:26 PM
    #7
    ilovetacos

    ilovetacos [OP] Well-Known Member

    Joined:
    Jan 27, 2008
    Member:
    #4464
    Messages:
    2,323
    Gender:
    Male
    First Name:
    Gavin
    Sacramento/Woodland
    Vehicle:
    2006 TRD Sport 4x4 DC
    Sold!
    I orginally had the Randy Ellis light bar with 4 lights.
    [​IMG]

    Behind the mesh.

  8. Jan 28, 2008 at 8:40 PM
    #8
    Toy4Life

    Toy4Life 668: The Neighbor of the Beast

    Joined:
    Aug 29, 2007
    Member:
    #2566
    Messages:
    4,974
    Gender:
    Male
    First Name:
    Chad
    Slippery Rock, PA
    Vehicle:
    96 Subaru Outback 2.2 5mt
    92 4Runner SR5 3.0v6 4x4(sold) 02 Tacoma SR5 TRD Offroad 4x4 (sold)
    Yeah, behind the mesh, as the title of the thread states. I'm an idiot, sorry.

  9. Jan 29, 2008 at 1:41 PM
    #9
    erock

    erock Well-Known Member

    Joined:
    Jan 15, 2008
    Member:
    #4263
    Messages:
    51
    Boise
    Vehicle:
    06 TRD OR Tint Window, Magna Flow 2.5 Catback, TRD CAI, 3" Revtek and TSB, 33" Toyo MTs
    Cig Lighter Will tackle the Rear Locker Always On soon
    Can you use the headlights and off road lights at the same time? with fog lights?

  10. Jan 29, 2008 at 5:30 PM
    #10
    rhoppas

    rhoppas Land of Oz

    Joined:
    Aug 29, 2007
    Member:
    #2564
    Messages:
    1,309
    Gender:
    Male
    Topeka, KS
    Vehicle:
    07 Double Cab V6 TRD Sport Tow
    Earnhardt Cannons, Terra Grapplers, Viper alarm, Hunter4x4 Bull Bar, 6" Pro Comp Off-Road lights, extra set of bed D-rings, Chrome exhaust tip, Metra Ipod/MP3 adapter, Garmin GPS, CarriageWorks grill, Maglite mounted to driver seat, 9" Stubbie Antenna, WeatherTech floor liners, Saddleman Neoprene seat covers, DeeZee bed mat
    Good job. That is a very professional looking install. The light bar looked pretty damn good too. Just out of curiosity, why did you get rid of the light bar?

  11. Jan 30, 2008 at 7:03 AM
    #11
    nd

    nd Radical Town. It's a hell of a place!

    Joined:
    Mar 12, 2007
    Member:
    #1047
    Messages:
    12,738
    Gender:
    Male
    First Name:
    Nate
    Greenville, SC
    Vehicle:
    07 TRD Off-Road 4x4 debadged
    De badged, 5100's, Black Toyota Baja wheels
    Looks awesome! I'd like to see some pics, especially some close up shots of the grill with the lights off.

  12. Jan 30, 2008 at 8:37 AM
    #12
    ilovetacos

    ilovetacos [OP] Well-Known Member

    Joined:
    Jan 27, 2008
    Member:
    #4464
    Messages:
    2,323
    Gender:
    Male
    First Name:
    Gavin
    Sacramento/Woodland
    Vehicle:
    2006 TRD Sport 4x4 DC
    Sold!

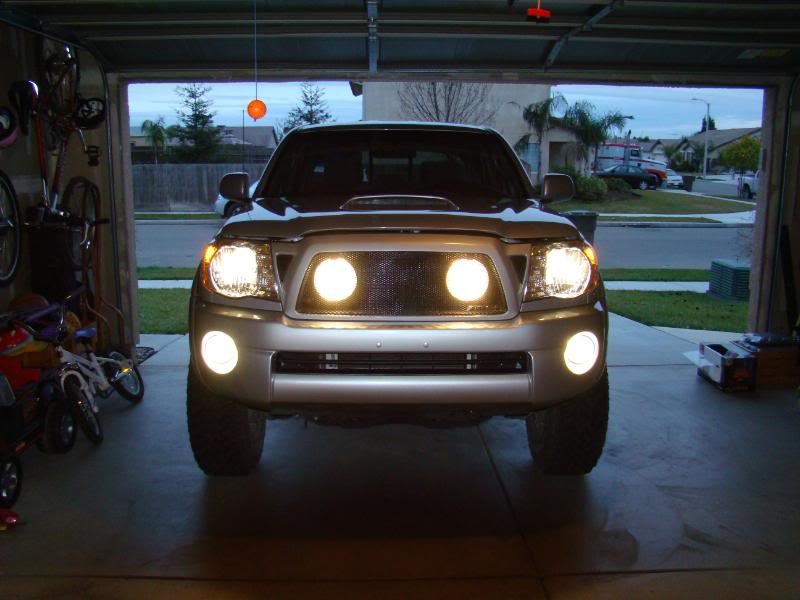

    Yep!
    [​IMG]

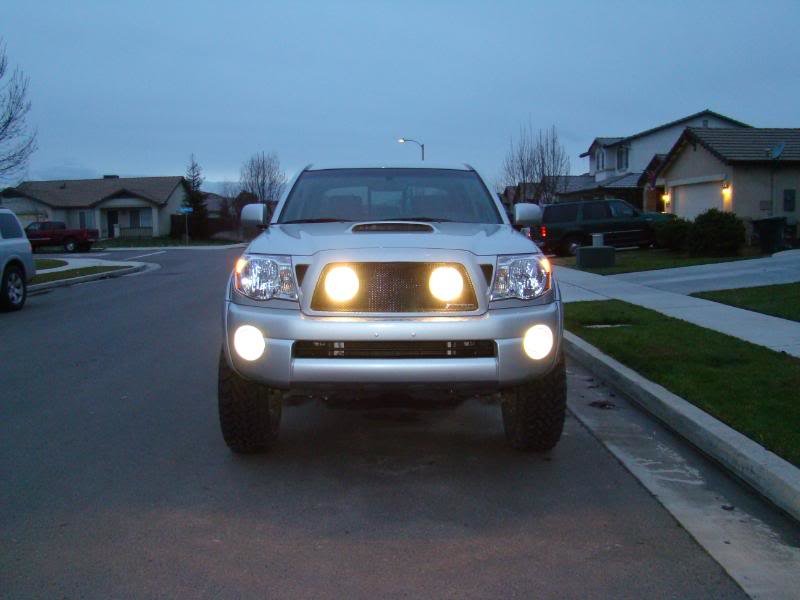

    I really never liked the bar even before I bought it but I found it on Craigslist for really cheap and decided to give it a try. I had it mounted for about a month and decided I just didn't like it. I would rather go with this look instead.

    [​IMG]

  13. Jan 30, 2008 at 1:14 PM
    #13
    erock

    erock Well-Known Member

    Joined:
    Jan 15, 2008
    Member:
    #4263
    Messages:
    51
    Boise
    Vehicle:
    06 TRD OR Tint Window, Magna Flow 2.5 Catback, TRD CAI, 3" Revtek and TSB, 33" Toyo MTs
    Cig Lighter Will tackle the Rear Locker Always On soon
    Awesome!!! I want to do this with mine. I really love it! Where did you move the Locking Rear Diff switch? Is it not on the Sport model?

  14. Jan 31, 2008 at 6:48 AM
    #14
    nd

    nd Radical Town. It's a hell of a place!

    Joined:
    Mar 12, 2007
    Member:
    #1047
    Messages:
    12,738
    Gender:
    Male
    First Name:
    Nate
    Greenville, SC
    Vehicle:
    07 TRD Off-Road 4x4 debadged
    De badged, 5100's, Black Toyota Baja wheels
    Thanks for posting the close up pic of the grill. Looks kick ass! thats a really good look. If you dont mind me asking, how much was the grill and where did you get it?

  15. Jan 31, 2008 at 9:01 AM
    #15
    ilovetacos

    ilovetacos [OP] Well-Known Member

    Joined:
    Jan 27, 2008
    Member:
    #4464
    Messages:
    2,323
    Gender:
    Male
    First Name:
    Gavin
    Sacramento/Woodland
    Vehicle:
    2006 TRD Sport 4x4 DC
    Sold!
    Got it thru 4 Wheel Parts for $128. I bought it thru their website when they had 20% off 1 item and free shipping. It usually retails for $160.

  16. Feb 3, 2008 at 12:06 PM
    #16
    747

    747 function > form

    Joined:
    Jan 27, 2008
    Member:
    #4465
    Messages:
    3,027
    Gender:
    Male
    Vehicle:
    1st Gen.
  17. Feb 12, 2008 at 8:54 AM
    #17
    countryboy08

    countryboy08 Active Member

    Joined:
    Jan 6, 2008
    Member:
    #4118
    Messages:
    26
    mifflin county
    Vehicle:
    TRD Off-Road Rugged Trail Package
    none yet
    whered u get the little trd symbol on the bottom of the grill

  18. Mar 22, 2008 at 5:58 PM
    #18
    RedruM29

    RedruM29 Blinking Car Mod...

    Joined:
    Feb 5, 2008
    Member:
    #4594
    Messages:
    617
    Gender:
    Male
    First Name:
    Kyle
    Nor☆Cal
    Vehicle:
    08 trd sport 4x4
    Just enough, and never enough
  19. Mar 22, 2008 at 8:47 PM
    #19
    gsxr3000

    gsxr3000 Well-Known Member

    Joined:
    Jan 21, 2008
    Member:
    #4375
    Messages:
    149
    Gender:
    Male
    Vehicle:
    08 TRD Sport
    OME Lift Kit, TRD S/C CAI EXHAUST
    should've gotten the hella black magic lights for a sleeker look during the day... that's what i was going to do, but then decided on westin bull bar.

  20. Mar 23, 2008 at 2:37 PM
    #20
    ETAV8R

    ETAV8R 4th MAW

    Joined:
    Feb 20, 2008
    Member:
    #4832
    Messages:
    1,273
    Gender:
    Male
    Republik of Kalifornia
    Vehicle:
    MGM 09 AC 4WD V6 TRD-OR w/ 2013 FWC Finch
    Grillcraft, Demello Sliders, OME Front and Rear suspension
    Wow this looks awesome. I went to the Grilcraft site but I have a question. Is this a complete new grill or just a screen to replace the Toy emblem and the black plastic bars in the current grill? If it is a complete replacement do they colormatch it? Are there chrome ones?

    I'm adding this to my list of mods. Was going to go with a light bar but this is way better. Especially with those blackmagic hellas.
