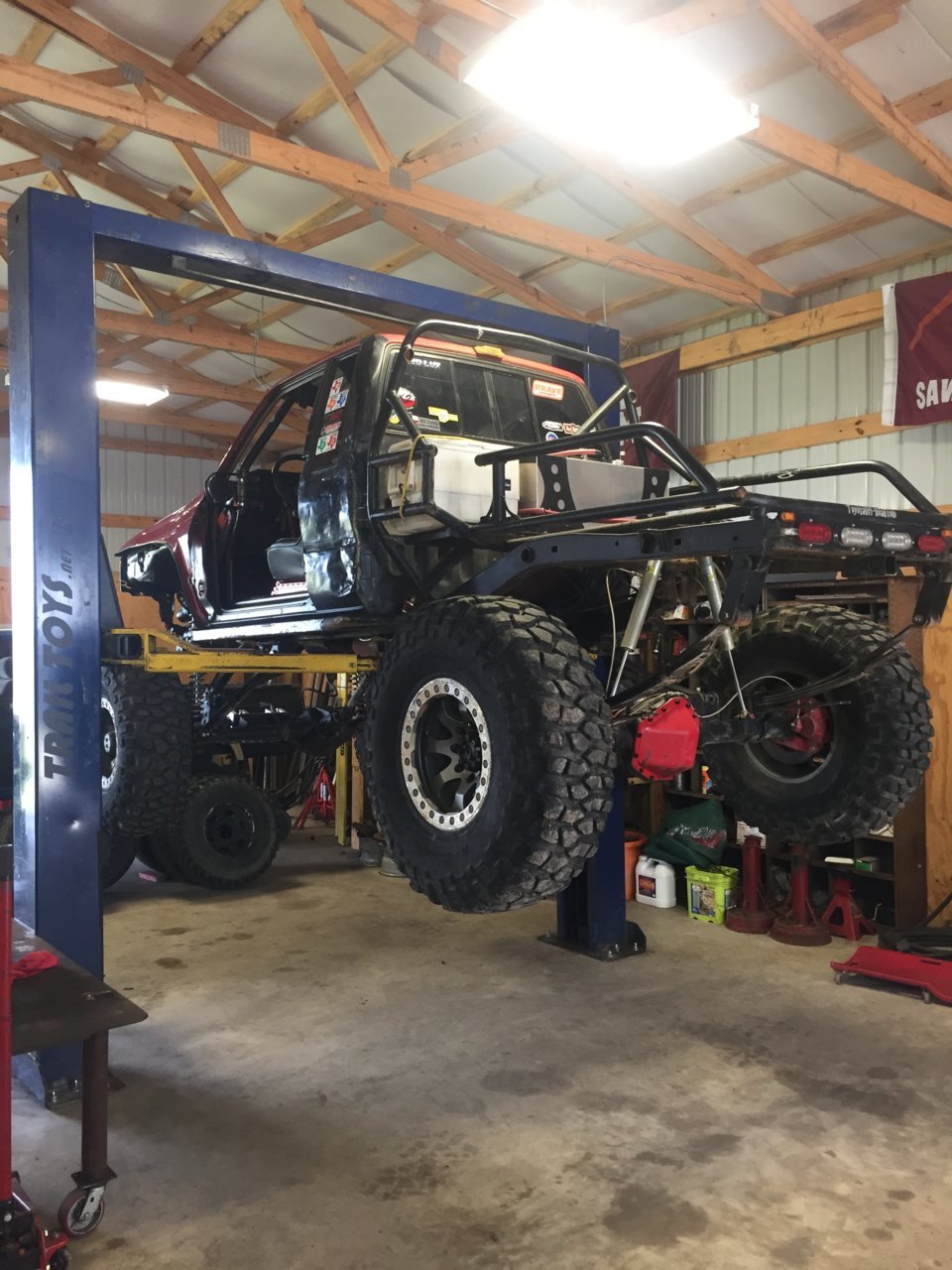

    The Red Truck belongs to my good buddy @Boomtacoma01 . He's been talking about a back half and links for the rig for who knows how long. So now it's time. Follow along here as I do my best to get rid of those pesky leafs.

    2018-08-05 16.47.51-1.jpg

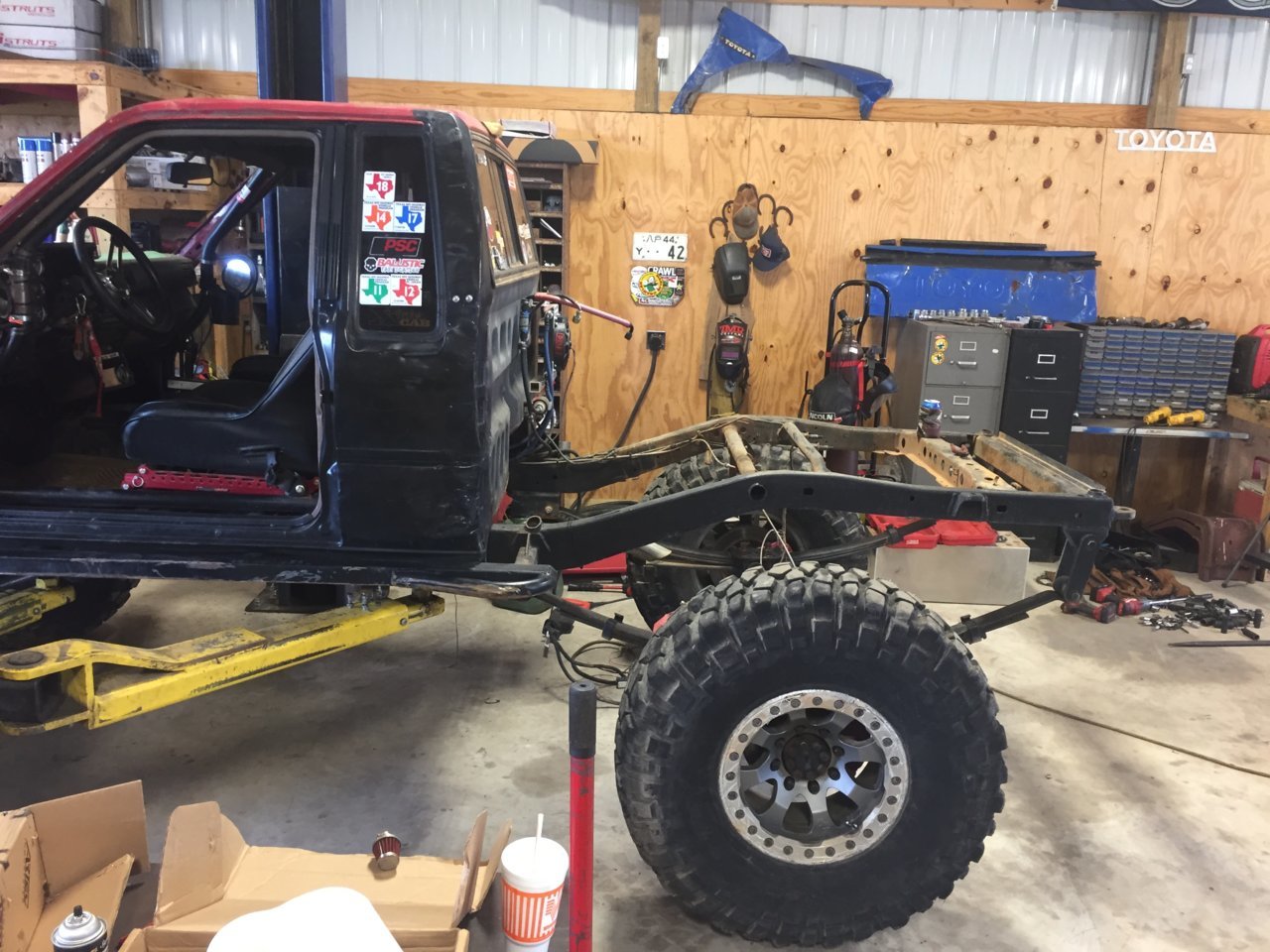

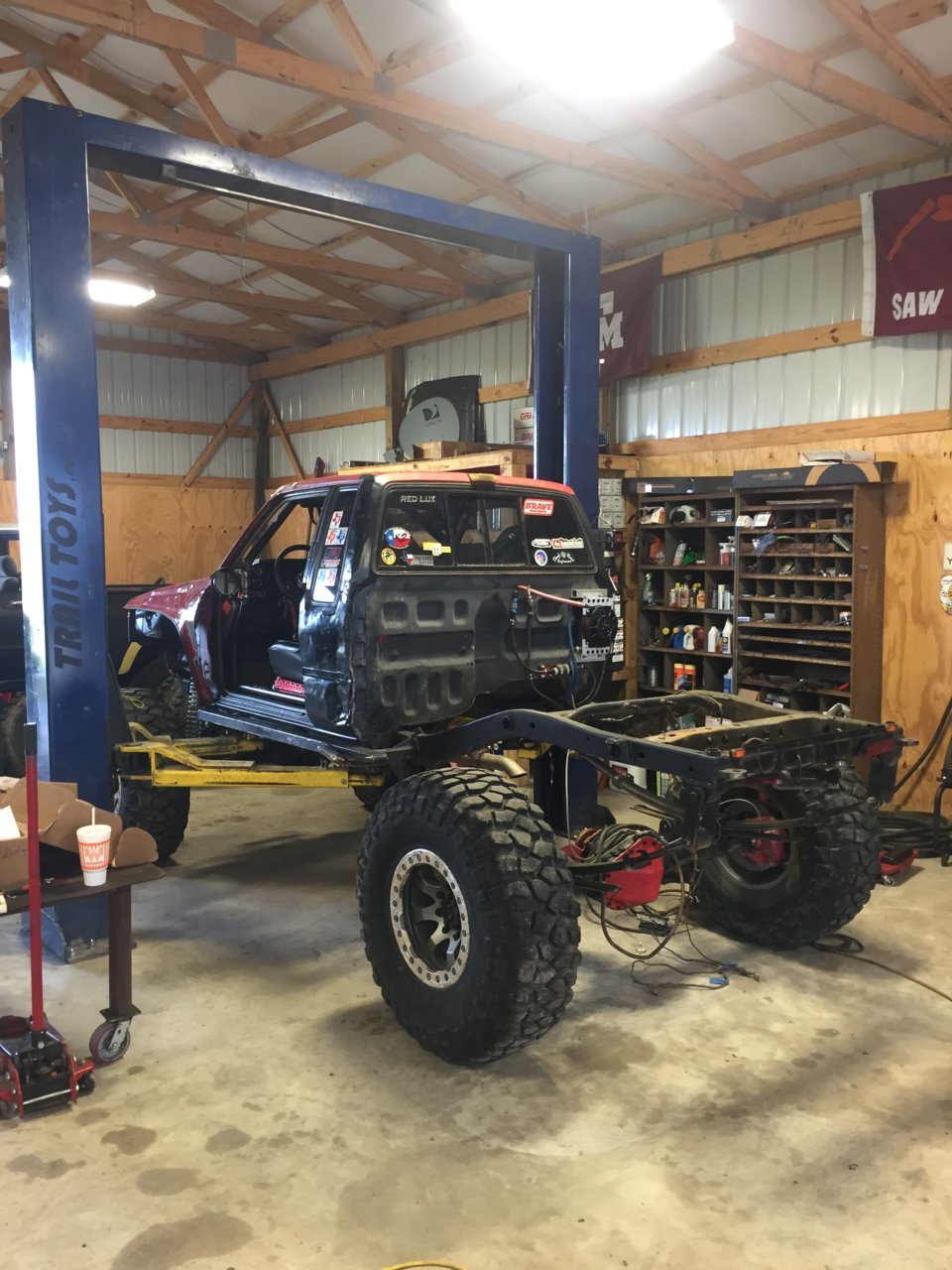

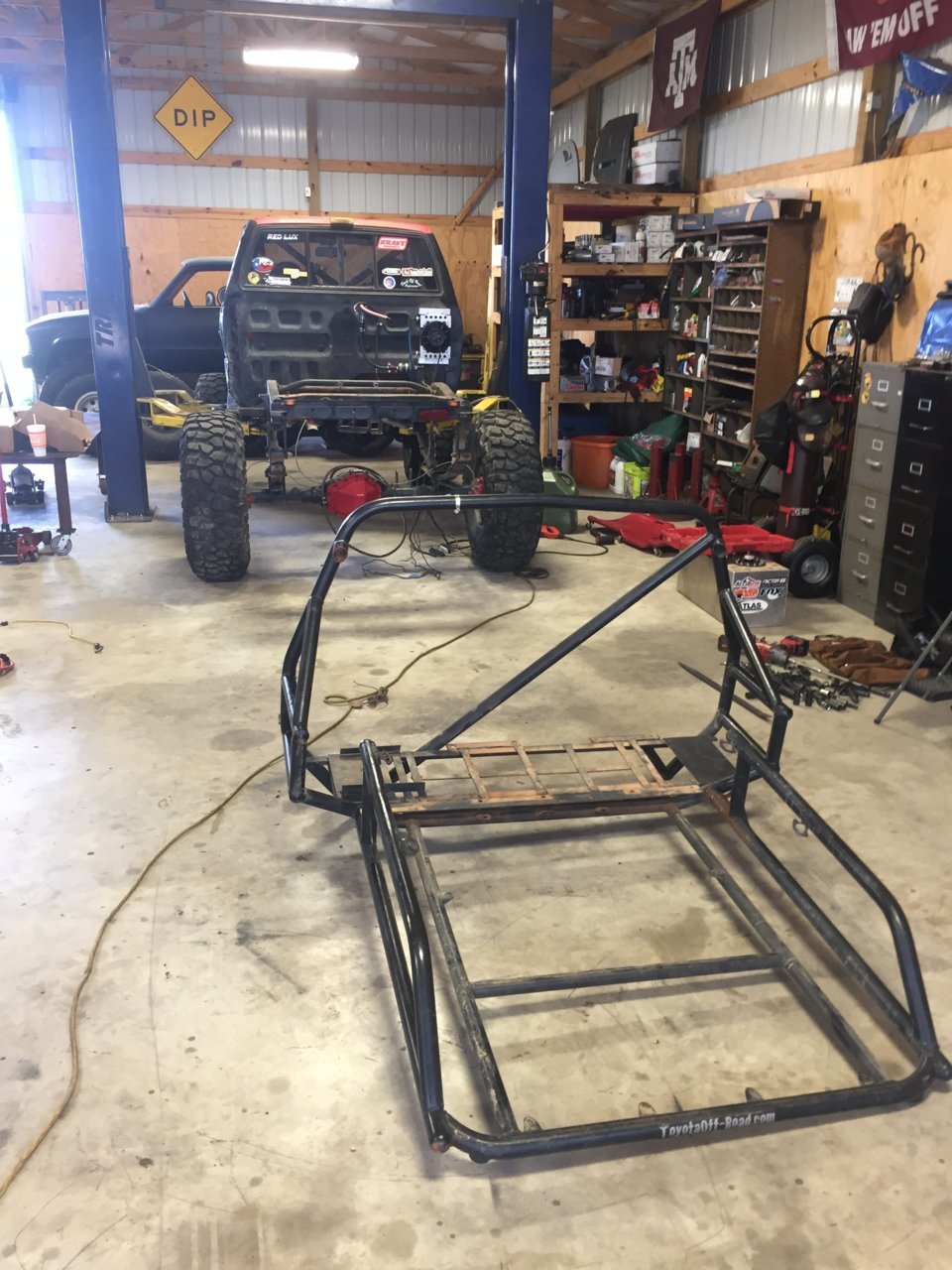

    The first step was to prep the rear. Chris had already removed a good amount of gear from the back, but the ol' flatbed was still around. Time for that to go.

    2018-08-05 18.45.18.jpg
    2018-08-05 18.45.33.jpg
    2018-08-05 18.49.22.jpg

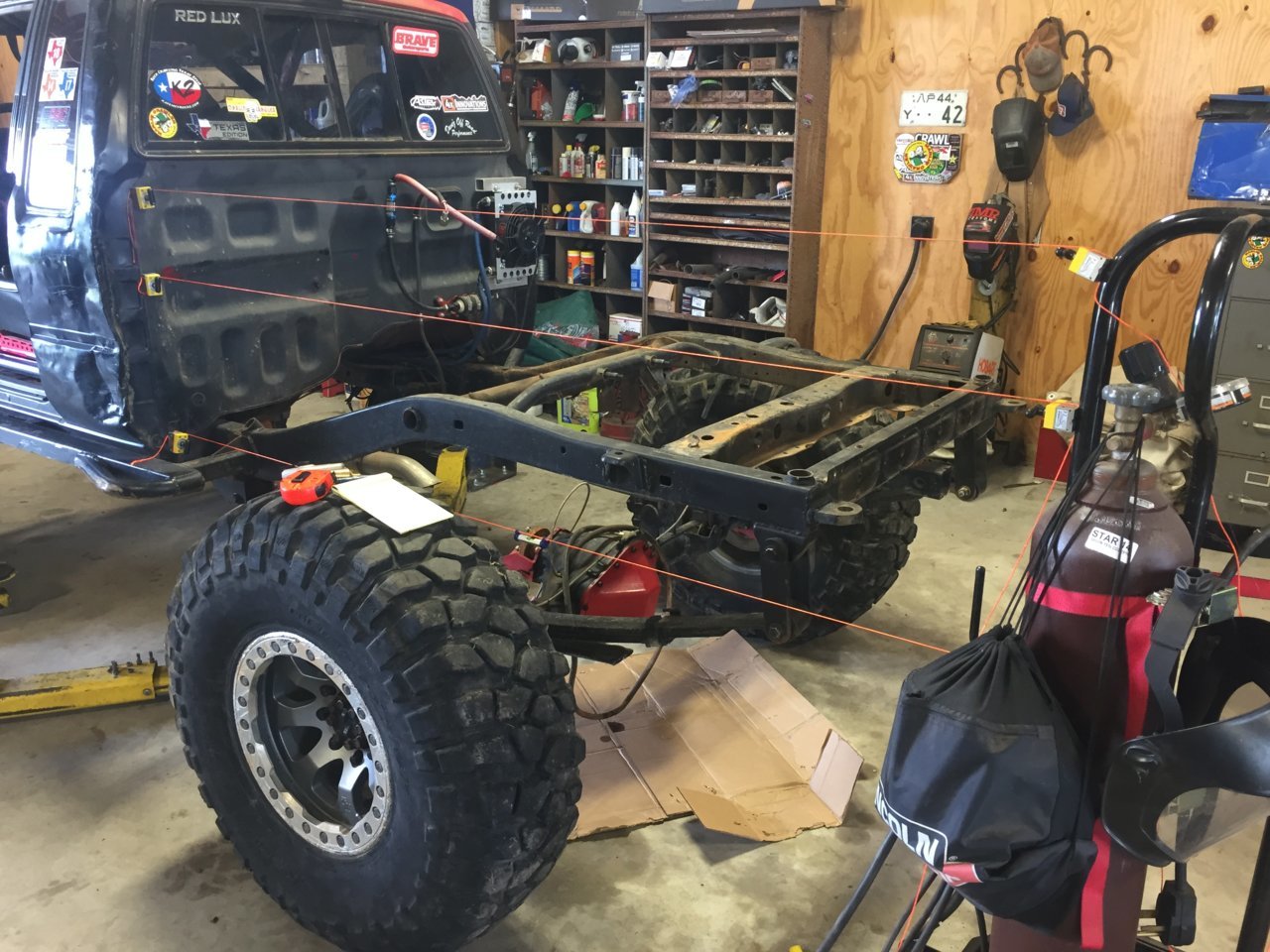

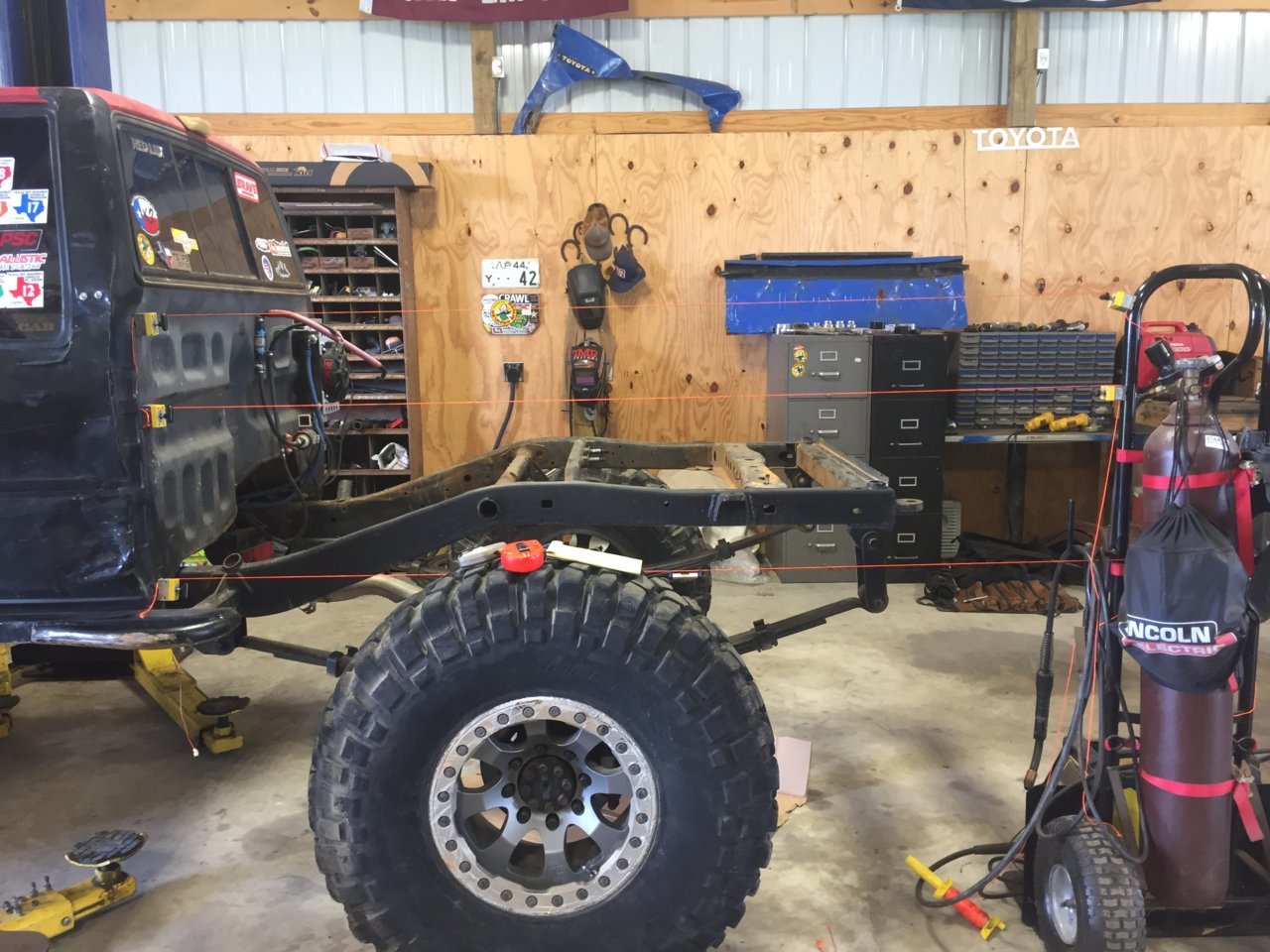

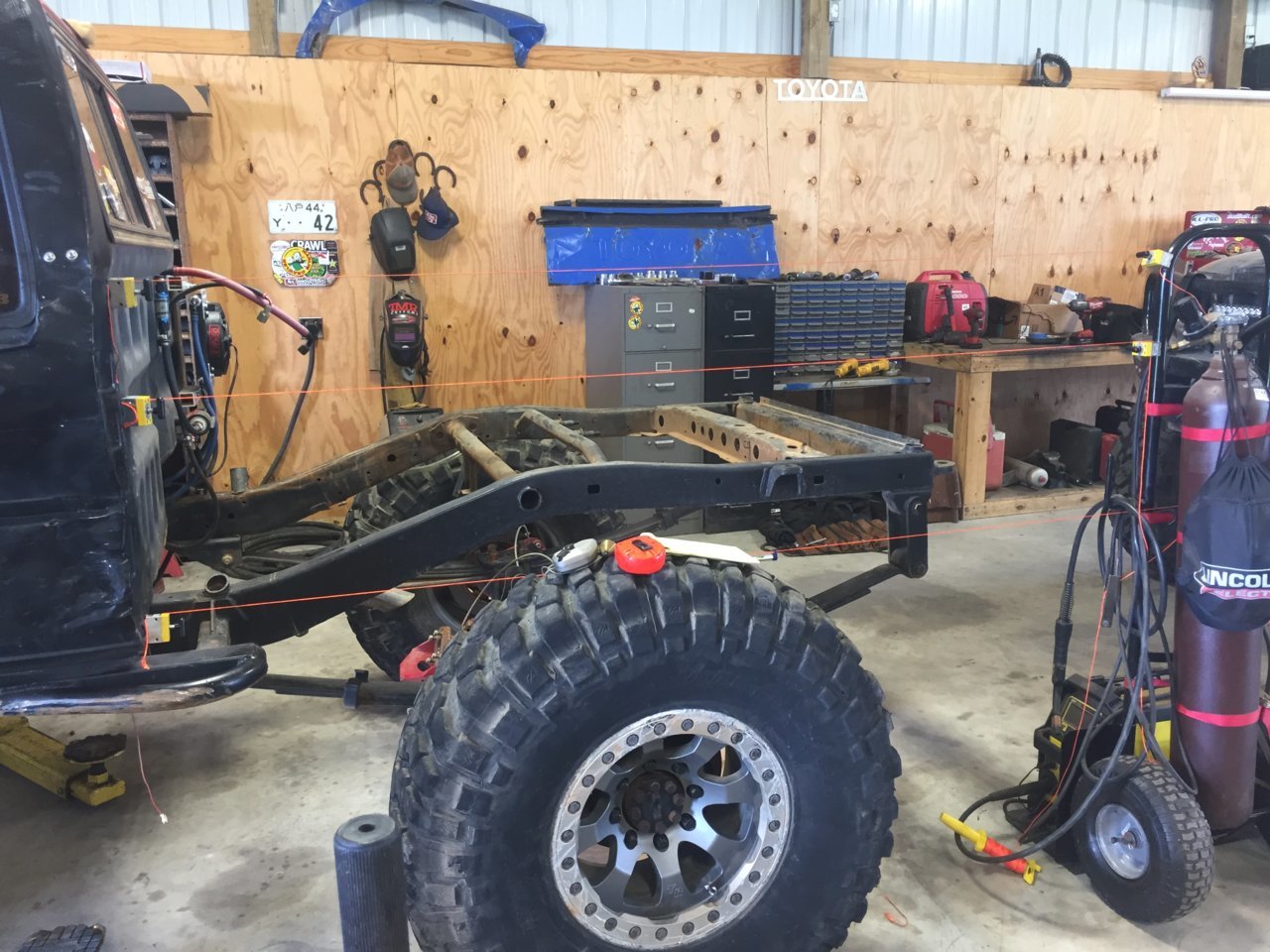

    I was able to start pulling dimensions for the hard points of the back half since the bed was gone. The top string is where the to bedside will be. The other two represent the top of the frame rail and the lower portion of the back at the rear.

    Magnets, string, and my weld cart came in handy.

    2018-08-06 11.23.01.jpg
    2018-08-06 11.23.15.jpg
    2018-08-06 11.23.27.jpg

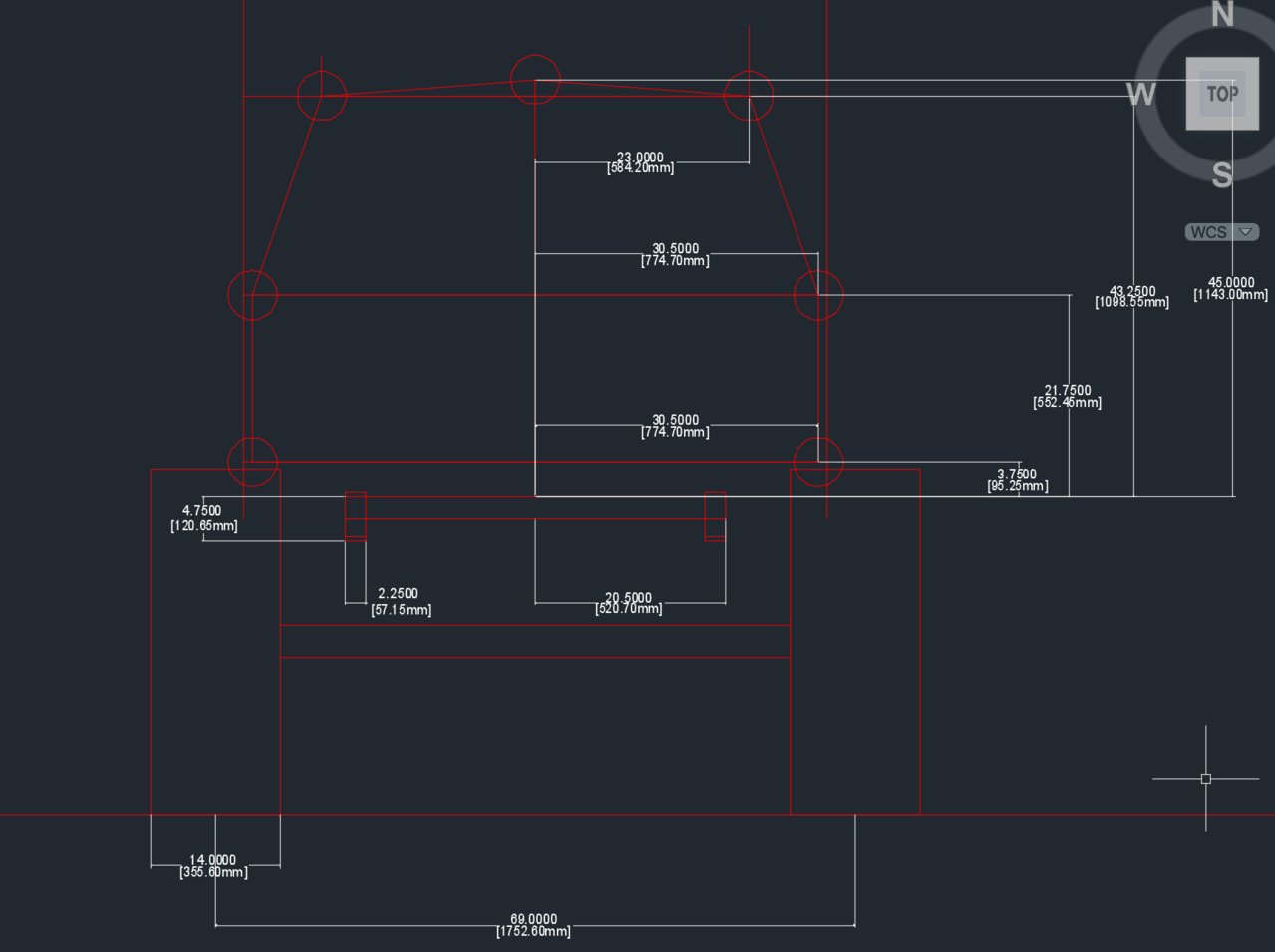

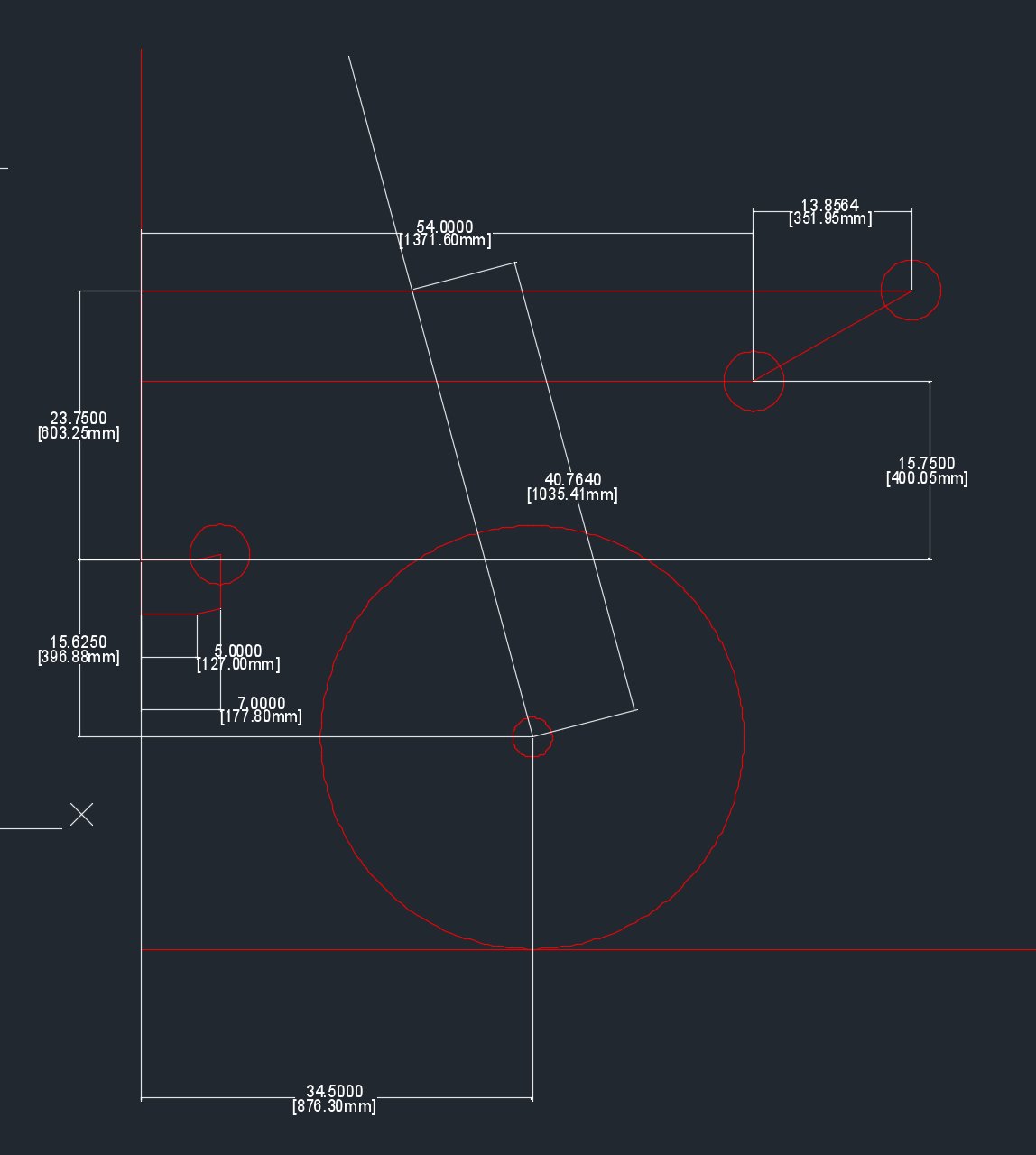

    I chose to record the measurements directly into cad instead of paper. This way I can pull distances between points that I didn't record earlier.

    Screenshot 2018-08-06 20.27.14.jpg Screenshot 2018-08-06 20.27.00.jpg
    The next step is to model the back half, coilovers, air bumps, fuel cell, cooler, toolbox, axle, and links. I'll be using Bendtech to create the 3D model. If I do it right I'll be able to pull a bill of materials direct from the software. Should be fun.

  2. Aug 7, 2018 at 10:28 AM
    #2
    ChadsPride

    ChadsPride Tacoma Owner & Enthusiast

    Joined:
    Nov 26, 2014
    Member:
    #143119
    Messages:
    127,315
    Vehicle:
    Sponsored by TacomaWorld.com
    Suuuuuuuuubd!

    honda50r and SMKYTXN[OP] like this.
  3. Aug 7, 2018 at 10:30 AM
    #3
    ETXTacoma

    ETXTacoma Someone gave me a plasma cutter.

    Joined:
    Feb 12, 2016
    Member:
    #177942
    Messages:
    16,234
    Gender:
    Male
    First Name:
    Steven
    Tyler, Texas
    Vehicle:
    2014 DCSB Tacoma TRD OR
    Dynatrac ProRock 60 Rear Axle, that is important enough.
    I am here for this shit.

    Sooooo Good.

    SMKYTXN[OP] and ChadsPride like this.
  4. Aug 7, 2018 at 10:34 AM
    #4
    ETXTacoma

    ETXTacoma Someone gave me a plasma cutter.

    Joined:
    Feb 12, 2016
    Member:
    #177942
    Messages:
    16,234
    Gender:
    Male
    First Name:
    Steven
    Tyler, Texas
    Vehicle:
    2014 DCSB Tacoma TRD OR
    Dynatrac ProRock 60 Rear Axle, that is important enough.
    Don't give this guy your address...

    You will get a bag of dicks in the mail.

  5. Aug 7, 2018 at 11:21 AM
    #5
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,038
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB

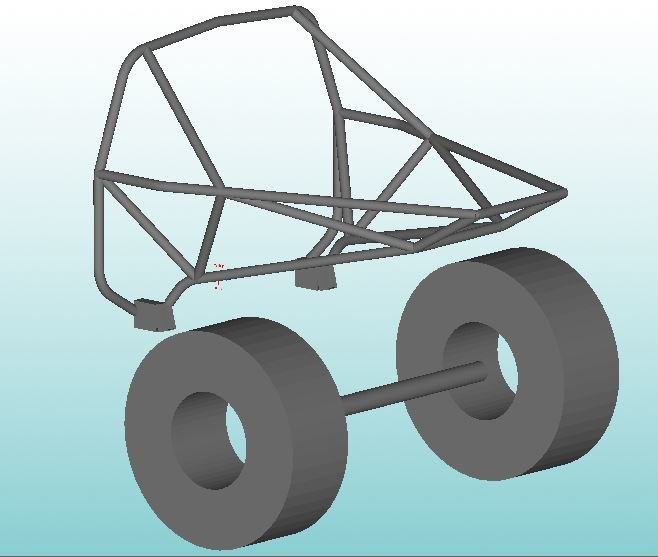

    Here's what we're shooting for. This is a rough draft, but it'll give you an idea of what's going on.


  6. Aug 8, 2018 at 1:10 PM
    #6
    Boomtacoma01

    Boomtacoma01 Well-Known Member

    Joined:
    Dec 7, 2009
    Member:
    #27162
    Messages:
    1,322
    Gender:
    Male
    First Name:
    Chris
    Houston
    Well I guess I don’t have to update my build thread now.

  7. Aug 8, 2018 at 1:59 PM
    #7
    ETXTacoma

    ETXTacoma Someone gave me a plasma cutter.

    Joined:
    Feb 12, 2016
    Member:
    #177942
    Messages:
    16,234
    Gender:
    Male
    First Name:
    Steven
    Tyler, Texas
    Vehicle:
    2014 DCSB Tacoma TRD OR
    Dynatrac ProRock 60 Rear Axle, that is important enough.
    Lol, just show up every once in a while.

    SMKYTXN[OP] and ChadsPride like this.
  8. Aug 8, 2018 at 4:07 PM
    #8
    Lurkin

    Lurkin Well-Known Member

    Joined:
    May 21, 2009
    Member:
    #17497
    Messages:
    22,365
    First Name:
    Rod
    Pearland, TX
    Vehicle:
    09 PreRunner SR5 DC
    FIFY :thumbsup:

  9. Aug 9, 2018 at 5:12 AM
    #9
    ETXTacoma

    ETXTacoma Someone gave me a plasma cutter.

    Joined:
    Feb 12, 2016
    Member:
    #177942
    Messages:
    16,234
    Gender:
    Male
    First Name:
    Steven
    Tyler, Texas
    Vehicle:
    2014 DCSB Tacoma TRD OR
    Dynatrac ProRock 60 Rear Axle, that is important enough.
    Prob just give @SMKYTXN his credit card honestly... would be easier.

    ChadsPride likes this.
  10. Aug 9, 2018 at 9:23 AM
    #10
    Boomtacoma01

    Boomtacoma01 Well-Known Member

    Joined:
    Dec 7, 2009
    Member:
    #27162
    Messages:
    1,322
    Gender:
    Male
    First Name:
    Chris
    Houston
    I don’t have work done on credit.

    ChadsPride likes this.
  11. Aug 9, 2018 at 9:32 AM
    #11
    ETXTacoma

    ETXTacoma Someone gave me a plasma cutter.

    Joined:
    Feb 12, 2016
    Member:
    #177942
    Messages:
    16,234
    Gender:
    Male
    First Name:
    Steven
    Tyler, Texas
    Vehicle:
    2014 DCSB Tacoma TRD OR
    Dynatrac ProRock 60 Rear Axle, that is important enough.
    So you like to pay in a physical form then...

    :boink:

    ChadsPride likes this.
  12. Aug 10, 2018 at 8:56 AM
    #12
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,038
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB
    We're zeroing in on the final design for the back half. I'm hoping to start bending tube early next week.


  13. Aug 10, 2018 at 9:22 AM
    #13
    ETXTacoma

    ETXTacoma Someone gave me a plasma cutter.

    Joined:
    Feb 12, 2016
    Member:
    #177942
    Messages:
    16,234
    Gender:
    Male
    First Name:
    Steven
    Tyler, Texas
    Vehicle:
    2014 DCSB Tacoma TRD OR
    Dynatrac ProRock 60 Rear Axle, that is important enough.
    Looking sexy.

    ChadsPride likes this.
  14. Aug 16, 2018 at 9:35 PM
    #14
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,038
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB

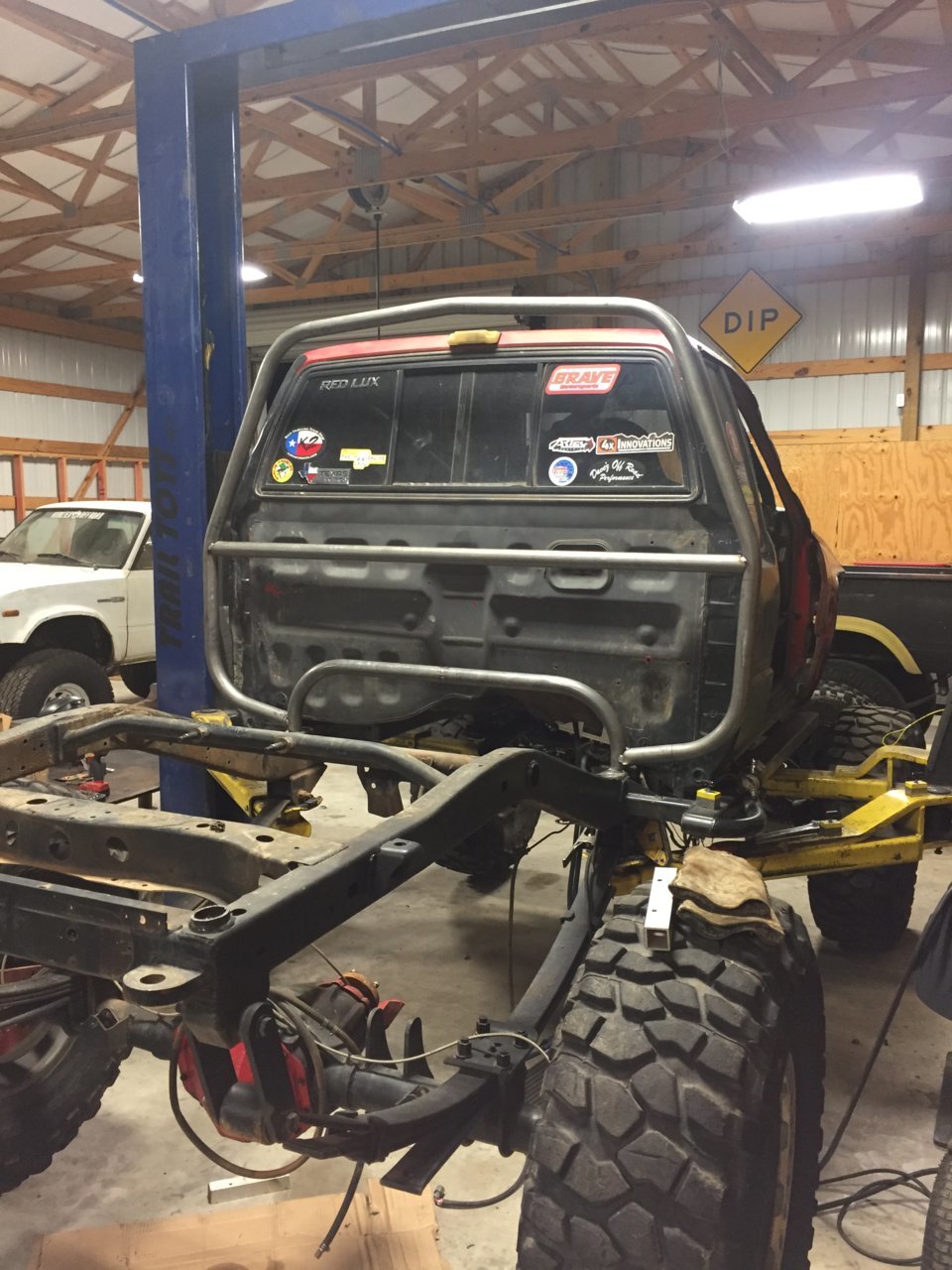

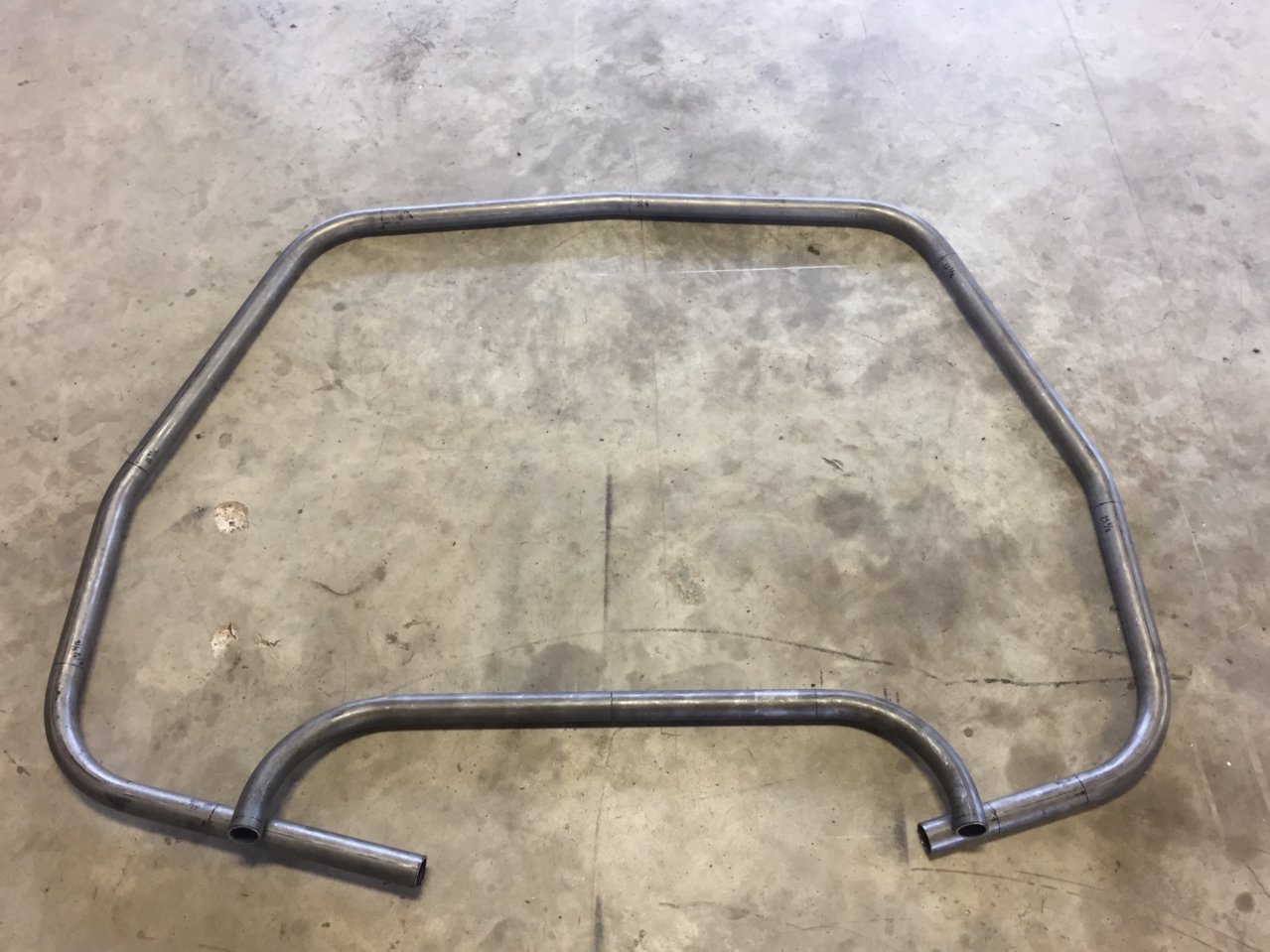

    I made some decent progress today. Getting all seven bends in the same plane was a trick for sure.

    30829E13-811D-4D1A-AE60-827330AACC5D.jpg BFB885BA-2F84-4139-8528-FB01BCD9645D.jpg

  15. Aug 17, 2018 at 5:05 AM
    #15
    ETXTacoma

    ETXTacoma Someone gave me a plasma cutter.

    Joined:
    Feb 12, 2016
    Member:
    #177942
    Messages:
    16,234
    Gender:
    Male
    First Name:
    Steven
    Tyler, Texas
    Vehicle:
    2014 DCSB Tacoma TRD OR
    Dynatrac ProRock 60 Rear Axle, that is important enough.
    Looking good man! I even see that Chris is going to run one of those fancy bluetooth driveshafts.:rofl:

    Bobby18 likes this.
  16. Aug 17, 2018 at 6:04 AM
    #16
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,038
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB
    He's about to run a bluetooth rear frame as well.

    ChadsPride and ETXTacoma[QUOTED] like this.
  17. Aug 17, 2018 at 12:28 PM
    #17
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,038
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB

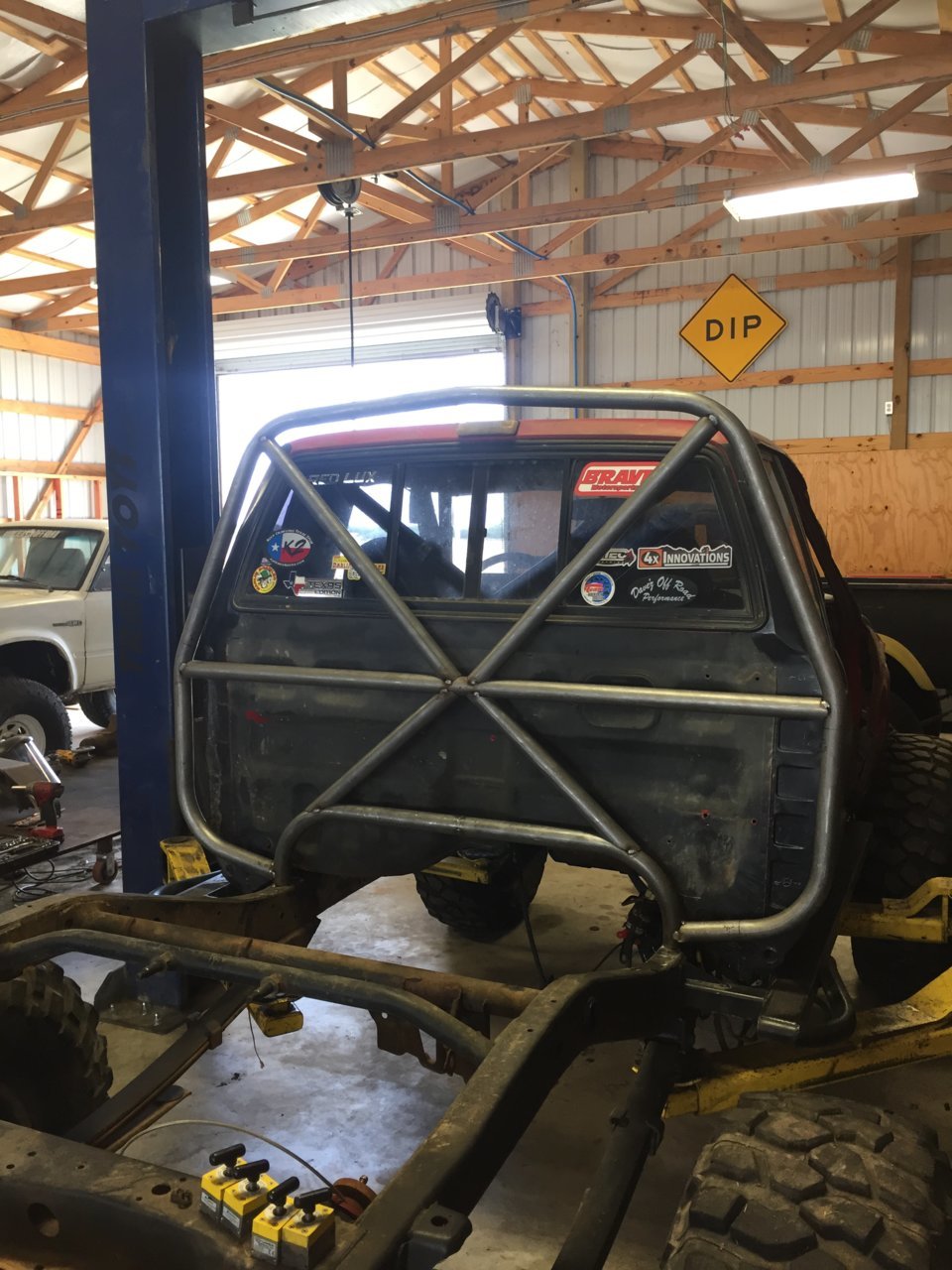

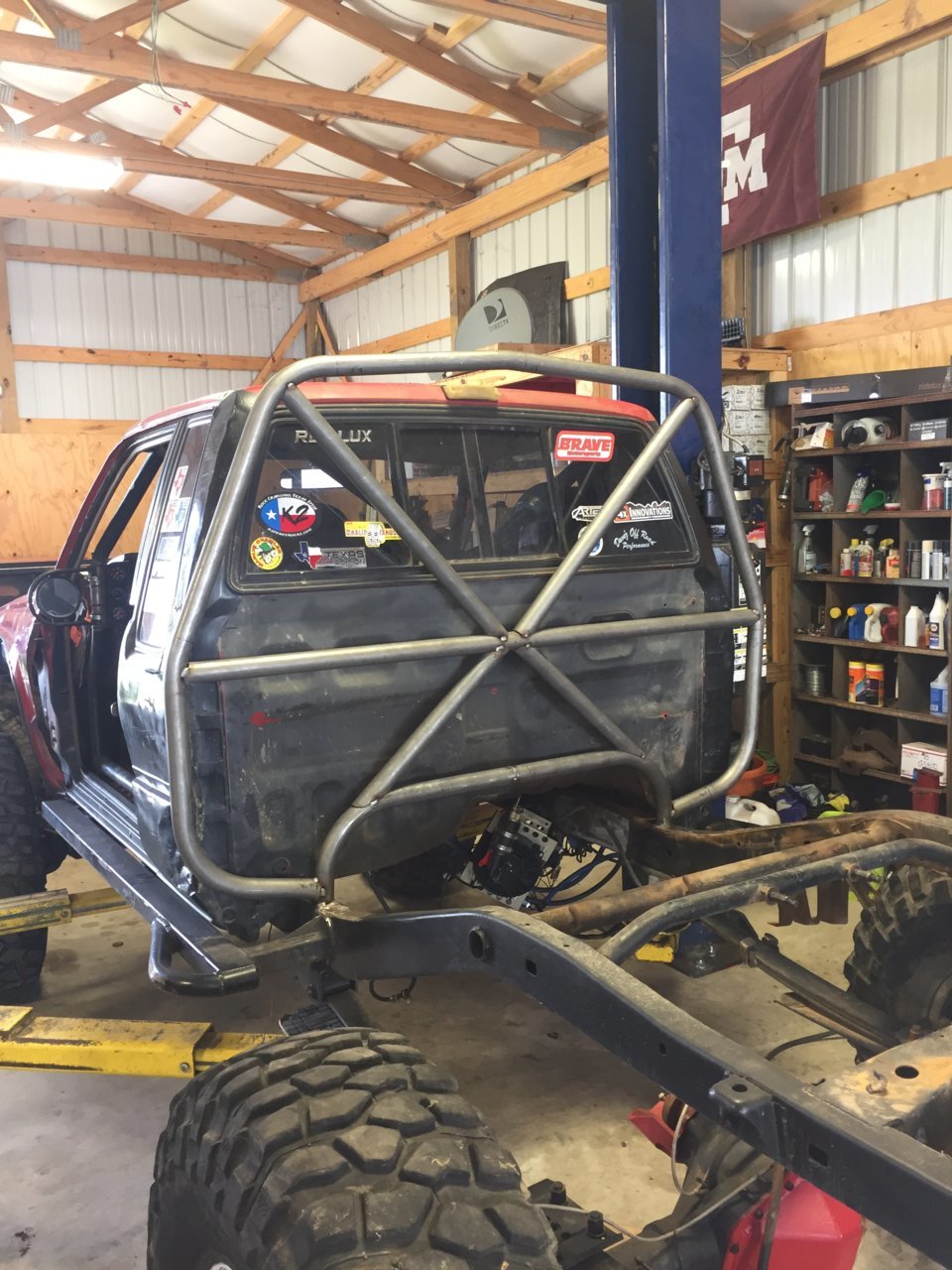

    All crossed up. I’m moving towards chopping the frame now.

    E68E7752-A507-4E2F-A769-DF722903E74C.jpg 8E957929-9D2E-4E02-9C44-7F0AE839C95B.jpg

  18. Aug 17, 2018 at 5:40 PM
    #18
    the_white_shadow

    the_white_shadow Well-Known Member

    Joined:
    Jul 30, 2018
    Member:
    #261052
    Messages:
    920
    Gender:
    Male
  19. Aug 17, 2018 at 6:41 PM
    #19
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,038
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB
    And just like that the frame is gone. I’ll be cutting frame plates and picking up some tube tomorrow, so look for an update Sunday.


    Lurkin, ETXTacoma and ChadsPride like this.
  20. Aug 17, 2018 at 6:54 PM
    #20
    the_white_shadow

    the_white_shadow Well-Known Member

    Joined:
    Jul 30, 2018
    Member:
    #261052
    Messages:
    920
    Gender:
    Male
    RIP frame. RIP. So much more room for activities now.
