Lock, Stock, and 2Wheel Low (3rd Gen DIY Mod)

Discussion in '3rd Gen. Tacomas (2016+)' started by BigWhiteTRD, Mar 1, 2018.

  1. Mar 1, 2018 at 3:41 PM
    #1
    BigWhiteTRD

    BigWhiteTRD [OP] Official thread killer (only crickets remain)

    Joined:
    May 24, 2017
    Member:
    #219848
    Messages:
    1,153
    Gender:
    Male
    First Name:
    Ted
    Treasure/Space Coast Florida
    Vehicle:
    2017 AC TRD OR Auto 4wd, 2012 AC SR5 4.0 MT 4wd
    Update:
    @lapoltba has been working on a plug and play solution. That solution should be available for order soon. https://www.tacomaworld.com/threads/2lo-plug-play-harness-discussion.592035/
    and
    https://www.tacomaworld.com/threads...-2wd-low-range-for-the-3rd-gen-tacoma.614743/
    Connectors to build your own plug and play are available for purchase, but not cost effective compared to the @lapoltba harness. For low cost, continue to use DIY solution here. For convenience see his plug and play harness. Both mods are electrically identical.

    Original Post:

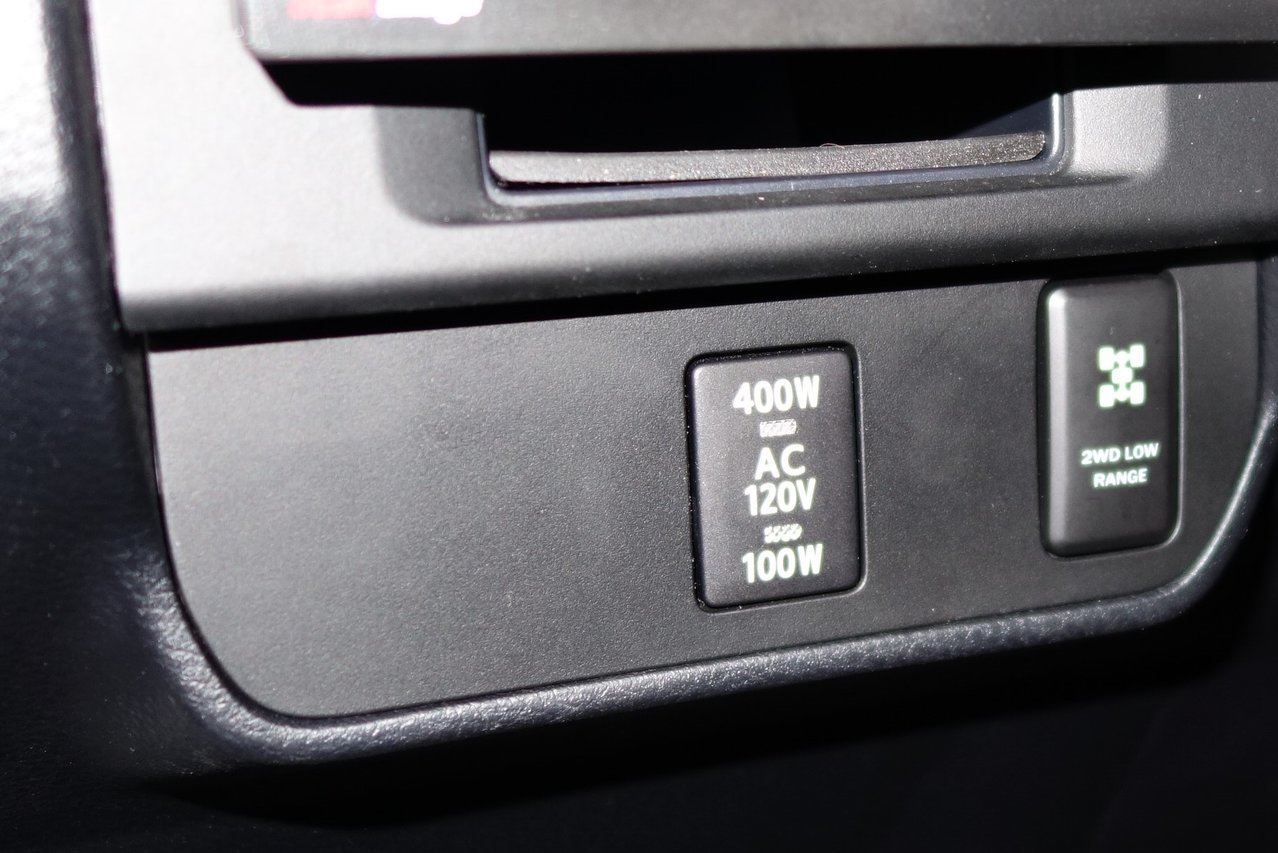

    I have successfully modified my 2017 TRDOR Auto to provide 2Wheel Low functionality. Just like the basic methods used previously on the 2nd gen, this method tricks the ECU into thinking the front Automatic Differential Disconnect (ADD) is in the 4wheel position when it is not. The method given here is a basic electromechanical solution, and does not provide the fancy computerized solution that was developed for 2nd gen.

    I have attached a pdf giving quick rundown of the installation and a pdf for a replacement visor info card. Note, this mod as written involves some significant hacking into the 4wd electrical harness, so this mod should not be considered for the faint of heart. I spent about 5 hours all in doing the actual mod with some trial-and-error, with taking pictures (not including the many developmental hours).

    I can't guarantee this mod works on anything but my truck, but I think any 4x4 3rd gen should be the equivalent. As people find errors please let me know and I will try to keep the pdf updated. Sorry for all the dark pictures in the pdf. Please give any helpful suggestions, that is how we make things better.

    I still dream that maybe somebody will have a better solution than this, but I am not holding my breath.

    For reference, the main usefulness of this mod is reversing the MT with a trailer, and pulling boats out of the water at boat ramps on auto and manual, as far as I am concerned.


    Enjoy

    Installed/tested compatible
    2017 TRD-OR Auto Access Cab (dev truck)
    2018 TRD-OR Manual Access Cab
    2016 Sport Manual Access Cab



    [Edit for alternatives:
    A possible retrofit for locking front hubs has been investigated. I have not done these mods and do not provide any warranty on appropriateness or usability on 3rd gen. Just listing here for helpfulness.

    https://www.tacomaworld.com/threads/fs-manual-hub-conversion-kit.511528/page-9#post-17494241

    https://www.tacomaworld.com/threads/free-wheel-hub-conversion-3rd-gen.513930/

    Thanks @tonered
    /Edit]

    [Edit 4/5/18] Edited pictures for improved clarity [/edit]


    Attached Files:

    Last edited: Jun 16, 2019
    Karminski, RNCB, walterj and 23 others like this.
  2. Mar 1, 2018 at 3:42 PM
    #2
    BigWhiteTRD

    BigWhiteTRD [OP] Official thread killer (only crickets remain)

    Joined:
    May 24, 2017
    Member:
    #219848
    Messages:
    1,153
    Gender:
    Male
    First Name:
    Ted
    Treasure/Space Coast Florida
    Vehicle:
    2017 AC TRD OR Auto 4wd, 2012 AC SR5 4.0 MT 4wd
    Saved for future discussion

    2016trdtacoma likes this.
  3. Mar 1, 2018 at 3:50 PM
    #3
    edgerat

    edgerat Well-Known Member

    Joined:
    Aug 2, 2013
    Member:
    #109668
    Messages:
    505
    Gender:
    Male
    First Name:
    Isaac
    Olympia, WA
    Vehicle:
    Brown Tacoma
    gas and oils
    Awesome! Could you now figure out a mod so I can engage the locker in 2wd? Pretty please?

  4. Mar 1, 2018 at 3:59 PM
    #4
    Frankenstuff

    Frankenstuff Anti bling activist

    Joined:
    Apr 28, 2017
    Member:
    #217549
    Messages:
    1,419
    Gender:
    Male
    First Name:
    Frankie
    Vehicle:
    16TRDORDCsb 4x4 & 2020 BMW M2 competition
    16 trd ORdcsb4x4 c4 swingout rear, cbi t3 front , arb lift,16"grabber x3 rtt, hilift,jerry cans,and sliders . 81 hilux trail donkey
    Can you like this more than once ?

  5. Mar 1, 2018 at 5:18 PM
    #5
    eurowner

    eurowner Duke Sky

    Joined:
    Feb 23, 2017
    Member:
    #211429
    Messages:
    1,401
    Gender:
    Male
    First Name:
    Scoty
    The Syncro Ranch, Salida ColoRADo
    Vehicle:
    '17 TRDOR DCLB Silver Sky Met
    TRD Exhaust, Mobtown 0* sliders W/fill plates, Mobtown Recovery Bar, Snugtop Hiliner Sport, Badger plates for Firestone airbag + U-bolt flip + Daystar cradle + Bump stop, HPS Silicone intake tube, 265-75-16 Toyo Open Country ATII, TRD alloy front skid. 5x Meso awesomeness, FreshMexicanTaco TacoGarage Camera Controller, WarFab Sheridan hitch skid,
    edgerat likes this.
  6. Mar 1, 2018 at 5:21 PM
    #6
    Norilsk

    Norilsk Well-Known Member

    Joined:
    Nov 12, 2015
    Member:
    #169435
    Messages:
    4,532
    Gender:
    Male
    First Name:
    Eugene
    kanata
    Vehicle:
    DiRtY5s and bEyoNd!
  7. Mar 1, 2018 at 5:23 PM
    #7
    Joe23

    Joe23 Canuckistikian

    Joined:
    Oct 5, 2015
    Member:
    #165909
    Messages:
    11,108
    Gender:
    Male
    First Name:
    Joe
    The Great White North
    Vehicle:
    2017 TRD Off-road DCSB
    Check build thread
    just saw this before you tagged me.

    Don't see a need for it. If i towed or had a boat maybe would be good for docks but offroad dont see a point, would just be in 4lo

    Dirtridercrf250 likes this.
  8. Mar 1, 2018 at 6:13 PM
    #8
    TeecoTaco

    TeecoTaco I miss Stün Gün

    Joined:
    Feb 26, 2017
    Member:
    #211739
    Messages:
    7,521
    SW Ontario
    Vehicle:
    16 Taco DCSB TRD Sport 6MT
    Modified the level of gas in the tank
    Ya, main thrust of this is MT reverse under load. The reverse ratio is a tad aggressive in the MT (only real complaint of MT owners)...2WD low when maneuvering a trailer in reverse under stress would alleviate this awkwardness and being 2WD would minimize binding of 4WD in low whilst navigating a trailer.

    Stems from the 3 stick days with manual locking hubs...the more configurations the better when they're at our fingertips control vs a computer deciding what ye shall have

    RNCB, subrat, stealthmode and 3 others like this.
  9. Mar 1, 2018 at 6:17 PM
    #9
    Harvo

    Harvo Hanging On !!!

    Joined:
    Apr 6, 2017
    Member:
    #215586
    Messages:
    956
    Gender:
    Male
    Vehicle:
    17' TRD Offroad DCSB
    SpiderTrax, RCI Sliders, Warn bumper, Smittybuilt winch, Ridge Grapplers...
    it's actually pretty handy off-road to be in 2 lo. There are times when you need the gearing without the front drive, and without the front pulling, it turns much easier.

  10. Mar 1, 2018 at 6:31 PM
    #10
    edgerat

    edgerat Well-Known Member

    Joined:
    Aug 2, 2013
    Member:
    #109668
    Messages:
    505
    Gender:
    Male
    First Name:
    Isaac
    Olympia, WA
    Vehicle:
    Brown Tacoma
    gas and oils
    In my experience, a locked rear end and open front is alarmingly capable off-road.

  11. Mar 2, 2018 at 7:38 AM
    #11
    tonered

    tonered tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    13,770
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    Thanks! That is just some awesome work.

    I'm a real novice when it comes to electrons but have been getting more confident. Given the amount of exposed wire on those connectors, this REALLY looks like a pretty simple mod. I like that relay and mount also.

    Comparing this to Up2NoGood's design, which has some logic built into it that eliminates the switch, this is pretty elegant.

    My biggest limitation right now is a switch position. I need / want a couple blanks. At least one below the 4wd knob would be great and one up top for the garage door opener mod is on my wishlist.

    Mesojdm has some sweet lower switch panels that now need to get serious about.

    Thanks again!

  12. Mar 2, 2018 at 8:05 AM
    #12
    BigWhiteTRD

    BigWhiteTRD [OP] Official thread killer (only crickets remain)

    Joined:
    May 24, 2017
    Member:
    #219848
    Messages:
    1,153
    Gender:
    Male
    First Name:
    Ted
    Treasure/Space Coast Florida
    Vehicle:
    2017 AC TRD OR Auto 4wd, 2012 AC SR5 4.0 MT 4wd

    I love the elegance of @Up2NoGood 's mod and wish he had a 3rd gen version. Unfortunately it looks like the 4wd ECU connectors are different from the 2nd Gen, (just from a glance so don't hold me to it), so I assume that it would be a big pain to get the new connector to allow his mod to give plug-and-play. Also, I don't think his solution has the resistor that 3rd gen seems to need, but I think that would be relatively easy to add.

    If we could find the ECU side of these connectors for 3rd gen, a plug-and-play solution (at least electro-mechanical solution at a minimum) would be relatively easy. I tested a plug-and-play solution for 3rd gen that spliced in near the front differential ADD in the engine compartment, but it was just too exposed to water for my liking.

    I want to install the switch up high next to the other traction control stuff (on the OR), but it was a quick first solution where it is (for me).

    tonered likes this.
  13. Mar 2, 2018 at 8:22 AM
    #13
    BigWhiteTRD

    BigWhiteTRD [OP] Official thread killer (only crickets remain)

    Joined:
    May 24, 2017
    Member:
    #219848
    Messages:
    1,153
    Gender:
    Male
    First Name:
    Ted
    Treasure/Space Coast Florida
    Vehicle:
    2017 AC TRD OR Auto 4wd, 2012 AC SR5 4.0 MT 4wd
    BTW, I have heard absolutely zero comments about the visor reference card. Anybody like the inclusion of the traction control modes, or want it displayed differently?

    tonered likes this.
  14. Mar 2, 2018 at 8:24 AM
    #14
    tonered

    tonered tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    13,770
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    Exactly. That was what Up2NoGood found briefly looking into the 3rd Gen also.

    Honestly, the switch in your version is not a big deal to me at all. The main hang up is the delays of getting through 4Hi and 2/4Lo engagements. In my own little mind, the ultimate version of 2/4Lo would be a direct engagement that could at least bypass the wait for 4Hi and the speed limitation raised to about 10mph or just removed altogether, accepting the known risks there.

    I am absolutely stoked to do this. Do you have a recommendation for a terminal crimp tool? I have some 20ga MS wire. Is that in the range for this?

  15. Mar 2, 2018 at 8:27 AM
    #15
    tonered

    tonered tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    13,770
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    Haha! Sorry, but I didn't even download it. The OEM one getting stowed in the OM case was my very first mod. I think I did that before the Taco even got to my driveway.

  16. Mar 2, 2018 at 9:09 AM
    #16
    BigWhiteTRD

    BigWhiteTRD [OP] Official thread killer (only crickets remain)

    Joined:
    May 24, 2017
    Member:
    #219848
    Messages:
    1,153
    Gender:
    Male
    First Name:
    Ted
    Treasure/Space Coast Florida
    Vehicle:
    2017 AC TRD OR Auto 4wd, 2012 AC SR5 4.0 MT 4wd
    It definitely possible that you could do a transfer case overrride mod, and force it into 4Lo while telling the computer it was still in 2Hi. With the front ADD still free you would get 2Lo that way. I could probably draw up a schematic for it, but I dont know if it would work until testing it. But there would be no speed lockout without a pretty advanced solution with a raspberry pi or maybe arduino or something.

    I used all 20awg for mine. I try not to go any smaller than that, its a nice compromise on not too weak to be delicate and being too stiff I think, and will carry 10 amp on overload just fine. I use a relatively cheap ratcheting crimper, (don't remember the manufacturer but similar to) https://www.amazon.com/Titan-Tools-11477-Ratcheting-Terminal/dp/B0069TRKJ0/
    But I think its totally worth it to pay for high quality crimps. There are a few better brands (that are similar to arguing about Sport vs OR) but I usually use TE, Molex, Amp and always use digikey for this kind of thing (select first class postage). Ring and 1/4 faston connectors here:
    https://www.digikey.com/catalog/en/partgroup/faston-pidg-series/9886
    https://www.digikey.com/catalog/en/partgroup/pidg-series/10003

    They connectors are a bit bulky and need some heat shrink to protect, but I used all 1/4 faston for the splice into the truck ECU wiring and ring connectors to tie into the relay. If I ever want to remove the mod, the faston blade connectors can be reattached male to female to return back close to original Blueprint.

  17. Mar 2, 2018 at 9:22 AM
    #17
    tonered

    tonered tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    13,770
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    Thanks for the recommendations. I've seen A&Ps do some fast, quality work with good crimpers like that. I've been getting by with pliers, then solder, and heat shrink. A solid connection, esp in an application like this, would be key. I want this to work permanently.

  18. Mar 2, 2018 at 9:42 AM
    #18
    BigWhiteTRD

    BigWhiteTRD [OP] Official thread killer (only crickets remain)

    Joined:
    May 24, 2017
    Member:
    #219848
    Messages:
    1,153
    Gender:
    Male
    First Name:
    Ted
    Treasure/Space Coast Florida
    Vehicle:
    2017 AC TRD OR Auto 4wd, 2012 AC SR5 4.0 MT 4wd
    Forgot to mention. I recommend to always test your crimper/terminal/wire combination on the bench before you begin on a piece of wire and sacrifice a terminal. Obviously can't do that on actual truck harness. That lets you section the terminal to inspect the crimp, strip off the insulation from the terminal to check the crimp, and at a minimum put about 10 lb tension test on it if using 20 awg wire to check for excessive or insufficient crimp. If it passes that load, it is a crimp you can be pretty confident in. But I think you will find that better quality terminals are the most important factor, especially as they are made with serrations or dimples that increase local pressure on the wire in a controlled way, that the cheap terminals lack.
    http://media.digikey.com/PDF/Data Sheets/Molex PDFs/TBO Quality Crimp Handbook.pdf

    tonered likes this.
  19. Mar 2, 2018 at 9:46 AM
    #19
    tonered

    tonered tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    13,770
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    Good point.

    I do give mine a nice pull and had them slip out in the past with cheap terminals using pliers. That is why I went to crimping and soldering. I'm looking forward to not doing that with the bits you recommended.

  20. Mar 7, 2018 at 2:27 PM
    #20
    Mountain Minstrel

    Mountain Minstrel Well-Known Member

    Joined:
    Nov 11, 2016
    Member:
    #202156
    Messages:
    772
    Gender:
    Male
    Sonora, CA
    Vehicle:
    '17 DCSB MT INFERNO
    I like this Idea as I have a MT and reverse is just stupid high. But, I noticed this in the PDF..."Don’t do this mod if you off-road remotely by yourself, as it increases the failure modes of the 4 Wheel System." Could you elaborate on this for me?
