Locker mod problem

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Jason'sLawnCare, May 24, 2009.

  1. Feb 12, 2011 at 12:40 PM
    #61
    arrowthrower

    arrowthrower Well-Known Member

    Joined:
    Dec 20, 2010
    Member:
    #47983
    Messages:
    111
    Gender:
    Male
    First Name:
    Logan
    Henderson, KY
    Vehicle:
    2011 DC Tacoma TRD
    Got mine to work. All colors are the same. The only thing I ran into was that there are 2 blue. Make sure to use the larger blue. Everything else was the same. Works great.

  2. Apr 14, 2011 at 12:41 PM
    #62
    06taco

    06taco Well-Known Member

    Joined:
    Jun 19, 2010
    Member:
    #39173
    Messages:
    412
    Gender:
    Male
    First Name:
    Brendan
    South Jersey
    Vehicle:
    08 4x4 4-door TRD Sport
    *TRD Supercharger *3" OME lift kit *Dakar rear leaf springs *Total Chaos UCA *TJM T15 Plate Bumper *TJM Stealth 9000 winch
    So I thought I had it all figured out how to do the locker mod, pull the glove box off found the ECU and the correct wires, bought the 218 DC relay from radio shack and all the connectors and crimps but then I started to confuse myself! My questions are:

    1. Once I cut the wire, what side do I connect the female connectors too that go to the relay? The side of the wire coming from where ever their coming from or the side where the wire going to the clip that connects to the ECU or do i feed them both into the female connector? This might be a stupid question but I got myself so confused over this I figured I'd just ask to make sure I don't mess it up! I hope I made it clear so you guys would understand? Any help would be much appreciated! Thanks!

  3. Aug 12, 2011 at 6:42 AM
    #63
    Charged05

    Charged05 Active Member

    Joined:
    Feb 17, 2011
    Member:
    #51344
    Messages:
    26
    Gender:
    Male
    Colorado
    Vehicle:
    2005 TRD Charged 4.0 6SPD
    SuperCharged
    What about just hard wiring the locker to another switch? You may not have the light or anything but if it works it works.

    Has anybody tried that? or can it be done?

  4. Aug 12, 2011 at 6:45 AM
    #64
    pudge151

    pudge151 Well-Known Member

    Joined:
    Apr 4, 2010
    Member:
    #34558
    Messages:
    4,064
    Gender:
    Male
    First Name:
    Sean
    Connecticut
    Vehicle:
    2015 Tundra Platinum
    bad ground?

    do you have a locker? lol

  5. Aug 12, 2011 at 7:09 PM
    #65
    Black3144

    Black3144 Well-Known Member

    Joined:
    Jul 6, 2011
    Member:
    #59438
    Messages:
    61
    Gender:
    Male
    Bellevue, NE
    Vehicle:
    '07 TRD Off Road
    Alright so is everyone using the DC relay? My AC relay doesn't seem to be working, I've checked and rechecked the wiring. I checked power going to the coil and I have a good ground. Any advice???

  6. Aug 13, 2011 at 12:36 PM
    #66
    Black3144

    Black3144 Well-Known Member

    Joined:
    Jul 6, 2011
    Member:
    #59438
    Messages:
    61
    Gender:
    Male
    Bellevue, NE
    Vehicle:
    '07 TRD Off Road
    Well never mind, went out and bought the DC relay and it works fine. Not sure why the hell they say to get the AC relay when there's only 10 VDC coming out of the Black/Red wire. So for future reference buy the DC relay and save some time.

  7. Oct 8, 2011 at 8:20 PM
    #67
    falcon195

    falcon195 Member

    Joined:
    Oct 8, 2011
    Member:
    #64830
    Messages:
    5
    Gender:
    Male
    First Name:
    Micheal
    Kalamazoo
    Vehicle:
    Tacoma's and 4runners
    Headers, lift, exhaust, cold air, grill
    I need help trying to do the locker mod on my 06 trd tacoma. I got the relay you said to get, got the wires hooked up just like your picture but the relay isn't even coming on the connections are clean. So Idk

  8. Oct 8, 2011 at 8:27 PM
    #68
    DDD

    DDD Shine bright like a hymen

    Joined:
    Mar 6, 2009
    Member:
    #14416
    Messages:
    2,290
    Gender:
    Male
    First Name:
    Derek
    Santa Clarita, CA
    Vehicle:
    06 DC 4x4 TRD Off-Road
    I heard from another member that radio shack has recently changed the pin numbers on the 275-218 relay. So the numbers no longer match my instructions.

    Please post a picture of the relay and the back of the package. I can give you new instructions.

  9. Oct 9, 2011 at 6:45 AM
    #69
    falcon195

    falcon195 Member

    Joined:
    Oct 8, 2011
    Member:
    #64830
    Messages:
    5
    Gender:
    Male
    First Name:
    Micheal
    Kalamazoo
    Vehicle:
    Tacoma's and 4runners
    Headers, lift, exhaust, cold air, grill
    There are two greens for the power and there is a green for the ground but I have looked at your instructions and on my relay the numbers might be different. There are numbers on the bottom next to each out thing they go 1 and 4 is power witch are green 3 is pink 5 is blue 6 is LT green 7 is red/black 8 is ground and I'm going by your picture cause your numbering diagram changes on mine so Idk what to do now. [​IMG][​IMG][​IMG][/url[​IMG]

  10. Oct 9, 2011 at 8:00 AM
    #70
    DDD

    DDD Shine bright like a hymen

    Joined:
    Mar 6, 2009
    Member:
    #14416
    Messages:
    2,290
    Gender:
    Male
    First Name:
    Derek
    Santa Clarita, CA
    Vehicle:
    06 DC 4x4 TRD Off-Road
    Thanks for the pictures.

    Looks like radio shack changed the relay.

    Looking at the diagram on that relay I believe this should work:

    1 - Violet
    2 - Green/Black
    3 - Pink
    4 - Violet
    5 - Blue
    6 - Light Green
    7 - Ground source
    8 - Red/Black

    You should be able to plug in just pins 7 and 8 (no other wires) and press your locker button and hear the relay click. That will tell you that pin 7 is connected to a good ground source and the relay is working properly.

    Let me know how it works out for you.

  11. Oct 9, 2011 at 8:54 AM
    #71
    falcon195

    falcon195 Member

    Joined:
    Oct 8, 2011
    Member:
    #64830
    Messages:
    5
    Gender:
    Male
    First Name:
    Micheal
    Kalamazoo
    Vehicle:
    Tacoma's and 4runners
    Headers, lift, exhaust, cold air, grill
    It works. I just bought another relay redid all the connections and it worked thanks a lot can't wait to try it out. One more question. I know a lot about lifts kits and what's good and bad. I don't like doing things hafeway. so I'm looking at a 4.5 rcd lift kit on 33s or a 6in fabtect on 33s wondering witch one would be better wondering if 6in is too much and if I'm going to run into problems.

  12. Nov 6, 2011 at 1:05 PM
    #72
    sernabe

    sernabe Member

    Joined:
    Sep 21, 2008
    Member:
    #9377
    Messages:
    13
    Gender:
    Male
    First Name:
    brian
    Casa Grande
    Vehicle:
    05 SR5 TRD
    SnugTop camper shell
    As always, TW is the greatest site!!! i just successfully mod'ed the taco with the any time lockers. the only issue i ran into was you need to reattach the F12 connector after your work is complete if you expect the lockers and 4 wheel drive to work properly!!! :)

    Thanks gentlemen.

    Next weekend is the music player mod!!!

  13. Feb 1, 2012 at 8:04 PM
    #73
    kriskross

    kriskross Shits & Giggles

    Joined:
    Oct 3, 2011
    Member:
    #64585
    Messages:
    1,514
    Gender:
    Male
    First Name:
    Chris
    Northwest Florida
    Vehicle:
    08 Tacoma Sport DCLB
    See Build Thread
    Just finished my locker anytime mod. Had no real issues. Only took about 30 minutes and it worked the first time. Thanks guys!

  14. Feb 21, 2012 at 11:32 PM
    #74
    THExBUSxDRIVER

    THExBUSxDRIVER Victory is reserved...

    Joined:
    Mar 19, 2010
    Member:
    #33508
    Messages:
    4,134
    First Name:
    GOO5E
    Vehicle:
    Old Man Tan!
    Not enough.
    A question. would locking the locker then hauling ass in the sand be safe?

    Locking while under 5mph THEN playing of course..

  15. Mar 14, 2012 at 4:55 PM
    #75
    Jason'sLawnCare

    Jason'sLawnCare [OP] Prepared for Bambi

    Joined:
    Apr 12, 2009
    Member:
    #15878
    Messages:
    12,352
    Gender:
    Male
    First Name:
    Jason
    Jacksonville Florida
    Vehicle:
    08 4x4 Double Cab TRD Rugged Trail
    CBI Moab 2.0, CBI Trail Rider 2.0, CBI sliders w/kickout, Superwinch EPi9.0S, OME sport shocks w/886 coils, OME n182, 1.5" aal, JasonBuilt 3/16th full belly skid, BuiltRight uca, Body Mount Chop, 285/75/16 km2's, Rear cat delete, exhaust crossover rerouted, Fog light anytime, Locker mod, Rear leaf tsb, Debadged, Uws Tool Box, Electric Exhaust Cutout, AFE Pro Dry S, Kiwi Wifi, Diff Breather Relocated, Grom Ipod Adapter, Dual Diehard platinum batteries isolated by BlueSea marine switch
    I've gone pretty quick with it before, just be careful not to turn too sharp with too much gas because there rear is more likely to spin out with it locked.

  16. Mar 14, 2012 at 5:22 PM
    #76
    DDD

    DDD Shine bright like a hymen

    Joined:
    Mar 6, 2009
    Member:
    #14416
    Messages:
    2,290
    Gender:
    Male
    First Name:
    Derek
    Santa Clarita, CA
    Vehicle:
    06 DC 4x4 TRD Off-Road
    I keep mine locked the whole time I am in Pismo.

    Locked and in 4wd high. Works well at Pismo up to 50 mph with tires at 15psi.

  17. Jul 12, 2012 at 10:47 PM
    #77
    650H1

    650H1 Well-Known Member

    Joined:
    Jan 3, 2011
    Member:
    #48689
    Messages:
    8,572
    Gender:
    Male
    First Name:
    Mike
    NH
    Vehicle:
    2010 Tundra TRD OR C/M 5.7l 4x4
    not to revive an old thread, but which wire harness going into the ECU did you guys tap into. there are two that go into the ecu, the top or bottom one?

  18. Jul 29, 2012 at 4:13 PM
    #78
    tacobox

    tacobox Evasive Maneuvers PMKMS

    Joined:
    May 9, 2010
    Member:
    #36834
    Messages:
    596
    Gender:
    Male

    It's the F12 connector. check the PDF and wire the 275-218 relay like this:

    1- Green / Black
    2- Violet
    3- Violet
    4- Pink
    5- Green
    6- Blue
    7- Red/Black
    8- Ground


    Attached Files:

  19. Aug 6, 2012 at 9:58 PM
    #79
    wagz502

    wagz502 Active Member

    Joined:
    Aug 1, 2012
    Member:
    #83866
    Messages:
    33
    Gender:
    Male
    First Name:
    Wagz
    NE Ohio
    Vehicle:
    2012 TRD Off Road
    Workin on it.....
    Does this mod work the same on a 2012?

  20. Aug 22, 2012 at 4:36 PM
    #80
    06taco

    06taco Well-Known Member

    Joined:
    Jun 19, 2010
    Member:
    #39173
    Messages:
    412
    Gender:
    Male
    First Name:
    Brendan
    South Jersey
    Vehicle:
    08 4x4 4-door TRD Sport
    *TRD Supercharger *3" OME lift kit *Dakar rear leaf springs *Total Chaos UCA *TJM T15 Plate Bumper *TJM Stealth 9000 winch
    So after reading many articles on anytime locker mod I felt comfortable to give it a try. I follow the diagram as mention in this thread:
    1 - Green / Black
    2- Violet
    3- Violet
    4-Pink
    5- Green
    6- Blue
    7- Red/Black
    8- Ground

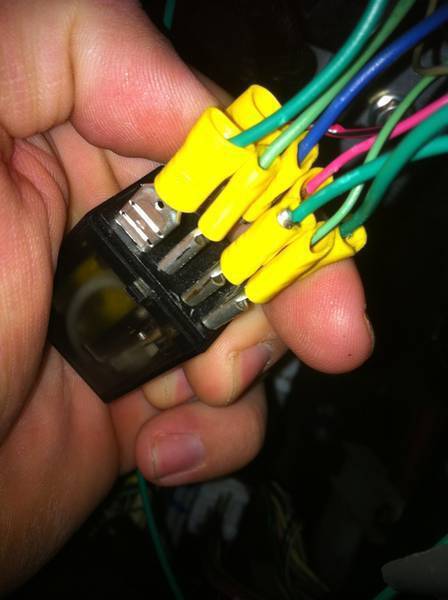

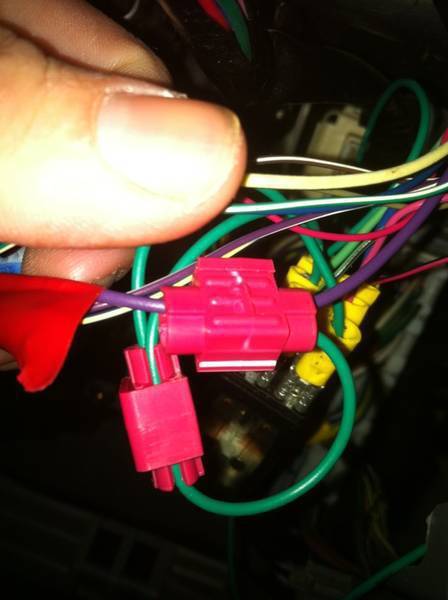

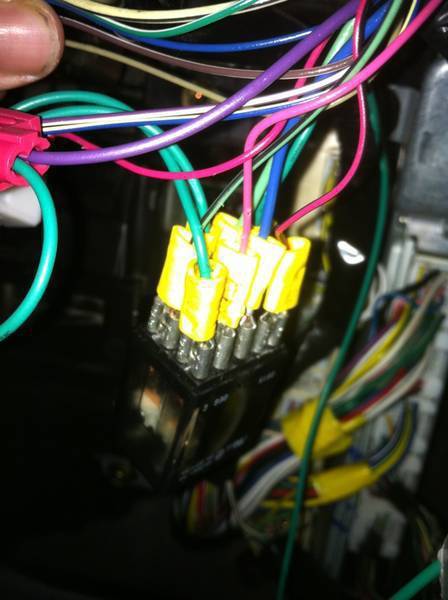

    I used Radio Shack 275-218 relay and upon completion I turned the ignition to "on" and engaged the locker button. I can hear the relay click and visibly see the relay switch so I figured it was good and time to try it out in the dirt.

    Once on the dirt I engaged the locker button and drove some circles and spun the wheels some but could not get the rear tires to lock up. I still only had one tire spinning? I engaged the truck into 4hi and 4lo and both worked but the weird thing was I didn't have any lights on the dash light up except for a yellow 4lo light when it was in 4lo.

    Shouldn't there be some sort of light that will light up in 4hi and also when the locker Is engaged? Any suggestions would be appreciated.
