Locker mod problem

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Jason'sLawnCare, May 24, 2009.

  1. Jul 27, 2013 at 11:40 AM
    #101
    Ghost848

    Ghost848 Well-Known Member

    Joined:
    Mar 8, 2012
    Member:
    #74480
    Messages:
    1,545
    Gender:
    Male
    First Name:
    Tony
    Alberta,Canada
    Vehicle:
    09 V6 TRD OR Silver M6
    OME + Dakers, 285/75R16 Nitto Trail Grapplers, ARB Bumper, Columbia overland Dual battery, Super winch,CC stage 4 clutch, bestop supertop, URD TO bearing, BHLM headlights, Cruisin offroad rear bumper, Harrop front E-locker.

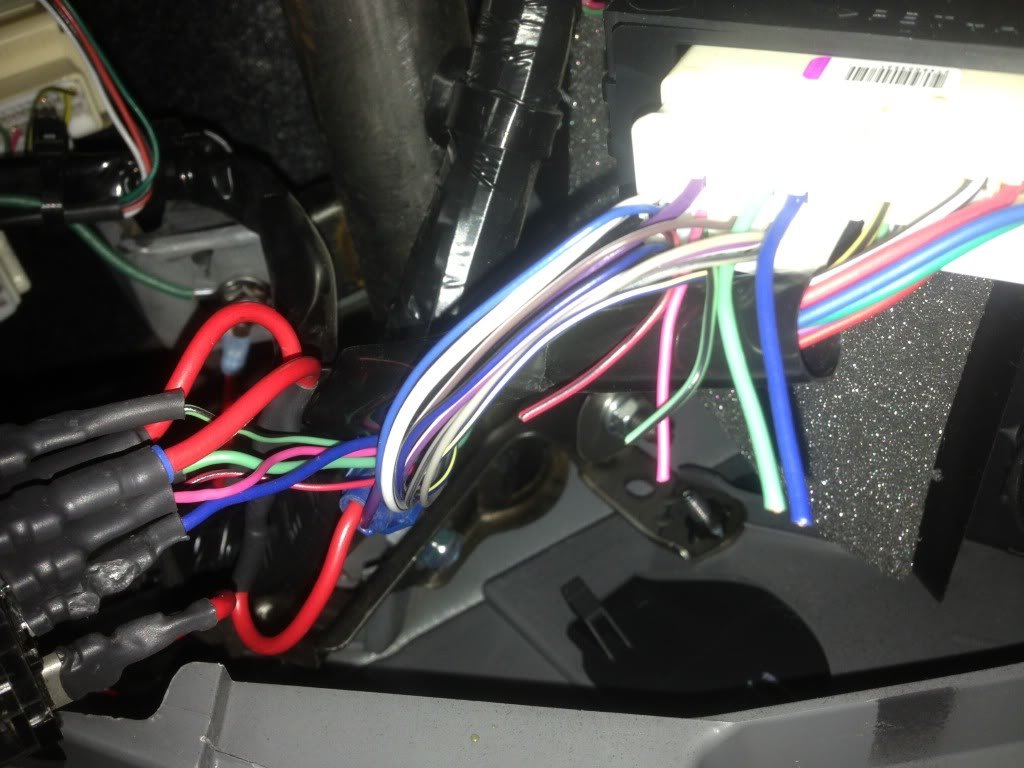

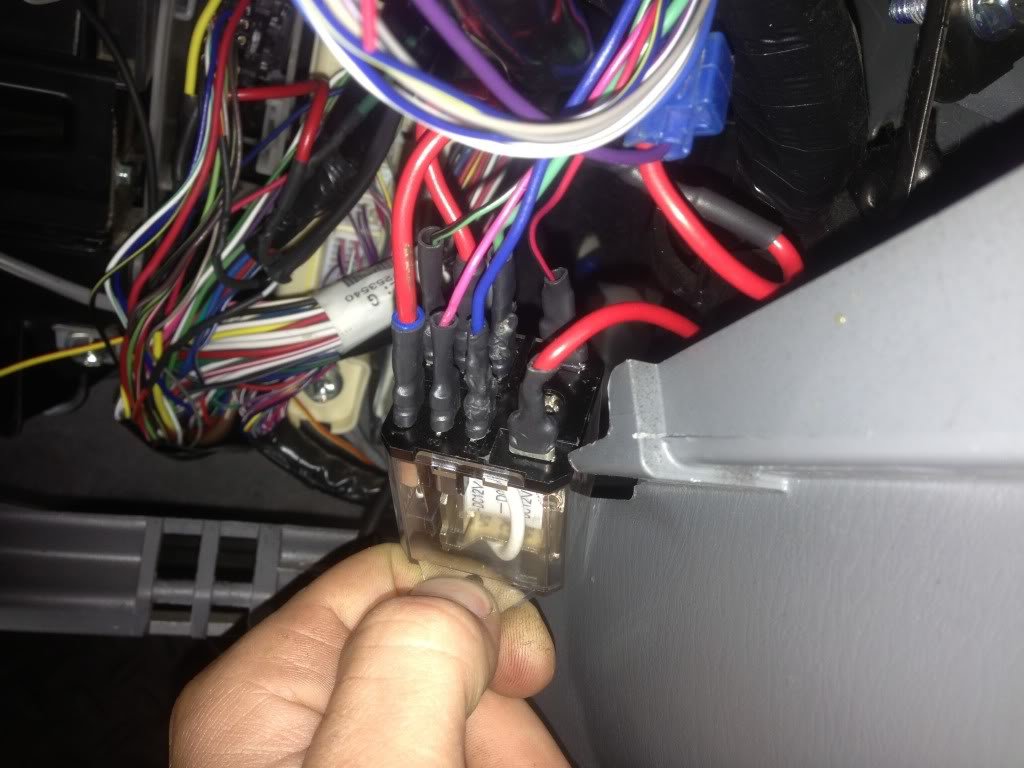

    Ugg I hate being the guy to revive stuff but figure this would be the spot, so I tackled this mod today, hooked all up relay clicks, motor engages and locker locks but wont disengage, wtf? so i mess with the wires a little and now i got it to work engage and disengage, awesome... EXCEPT.... the factory switch, when pushed in its disengaged, and when out its engaged... so the factory switch on the dash funtion is backwards. Im stumped atm and cant figure what could cause that. I double checked pin # as per the diagram so I got the right wires??? weird. its gonna bug the crap out of me though. any ideas?
    9BA9162C-72ED-4E0A-8CA0-9DC45AACC2D2-184_562cfb360bd5798eabec11d8685aafd830319a5d.jpg
    20082C74-DFD9-4B2C-A37C-1B0917609917-184_1c77cb6e34fb06a2187032c04653e19c47f051a3.jpg
    19AC4F6F-4756-472F-AC0E-9F597670E533-184_aa6d1697245cc6e0193f631d5bbb4fb4b2843e9a.jpg

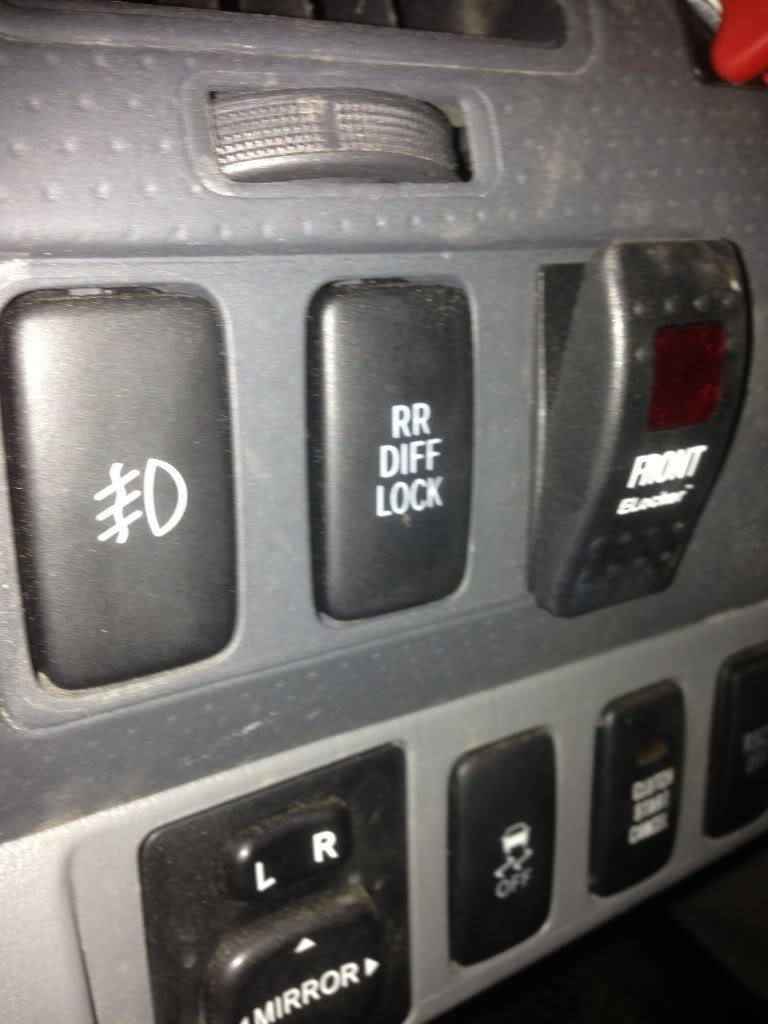

    Engaged
    1481F18C-D15B-4602-84EE-AF774718D994-184_12c5cffa011b84a800ed9f934760b87301b97157.jpg

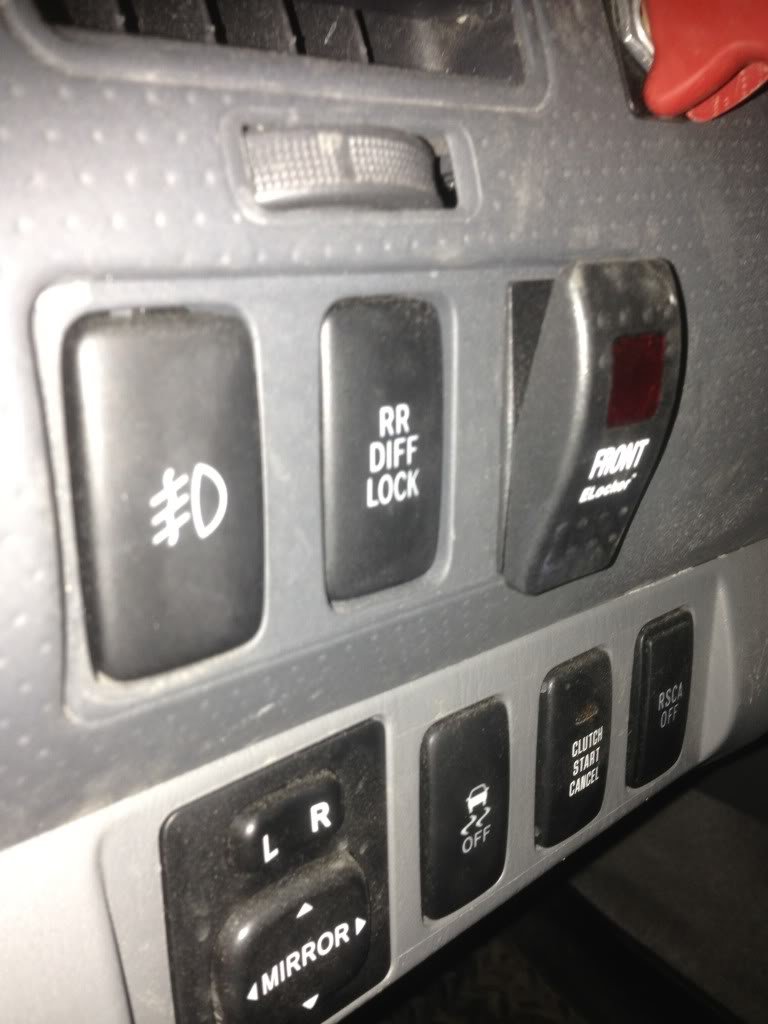

    Disengaged
    0E2E94D5-8167-4902-80BF-C370C153CB9F-184_3768b7bfe4dd6655d1700c0bbcd62cdd766c7650.jpg

    Last edited: Jul 27, 2013
  2. Aug 5, 2013 at 7:55 AM
    #102
    Ghost848

    Ghost848 Well-Known Member

    Joined:
    Mar 8, 2012
    Member:
    #74480
    Messages:
    1,545
    Gender:
    Male
    First Name:
    Tony
    Alberta,Canada
    Vehicle:
    09 V6 TRD OR Silver M6
    OME + Dakers, 285/75R16 Nitto Trail Grapplers, ARB Bumper, Columbia overland Dual battery, Super winch,CC stage 4 clutch, bestop supertop, URD TO bearing, BHLM headlights, Cruisin offroad rear bumper, Harrop front E-locker.
    Any ideas?

  3. Nov 17, 2013 at 4:51 PM
    #103
    silverbulet93

    silverbulet93 Member

    Joined:
    May 18, 2012
    Member:
    #79083
    Messages:
    19
    Gender:
    Male
    First Name:
    Tyler
    Ferndale,WA
    Vehicle:
    2012 TRD Offroad. Little bit tricked
    LED headlights and fogs, 3" spacer lift 285/65/18 toyo at 2s, Kim's rock stars, urd TCAI, MBRP exhaust, 2 10" Rockford fosgate p3sd4s, every other light replaced with LEDS, blacked out badges
    Just a quick question for the 2012s. Where you guys are saying a pink wire mine is pink with a blue stripe. Are they the same wire?

  4. Nov 24, 2013 at 4:06 PM
    #104
    BoatRacer

    BoatRacer Well-Known Member

    Joined:
    Oct 26, 2013
    Member:
    #115290
    Messages:
    672
    Gender:
    Male
    First Name:
    Mike
    Olalla WA
    Vehicle:
    '02 TRD 3.4 5-Speed
    All Pro front bumper, Warn winch, leds, Dakar leaf pack, locker wire mod.

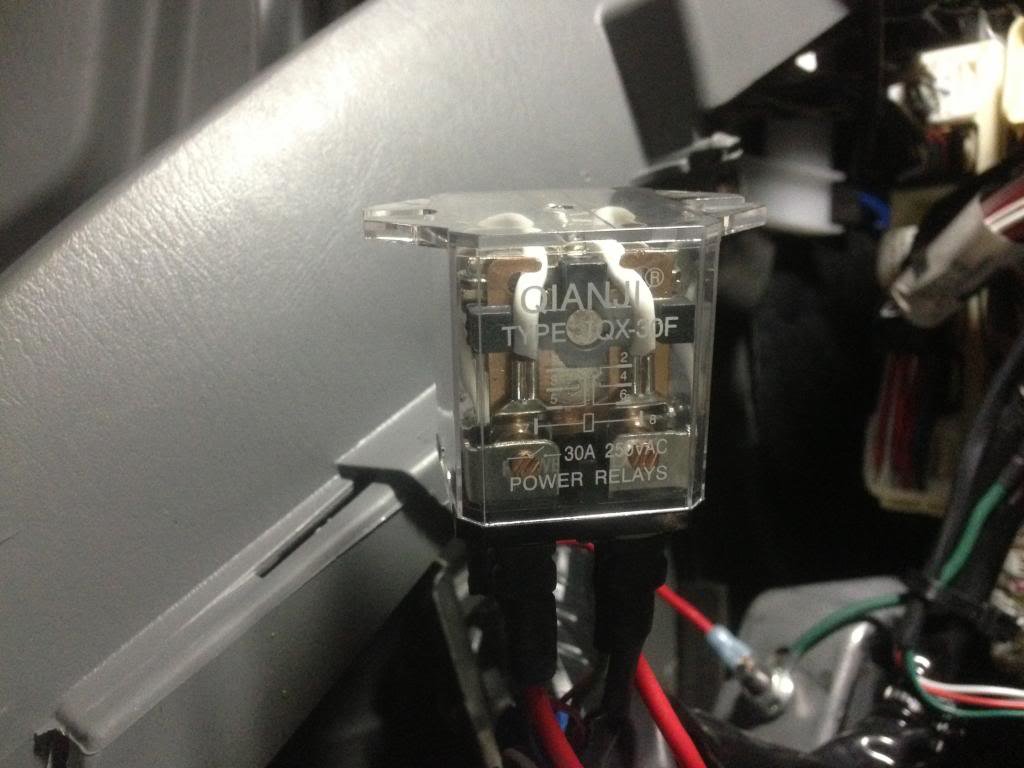

    I know this is from a couple months ago, but my guess is because you used a 250 VAC relay. You need a relay with a DC volt coil I would think?

  5. Nov 24, 2013 at 4:08 PM
    #105
    BoatRacer

    BoatRacer Well-Known Member

    Joined:
    Oct 26, 2013
    Member:
    #115290
    Messages:
    672
    Gender:
    Male
    First Name:
    Mike
    Olalla WA
    Vehicle:
    '02 TRD 3.4 5-Speed
    All Pro front bumper, Warn winch, leds, Dakar leaf pack, locker wire mod.
    I just did this mod today and your 2012 might be different from my '08, mine had two pink wires, the one I cut was the smaller gauge pink next to the green/black wire. I don't have a pink/blue wire.

  6. Feb 15, 2014 at 9:13 PM
    #106
    Peteswit

    Peteswit Member

    Joined:
    Feb 15, 2014
    Member:
    #123165
    Messages:
    5
    Gender:
    Male
    First Name:
    Pete
    Vehicle:
    05 dblcab 6 speed
    Long tube headers/y-pipe Rear o2 sims Super 40 flow-master muffler/ turndown Cut-out to cherry bomb muffler K&N air filter Short shifter/ TRD shift knob Rear diff locker anytime mod Steering wheel control dif lock Satoshi grill mod Bed-liner: bull bar/ sidesteps Bed-liner painted stock wheels Blacked out emblems Red painted brake calipers HID 8000k headlights Fog light with parking lights mod Ground effect foot lights Lock on bed box Bed tie-downs Train horn/ air system 5 gal tank Train horn w/ panic button Alpine Bluetooth head unit Front door infinity speakers 12in kicker sub/ 1600w amp
    Did the locker mod. Pretty sure everything is working but when I engage the locker the red light on dash by 4wd and lo range lights does not turn on. I know it is getting power because it pops on when starting truck but not when it is engaged. The 4wd and lo range lights still work when switched on. Did I wore something up wrong?

  7. Feb 16, 2014 at 9:39 AM
    #107
    Nick1716

    Nick1716 Member

    Joined:
    Jan 12, 2013
    Member:
    #95043
    Messages:
    15
    Gender:
    Male
    3.5" lift, arb bumper, warn m8000, 33s borla cat back exhaust, Doug thorely long tube headers, afe intake, throttle body spacer
    Are you sure it's fully engaged? Just cuz the dial is turned doesn't mean it's engaged..With mine it doesn't come on until it's fully engaged

  8. Feb 16, 2014 at 8:47 PM
    #108
    Peteswit

    Peteswit Member

    Joined:
    Feb 15, 2014
    Member:
    #123165
    Messages:
    5
    Gender:
    Male
    First Name:
    Pete
    Vehicle:
    05 dblcab 6 speed
    Long tube headers/y-pipe Rear o2 sims Super 40 flow-master muffler/ turndown Cut-out to cherry bomb muffler K&N air filter Short shifter/ TRD shift knob Rear diff locker anytime mod Steering wheel control dif lock Satoshi grill mod Bed-liner: bull bar/ sidesteps Bed-liner painted stock wheels Blacked out emblems Red painted brake calipers HID 8000k headlights Fog light with parking lights mod Ground effect foot lights Lock on bed box Bed tie-downs Train horn/ air system 5 gal tank Train horn w/ panic button Alpine Bluetooth head unit Front door infinity speakers 12in kicker sub/ 1600w amp
    Not really, I am sure I have everything wired up correctly but I don't think it is locking. When I hit the locker button I hear the relay click but nothing else. I'm going to try and test the relay to see if it is working correctly because I see no other reasons of why it isn't working. I don't think it is engaging because the locker light doesn't even blink saying that it is trying to lock.

  9. Feb 16, 2014 at 8:54 PM
    #109
    username

    username Fluffer

    Joined:
    Oct 15, 2010
    Member:
    #44704
    Messages:
    6,069
    Pendleton, Or
    Vehicle:
    05 Taco with some crap welded to it
    mostly stock
    Try driving in an S pattern. The locker actuator slides a sleeve over the axle splines. If it's not lined up right, it won't lock. You can also test it by putting the rear axle on jackstands (safety third!), engage the locker with the key on and try to rotate one rear tire. If the other one turns the opposite direction, it is not locked. Double check your wiring.

  10. Feb 16, 2014 at 9:07 PM
    #110
    BradyT88

    BradyT88 Well-Known Member

    Joined:
    Nov 3, 2011
    Member:
    #66419
    Messages:
    36,666
    With the locker mod the locker light doesn't blink anymore. It is just off for unlocked or on for locked.

  11. Feb 16, 2014 at 9:48 PM
    #111
    username

    username Fluffer

    Joined:
    Oct 15, 2010
    Member:
    #44704
    Messages:
    6,069
    Pendleton, Or
    Vehicle:
    05 Taco with some crap welded to it
    mostly stock
    No sir. If it is trying to engage it blinks. When the contacts are closed due to the actuator moving into the locked position, no blink. If it's blinkin', it's thinkin'.

  12. Feb 17, 2014 at 5:54 AM
    #112
    Peteswit

    Peteswit Member

    Joined:
    Feb 15, 2014
    Member:
    #123165
    Messages:
    5
    Gender:
    Male
    First Name:
    Pete
    Vehicle:
    05 dblcab 6 speed
    Long tube headers/y-pipe Rear o2 sims Super 40 flow-master muffler/ turndown Cut-out to cherry bomb muffler K&N air filter Short shifter/ TRD shift knob Rear diff locker anytime mod Steering wheel control dif lock Satoshi grill mod Bed-liner: bull bar/ sidesteps Bed-liner painted stock wheels Blacked out emblems Red painted brake calipers HID 8000k headlights Fog light with parking lights mod Ground effect foot lights Lock on bed box Bed tie-downs Train horn/ air system 5 gal tank Train horn w/ panic button Alpine Bluetooth head unit Front door infinity speakers 12in kicker sub/ 1600w amp
    Okay well I've got some stuff to try then. I have a feeling it is the relay tho and I am most likely going to put in a dpdt toggle switch and try that.

  13. Feb 17, 2014 at 10:05 AM
    #113
    BradyT88

    BradyT88 Well-Known Member

    Joined:
    Nov 3, 2011
    Member:
    #66419
    Messages:
    36,666
    Mine used to blink when it was trying to engage, just like 4wd does, but after I did the Locker Anytime Mod, it no longer blinks when trying to engage. Is there another version of the locker mod? The one I did specifically mentioned that the light would no longer blink while thinking.

  14. Feb 17, 2014 at 11:30 AM
    #114
    BoatRacer

    BoatRacer Well-Known Member

    Joined:
    Oct 26, 2013
    Member:
    #115290
    Messages:
    672
    Gender:
    Male
    First Name:
    Mike
    Olalla WA
    Vehicle:
    '02 TRD 3.4 5-Speed
    All Pro front bumper, Warn winch, leds, Dakar leaf pack, locker wire mod.
    Mine blinks with this relay mod. Seems strange it's different for some and blinks for others. The important thing is that it works though, I don't care one way or another about the light.

  15. Feb 17, 2014 at 5:45 PM
    #115
    Peteswit

    Peteswit Member

    Joined:
    Feb 15, 2014
    Member:
    #123165
    Messages:
    5
    Gender:
    Male
    First Name:
    Pete
    Vehicle:
    05 dblcab 6 speed
    Long tube headers/y-pipe Rear o2 sims Super 40 flow-master muffler/ turndown Cut-out to cherry bomb muffler K&N air filter Short shifter/ TRD shift knob Rear diff locker anytime mod Steering wheel control dif lock Satoshi grill mod Bed-liner: bull bar/ sidesteps Bed-liner painted stock wheels Blacked out emblems Red painted brake calipers HID 8000k headlights Fog light with parking lights mod Ground effect foot lights Lock on bed box Bed tie-downs Train horn/ air system 5 gal tank Train horn w/ panic button Alpine Bluetooth head unit Front door infinity speakers 12in kicker sub/ 1600w amp
    I finally got the mod to work. The relay I bought from radio shack although similar to the one on the sight where I found the mod, was slightly different. I fixed the wiring and everything is working great! Mine does not blink either, just goes on when engaged. I installed a blinking light by the button that turns on when switch is pushed so that blinks when it is not engaged yet.

  16. Feb 17, 2014 at 5:48 PM
    #116
    Peteswit

    Peteswit Member

    Joined:
    Feb 15, 2014
    Member:
    #123165
    Messages:
    5
    Gender:
    Male
    First Name:
    Pete
    Vehicle:
    05 dblcab 6 speed
    Long tube headers/y-pipe Rear o2 sims Super 40 flow-master muffler/ turndown Cut-out to cherry bomb muffler K&N air filter Short shifter/ TRD shift knob Rear diff locker anytime mod Steering wheel control dif lock Satoshi grill mod Bed-liner: bull bar/ sidesteps Bed-liner painted stock wheels Blacked out emblems Red painted brake calipers HID 8000k headlights Fog light with parking lights mod Ground effect foot lights Lock on bed box Bed tie-downs Train horn/ air system 5 gal tank Train horn w/ panic button Alpine Bluetooth head unit Front door infinity speakers 12in kicker sub/ 1600w amp
    Diagram of relay from RadioShack:

    ---\/\/\---
    A B
    A2 B2
    A1 B1

    Slightly different from relay instructions from the sight: ---\/\/\---
    A1 B1
    A2 B2
    A B

    Last edited: Feb 17, 2014
  17. Mar 15, 2014 at 6:29 PM
    #117
    dakotasyota

    dakotasyota Just a Fringe of the Ging in your Minge

    Joined:
    Jun 11, 2013
    Member:
    #106099
    Messages:
    7,937
    Gender:
    Male
    First Name:
    Dakota
    Ellensburg, WA
    Vehicle:
    06 Access Cab, Manual, V6, 4x4, TRD Off-Road
    Total Chaos +2 LT w/ 2.5 x 8 Kings, 700 lb coils, Chevy 63s, BAMF Shock relocation, 12" King Smoothies, Locker Anytime Mod, 5% Tint All Around, 4xInnovations full skids, Custom Made Rock Sliders, 4xInnovations HC Rear Bumper w/ Tire Carrier, SOS Original Plate 2 Front Bumper, 130 w KC Slimlites, Homertaco Raptor Grill, Bestop Supertop, Smittybilt 9500 lb winch, Flowmaster 40 series, JVC deck w/ 12" Rockford Fosgate T1 in custom box, and lots more!!
    Just finished this mod. Worked beautifully! I just wanted to remind everyone of the new relay from radio shack... you do have to wire it this way:
    Maybe we should have this added to the cheap/free mods page?

  18. Mar 24, 2014 at 1:23 AM
    #118
    senojeelnodnarb

    senojeelnodnarb Well-Known Member

    Joined:
    Oct 3, 2012
    Member:
    #88259
    Messages:
    1,435
    Gender:
    Male
    First Name:
    Brandon
    Oahu, HI /Canton, NC
    Vehicle:
    2013 Tacoma DCSB 4x4 TRD OR, 6-Spd Manual
    Fully De-Badged, Mossy Oak seat covers, Fog Light anytime mod, Custom Bed Light Bar, flowmaster 40 series, Plasti-Dipped Grille, Painted Stock TRD Rims, Custom Plate Bumper, High-Lift Bed Mount, Ballacula Trailer Plug Relocate, Rear Seat Dog Platform, sunglasses holder Switch panel, 2" lift, 285/75/R16 Mickey Thompson Baja MTZ, custom sliders, + a shit load more,
    did this last night.... but im colorblind, so instead of a red/black wire i had a pink/black wire. took an hour to decide to bite the bullet and cut it. and wondering if the spades are on the lockre side or 4wd computer side. but works awesome!!! especially in sand

  19. Mar 24, 2014 at 7:33 AM
    #119
    BradyT88

    BradyT88 Well-Known Member

    Joined:
    Nov 3, 2011
    Member:
    #66419
    Messages:
    36,666
    Wow... that could make wiring difficult... Glad you got it figured out!:thumbsup:

  20. Mar 25, 2014 at 11:04 AM
    #120
    miniorf

    miniorf Active Member

    Joined:
    Nov 28, 2013
    Member:
    #117488
    Messages:
    26
    Gender:
    Male
    First Name:
    justin
    Newport RI
    thanks for the help
