Looking for a Fuse that Supplies Dash Light

Discussion in 'MESO Customs' started by Waynebarkr, Oct 31, 2020.

  1. Oct 31, 2020 at 9:14 PM
    #1
    Waynebarkr

    Waynebarkr [OP] Well-Known Member

    Joined:
    May 20, 2020
    Member:
    #328723
    Messages:
    302
    Gender:
    Male
    First Name:
    Wayne
    Phoenix
    Vehicle:
    2020 Cement DCLB TRD-OR AT
    I have a 3G (2020) TRD Off Road and am looking to supply power for the light on the Switch for an ARB compressor.
    --The ARB instructions say to find a "dash light supply wire" preferably one that reacts to the lighting level of the instrumentation / dash light dimmer.
    Can anyone tell me which fuse in the under-dash fuse box meets this requirement?

    I have attached a photo of my fuse box label for information.

    Tacoma Fuse Box Labels 2020-TRD-Offroad.jpg

  2. Nov 4, 2020 at 3:15 PM
    #2
    Waynebarkr

    Waynebarkr [OP] Well-Known Member

    Joined:
    May 20, 2020
    Member:
    #328723
    Messages:
    302
    Gender:
    Male
    First Name:
    Wayne
    Phoenix
    Vehicle:
    2020 Cement DCLB TRD-OR AT
    Got my multi-meter and figured it out. Using the 7.5A fuse (labeled "IG2") on the left hand side in the photo above.

  3. Nov 5, 2020 at 2:31 PM
    #3
    Tacospike

    Tacospike Semi-Unknown Custodial Member

    Joined:
    Nov 19, 2018
    Member:
    #273198
    Messages:
    14,427
    Gender:
    Male
    512
    Vehicle:
    16 Tacoma TRD Sport DCSB / 17 Tundra 5.7L 4X4 CM
    Two Trucks
    Also an add a fuse for the 5A panel is another option

  4. Jan 22, 2021 at 12:56 PM
    #4
    trdtacomabob

    trdtacomabob 2020 TRD Sport MGM

    Joined:
    Oct 7, 2020
    Member:
    #343076
    Messages:
    114
    Gender:
    Male
    First Name:
    Bob
    Westford, MA 01886, USA
    Vehicle:
    2020 TRD Sport
    Running boards, LED lights all around, Bed Step, Auto Start, Backup Anytime Front\Rear camera, relocated ECT PWR switch, under hood lighting, chrome delete kits, Gas Hole, Integrated locking tailgate, bed USB & 12V ports, access cab USB & 12V ports

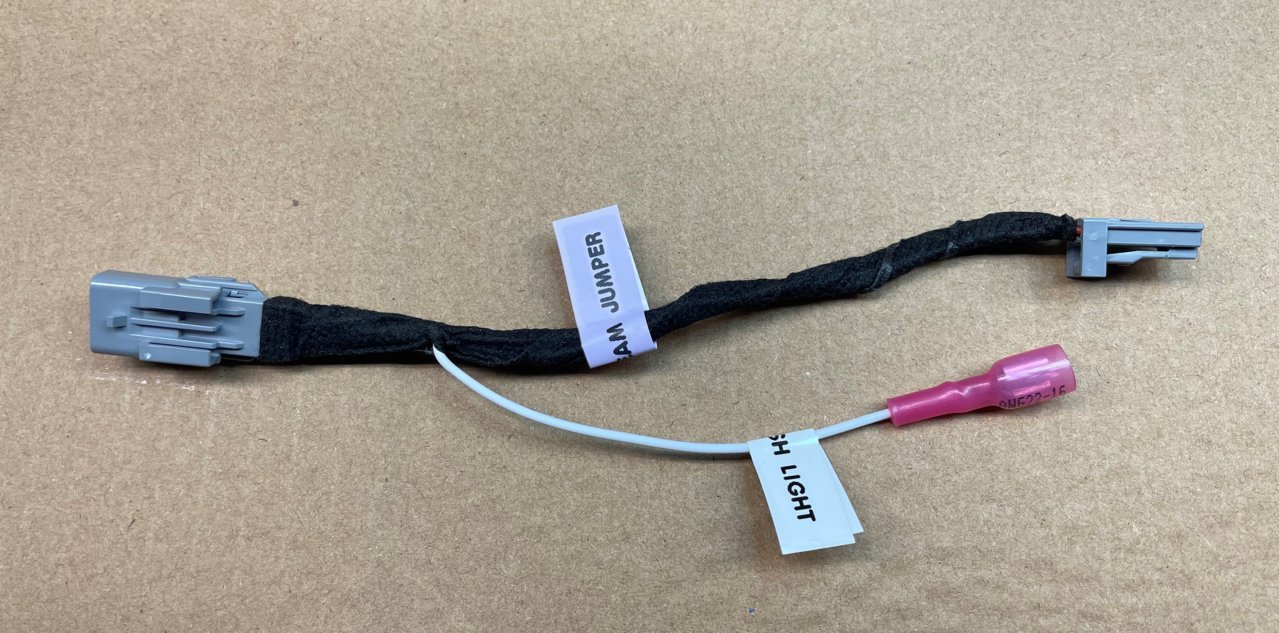

    A jumper harness I've made a few of that works off the ECT PWR or Auto High Beam switches with a dash light pigtail.


  5. May 18, 2021 at 5:23 AM
    #5
    UnpavedPreferred

    UnpavedPreferred Member

    Joined:
    Oct 6, 2020
    Member:
    #342970
    Messages:
    15
    Gender:
    Male
    First Name:
    Gabe
    Vehicle:
    2020 Tacoma TRD OR
    2nd fuse down on the left column of fuses: 7.5A TAIL. I used this to illuminate switches, when the lights are turned on.

  6. Sep 22, 2023 at 8:21 AM
    #6
    Jigstick

    Jigstick Active Member

    Joined:
    Aug 29, 2023
    Member:
    #432375
    Messages:
    33
    Gender:
    Male
    Vehicle:
    2023 TRD OR LB
  7. Oct 17, 2023 at 8:56 PM
    #7
    Toycoma2021

    Toycoma2021 Well-Known Member

    Joined:
    Jan 3, 2021
    Member:
    #351607
    Messages:
    879
    Northern California, Temporarily
    Vehicle:
    2021 Access Cab, LB, AT, V6, Off Road
    I don't think any fuse tap will produce a variable lighting level.
