Looking for a specific connector

Discussion in '2nd Gen. Tacomas (2005-2015)' started by BenSkiv, Dec 16, 2018.

  1. Dec 16, 2018 at 9:07 AM
    #1
    BenSkiv

    BenSkiv [OP] Well-Known Member

    Joined:
    Aug 18, 2018
    Member:
    #263264
    Messages:
    145
    Gender:
    Male
    First Name:
    Ben
    Windham, Maine
    Vehicle:
    2006 Tacoma SR5

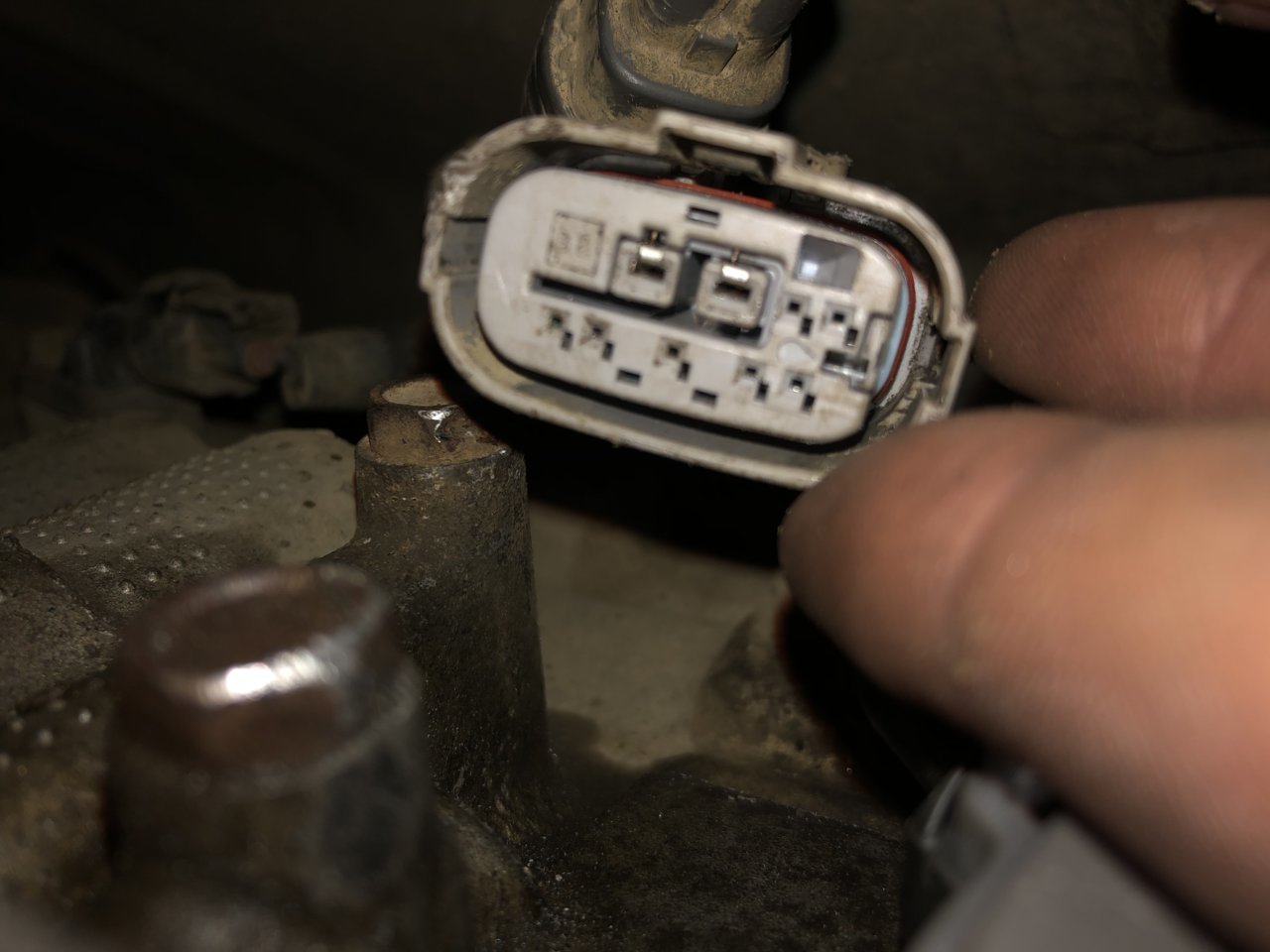

    sorry if this is the wrong place to post this, but I’m looking for this connector specifically. It attaches to the neutral safety switch. I need just the connector with the wires still attached to the connector.


  2. Dec 16, 2018 at 9:12 AM
    #2
    Muddinfun

    Muddinfun Well-Known Member

    Joined:
    Apr 17, 2017
    Member:
    #216500
    Messages:
    7,509
  3. Dec 16, 2018 at 9:13 AM
    #3
    BenSkiv

    BenSkiv [OP] Well-Known Member

    Joined:
    Aug 18, 2018
    Member:
    #263264
    Messages:
    145
    Gender:
    Male
    First Name:
    Ben
    Windham, Maine
    Vehicle:
    2006 Tacoma SR5
    Thanks! Hoping to get one soon as I can cause my truck can’t start unless someone holds the wires in place right now. It’s either a new connector or somehow make it so the wires can’t vibrate out.

  4. Dec 16, 2018 at 9:16 AM
    #4
    DaveInDenver

    DaveInDenver Not Actually in Denver

    Joined:
    May 18, 2013
    Member:
    #104390
    Messages:
    3,595
    Gender:
    Male
    First Name:
    David
    Grand Junction
    Vehicle:
    2008 Super White TRDOR AC 6MT
    Unexceptional
    Looking right now.

    BenSkiv [OP] and Muddinfun like this.
  5. Dec 16, 2018 at 9:28 AM
    #5
    DaveInDenver

    DaveInDenver Not Actually in Denver

    Joined:
    May 18, 2013
    Member:
    #104390
    Messages:
    3,595
    Gender:
    Male
    First Name:
    David
    Grand Junction
    Vehicle:
    2008 Super White TRDOR AC 6MT
    Unexceptional

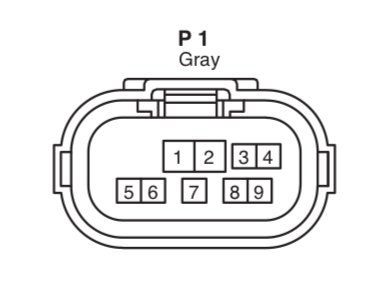

    Connector P1 and part number.

    Screen Shot 2018-12-16 at 10.19.24 AM.jpg

    Screen Shot 2018-12-16 at 10.20.07 AM.jpg

    This part number will get you the plastic housing.

    Toyota sells pigtails. To build a complete connector you'll need

    7 x 82998-24250 (500mm pigtails)
    2 x 82998-12440 (160mm pigtails)

    Alternatively for the larger contacts there's these. They are 500mm pigtails. I'll have to look into what the two part numbers mean, I think they are different colors sleeves (insulation).

    82998-12590 (24400)
    82998-12800 (24410)

  6. Dec 16, 2018 at 9:29 AM
    #6
    BenSkiv

    BenSkiv [OP] Well-Known Member

    Joined:
    Aug 18, 2018
    Member:
    #263264
    Messages:
    145
    Gender:
    Male
    First Name:
    Ben
    Windham, Maine
    Vehicle:
    2006 Tacoma SR5
    Sweet! Thank you!

  7. Dec 16, 2018 at 9:32 AM
    #7
    BenSkiv

    BenSkiv [OP] Well-Known Member

    Joined:
    Aug 18, 2018
    Member:
    #263264
    Messages:
    145
    Gender:
    Male
    First Name:
    Ben
    Windham, Maine
    Vehicle:
    2006 Tacoma SR5
    If I have all the wires on mine I have now will I need those other parts? I just want a connector and to splice some new wires onto a new connector cause mine broke off the connector I have on my truck now.

  8. Dec 16, 2018 at 9:34 AM
    #8
    BenSkiv

    BenSkiv [OP] Well-Known Member

    Joined:
    Aug 18, 2018
    Member:
    #263264
    Messages:
    145
    Gender:
    Male
    First Name:
    Ben
    Windham, Maine
    Vehicle:
    2006 Tacoma SR5
    Oh, never mind, I understand now

  9. Dec 16, 2018 at 9:36 AM
    #9
    BenSkiv

    BenSkiv [OP] Well-Known Member

    Joined:
    Aug 18, 2018
    Member:
    #263264
    Messages:
    145
    Gender:
    Male
    First Name:
    Ben
    Windham, Maine
    Vehicle:
    2006 Tacoma SR5
    Is it possible to buy the crimp tool and pins? Would that be cheaper?

  10. Dec 16, 2018 at 9:36 AM
    #10
    DaveInDenver

    DaveInDenver Not Actually in Denver

    Joined:
    May 18, 2013
    Member:
    #104390
    Messages:
    3,595
    Gender:
    Male
    First Name:
    David
    Grand Junction
    Vehicle:
    2008 Super White TRDOR AC 6MT
    Unexceptional
    If I understand your question, I think the explanation is the part numbers I gave you are as thought you cut the plug off your truck's harness and you have 9 cut wires hanging there. You'd strip them and splice the 9 pigtails on the bare wires and then insert the new pigtail contacts into the plastic connector.

    BenSkiv [OP] likes this.
  11. Dec 16, 2018 at 9:37 AM
    #11
    DaveInDenver

    DaveInDenver Not Actually in Denver

    Joined:
    May 18, 2013
    Member:
    #104390
    Messages:
    3,595
    Gender:
    Male
    First Name:
    David
    Grand Junction
    Vehicle:
    2008 Super White TRDOR AC 6MT
    Unexceptional
    Yes, it is possible to get the contacts alone and crimp them on the wires. But not directly from Toyota.

    BenSkiv [OP] likes this.
  12. Dec 16, 2018 at 9:39 AM
    #12
    BenSkiv

    BenSkiv [OP] Well-Known Member

    Joined:
    Aug 18, 2018
    Member:
    #263264
    Messages:
    145
    Gender:
    Male
    First Name:
    Ben
    Windham, Maine
    Vehicle:
    2006 Tacoma SR5
    I only have two wires that are disconnected, the other 7 are all connected still. If it’s possible to release the pins then I could get away with buying two of those probably and then attach those to my current harness. The number 5 and 9 are the ones that are not connected, all the others are fine. Is it possible to insert a tool into one of the holes and release the pins?

  13. Dec 16, 2018 at 9:41 AM
    #13
    DaveInDenver

    DaveInDenver Not Actually in Denver

    Joined:
    May 18, 2013
    Member:
    #104390
    Messages:
    3,595
    Gender:
    Male
    First Name:
    David
    Grand Junction
    Vehicle:
    2008 Super White TRDOR AC 6MT
    Unexceptional
    There is a special little tool for that, it's a very thin flat plate, sort of looks like if you took a small flat blade screwdriver and flattened the whole thing. Like a mini butterknife or something. You could probably make something similar by cutting a real narrow strip from an aluminum can and folding it in half.

    BenSkiv [OP] likes this.
  14. Dec 16, 2018 at 9:45 AM
    #14
    DaveInDenver

    DaveInDenver Not Actually in Denver

    Joined:
    May 18, 2013
    Member:
    #104390
    Messages:
    3,595
    Gender:
    Male
    First Name:
    David
    Grand Junction
    Vehicle:
    2008 Super White TRDOR AC 6MT
    Unexceptional
    Look up terminal numbers.

    Building Toyota part numbers 82998-12440, 82998-12590, 82998-12800, 82998-12460 pigtails use

    For .3-.5 mm2 (22-20 AWG) wire, Sumitomo p/n: 8100-0460
    For .5-1.25 mm2 (20-16 AWG) wire, Sumitomo p/n: 8100-0461
    For 2.0 mm2 (14 AWG) wire, Sumitomo p/n: 8100-0462

    https://www.corsa-technic.com/item.php?item_id=662

    Still trying to find the Sumitomo part number for the 82998-24250.

    BenSkiv [OP] likes this.
  15. Dec 16, 2018 at 9:47 AM
    #15
    BenSkiv

    BenSkiv [OP] Well-Known Member

    Joined:
    Aug 18, 2018
    Member:
    #263264
    Messages:
    145
    Gender:
    Male
    First Name:
    Ben
    Windham, Maine
    Vehicle:
    2006 Tacoma SR5
    Okay, so the 5 and 9 I should be able to disconnect, meaning I could probably just buy two wires? Am I correct in thinking that? Sorry, I’m really bad at electrical things, don’t have as much experience with electrical stuff as engine stuff..

  16. Dec 16, 2018 at 10:04 AM
    #16
    DaveInDenver

    DaveInDenver Not Actually in Denver

    Joined:
    May 18, 2013
    Member:
    #104390
    Messages:
    3,595
    Gender:
    Male
    First Name:
    David
    Grand Junction
    Vehicle:
    2008 Super White TRDOR AC 6MT
    Unexceptional
    Yup, if you can release the broken terminals from the plastic connector without breaking anything you can just cut the wire and splice on new pigtails and snap them in. That's why Toyota sells them that way, it's easier to cut and solder a wire than to strip and crimp a terminal.

    Just to make sure it's clear, Toyota calls the plastic housing part "connector" and the contacts & wires "terminals".

    Worst case if you do break the plastic you could buy just the connector and the 2 pigtails you need, then release the other 7 wires and reuse them as is.

    And since the wire usually breaks near the housing if you did just crimp on a new terminal the wire would be an inch or two too short anyway. Having raw terminals is only useful if you replace the whole connector or are re-wiring the whole circuit.

    BenSkiv [OP] likes this.
  17. Dec 16, 2018 at 10:05 AM
    #17
    BenSkiv

    BenSkiv [OP] Well-Known Member

    Joined:
    Aug 18, 2018
    Member:
    #263264
    Messages:
    145
    Gender:
    Male
    First Name:
    Ben
    Windham, Maine
    Vehicle:
    2006 Tacoma SR5
    Okay, that’s awesome to know! Thank you! I’ll have to try and find a way to release those, if not I’ll see if I can find the correct tool somewhere and then go from there!

  18. Dec 16, 2018 at 10:16 AM
    #18
    DaveInDenver

    DaveInDenver Not Actually in Denver

    Joined:
    May 18, 2013
    Member:
    #104390
    Messages:
    3,595
    Gender:
    Male
    First Name:
    David
    Grand Junction
    Vehicle:
    2008 Super White TRDOR AC 6MT
    Unexceptional

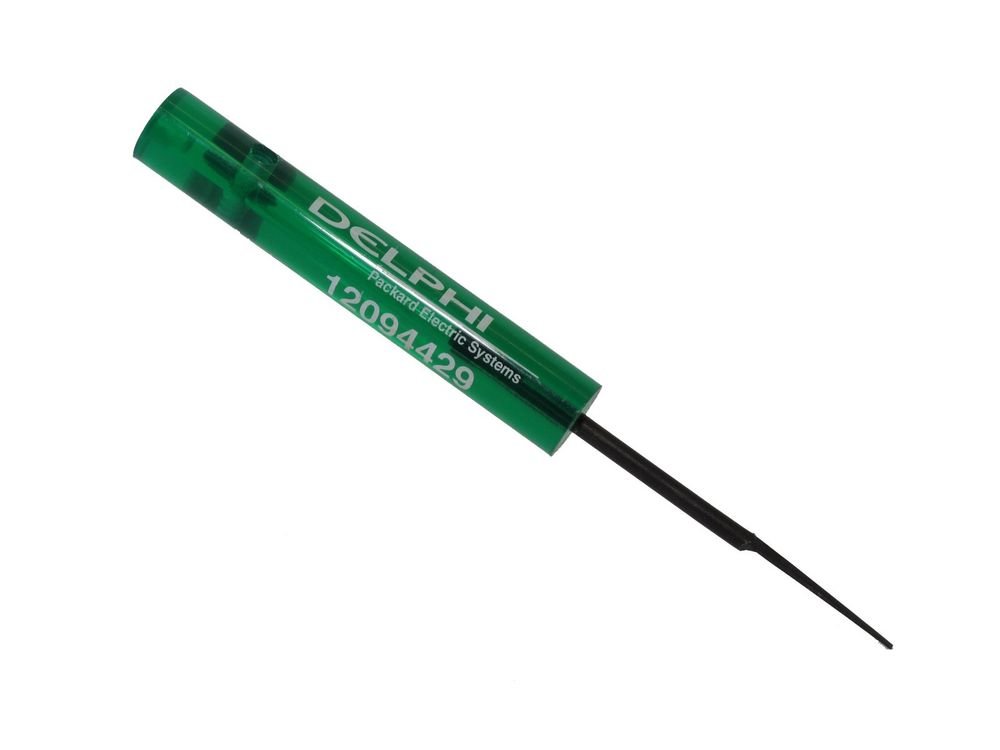

    They aren't super complex. There's two size of them to cover most terminals.

    This is all they look like. Just be careful if you use something else, like a screwdriver. If it's too thick it can crack the housing. Take an old screwdriver and file some of the shaft flat, for example.


    Muddinfun and BenSkiv [OP] like this.
  19. Dec 16, 2018 at 10:23 AM
    #19
    BenSkiv

    BenSkiv [OP] Well-Known Member

    Joined:
    Aug 18, 2018
    Member:
    #263264
    Messages:
    145
    Gender:
    Male
    First Name:
    Ben
    Windham, Maine
    Vehicle:
    2006 Tacoma SR5
    Okay, I’ll give that a try then! Thanks!

  20. Dec 16, 2018 at 11:16 AM
    #20
    DaveInDenver

    DaveInDenver Not Actually in Denver

    Joined:
    May 18, 2013
    Member:
    #104390
    Messages:
    3,595
    Gender:
    Male
    First Name:
    David
    Grand Junction
    Vehicle:
    2008 Super White TRDOR AC 6MT
    Unexceptional
    BenSkiv [OP] and Muddinfun like this.
