Looking For Some Assistance With Front Suspension Adjustment!

Discussion in 'Southern California' started by r34p3r666, Jan 10, 2013.

  1. r34p3r666

    r34p3r666 [OP] Well-Known Member

    Joined:
    Jul 3, 2012
    Member:
    #81860
    Messages:
    124
    Gender:
    Male
    Diamond Bar, CA
    Vehicle:
    Tacoma Baja T/X, TRD Supercharged
    TRD Pro, TRD Off Road, TRD Supercharger
    Hey all! I've got a 2012 Baja Edition with the Bilstein 60mm "9100-based" monotube fronts. People keep telling me they're 5100 units, I don't have the slightest if they're 5100's, adjustable, or what. I'm heading out to Vegas on the 18th, with some passengers, and I'd like to adjust the fronts to get rid of the factory rake, if possible, and get the alignment done before that trip.
    Basically:
    1: Is my front suspension actually adjustable?
    2: If so, would anyone be willing to help me out with the adjustment? Being that the wonderful dotcom I was at laid me off a few months back, I can repay with beer or lunch, and it would be much appreciated!! :)

  2. r34p3r666

    r34p3r666 [OP] Well-Known Member

    Joined:
    Jul 3, 2012
    Member:
    #81860
    Messages:
    124
    Gender:
    Male
    Diamond Bar, CA
    Vehicle:
    Tacoma Baja T/X, TRD Supercharged
    TRD Pro, TRD Off Road, TRD Supercharger
    Well, that last call for help didn't go so hot, so here's take 2. Anyone available/willing to help pop the ol' front suspension up a notch? Maybe a mod day coming up? Anyone? Hello? Spanish tile?

  3. Johnnie

    Johnnie Well-Known Member

    Joined:
    Mar 11, 2009
    Member:
    #14594
    Messages:
    1,761
    Gender:
    Male
    I.E. SoCal
    Vehicle:
    Feds
    post a picture or look up 5100's and compare them.

  4. Pugga

    Pugga Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,708
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod

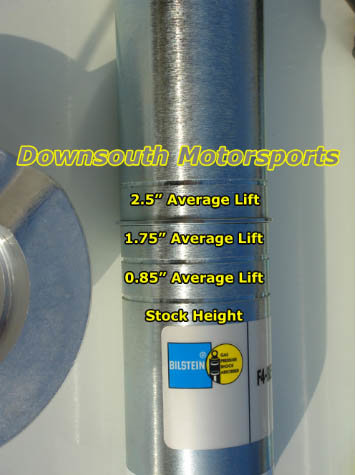

    5100's will have grooves in the shock. You gain lift by setting a c-clip into whichever groove you choose and the coil seat sits on the clip. If you don't have the visible grooves, you don't have 5100's.
    This is what the grooves look like:
    [​IMG]

  5. Manwithoutaplan

    Manwithoutaplan the full Monty

    Joined:
    Jan 30, 2008
    Member:
    #4500
    Messages:
    43,625
    Gender:
    Male
    CA
    Vehicle:
    07 Tacoma Speedway Blue Trd 4x4
    -Nitro 4.56 gears - Arb Front and Rear lockers. -Rear Swing out bumper Curiosity of ( Dept .94) https://www.facebook.com/Dept94 -Tinted, -ProComp 6 inch lift with Icon Coil overs and Bilstein's 7100Resi -315/70/17 - 17x8 in Pro Comp Matte black rims 4.5 bs -East Coast Gear Supply Sliders -ALL Pro EXP LEaf pack -Camburg UCA's -CAB mount CHOP
    You need to ask Hiatt

  6. r34p3r666

    r34p3r666 [OP] Well-Known Member

    Joined:
    Jul 3, 2012
    Member:
    #81860
    Messages:
    124
    Gender:
    Male
    Diamond Bar, CA
    Vehicle:
    Tacoma Baja T/X, TRD Supercharged
    TRD Pro, TRD Off Road, TRD Supercharger
    Appreciate the replies, gentlemen! I haven't popped the wheels off yet to take a look, I'll crawl in there and see if they're grooved like the pic. I actually picked up this set of 31x10.5x15 Mud Terrain T/A KM2's with wheels today for $230 off craigslift for trails, so I may pop a front off to test fit. Manwithoutaplan, I'll text Hiatt and get some input, thanks!!


  7. Manwithoutaplan

    Manwithoutaplan the full Monty

    Joined:
    Jan 30, 2008
    Member:
    #4500
    Messages:
    43,625
    Gender:
    Male
    CA
    Vehicle:
    07 Tacoma Speedway Blue Trd 4x4
    -Nitro 4.56 gears - Arb Front and Rear lockers. -Rear Swing out bumper Curiosity of ( Dept .94) https://www.facebook.com/Dept94 -Tinted, -ProComp 6 inch lift with Icon Coil overs and Bilstein's 7100Resi -315/70/17 - 17x8 in Pro Comp Matte black rims 4.5 bs -East Coast Gear Supply Sliders -ALL Pro EXP LEaf pack -Camburg UCA's -CAB mount CHOP
    no problem good luck.

  8. Pugga

    Pugga Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,708
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    15's won't clear the brake calipers on 2nd Gen 6 luggers unless you have them spaced way out.

  9. KenLyns

    KenLyns Lord of War

    Joined:
    May 23, 2010
    Member:
    #37674
    Messages:
    20,155
    Gender:
    Male
    Belly of the Beast
    Vehicle:
    4x4 TRD Off Road Full-Auto
    All-Pro Front Bumper, All-Pro UCAs, Icon ET Coilovers, Icon VS Rear Shocks, TSB Leafs, Timbren Bumpstops, CBI Sliders, ViAir Compressor, Klearz LED 3rd Brake Light, Pop-N-Lock Tailgate Handle, Husky Front Flaps, Deeza HD Sway Bar Links
    I don't see additional grooves for the spring perch in this picture. The Baja edition is already lifted 2" over norm. Any more and the stock upper control arm won't be able to maintain the necessary caster.

    [​IMG]

  10. The Traveler

    The Traveler REBELTACO

    Joined:
    Mar 28, 2012
    Member:
    #75806
    Messages:
    6,775
    Gender:
    Male
    First Name:
    Matt
    SoCal
    Vehicle:
    '10 Long Travel 4x4 DCSB
    Total Chaos 3.5" LT kit, King remote resi 8x2.5 coilovers, Glassworks Unlimited fiberglass fenders and bedsides, Icon resi rears, All Pro Expo leaf pack, Wheeler's super bumps, drop in AFE Pro Dry-S, Aero-Turbine 2525XL Muffler, Spidertrax, Rigid Industries Dually Amber Floods, rock lights, Strobe amber/white dust lights, bushwhacker fender flares, CB and HAM radios, Pelfreybilt Off Road front three hoop bumper, All-Pro APEX kickout sliders, CBI Trail Rider rear bumper, Tres Tacos LED rock lights, 50" LED Light Bar,
    Gabriel those 15's wont fit dude!! :(

  11. r34p3r666

    r34p3r666 [OP] Well-Known Member

    Joined:
    Jul 3, 2012
    Member:
    #81860
    Messages:
    124
    Gender:
    Male
    Diamond Bar, CA
    Vehicle:
    Tacoma Baja T/X, TRD Supercharged
    TRD Pro, TRD Off Road, TRD Supercharger
    Well, shite, wonderful, they did come off a 1st gen... Guess I'll shoot 'em back up on craigslist, I guess, appreciate the heads-up.
    As far as the suspension, I could swear there's still a rake, with the rear up higher than the front. Perhaps new UCA's are in order?

  12. 2008taco

    2008taco Well-Known Member

    Joined:
    Mar 4, 2011
    Member:
    #52323
    Messages:
    2,013
    Gender:
    Male
    First Name:
    chris
    san diego
    new uppers and shocks/coilovers.

  13. KenLyns

    KenLyns Lord of War

    Joined:
    May 23, 2010
    Member:
    #37674
    Messages:
    20,155
    Gender:
    Male
    Belly of the Beast
    Vehicle:
    4x4 TRD Off Road Full-Auto
    All-Pro Front Bumper, All-Pro UCAs, Icon ET Coilovers, Icon VS Rear Shocks, TSB Leafs, Timbren Bumpstops, CBI Sliders, ViAir Compressor, Klearz LED 3rd Brake Light, Pop-N-Lock Tailgate Handle, Husky Front Flaps, Deeza HD Sway Bar Links
    ^New upper control arms would be necessary. The Baja front shocks look decent (60mm = 2.4" dia.), so I'd keep them and just add a top plate spacer. How much rake is there?

    This will give 1/2" lift (be sure to order two):
    http://trdparts4u.toyotaofdallas.com/Scripts/prodView.asp?idproduct=-8317

    This will give 3/4" lift, but will require the existing studs in the top plate to be pressed out and new ones pressed in, which means the coilover has to be disassembled:
    http://trdparts4u.toyotaofdallas.com/Scripts/prodView.asp?idproduct=-6403
