LR uca install initial setting

Discussion in 'Suspension' started by Amo-cat3, Oct 19, 2009.

  1. Amo-cat3

    Amo-cat3 [OP] Wizard Sleeve Master

    Joined:
    Jan 26, 2009
    Member:
    #12980
    Messages:
    408
    Gender:
    Male
    Maui, Hawaii
    Vehicle:
    07 TRD Blown dubcab
    TRD Supercharged, 2.8" URD Pulley, APR X1, AFE Stage II intake, DT Longtubes, MBRP 2.5" dual exhaust w/ Vibrant Ultra resonator, URD Y-pipe w/ vibrant v-bands (Cat free), Walboro 255 fuel pump, SS Oil catch can, Aeroforce gauges, Leeper 2.5 coilover set at 3", 1.5" Alcan aal, Light racing uca, 17x8.5 Fuel Anza 4.5" backspace/-6 mm offset, m/t atz 265/70/17, 1.25 spidertrax, scanguage 2, AMP electric steps, bed extender, Low-pro tonneau cover, 20% tinted windows/headlights/taillights, tacoma seat covers, Image dynamic sound system w/ Pinoneer avh3200 head, assrtd stickers................
    :confused:Sup guy's,
    My LR uca's arrived today and just need some extra input before I start the install. Since the arms come without the ball joint installed and caster is adjustable what should I set it to when i initially install them (0, 1.0, 1.75, 2.0 degree) so it will be safe to drive to the shop that will do my actuall allignment. I have a 3" spacer lift for now (yeah, i know but please no coilover/spacer wars).
    From what i've been reading i can just bolt them in and my truck should be drivable right? The shop is only 2.5 miles away and don't need to go over 30mph.
    Lastly, anyone have the the torque setting for the ball joint to spindle nut.
    I think that's it, thanx

  2. Timicha

    Timicha Timicha

    Joined:
    Dec 23, 2008
    Member:
    #11854
    Messages:
    2,727
    Gender:
    Male
    First Name:
    TIM
    Tillamook / Portland , Oregon
    Vehicle:
    04 White Tacoma
    Fabtech 4 inch lift, tinted windows, diff drop, 33 inch MTZ tires on Raceline Raptor wheels, ELITE OFF-ROAD bumpers and sliders
    ya i just did mine and my friend did his on his 2006 tacoma it should be safe to drive, when i did mine i pm'ed chris4x4 for the torque setting. i think it was 90# for my truck

  3. chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Thor

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    103,627
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, lots of buttons, and yellow flashing lights on the dash.
    81 lb-ft. :)

  4. Timicha

    Timicha Timicha

    Joined:
    Dec 23, 2008
    Member:
    #11854
    Messages:
    2,727
    Gender:
    Male
    First Name:
    TIM
    Tillamook / Portland , Oregon
    Vehicle:
    04 White Tacoma
    Fabtech 4 inch lift, tinted windows, diff drop, 33 inch MTZ tires on Raceline Raptor wheels, ELITE OFF-ROAD bumpers and sliders
    there yu go haha

  5. Amo-cat3

    Amo-cat3 [OP] Wizard Sleeve Master

    Joined:
    Jan 26, 2009
    Member:
    #12980
    Messages:
    408
    Gender:
    Male
    Maui, Hawaii
    Vehicle:
    07 TRD Blown dubcab
    TRD Supercharged, 2.8" URD Pulley, APR X1, AFE Stage II intake, DT Longtubes, MBRP 2.5" dual exhaust w/ Vibrant Ultra resonator, URD Y-pipe w/ vibrant v-bands (Cat free), Walboro 255 fuel pump, SS Oil catch can, Aeroforce gauges, Leeper 2.5 coilover set at 3", 1.5" Alcan aal, Light racing uca, 17x8.5 Fuel Anza 4.5" backspace/-6 mm offset, m/t atz 265/70/17, 1.25 spidertrax, scanguage 2, AMP electric steps, bed extender, Low-pro tonneau cover, 20% tinted windows/headlights/taillights, tacoma seat covers, Image dynamic sound system w/ Pinoneer avh3200 head, assrtd stickers................
    thanx guys,
    Timicha - what did you set your caster to when you first put the arms in? how soon did you get an allignment?

  6. Timicha

    Timicha Timicha

    Joined:
    Dec 23, 2008
    Member:
    #11854
    Messages:
    2,727
    Gender:
    Male
    First Name:
    TIM
    Tillamook / Portland , Oregon
    Vehicle:
    04 White Tacoma
    Fabtech 4 inch lift, tinted windows, diff drop, 33 inch MTZ tires on Raceline Raptor wheels, ELITE OFF-ROAD bumpers and sliders
    i just put them in and didn't change anything i took it to les shwab the next day

  7. RelentlessTaco

    RelentlessTaco Custom Tacoma bumpers & more for your offroad toy Vendor

    Joined:
    Feb 17, 2008
    Member:
    #4772
    Messages:
    13,352
    Gender:
    Male
    First Name:
    Eric
    Eastern side of the Sierras, NV
    Vehicle:
    07 SR5 4x4> 03 SR5 4x4 total> 14 Crewmax TRD
    Had tons on the Taco's.... new truck is pretty stock

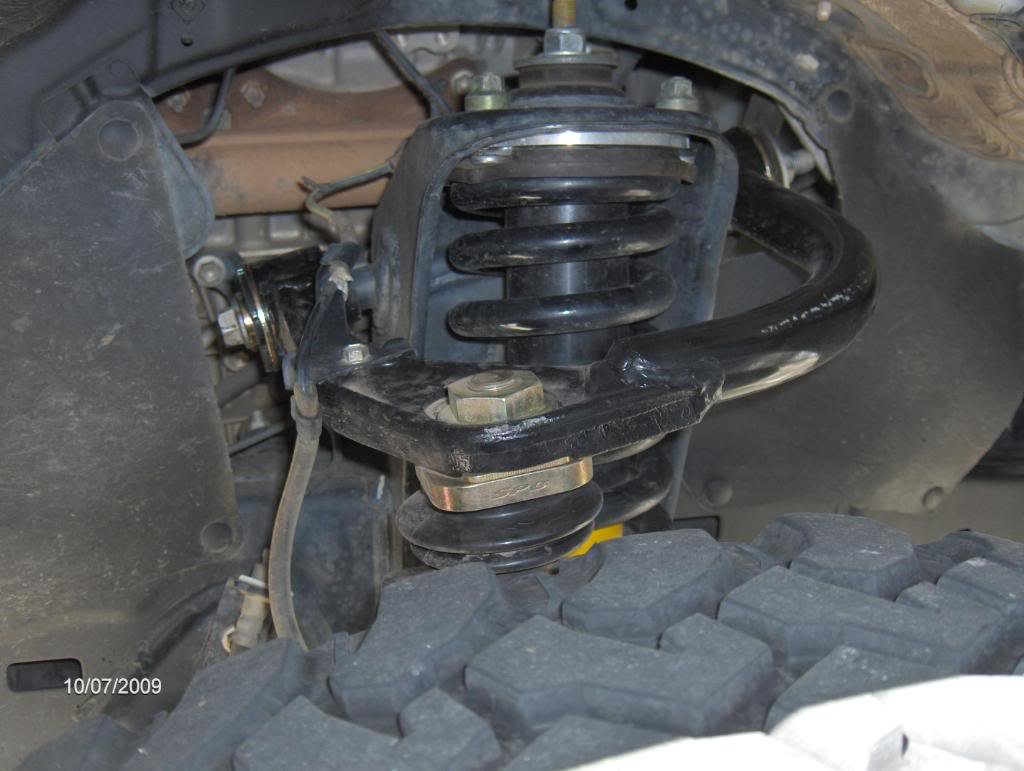

    I did the LR UCAs a couple weeks ago like Timicha mentioned. I set them at 0 caster, and put the ball joint all the way out on them for the camber. Alignment visually looks OK like this, and I've actually not had a chance to do the alignment yet. After about 800 miles of driving my tires seem ok still, and it drives ok, but im going to try and get it done ASAP! I fully intended on getting it done within a couple days at most from when I did the install, but my schedule got too busy, then I had to make a 500 mile trip the following weekend and so I just hoped my tires wouldn't wear too excessively. I only paid $400 for the tires though(and I want to upgrade to some bigger ones!) so I didnt really care too much if it wore em down a tad.
    heres a pic if it helps:
    [​IMG]

  8. Amo-cat3

    Amo-cat3 [OP] Wizard Sleeve Master

    Joined:
    Jan 26, 2009
    Member:
    #12980
    Messages:
    408
    Gender:
    Male
    Maui, Hawaii
    Vehicle:
    07 TRD Blown dubcab
    TRD Supercharged, 2.8" URD Pulley, APR X1, AFE Stage II intake, DT Longtubes, MBRP 2.5" dual exhaust w/ Vibrant Ultra resonator, URD Y-pipe w/ vibrant v-bands (Cat free), Walboro 255 fuel pump, SS Oil catch can, Aeroforce gauges, Leeper 2.5 coilover set at 3", 1.5" Alcan aal, Light racing uca, 17x8.5 Fuel Anza 4.5" backspace/-6 mm offset, m/t atz 265/70/17, 1.25 spidertrax, scanguage 2, AMP electric steps, bed extender, Low-pro tonneau cover, 20% tinted windows/headlights/taillights, tacoma seat covers, Image dynamic sound system w/ Pinoneer avh3200 head, assrtd stickers................
    I searched and found some other people who initially set their caster to 0 and pulled the balljoint to the farthest out setting (this is what one SPC engineer told the FJcruiser forum to do). From there they took it to the allignment shop and got their allignment down to spec.

  9. SamSter0077

    SamSter0077 Happy Camper

    Joined:
    Aug 7, 2008
    Member:
    #8396
    Messages:
    1,698
    Gender:
    Male
    Katy, TX
    Vehicle:
    09 Tacoma 4x4 TRD OR
    OME 886 Coils, and Struts, Rear Toytec TSB AAL/ OME shock absorbers, Fog Lamp anytime mod, Voyager Brake Controller.
    SO.. what is perfect spec when you have one of these LR UCAs? Zero toe, Zero Camber, Caster?

  10. chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Thor

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    103,627
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, lots of buttons, and yellow flashing lights on the dash.
    Toe: 0*
    Camber: 0*
    Caster: 2.9*

  11. SamSter0077

    SamSter0077 Happy Camper

    Joined:
    Aug 7, 2008
    Member:
    #8396
    Messages:
    1,698
    Gender:
    Male
    Katy, TX
    Vehicle:
    09 Tacoma 4x4 TRD OR
    OME 886 Coils, and Struts, Rear Toytec TSB AAL/ OME shock absorbers, Fog Lamp anytime mod, Voyager Brake Controller.
    ok, without the LR UCA and 3"+ of lift, I am:

    Camber Left .5 Camber Right .6 Spec range -0.3 to 1.2
    Caster Left .9 Caster Right 1.1 Spec range 1.4 to 2.9
    Toe 0 Toe .02 Spec range -0.04 to .07

    Caster adjustment is Maxed out on the Left side.

    Technically within spec, but there is a funny feeling in the steering wheel. Not sure how to describe it, at freeway speeds when I hit bumps or cracks in the road the wheel feels "jiggly".. (you only feel it in the steering wheel). I am told with the LR UCA, this will be fixed.

    Will post my "After" measurements when I get them delivered and installed.


    Thanks Chris.

  12. Amo-cat3

    Amo-cat3 [OP] Wizard Sleeve Master

    Joined:
    Jan 26, 2009
    Member:
    #12980
    Messages:
    408
    Gender:
    Male
    Maui, Hawaii
    Vehicle:
    07 TRD Blown dubcab
    TRD Supercharged, 2.8" URD Pulley, APR X1, AFE Stage II intake, DT Longtubes, MBRP 2.5" dual exhaust w/ Vibrant Ultra resonator, URD Y-pipe w/ vibrant v-bands (Cat free), Walboro 255 fuel pump, SS Oil catch can, Aeroforce gauges, Leeper 2.5 coilover set at 3", 1.5" Alcan aal, Light racing uca, 17x8.5 Fuel Anza 4.5" backspace/-6 mm offset, m/t atz 265/70/17, 1.25 spidertrax, scanguage 2, AMP electric steps, bed extender, Low-pro tonneau cover, 20% tinted windows/headlights/taillights, tacoma seat covers, Image dynamic sound system w/ Pinoneer avh3200 head, assrtd stickers................
    Is this good with 3" lift and 265/70/17 tires? Let's say we never had to worry about rubbing issues would those numbers be the same for all tire sizes?

  13. Evil Monkey

    Evil Monkey There's an evil monkey in my truck

    Joined:
    Aug 8, 2007
    Member:
    #2352
    Messages:
    8,388
    Gender:
    Male
    First Name:
    Robert
    Escondido, CA
    Vehicle:
    07 4x4 DC SR5 TRD Off-road
    Weathertech front & rear mats, rear suspension TSB, Toytec AAL for TSB, Hi-Lift Jack, Bilstein 5100 & Toytec Adjustable coilovers, Built Right UCAs, KMC XD 795 Hoss Wheels, Definity Dakota MTs 285/75R16, Leer XR, Thule Tracker II & Thule MOAB basket
    [​IMG]

    Just a head's up. I don't know if they fixed it so it can't go in wrong but on the LR UCAs make sure you get the gold bar under the arm in the right way like RT's picture (letters/flat side on the outside). On my set, it was possible to put it in backwards. If it's backwards, it won't align correctly.

    Here's a picture of it put in wrong (rounded side out):
    [​IMG]

  14. SamSter0077

    SamSter0077 Happy Camper

    Joined:
    Aug 7, 2008
    Member:
    #8396
    Messages:
    1,698
    Gender:
    Male
    Katy, TX
    Vehicle:
    09 Tacoma 4x4 TRD OR
    OME 886 Coils, and Struts, Rear Toytec TSB AAL/ OME shock absorbers, Fog Lamp anytime mod, Voyager Brake Controller.
    Thanks for the heads up EVIL Monkey!

  15. gupster88

    gupster88 Well-Known Member

    Joined:
    May 2, 2009
    Member:
    #16692
    Messages:
    3,748
    Gender:
    Male
    First Name:
    Brett
    Almost Heaven
    Vehicle:
    '10 Barcelona Red DCSB O/R
    OME 884s, Bilstein 5100s, Wheelers 1.5" AAL, Level 8 Guardians, 5% window tint on rear windows
    i set my ball joint to 0*, aligned perfectly

  16. cdn_bacon

    cdn_bacon Well-Known Member

    Joined:
    Jan 5, 2010
    Member:
    #28829
    Messages:
    205
    Gender:
    Male
    First Name:
    Christopher
    Houston
    Vehicle:
    07 Tacoma Dbl Cab short box 4x4 TRD
    Slim's HID 6000k headlights and fog lights; Redline hood and tailgate struts, TRD CAI
    Alright, time to resurrect this thread! I'm going to install my LR UCAs this weekend and it appears that most people set em at 0 and all the way out however I caught a link on another thread which directs to an FJ forum where dude talked to LR tech and was told to set em all the way in and +2.5.

    so what do I have to do to get a good alignment?

    ...also was the new UCA's suppose to come with a new bolt to connect to the chasis?

  17. RelentlessTaco

    RelentlessTaco Custom Tacoma bumpers & more for your offroad toy Vendor

    Joined:
    Feb 17, 2008
    Member:
    #4772
    Messages:
    13,352
    Gender:
    Male
    First Name:
    Eric
    Eastern side of the Sierras, NV
    Vehicle:
    07 SR5 4x4> 03 SR5 4x4 total> 14 Crewmax TRD
    Had tons on the Taco's.... new truck is pretty stock
    No new bolt with them so either re-use the one on the truck, or buy new ones and then cut the factory ones to more easily remove them. For me, I actually had to turn the ball joint one notch toward the back for extra clearance on my coil at the suspension's full droop and then get it aligned that way. I think I ended up with a bit extra caster, but thats fine with me as its not a wear angle on tires.

  18. cdn_bacon

    cdn_bacon Well-Known Member

    Joined:
    Jan 5, 2010
    Member:
    #28829
    Messages:
    205
    Gender:
    Male
    First Name:
    Christopher
    Houston
    Vehicle:
    07 Tacoma Dbl Cab short box 4x4 TRD
    Slim's HID 6000k headlights and fog lights; Redline hood and tailgate struts, TRD CAI
    Do you know what size and type of bolt (just in case)?

    ...also what tools and size sockets are needed?

  19. RelentlessTaco

    RelentlessTaco Custom Tacoma bumpers & more for your offroad toy Vendor

    Joined:
    Feb 17, 2008
    Member:
    #4772
    Messages:
    13,352
    Gender:
    Male
    First Name:
    Eric
    Eastern side of the Sierras, NV
    Vehicle:
    07 SR5 4x4> 03 SR5 4x4 total> 14 Crewmax TRD
    Had tons on the Taco's.... new truck is pretty stock
    The bolt is a very long and fine thread. Its probably something that would have to be ordered directly from the dealer.
    Its been a while since I did mine, I cant remember all of the tool sizes. I do know you need a 10mm for the brake line bracket, then I think the main UCA bolt was like a 17, or 19, maybe even a 21mm. And the ball joint is probably a 17 or 19mm. Make sure you have a torque wrench to do the final torque on everything too. The nut that tightens the ball joint to the LR UCA was larger than everything else iirc, so make sure you have a socket that large before starting.

  20. SamSter0077

    SamSter0077 Happy Camper

    Joined:
    Aug 7, 2008
    Member:
    #8396
    Messages:
    1,698
    Gender:
    Male
    Katy, TX
    Vehicle:
    09 Tacoma 4x4 TRD OR
    OME 886 Coils, and Struts, Rear Toytec TSB AAL/ OME shock absorbers, Fog Lamp anytime mod, Voyager Brake Controller.
    you would move it forward if you had a bigger tire, and wanted to clear the body mounts without trimming. With the Stock bumper, you will probably have to deal with the front trim though.

    Just buy new ones from Toyota, and cut the old ones off to make it easy. Honestly, they really aren't that hard to remove though IMO.
