LR UCA SETTINGS HELP!!!

Discussion in 'Suspension' started by USARMYAV11, May 11, 2011.

  1. May 11, 2011 at 4:51 PM
    #1
    USARMYAV11

    USARMYAV11 [OP] Well-Known Member

    Joined:
    Apr 15, 2011
    Member:
    #54957
    Messages:
    81
    Gender:
    Male
    Fort Rucker, AL
    Vehicle:
    11 Sport Mag Grey
    I just lifted my 2011 DCSB Sport and installed LR UCA. I went today to get my new 18" XD Monster wheels with 285 65 18 all terrains put on. When fitting the wheel they noticed it wont work due to the UCA settings. The wheel was below the UCA. What position does the adjustable ball joint need to be in in order for the wheels to fit? All the way positive?

  2. May 11, 2011 at 4:56 PM
    #2
    OZ-T

    OZ-T All of those moments....will be lost.....in time

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    23,202
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    The UCA is in the neutral position with the SPC logo facing out .

  3. May 11, 2011 at 4:58 PM
    #3
    OZ-T

    OZ-T All of those moments....will be lost.....in time

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    23,202
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
  4. May 11, 2011 at 5:07 PM
    #4
    USARMYAV11

    USARMYAV11 [OP] Well-Known Member

    Joined:
    Apr 15, 2011
    Member:
    #54957
    Messages:
    81
    Gender:
    Male
    Fort Rucker, AL
    Vehicle:
    11 Sport Mag Grey

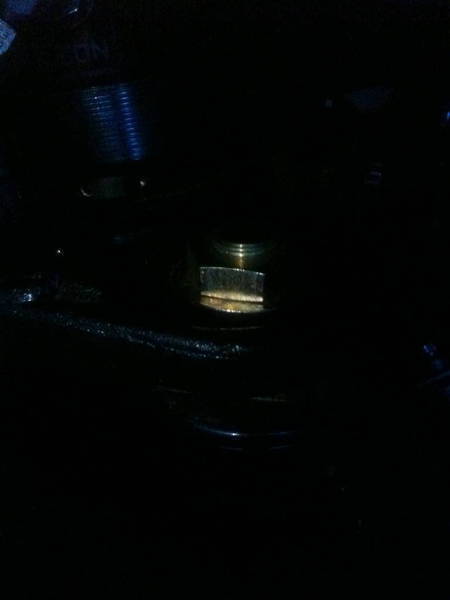

    Im talking about this nut. It is installed correctly. That nut can be adjusted to move closer to the truck or further from the truck


    [​IMG]

  5. May 11, 2011 at 5:09 PM
    #5
    OZ-T

    OZ-T All of those moments....will be lost.....in time

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    23,202
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    That's the camber adjustment .

  6. May 11, 2011 at 5:12 PM
    #6
    USARMYAV11

    USARMYAV11 [OP] Well-Known Member

    Joined:
    Apr 15, 2011
    Member:
    #54957
    Messages:
    81
    Gender:
    Male
    Fort Rucker, AL
    Vehicle:
    11 Sport Mag Grey
    Yes thats what I am talking about. I have the caster in the neutral position. When they put the wheels on to test fit the inner lip was under the UCA. Should I push the camber all the way from the truck?

  7. May 11, 2011 at 5:14 PM
    #7
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Staff Member

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    104,117
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    OZ is right, the SPC needs to face out. Did you look at the instructions?

  8. May 11, 2011 at 5:16 PM
    #8
    OZ-T

    OZ-T All of those moments....will be lost.....in time

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    23,202
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    He's wondering about the camber nut .

  9. May 11, 2011 at 5:19 PM
    #9
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Staff Member

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    104,117
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    The camber nut sets the amount of Caster added. With the "SPC" out, thats the only way it can go. If the wheels are hitting, then the OP has the wrong back space on the wheel.

  10. May 11, 2011 at 5:20 PM
    #10
    OZ-T

    OZ-T All of those moments....will be lost.....in time

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    23,202
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    The camber nut can be adjusted toward the wheel or away from the wheel .

    The caster is adjusted in the ball joint setting , no ?

  11. May 11, 2011 at 5:21 PM
    #11
    USARMYAV11

    USARMYAV11 [OP] Well-Known Member

    Joined:
    Apr 15, 2011
    Member:
    #54957
    Messages:
    81
    Gender:
    Male
    Fort Rucker, AL
    Vehicle:
    11 Sport Mag Grey
    The "SPC" is facing out.

  12. May 11, 2011 at 5:22 PM
    #12
    OZ-T

    OZ-T All of those moments....will be lost.....in time

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    23,202
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    [​IMG]


    #12 Camber adjustment , click on the picture , you can enlarge it .

  13. May 11, 2011 at 5:24 PM
    #13
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Staff Member

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    104,117
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    Ah! I didnt realize that!

  14. May 11, 2011 at 5:25 PM
    #14
    USARMYAV11

    USARMYAV11 [OP] Well-Known Member

    Joined:
    Apr 15, 2011
    Member:
    #54957
    Messages:
    81
    Gender:
    Male
    Fort Rucker, AL
    Vehicle:
    11 Sport Mag Grey
    I have the instructions I will double check with the tire store tomorrow about the back spacing.

  15. May 11, 2011 at 5:26 PM
    #15
    OZ-T

    OZ-T All of those moments....will be lost.....in time

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    23,202
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    So , I guess the question is , what is the initial camber setting the OP should try to get in order to fit his wheels ?

  16. May 11, 2011 at 5:27 PM
    #16
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Staff Member

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    104,117
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    Camber setting needs to be at 0*. If the OP is that close, the back space on the wheels is wrong.

  17. May 11, 2011 at 5:28 PM
    #17
    USARMYAV11

    USARMYAV11 [OP] Well-Known Member

    Joined:
    Apr 15, 2011
    Member:
    #54957
    Messages:
    81
    Gender:
    Male
    Fort Rucker, AL
    Vehicle:
    11 Sport Mag Grey
    Ahh yes! That is the question

  18. May 11, 2011 at 5:29 PM
    #18
    USARMYAV11

    USARMYAV11 [OP] Well-Known Member

    Joined:
    Apr 15, 2011
    Member:
    #54957
    Messages:
    81
    Gender:
    Male
    Fort Rucker, AL
    Vehicle:
    11 Sport Mag Grey
    Is going for a -.5 camber to a +.2 camber a big difference?

  19. May 11, 2011 at 5:30 PM
    #19
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Staff Member

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    104,117
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    Not really. .2* is acceptable

  20. May 11, 2011 at 5:34 PM
    #20
    USARMYAV11

    USARMYAV11 [OP] Well-Known Member

    Joined:
    Apr 15, 2011
    Member:
    #54957
    Messages:
    81
    Gender:
    Male
    Fort Rucker, AL
    Vehicle:
    11 Sport Mag Grey
    Ok I will go to the tire store tomorrow to see what is going on. Thanks for the help.
