LS3 AWD Swap!! pics and dyno video

Discussion in 'Performance and Tuning' started by jlee541, Oct 9, 2012.

  1. Oct 9, 2012 at 7:40 PM
    #1
    jlee541

    jlee541 [OP] New Member

    Joined:
    Oct 9, 2012
    Member:
    #88655
    Messages:
    4
    Gender:
    Male
    First Name:
    john
    Canton, GA
    Vehicle:
    Slow
  2. Oct 9, 2012 at 7:49 PM
    #2
    magnetic11

    magnetic11 Well-Known Member

    Joined:
    Feb 7, 2012
    Member:
    #72357
    Messages:
    591
    First Name:
    Matt
    "some nuke plant"
    Vehicle:
    11 trd sport
    Fab fours front and rear bumpers, B.A.M.F. weld on rock sliders, softopper, removed mud flaps and D-Badged everything. Icon 2.5 Extended Travel coil-overs, Total Chaos upppers, 2.0 Icon extended travel shocks with the resi's and Dekar Leaf packs.
    yep, i know what ill be doing to mine once the engine goes or i get tired of it..lol

  3. Oct 9, 2012 at 7:49 PM
    #3
    Taco Man in HD

    Taco Man in HD DC TRD MallRunner

    Joined:
    Dec 13, 2009
    Member:
    #27494
    Messages:
    819
    Gender:
    Male
    First Name:
    Evan
    Ohio
    Vehicle:
    2004 DC Tacoma PreRunner
    Methods, Red Labels, and other bro stuff.
  4. Oct 10, 2012 at 8:39 PM
    #4
    Twistinemup307

    Twistinemup307 Well-Known Member

    Joined:
    Jul 19, 2012
    Member:
    #82985
    Messages:
    71
    Gender:
    Male
    First Name:
    Alex
    Wyoming
    Vehicle:
    2012 DCLB tacoma SC sport
    BAD ASS!!!!!!! :)

  5. Oct 12, 2012 at 9:33 PM
    #5
    sandman29306

    sandman29306 Well-Known Member

    Joined:
    Sep 26, 2010
    Member:
    #43850
    Messages:
    124
    Gender:
    Male
    First Name:
    Andrew
    Chattanooga TN
    Vehicle:
    01 PreRunner DC
    Icon COs and rear resis, Deaver leafs. ARB locker in rear. ARB front bumper...Pissed at Gadget for abandoning the Rotrex 3.4 supercharger.
    Do you know if a shop or an individual did this installation?

  6. Oct 12, 2012 at 9:35 PM
    #6
    Drunknsloth

    Drunknsloth Indffrnce will be the fall of manknd but who cares

    Joined:
    Jun 17, 2010
    Member:
    #39105
    Messages:
    3,200
    Gender:
    Male
    First Name:
    Retribution
    South West
    Vehicle:
    08 SR5 Access V6 6-Speed
    Blacked-Out Badges; Retribution Decals (Sockmonkey); Tailgate Mod; Red LED Rear Blinkers; Yellow Foglights; Yellow Front Blinkers; Superwhite Xenon Corner Bulb; Leer Bedcap; Bedrug Bedmat; Black Cupholders; Black Plastic Piece Around Window Controls; Plasti-Dip Front Bumper Valence; Plasti-Dip Grill Surround; Blackout Chrome Back Bumper; Metal Miller Skid-Plate; Aero Turbine 2525 Muffler; TSB Rear Leaf Springs and Shocks; Satoshi Grill Pending; Off-Roading Torn off Mirror (Replaced); Blue-Sea Fuse Box; Tinted Tail Lights; URD Short Shifter; Interior Mood Lighting; Hood Lights; BedLights Pending
    Mother of God!

  7. Oct 13, 2012 at 10:23 AM
    #7
    Yamaha Dave

    Yamaha Dave Well-Known Member

    Joined:
    Mar 27, 2010
    Member:
    #34080
    Messages:
    2,661
    Gender:
    Male
    Jesus Christ! :bowdown:

  8. Oct 13, 2012 at 10:27 AM
    #8
    JLee

    JLee The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    15,483
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    Amazing! please tell me your pulling the tiny Toy axles?

  9. Oct 13, 2012 at 10:38 AM
    #9
    jandrews

    jandrews Carolina Alliance Southwest Region Ambassador

    Joined:
    Jun 7, 2009
    Member:
    #18122
    Messages:
    12,235
    Gender:
    Male
    Vehicle:
    '09 FourDubDee TRD OR
    A-TRUCK, Fat Kid in the Bed, Custom Pinstriping, Ported and Polished Muffler Bearing, Hi-Performance Bed Mat
    This. I would think the entire drivetrain would need to be swapped to keep from snapping shit.

  10. Oct 13, 2012 at 10:42 AM
    #10
    allmotorrex

    allmotorrex Grove St. Motorsports

    Joined:
    Aug 29, 2010
    Member:
    #42441
    Messages:
    11,866
    Gender:
    Male
    First Name:
    Gideon
    Memphis 901
    Vehicle:
    08 SR5 4wd 2.7
    4.88s w/h rear Powertrax locker, Fox 2.5 Ext. RR COs, Camburg 1.25” ucas, Fox 12" smooth body RR, BAMF shock kit, AP 3" springs, ext. brake lines, 315/75/16 BFG KM2, AP 1.5" spacers, 16x8 Pro Comp wheels, BFF front hybrid, GSM rear HC, Relentless Fab ifs skid, BAMF lca skids, BAMF k/o sliders, X2O 10K comp. winch, TP glass fenders, OKled 20"bar, EBS dimpled/slotted rotors, EBS green pads, K&N 63 CAI, LCE headers, FM Super 44 w/h turn down, URD MAF cali., LCE Dual Comp clutch, URD ss, TMPer M1 Abrams shift knob, Amsoil oil, Cobra 75wxst w/h 4' firestix, ARB compressor, Grillcraft, FXR TRS, T1 eyelids, 500 hellas w/h 6k hid conv., custom ADV Monster model 60 lights, bed lights, speedo light mod, Glow Shift volt/oil pres gauges, Glow shift 2g column pod, Optima yellow tops dual battery setup w/h IBS system, Pioneer DEH-P7200HD head unit, Pioneer 600W 4ch & 350w 2ch amps for doors and sub, Wet Oakle covers, Weather Tech
    this is badass!!!! So op its not ur truck, whos is it!? R u doing the work on it?

  11. Oct 13, 2012 at 4:57 PM
    #11
    Large

    Large Red

    Joined:
    Sep 10, 2011
    Member:
    #63268
    Messages:
    16,547
    Gender:
    Male
    Where is this located

  12. Oct 13, 2012 at 5:22 PM
    #12
    jlee541

    jlee541 [OP] New Member

    Joined:
    Oct 9, 2012
    Member:
    #88655
    Messages:
    4
    Gender:
    Male
    First Name:
    john
    Canton, GA
    Vehicle:
    Slow
    Yes, I did all the work at my shop in Atlanta. Owner lives in Florida.

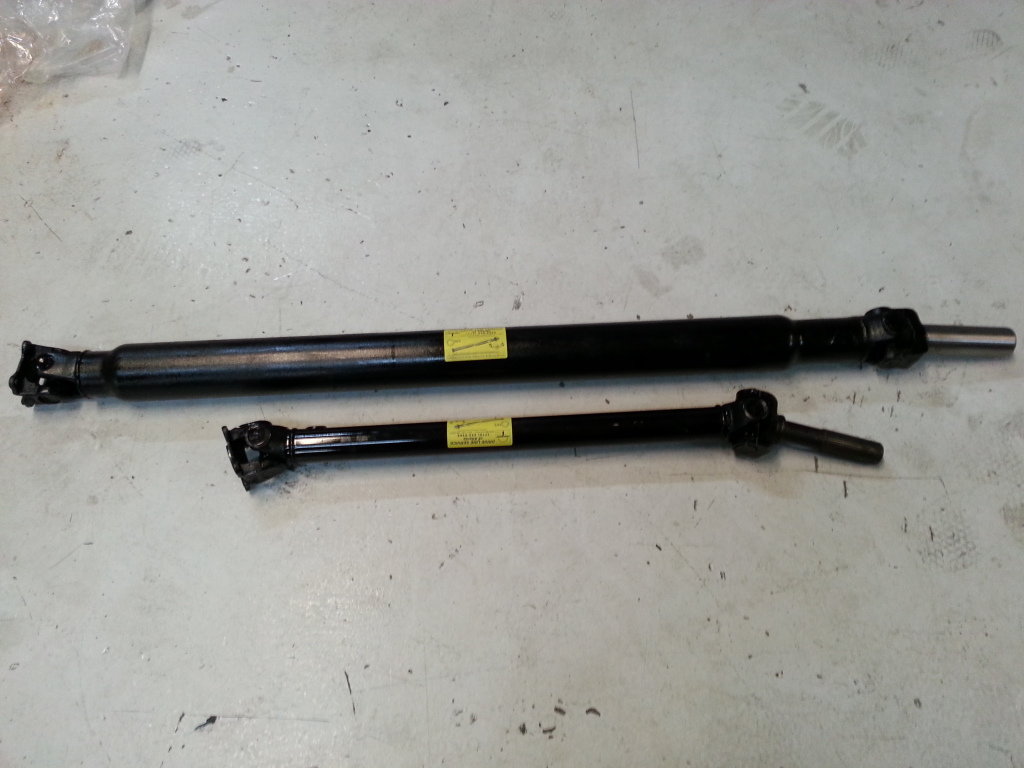

    As for the front diff and rear axle they will get changed (prob when they break LOL) But first thing needed is a trac bar of some sort. That rear u-joints hatin life right now!!

    [​IMG]

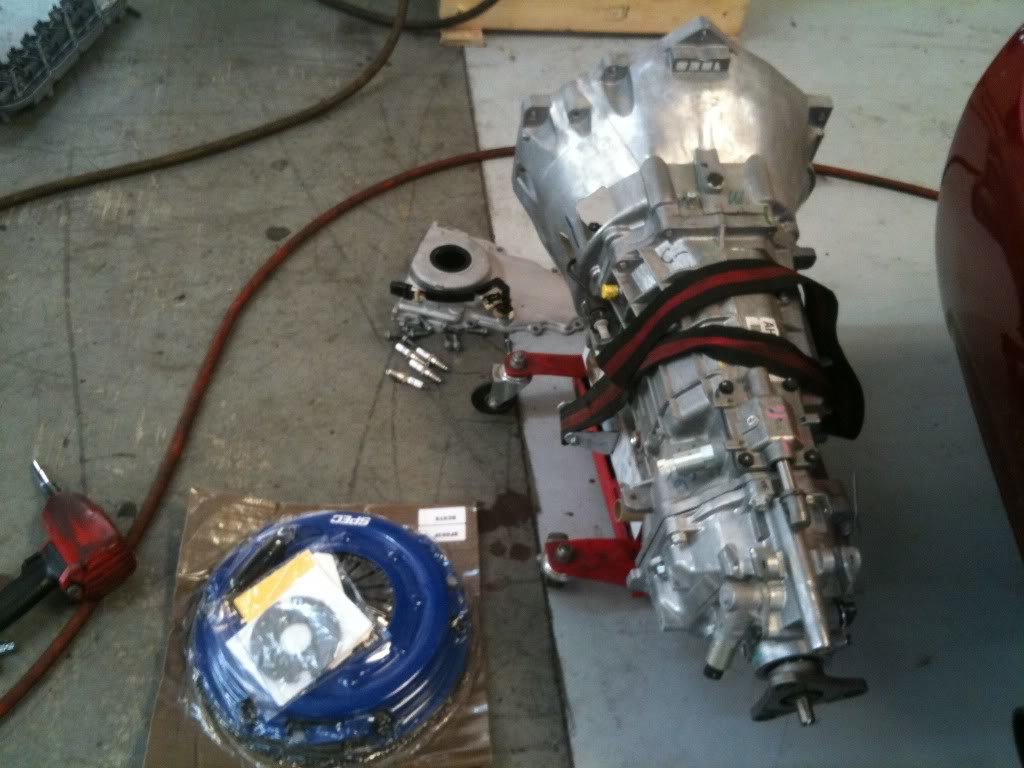

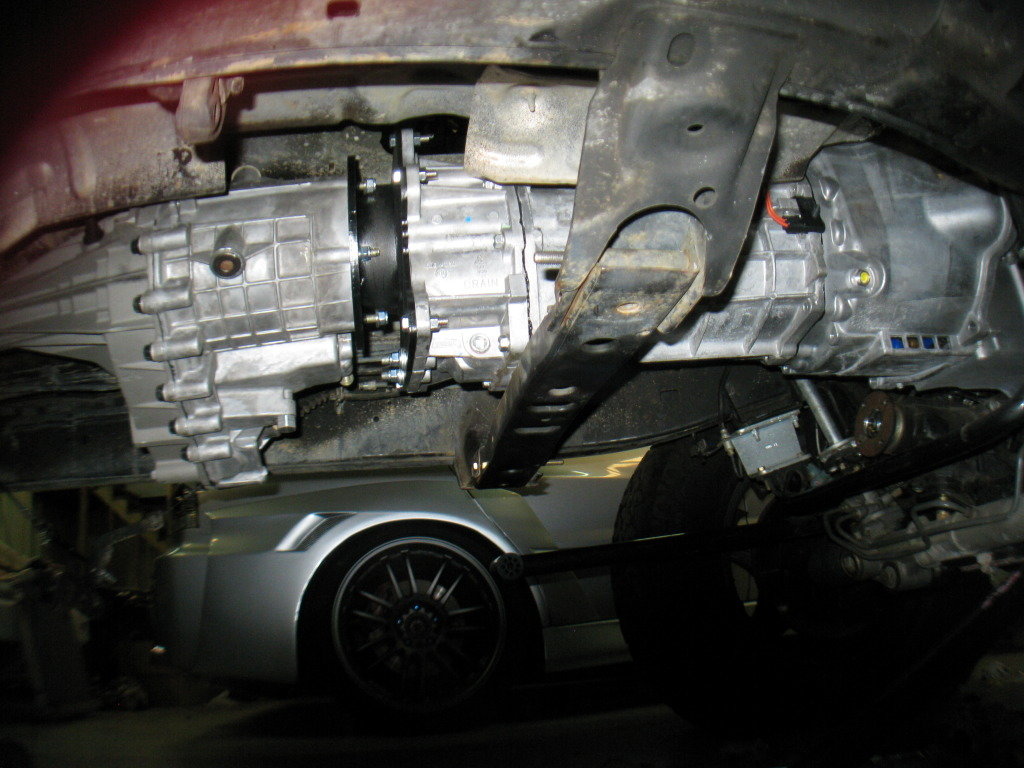

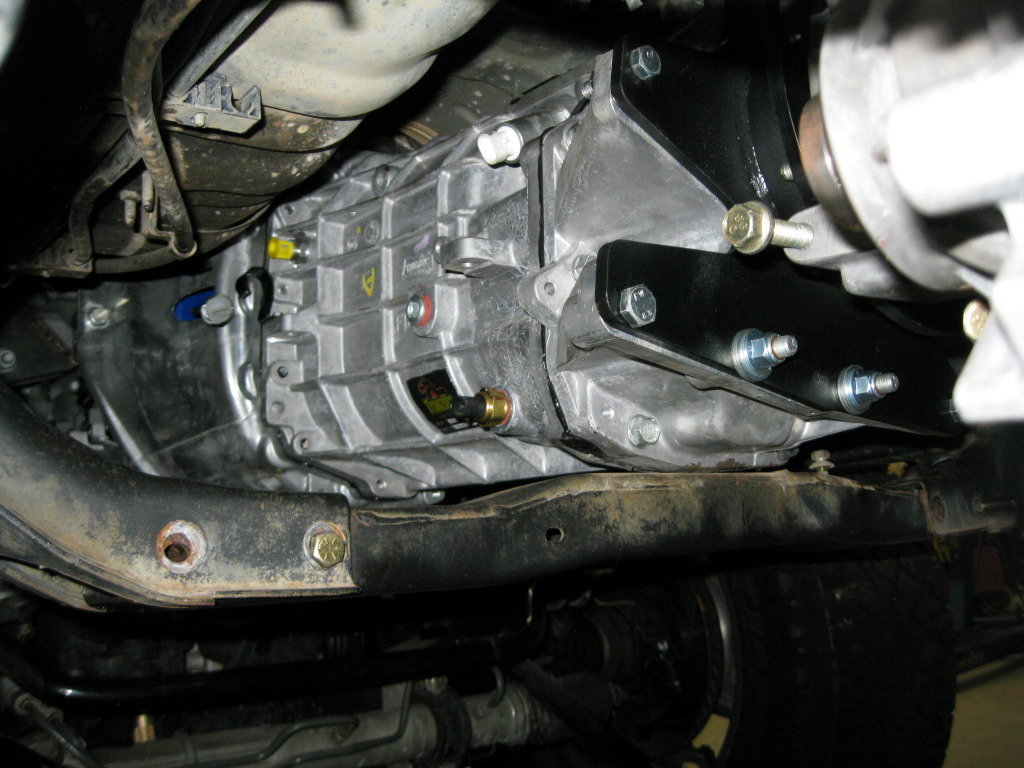

    Before the trans was sent off to get modified and the Spec 3+ clutch that I used
    [​IMG]

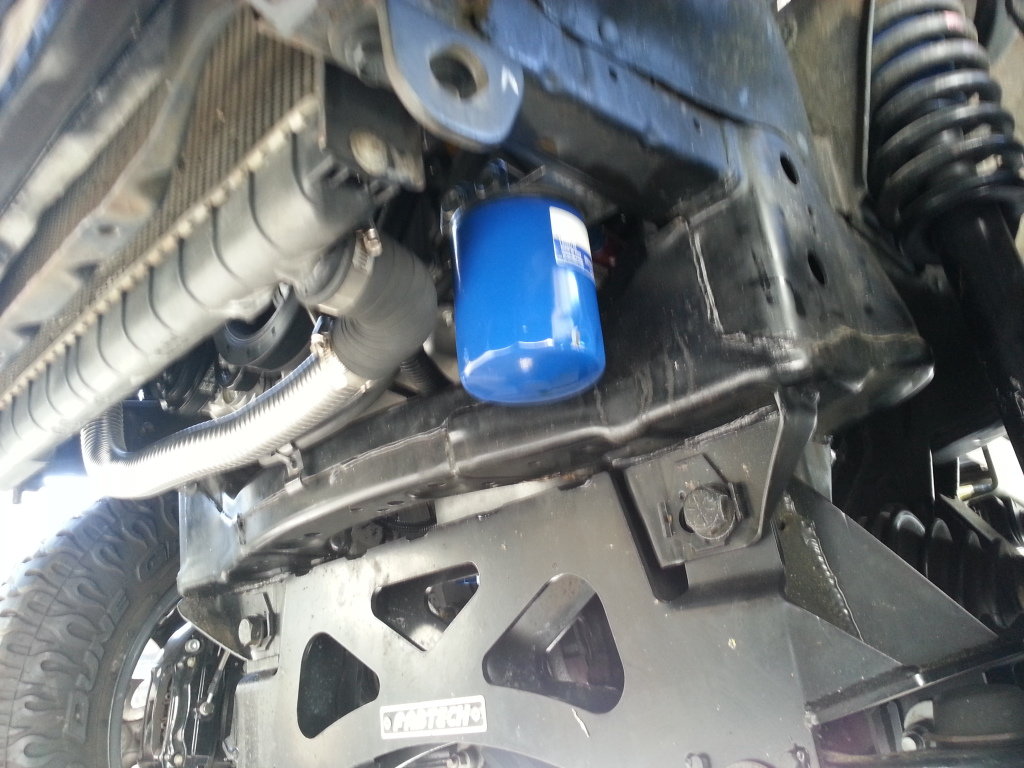

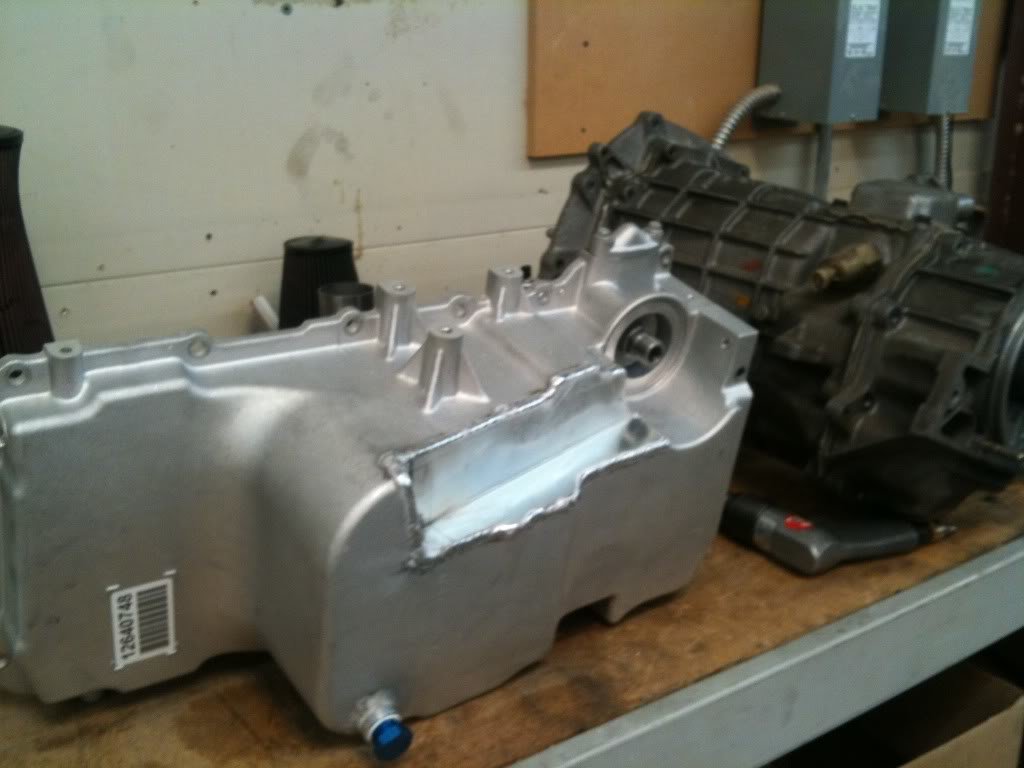

    Heres where I had to notch the oil pan to clear the front diff. This swap would not have been possible had the truck not had the Fabtech front lift kit. Also had to use a Canton remote filter adaptor.
    [​IMG]
    [​IMG]

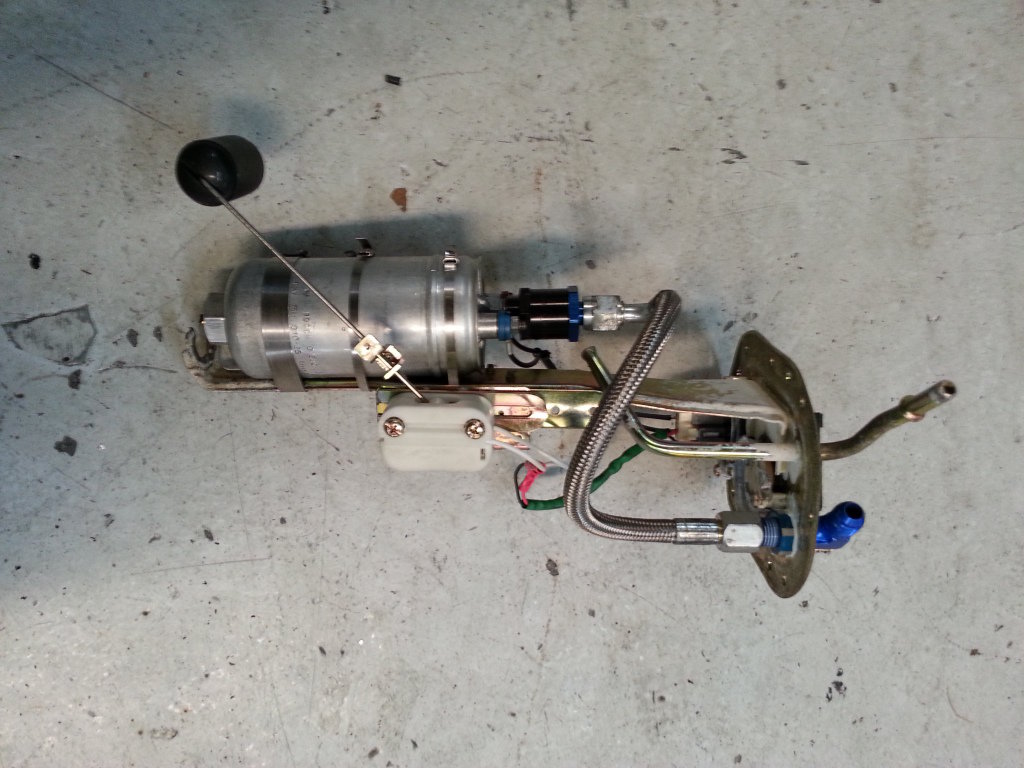

    Modified pump assembly. Bosch 044 and I put in an Autometer 240-33 ohm sending unit to work with the Camaro gauge. Which turned out I had to put a series of diodes and resistor in to get the LS3 ECM to read it properly. Camaros have two senders in the saddle tank. That took quite a bit of testing to make work. But the dash now gives instant mpgs and miles to empty WOHOO!!
    [​IMG]

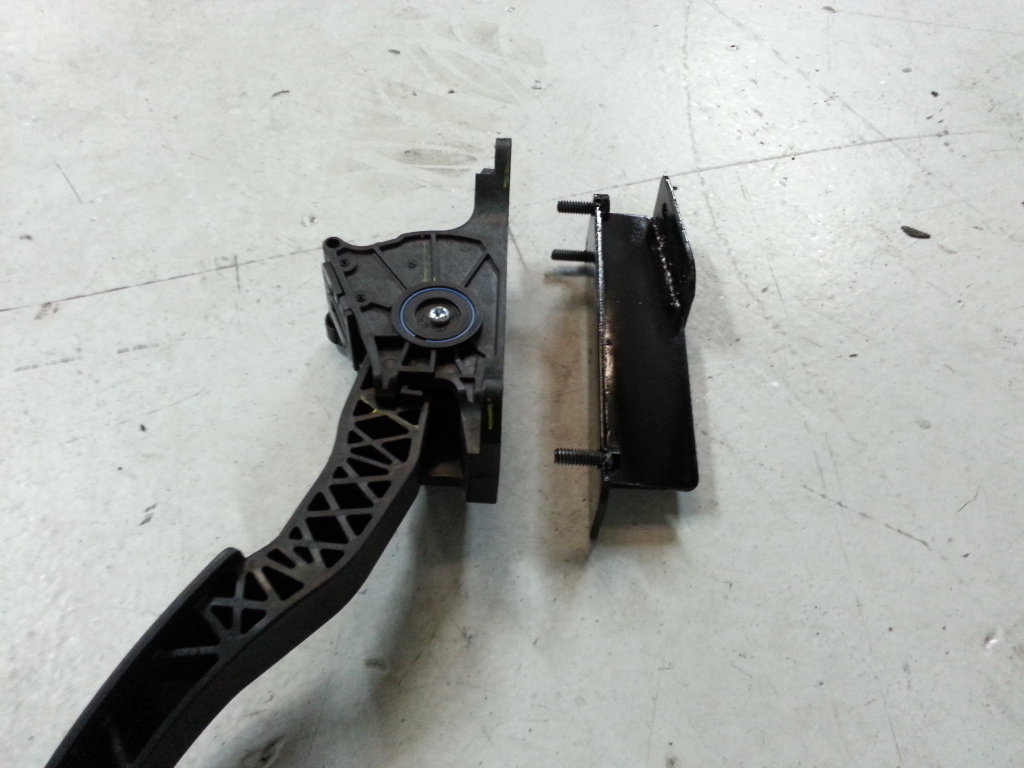

    Gas pedal mount. This was a task in itself as the e-brake mechanism was all in the way. Had to modify this mount a few times to get the pedal in the right spot.
    [​IMG]

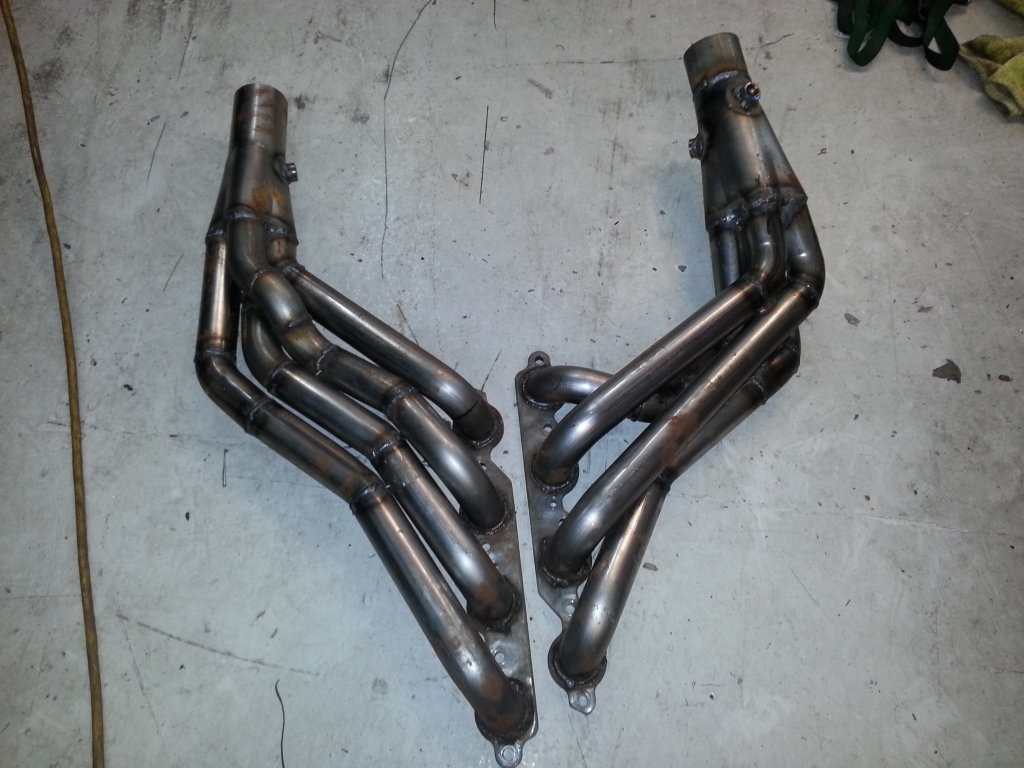

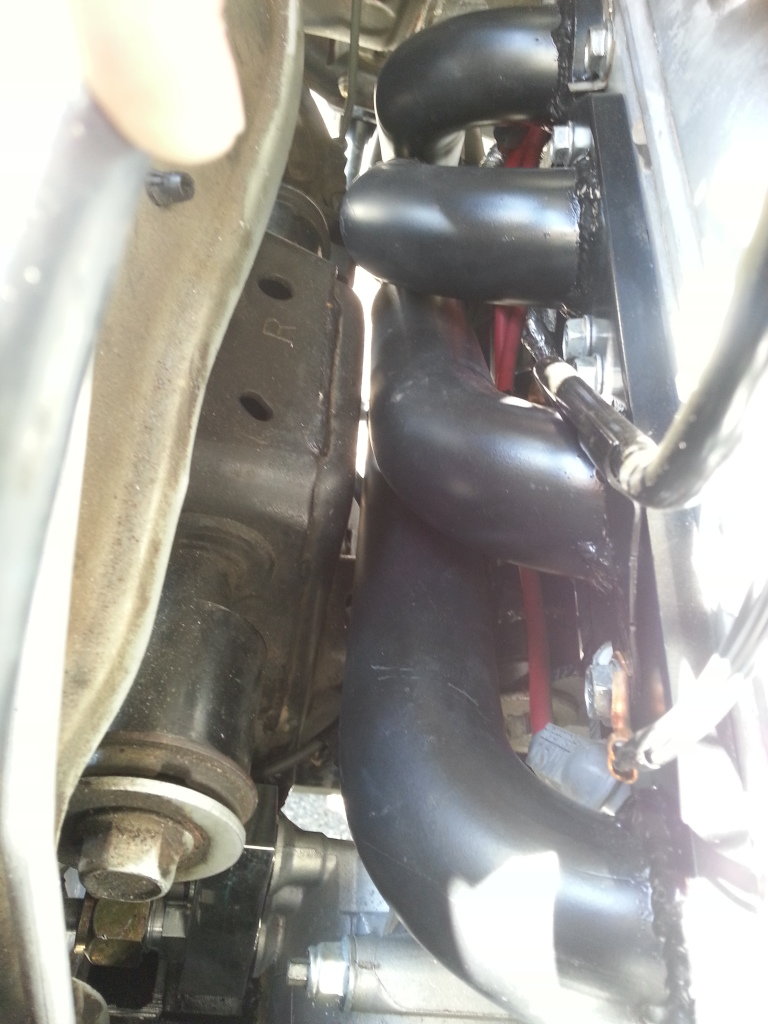

    Headers (before ceramic coating)
    [​IMG]

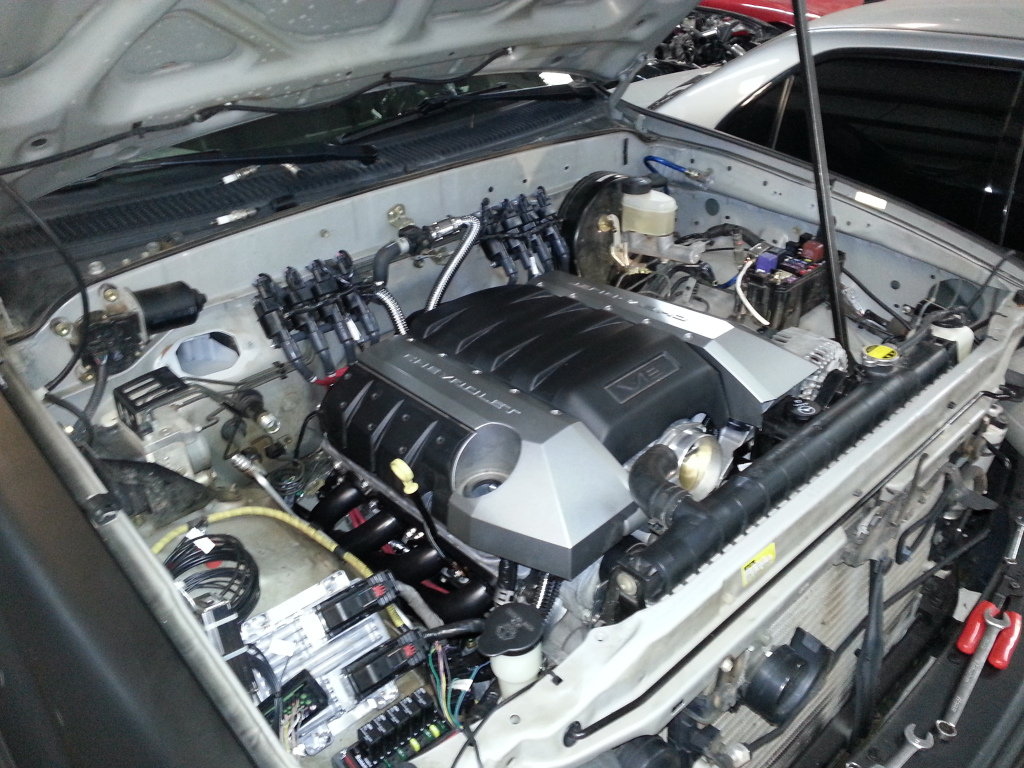

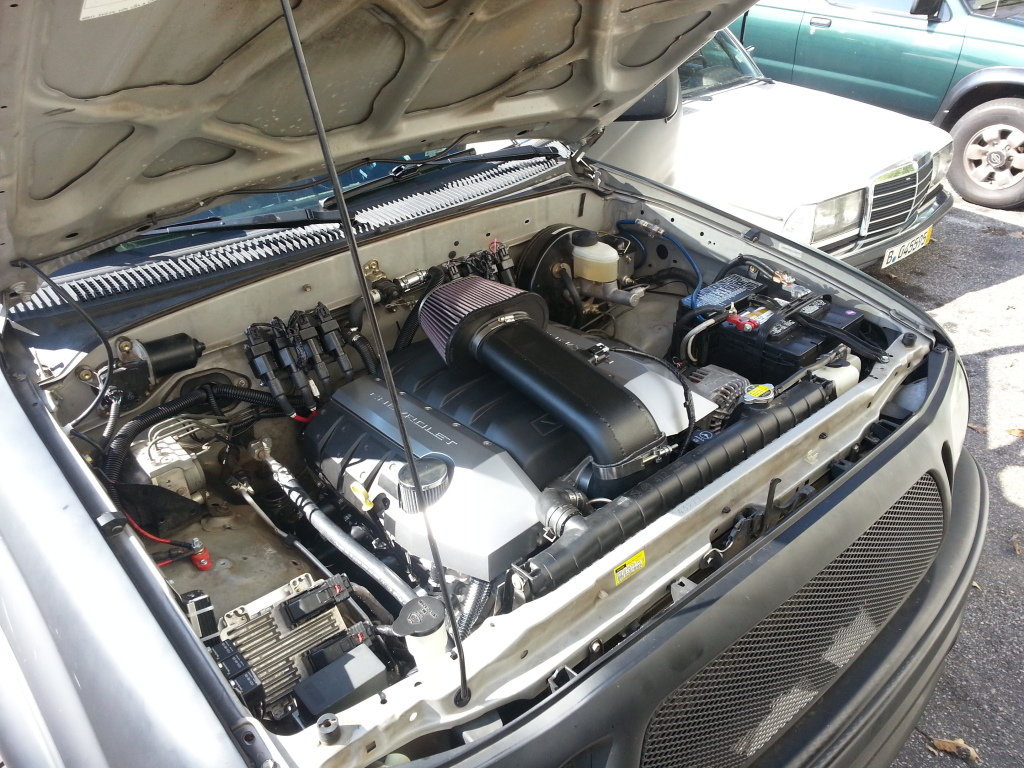

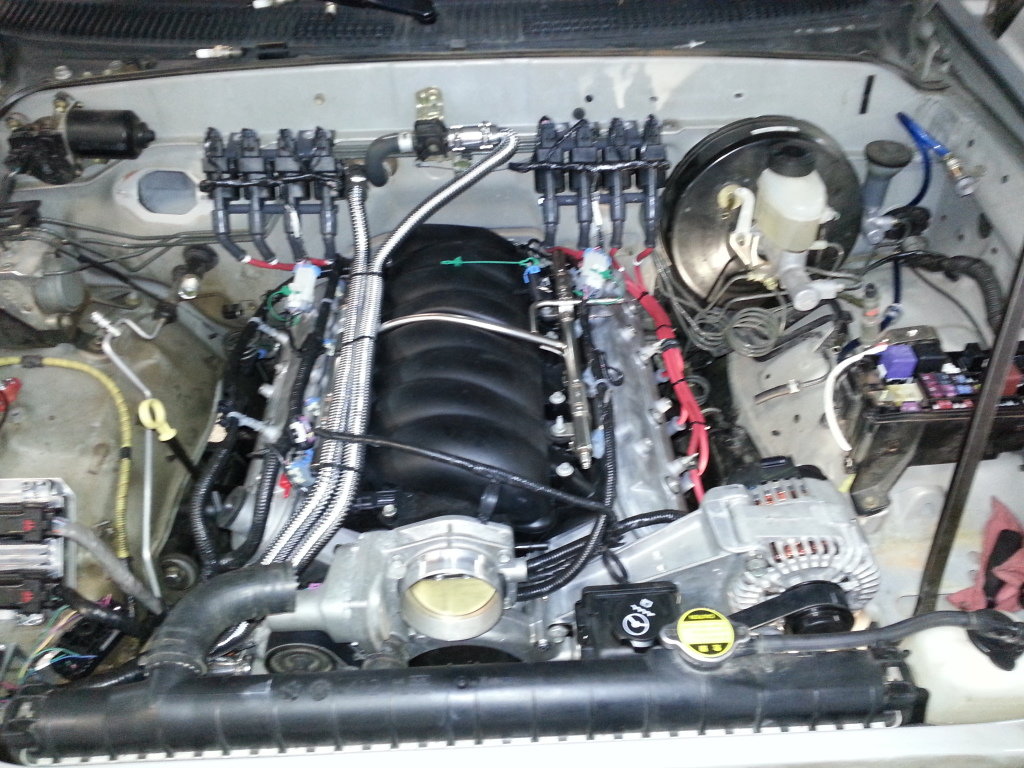

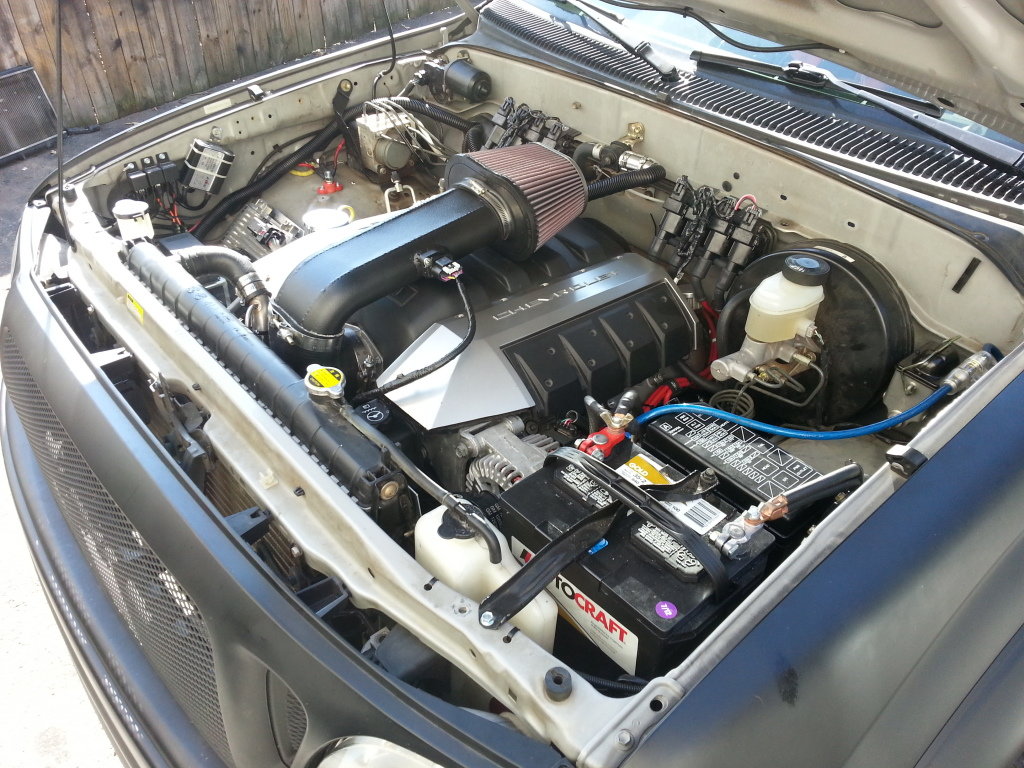

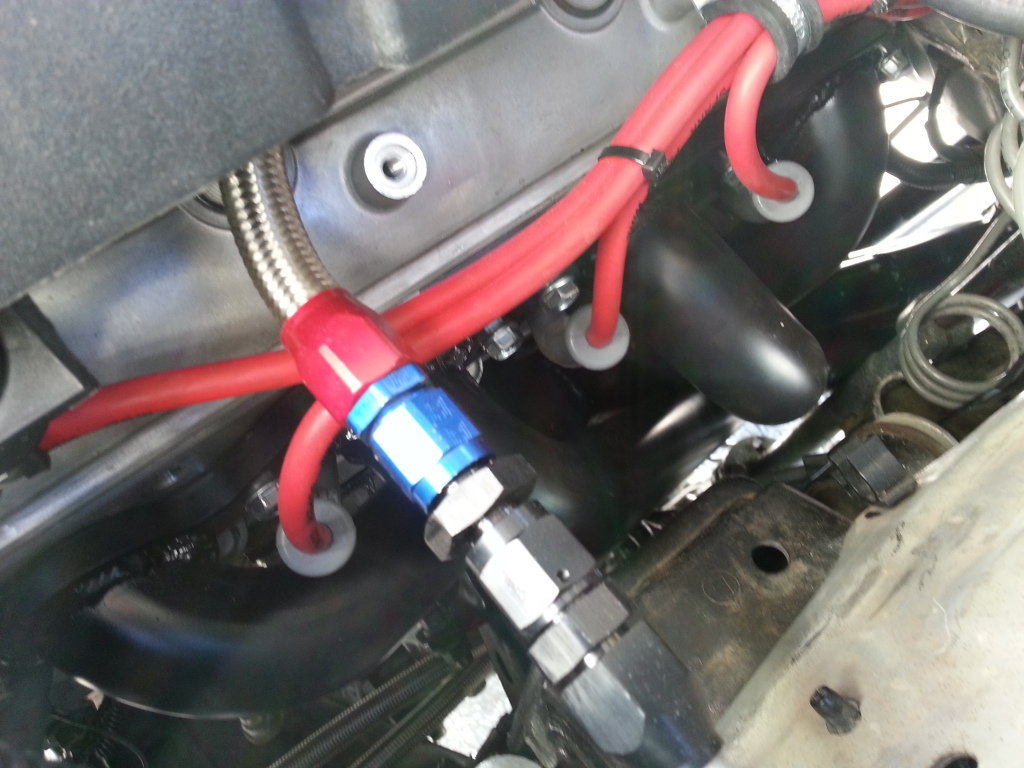

    Trying to get a good angle of how tight this is in the truck
    [​IMG]
    [​IMG]

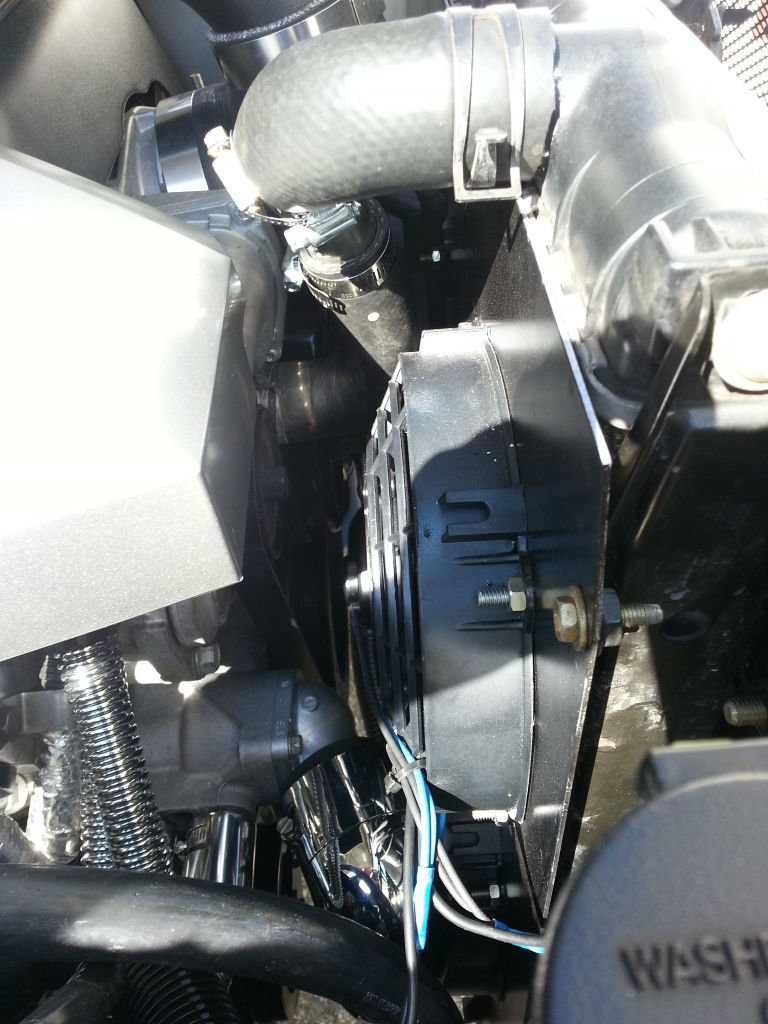

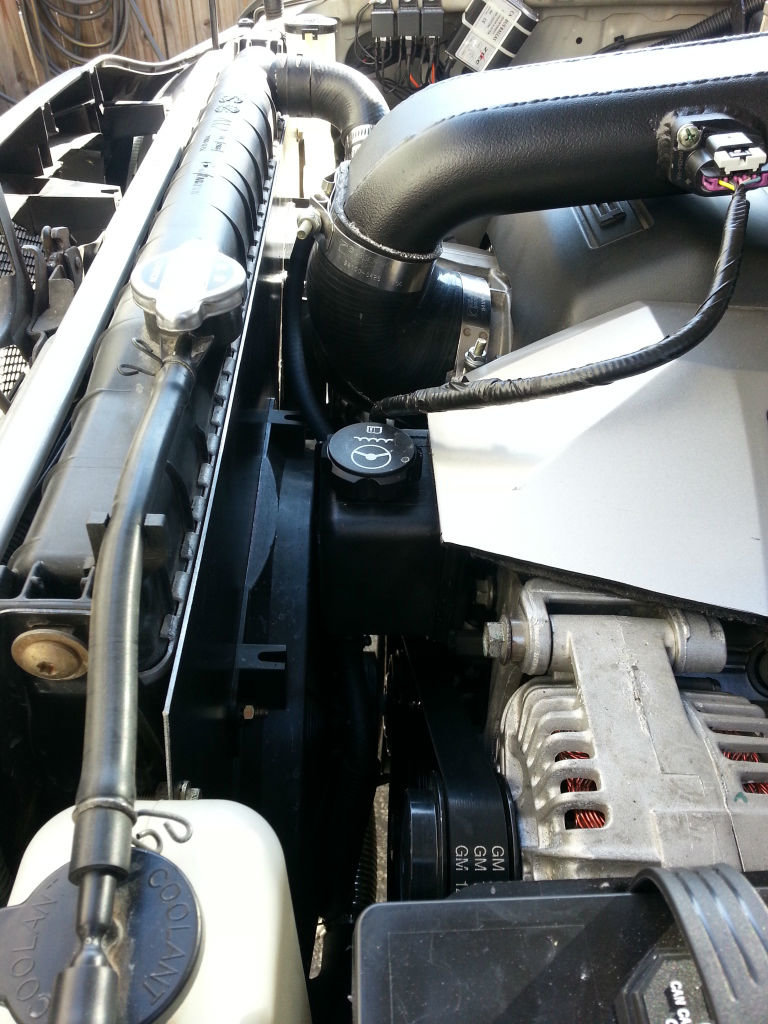

    And this is how tight the front is. I used the stock radiator, made an aluminum plate with two 9" and one 16" fan. Running off LS3 ecm I programmed them to come on in series. Absoutely zero overheating problems. , the big fan cycles between 187 and 181 for about 20 seconds.
    [​IMG]
    [​IMG]

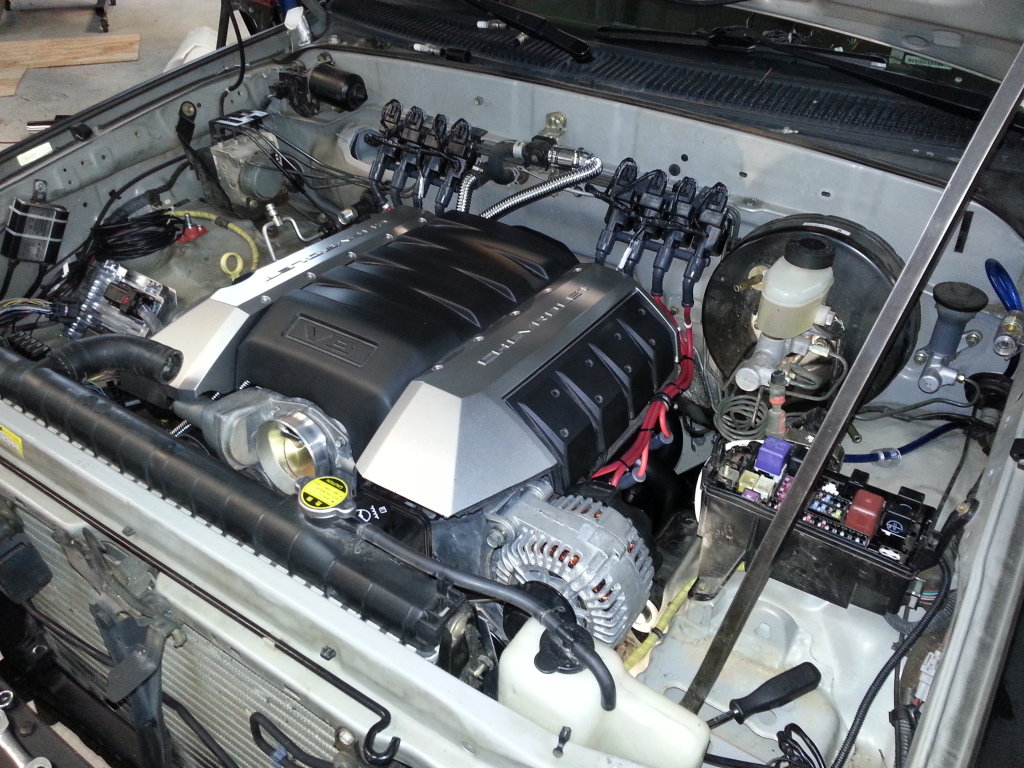

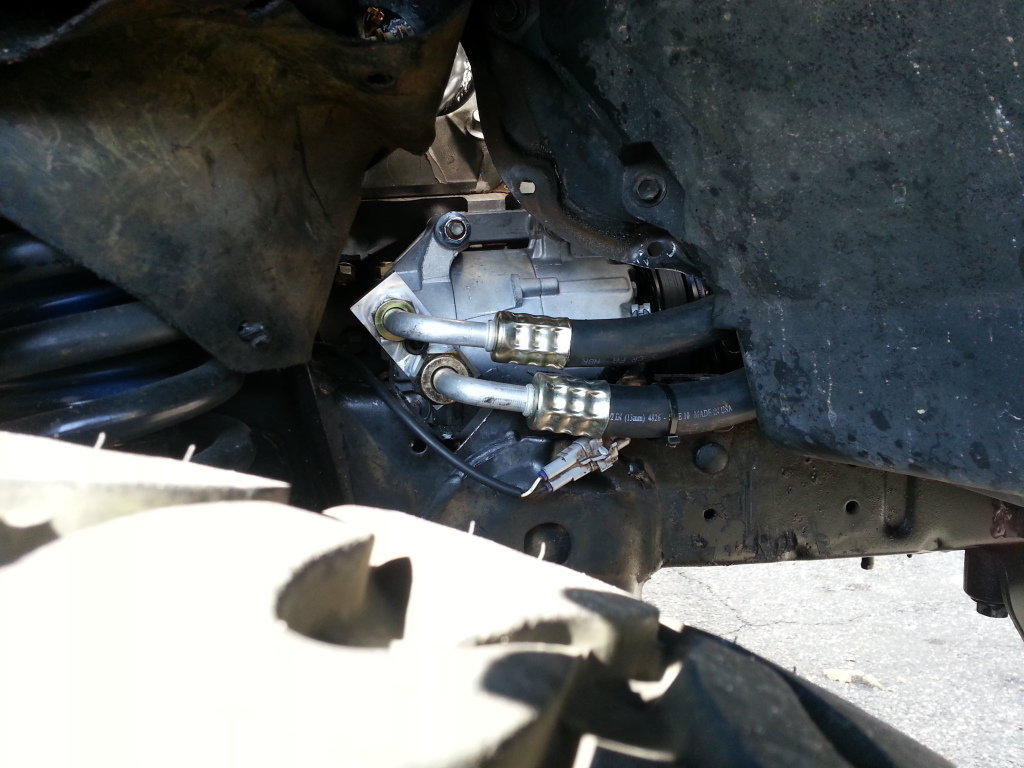

    Used all 08+ Corvette accessories as they are the tightest to the block and had to put a little bit narrower battery to clear the alternator. Also had to notch the frame on the pass side for the ac compressor and hoses.
    [​IMG]

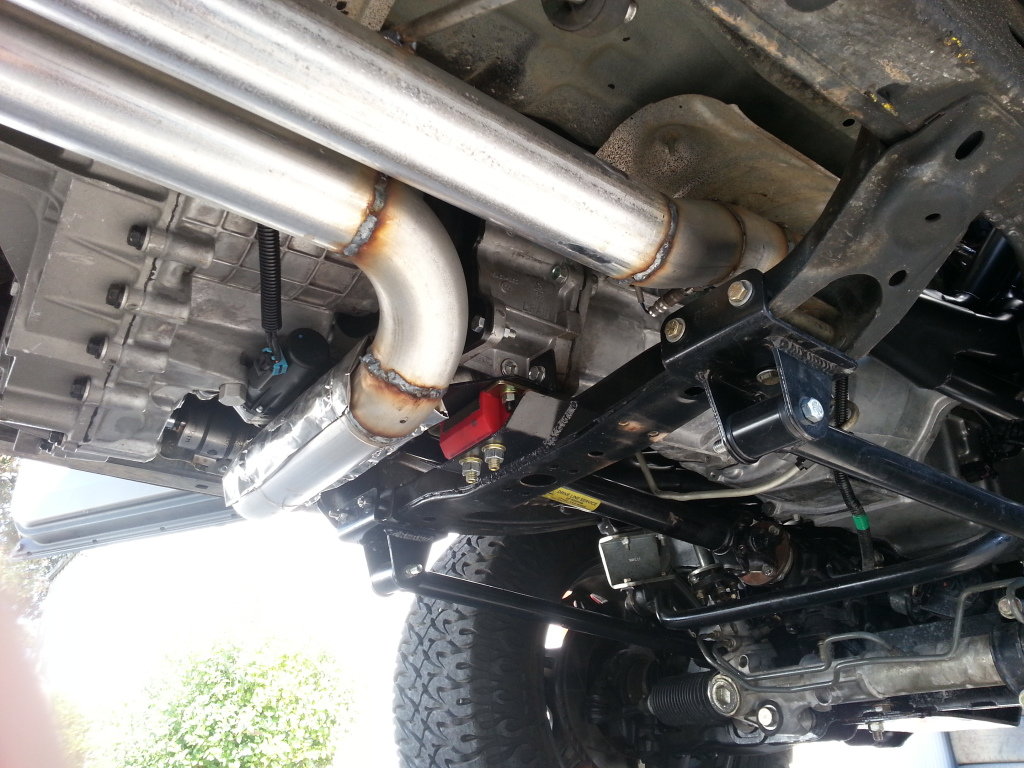

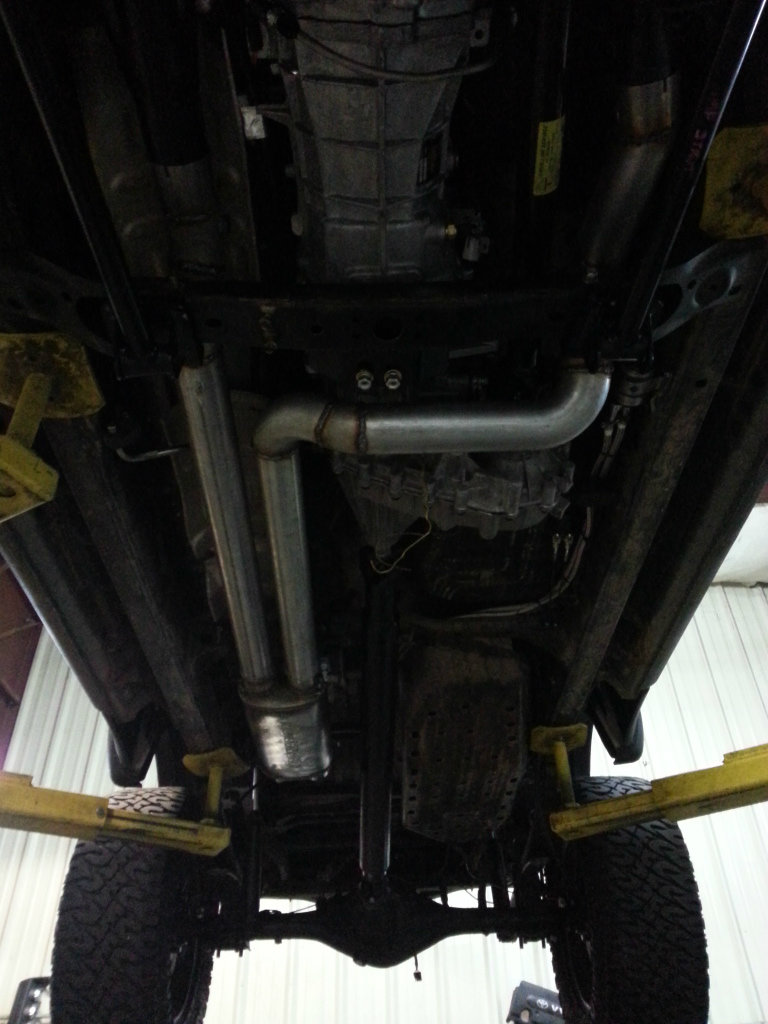

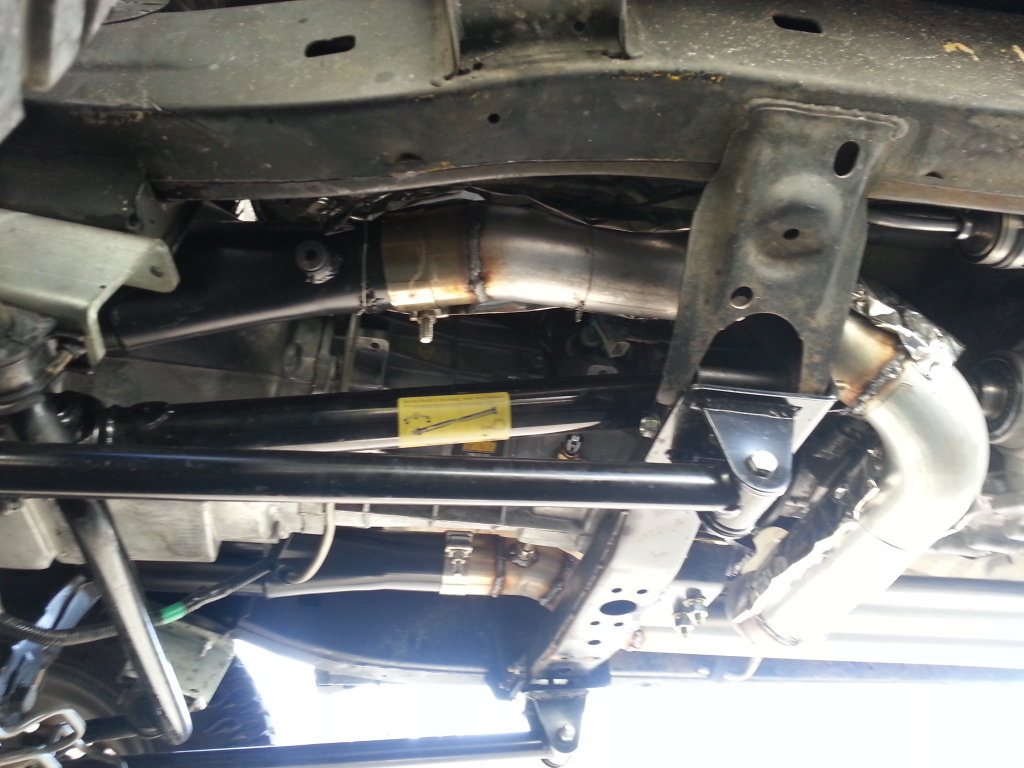

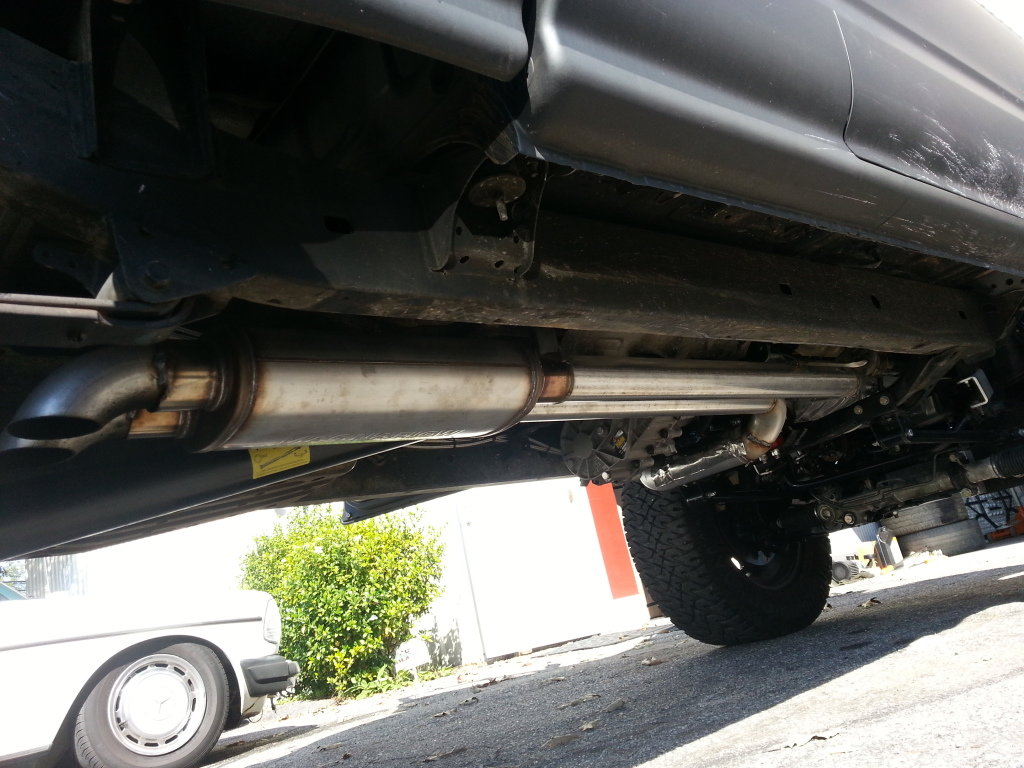

    Full Dual 3" exhaust into a Magnaflow x-pipe muffler with turndowns YEEHAW!! Actually it isnt redneck loud, sounds awesome and absolutely no fumes or anything inside the cab.
    [​IMG]
    [​IMG]
    [​IMG]

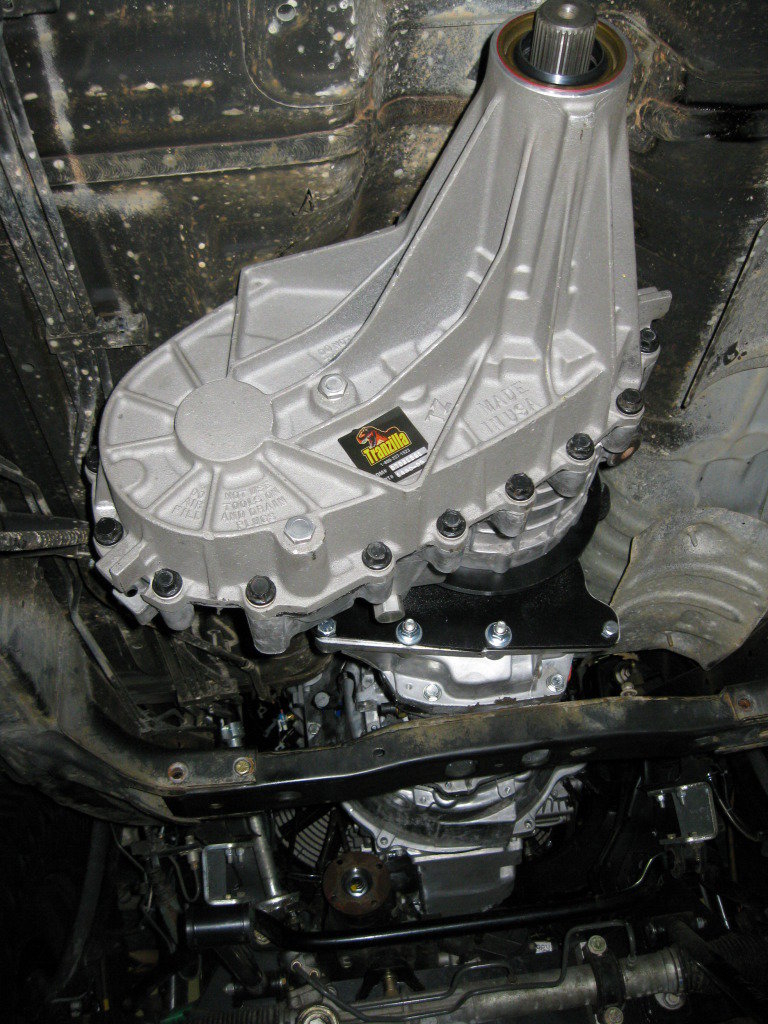

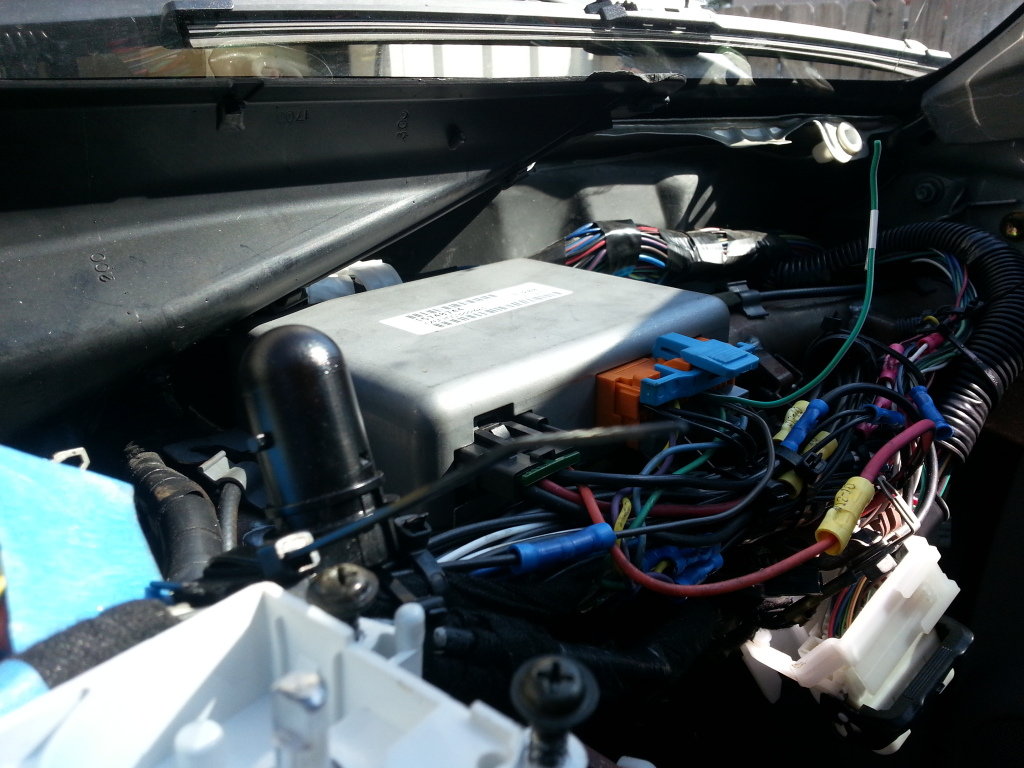

    This is what controls the transfer case, out of an Astrovan :) Its basically an on demand AWD and with a switch I can send 6-8 volts to the encoder motor to force it into AWD. Or disconnect the power and the ADD for 2wd operation.
    [​IMG]

    [​IMG]

    [​IMG]

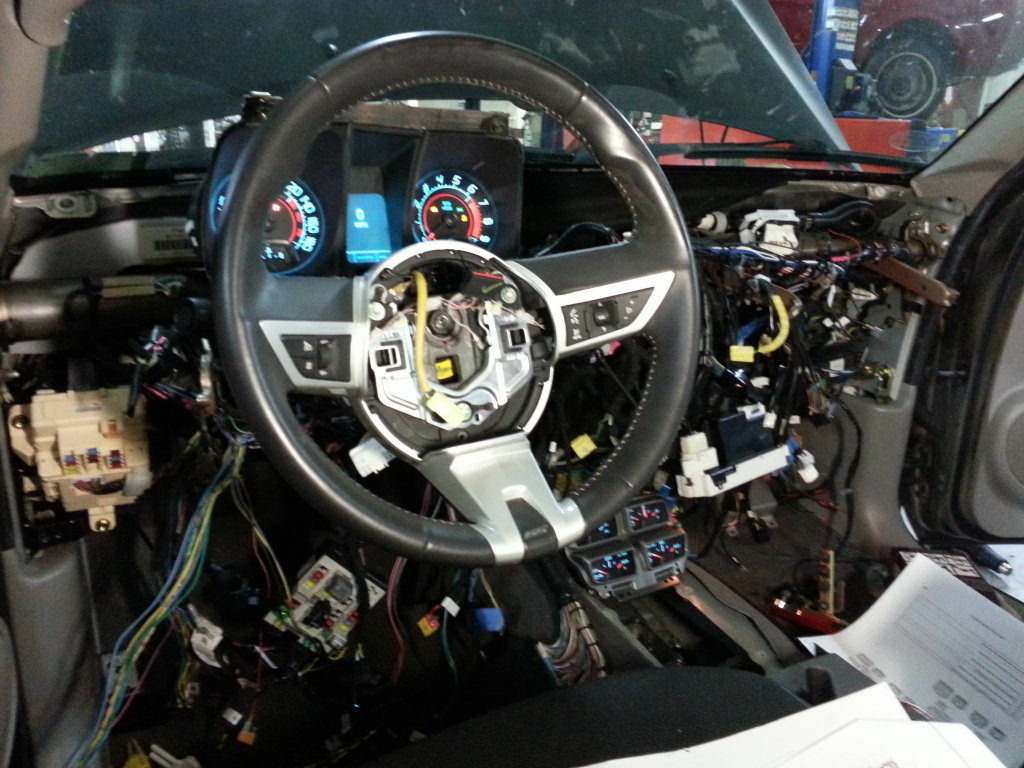

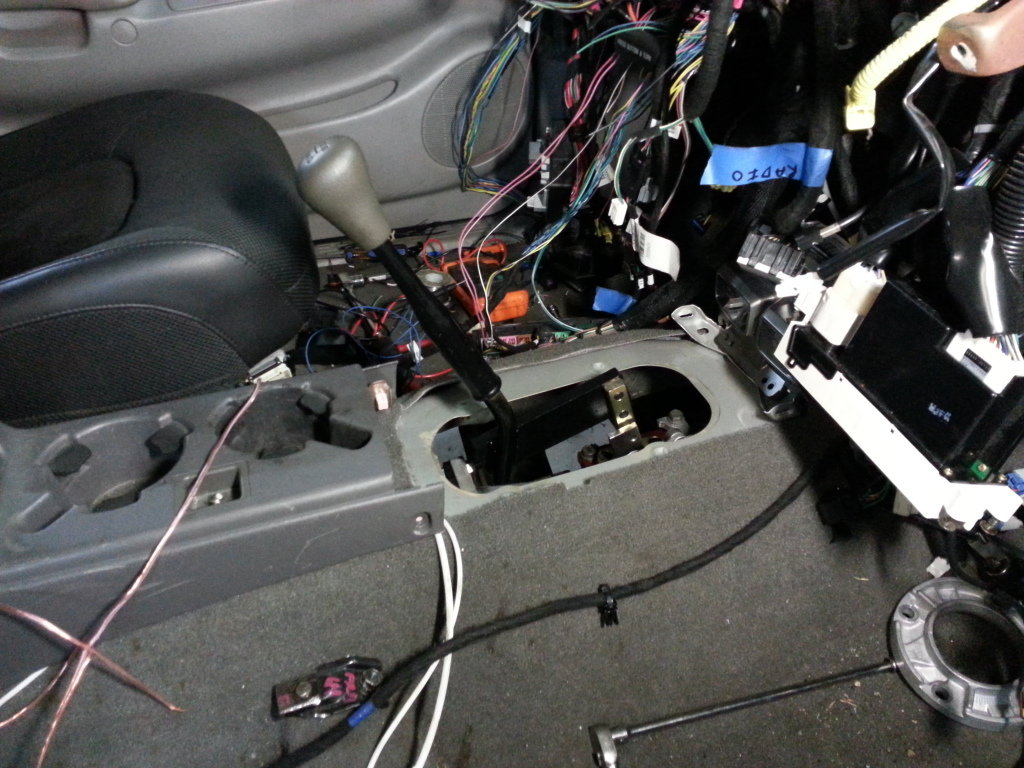

    Owner took the truck back to FL today and hopefully get some pics of the finished interior/dash soon.

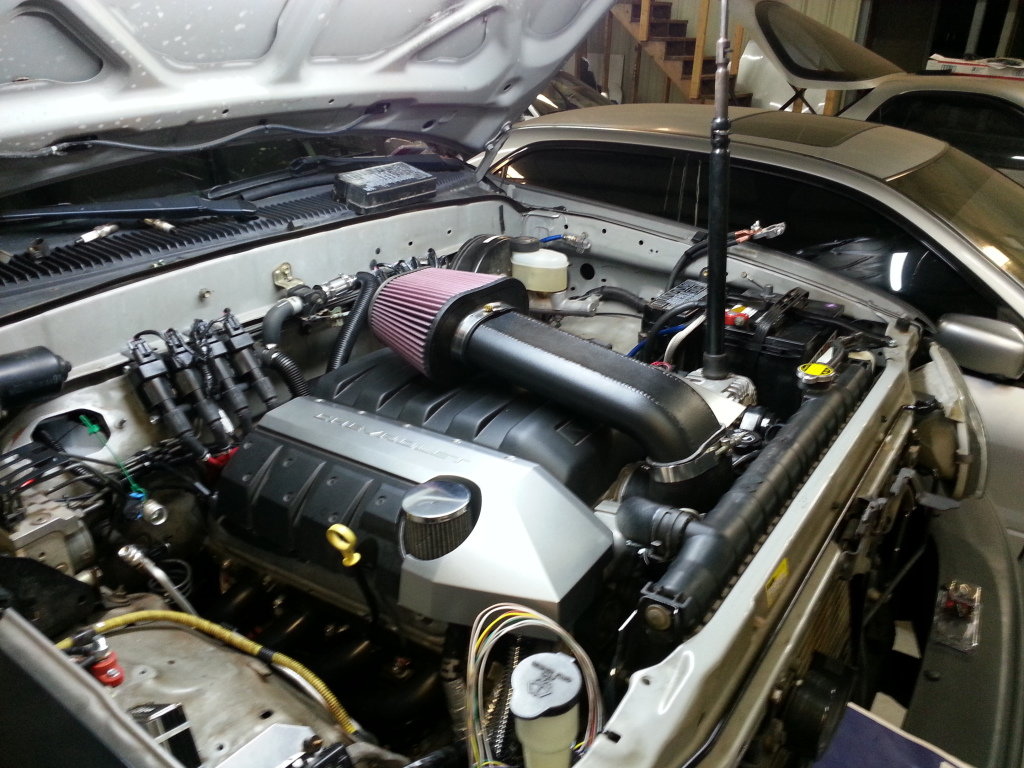

    Also, hes gonna do some sort of hood scoop(s). Why I built the intake that way.

  13. Oct 13, 2012 at 5:45 PM
    #13
    EL TACOROJO

    EL TACOROJO SNAPPIN NECKS AND CASHIN CHECKS.

    Joined:
    Jun 9, 2009
    Member:
    #18220
    Messages:
    9,942
    Gender:
    Male
    First Name:
    BURRY
    south mills NORCAR
    Vehicle:
    03 dblcab prerunner sr5 v6
    smoked taillights,smoked front turnsignals,smoked 3rd brake light,black badges,black roof rack,removed mud flaps,debadged, camburg 2.5 coilovers,camburg uca's, cobra 25 cb, 4ft firestick ant, dust light/bed lights , 4 hellas on the front
    Nice work. Like to see more

  14. Oct 13, 2012 at 5:56 PM
    #14
    Joben7726

    Joben7726 wes mantooth ™

    Joined:
    Oct 26, 2010
    Member:
    #45285
    Messages:
    6,383
    Gender:
    Male
    First Name:
    Joben
    Western PA/Va Beach
    Vehicle:
    Trail limo
    more than list-able
  15. Oct 13, 2012 at 6:00 PM
    #15
    kirkofwimbo

    kirkofwimbo Say no to Bro

    Joined:
    Jul 17, 2010
    Member:
    #40338
    Messages:
    1,770
    Gender:
    Male
    First Name:
    Clayton
    Wimberley, TX
    Vehicle:
    '07 DCSB SR5 4x4
    It's got LSD man.....
  16. Oct 13, 2012 at 6:02 PM
    #16
    ajohnson

    ajohnson Glamour Shot

    Joined:
    Apr 19, 2009
    Member:
    #16145
    Messages:
    6,668
    Gender:
    Male
    First Name:
    Andy
    Charlotte, NC
    Vehicle:
    07 DCLB TRD Sport
    Things and stuff and such
  17. Oct 13, 2012 at 6:11 PM
    #17
    andrew8404

    andrew8404 Well-Known Member

    Joined:
    Dec 9, 2010
    Member:
    #47389
    Messages:
    928
    Gender:
    Male
    First Name:
    ANDREW
    Redlands, CA
    Vehicle:
    12' 4x4 DCSB TRD Offroad
    -Icon Stage 4 Suspension with King Coils 700LB -PelfreyBuilt front bumper -Black TRD OR Decal -Rear differential breather mod -Changed out chrome grill and rear bumper for color matched -JBL Speakers -Pioneer 4400 HU -LED Dome/Map/License plate lights -Bestop Softtop -33inch spare tire mod
    My thoughts exactly

  18. Oct 13, 2012 at 6:13 PM
    #18
    ajohnson

    ajohnson Glamour Shot

    Joined:
    Apr 19, 2009
    Member:
    #16145
    Messages:
    6,668
    Gender:
    Male
    First Name:
    Andy
    Charlotte, NC
    Vehicle:
    07 DCLB TRD Sport
    Things and stuff and such
    What are the dyno numbers?

  19. Oct 13, 2012 at 6:18 PM
    #19
    nelson18matt

    nelson18matt Well-Known Member

    Joined:
    Mar 19, 2009
    Member:
    #14939
    Messages:
    13,831
    Gender:
    Male
    Arizona
    Vehicle:
    2004 Long Travel Tacoma
    *SOLD*
    that is freaking awesome

    too bad the rest of the truck is, well.... uh...uh...uh... undesirable.

  20. Oct 13, 2012 at 6:19 PM
    #20
    tacomonazul

    tacomonazul Well-Known Member

    Joined:
    Mar 4, 2012
    Member:
    #74163
    Messages:
    3,440
    Gender:
    Male
    First Name:
    Luis
    SOCAL
    Vehicle:
    07 DCSB LT/4LINK
    http://www.tacomaworld.com/forum/2nd-gen-builds/227832-my-never-end-build.html
    how much hp did it threw?
