Main transmission wire color order

Discussion in '4Runners' started by 4runner1230, Oct 3, 2021.

  1. Oct 3, 2021 at 3:50 PM
    #1
    4runner1230

    #1
    4runner1230 [OP] New Member

    Joined:
    Oct 3, 2021
    Member:
    #378731
    Messages:
    1
    Gender:
    Male
    First Name:
    Jace
    Vehicle:
    2003 4.7 Toyota 4runner

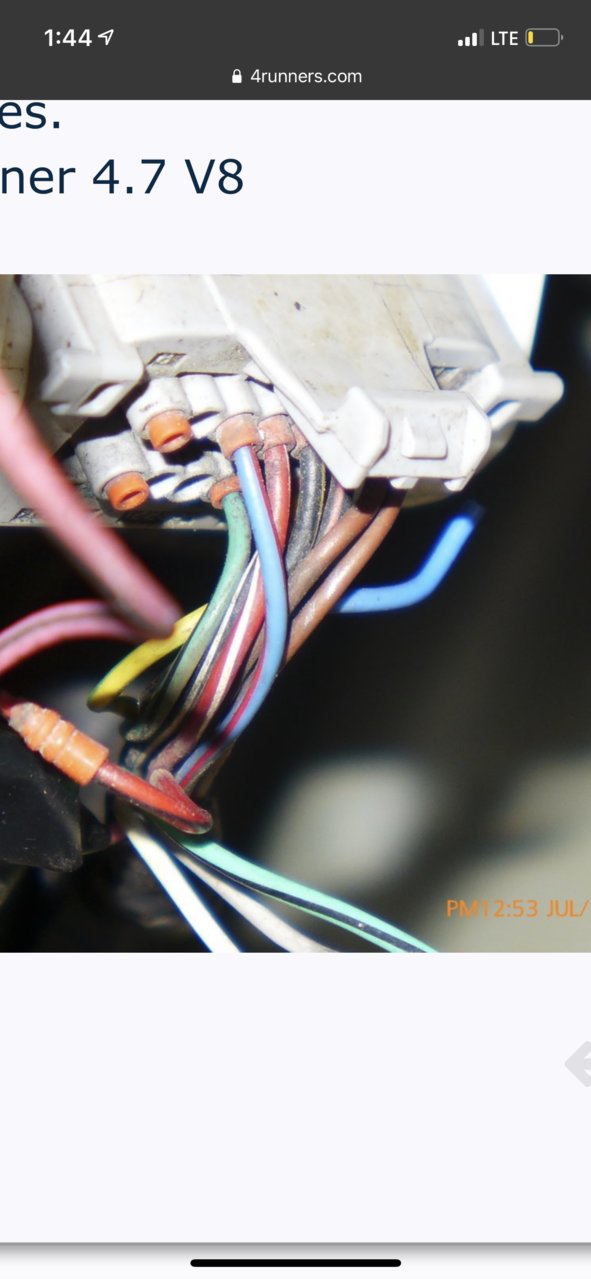

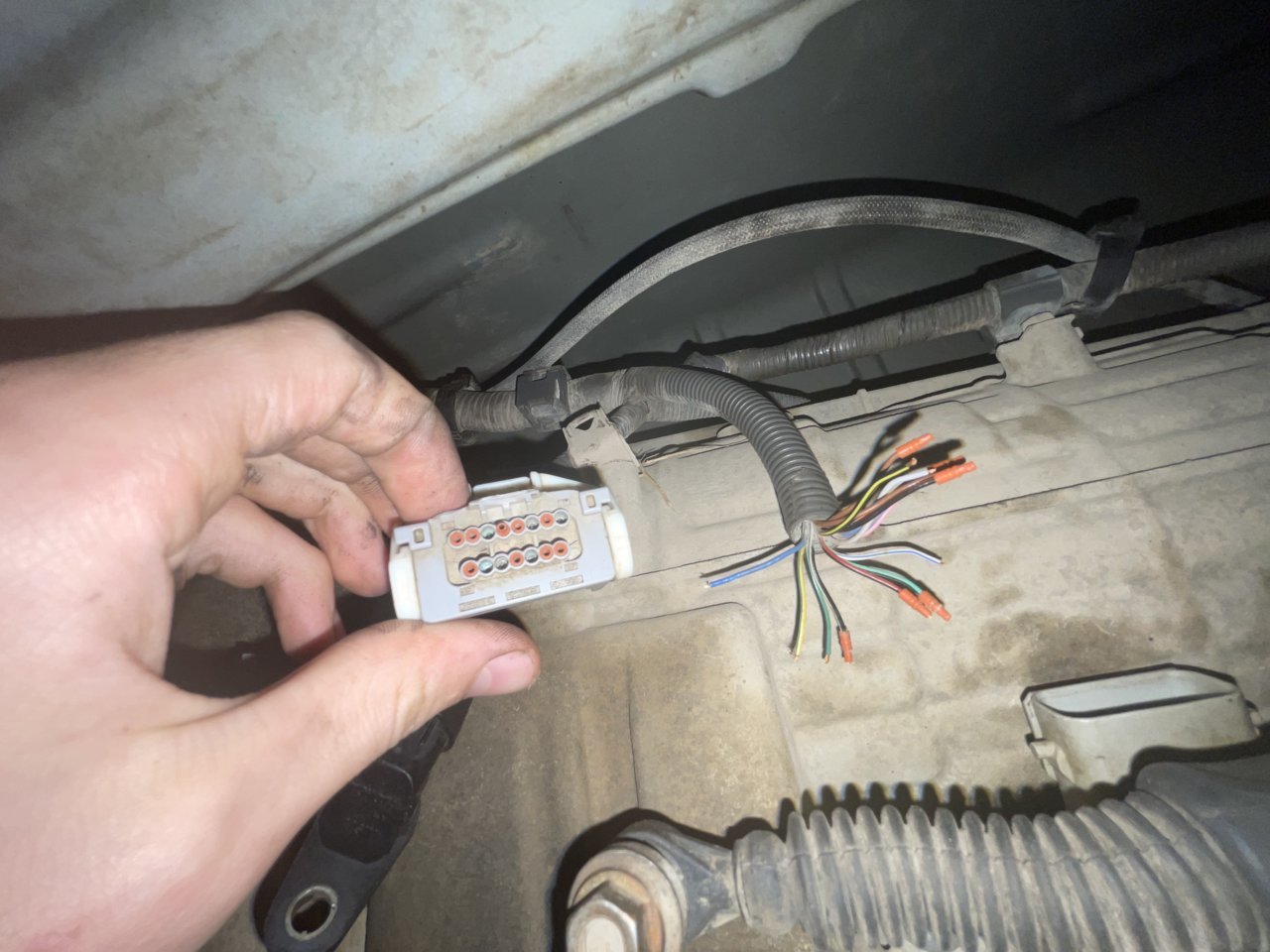

    upload_2021-10-3_16-45-11.jpg I need help with what order the wires go in.think I got them split up right top has 8 bottom has 7 but I need to be sure what order they go in

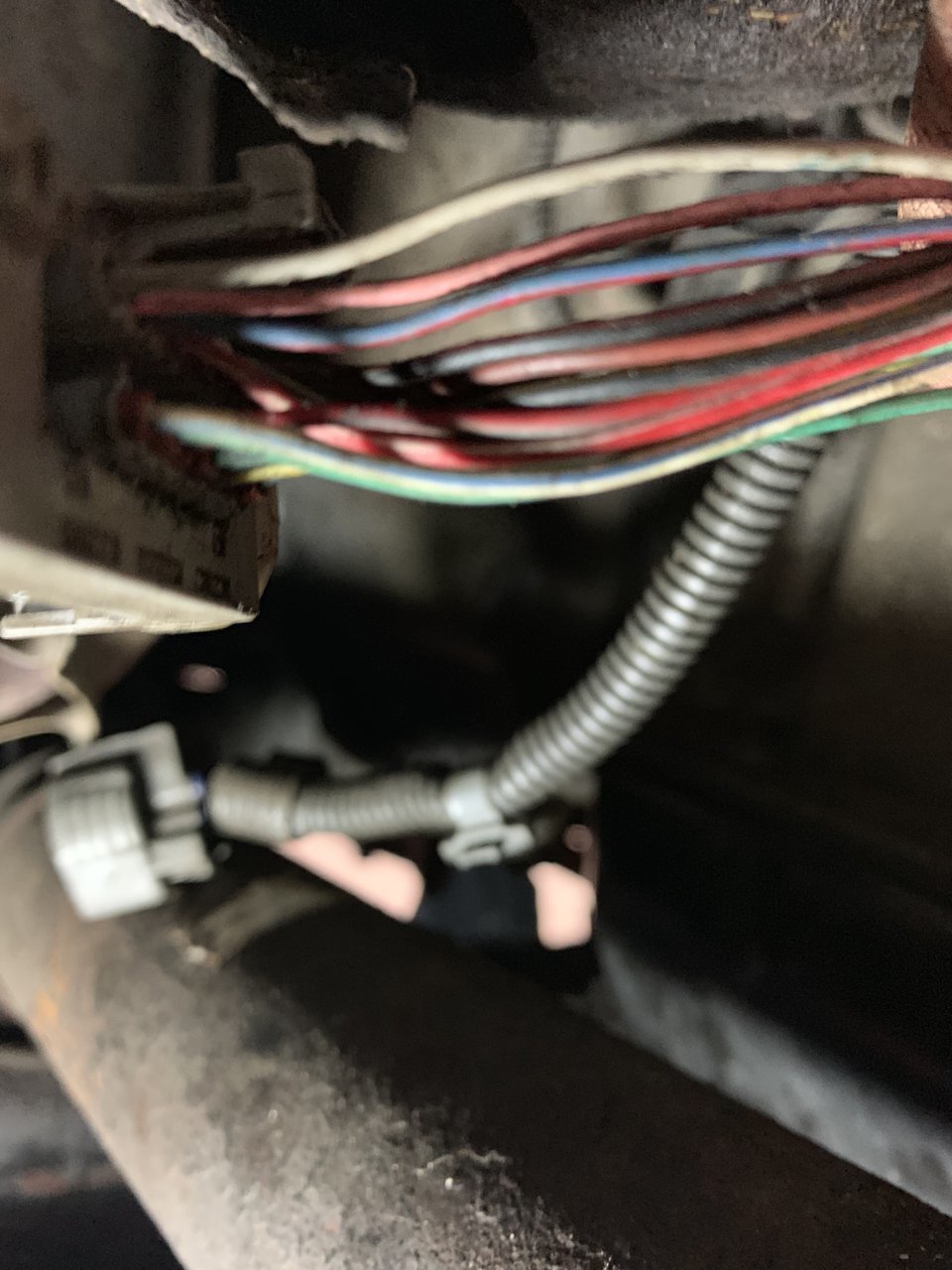

    top I have white,pink, blue w red ,red w white,black w yellow ,black with red ,brown ,brown unsure about the bottom upload_2021-10-3_16-47-46.jpg

    These were the only photos I could find anything helps thanks

    4runner1230, Oct 3, 2021
    #1
