Making Locker work in 2wd

Discussion in '2nd Gen. Tacomas (2005-2015)' started by CornDog, Dec 13, 2007.

  1. Dec 13, 2007 at 12:48 PM
    #1
    CornDog

    CornDog [OP] Well-Known Member

    Joined:
    Oct 5, 2007
    Member:
    #2927
    Messages:
    163
    Gallant, Alabama
    Vehicle:
    2007 SpeedWay Blue Double Cab Tacoma
    12000 lb Milemarker Winch Warn Trans4mer Grille Guard Gear Motorsports Wheels, Pioneer Head Unit w Ipod Interface, 2 Diamond D3 10's in custom box, UWS black tool box. N-fab stepbars, 15% tint, bug deflector,ventvisors, K&N Series 77 Cold air Intake, Hi lift jack mounted, 4D-LED maglite mounted, Lund Grill Screen
    I know about the grey wire mod on 1st gen tacomas. i was wondering if neone knew about a way to make the rear locker work in 2wd and hi4 in the 2nd gen tacos?

  2. Dec 13, 2007 at 3:14 PM
    #2
    piercedtiger

    piercedtiger Devout Atheist

    Joined:
    Oct 29, 2007
    Member:
    #3284
    Messages:
    6,442
    Gender:
    Male
    First Name:
    Jon
    Southern Tier, NY
    Vehicle:
    2015 F150 3.5EB SCEW 6.5ft
  3. Dec 13, 2007 at 3:29 PM
    #3
    piercedtiger

    piercedtiger Devout Atheist

    Joined:
    Oct 29, 2007
    Member:
    #3284
    Messages:
    6,442
    Gender:
    Male
    First Name:
    Jon
    Southern Tier, NY
    Vehicle:
    2015 F150 3.5EB SCEW 6.5ft
  4. Dec 13, 2007 at 4:36 PM
    #4
    concrete jedi

    concrete jedi Well-Known Member

    Joined:
    Oct 20, 2007
    Member:
    #3142
    Messages:
    2,741
    Rochester N.Y
    Vehicle:
    06 Tacoma 4 door indigo blue
    Broken and scratched tailgate, cracked rear tail light lens, coffee stain in driver seat.
    Hey tiger, did you do this to your rig ?

  5. Dec 13, 2007 at 4:40 PM
    #5
    piercedtiger

    piercedtiger Devout Atheist

    Joined:
    Oct 29, 2007
    Member:
    #3284
    Messages:
    6,442
    Gender:
    Male
    First Name:
    Jon
    Southern Tier, NY
    Vehicle:
    2015 F150 3.5EB SCEW 6.5ft
  6. Apr 4, 2008 at 10:42 PM
    #6
    sapper mp 03

    sapper mp 03 Member

    Joined:
    Mar 17, 2008
    Member:
    #5356
    Messages:
    14
    Ft Richardson, Alaska
    Vehicle:
    08 TRD
    TRD seat covers, debadged, defroster mod, locker
    first i like to say this site is very helpfull. second quick question on this mod before i go cuting on wire under the dash. can anyone tell me if i got the right relay for this. its a radio shack 275-218. it is a DPDT just want to make sure. if so can yall give me a idea on the hook up on this one. im not that smart with elec. with this kind of setup. if it was just lights no problem. like were to start with this.
    thanks, Shawn

  7. Apr 5, 2008 at 6:54 AM
    #7
    piercedtiger

    piercedtiger Devout Atheist

    Joined:
    Oct 29, 2007
    Member:
    #3284
    Messages:
    6,442
    Gender:
    Male
    First Name:
    Jon
    Southern Tier, NY
    Vehicle:
    2015 F150 3.5EB SCEW 6.5ft

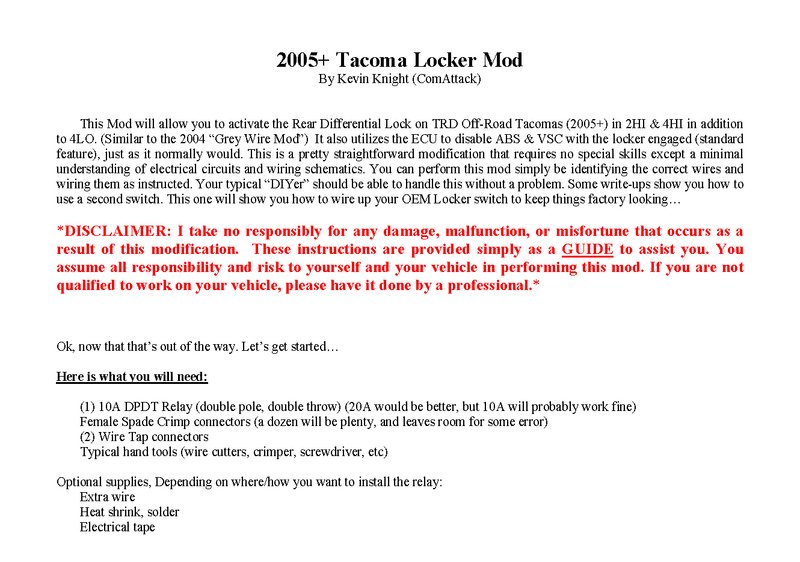

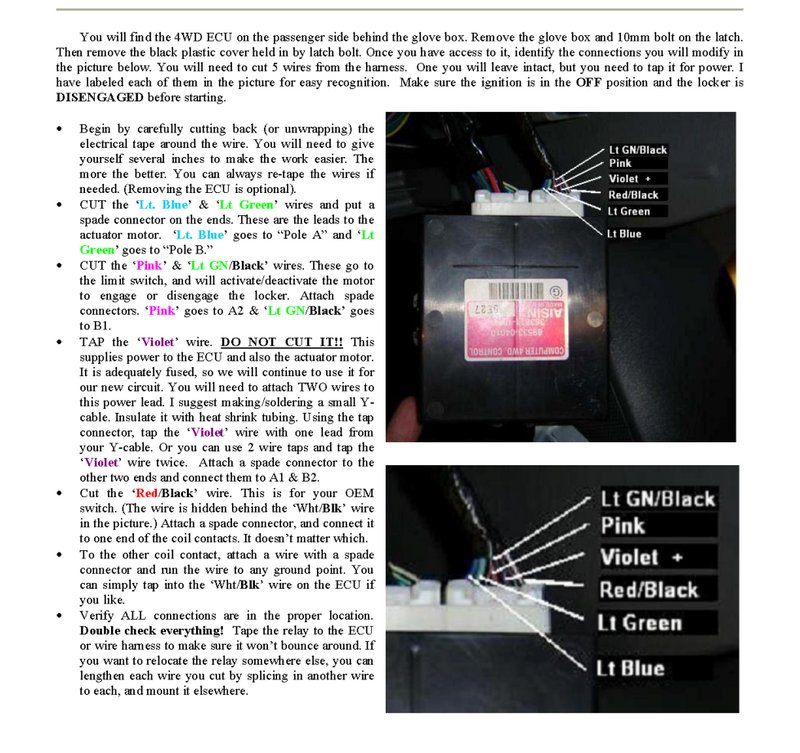

    Yeah, looks like the one I used. Post up if you have any more questions. I may have put more details in the cheap/free mod thread in my sig. Took some experimenting on my part to get the right ends of the wires. Let me know! I can take some more pics if needed.

  8. Apr 5, 2008 at 8:44 AM
    #8
    sapper mp 03

    sapper mp 03 Member

    Joined:
    Mar 17, 2008
    Member:
    #5356
    Messages:
    14
    Ft Richardson, Alaska
    Vehicle:
    08 TRD
    TRD seat covers, debadged, defroster mod, locker
    only problem is i can tell the differences in the two banks, but the order for example a, a1, and a2. and what goes into the coil. is the part that getting me. i just want to be sure so i dont mess anything up, of fry anything. if you can help on the order it would help alot.
    thanks

  9. Apr 5, 2008 at 9:06 AM
    #9
    4x4x4trd

    4x4x4trd My other ride weighs 200 tons

    Joined:
    Jan 15, 2008
    Member:
    #4267
    Messages:
    1,192
    North Texas
    Vehicle:
    08 White Access Cab TRD OR, Debadged
    AFE oil free drop in, Secondary removed, tint, front D-rings, Toyota bed mat, Undercover tonneau, TRD seat covers and floor mats, Pioneer speakers, Westin Platinum bars, Fumoto oil valve, short antena, Nifty Xtreme's, TSB leaf springs, Bilstein 5100's set at .85" in the front
    What kinds of speeds are allowed with this mod. I understand off road, snow, ect. Just don't know if sustained higher speeds is recommended?

  10. Apr 5, 2008 at 9:44 AM
    #10
    piercedtiger

    piercedtiger Devout Atheist

    Joined:
    Oct 29, 2007
    Member:
    #3284
    Messages:
    6,442
    Gender:
    Male
    First Name:
    Jon
    Southern Tier, NY
    Vehicle:
    2015 F150 3.5EB SCEW 6.5ft
    Use good judgment. There is no physical limit that will shut it off. But if you're running 80mph down the highway, do you really need the locker on? Or ABS disabled (because it's turned off when the locker is engaged)? It's just like a posi or solid rear axle. You can powerslide easily whether you want too or not. I've used it to slide around in mud, but I wasn't going mroe than 30mph if that. Snow is another matter. If you're off on a trail or in a field that's fine. If you're on a road where the back end kicking out can hit a car, slide off the road, hit a guard rail, etc then you need to be careful about it. It'll build up heat and stress on the tires, axles, gears, etc if you use it on anything other than a straight line. Toyota designed it to get you out of a situation where 1 rear tire is off the ground. Not run around 24x7 locked. So just keep that in mind.

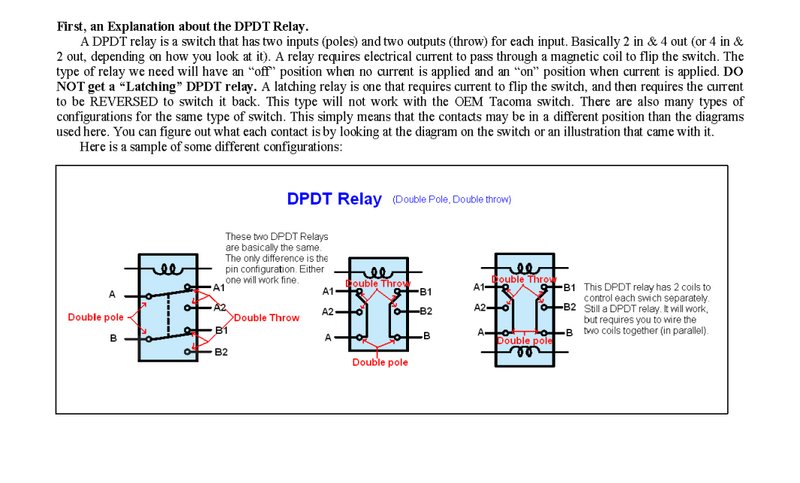

    The banks are identical. Two pins are for the coils (guessing the 2 rotated 90*), 12v and ground toggle both sides at the same time. Then each side has an input and 2 outputs to switch between. Look at the top of the relay for that schematic, and match it with the images in this or the cheap/free thread.

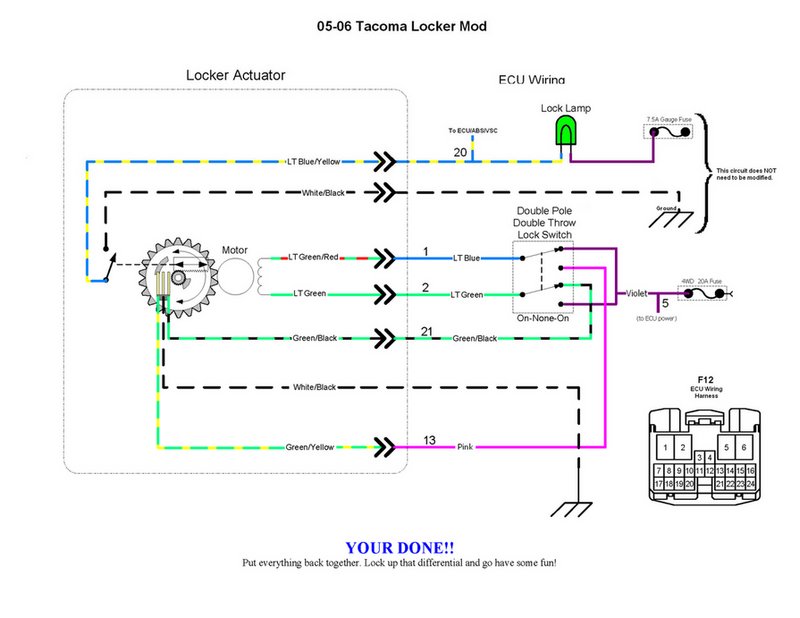

    You should be able to match it with this diagram: http://s82.photobucket.com/albums/j...iew&current=2005LockerModWrite-up_Page_1b.png

    A and B are the 2 inputs, A1/A2/B1/B2 are the outputs that are switched.

    That relay should be setup identically to the middle relay in the diagram above. Does that help?

  11. Apr 5, 2008 at 4:27 PM
    #11
    dbbd1

    dbbd1 Well-Known Member

    Joined:
    Oct 16, 2007
    Member:
    #3088
    Messages:
    228
  12. Apr 5, 2008 at 4:42 PM
    #12
    piercedtiger

    piercedtiger Devout Atheist

    Joined:
    Oct 29, 2007
    Member:
    #3284
    Messages:
    6,442
    Gender:
    Male
    First Name:
    Jon
    Southern Tier, NY
    Vehicle:
    2015 F150 3.5EB SCEW 6.5ft
    Last I heard, people still had issues with that one. Are they worked out now?

    TN is down yet again so I can't read for new posts.... :rolleyes:

  13. Apr 5, 2008 at 4:43 PM
    #13
    dbbd1

    dbbd1 Well-Known Member

    Joined:
    Oct 16, 2007
    Member:
    #3088
    Messages:
    228
    The couple of issues I knew about were from incorrect modding. What have you heard?

  14. Apr 6, 2008 at 12:24 AM
    #14
    Chester

    Chester Well-Known Member

    Joined:
    Sep 30, 2007
    Member:
    #2874
    Messages:
    279
    Gender:
    Male
    Nor Cal
    Vehicle:
    07 Access Cab TRD-OR M-V6 4x4
    Rear Spring TSB,Locker Mod,In bed cargo lights,Fully de-badged,TRD Seat Covers,Trailer Harness Relocation,Painted wheels,Extra tie-downs,5100's,Biceman lighting,09 stereo with sirius & isimple ipod interface,Rear diff breather mod,K&N Air Filter
    It works great not one problem.Had a detroit in my 91 yota,I know when I need it! Best mod for the money and time, 10 bucks and a half hour.

  15. Apr 6, 2008 at 8:40 AM
    #15
    piercedtiger

    piercedtiger Devout Atheist

    Joined:
    Oct 29, 2007
    Member:
    #3284
    Messages:
    6,442
    Gender:
    Male
    First Name:
    Jon
    Southern Tier, NY
    Vehicle:
    2015 F150 3.5EB SCEW 6.5ft
    Just one of the first people to do it had issues with 4wd or something... It was a while back since I stopped watching the thread. Looks like TN is finally back up so maybe I'll read through to see what the problem was.

  16. Apr 6, 2008 at 11:46 AM
    #16
    dbbd1

    dbbd1 Well-Known Member

    Joined:
    Oct 16, 2007
    Member:
    #3088
    Messages:
    228
    ^ Thanks

  17. Apr 6, 2008 at 1:16 PM
    #17
    piercedtiger

    piercedtiger Devout Atheist

    Joined:
    Oct 29, 2007
    Member:
    #3284
    Messages:
    6,442
    Gender:
    Male
    First Name:
    Jon
    Southern Tier, NY
    Vehicle:
    2015 F150 3.5EB SCEW 6.5ft
    Yeah, I was thinking about Fortech's post:

    But I guess it sorted itself out... I unsubscribed at one point so I wouldn't be reading grumpyoldman's crap.

  18. Apr 23, 2008 at 6:08 PM
    #18
    sapper mp 03

    sapper mp 03 Member

    Joined:
    Mar 17, 2008
    Member:
    #5356
    Messages:
    14
    Ft Richardson, Alaska
    Vehicle:
    08 TRD
    TRD seat covers, debadged, defroster mod, locker
    i tryed this mod and now i have the abs,locker, and both 4wd lights on. i took the relay back off and wire it back together but still have the lights on. does someone have a idea what i did wrong. i know its in 2wd not 4wd like its said. i have unpluged the computer and the lights go off, but when i plug it back in the light come on again. any one have a clue whats wrong. i dont think i mess the 4wd ecu up or is it possable i did.
    thanks

  19. Apr 23, 2008 at 6:41 PM
    #19
    sapper mp 03

    sapper mp 03 Member

    Joined:
    Mar 17, 2008
    Member:
    #5356
    Messages:
    14
    Ft Richardson, Alaska
    Vehicle:
    08 TRD
    TRD seat covers, debadged, defroster mod, locker
    never mind it was just a stupid fuse blown. after about 3 hour redoing it all. its always the last thing you check.

  20. Apr 24, 2008 at 5:51 AM
    #20
    piercedtiger

    piercedtiger Devout Atheist

    Joined:
    Oct 29, 2007
    Member:
    #3284
    Messages:
    6,442
    Gender:
    Male
    First Name:
    Jon
    Southern Tier, NY
    Vehicle:
    2015 F150 3.5EB SCEW 6.5ft
    I did the same thing! :laugh: Redid all the wiring, then checked the fuses... d'oh!
