Making rear bumper design. Help me out with the math

Discussion in '1st Gen. Tacomas' started by toy02ota, Aug 16, 2010.

  1. Aug 16, 2010 at 1:09 PM
    #1
    toy02ota

    toy02ota [OP] Local TW dissenter

    Joined:
    Feb 15, 2010
    Member:
    #31439
    Messages:
    1,067
    Gender:
    Male
    First Name:
    Matt
    Brownsville, TN
    Vehicle:
    2005 Chevy Silverado
    Ok I am looking at building my own bumpers rather than just doing the sensible thing and buying them. (Lets call it a man-truck bonding experience). I'm starting with the rear as it seems like it will be somewhat easier than the front. My measurments came out to 63.5" across the back. Thats 54.5' in the tailgate alone and I compensated 4.5" on either side under the tails. I also measured down from the top of the stock bumper to the reciever. I want a cut out where my reciever comes out so I gave 12" from the top to below the hitch. That leaves about a inch or two below where the hitch will come out. Now to the tricky part. On the ends Im thinking that rather than going with a 90 degree straight down I would take that 4.5" compensated on each side and go at a angle. Something like this:

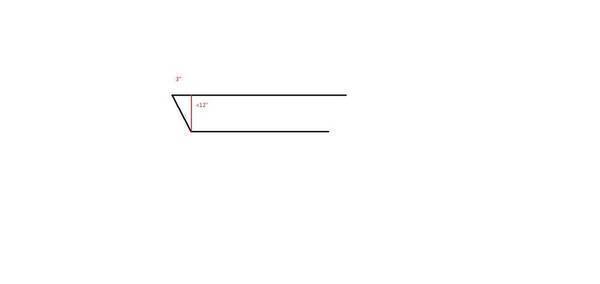

    [​IMG] (sorry for the horrible paint graphics and these are nowhere near to scale)
    Now what I need to know is the length of the Hypotenuse. I know the lenghth of the top 4.5" and the imaginary line on the inside is 12" so the formula is a2+b2=c2 correct? C2 being the angled side. I got 12.816" but I was never the best at geometry. Am I going about this design all wrong or what? Does it have potential? :confused:

  2. Aug 16, 2010 at 1:17 PM
    #2
    BIG MoFukin SERG

    BIG MoFukin SERG Well-Known Member

    Joined:
    Jan 28, 2010
    Member:
    #30210
    Messages:
    137
    Gender:
    Male
    First Name:
    Serg
    Los Angeles
    Vehicle:
    '09 MGM TRD Off Road
    5100's set at 2.5", Blacked-out badges, CB, Drop-in K&N
    The Hypotenuse calculation is correct...Pythagorean Theorem is the way to get the legth of that side...I also got 12.816" as well...good luck...let us know how the design works out.

  3. Aug 16, 2010 at 1:45 PM
    #3
    pittim

    pittim Play stupid games, win stupid prizes

    Joined:
    May 28, 2008
    Member:
    #6939
    Messages:
    11,011
    Gender:
    Male
    First Name:
    Tim
    IN, PA
    Vehicle:
    Dented and rusty
    Pink slider.
    maybe i've been outside too long in the sun, but am i reading correctly that from the top of the bumper to the bottom will be an entire foot?

  4. Aug 16, 2010 at 1:50 PM
    #4
    toy02ota

    toy02ota [OP] Local TW dissenter

    Joined:
    Feb 15, 2010
    Member:
    #31439
    Messages:
    1,067
    Gender:
    Male
    First Name:
    Matt
    Brownsville, TN
    Vehicle:
    2005 Chevy Silverado
    If I was going the size of the stock itd be around 7". But since I want the reciever hitch to come thru the bumper it is a foot. Its aprox. 11" from the top of the stock to the bottom of the hitch and I added another inch to it. I may not go 12" down on the entire bumper. I may drop it down from around 9.5 inch to the 12" in the middle.

  5. Aug 16, 2010 at 1:52 PM
    #5
    achirdo

    achirdo First Class White Trash

    Joined:
    Apr 7, 2010
    Member:
    #34819
    Messages:
    10,165
    Gender:
    Male
    First Name:
    Adam
    North DFW
    Vehicle:
    06 dodge ram 3500 5.9 cummins
    or if you plan on doing any major offroading you can make your own hitch to so its not so low and your not dragging it across rocks:rolleyes:

  6. Aug 16, 2010 at 1:55 PM
    #6
    toy02ota

    toy02ota [OP] Local TW dissenter

    Joined:
    Feb 15, 2010
    Member:
    #31439
    Messages:
    1,067
    Gender:
    Male
    First Name:
    Matt
    Brownsville, TN
    Vehicle:
    2005 Chevy Silverado
    I wish there was rocks here :(. Im in the flat ass cotton belt. The majority of the offroading I'll be doing will be mud and light trails. This bumper isnt for major armour. I just cant stand the obnoxious chrome piece hanging from the ass end.

  7. Aug 16, 2010 at 2:02 PM
    #7
    Manlaan

    Manlaan Well-Known Member

    Joined:
    Jan 25, 2010
    Member:
    #30054
    Messages:
    1,030
    Gender:
    Male
    First Name:
    Greg
    Riverton, Utah
    Vehicle:
    2002 XtraCab SR5 V6 4x4 Black
    See Signature
    I would strongly suggest rethinking your dimensions, as 12" in either direction is just way too large. Maybe I'm just misunderstanding your description though.

    Go download Google SketchUp. Its pretty simple to use and it has a free 30 day trial and will hopefully allow you to get down on screen what you intend to do.

    If you want a simple, yet functional rear bumper, I'd suggest you look at http://www.ttora.com/forum/showthread.php?t=148233

  8. Aug 16, 2010 at 5:11 PM
    #8
    toy02ota

    toy02ota [OP] Local TW dissenter

    Joined:
    Feb 15, 2010
    Member:
    #31439
    Messages:
    1,067
    Gender:
    Male
    First Name:
    Matt
    Brownsville, TN
    Vehicle:
    2005 Chevy Silverado
    Ok I am rethinking my design. I am going to go down 8" and not cut out a spot for my hitch. To keep ground clearance. I'll try to get something rendered up and post :)

  9. Aug 16, 2010 at 7:56 PM
    #9
    toy02ota

    toy02ota [OP] Local TW dissenter

    Joined:
    Feb 15, 2010
    Member:
    #31439
    Messages:
    1,067
    Gender:
    Male
    First Name:
    Matt
    Brownsville, TN
    Vehicle:
    2005 Chevy Silverado
    Ok here is a simple rendering done on google sketchup. (thanks maalaan)

    [​IMG]

    I shortened it up from 12" down to 8" down and the hitch will stay where it is if I decide not to mod it and move it up. the kick ups on the side will go right to the bottom of the tail lights. Opinions

  10. Aug 16, 2010 at 8:00 PM
    #10
    mattleegee

    mattleegee Well-Known Member

    Joined:
    Mar 21, 2010
    Member:
    #33672
    Messages:
    513
    Gender:
    Male
    Tacoma, WA
    Vehicle:
    04 350z
    There are easy ways to cover chome

  11. Aug 16, 2010 at 8:04 PM
    #11
    toy02ota

    toy02ota [OP] Local TW dissenter

    Joined:
    Feb 15, 2010
    Member:
    #31439
    Messages:
    1,067
    Gender:
    Male
    First Name:
    Matt
    Brownsville, TN
    Vehicle:
    2005 Chevy Silverado
    True but how many people have something on their truck that they can say "Hey, I designed and built this all by myself"

  12. Aug 16, 2010 at 8:06 PM
    #12
    mattleegee

    mattleegee Well-Known Member

    Joined:
    Mar 21, 2010
    Member:
    #33672
    Messages:
    513
    Gender:
    Male
    Tacoma, WA
    Vehicle:
    04 350z
    good point, and a shop would be in the $500-$700 range depending what you do most likely

    here is what i did with my chrome
    [​IMG]

  13. Aug 16, 2010 at 8:24 PM
    #13
    Manlaan

    Manlaan Well-Known Member

    Joined:
    Jan 25, 2010
    Member:
    #30054
    Messages:
    1,030
    Gender:
    Male
    First Name:
    Greg
    Riverton, Utah
    Vehicle:
    2002 XtraCab SR5 V6 4x4 Black
    See Signature
    From the looks of it, you're trying to make it look kinda like a 2nd gen tacoma's bumper. So, does that mean you're going to be cutting out the metal under the tail lights, or trying to go around it? Also, are you planning on adding side protection as well, or just the bumper itself?

    Maybe if you could make it 3d so we can have a better idea about the angles and such from different directions.

    If you're planning to cut out the metal under the tail light, I think that might work ok (specially if you're adding in side protection), but otherwise, I think I'd stick with no kickups as it just doesn't work on a 1st gen very well.

  14. Aug 16, 2010 at 8:55 PM
    #14
    toy02ota

    toy02ota [OP] Local TW dissenter

    Joined:
    Feb 15, 2010
    Member:
    #31439
    Messages:
    1,067
    Gender:
    Male
    First Name:
    Matt
    Brownsville, TN
    Vehicle:
    2005 Chevy Silverado
    Yeah I wasnt planning on cutting any sheetmetal. I thought the kick ups would be cool but defintely arent a neccessity

  15. Aug 16, 2010 at 10:25 PM
    #15
    Digiratus

    Digiratus Adventurer

    Joined:
    Mar 26, 2010
    Member:
    #34006
    Messages:
    10,675
    Gender:
    Male
    First Name:
    Mike
    the Pacific Northwest, Exploring
    Vehicle:
    The RedHead
    King ET Coilovers Camburg Uniball UCAs Alcan 8-Leaf Rear Spring Packs Fox 2.0 Resi Rear Shocks FrankenFab Rear Shock Relocate Trail Gear U-bolt Flip Toytec 1" Extended Shackle 4.88 Nitro Gears ARB Front Locker OBA ARB Twin Comp 15x8 D Window Steelies 33" BFG KM2s Limited Edition Elite Front Bumper Smittybilt X2O 10K Winch PIAA 510 SMR Fog Lights Lightforce 170s Badland Sliders FrankenFab Tire Carrier Swingout bumper w/kitchen BudBuilt Front & Bellypan Skids BAMF Rear Diff Skid Whynter 65 qt. Fridge/Freezer CVT Mt Bachelor RTT Badland Custom Bed Rack GM 140 amp alternator Optima Yellow Top battery Magnaflow 18" Muffler Braided Steel Brake Lines K&N Drop-in air filter ScanGauge II OBDII Scanner Uniden 520xl CB radio 3’ Firestik Adjustable tip antenna Pioneer DEH-P9400BH HU Alpine Amps & Type R components (F) and coaxials (R) Wet Okole Seat Covers Weathertech Digital Liners Deck Plate Mod 1” Diff Drop Carrier Bearing Drop

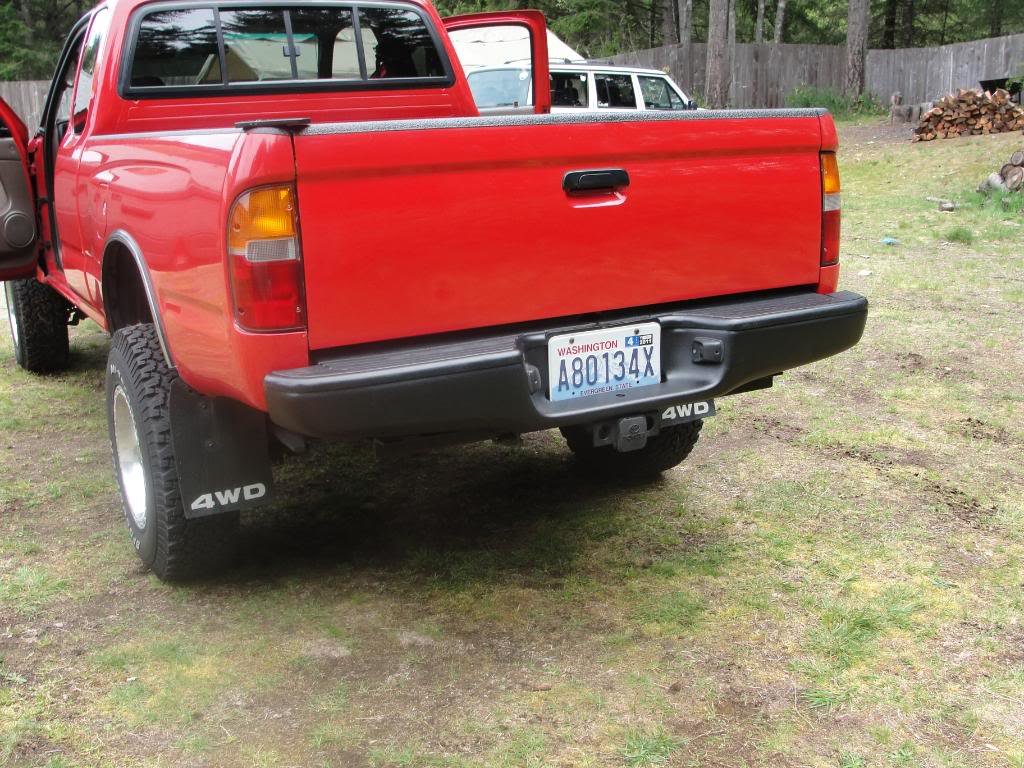

    Here is one of the cleanest looking rear bumper designs ever made for a 1st gen. Maybe it'll provide some inspiration.

    [​IMG]

  16. Aug 16, 2010 at 10:30 PM
    #16
    pittim

    pittim Play stupid games, win stupid prizes

    Joined:
    May 28, 2008
    Member:
    #6939
    Messages:
    11,011
    Gender:
    Male
    First Name:
    Tim
    IN, PA
    Vehicle:
    Dented and rusty
    Pink slider.
  17. Aug 18, 2010 at 2:20 PM
    #17
    zxbryantx

    zxbryantx Active Member

    Joined:
    Jun 14, 2010
    Member:
    #38935
    Messages:
    43
    Gender:
    Male
    First Name:
    Josh
    Northwest Arkansas
    Vehicle:
    99 Tacoma 4x4
    Home built front bumper, sliders, and rear bumper, 3in Lift, Deck Plate Mod, Blinker Mod, Gas Can windshield washer container mod :))

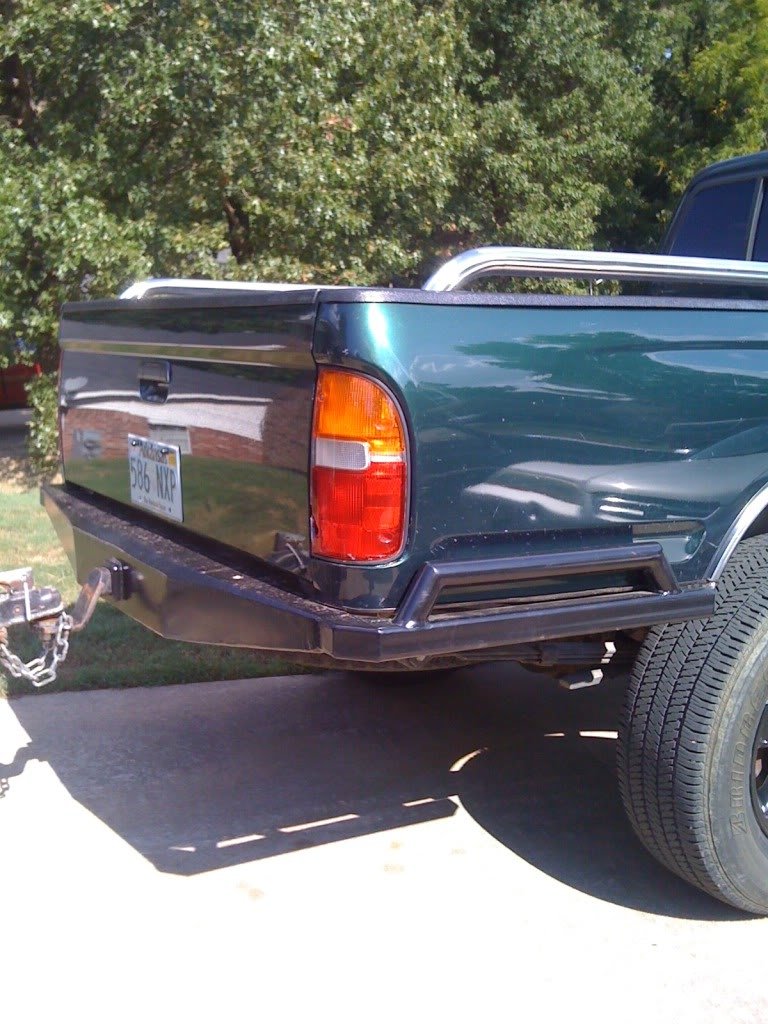

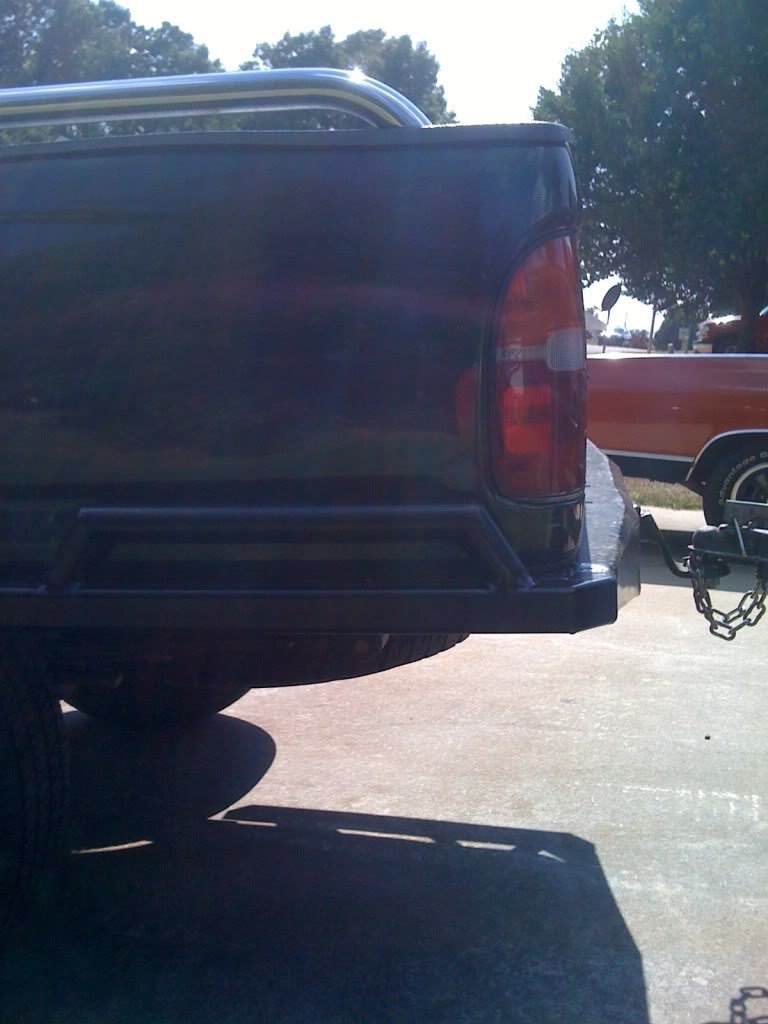

    Heres how i built mine. Just a few Pics

    [​IMG]

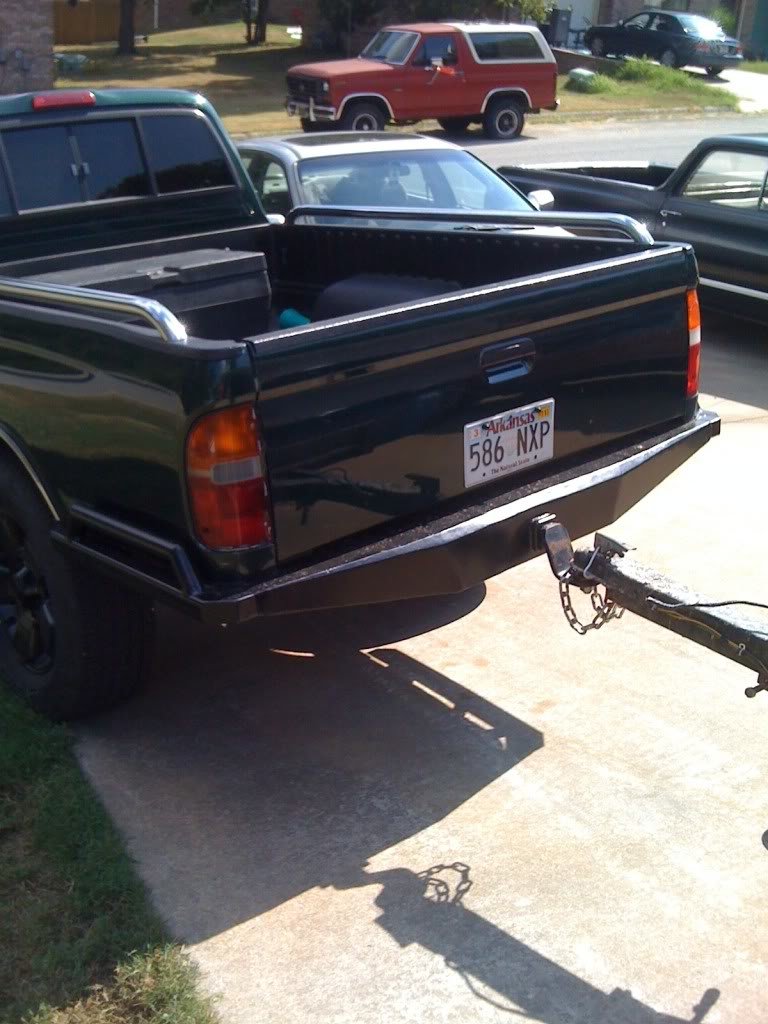

    I did cut the sheet metal on mine to bring up the sides for the side rails.

    [​IMG]

    [​IMG]

  18. Aug 18, 2010 at 2:58 PM
    #18
    Madjik_Man

    Madjik_Man The Rembrandt of Rattle Can

    Joined:
    Dec 2, 2009
    Member:
    #26893
    Messages:
    10,406
    Gender:
    Male
    Boulder, CO
    Vehicle:
    1998 Ext Cab TRD 5MT sunfire red pearl
    About 25 pounds of spray paint and vinyl dye
    That is correct

    btw - don't pull a Spinal Tap with some sort of bizzaro-Stonehenge

    :p

  19. Aug 19, 2010 at 10:43 AM
    #19
    toy02ota

    toy02ota [OP] Local TW dissenter

    Joined:
    Feb 15, 2010
    Member:
    #31439
    Messages:
    1,067
    Gender:
    Male
    First Name:
    Matt
    Brownsville, TN
    Vehicle:
    2005 Chevy Silverado

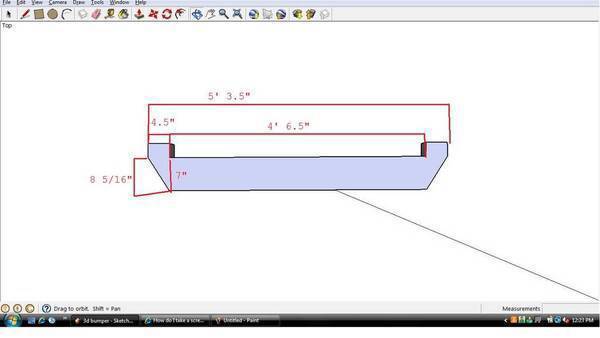

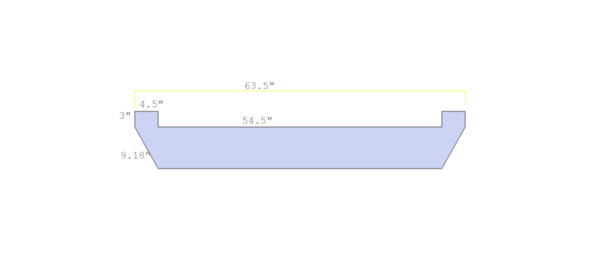

    Ok I got around to re doing measurements and 3d rendering (silly work taking away from my tacoma time :p)

    It is no longer so far down. It is now designed at going down 7" from top to bottom.
    [​IMG]

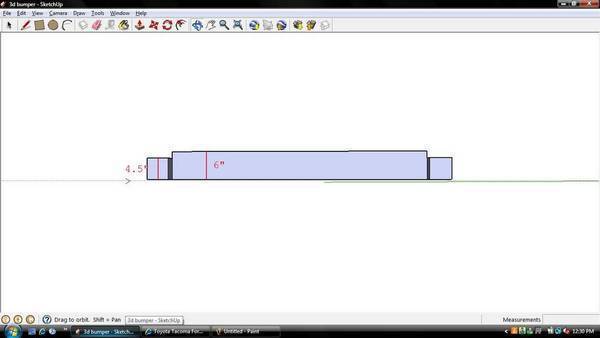

    the top view
    [​IMG]
    The box looking things on either side are actually raised 3" from the main. I may or may not include those on the final design.

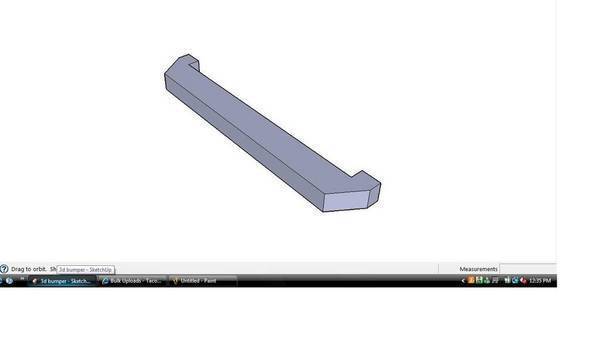

    Here is the a view where you can kinda see it all
    [​IMG]

  20. Aug 19, 2010 at 10:53 AM
    #20
    98tacoma27

    98tacoma27 :POOPCORN: Staff Member

    Joined:
    Dec 18, 2008
    Member:
    #11714
    Messages:
    48,248
    Gender:
    Male
    First Name:
    Ben
    Beech Creek
    Vehicle:
    05 Tundra SR5, 88 SR5 PU, 98 TRD OR (CRUSHED)
    5100's all on fours
    ^^Props^^

    What program are you using?
