Manual trans floor shift assembly diagram

Discussion in '2nd Gen. Tacomas (2005-2015)' started by 05taconorth, Nov 17, 2019.

  1. Nov 17, 2019 at 3:55 PM
    #1
    05taconorth

    05taconorth [OP] Active Member

    Joined:
    May 27, 2019
    Member:
    #294520
    Messages:
    39
    First Name:
    Dan
    Vehicle:
    2005 TRD Off Road
    [​IMG]

    Hi all.

    I’m looking for help finding a part.

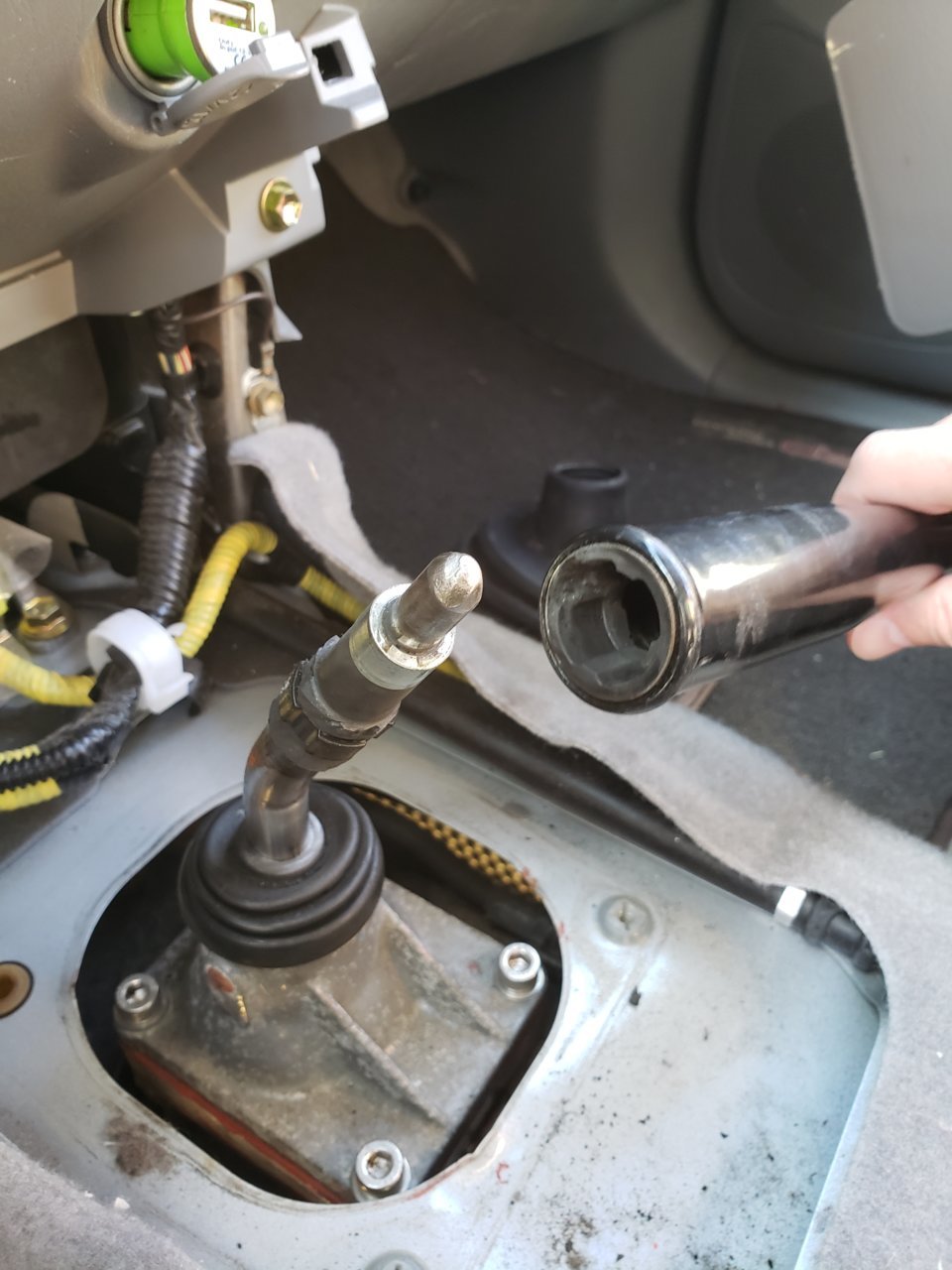

    At the bottom on the shifter (the black rod section) there is a rubber sleeve that has worn out. I’m trying to find a part number but can’t find a detailed diagram.

    Can anyone help me out? I’m thinking a more detailed diagram of the floor shift lever assembly might be helpful.

    05 4.0L manual trans.

    Thanks.

  2. Nov 18, 2019 at 3:52 PM
    #2
    05taconorth

    05taconorth [OP] Active Member

    Joined:
    May 27, 2019
    Member:
    #294520
    Messages:
    39
    First Name:
    Dan
    Vehicle:
    2005 TRD Off Road
    Bueller?

  3. Nov 18, 2019 at 5:00 PM
    #3
    MY50cal

    MY50cal ---- Tread Lightly ---- Leave No Trace

    Joined:
    Apr 5, 2009
    Member:
    #15613
    Messages:
    3,994
    Gender:
    Male
    First Name:
    Mojo
    Chester County, PA
    Vehicle:
    09 PM RC / 05 SWB AC (RIP)
    Yep.
  4. Nov 18, 2019 at 5:11 PM
    #4
    Jeff Lange

    Jeff Lange Well-Known Member

    Joined:
    May 19, 2015
    Member:
    #155616
    Messages:
    1,668
    Edmonton, AB
    Vehicle:
    '86 AE86, '05 NCP13, '11 GSE21
    Last edited: Nov 19, 2019
    MY50cal and garciav like this.
  5. Nov 19, 2019 at 6:00 AM
    #5
    Hazzi03

    Hazzi03 Member

    Joined:
    Feb 23, 2018
    Member:
    #245379
    Messages:
    21
    Gender:
    Male
    North NJ
    Vehicle:
    05 Silver 4dr TRDOR 6 speed 4.0
    5100's w HS 2.5in coils, Icon AAL, JBA UCA's, URD short shiftier, kenwood head unit & speakers, Blaisbrostacos rear diff breather mod, TRD battery hold down. SCS Ray 10's 16in wheels, 285/75 Cooper AT3 xlt


    Im having the same problem, It's the plastic bushing that disintegrated at the end of the black shaft... I was quoted that the whole shifter would need replacement. Im thinking of going with a hurst for a pretty penny thouogh


  6. Nov 19, 2019 at 7:28 AM
    #6
    Jeff Lange

    Jeff Lange Well-Known Member

    Joined:
    May 19, 2015
    Member:
    #155616
    Messages:
    1,668
    Edmonton, AB
    Vehicle:
    '86 AE86, '05 NCP13, '11 GSE21
  7. Nov 19, 2019 at 7:38 AM
    #7
    garciav

    garciav Well-Known Member

    Joined:
    Apr 11, 2016
    Member:
    #184036
    Messages:
    398
    Gender:
    Male
    Houston, TX
    Vehicle:
    2013 Tacoma TRD Off-Road 6MT
    TRD Supercharged, King Suspension, URD Stg 3 clutch / Torque-U Flywheel /Fix-U Hydrobearing
    BassAckwards likes this.
  8. Nov 19, 2019 at 8:57 AM
    #8
    05taconorth

    05taconorth [OP] Active Member

    Joined:
    May 27, 2019
    Member:
    #294520
    Messages:
    39
    First Name:
    Dan
    Vehicle:
    2005 TRD Off Road
    Bingo. That’s the part that busted.


  9. Nov 19, 2019 at 8:59 AM
    #9
    05taconorth

    05taconorth [OP] Active Member

    Joined:
    May 27, 2019
    Member:
    #294520
    Messages:
    39
    First Name:
    Dan
    Vehicle:
    2005 TRD Off Road
  10. Nov 19, 2019 at 9:01 AM
    #10
    Jeff Lange

    Jeff Lange Well-Known Member

    Joined:
    May 19, 2015
    Member:
    #155616
    Messages:
    1,668
    Edmonton, AB
    Vehicle:
    '86 AE86, '05 NCP13, '11 GSE21
    Read my earlier post for the part you need.

    Jeff

  11. Nov 19, 2019 at 9:02 AM
    #11
    Jeff Lange

    Jeff Lange Well-Known Member

    Joined:
    May 19, 2015
    Member:
    #155616
    Messages:
    1,668
    Edmonton, AB
    Vehicle:
    '86 AE86, '05 NCP13, '11 GSE21
    Oh hold on, are you saying you broke the shifter itself? Yeah you can’t replace that. You need the whole shift lever for sure.

    Jeff

  12. Nov 19, 2019 at 12:05 PM
    #12
    mojojojo78

    mojojojo78 Well-Known Member

    Joined:
    May 15, 2019
    Member:
    #293365
    Messages:
    85
    Gender:
    Male
    Vehicle:
    2007 Prerunner Access Cab SR5 V6 6 Speed Manual
    None... yet
    Theres another thread on here where someone mentioned they had epoxied the two back together. That bushing between the two shift levers molded in there around the shaft of the bottom half. Just fill the top half with an epoxy and stick it over the bottom half. You should have the shifter out of the truck when you do that so you can have it upside down. Otherwise epoxy will get all over the place. Not sure what type of epoxy to use.

    05taconorth [OP] likes this.
  13. Nov 20, 2019 at 7:47 AM
    #13
    05taconorth

    05taconorth [OP] Active Member

    Joined:
    May 27, 2019
    Member:
    #294520
    Messages:
    39
    First Name:
    Dan
    Vehicle:
    2005 TRD Off Road
    In researching this I saw that @badger posted saying he had made a new rubber bushing.

    Maybe he’ll chime in with some wisdom?

  14. Nov 20, 2019 at 3:57 PM
    #14
    MY50cal

    MY50cal ---- Tread Lightly ---- Leave No Trace

    Joined:
    Apr 5, 2009
    Member:
    #15613
    Messages:
    3,994
    Gender:
    Male
    First Name:
    Mojo
    Chester County, PA
    Vehicle:
    09 PM RC / 05 SWB AC (RIP)
    Yep.
    Ah, your stick bushing gave out.

    My old assembly is collecting dust if you're interested... where are you located?

    Might still have the urd SS still with it too, will have to check the parts bins.

  15. Nov 20, 2019 at 4:58 PM
    #15
    05taconorth

    05taconorth [OP] Active Member

    Joined:
    May 27, 2019
    Member:
    #294520
    Messages:
    39
    First Name:
    Dan
    Vehicle:
    2005 TRD Off Road
    Sent you a pm

    MY50cal likes this.
