Map lights with dome light

Discussion in '1st Gen. Tacomas (1995-2004)' started by ARB1977, Nov 13, 2014.

  1. Nov 13, 2014 at 8:04 PM
    #1
    ARB1977

    ARB1977 [OP] Don’t be a dick

    Joined:
    Feb 12, 2009
    Member:
    #13537
    Messages:
    1,203
    Gender:
    Male
    North Texas
    Vehicle:
    15 DCSB Prerunner 4.0L Blue Ribbon Metallic
    Black TRD Fj Cruiser wheels, TRD catback exhaust.
    Has anyone done this mod? Ive seen some on 2nd gens but no 1st gens. The map lights come on a long with the dome light and you can also use them independently.

  2. Nov 13, 2014 at 8:27 PM
    #2
    mtnkid85

    mtnkid85 Well-Known Member

    Joined:
    Sep 10, 2014
    Member:
    #137993
    Messages:
    153
    Gender:
    Male
    MT
    Vehicle:
    1999 TRD Taco
    Locked, 255/85, blown
    Yes, I have. I added a 4runner dual map light, then ran a wire back to the dome and tied into its power. Also put SMD led panels in them all.

    Works awesome.

  3. Nov 13, 2014 at 10:19 PM
    #3
    tan4x4

    tan4x4 Well-Known Member

    Joined:
    Nov 30, 2011
    Member:
    #67982
    Messages:
    3,798
    Gender:
    Male
    First Name:
    Rick
    Folsom, CA
    Vehicle:
    99 Tacoma EC 4x4 2.7L Auto
    Bilsteins, OME 881's, 3-leaf AAL, Detroit TruTrac, Tundra brake swap, Michelin LTX AT2, Tranny skidplate, TC skidplate, CBI rear bumper, TG sliders, UltraGauge, PowerTank, Reverse Camera
    I've looked at 4runner map lights, and they didn't seem to mount the same, different bolt pattern. :confused:

  4. Nov 14, 2014 at 3:51 AM
    #4
    ARB1977

    ARB1977 [OP] Don’t be a dick

    Joined:
    Feb 12, 2009
    Member:
    #13537
    Messages:
    1,203
    Gender:
    Male
    North Texas
    Vehicle:
    15 DCSB Prerunner 4.0L Blue Ribbon Metallic
    Black TRD Fj Cruiser wheels, TRD catback exhaust.
    Does the taco map light have that ability? Where on the 4runner setup did you connect too? Thanks

  5. Nov 14, 2014 at 6:40 AM
    #5
    se7enine

    se7enine MCMLXXIX

    Joined:
    Apr 18, 2013
    Member:
    #102322
    Messages:
    16,903
    Gender:
    Male
    Reno, NV
    Vehicle:
    98 Tacoma SR5 Xtra Cab 3.4L
    You could even use the map lights from 90-95 4runner, that's what I did. I hooked mine up to my dome light.

  6. Nov 14, 2014 at 10:28 AM
    #6
    Dirty Pool

    Dirty Pool Southbound

    Joined:
    Mar 24, 2013
    Member:
    #100471
    Messages:
    1,989
    Gender:
    Male
    59.4 Miles, 56.67° NE Of Moab
    Vehicle:
    99 XCAB V6 MT TRD
    Dirty Pool rear bumper/air tank with integrated spare CV shaft storage, DP customized TJM front bumper, 8000 lb Ramsey/Technora rope, E-locked, Extended breathers with front diff catch can, PCV catch can, SAWs with DP heim joint seals, DP custom 6 leaf rear springs/Billies, DP custom skids, 2lo, Gray wire, Cap, Bed Rug, Black steelies, 01 Center console, Map lights, Disraeli gears
    I used map lights from an 01 in my 99. The ones with 3 switches between the left and right lights. While they have a bigger footprint than the no light mirror they bolt right up. They needed the "hot all the time" and the "switched from the door" wires extended and fished from the regular dome light, took 15 mins.
    Be aware that there are some diodes in the base of the fixture. I found this out bench testing the thing with jumper wires. "Pop", Radio Shack to the rescue.
    They will work in any potential combination, on with dome, on with door no dome, one side only and any other combo.
    The extra holes are there under the headliner on all 1st gens.

    Last edited: Aug 15, 2015
  7. Nov 14, 2014 at 1:12 PM
    #7
    mtnkid85

    mtnkid85 Well-Known Member

    Joined:
    Sep 10, 2014
    Member:
    #137993
    Messages:
    153
    Gender:
    Male
    MT
    Vehicle:
    1999 TRD Taco
    Locked, 255/85, blown
    To mount the 4runner side by side map light you need to cut the headliner to accept the wider 4runner light. Even on trucks with no factory map light the mounting nuts will be the same and the 4 runner light will bolt right up. The light is grounded to its body, and only needs a single power wire to be extended back to the factory dome light.

  8. Nov 14, 2014 at 6:33 PM
    #8
    COMAtized99

    COMAtized99 Well-Known Member

    Joined:
    Nov 10, 2009
    Member:
    #25746
    Messages:
    1,708
    Gender:
    Male
    North Carolina
    Vehicle:
    99 Taco w/ a V8
    The cab, Bed and frame are stock...

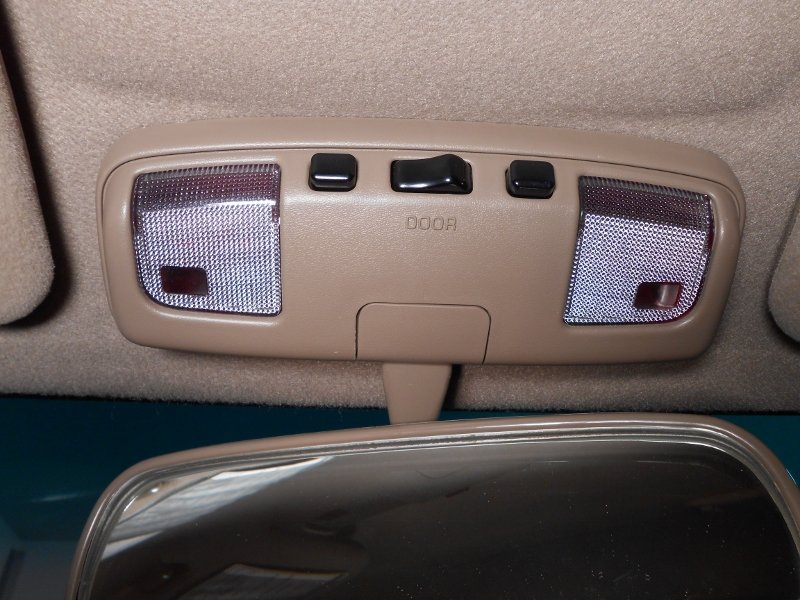

    you swapped this in? My Tacoma came stock with that combo.....

    My other Taco (DD) has the single light though..:(

    Running Board Man and Bennett707 like this.
  9. Nov 15, 2014 at 3:27 AM
    #9
    ARB1977

    ARB1977 [OP] Don’t be a dick

    Joined:
    Feb 12, 2009
    Member:
    #13537
    Messages:
    1,203
    Gender:
    Male
    North Texas
    Vehicle:
    15 DCSB Prerunner 4.0L Blue Ribbon Metallic
    Black TRD Fj Cruiser wheels, TRD catback exhaust.
    Which setup is that? Thanks.

  10. Nov 15, 2014 at 4:54 AM
    #10
    COMAtized99

    COMAtized99 Well-Known Member

    Joined:
    Nov 10, 2009
    Member:
    #25746
    Messages:
    1,708
    Gender:
    Male
    North Carolina
    Vehicle:
    99 Taco w/ a V8
    The cab, Bed and frame are stock...
    My 99 came with it. Stock it was an ext cab sr5 4cyl auto 4x4.

  11. Nov 15, 2014 at 8:51 AM
    #11
    tan4x4

    tan4x4 Well-Known Member

    Joined:
    Nov 30, 2011
    Member:
    #67982
    Messages:
    3,798
    Gender:
    Male
    First Name:
    Rick
    Folsom, CA
    Vehicle:
    99 Tacoma EC 4x4 2.7L Auto
    Bilsteins, OME 881's, 3-leaf AAL, Detroit TruTrac, Tundra brake swap, Michelin LTX AT2, Tranny skidplate, TC skidplate, CBI rear bumper, TG sliders, UltraGauge, PowerTank, Reverse Camera
    Dumb question here, but where does one need to pry to get that cover off, without destroying it?

  12. Nov 15, 2014 at 8:54 AM
    #12
    LegitGreenTaco

    LegitGreenTaco Photosynthesis.

    Joined:
    Oct 11, 2014
    Member:
    #140129
    Messages:
    259
    Gender:
    Male
    Vehicle:
    2002 Regular cab base A/C fixed now.
    Westin lights, Westin Light bar holder, New front bumper, Custom floor matts, Steering wheel cover, board in bed to keep groceries from rolling around, new radio, New flat bed cover.
    Where did you get that dome light and how did you hook it up?

  13. Nov 15, 2014 at 9:32 AM
    #13
    tan4x4

    tan4x4 Well-Known Member

    Joined:
    Nov 30, 2011
    Member:
    #67982
    Messages:
    3,798
    Gender:
    Male
    First Name:
    Rick
    Folsom, CA
    Vehicle:
    99 Tacoma EC 4x4 2.7L Auto
    Bilsteins, OME 881's, 3-leaf AAL, Detroit TruTrac, Tundra brake swap, Michelin LTX AT2, Tranny skidplate, TC skidplate, CBI rear bumper, TG sliders, UltraGauge, PowerTank, Reverse Camera
    Read this thread from the beginning.

    MacGyvR likes this.
  14. Nov 15, 2014 at 10:36 AM
    #14
    Dirty Pool

    Dirty Pool Southbound

    Joined:
    Mar 24, 2013
    Member:
    #100471
    Messages:
    1,989
    Gender:
    Male
    59.4 Miles, 56.67° NE Of Moab
    Vehicle:
    99 XCAB V6 MT TRD
    Dirty Pool rear bumper/air tank with integrated spare CV shaft storage, DP customized TJM front bumper, 8000 lb Ramsey/Technora rope, E-locked, Extended breathers with front diff catch can, PCV catch can, SAWs with DP heim joint seals, DP custom 6 leaf rear springs/Billies, DP custom skids, 2lo, Gray wire, Cap, Bed Rug, Black steelies, 01 Center console, Map lights, Disraeli gears
    You got me curious since it's not been off for almost 14 years.

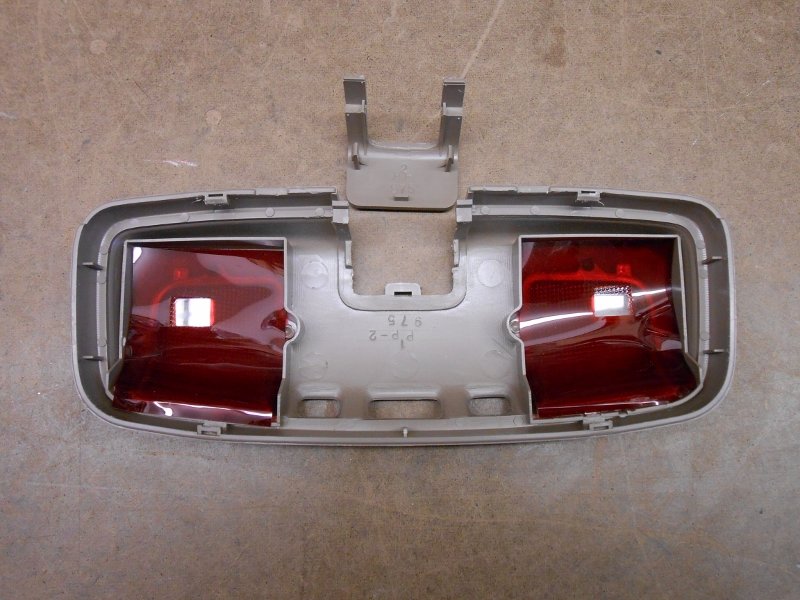

    The little U shaped piece that surrounds the mirror stem comes off 1st. Pry the legs forward up near the headliner. Then repeat with the 2 forward edges of the main cover. When they release the cover will rock backwards off the switches. The main cover has 4 catches that can be seen in the pic below.

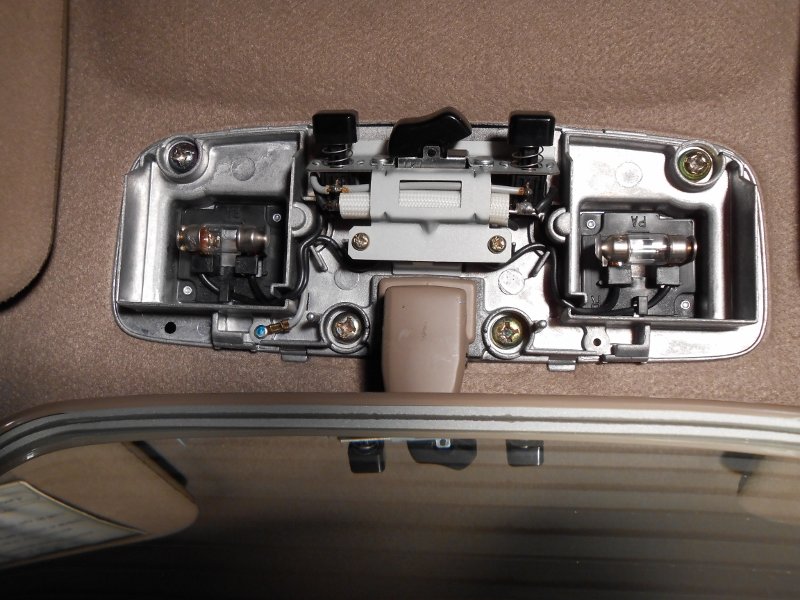

    It all came back to me. My 99 v6 SR5 TRD Manual "Oak" interior, originally had the single light version so the "hot all the time" wire was there and only the "switched from doors" wire needed to be fished from the rear dome light. The single light unit used the 2 inner mount bolts (phillips head) and the headliner had to be cut to expose the outer mount points. The lights ground to the body thru the mount bolts and yes that's red stage gel with little rectangular cut outs. This allows a subdued overall effect with "spot" task lighting.


  15. Nov 15, 2014 at 12:28 PM
    #15
    bry838

    bry838 Well-Known Member

    Joined:
    Sep 3, 2014
    Member:
    #137527
    Messages:
    2,408
    Gender:
    Male
    oregon
    Vehicle:
    '00 tacoma 2.7 4x4 reg cab 5speed x's 2. '01 T4R 3.4 5 speed
    On my trucks the piece that surrounds the mirror do sent need to come off separately it stays on the cover. Just grab the front of the cover (closest to the windshield) and just pull down and back. They come off with almost no pressure at all.

  16. Nov 15, 2014 at 10:37 PM
    #16
    tan4x4

    tan4x4 Well-Known Member

    Joined:
    Nov 30, 2011
    Member:
    #67982
    Messages:
    3,798
    Gender:
    Male
    First Name:
    Rick
    Folsom, CA
    Vehicle:
    99 Tacoma EC 4x4 2.7L Auto
    Bilsteins, OME 881's, 3-leaf AAL, Detroit TruTrac, Tundra brake swap, Michelin LTX AT2, Tranny skidplate, TC skidplate, CBI rear bumper, TG sliders, UltraGauge, PowerTank, Reverse Camera

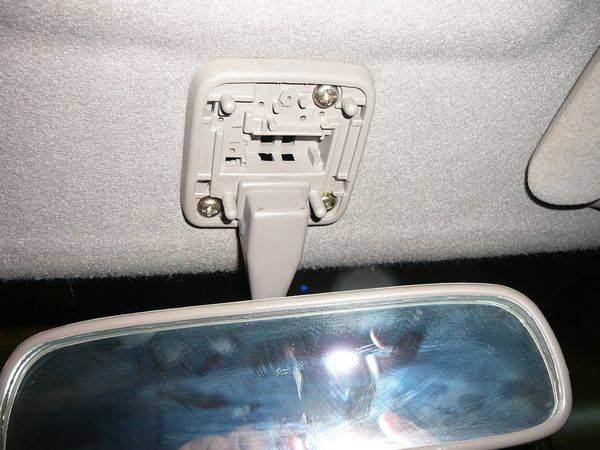

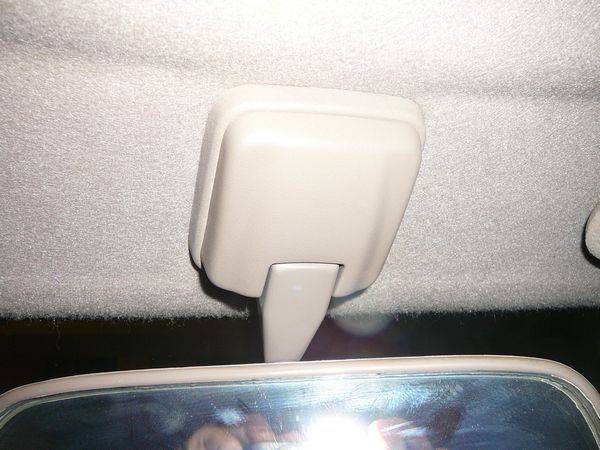

    I just pulled the cover off of mine to show you guys that the damn bolt pattern on mine is different afterall :mad:

    [​IMG]

    [​IMG]

    I just looked at a relative's '98 Tacoma with the map lights, and the bolt pattern is just like 'dirtypool' .
    However, I wonder if I pulled back the headliner on mine, maybe I'd find 2 more un-used threaded holes?

    Last edited: Nov 15, 2014
  17. Sep 7, 2015 at 12:59 AM
    #17
    06toyoboy

    06toyoboy Well-Known Member

    Joined:
    May 8, 2011
    Member:
    #56323
    Messages:
    749
    Gender:
    Male
    Dont meen to pull up an old thread but i want to do this on my taco has anyone done it and have a write up? Or some pointers.

  18. Sep 7, 2015 at 8:02 AM
    #18
    tan4x4

    tan4x4 Well-Known Member

    Joined:
    Nov 30, 2011
    Member:
    #67982
    Messages:
    3,798
    Gender:
    Male
    First Name:
    Rick
    Folsom, CA
    Vehicle:
    99 Tacoma EC 4x4 2.7L Auto
    Bilsteins, OME 881's, 3-leaf AAL, Detroit TruTrac, Tundra brake swap, Michelin LTX AT2, Tranny skidplate, TC skidplate, CBI rear bumper, TG sliders, UltraGauge, PowerTank, Reverse Camera
    I have done this swap to my Taco (from a 4runner in a PnP). I could not find any additional threaded holes or an electrical lead, but 2 of the holes lined up, and that was enough. Different color, though. Eventually, I'll have to look for one that matches my interior. I just ran a hot wire from the dome light.

  19. Sep 7, 2015 at 9:12 AM
    #19
    06toyoboy

    06toyoboy Well-Known Member

    Joined:
    May 8, 2011
    Member:
    #56323
    Messages:
    749
    Gender:
    Male
    What did you have to do to run that hot wire? Did you have to pull down the liner?

  20. Sep 7, 2015 at 9:23 AM
    #20
    tan4x4

    tan4x4 Well-Known Member

    Joined:
    Nov 30, 2011
    Member:
    #67982
    Messages:
    3,798
    Gender:
    Male
    First Name:
    Rick
    Folsom, CA
    Vehicle:
    99 Tacoma EC 4x4 2.7L Auto
    Bilsteins, OME 881's, 3-leaf AAL, Detroit TruTrac, Tundra brake swap, Michelin LTX AT2, Tranny skidplate, TC skidplate, CBI rear bumper, TG sliders, UltraGauge, PowerTank, Reverse Camera
    It was a little tricky. I think I used a piece of straightened wire coat hangar, to 'fish' a length of wire through, between the liner and the metal roof. Only needed one power wire, since the ground of the new 'personal lights' is thru the mounting bolts. I didn't bother with trying to make the lights come on with the door opening. I didn't really need that.
