MESO Puddle Light build

Discussion in '3rd Gen. Tacomas (2016+)' started by MESO, Jan 12, 2019.

  1. Feb 14, 2020 at 6:42 PM
    #5041
    SubaruTheTacoma

    SubaruTheTacoma Subaru Tacoma STI

    Joined:
    Mar 1, 2019
    Member:
    #284929
    Messages:
    108
    Gender:
    Male
    First Name:
    Rhys
    Los Angeles
    Vehicle:
    2017 STI Off Road
    HELLA Horns BP-51 ARB Summit SCS Ray 10
    I really want need to do this as well but I have never dealt with automotive relays and am kinda scared haha.

    I have been kinda chicken with my truck electrical projects and kept to easy ways that have low chance of hurting things.

    I’m still not 100% on how the relays need to be wired and what the numbers mean on the back of them.... guess I need to sit down with google for awhile.

  2. Feb 14, 2020 at 6:45 PM
    #5042
    ageisler

    ageisler Well-Known Member

    Joined:
    Jun 22, 2019
    Member:
    #297095
    Messages:
    48
    Gender:
    Male
    Florida
    Vehicle:
    2019 Tacoma TRD 4x4 Off Road - Double Cab
    3” front - 2” rear level kit, 285/75/r16 Falken Wildpeak AT3W, Auxbeam LED Headlights and Foglights
    Has anyone installed any accessory switches to the factory switch panel that’s located just below the radio / ac controls of the center console? Mine has a couple blank spots I think I can use for the puddle light switch.. if ya follow what I’m saying. (There appears to be a couple blank switch spots) that I could possibly “punch out” and use. Any good videos, or step by step on doing this out there?

  3. Feb 14, 2020 at 6:45 PM
    #5043
    stiles88

    stiles88 Well-Known Member

    Joined:
    May 15, 2018
    Member:
    #253552
    Messages:
    548
    Gender:
    Male
    Seattle (Bothell WA)
    Vehicle:
    2018 Cement TRD OR, 2008 FJ
    Thanks for the instant response! I always seem to have some sort of minor issue or question and you always immediately have an answer and that's something I really appreciate!

    I did get the puddles when they first dropped and everything is buttoned back up at the moment, but I'm positive my wires coming off of that harness are all black. I'll send you a PM, thanks again!

  4. Feb 14, 2020 at 6:47 PM
    #5044
    banzaikid1

    banzaikid1 Well-Known Member

    Joined:
    Dec 14, 2008
    Member:
    #11551
    Messages:
    87
    Gender:
    Male
    @MESO
    Stew please check your messages missing items from order

  5. Feb 14, 2020 at 6:53 PM
    #5045
    brentano

    brentano Well-Known Member

    Joined:
    Oct 4, 2016
    Member:
    #198952
    Messages:
    66

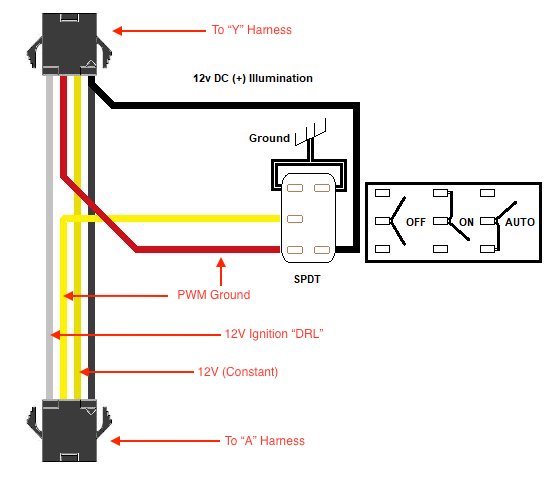

    Cut the 12V Constant and splice in (on the "Y' harness side) a 20A output from your SwitchPros. The SP curcuit should be configured battery active high and the overcurrent for this circuit should be set to 5A.

    With the Meso switch set to "On", you control the puddle on/off directly with the SP panel (or bluetooth).

    With Meso switch set to "Auto", the SwitchPros switch operates as a kill switch for the normal auto operation.

    With Meso set to "Off", the SwitchPros switch has no effect (the puddle remains off because it is ungrounded).

    May be a decent mod if your SP panel is not co-located with the Meso puddle switch or if you like the idea of controlling the puddles via bluetooth.

    Cutting the 12V (Constant) has no effect on the Ultimate LED turn signal operation because the LED turns do not use this circuit. See here for reference.

    Meso Puddle Switch.jpg

    Murdoch33 and MESO [OP] like this.
  6. Feb 14, 2020 at 6:54 PM
    #5046
    Tkoma702

    Tkoma702 New Member

    Joined:
    Jan 31, 2020
    Member:
    #317799
    Messages:
    2
    Gender:
    Male
    Vehicle:
    2017 TRD Sport
    MESO [OP] likes this.
  7. Feb 14, 2020 at 7:41 PM
    #5047
    CttAznRanger

    CttAznRanger Crazy NE Asian

    Joined:
    Dec 3, 2018
    Member:
    #274702
    Messages:
    1,680
    Gender:
    Male
    First Name:
    Brandon
    Boston, MA
    Vehicle:
    2018 Tacoma TRD Sport
    It's not as bad as you think, if you want, we can go over it in PMs
    I've actually just done it earlier, I can take pictures of it tomorrow morning.

    ageisler likes this.
  8. Feb 14, 2020 at 8:22 PM
    #5048
    fredgoodsell

    fredgoodsell Well-Known Member

    Joined:
    Jan 14, 2015
    Member:
    #146389
    Messages:
    1,646
    Gender:
    Male
    First Name:
    Matt
    Salt Lake, UT
    Vehicle:
    2017 DC TRD OR
  9. Feb 14, 2020 at 8:28 PM
    #5049
    Octaviolg

    Octaviolg Well-Known Member

    Joined:
    May 15, 2017
    Member:
    #219130
    Messages:
    301
    Gender:
    Male
    First Name:
    Octavio
    Vehicle:
    Trd pro

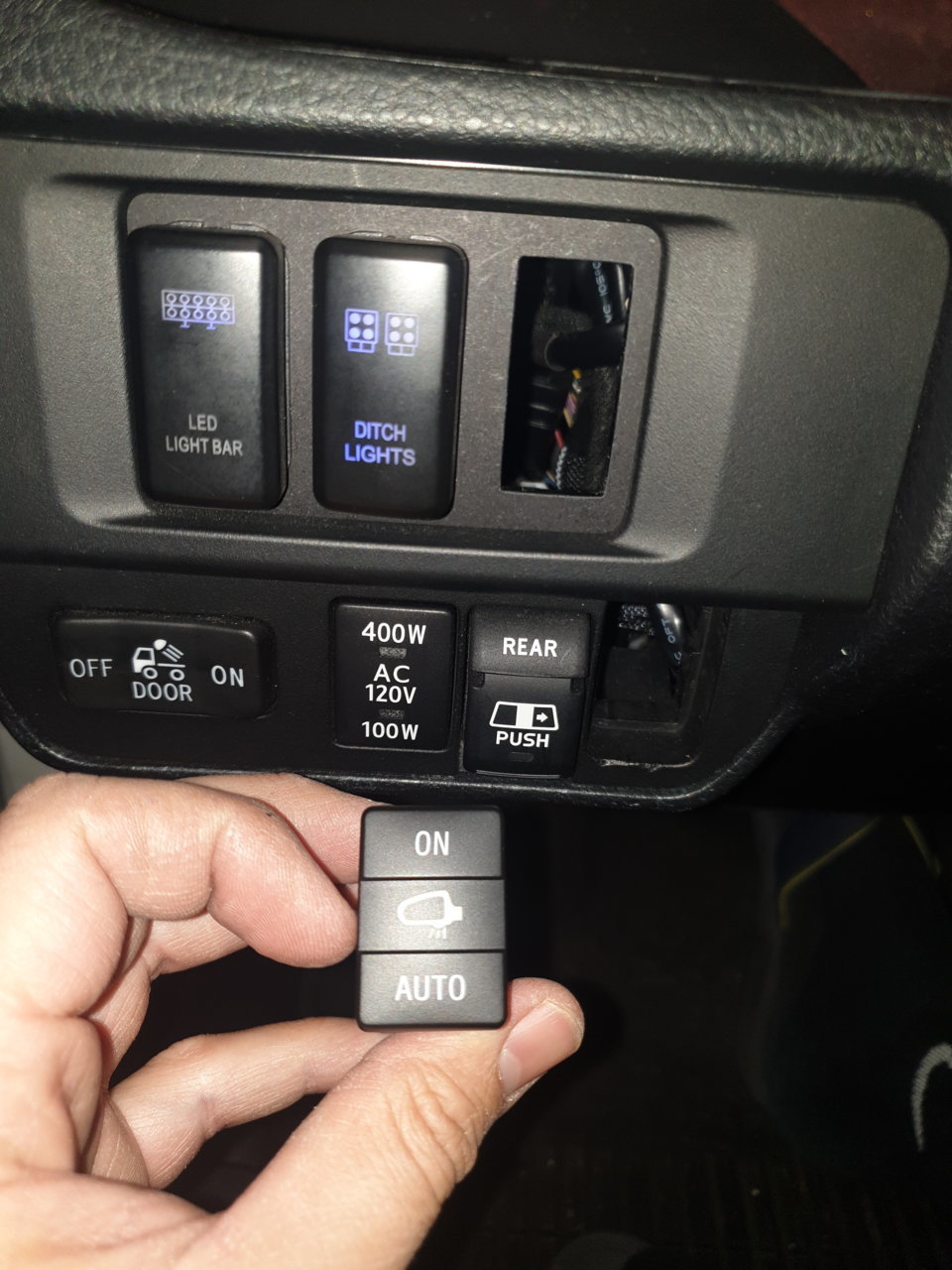

    @MESO switch doesnt fit on empty slots... top is a caliraised and bottom oem open slot... any ideas:confused:


  10. Feb 14, 2020 at 8:33 PM
    #5050
    kecknj

    kecknj Well-Known Member

    Joined:
    Oct 19, 2018
    Member:
    #269900
    Messages:
    151
    Gender:
    Male
    First Name:
    Nick
    Vehicle:
    '06 Tacoma
    I have an extra T harness from my DSIM kit if you want to do it plug and play. You can just pay shipping if you want it. Pm me if interested

    stiles88 likes this.
  11. Feb 14, 2020 at 8:33 PM
    #5051
    MESO

    MESO [OP] Major Modder Vendor

    Joined:
    Feb 16, 2015
    Member:
    #148809
    Messages:
    14,369
    Gender:
    Male
    State of Jefferson
    Vehicle:
    2016 DCLB TRD OR QS
    Yes. He is one of my dealers, so buy with confidence. Another reason I ran out so early :oops:


    I don’t see a small switch hole in that setup. The top is a snap in TALL, and the bottom right hole is a TALL Toyota switch. You need a small slot(like the 400w inverter)

    Rainoffire, BOMBS and Inferno__Taco like this.
  12. Feb 14, 2020 at 8:39 PM
    #5052
    Octaviolg

    Octaviolg Well-Known Member

    Joined:
    May 15, 2017
    Member:
    #219130
    Messages:
    301
    Gender:
    Male
    First Name:
    Octavio
    Vehicle:
    Trd pro

    o_O i guess it was not made for mine lol...

  13. Feb 14, 2020 at 8:40 PM
    #5053
    MESO

    MESO [OP] Major Modder Vendor

    Joined:
    Feb 16, 2015
    Member:
    #148809
    Messages:
    14,369
    Gender:
    Male
    State of Jefferson
    Vehicle:
    2016 DCLB TRD OR QS

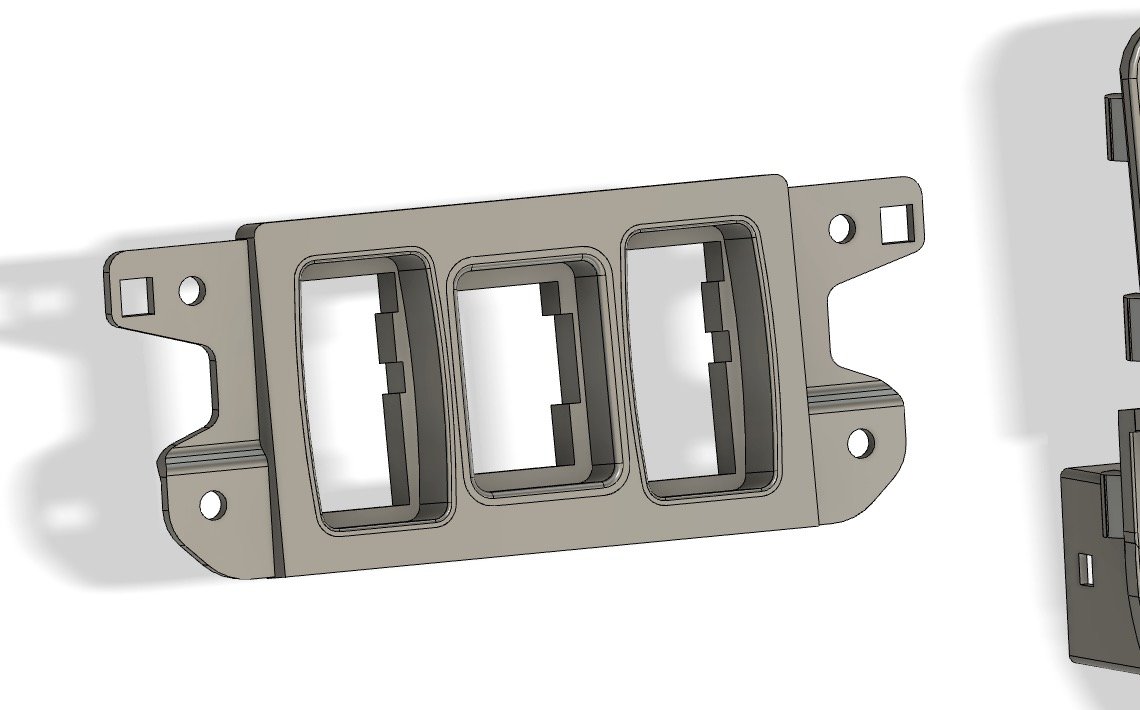

    I can help. I created a panel just for you ;)


    Rainoffire, Mabel, BOMBS and 4 others like this.
  14. Feb 14, 2020 at 8:41 PM
    #5054
    Octaviolg

    Octaviolg Well-Known Member

    Joined:
    May 15, 2017
    Member:
    #219130
    Messages:
    301
    Gender:
    Male
    First Name:
    Octavio
    Vehicle:
    Trd pro
    So that will work for the top right?.. price?..

  15. Feb 14, 2020 at 8:58 PM
    #5055
    Justin_Exploring

    Justin_Exploring Well-Known Member

    Joined:
    Apr 18, 2019
    Member:
    #290532
    Messages:
    486
    Gender:
    Male
    Vehicle:
    2019 BRM Tacoma TRD OR DBSB 4x4
    TRD PRO Fox Suspension TRD Skid Plate TRD Catback Exhuast TRD Intake MESO TRD Pro Stealth ECT Shift Knob MESO Ultimate Turns MESO Puddle Lights MESO Total Tail Stage 2 in PRO tails OEM Heritage Grill w/ raptor style lighting PRO Rigid Fogs Color Matched Rear Bumper Caps Switchblade bed cover KTJO4x4 Tailgate lock 4Runner OR & other black Badging Harmon Custom's PRO style OR badging Kicker speaker replacements & sound deadened
    Stew, you are the man.

    I gotta try and be patient and wait for the second or third drop of something instead of getting the initial run :rofl: I’ll be one of the guys this weekend tapping into something else for switch illumination. I’m going to be installing heated seats as well and would ideally like to tap all three of those switch illuminators to the same source. I’ll shoot you an email tomorrow with what I was thinking if that’s cool

    Inferno__Taco likes this.
  16. Feb 14, 2020 at 9:02 PM
    #5056
    Murdoch33

    Murdoch33 Well-Known Member

    Joined:
    Feb 7, 2018
    Member:
    #243724
    Messages:
    707
    Gender:
    Male
    Vehicle:
    2018 Black TRD Pro
    Thank you kindly. I might need a touch of guidance but this is awesome! I appreciate the time you took to document all this :fistbump:

  17. Feb 15, 2020 at 3:47 AM
    #5057
    ageisler

    ageisler Well-Known Member

    Joined:
    Jun 22, 2019
    Member:
    #297095
    Messages:
    48
    Gender:
    Male
    Florida
    Vehicle:
    2019 Tacoma TRD 4x4 Off Road - Double Cab
    3” front - 2” rear level kit, 285/75/r16 Falken Wildpeak AT3W, Auxbeam LED Headlights and Foglights

    Thanks @CttAznRanger, trying to install the puddle light switch without having to purchase any aftermarket panels. Just don’t know what’s involved with using one of the blank switch spots on the stock center console panel below the radio / AC. I was gonna just try taking a flathead screwdriver to pop out one of the blank pieces, and then sliding MESO switch in its place. For some reason I’m thinking it’s gonna take more than that lol...

  18. Feb 15, 2020 at 4:54 AM
    #5058
    CttAznRanger

    CttAznRanger Crazy NE Asian

    Joined:
    Dec 3, 2018
    Member:
    #274702
    Messages:
    1,680
    Gender:
    Male
    First Name:
    Brandon
    Boston, MA
    Vehicle:
    2018 Tacoma TRD Sport
    It will require a little bit more, you're right. But it's not as difficult as you may think.

    I ended up using a thin blade to pop out the switch, just as you said. I did end up taking out the center console and QI charger area so I could wiggle the plastic around a bit. Took a wire and fished it to the area above the pedals, then just fished the wire up to the A pillar.

    ageisler likes this.
  19. Feb 15, 2020 at 4:57 AM
    #5059
    ageisler

    ageisler Well-Known Member

    Joined:
    Jun 22, 2019
    Member:
    #297095
    Messages:
    48
    Gender:
    Male
    Florida
    Vehicle:
    2019 Tacoma TRD 4x4 Off Road - Double Cab
    3” front - 2” rear level kit, 285/75/r16 Falken Wildpeak AT3W, Auxbeam LED Headlights and Foglights

    Did taking out the center console require removing nuts and bolts etc?

  20. Feb 15, 2020 at 5:08 AM
    #5060
    CttAznRanger

    CttAznRanger Crazy NE Asian

    Joined:
    Dec 3, 2018
    Member:
    #274702
    Messages:
    1,680
    Gender:
    Male
    First Name:
    Brandon
    Boston, MA
    Vehicle:
    2018 Tacoma TRD Sport
    Total of 2 bolts, 3 screws, and a lot of clips.
