Meso Total Tail Stage 2 pin out

Discussion in '3rd Gen. Tacomas (2016-2023)' started by Puppypunter, Jul 9, 2020.

Page 1 of 2
  1. Jul 9, 2020 at 11:19 AM
    #1
    Puppypunter

    #1
    Puppypunter [OP] Well-Known Member

    Joined:
    Jan 4, 2020
    Member:
    #315086
    Messages:
    2,421
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 Black SR
    Does anyone know the pin out on the connectors where the @MESO Total Tail harness plugs into the OEM harness? Like which one is reverse, brake, etc? I’m really just trying to find the one for the turn signal. Thanks in advance!
    @caribe makaira would probably know as well Meso, so throwing him on here in hopes as well.

    Puppypunter, Jul 9, 2020
    #1
  2. Jul 9, 2020 at 11:26 AM
    #2
    Ronzio

    #2
    Ronzio Well-Known Member

    Joined:
    Feb 20, 2018
    Member:
    #245114
    Messages:
    2,720
    Gender:
    Male
    Pennsylvania
    Vehicle:
    17 DCSB TRDOR
    Use your scope on a rope (test light) and probe the connector with the turn signal in the on position the test light will blink.

    Ronzio, Jul 9, 2020
    #2
    tonered likes this.
  3. Jul 9, 2020 at 11:36 AM
    #3
    eurowner

    #3
    eurowner Duke Sky

    Joined:
    Feb 23, 2017
    Member:
    #211429
    Messages:
    6,208
    Gender:
    Male
    First Name:
    Scoty
    The Syncro Ranch, Salida ColoRADo
    Vehicle:
    '17 TRDOR DCLB FTMFWBBQ Silver Sky Met
    Bilstein 8112+650lb coils, 8100+Deaver Stage II leaf pack, SPC UCA, DuroBumps, Mobtown 0* sliders W/fill plates, Mobtown Recovery Bar, Radium PVC & CCV Dual Oil Separator Catch Can System, Snugtop Hiliner Sport, ATH bed Stiffeners (cuz bottle openers!) and front corner tie down, Badger plates for Firestone airbag + Relentless U-bolt flip + Daystar cradles, TRD Pro shift knob, TRD Exhaust, HPS Silicone intake tube, Green Filter, TRD Intake Air Accelerator, 265-70-17 Toyo Open Country ATIII on TRD 17"Rockwarrior Cold Forged wheels, TRD alloy front skid, RCI Aluminum transmission & transfer case skids. Much Meso awesomeness, FreshMexicanTaco TacoGarage Camera Controller + DDM, WarFab Sheridan hitch skid, Rago LCA steel skids + lower rear shock guards, ScanGauge II, FN Koning Countersteer 16" spare, OEM T4R 90105-14104 coilover lower mounting eye bolts
    Did you reach out to Meso off his website or email?

    eurowner, Jul 9, 2020
    #3
  4. Jul 9, 2020 at 11:36 AM
    #4
    Tacospike

    #4
    Tacospike Semi-Unknown Custodial Member

    Joined:
    Nov 19, 2018
    Member:
    #273198
    Messages:
    14,419
    Gender:
    Male
    512
    Vehicle:
    16 Tacoma TRD Sport DCSB / 17 Tundra 5.7L 4X4 CM
    Two Trucks
    If I'm reading it correct, you just want to identify which one is which?

    Put you hazards on and mark the ones that blink with tape, leaving the other ones as the brakes.

    Tacospike, Jul 9, 2020
    #4
  5. Jul 9, 2020 at 11:38 AM
    #5
    Puppypunter

    #5
    Puppypunter [OP] Well-Known Member

    Joined:
    Jan 4, 2020
    Member:
    #315086
    Messages:
    2,421
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 Black SR
    I was trying to be lazy. Didn’t feel like pulling the light, but I could do that.
    I haven’t. Figured someone here might have it handy. Tried searching, but I have zero luck with the search function.

    Puppypunter, Jul 9, 2020
    #5
  6. Jul 9, 2020 at 11:39 AM
    #6
    Puppypunter

    #6
    Puppypunter [OP] Well-Known Member

    Joined:
    Jan 4, 2020
    Member:
    #315086
    Messages:
    2,421
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 Black SR
    I am hoping to find the wire itself so I can tap it.

    Puppypunter, Jul 9, 2020
    #6
  7. Jul 9, 2020 at 11:40 AM
    #7
    Tacospike

    #7
    Tacospike Semi-Unknown Custodial Member

    Joined:
    Nov 19, 2018
    Member:
    #273198
    Messages:
    14,419
    Gender:
    Male
    512
    Vehicle:
    16 Tacoma TRD Sport DCSB / 17 Tundra 5.7L 4X4 CM
    Two Trucks
    Gotcha

    Tacospike, Jul 9, 2020
    #7
  8. Jul 9, 2020 at 12:57 PM
    #8
    MESO

    #8
    MESO Major Modder Vendor

    Joined:
    Feb 16, 2015
    Member:
    #148809
    Messages:
    16,295
    Gender:
    Male
    State of Jefferson
    Vehicle:
    2016 DCLB TRD HELLCAT SWAP

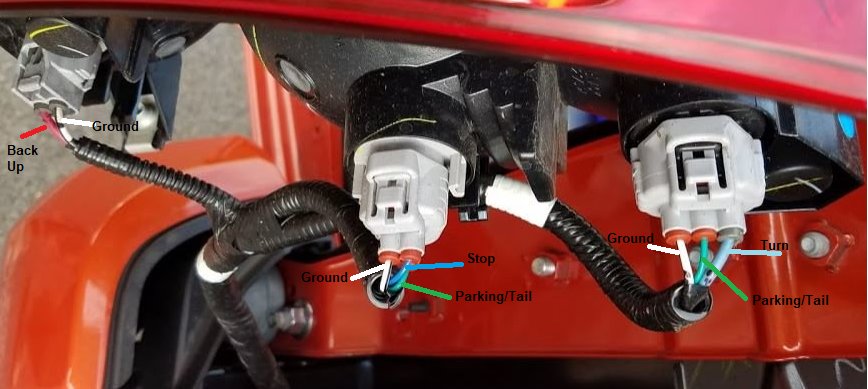

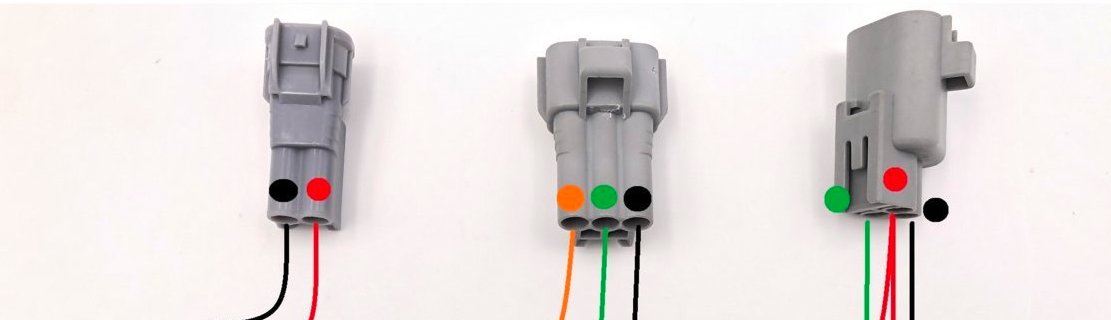

    FROM LEFT TO RIGHT.
    REVERSE PLUG: GROUND, POWER----TURNSIGNAL PLUG: TURN, PARKING, GROUND----BRAKE PLUG:pARKING, BRAKE,GROUND

    hope this helps:)

    MESO, Jul 9, 2020
    #8
    Puppypunter[OP], BSFord, eurowner and 1 other person like this.
  9. Jul 9, 2020 at 4:32 PM
    #9
    caribe makaira

    #9
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,440
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

    caribe makaira, Jul 9, 2020
    #9
    Puppypunter[QUOTED][OP] and daveeasa like this.
  10. Jul 9, 2020 at 6:14 PM
    #10
    Puppypunter

    #10
    Puppypunter [OP] Well-Known Member

    Joined:
    Jan 4, 2020
    Member:
    #315086
    Messages:
    2,421
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 Black SR
    Puppypunter, Jul 9, 2020
    #10
  11. Jul 9, 2020 at 6:17 PM
    #11
    caribe makaira

    #11
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,440
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    caribe makaira, Jul 9, 2020
    #11
  12. Jul 9, 2020 at 6:17 PM
    #12
    caribe makaira

    #12
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,440
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    OP, Whatcha working on?

    caribe makaira, Jul 9, 2020
    #12
  13. Jul 9, 2020 at 6:28 PM
    #13
    daveeasa

    #13
    daveeasa FBC Harness Solutions Vendor

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    6,806
    Gender:
    Male
    First Name:
    David
    PNW
    Vehicle:
    2016 Tacoma OR DCSB 6MT, 2005 RC 5MT PreRunner, 2002 Tundra SR5 RCLB 4x4
    My guess is he has a new weight sensing switch which will flash the turn signals once for every pomeranian detected inside the vehicle as they enter/exit?

    daveeasa, Jul 9, 2020
    #13
  14. Jul 9, 2020 at 6:36 PM
    #14
    Puppypunter

    #14
    Puppypunter [OP] Well-Known Member

    Joined:
    Jan 4, 2020
    Member:
    #315086
    Messages:
    2,421
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 Black SR
    I’m attempting to put in side cameras. Kind of blind spot/side view cameras. I need the turn signal for a trigger. It will trigger a delay timer that supplies power to the side camera, as well as acts as a trigger to the head unit. So when you turn on the left turn signal, the left camera comes up on the screen, same for the right. Turn the turn signal off, and the screen goes back to normal (with a slight delay, about a second). The delay comes from the timer, it needs to keep the power constant, otherwise the camera will turn on and off with the turn signal... These cameras will also have an “anytime” switch override as well.

    Puppypunter, Jul 9, 2020
    #14
    daveeasa likes this.
  15. Jul 9, 2020 at 6:37 PM
    #15
    Puppypunter

    #15
    Puppypunter [OP] Well-Known Member

    Joined:
    Jan 4, 2020
    Member:
    #315086
    Messages:
    2,421
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 Black SR
    That wasn’t the idea.... UNTIL NOW!

    Puppypunter, Jul 9, 2020
    #15
  16. Jul 9, 2020 at 6:37 PM
    #16
    daveeasa

    #16
    daveeasa FBC Harness Solutions Vendor

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    6,806
    Gender:
    Male
    First Name:
    David
    PNW
    Vehicle:
    2016 Tacoma OR DCSB 6MT, 2005 RC 5MT PreRunner, 2002 Tundra SR5 RCLB 4x4
    How are you switching the video feeds?

    daveeasa, Jul 9, 2020
    #16
  17. Jul 9, 2020 at 6:41 PM
    #17
    Puppypunter

    #17
    Puppypunter [OP] Well-Known Member

    Joined:
    Jan 4, 2020
    Member:
    #315086
    Messages:
    2,421
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 Black SR
    Puppypunter, Jul 9, 2020
    #17
    daveeasa likes this.
  18. Jul 9, 2020 at 6:50 PM
    #18
    caribe makaira

    #18
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,440
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

    caribe makaira, Jul 9, 2020
    #18
    Puppypunter[QUOTED][OP] likes this.
  19. Jul 9, 2020 at 6:55 PM
    #19
    Puppypunter

    #19
    Puppypunter [OP] Well-Known Member

    Joined:
    Jan 4, 2020
    Member:
    #315086
    Messages:
    2,421
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 Black SR
    Where is that in the truck?

    Puppypunter, Jul 9, 2020
    #19
  20. Jul 9, 2020 at 6:58 PM
    #20
    caribe makaira

    #20
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,440
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

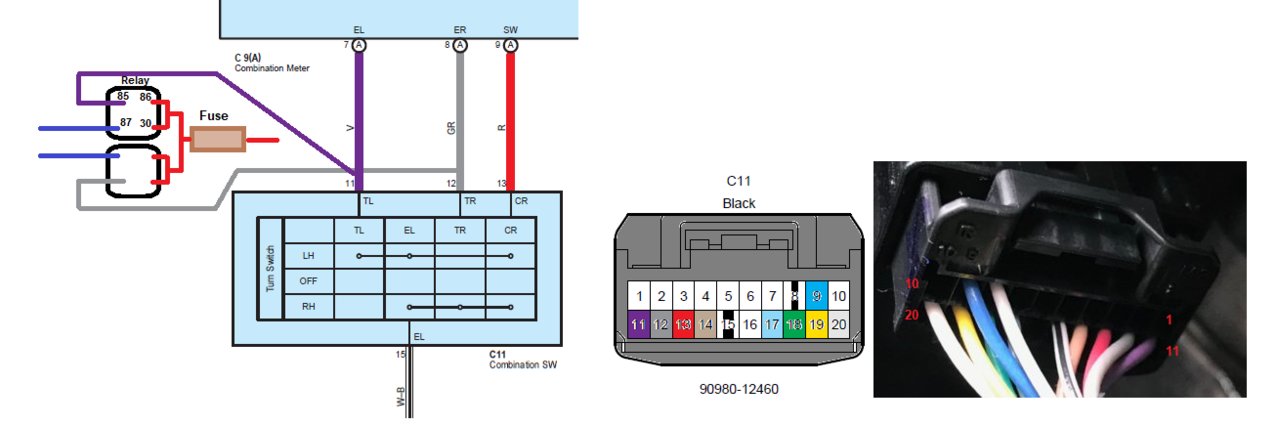

    Combination Switch..."light stalk"

    caribe makaira, Jul 9, 2020
    #20
