MESO V5 DRL incab "connection"

Discussion in '3rd Gen. Tacomas (2016+)' started by caribe makaira, Oct 2, 2021.

  1. Oct 2, 2021 at 2:23 AM
    #1
    caribe makaira

    caribe makaira [OP] Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    6,515
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Overall

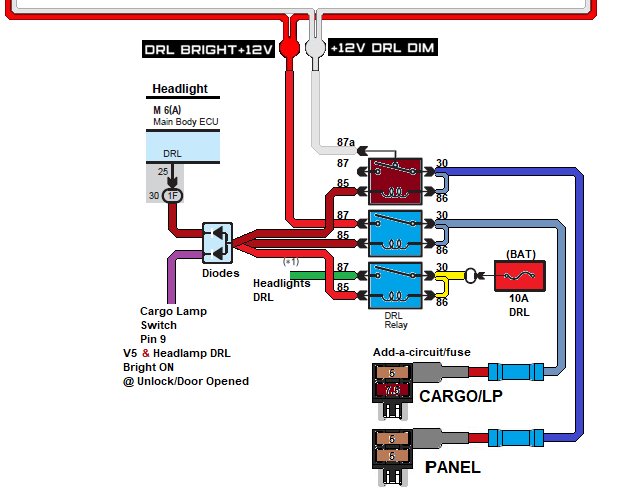

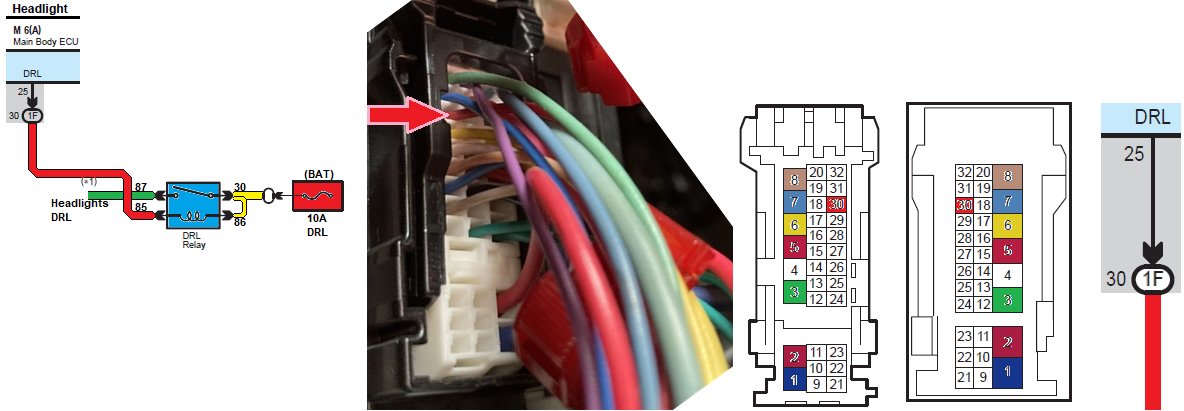

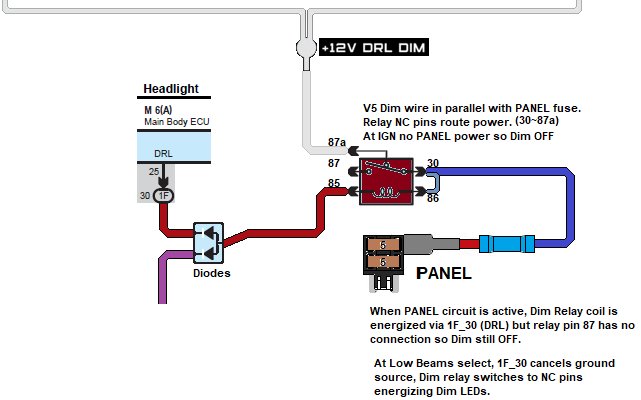

    Vehicle DRL circuit, connector 1F pin 30 at Main Body ECU
    Bright side
    Dim side

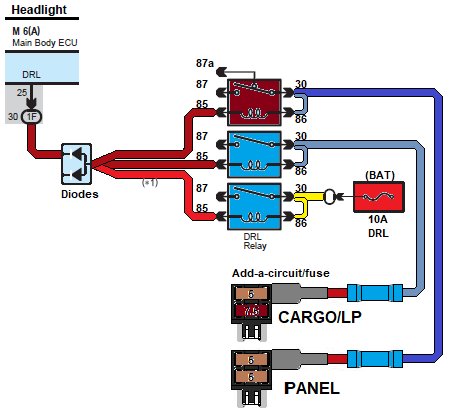

    Relays, coil Low activated (negatively/ground) by DRL 1F_30 tie

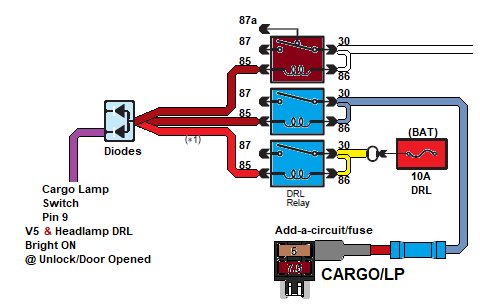

    Relays actuated by tie to Unlock/Door Open cab illumination circuit.
    Upon unlock (Most Tacoma versions) Headlight DRL and V5 Bright DRL are ON. Same for when Door Open input (x1~4) is received to main Body ECU.
    Diodes are there to prevent feedback to Main Body ECU.

    For entertainment purposes only, no warranties offered or implied, for Mall use only, void where prohibited, non-commercial use only.

    Last edited: Oct 2, 2021
  2. Oct 2, 2021 at 11:53 AM
    #2
    caribe makaira

    caribe makaira [OP] Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    6,515
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
  3. Oct 2, 2021 at 12:19 PM
    #3
    caribe makaira

    caribe makaira [OP] Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    6,515
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

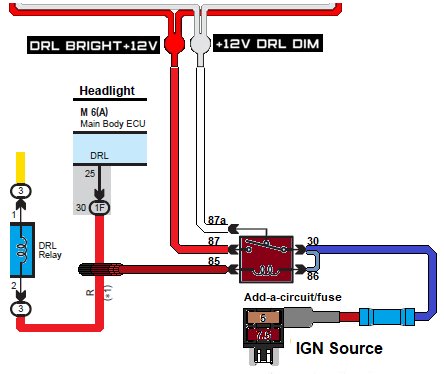

    Simplest:

  4. Oct 2, 2021 at 1:07 PM
    #4
    lylefk

    lylefk Well-Known Member

    Joined:
    Apr 9, 2021
    Member:
    #362160
    Messages:
    262
    Gender:
    Male
    Maui, HI
    Vehicle:
    '21 4wd Cement Sport DCSB
    Nothing major
    Nice, but seems simpler to me to just go through the firewall and directly to the headlights. :notsure:

    $yoda$ likes this.
  5. Oct 2, 2021 at 1:14 PM
    #5
    caribe makaira

    caribe makaira [OP] Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    6,515
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

  6. Oct 2, 2021 at 1:15 PM
    #6
    lylefk

    lylefk Well-Known Member

    Joined:
    Apr 9, 2021
    Member:
    #362160
    Messages:
    262
    Gender:
    Male
    Maui, HI
    Vehicle:
    '21 4wd Cement Sport DCSB
    Nothing major
    That’s fair I guess

  7. Oct 2, 2021 at 2:15 PM
    #7
    caribe makaira

    caribe makaira [OP] Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    6,515
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

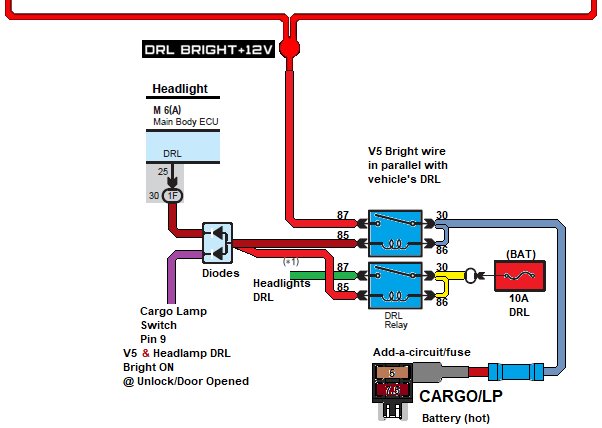

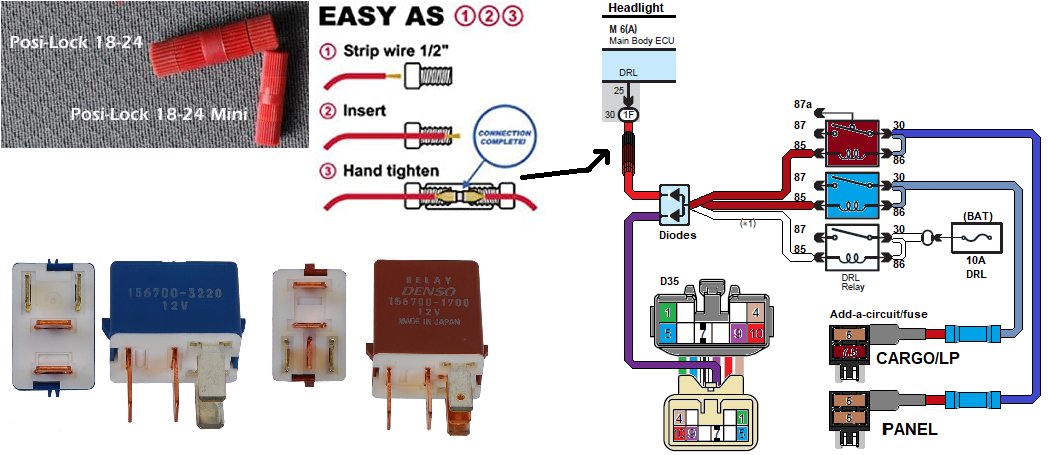

    This install provides the V5 a parallel function with the Headlight DRL and all controlled by the DRL select position on the light stalk (if present).

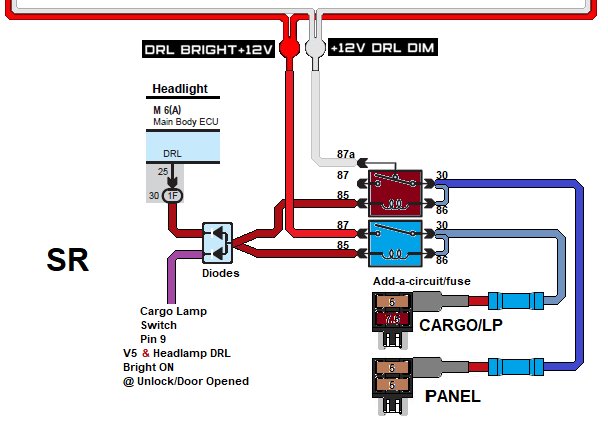

    Also, for those with SR (and contemplating on adding the mirror turn signals), the terminal at 1F_30 is active too, so a wire that can wedge into the space will do (still working on finding correct terminal and source)

    Last edited: Oct 3, 2021
  8. Oct 2, 2021 at 3:34 PM
    #8
    lylefk

    lylefk Well-Known Member

    Joined:
    Apr 9, 2021
    Member:
    #362160
    Messages:
    262
    Gender:
    Male
    Maui, HI
    Vehicle:
    '21 4wd Cement Sport DCSB
    Nothing major
    Same as going to the *led headlight, right?

  9. Oct 2, 2021 at 3:35 PM
    #9
    caribe makaira

    caribe makaira [OP] Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    6,515
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Nope

  10. Oct 2, 2021 at 3:37 PM
    #10
    lylefk

    lylefk Well-Known Member

    Joined:
    Apr 9, 2021
    Member:
    #362160
    Messages:
    262
    Gender:
    Male
    Maui, HI
    Vehicle:
    '21 4wd Cement Sport DCSB
    Nothing major
    That’s a surprise… @daveeasa your harness doesn’t provide the full drl functionality from the stalk? Thought it did.

  11. Oct 2, 2021 at 3:41 PM
    #11
    caribe makaira

    caribe makaira [OP] Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    6,515
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    read post #7..slowly...

  12. Oct 2, 2021 at 3:42 PM
    #12
    lylefk

    lylefk Well-Known Member

    Joined:
    Apr 9, 2021
    Member:
    #362160
    Messages:
    262
    Gender:
    Male
    Maui, HI
    Vehicle:
    '21 4wd Cement Sport DCSB
    Nothing major
    I read it, perhaps you can explain the difference?

  13. Oct 2, 2021 at 3:43 PM
    #13
    daveeasa

    daveeasa Slowest crimp in the West

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    2,920
    Gender:
    Male
    First Name:
    David
    San Diego
    Vehicle:
    2016 OR 4x4 DCSB MGM 6MT
    Caribe is saying no to the question of “is it the same”. Perhaps a better question is “does it behave the same?” However the answer is still a bit of a no. The ECU controls the DRL signal such that if you start the truck and leave parking brake engaged, headlight DRL is off even if stalk is DRL.

    For layman’s terms it’s close enough to match expectations. But it’s not “the same”. Adds a relay but eliminates need to run through the firewall.

  14. Oct 2, 2021 at 3:45 PM
    #14
    caribe makaira

    caribe makaira [OP] Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    6,515
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Think Te Fiti & Te Ka...
    Difference on headlamp T is the DIM input to V5 happens before Low beams are selected. So you get Bright DRL at the Headlights and DIM at the V5..that is all.

  15. Oct 2, 2021 at 3:46 PM
    #15
    daveeasa

    daveeasa Slowest crimp in the West

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    2,920
    Gender:
    Male
    First Name:
    David
    San Diego
    Vehicle:
    2016 OR 4x4 DCSB MGM 6MT
    Oh but nice move to add the cargo / unlock part! Well done @caribe makaira

  16. Oct 2, 2021 at 3:47 PM
    #16
    caribe makaira

    caribe makaira [OP] Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    6,515
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Maui would luv da Taco in Lahaina doing dat...

    Last edited: Oct 2, 2021
    lylefk likes this.
  17. Oct 2, 2021 at 3:48 PM
    #17
    daveeasa

    daveeasa Slowest crimp in the West

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    2,920
    Gender:
    Male
    First Name:
    David
    San Diego
    Vehicle:
    2016 OR 4x4 DCSB MGM 6MT
    I will check this on the truck, stalk to parking lights? Pretty sure headlights dim. I suspect you know better than me though.

  18. Oct 2, 2021 at 3:51 PM
    #18
    caribe makaira

    caribe makaira [OP] Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    6,515
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Verified many times, that is why the diode is in place for the grill lights. So many crimps and exposure to materials that may cause illness...has its effects on the memory:burp:

    daveeasa likes this.
  19. Oct 2, 2021 at 3:52 PM
    #19
    lylefk

    lylefk Well-Known Member

    Joined:
    Apr 9, 2021
    Member:
    #362160
    Messages:
    262
    Gender:
    Male
    Maui, HI
    Vehicle:
    '21 4wd Cement Sport DCSB
    Nothing major
    Just getting to the beach with the fam, I’ll give this a read when I have time to process it lol. Thanks

  20. Oct 2, 2021 at 3:56 PM
    #20
    daveeasa

    daveeasa Slowest crimp in the West

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    2,920
    Gender:
    Male
    First Name:
    David
    San Diego
    Vehicle:
    2016 OR 4x4 DCSB MGM 6MT
    So +1 on verifications. Interesting bit of trivia. I didn’t realize this before today. I though DRL from ECU goes off with parking lights on.

    I suppose the mirrors matching the headlights offers the best symmetry. But not sure I like this behavior for either.
