Meso V5 turn signals are out!!!!

Discussion in '3rd Gen. Tacomas (2016-2023)' started by TwinTaco31719, Sep 20, 2021.

  1. Jan 20, 2022 at 10:47 AM
    #341
    mokeiko

    mokeiko Active Member

    Joined:
    Apr 16, 2017
    Member:
    #216368
    Messages:
    36
    Gender:
    Male
    Vehicle:
    2017 Tacoma OR 4x4 DCSB SSM AT
  2. Jan 20, 2022 at 10:51 AM
    #342
    daveeasa

    daveeasa FBC Harness Solutions Vendor

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    6,733
    Gender:
    Male
    First Name:
    David
    PNW
    Vehicle:
    2016 Tacoma OR DCSB 6MT, 2005 RC 5MT PreRunner, 2002 Tundra SR5 RCLB 4x4
    So does the passenger side feed in somewhere? Is it this piece? Or is this something different?


    Maybe next is photos of the headlight with stalk on drl where we can see the mirror, then switch to park, another shot, then to low beam, another shot. preferably in low ambient light?

  3. Jan 20, 2022 at 10:58 AM
    #343
    mokeiko

    mokeiko Active Member

    Joined:
    Apr 16, 2017
    Member:
    #216368
    Messages:
    36
    Gender:
    Male
    Vehicle:
    2017 Tacoma OR 4x4 DCSB SSM AT
    So does the passenger side feed in somewhere? Is it this piece? Or is this something different?

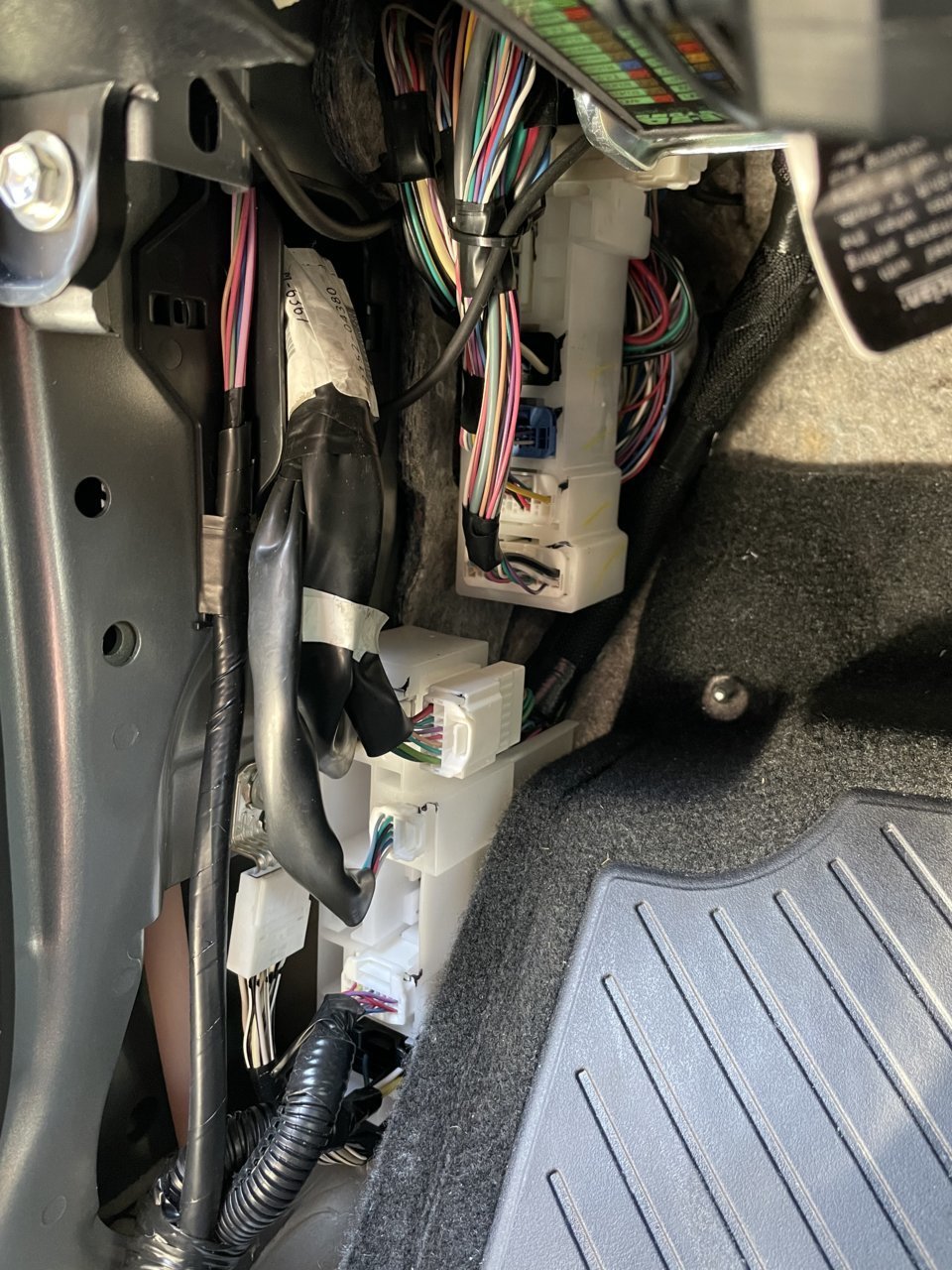

    This is the drivers side v5 wire.

    The passenger side feeds through the passenger firewall, which I realized I should have went inside and meet up with the drivers side and then go through driver side firewall. I did check each position in my garage at night without the garage lights on and the DRL brightness does not change.

  4. Jan 20, 2022 at 11:05 AM
    #344
    daveeasa

    daveeasa FBC Harness Solutions Vendor

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    6,733
    Gender:
    Male
    First Name:
    David
    PNW
    Vehicle:
    2016 Tacoma OR DCSB 6MT, 2005 RC 5MT PreRunner, 2002 Tundra SR5 RCLB 4x4
    So a photo of where passenger and driver are embracing perhaps? Still likely a non-issue. I think next step is to observe headlight with mirror light in the frame across the stalk settings, I see no problems so far so I want to understand the behavior you are seeing light-wise.

  5. Jan 20, 2022 at 8:45 PM
    #345
    mokeiko

    mokeiko Active Member

    Joined:
    Apr 16, 2017
    Member:
    #216368
    Messages:
    36
    Gender:
    Male
    Vehicle:
    2017 Tacoma OR 4x4 DCSB SSM AT
    I was able to test the v5’s DRL dim and brightness modes by connecting the red wire first then white wire to the positive post of the battery using a 5a. Fuse in between and they work. I’ve now seen the difference in dim and bright settings. So it seems the v5’s are in dim mode no matter what the position is at the stalk except for off position. This also means that the white wire is getting the +12 volts and the red wire isn’t. I was able to confirm this using a meter.

    How is it then possible for +12 volts (white wire) to be present at all stalk positions except off?

    OFF - No current
    AUTO - +12 volts white wire, 0 volts red wire
    DRL - +12 volts white wire, 0 volts red wire
    ON - +12 volts white wire, 0 volts red wire

    The 2020 LED headlight DRL does not change in brightness in any of the stalk positions. They are just on, not sure if it’s bright or dim.

    Last edited: Jan 20, 2022
  6. Jan 20, 2022 at 8:56 PM
    #346
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,324
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Did you confirm that the vehicle was ON, and the parking brake released when you cycled the stalk switch?

  7. Jan 20, 2022 at 9:52 PM
    #347
    mokeiko

    mokeiko Active Member

    Joined:
    Apr 16, 2017
    Member:
    #216368
    Messages:
    36
    Gender:
    Male
    Vehicle:
    2017 Tacoma OR 4x4 DCSB SSM AT
    vehicle was off, parking brake off. I will try with vehicle on

  8. Jan 21, 2022 at 6:29 PM
    #348
    th3clara

    th3clara Well-Known Member

    Joined:
    Jan 2, 2021
    Member:
    #351455
    Messages:
    104
    Gender:
    Male
    First Name:
    Trevor
    Portland, OR
    Vehicle:
    2020 TRD Pro - Army Green
    -Eibach Springs for TRD Pro Fox Shocks -255/85r16
    I have a 2020 and Dave’s T harness. I struggled with figuring this all out. I found that parking brake off isn’t enough, you need to take it out of park and put it in drive/reverse, and then a few seconds later the mirrors signals change brightness.

    I also noticed the behavior changes when I was testing at night, vs daytime. I believe the ECU takes into account whether there is “daylight”, so stalk position in DRL position isn’t the only thing to account for when testing.

    Correct me if I’m wrong on any of that, but those are my observations so far.

    Last edited: Jan 21, 2022
    mokeiko[QUOTED] likes this.
  9. Jan 21, 2022 at 6:32 PM
    #349
    mokeiko

    mokeiko Active Member

    Joined:
    Apr 16, 2017
    Member:
    #216368
    Messages:
    36
    Gender:
    Male
    Vehicle:
    2017 Tacoma OR 4x4 DCSB SSM AT
    I was driving home thinking about that as well, I’m glad you brought it up.

    Last night I drove forward and reversed, put it in park with no hand brake but nothing changed unfortunately

    th3clara likes this.
  10. Jan 21, 2022 at 6:35 PM
    #350
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,324
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Since you tested one lamp, I'd say the issue is somewhere in the connection to the headlights.

    mokeiko[QUOTED] likes this.
  11. Jan 21, 2022 at 7:24 PM
    #351
    daveeasa

    daveeasa FBC Harness Solutions Vendor

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    6,733
    Gender:
    Male
    First Name:
    David
    PNW
    Vehicle:
    2016 Tacoma OR DCSB 6MT, 2005 RC 5MT PreRunner, 2002 Tundra SR5 RCLB 4x4
    @caribe makaira the stalk in @mokeiko looks different from the one in my truck. Mine has Off, DRL, park, low and his says “DRL off” then auto then park then low. Is that maybe Canadian style? Or just auto headlights introduced in 2017?

  12. Jan 21, 2022 at 7:37 PM
    #352
    ktbell444

    ktbell444 One who throws exceptions

    Joined:
    Aug 8, 2017
    Member:
    #226306
    Messages:
    2,969
    Gender:
    Male
    First Name:
    Karl
    ᚺᛖᛚᚺᛖᛁᛗ
    Vehicle:
    2020 Tacoma TRD Pro - Army Green
    My 2017 TRD OR had the DRL Off, Auto, etc. So maybe? It had every package if that helps. Does your 16?

    mokeiko likes this.
  13. Jan 21, 2022 at 7:51 PM
    #353
    TacomaGuy7878

    TacomaGuy7878 Mmmm....Tacos

    Joined:
    Nov 21, 2019
    Member:
    #311371
    Messages:
    854
    Gender:
    Male
    CO Mountains
    Vehicle:
    2020 AG Pro
    2020 Pro here and my stalk says DRL off, auto, park then low. If that helps. Seems to me that the new stalk came w/ the auto headlights 2017 as you said:thumbsup:

    mokeiko and daveeasa[QUOTED] like this.
  14. Jan 21, 2022 at 7:57 PM
    #354
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,324
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    There are 3 styles.

  15. Feb 1, 2022 at 3:34 PM
    #355
    Lphonzy09

    Lphonzy09 Well-Known Member

    Joined:
    Jul 21, 2021
    Member:
    #371872
    Messages:
    144
    Gender:
    Male
    Texas
    Vehicle:
    2022 Midnight Black Metallic SR5
    Hello,

    my 2022 SR5 has turn signal mirrors. I don’t need to do the whole DRL install route. Just want to wire them through window switches.

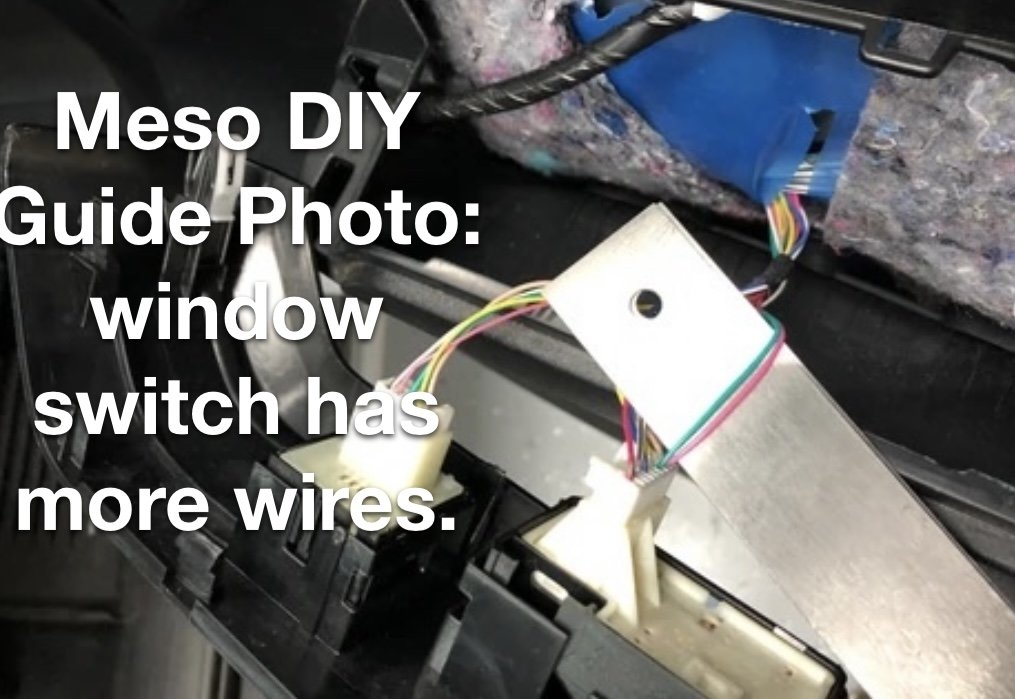

    I looked at the install write up on meso customs website, but can’t figure out which wire to tap into for the window switches. The colors are different and sadly, I don’t have a voltage tester at the moment. Also, My window switch doesn’t have the Auto function, so I have less wires on the connector.

    any help would be appreciated!

    Anyone in the same boat have experience?


    Last edited: Feb 1, 2022
  16. Feb 1, 2022 at 5:07 PM
    #356
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,324
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

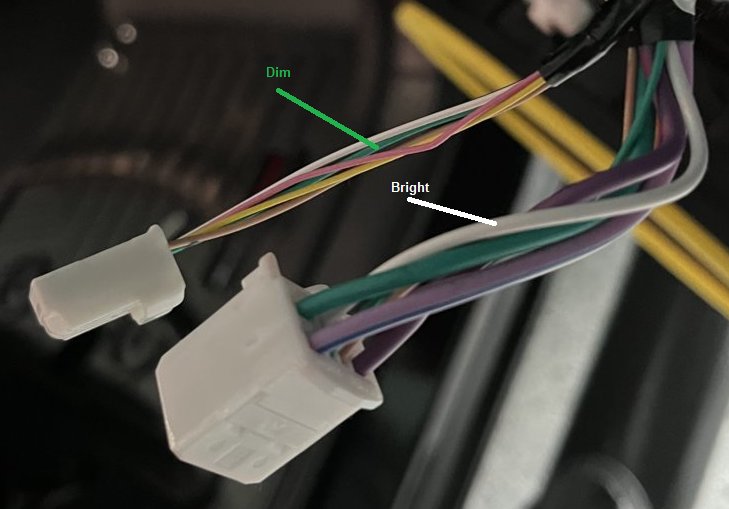

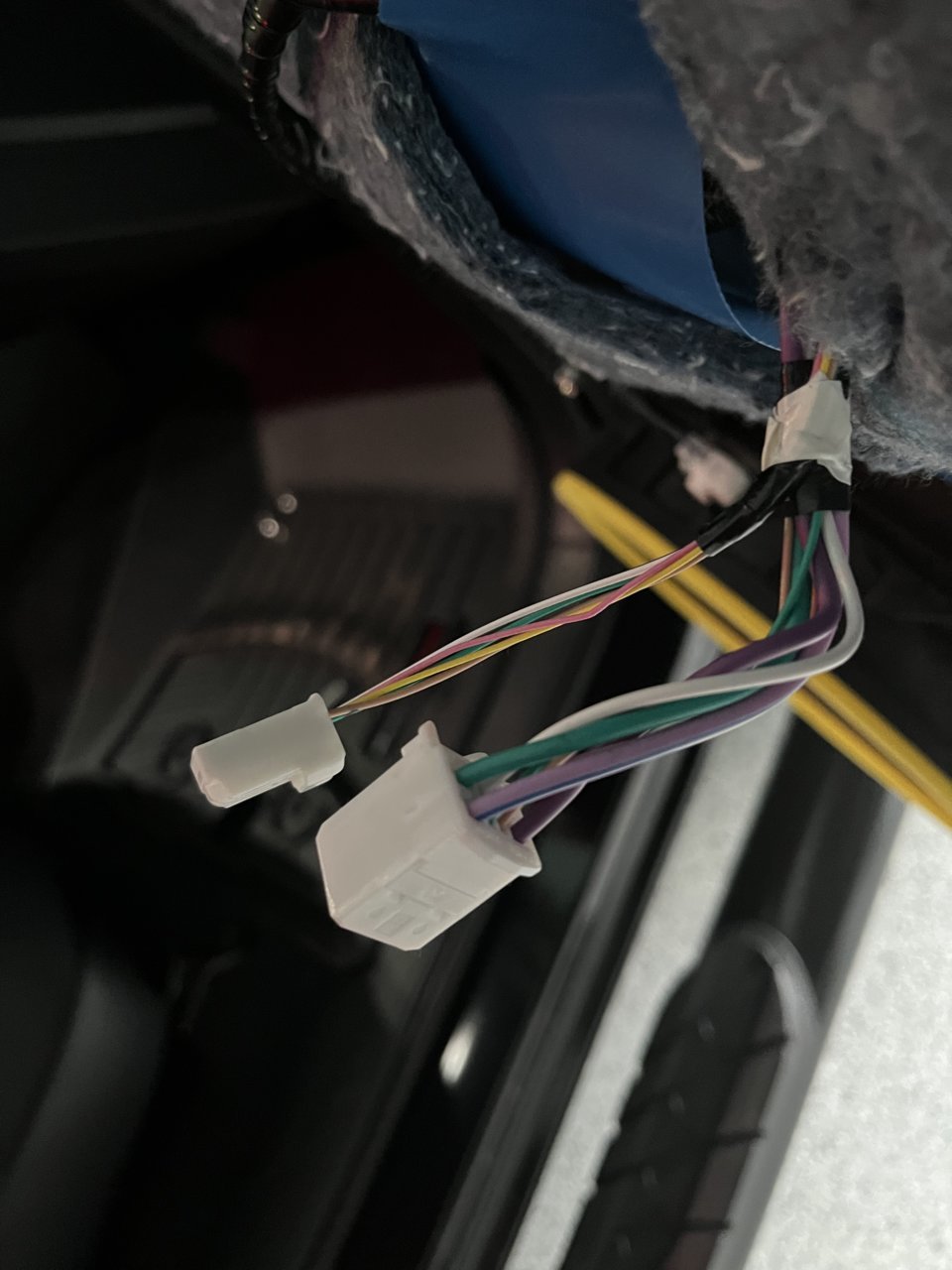

    Passenger's side:

    Lphonzy09 and daveeasa like this.
  17. Feb 1, 2022 at 6:15 PM
    #357
    Shades_Of_Red

    Shades_Of_Red Well-Known Member

    Joined:
    May 2, 2009
    Member:
    #16713
    Messages:
    2,145
    Gender:
    Male
    First Name:
    Lou
    Pittsburgh, PA
    Vehicle:
    2019 Tacoma TRD Off Road Premium Cavalry Blue
    A few.
    No good when ur using one quick connector and have 2. different size wires to tap into

  18. Feb 1, 2022 at 6:32 PM
    #358
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,324
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    No good? No good for you.:jerkoff:

  19. Feb 2, 2022 at 12:05 PM
    #359
    Lphonzy09

    Lphonzy09 Well-Known Member

    Joined:
    Jul 21, 2021
    Member:
    #371872
    Messages:
    144
    Gender:
    Male
    Texas
    Vehicle:
    2022 Midnight Black Metallic SR5
    much appreciated! I will return my double t connector and get t taps.

    Had some time to properly read the thread. Am I right to assume that:

    Passenger side is the p14 connector and i should wire to pin 2 (bright function-white wire) & what about pin 6 for dim?

    Driver side is the O1 connector and should wire to 7 & 8?

  20. Feb 2, 2022 at 2:26 PM
    #360
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,324
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Yes on both.
