Mlcc 1995 4runner everything swap build

Discussion in '4Runners' started by mlcc, Dec 24, 2023.

  1. Dec 24, 2023 at 8:14 AM
    #1
    mlcc

    mlcc [OP] Well-Known Member

    Joined:
    May 2, 2015
    Member:
    #154429
    Messages:
    1,822
    Gender:
    Male
    Oregon
    Vehicle:
    2002 DC TRD/ 1990 4runner
    Lights, 3in lift, tires/ wheels, being awesome

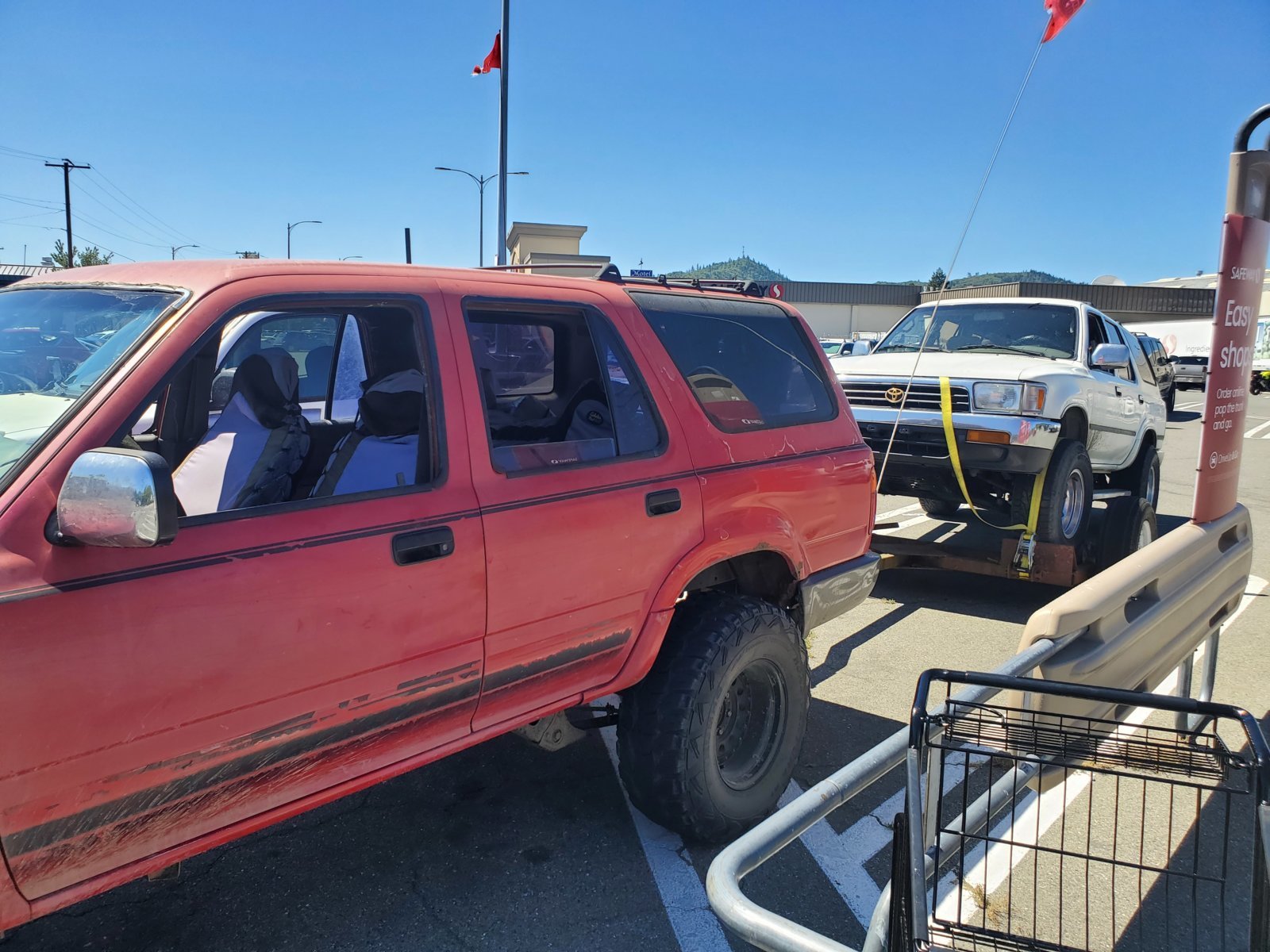

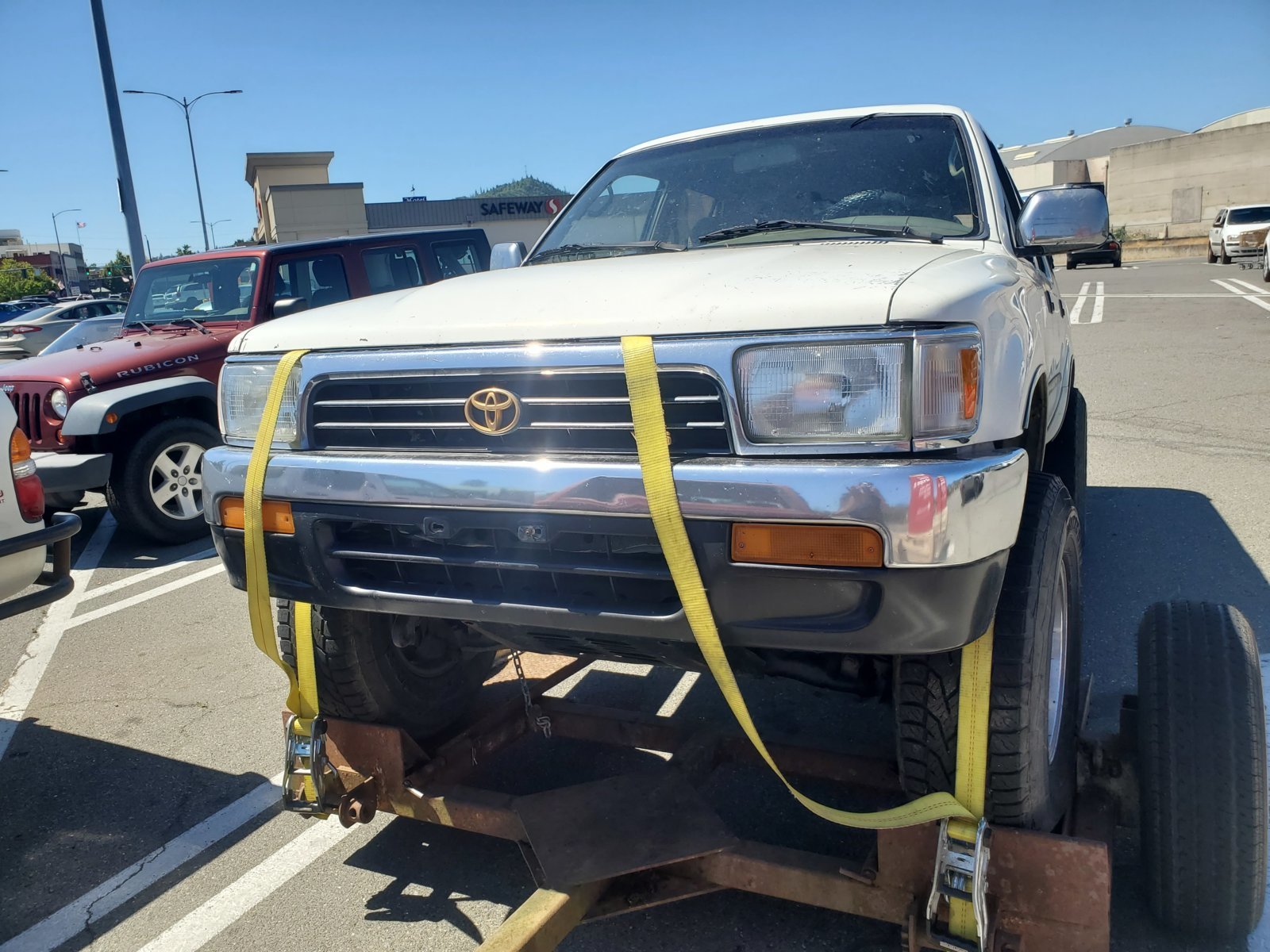

    Im making a new thread to help keep track of what I did. This 4runner is now a Frankenstein but it works great. I picked this thing up from the original owner who had all sorts of stories of hauling her kids around in it. I cant remember the mileage ill edit it later. She put in a new transmission then it blew a head gasket and she gave up on it, then I came along and towed it 76 miles through mountain passes with my red 4runner. And started tearing them both apart.

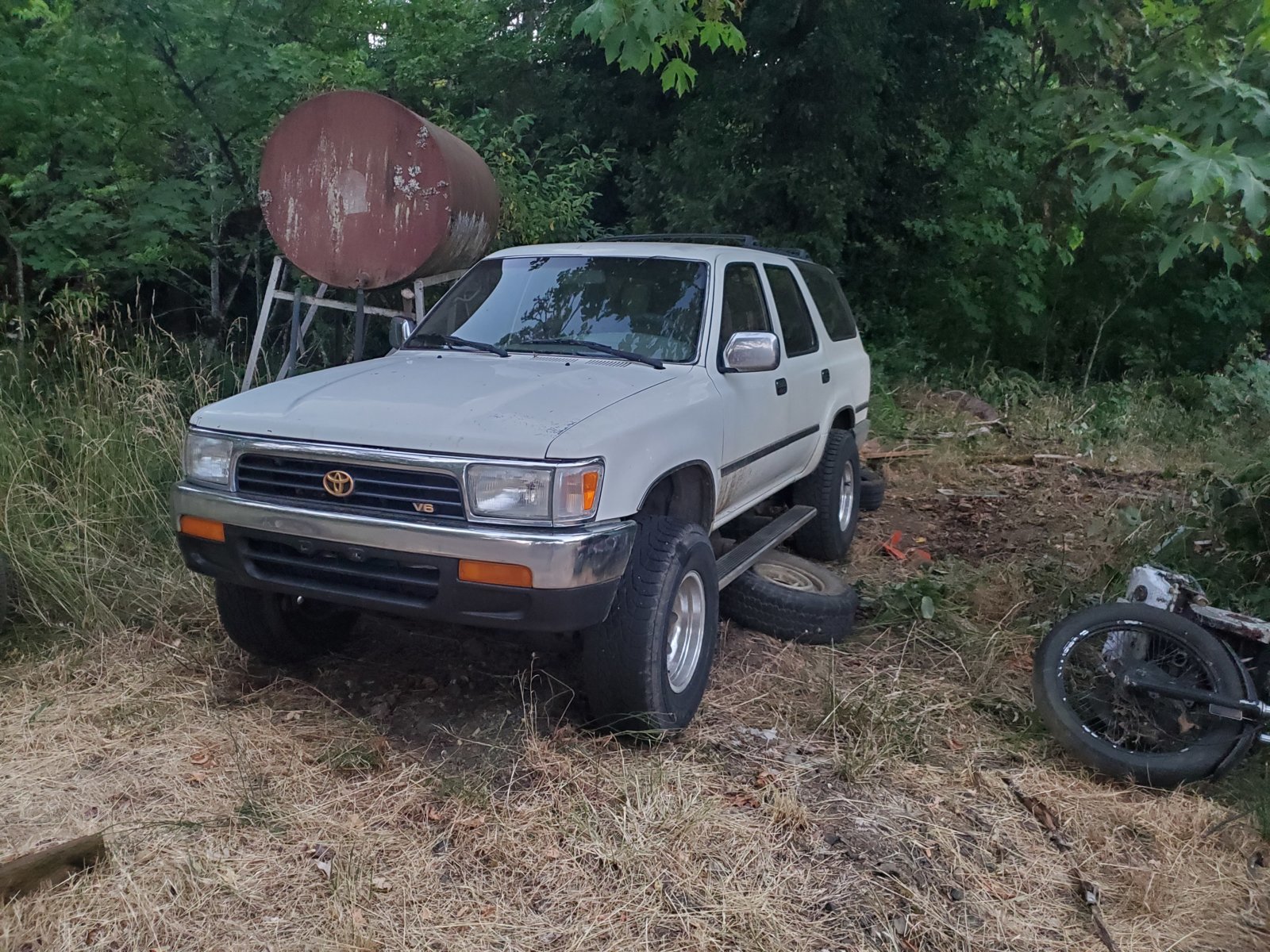

    Starting vehicle
    1995 white 4runner 3VE auto A340E

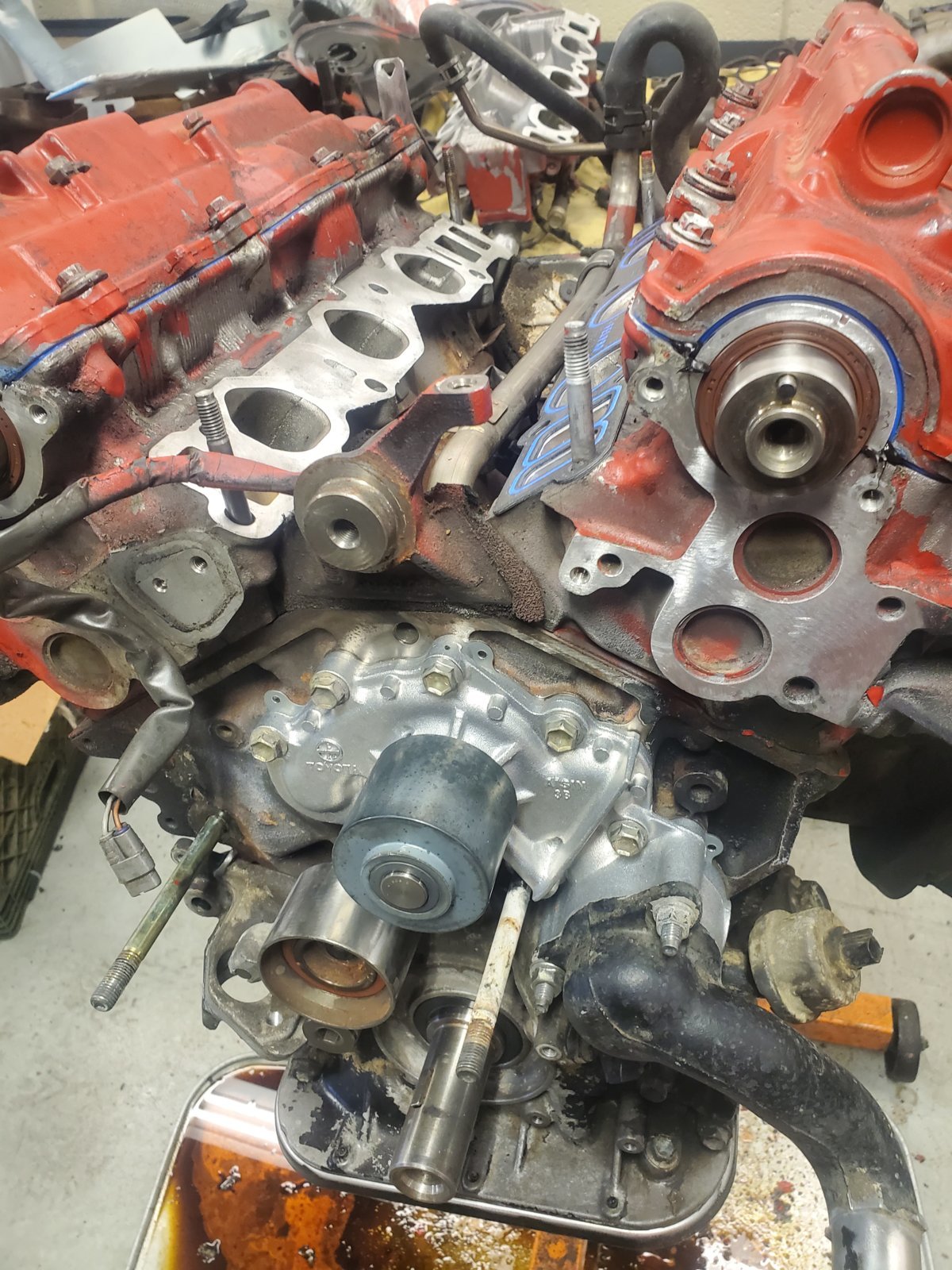

    Engine

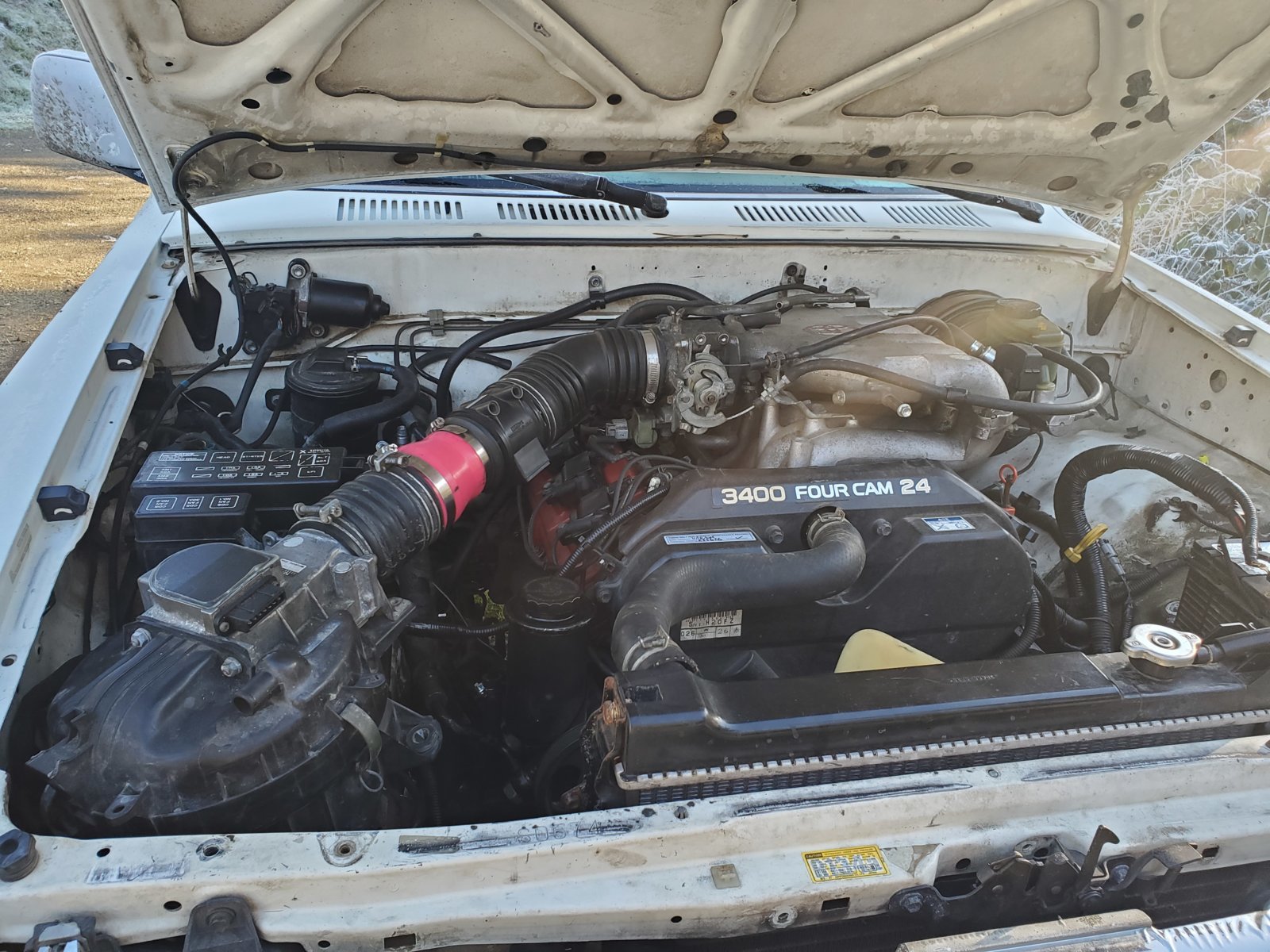

    • 5vzfe 3.4L 1996 T100
    Transmission

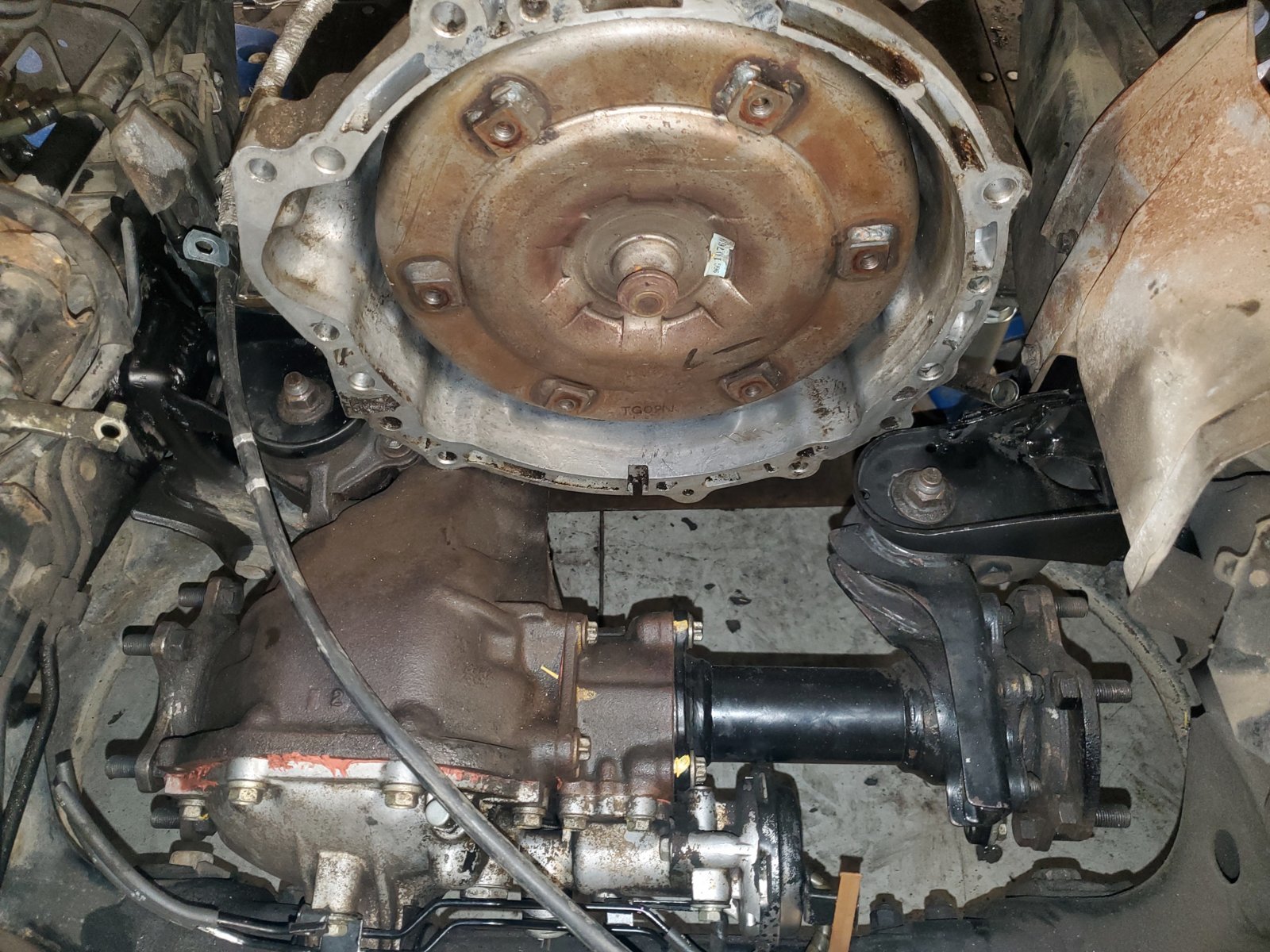

    • A340F 1996 T100
    Transfercase

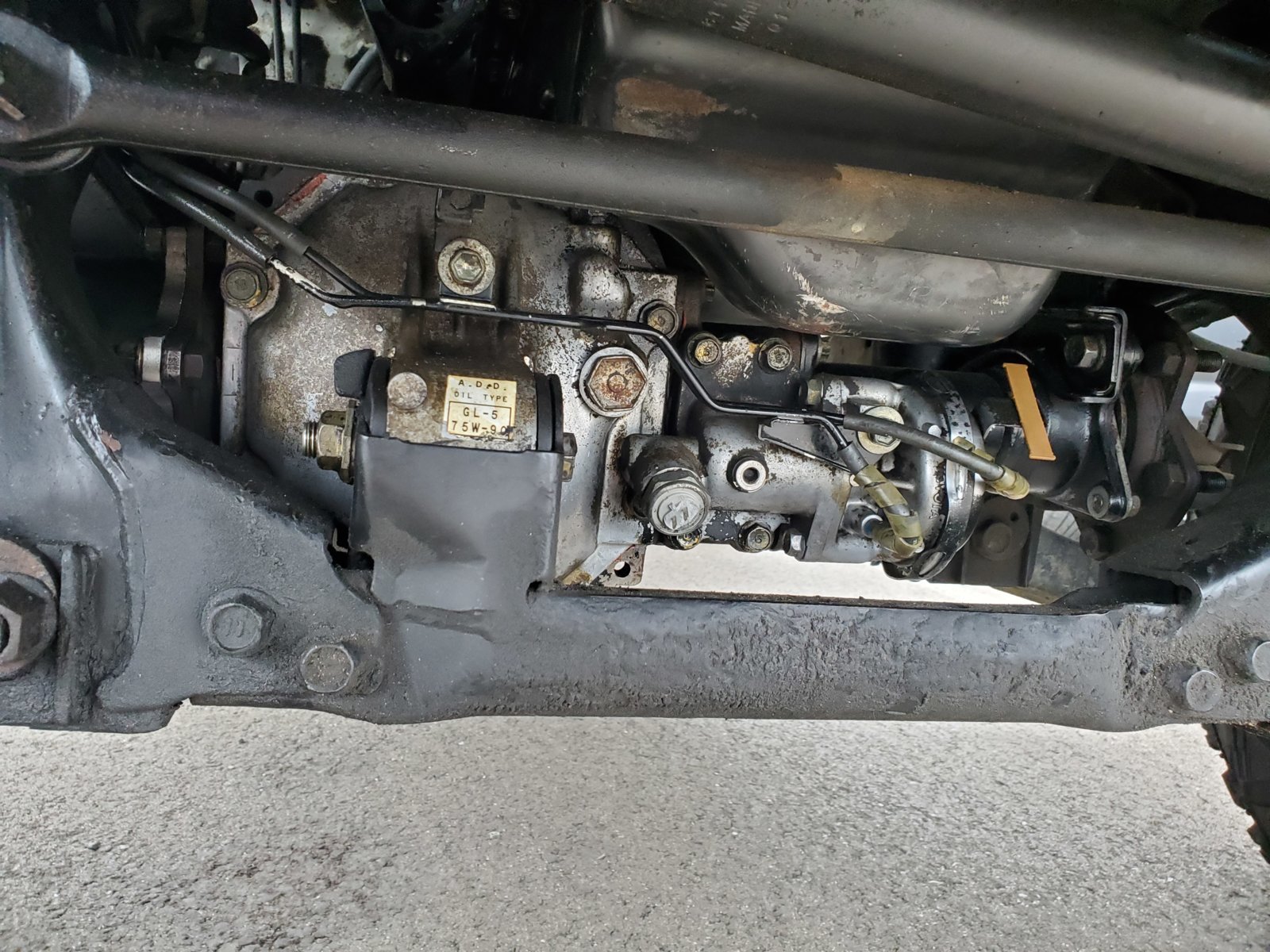

    • 1997 T100 transfercase from a manual transmission for a top shift configuration
    Axles and differentials
    • 1990 4runner front diff with LCE cv axles
    • Swapped knuckles/ spindles from 1990 4runner
    • Had to swap rotors back to original because 1995 has thicker rotors and wider brake calipers
    • Swapped entire rear axle from 1990 4runner becase 1995 had 4.30 ratio and red had a 4.10 ratio so I wanted to keep cost down and just used 4.10 ratio front and back.
    Body

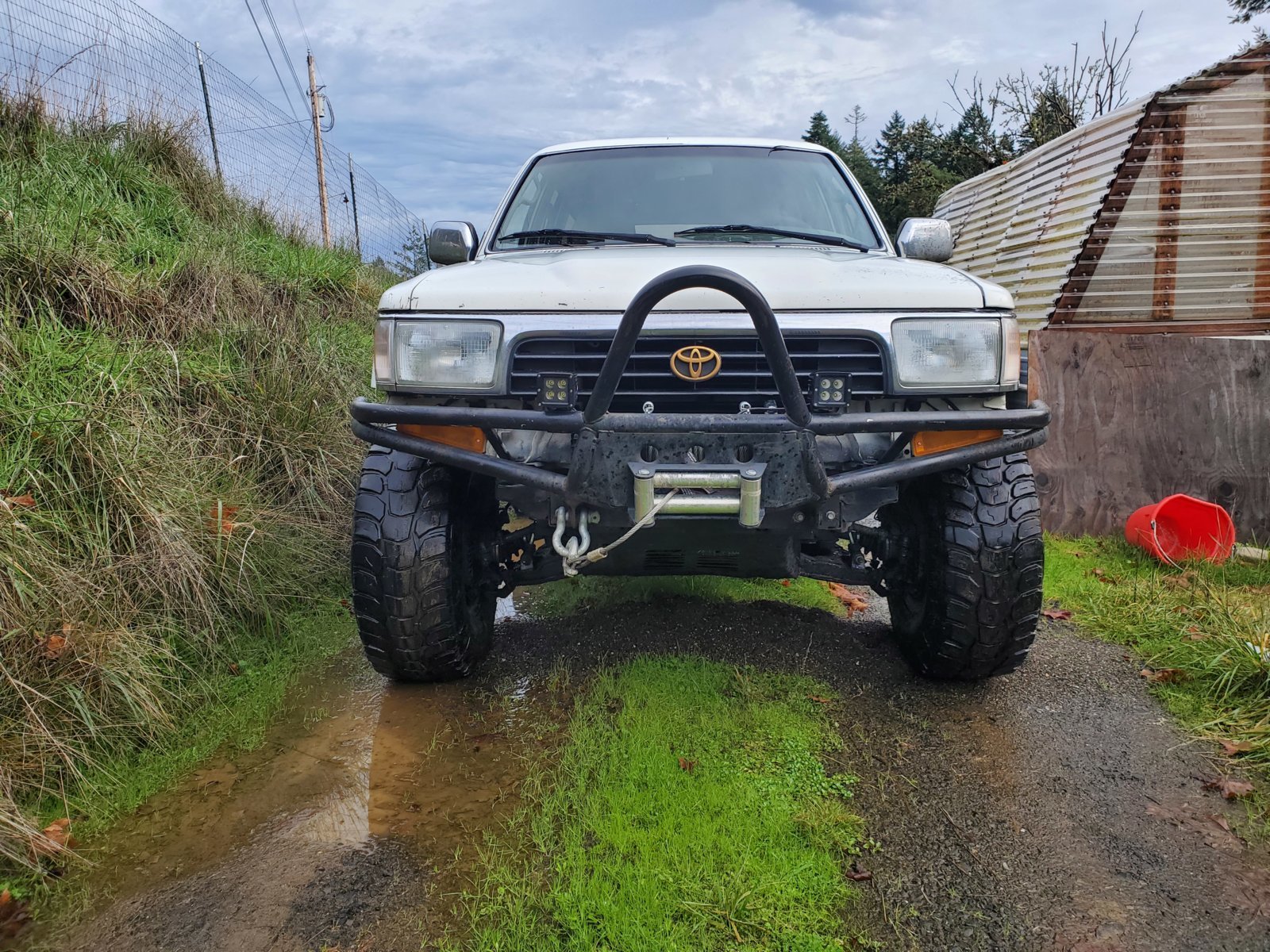

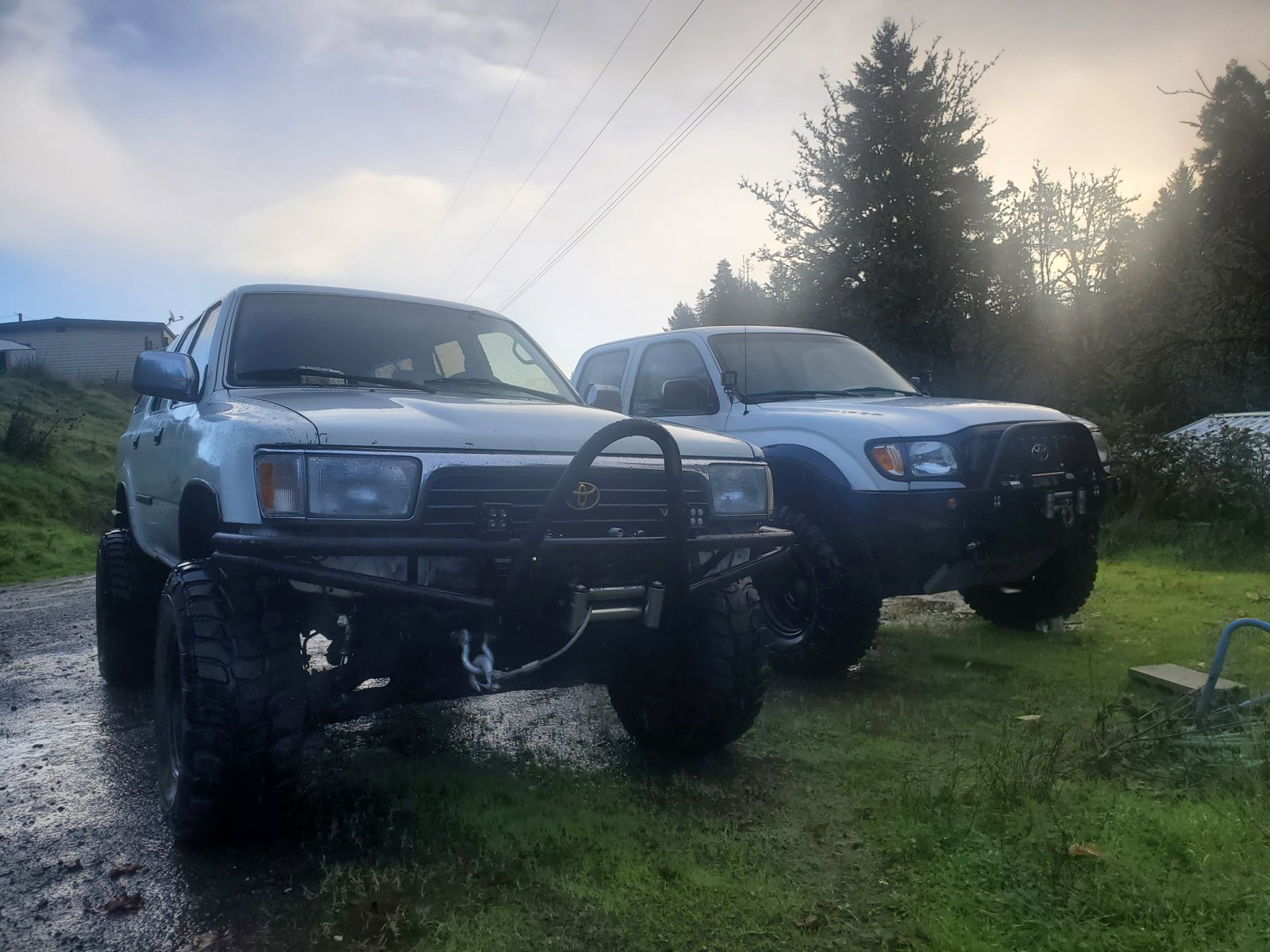

    • All pro front bumper
    • Bad lands 12k lb winch
    • 3/8 body lift
    • Mounted oem turn signals on all pro bumper
    Suspension
    • Swapped suspension from 1990 red 4runner
    • Front fox shocks
    • Front ball joint spacers
    • Rear procomp shocks
    • Rear OME coil springs



    Last edited: Dec 24, 2023
    NorthPark and Dalandser like this.
  2. Dec 24, 2023 at 1:13 PM
    #2
    NorthPark

    NorthPark Well-Known Member

    Joined:
    Aug 24, 2020
    Member:
    #338695
    Messages:
    62
    Vehicle:
    Procharged 4r
    Love the 2nd gens, I've been eyeing one for a project myself

  3. Dec 24, 2023 at 2:17 PM
    #3
    mlcc

    mlcc [OP] Well-Known Member

    Joined:
    May 2, 2015
    Member:
    #154429
    Messages:
    1,822
    Gender:
    Male
    Oregon
    Vehicle:
    2002 DC TRD/ 1990 4runner
    Lights, 3in lift, tires/ wheels, being awesome
    They are a dime a dozen for cheap. The red one I picked up for 700 bucks and the white I picked up for 900 bucks. The white one was to kinda start over and it was in super good condition. Plus I grew up with 80s and 90s toyotas and have pretty much owned them all but I really find the 2nd gen 4runner so useful and fun.
