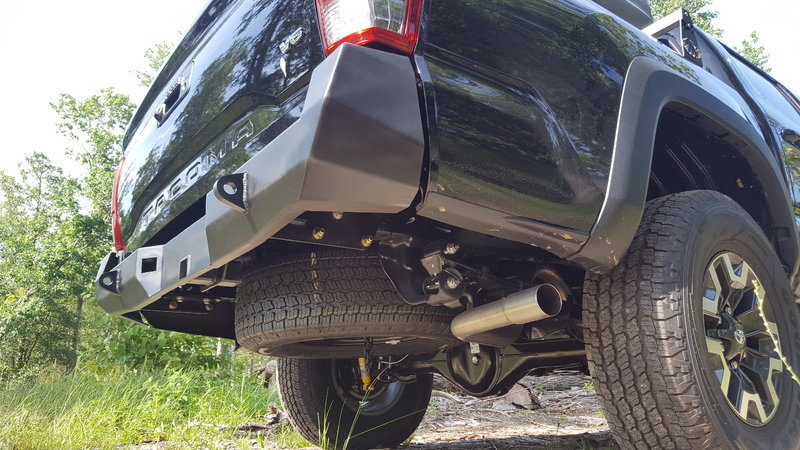

Mobtown Offroad 2016+ Toyota Tacoma Rear Plate Bumper

Mobtown Offroad has their rear plate bumper prototyped and ready for orders.

The key features of the bumper are:

Outer Shell: 3/16" CNC Laser Cut and Formed Plate Steel
Shackle Points: 3/4" CNC Plasma Cut, pass through the bumper and wrapped around 2-1/2" heavy wall steel tubing for the strongest design on the market to date.
Hitch: Integrated into the bumper which allows the bumper to tie in to it for maximum strength. The hitch is up in the bumper and passes through where the license plate will be so the depature angle is not effected. The hitch will be built from 2-1/2" heavy wall steel tubing. It also is reinforced in the center with a formed plate and slots for trailer chains.
Attachment: 1/4" CNC Laser Cut and Formed Plate Steel. Not just a flat, plasma cut plate like most bumpers out there which isn't the best for side pulls. We added two bends on the plate, one goes under the chassis and bolts into the existing factory weld nuts.
Accessories: Flip Up License Plate Bracket, will use factory trailer plug and factory license plate lights.

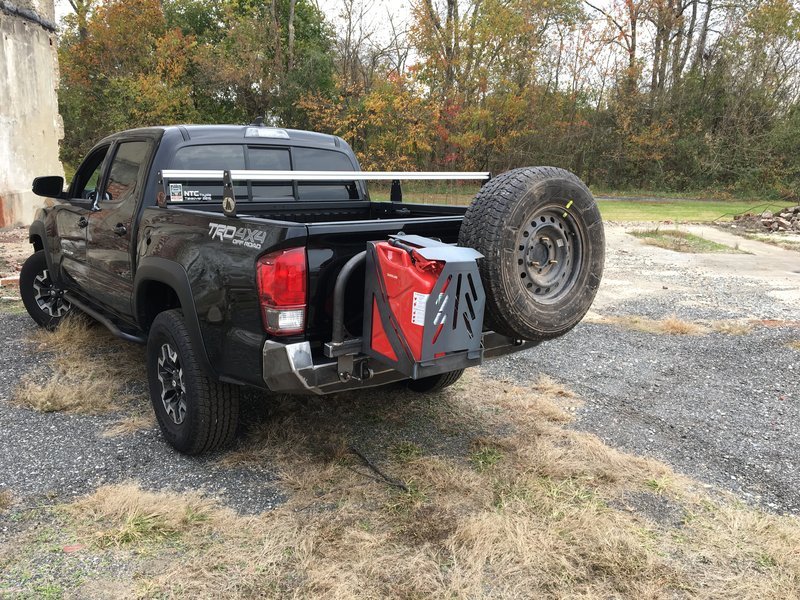

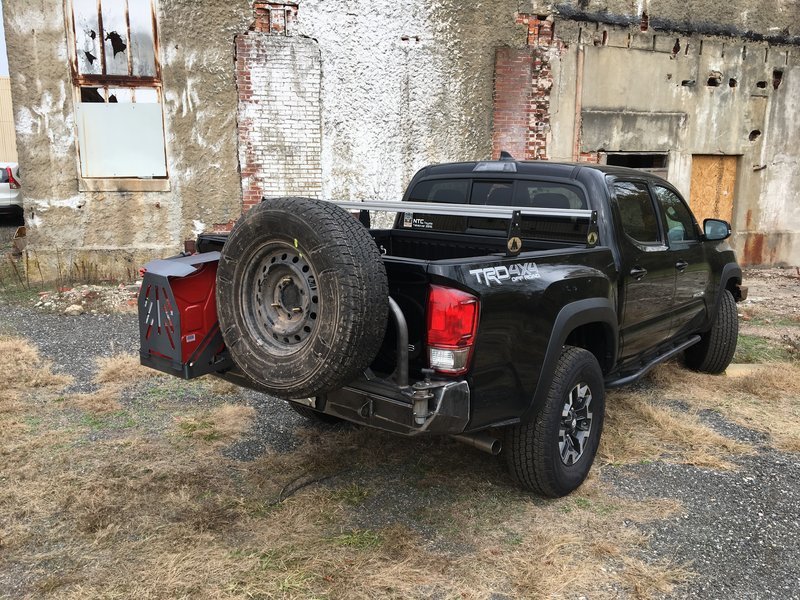

Options: Swing Out Tire Carrier (Holds up to 35"x12.50" Tire), Dual 5 Gal Jerry Can Holder









Visit our website for lead times, bumper prices, shipping cost and terminal locator here: http://mobtownoffroad.com/product/bumper-3/



Reserved



Alright folks, we need a test truck with the Tech Package. We have a lot of interest in these bumpers that work with the Tech Package.

First one to bring us their truck for prototype gets the bumper at our cost.

We are located in Greensboro, MD.



looking good.



A good compliment from you because I drool every time your truck comes up on TW haha. I really love your build.



haha thanks! im waiting on a rear bumper. havent seen any HC that i really like yet. this is my favorite rear so far though. keep it up!



I want that tire swing carrier... has very good lines off the truck body.



I dig it.



Subd for bumper that works with tech package!



We have ideas on how to make it work without losing structural integrity in the bumper. But without a truck, we are hosed!



I'd be more than happy to let you use my truck to get a bumper at cost... except Im on the other side of the country :/



I believe all the cool kids are. Almost 80% of our orders go to California...



Can't argue with that! Also, California does have half the US population. 5pm traffic isn't any fun, especially with people protesting on the most used freeway in LA!



Looks pretty sturdy and functional, but FUGLY.



Looks like you should move shop!



One day, maybe.



Backup sensor compatible?



Not as of yet. Trying to get a donor truck to come to the shop.



how long do you think you would need?



It would require at least two trips and a few hours per trip.

I know how the sensors need to be mounted, and I know they can't be blocked by steel. The major issue is having a plastic cover is not going to fly with us. Having no trail protection over a $650 sensor is no beuno... So I am really not sure how we are going to make this thing function, and be protected. It's fine for "mall crawlin" but one smack on a tree or rock and you're day just got really bad.
