MOD - LED Bed Lighting Connected to Cargo Light / Bed Light Circuit

Discussion in '3rd Gen. Tacomas (2016-2023)' started by Quicksander17, Jan 26, 2018.

Page 3 of 5
  1. Dec 21, 2021 at 6:49 PM
    #41
    80sforlife

    #41
    80sforlife Well-Known Member

    Joined:
    Mar 7, 2016
    Member:
    #180504
    Messages:
    239
    Vehicle:
    2017 Toyota Tacoma DC TRDOR 4x4
    So what is the consensus can I operate the Matt gecko lights to full capacity by tapping the green wire or is it dim because not enough power?

    80sforlife, Dec 21, 2021
    #41
  2. Feb 6, 2022 at 10:56 AM
    #42
    Lateralus01

    #42
    Lateralus01 Well-Known Member

    Joined:
    Feb 12, 2018
    Member:
    #244223
    Messages:
    346
    Gender:
    Male
    Vehicle:
    2018 Cement Tacoma TRD OR DCSB 4x4
    @mrkabc could your method here be used to trigger (not power) a set of rock lights?

    Lateralus01, Feb 6, 2022
    #42
  3. Feb 6, 2022 at 11:14 AM
    #43
    caribe makaira

    #43
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,733
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    caribe makaira, Feb 6, 2022
    #43
  4. Feb 6, 2022 at 11:18 AM
    #44
    Lateralus01

    #44
    Lateralus01 Well-Known Member

    Joined:
    Feb 12, 2018
    Member:
    #244223
    Messages:
    346
    Gender:
    Male
    Vehicle:
    2018 Cement Tacoma TRD OR DCSB 4x4
    Lateralus01, Feb 6, 2022
    #44
  5. Feb 6, 2022 at 11:25 AM
    #45
    caribe makaira

    #45
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,733
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    :hattip:

    caribe makaira, Feb 6, 2022
    #45
    Lateralus01[QUOTED] likes this.
  6. Feb 6, 2022 at 3:52 PM
    #46
    mrkabc

    #46
    mrkabc Mall Crawler with a Locker

    Joined:
    Jun 9, 2014
    Member:
    #131627
    Messages:
    1,642
    Gender:
    Male
    First Name:
    Art
    Corona, CA
    Vehicle:
    2017 MGM DCSB TRD OR
    Morimoto XB LED Head & Fog Lights, Cali Raised Stealth Light bar, OEM Roof Rack, Homelink Compass Mirror, Power Tailgate Lock, LED bed lights, MESO mirrors, gashole, switch panel & Stage 2 tails, PRO grille. Where's the mall?
    @caribe makaira is WAY more qualified to help you than I am! Hat tip sir!

    mrkabc, Feb 6, 2022
    #46
    Lateralus01[QUOTED] likes this.
  7. Apr 1, 2022 at 8:03 AM
    #47
    Waxifari

    #47
    Waxifari Well-Known Member

    Joined:
    May 3, 2021
    Member:
    #364589
    Messages:
    45
    Gender:
    Male
    Denver/Boulder Metro
    Vehicle:
    2021 Pro

    THIS is what I needed to know - thank you. If you want your SwitchPros trigger wire to work with your dome lights you cant actually trigger natively off your dome circuit due to dim function. Also, I learned that if you add-a-fuse off your cargo circuit in the sub panel (fuse panel in cab) it wont work either because that appears to be always hot (meaning its not switched). This little green wire however will trigger your SwitchPro perfectly to sync with Cargo lights which is essentially the same functionally as triggering off your dome circuit. So now, key fob lock, unlock or door open and SwitchPro lights up my UpTop BD rock lights. Very slick. Probably others have figured this out as well but just adding here so that it may be findable if others are looking. Thanks again.

    Waxifari, Apr 1, 2022
    #47
    mrkabc[QUOTED] likes this.
  8. Apr 10, 2022 at 10:44 AM
    #48
    caribe makaira

    #48
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,733
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    If you select your ShitPro gadget to use a negative trigger you can use the violet wire of the cargo switch. And @kmorgan3 has a intercept harness so you don't go cutting into the OEM wires.Plug-and-Play Switch Illumination Harnesses

    Last edited: Apr 11, 2022
    caribe makaira, Apr 10, 2022
    #48
    kmorgan3 likes this.
  9. May 10, 2022 at 2:16 PM
    #49
    thomasburk

    #49
    thomasburk Keep on Truckin'

    Joined:
    Aug 24, 2018
    Member:
    #263909
    Messages:
    2,059
    Gender:
    Male
    First Name:
    Tom
    Tampa, FL
    Vehicle:
    2020 OR DCLB
    Great idea

    thomasburk, May 10, 2022
    #49
  10. Jan 23, 2023 at 4:30 PM
    #50
    Crazy Larry

    #50
    Crazy Larry Active Member

    Joined:
    Sep 22, 2022
    Member:
    #406370
    Messages:
    40
    Gender:
    Male
    NJ/Phila
    Vehicle:
    2022 AG Trail Edition
    This thread was very helpful. I just tapped the green wire to trigger relay for some Baja S1 work lights on my roof rack using the cargo light rocker. Worked great! Post #8 was key.

    Crazy Larry, Jan 23, 2023
    #50
    Lateralus01 likes this.
  11. Jan 23, 2023 at 5:53 PM
    #51
    caribe makaira

    #51
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,733
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

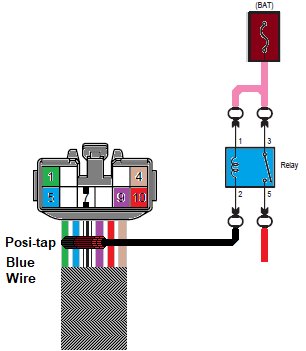

    Could've done this also.
    upload_2023-1-23_22-0-50.jpg or this:upload_2023-1-23_22-15-14.jpg
    Parallel to Cargo Lamp circuit.

    Last edited: Jan 23, 2023
    caribe makaira, Jan 23, 2023
    #51
    Rocket23 and helix66 like this.
  12. Aug 29, 2023 at 5:23 AM
    #52
    Rocket23

    #52
    Rocket23 Supreme post overlord.

    Joined:
    Jul 25, 2022
    Member:
    #402107
    Messages:
    1,769
    Gender:
    Male
    First Name:
    Rocket
    Conn.
    Vehicle:
    2019 sr5
    Forthcoming
    My cargo light connector has no power. Not even switch illumination. (I added an oem switch that connects to the connector for that switch ) that harness has no power.
    There is a 7.5 amp fuse and that has power. So now what can I do? My truck is an access cab with no cargo lamp. I guess I need a color code for the switch. Or start tapping into other cab/ door lighting wires.
    Any thoughts? Sorry for the hi jack.

    Rocket23, Aug 29, 2023
    #52
  13. Aug 29, 2023 at 5:24 AM
    #53
    Rocket23

    #53
    Rocket23 Supreme post overlord.

    Joined:
    Jul 25, 2022
    Member:
    #402107
    Messages:
    1,769
    Gender:
    Male
    First Name:
    Rocket
    Conn.
    Vehicle:
    2019 sr5
    Forthcoming
    I’m adding my own lights fwiw similar to the you tube video.

    Rocket23, Aug 29, 2023
    #53
  14. Aug 29, 2023 at 3:23 PM
    #54
    caribe makaira

    #54
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,733
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Was the light stalk at parking lights to verify switch illumination?
    Did you verify there's a fuse in the Cargo Lamp fuse location?
    Did you verify there's a relay for the Cargo Lamp?

    caribe makaira, Aug 29, 2023
    #54
    Rocket23[QUOTED] likes this.
  15. Aug 29, 2023 at 3:31 PM
    #55
    Rocket23

    #55
    Rocket23 Supreme post overlord.

    Joined:
    Jul 25, 2022
    Member:
    #402107
    Messages:
    1,769
    Gender:
    Male
    First Name:
    Rocket
    Conn.
    Vehicle:
    2019 sr5
    Forthcoming
    Yes. I temporarily used the relay right above the cargo relay position in there. Switched on the lights. Nothing.
    I tested the back of the harness. Before the relay was put in the proper place nothing.
    The fuse box has the proper 7.5 fuse in good order. To be sure. That’s the second one in closest to your knee. Not the firewall.

    Rocket23, Aug 29, 2023
    #55
  16. Aug 29, 2023 at 3:35 PM
    #56
    caribe makaira

    #56
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,733
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    OK, let's do one item at a time. Dash switch(s) illumination - 5A Panel fuse. Verify.

    caribe makaira, Aug 29, 2023
    #56
    Rocket23 likes this.
  17. Aug 29, 2023 at 4:00 PM
    #57
    Rocket23

    #57
    Rocket23 Supreme post overlord.

    Joined:
    Jul 25, 2022
    Member:
    #402107
    Messages:
    1,769
    Gender:
    Male
    First Name:
    Rocket
    Conn.
    Vehicle:
    2019 sr5
    Forthcoming
    Sorry. Neighbor came over.
    Check. and All dash lights are operative

    Rocket23, Aug 29, 2023
    #57
  18. Aug 29, 2023 at 4:03 PM
    #58
    caribe makaira

    #58
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,733
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Multimeter to Cargo Lamp connector pin 1 (green wire), other probe to pin 4. Verify.

    caribe makaira, Aug 29, 2023
    #58
  19. Aug 29, 2023 at 4:05 PM
    #59
    Rocket23

    #59
    Rocket23 Supreme post overlord.

    Joined:
    Jul 25, 2022
    Member:
    #402107
    Messages:
    1,769
    Gender:
    Male
    First Name:
    Rocket
    Conn.
    Vehicle:
    2019 sr5
    Forthcoming
    Voltage or continuity?

    Rocket23, Aug 29, 2023
    #59
  20. Aug 29, 2023 at 4:11 PM
    #60
    caribe makaira

    #60
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,733
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Voltage with Parking Lights selected.

    caribe makaira, Aug 29, 2023
    #60
Page 3 of 5
