Modified Floating Arm Trebuchet

Discussion in 'Off-Topic Discussion' started by SMKYTXN, Nov 13, 2012.

  1. Nov 13, 2012 at 7:51 AM
    #1
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,038
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB
    WE WON!!!!!!!!!!



    I'll get the pictures and videos up as soon as I can. Our machine threw an official 283ft. The closest competition threw 128ft.

    We dominated!

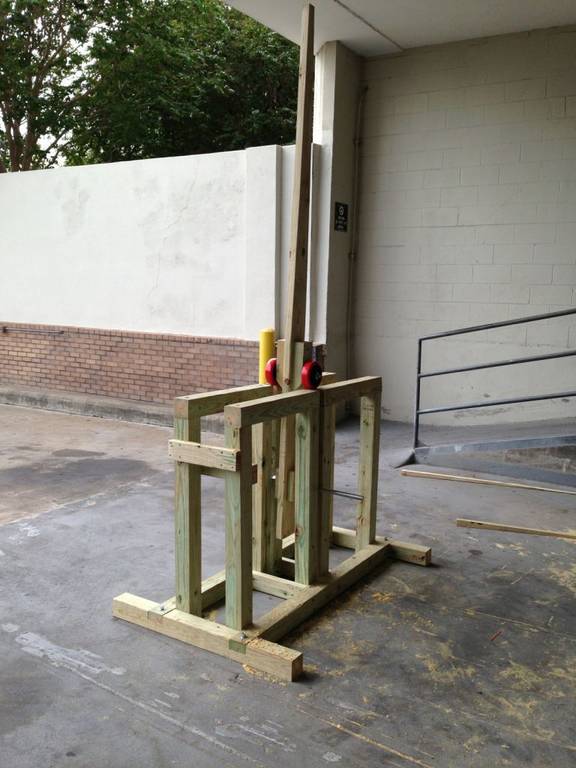

    [​IMG]



    UPDATE: The new launch date is December 6th!


    My office does a good job of having fun activities for us during the year. This is the first year that we've had a catapult contest though, and for the first time I had nothing to do with coming up with the idea. Here are the rules.

    1. No ready-made kits
    2. Catapult devices cannot exceed 4 feet in height up to the pivot point
    3. All catapults will be launched on a grass field. They must sit on the ground. No tables.
    4. The catapult cannot be staked into the ground.
    5. All catapults will launch a 4lb medicine ball.
    6. No combustion, explosions, compressied gases or air pressure may be used to enhance the performance of your catapult.
    7. Surgical tubing, or elastic/bungee cords are not allowed.
    8. No electric motors allowed.
    9. Counterweights cannot exceed 100lbs.
    10. Each team will enter the best of 3 launches to determine the winner.

    After initally reading these rules I decided that an Onager was the best bet as the pivot point was near the ground and that the counterweight restriction wouldn't apply. We found a few simulators online and found out that we would need in the neighborhood of 1000ft-lbs of torque on the rope bundle to throw the 4lb ball and distance so we scrapped that idea.

    The next idea was to build a trebuchet. This is the machine that the rules were written for. We had to find a way to bend the rules in our favor, and the trebuchet was close, but not quite there.

    Enter the modified floating arm trebuchet. This machine lets you get your counterweight higher than a traditional trebuchet but keeps the pivot point low enough to keep with the rules of our competition. I purchased a set of plans from here, for a whopping $7. The plans came with brief instructions on scaling the machine up as the designs built a table top machine. We spent a good deal of time building our own plans and instructions based on the plans we had purchased.

    I'm happy to report that after two days of construction we have a fully functional machine.

    Picking up the lumber

    [​IMG]

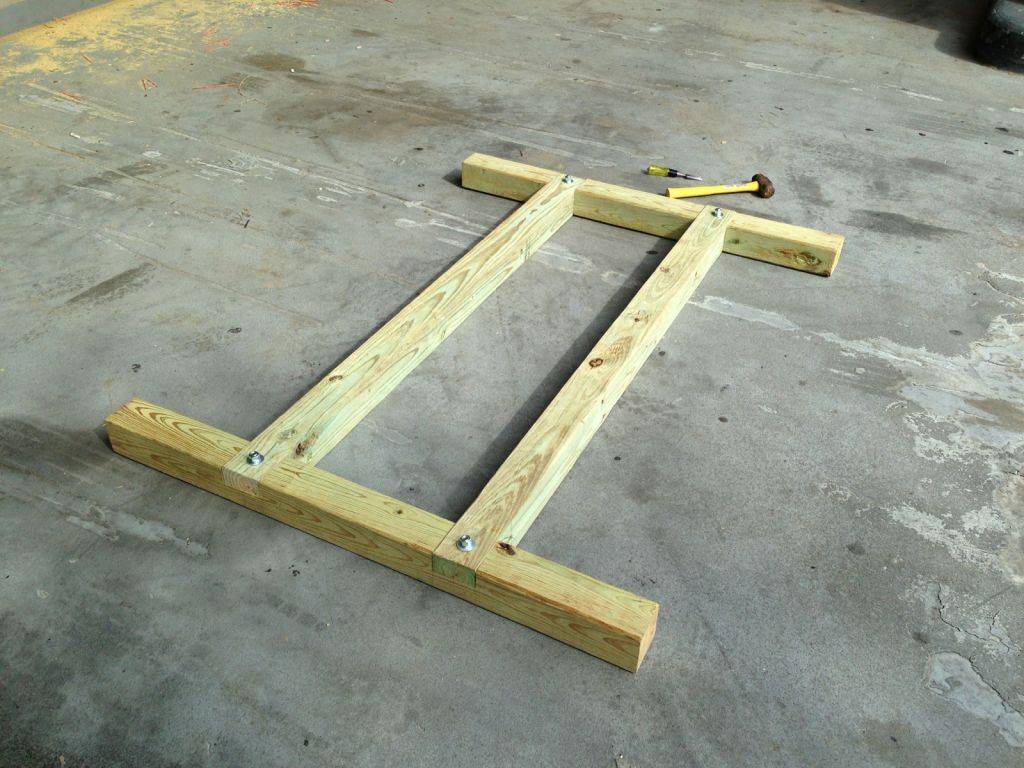

    Building the inital frame. Yes, those are lapped together 4x4's connected with 1/2" Grade 5 hardware.

    [​IMG]

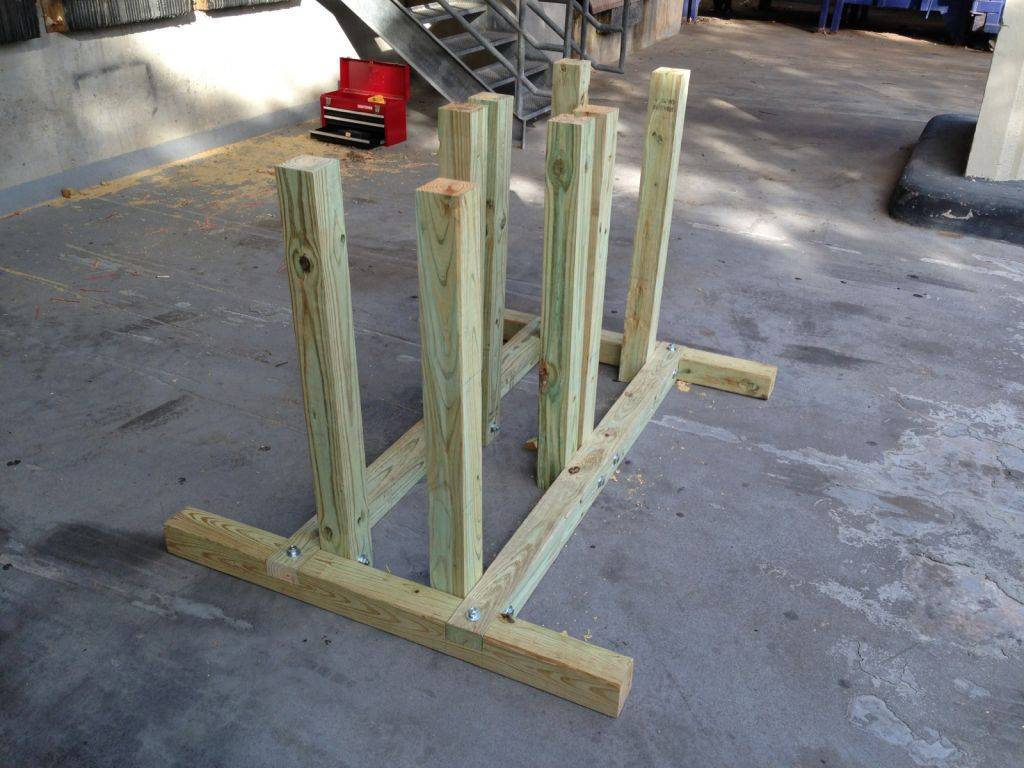

    Adding the columns to the base.

    [​IMG]

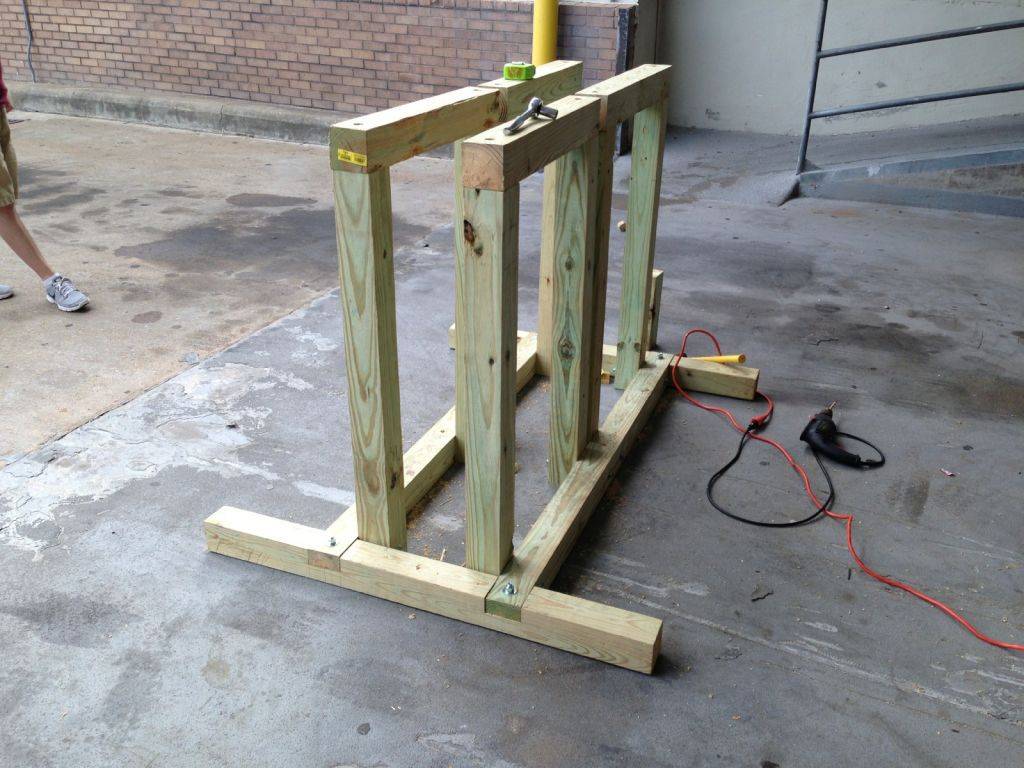

    Adding the runners to the top of the columns. The pivot wheels will run on these boards.

    [​IMG]

    Here we have test fit the throwing arm into the base. You can see the 1" all-thread that will hold the weights at the bottom. The wheels are caster wheels with needle bearings and servicable grease zerks. :D

    [​IMG]

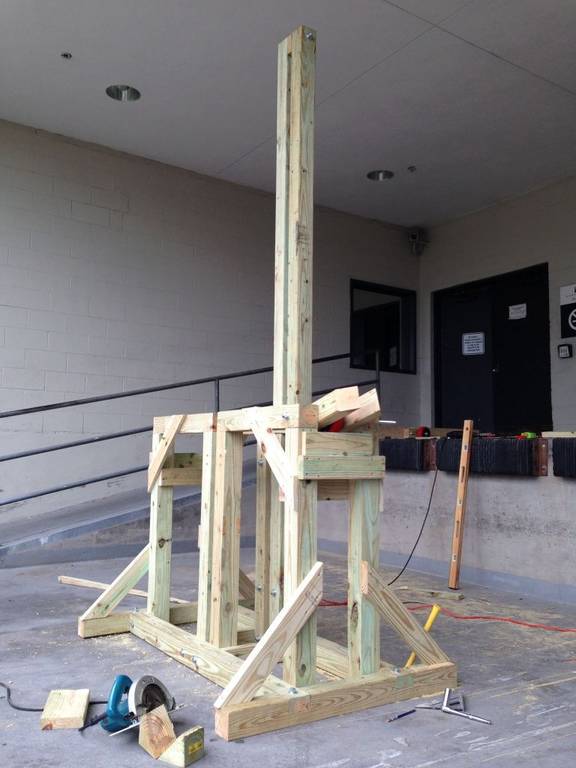

    Here we have added a few weights to the arm and added the bracing that's needed to keep the columns straight.

    [​IMG]

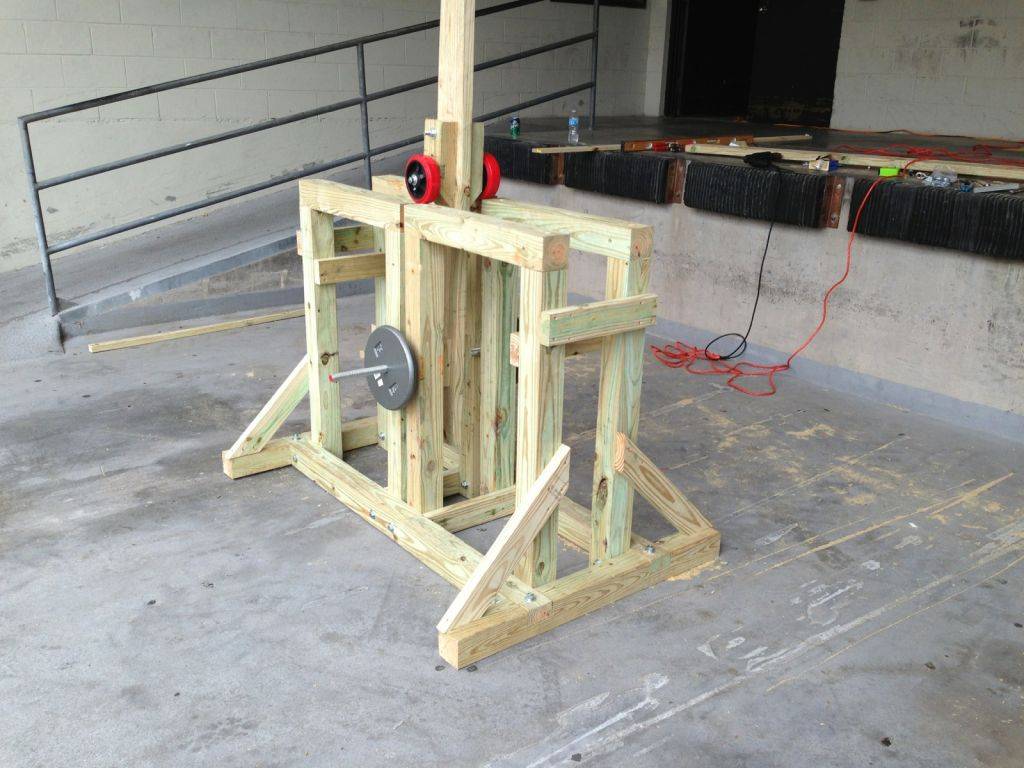

    More bracing, and the guide wheel for the arm has been added. We later discovered that the wheel was too high. The wheel needed to be flush to the top of the runners in order to make a smoot transition for the arm.

    [​IMG]

    Here is the release pin for the sling. You can see that the pin is adjustable to allow us to change the trajectory of the projectile. A shallower angle means higher flight, and the opposite for a steeper pin angle.

    [​IMG]


    Here's the slow motion video of the first shot. :)

    http://player.vimeo.com/video/53449494?badge=0



    More pictures and video to come.

  2. Nov 13, 2012 at 8:00 AM
    #2
    chrisman8995

    chrisman8995 Well-Known Member

    Joined:
    Jul 14, 2009
    Member:
    #19657
    Messages:
    110
    Gender:
    Male
    Newnan, GA
    Vehicle:
    05 PreRunner Double Cab
    looks like a fun little project. you'll have to post up a video of it in action.

  3. Nov 13, 2012 at 8:04 AM
    #3
    NwiTACO

    NwiTACO Big tars, little/no bed.

    Joined:
    May 19, 2009
    Member:
    #17416
    Messages:
    4,427
    Gender:
    Male
    First Name:
    Mark
    Indiana
    Vehicle:
    05 TRD Sport
    Custom Everything, 1 Ton Axles F & R
  4. Nov 13, 2012 at 8:05 AM
    #4
    theduck911

    theduck911 Max's Canadian Twin

    Joined:
    Oct 28, 2010
    Member:
    #45374
    Messages:
    3,932
    Gender:
    Male
    First Name:
    Max
    Northwestern Ontario, Canada
    Vehicle:
    Locked and Geared!
  5. Nov 13, 2012 at 8:25 AM
    #5
    Krazie Sj

    Krazie Sj Resident Jackass

    Joined:
    Oct 9, 2008
    Member:
    #9849
    Messages:
    13,771
    Gender:
    Male
    First Name:
    Power Serge
    LV-426 (Acheron)
    Vehicle:
    07 TRD Off Road 4x4
    Borla Catback Exhaust, Snorkel, 33s on either 16's or 18's, ARB Bumper, All Pro LT w/Walker Evan Shocks front and back, All Pro expedition leaf pack, 10,000lb Superwinch, Intake Manifold Spacer, Bed Rack with ARB RTT, Rotopack and Hi Lift mounted, Husky Liner mats and an air freshener from 1995.
    Wicked.

  6. Nov 13, 2012 at 8:29 AM
    #6
    Deadcrowm

    Deadcrowm Well-Known Member

    Joined:
    Oct 31, 2012
    Member:
    #90178
    Messages:
    128
    Gender:
    Male
    First Name:
    Mike
    Ventura County
    Vehicle:
    07 4x4 TRD
    Camper shell, bed kit, tires
    SICK! I want one...:bananadance:

  7. Nov 13, 2012 at 8:35 AM
    #7
    acdronin

    acdronin Well-Known Member

    Joined:
    Dec 2, 2010
    Member:
    #47036
    Messages:
    19,641
    Gender:
    Male
    .
    Man a trebuchet would be fun in my back yard, easier that hitting golf-balls with a bat:)

  8. Nov 13, 2012 at 8:37 AM
    #8
    92shawman

    92shawman Person

    Joined:
    Mar 14, 2012
    Member:
    #74900
    Messages:
    2,782
    First Name:
    K
    The Americas
    Vehicle:
    1992 Toyota Pickup
    Lots...see build
    Looks sick! Make sure that thing is beefy for a 4lb medicine ball. Looks really beefy so far. In my high school physics class we made trebuchets. The floating arms went the farthest, but some of them started tearing themselves apart, and we only had to throw a lacrosse ball.
    Subbed!

  9. Nov 13, 2012 at 8:37 AM
    #9
    Pugga

    Pugga Pasti-Dip Free 1983 - 2015... It was a good run

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    38,497
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '19 Ford F-250 6.7 SCrew
    F-250 Land Yacht Mod
    Damn... that's an awesome thing to do for work!

  10. Nov 13, 2012 at 8:39 AM
    #10
    dayNnite4

    dayNnite4 We can't stop here, this is bat country.

    Joined:
    Jul 10, 2011
    Member:
    #59655
    Messages:
    1,144
    Gender:
    Male
    First Name:
    Nick
    Southern NH
    Vehicle:
    '11 4x4 5-speed AC
    That's awesome! Def need a video of it in action

  11. Nov 13, 2012 at 8:39 AM
    #11
    Pugga

    Pugga Pasti-Dip Free 1983 - 2015... It was a good run

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    38,497
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '19 Ford F-250 6.7 SCrew
    F-250 Land Yacht Mod
    Why are you hitting golf balls with a bat? You know they make something for that... :rolleyes:

  12. Nov 13, 2012 at 8:44 AM
    #12
    acdronin

    acdronin Well-Known Member

    Joined:
    Dec 2, 2010
    Member:
    #47036
    Messages:
    19,641
    Gender:
    Male
    .
    This reminded me of something i did as a teen, me and my buddy snuck onto a golf course and swiped some balls from the middle of a fairway and batted them out of his back yard, think the sound of large pieces of glass breaking, I was a bad kid growing up, having a trebuchet would have been much, much worse, especially Halloween and thanksgiving, we probably would have sent flaming gourds all over the place.

  13. Nov 13, 2012 at 8:52 AM
    #13
    scocar

    scocar hypotenoper

    Joined:
    Nov 11, 2009
    Member:
    #25814
    Messages:
    39,455
    This is awesome.

    Not surprising at all coming from someone who votes on the Transylvanian Impaler plank. If I had been more industrious in high school and had the google back then, I would probably be in federal ass-pounding prison now.

  14. Nov 13, 2012 at 8:59 AM
    #14
    acdronin

    acdronin Well-Known Member

    Joined:
    Dec 2, 2010
    Member:
    #47036
    Messages:
    19,641
    Gender:
    Male
    .
    You guys don't know the half of it! It probably would have considered domestic terrorism nowadays:eek:

    Well Scott, do you disagree that Vlad would have dealt with the BS in Congress in short order????

  15. Nov 13, 2012 at 9:12 AM
    #15
    scocar

    scocar hypotenoper

    Joined:
    Nov 11, 2009
    Member:
    #25814
    Messages:
    39,455
    I think heads on stakes would be a fine addition to the circumference of National Mall.

  16. Nov 13, 2012 at 9:14 AM
    #16
    acdronin

    acdronin Well-Known Member

    Joined:
    Dec 2, 2010
    Member:
    #47036
    Messages:
    19,641
    Gender:
    Male
    .
    Tell McConnel and Reid "Hey, uh look, you had great careers and all, but it's time to go now, BTW, here's your 'severance package'"

  17. Nov 13, 2012 at 9:15 AM
    #17
    113tac

    113tac Well-Known Member

    Joined:
    Jun 14, 2009
    Member:
    #18439
    Messages:
    8,556
    Gender:
    Male
    First Name:
    Stephen
    Northern Virginia
    Vehicle:
    2017 Magnetic Gray Tacoma
    Mostly Stock for now, 265 75 16 Falken AT3W, Tinted fronts...
    subbed this looks pretty sick

  18. Nov 13, 2012 at 10:55 AM
    #18
    jgwheeler17

    jgwheeler17 I'm a zit. Get it?

    Joined:
    Dec 3, 2010
    Member:
    #47112
    Messages:
    10,029
    Gender:
    Male
    NC
    Vehicle:
    07 Double Cab TRD Off-Road 4x4
    neglect, mostly.
  19. Nov 13, 2012 at 11:03 AM
    #19
    ALawrence

    ALawrence Well-Known Member

    Joined:
    Sep 10, 2011
    Member:
    #63252
    Messages:
    1,409
    Gender:
    Male
    First Name:
    Andrew
    Oklahoma City
    Vehicle:
    03 Tacoma Sr5 Double cab 4x4
  20. Nov 13, 2012 at 11:31 AM
    #20
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,038
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB

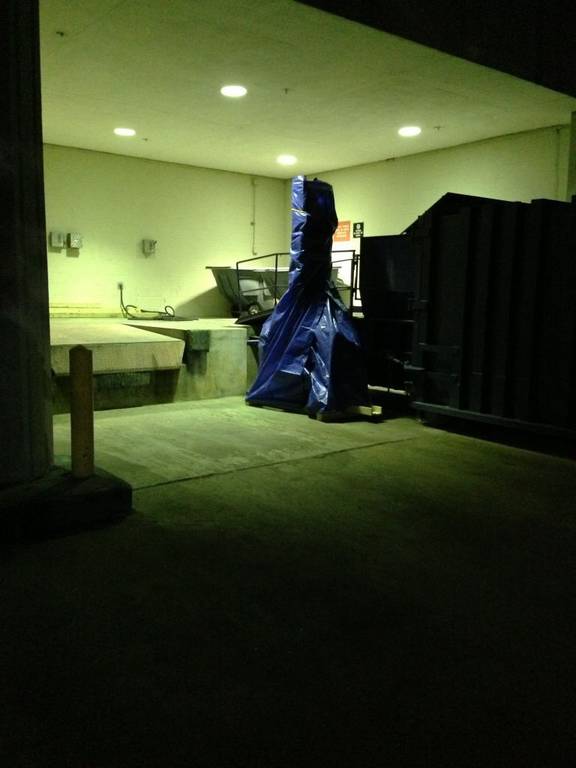

    Here is the completed machine under wraps awaiting tomorrows competition. I have the first throw video uploading now. It doesn't show the distance, but does show the machine working.
