Morimoto XB LED Fogs (12-14): Install

Discussion in 'Lighting' started by cemuscg, Jun 21, 2014.

  1. Jun 21, 2014 at 2:34 PM
    #1
    cemuscg

    cemuscg [OP] Member

    Joined:
    Mar 22, 2014
    Member:
    #125891
    Messages:
    9
    Gender:
    Male
    Dublin, CA
    Vehicle:
    2014 DCLB V6 4x4 TRD Sport
    BLUF: Ordered the brand new Morimoto XB LED Fogs from The Retrofit Source. These arrived in 2 days and I can honestly say that I am more than pleased with the overall quality and fit of these lights. These are being installed in a 2014 TRD Sport.

    Note: I am not an employee of TRS, just a satisfied customer. :D

    Link: http://www.theretrofitsource.com/led-lighting/morimoto-xb-led-fog-lights-type-t.html

    Install time: 30 minutes (although I took my time enjoying the install, it could be done in 15)

    Tools:
    -Philips Screwdriver
    -Flathead Screwdriver
    -10mm Socket
    -Although not a tool, you will want 4 zipties

    First impression:
    Arrived in one piece, well packaged from TRS, packing peanuts everywhere :p. The lights are literally the exact same size as the OEM fogs. The only thing that comes not assembled are the male fittings on the pigtails (easy, more on that later). Overall great build quality, I will let you know how they turn out at night once it's dark!!

    Packaging:
    [​IMG]

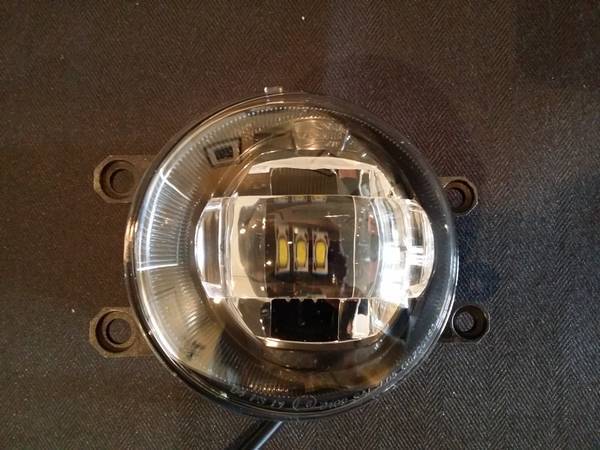

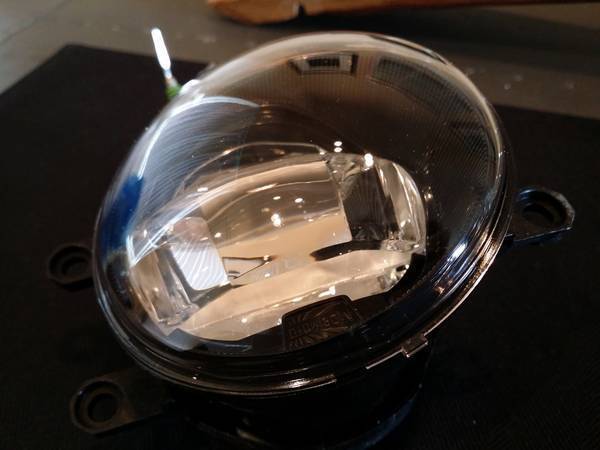

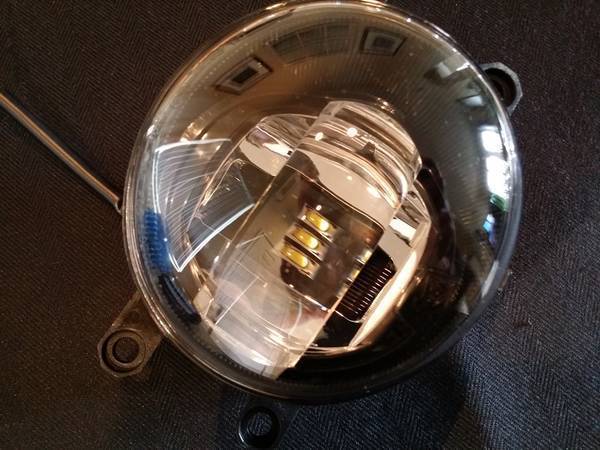

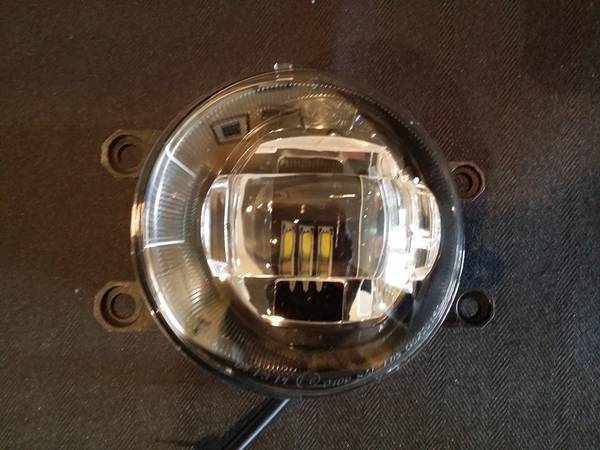

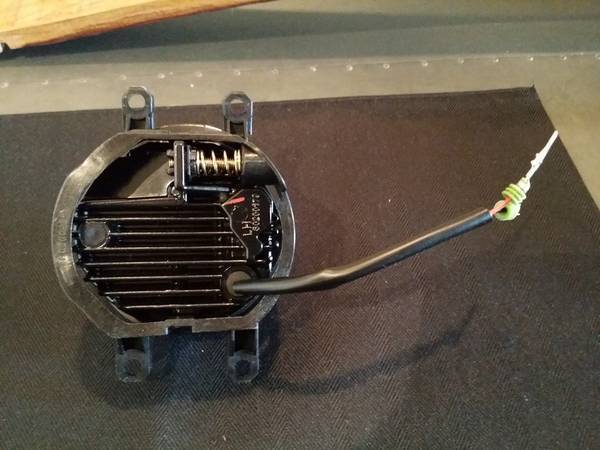

    Closeup Shots:
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

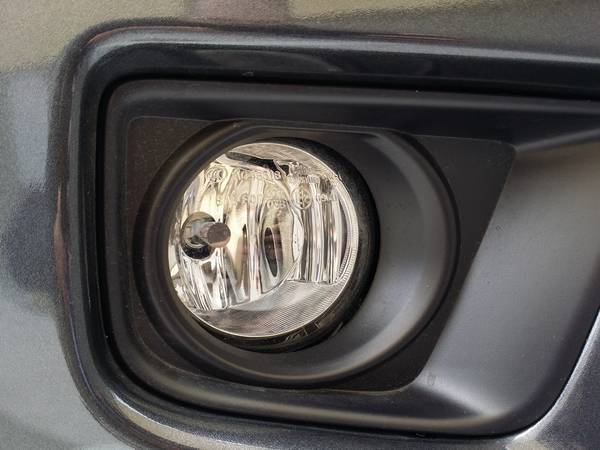

    Before: (Sorry for the glare, but you all know what the stock lights look like)
    [​IMG]
    [​IMG]

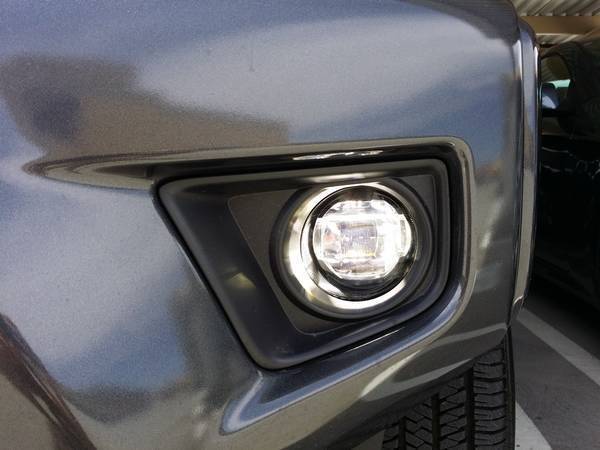

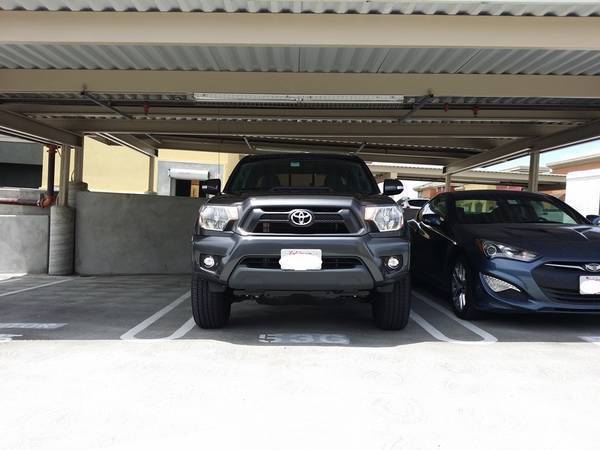

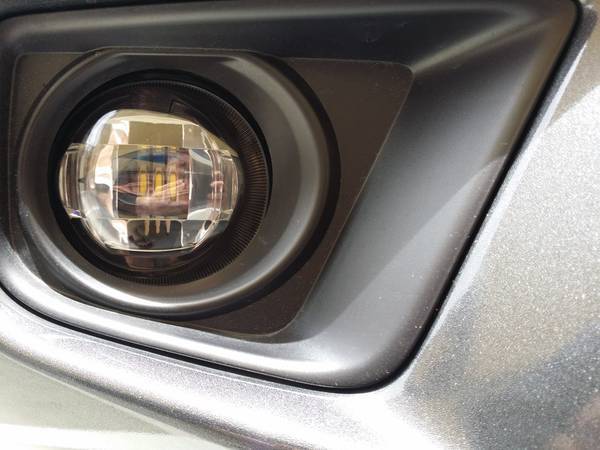

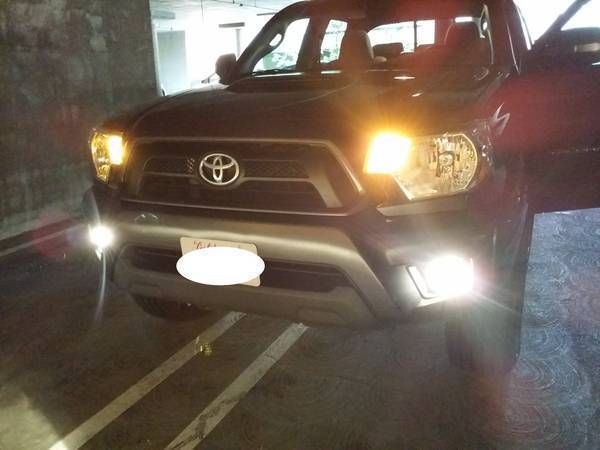

    After: (I will upload a night shot in a few hours)
    [​IMG]
    [​IMG]
    [​IMG]

    Now on to the install...

    1. Mark the wall in front of the truck with painters tape so that you can check the new lights alignment once installed.
    [​IMG]

    2. Remove 10mm bolts under the bumper (2 per side). These can also be removed with a philips screwdriver.
    [​IMG]

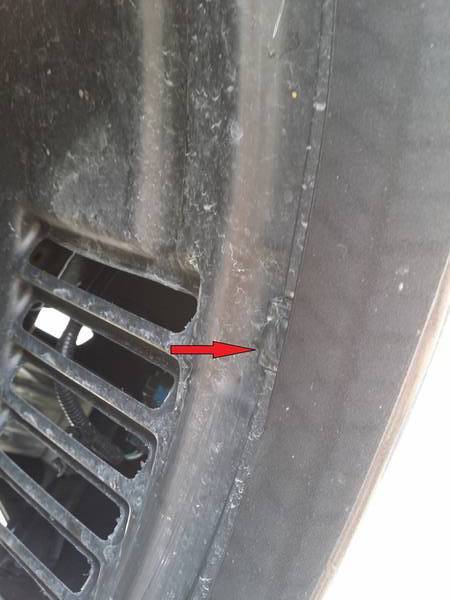

    3. Remove plastic retainer screw from just inside the fender well. You only need to rotate it 90 degrees. Vertical is locked, horizontal is unlocked.
    [​IMG]

    4. To make your life easier, turn your wheel inboard.

    5. There are only 2 philips screws holding each fog light on, the inboard side tabs fit into holders without screws.
    [​IMG]
    [​IMG]

    6. Go ahead an insert the wires into the plug for each light. Red on the new light goes to green on the harness. Remember that this is a 2014, you may want to double check your wires prior to inserting them into the plug... Just insert the prongs into the stock harness and test the light, if it doesn't work, swap them around. Once it's in, they are a pain to remove!
    [​IMG]
    [​IMG]

    7. The wire loom is going to be somewhat longer now. My OCD would kill me if I didn't zip tie it up.
    [​IMG]
    [​IMG]

    8. Check your alignment once you have both sides installed. If you need to raise or lower the beam, use the adjustment screw on the bottom of the light.
    [​IMG]

    And there you go, brand new Morimoto LED fog lights... ENJOY!

    Last edited: Jun 21, 2014
  2. Jun 22, 2014 at 7:25 AM
    #2
    Charliekilo3

    Charliekilo3 New Member

    Joined:
    Feb 19, 2014
    Member:
    #123471
    Messages:
    1
    Gender:
    Male
    Very nice write up. Thanks.

  3. Jun 22, 2014 at 10:03 AM
    #3
    kodiak141

    kodiak141 Active Member

    Joined:
    May 29, 2014
    Member:
    #130872
    Messages:
    41
    Gender:
    Male
    nice. my fogs will be here monday. and i have the exact same truck, same color and all.

  4. Jun 23, 2014 at 6:30 AM
    #4
    NolaTaco42

    NolaTaco42 Well-Known Member

    Joined:
    Mar 24, 2014
    Member:
    #126036
    Messages:
    200
    Gender:
    Male
    New Orleans
    Vehicle:
    08 PreRunner
    4" lift 17x9" XD Hoss wheels on Nitto 285/70/17 Trail Grapplers
    You wouldn't know the diameter of these?

  5. Jun 23, 2014 at 10:06 AM
    #5
    TRSAndrew

    TRSAndrew Well-Known Member Vendor

    Joined:
    Jan 3, 2012
    Member:
    #69858
    Messages:
    2,865
    Gender:
    Male
    ATL
    Vehicle:
    2019 DCSB 4WD 040
    Approx 3". What application are you trying to fit them to?

  6. Jul 9, 2014 at 9:11 PM
    #6
    pcabinatan

    pcabinatan Well-Known Member

    Joined:
    Jun 25, 2013
    Member:
    #106995
    Messages:
    72
    Gender:
    Male
    Avondale, Arizona
    K&N Intake, 35w 6K HID's, Plastidip badges
    subd. i want to see the night pics before I buy them. I was also looking, Piaa has a Tacoma specific LED kit as well, but this is priced way better ($300 vs $175)

  7. Jul 9, 2014 at 9:22 PM
    #7
    StevoTaco

    StevoTaco Active Member

    Joined:
    May 20, 2013
    Member:
    #104577
    Messages:
    27
    Gender:
    Male
    First Name:
    Steven
    Louisiana
    Vehicle:
    13 Tacoma SR5 4x4 Black
    3 inch lift, Nitto Trail Grapplers, Fuel Throttle rims, Go Rhino tube steps
    Just ordered these, thanks for the write up!

  8. Aug 7, 2014 at 12:58 PM
    #8
    mattvivsound

    mattvivsound Well-Known Member

    Joined:
    Nov 24, 2009
    Member:
    #26445
    Messages:
    299
    Gender:
    Male
    First Name:
    Matt
    Southern MD
    Vehicle:
    '01 Tacoma TRD, 4x4, V6
    Any night shots of what they look like on the road?

  9. Aug 7, 2014 at 1:37 PM
    #9
    TRSAndrew

    TRSAndrew Well-Known Member Vendor

    Joined:
    Jan 3, 2012
    Member:
    #69858
    Messages:
    2,865
    Gender:
    Male
    ATL
    Vehicle:
    2019 DCSB 4WD 040
  10. Aug 8, 2014 at 1:24 PM
    #10
    Yotabilly

    Yotabilly Well-Known Member

    Joined:
    Oct 28, 2012
    Member:
    #89984
    Messages:
    2,969
    Gender:
    Male
    The Bluegrass
    Vehicle:
    2013 4cyl,5spd.4x4 Reg Cab
    UWS low profile toolbox, tint, rainguards, color matched grill surround 265/75r16 Goodyear Duratracs Ultra-Guage XB fogs, Weathertech Floor Liners, OME 884s, 2"AAL, Bilstein 5100s, FJ Trail Team wheels, Matt123 skid plate, 30" light bar, Rigid Duallys, Bed extender
    I wired mine straight to a relay and switch (my base model doesn't have wiring for fogs).
    A few mornings ago I turned them on on my way to work, forgot to turn them off and didn't realize until the next morning when i saw the light shining on my hedges. My truck fired right up, no slow turning or nothing. It's amazing how much light and little power these draw.

  11. Aug 10, 2014 at 3:27 PM
    #11
    mattvivsound

    mattvivsound Well-Known Member

    Joined:
    Nov 24, 2009
    Member:
    #26445
    Messages:
    299
    Gender:
    Male
    First Name:
    Matt
    Southern MD
    Vehicle:
    '01 Tacoma TRD, 4x4, V6
    Andrew thanks for the link. I think these are going to be one of the first mods on my new Tacoma.

  12. Aug 10, 2014 at 10:01 PM
    #12
    nine3

    nine3 Well-Known Member

    Joined:
    Jan 15, 2014
    Member:
    #120698
    Messages:
    97
    Gender:
    Male
    Seattle, WA
    Vehicle:
    14 DCSB TRD OR Supercharged MT
    Does anyone know of a direct comparison of these to a 35w HID retrofit? I'm on the fence which way I'm going to go.

  13. Aug 10, 2014 at 10:31 PM
    #13
    StuckinOhio

    StuckinOhio Well-Known Member

    Joined:
    Oct 30, 2011
    Member:
    #66154
    Messages:
    337
    Gender:
    Male
    First Name:
    Mark
    Ohio
    Vehicle:
    12' v6 AC 4x4 SR5
    I have 5000k HID bulbs in my fogs now. I am debating on switching over to these because my right hid burnt out/ stopped working. The hids were awesome on light output especially for ditches (HIDS also illuminate animal eyes really well). I bought a cheap set from DDM. The fogs were not bad on unfocused light. I found myself turning the fogs off in the city/busy highway because they illuminated the sides of cars next to me really bad and there is not a clean cutoff line. HID's were a night and day difference from stock. I would recommend them as a cheap alternative. but expect to have issues with any HID kit. I'll repost a full comparison if i pull the trigger

  14. Aug 11, 2014 at 12:23 AM
    #14
    nine3

    nine3 Well-Known Member

    Joined:
    Jan 15, 2014
    Member:
    #120698
    Messages:
    97
    Gender:
    Male
    Seattle, WA
    Vehicle:
    14 DCSB TRD OR Supercharged MT
    I've used DDM in the past and they are crap. All the bulb's I got from them burned out within a year. The quality control was just as bad (half my bulbs didn't match).

    How bad was the cutoff in the fogs? That's what I'm really concerned about. I really don't want to be the jerk blinding everyone else because I want bright lights.

  15. Aug 11, 2014 at 7:45 AM
    #15
    TRSAndrew

    TRSAndrew Well-Known Member Vendor

    Joined:
    Jan 3, 2012
    Member:
    #69858
    Messages:
    2,865
    Gender:
    Male
    ATL
    Vehicle:
    2019 DCSB 4WD 040
    Since they use an acrylic projector lens, the output is much more focused than HIDs in a reflector could ever be.

    ChadsPride likes this.
  16. Aug 11, 2014 at 9:29 AM
    #16
    B737

    B737 Throbbing Member

    Joined:
    Aug 1, 2012
    Member:
    #83903
    Messages:
    1,478
    Gender:
    Male
    First Name:
    Kevin
    Jersey Shore
    Vehicle:
    2015 Tundra Double Cab Limited
    stock
    why must you guys keep posting stuff like this :(
    ORDERED :)

  17. Aug 11, 2014 at 10:48 AM
    #17
    nine3

    nine3 Well-Known Member

    Joined:
    Jan 15, 2014
    Member:
    #120698
    Messages:
    97
    Gender:
    Male
    Seattle, WA
    Vehicle:
    14 DCSB TRD OR Supercharged MT
    Got any pics of their cutoffs with a set of your FX-R's? Also how much faster is the stage IV startup than the III's?

  18. Aug 11, 2014 at 1:15 PM
    #18
    TRSAndrew

    TRSAndrew Well-Known Member Vendor

    Joined:
    Jan 3, 2012
    Member:
    #69858
    Messages:
    2,865
    Gender:
    Male
    ATL
    Vehicle:
    2019 DCSB 4WD 040

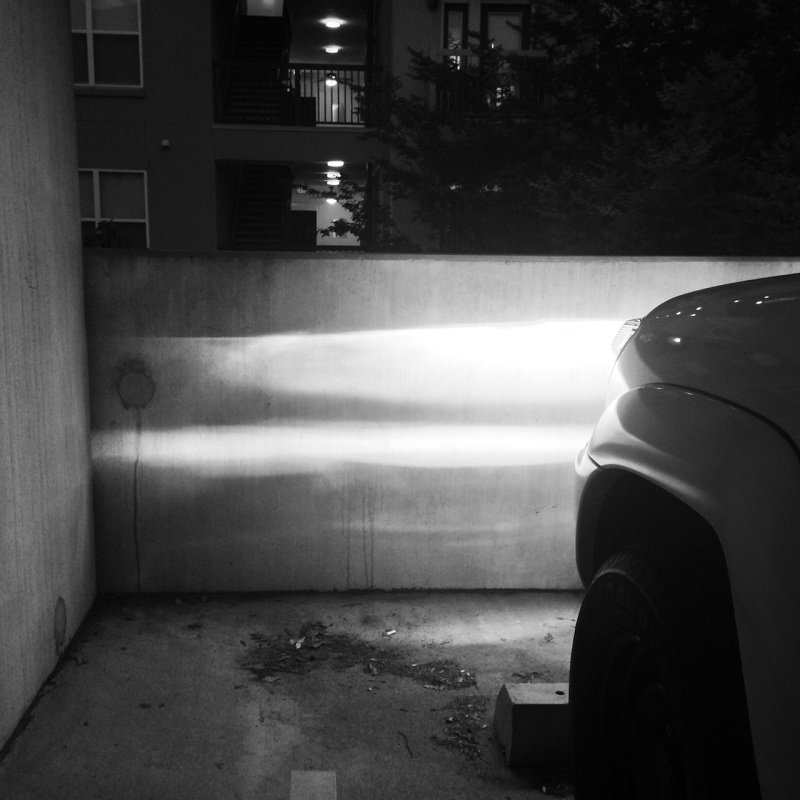

    I have a close-up of the LS460Rs with xB fogs:


  19. Aug 11, 2014 at 1:27 PM
    #19
    nine3

    nine3 Well-Known Member

    Joined:
    Jan 15, 2014
    Member:
    #120698
    Messages:
    97
    Gender:
    Male
    Seattle, WA
    Vehicle:
    14 DCSB TRD OR Supercharged MT
    Thanks!

  20. Aug 13, 2014 at 4:40 AM
    #20
    B737

    B737 Throbbing Member

    Joined:
    Aug 1, 2012
    Member:
    #83903
    Messages:
    1,478
    Gender:
    Male
    First Name:
    Kevin
    Jersey Shore
    Vehicle:
    2015 Tundra Double Cab Limited
    stock
    does anyone know the height of the lights on the wall and at what distance the cut offs should be set at? i installed my fog lights later (factory ones) so i have no real factory reference... i do know that my existing ones are not close to aligned right now...
