Mounting a shell

Discussion in '3rd Gen. Tacomas (2016+)' started by LIazard, Oct 22, 2017.

  1. Oct 22, 2017 at 2:57 AM
    #1
    LIazard

    LIazard [OP] Well-Known Member

    Joined:
    Jul 29, 2017
    Member:
    #225321
    Messages:
    117
    Gender:
    Male
    Vehicle:
    Tacoma don't own one yet
    I realize it's probably not rocket science but what do I need to mount a used fiberglass shell on my 2017 Tacoma? Should I use foam tape or the kind with round beads? What kind of clamps? How to be sure before trying it on that it will fit? Any other advice would be appreciated.

  2. Oct 22, 2017 at 3:08 AM
    #2
    EatSleepTacos

    EatSleepTacos East Coast Conner

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    43,789
    Gender:
    Male
    First Name:
    Randy
    Chesapeake, VA
    Vehicle:
    4x4 2005 SR5 AC 6MT
    Use this on the sides

    https://www.amazon.com/dp/B00C7VU9BA/ref=cm_sw_r_cp_api_D3g7zbSATGAA5

    And this on the front rail

    Front Rail Seal 6ft EPDM Rubber https://www.amazon.com/dp/B00C0WVV72/ref=cm_sw_r_cp_api_h4g7zbXV36QS4

    Clamps are dependent what kind of cap it is. To ensure fitment, you can either get the serial number and email the company, or just put it on your truck and see.

  3. Oct 22, 2017 at 8:46 AM
    #3
    LIazard

    LIazard [OP] Well-Known Member

    Joined:
    Jul 29, 2017
    Member:
    #225321
    Messages:
    117
    Gender:
    Male
    Vehicle:
    Tacoma don't own one yet
    Last edited: Oct 22, 2017
  4. Oct 22, 2017 at 8:47 AM
    #4
    fatfurious2

    fatfurious2 EAF YO

    Joined:
    Jun 28, 2014
    Member:
    #132884
    Messages:
    34,877
    Gender:
    Male
    First Name:
    David
    Ashburn, VA
    Vehicle:
    2010 TRD OR Access Cab
    @grrck

    grrck likes this.
  5. Oct 22, 2017 at 9:00 AM
    #5
    LIazard

    LIazard [OP] Well-Known Member

    Joined:
    Jul 29, 2017
    Member:
    #225321
    Messages:
    117
    Gender:
    Male
    Vehicle:
    Tacoma don't own one yet
    It's a fiberglass shell made by Century. No serial number. I was asking because I don't see how standard clamps like in the link below could work because the rail track thingamajig is in the way: https://www.amazon.com/s/ref=sr_gnr...oma+camper+shell+clamp&ie=UTF8&qid=1508687851

  6. Oct 22, 2017 at 9:18 AM
    #6
    Sagebrush

    Sagebrush Well-Known Member

    Joined:
    Apr 2, 2016
    Member:
    #183141
    Messages:
    419
    Gender:
    Male
    Vehicle:
    2016 Silver Double Cab Tacoma OR
    Stock plus a topper
    My Century (which is the same as a Leer) uses clamps that use the bed rail. Nice and clean.

    Make sure you seal the bed joints near the cab. Any polyurethane sealant will work.

    SB

    Capt Jrod likes this.
  7. Oct 22, 2017 at 9:26 AM
    #7
    LIazard

    LIazard [OP] Well-Known Member

    Joined:
    Jul 29, 2017
    Member:
    #225321
    Messages:
    117
    Gender:
    Male
    Vehicle:
    Tacoma don't own one yet
    I guess I'll take fatfurious2's resend of the original reply as saying yes it should be 1-1/2" for the side rails? Right?

    Last edited: Oct 22, 2017
  8. Oct 22, 2017 at 9:27 AM
    #8
    sorgon82

    sorgon82 wanna go for a rip bud

    Joined:
    Oct 1, 2015
    Member:
    #165572
    Messages:
    1,943
    Gender:
    Male
    Ont. Canada
    Vehicle:
    2016 Grey Tacoma sport dc long bed
  9. Oct 22, 2017 at 9:31 AM
    #9
    LIazard

    LIazard [OP] Well-Known Member

    Joined:
    Jul 29, 2017
    Member:
    #225321
    Messages:
    117
    Gender:
    Male
    Vehicle:
    Tacoma don't own one yet
    Thanks for the advice on the sealant, didn't know that.

    I'm not finding any clamp that uses the bed rail. For example the Amazon link I sent is the full result from a search on "Tacoma camper shell clamp" and it doesn't look like any of them would work. Are these rail clamps something I need to get OEM from Toyota?

  10. Oct 22, 2017 at 9:32 AM
    #10
    fatfurious2

    fatfurious2 EAF YO

    Joined:
    Jun 28, 2014
    Member:
    #132884
    Messages:
    34,877
    Gender:
    Male
    First Name:
    David
    Ashburn, VA
    Vehicle:
    2010 TRD OR Access Cab
    Im not sure. I was sending @grrck here for some info

    grrck likes this.
  11. Oct 22, 2017 at 9:36 AM
    #11
    Sagebrush

    Sagebrush Well-Known Member

    Joined:
    Apr 2, 2016
    Member:
    #183141
    Messages:
    419
    Gender:
    Male
    Vehicle:
    2016 Silver Double Cab Tacoma OR
    Stock plus a topper

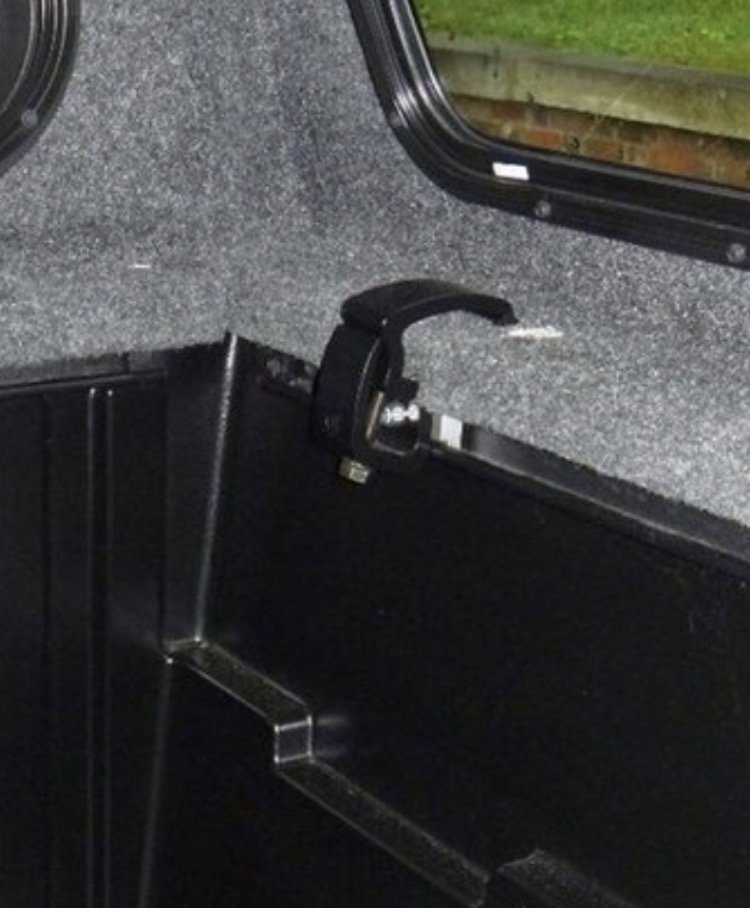

    These were installed by the Century Dealer. I seriously doubt they are Toyota's
    [​IMG]

    grrck and Capt Jrod like this.
  12. Oct 22, 2017 at 9:44 AM
    #12
    EatSleepTacos

    EatSleepTacos East Coast Conner

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    43,789
    Gender:
    Male
    First Name:
    Randy
    Chesapeake, VA
    Vehicle:
    4x4 2005 SR5 AC 6MT
    I just recommended that style of side ones. I have shitty foam on the side of mine and it doesn't leak, so it doesn't matter too much what's there. The problem area is the front rail.

    For the clamps, there are some made specifically for our side rails. I can't remember if they're made by leer or ARE, but I was able to buy them from a local cap store.

  13. Oct 22, 2017 at 10:23 AM
    #13
    LIazard

    LIazard [OP] Well-Known Member

    Joined:
    Jul 29, 2017
    Member:
    #225321
    Messages:
    117
    Gender:
    Male
    Vehicle:
    Tacoma don't own one yet
    Yikes! Thanks but it doesn't look like that would work for me. The shell bottoms don't extend in that far.

    Hey where did you get the thing you used to attach the eyebolt to the track?

    Last edited: Oct 22, 2017
  14. Oct 22, 2017 at 10:32 AM
    #14
    LIazard

    LIazard [OP] Well-Known Member

    Joined:
    Jul 29, 2017
    Member:
    #225321
    Messages:
    117
    Gender:
    Male
    Vehicle:
    Tacoma don't own one yet
    My local cap store is completely focused on high $$ items like caps, tonneau covers, etc. If you ask about installation accessories they pull out a catalog, which wasn't much help.

  15. Oct 22, 2017 at 10:40 AM
    #15
    Capt Jrod

    Capt Jrod Well-Known Member

    Joined:
    Dec 6, 2014
    Member:
    #143748
    Messages:
    886
    Gender:
    Male
    First Name:
    Jarrod
    Northern Ohio
    Vehicle:
    15 WHITE DCSB 4x4 TRD SPORT
  16. Oct 22, 2017 at 10:45 AM
    #16
    LIazard

    LIazard [OP] Well-Known Member

    Joined:
    Jul 29, 2017
    Member:
    #225321
    Messages:
    117
    Gender:
    Male
    Vehicle:
    Tacoma don't own one yet
  17. Oct 22, 2017 at 11:00 AM
    #17
    LIazard

    LIazard [OP] Well-Known Member

    Joined:
    Jul 29, 2017
    Member:
    #225321
    Messages:
    117
    Gender:
    Male
    Vehicle:
    Tacoma don't own one yet
    Other than width and length, what other measurements should I be checking on a used fiberglass cap? The seller has it on an older Nissan but says it doesn't quite fit right and says he thought it was made for an older gen of Tacoma. At the front it has a slight lean forward and there's a scoop top front center for a big cab brake light, which must have been 2nd gen Tacoma?

    Does anyone think it will fit decently before I drive an hour to try it on?

  18. Oct 22, 2017 at 3:44 PM
    #18
    fredgoodsell

    fredgoodsell Well-Known Member

    Joined:
    Jan 14, 2015
    Member:
    #146389
    Messages:
    1,573
    Gender:
    Male
    First Name:
    Matt
    Salt Lake, UT
    Vehicle:
    2017 DC TRD OR
    No chance that it will fit well. Not worth the drive IMO

  19. Oct 22, 2017 at 4:37 PM
    #19
    EatSleepTacos

    EatSleepTacos East Coast Conner

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    43,789
    Gender:
    Male
    First Name:
    Randy
    Chesapeake, VA
    Vehicle:
    4x4 2005 SR5 AC 6MT
    Do you have any pictures of it?

  20. Oct 22, 2017 at 5:16 PM
    #20
    LIazard

    LIazard [OP] Well-Known Member

    Joined:
    Jul 29, 2017
    Member:
    #225321
    Messages:
    117
    Gender:
    Male
    Vehicle:
    Tacoma don't own one yet

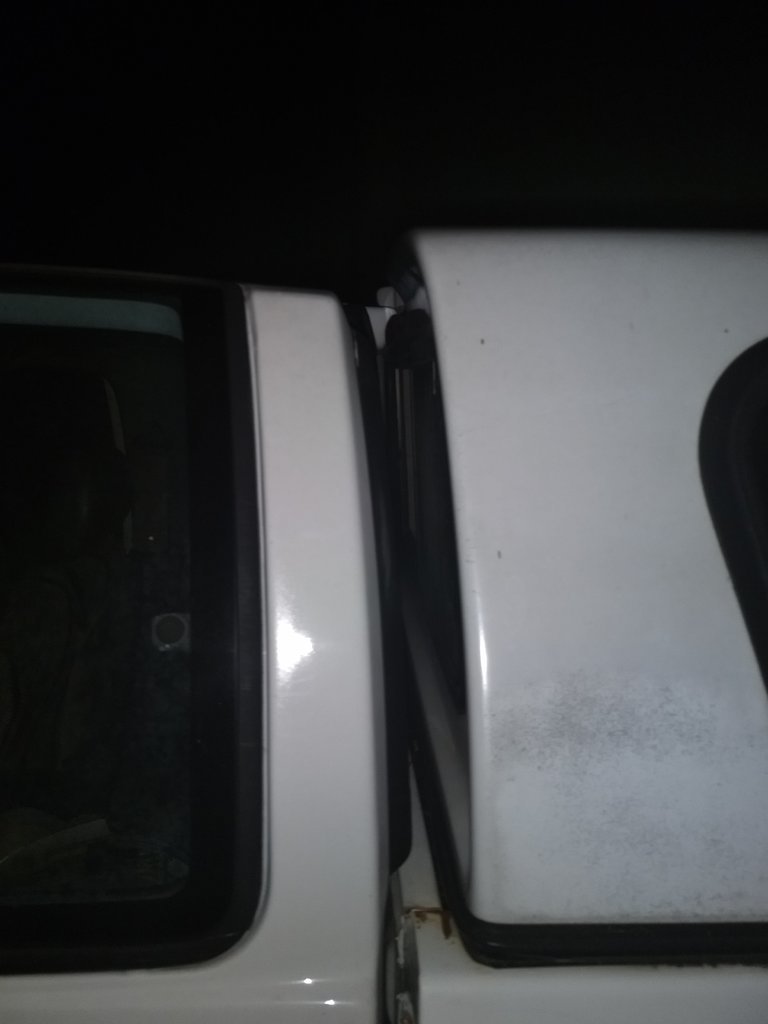

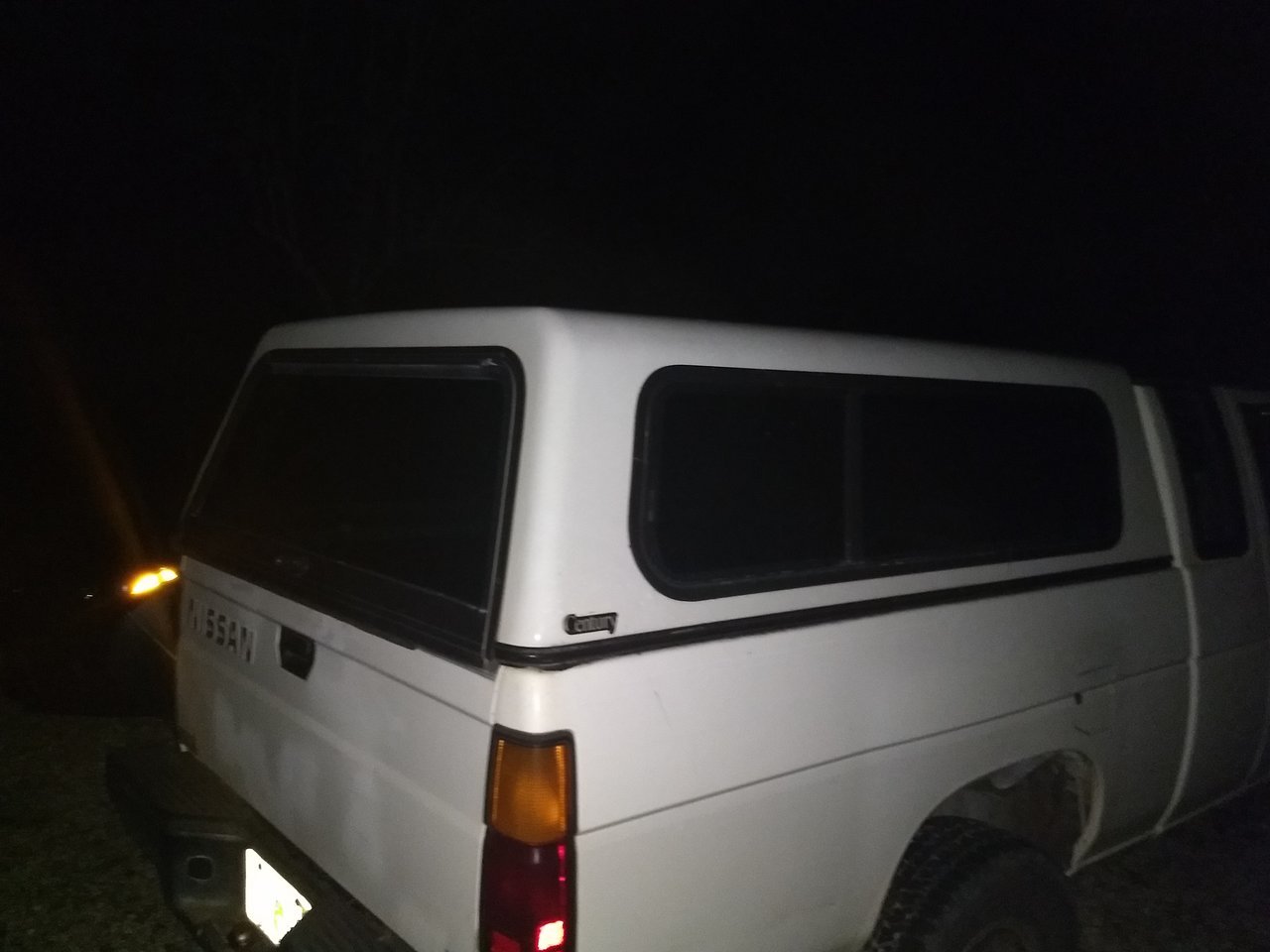

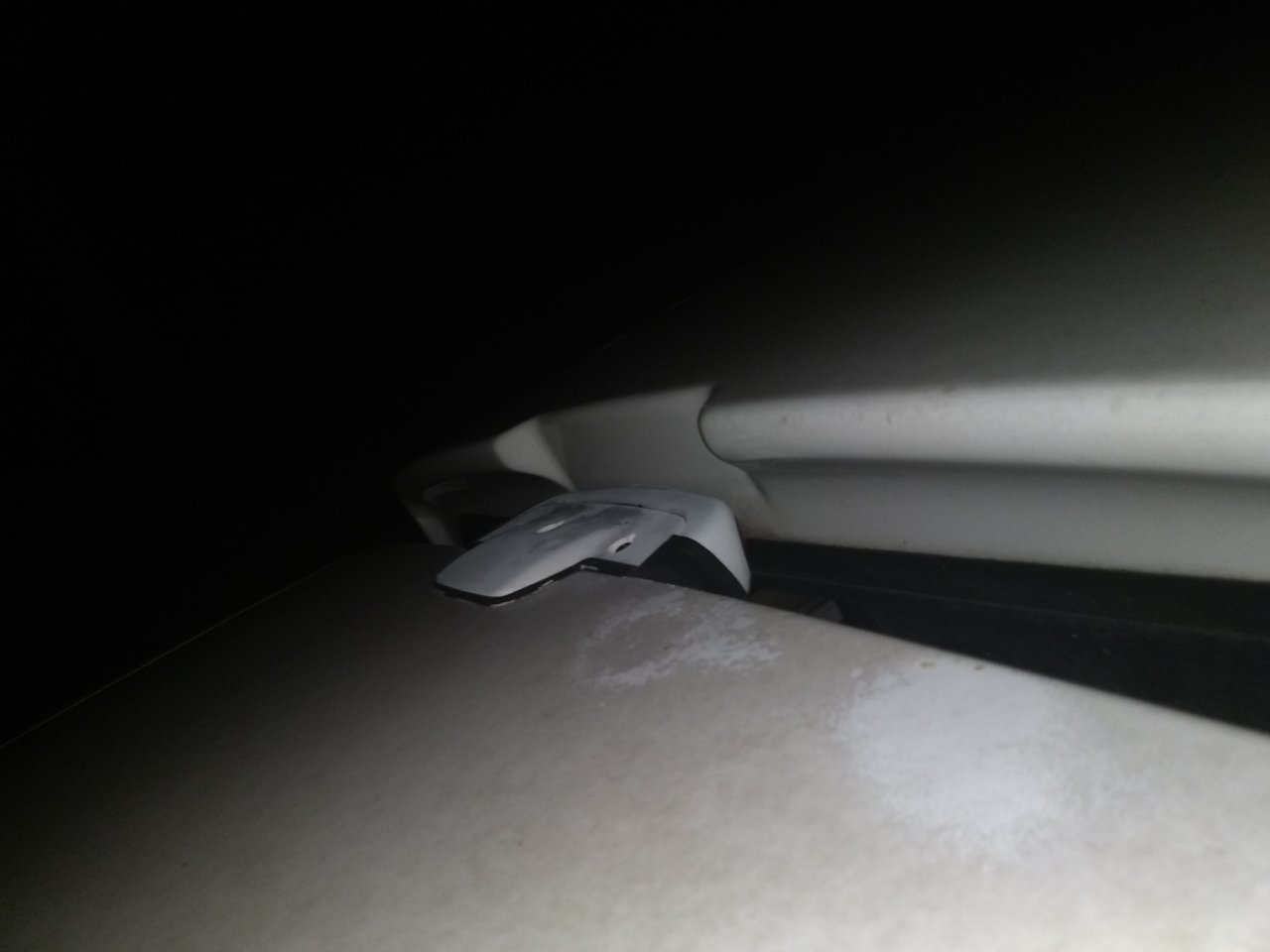

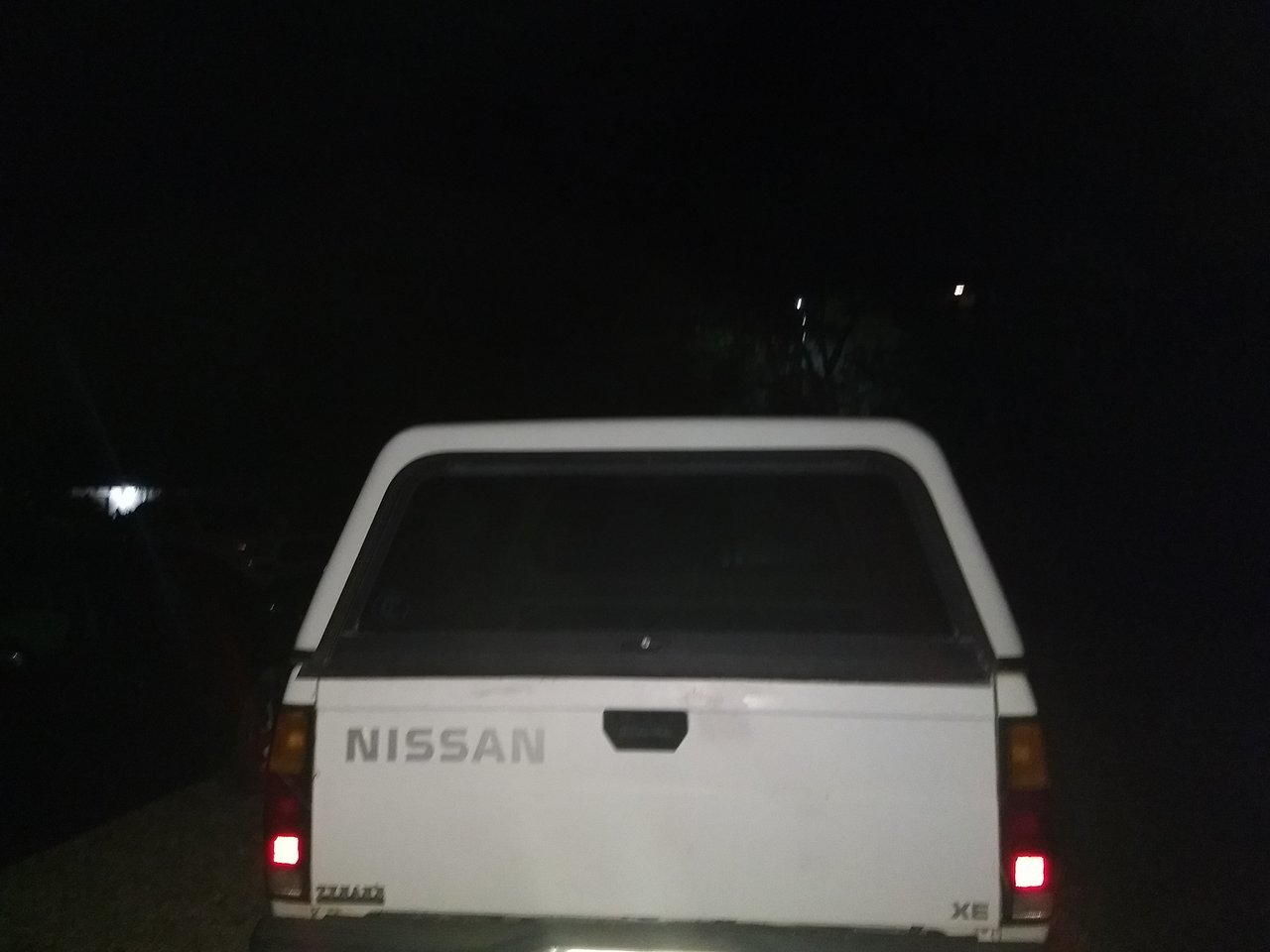

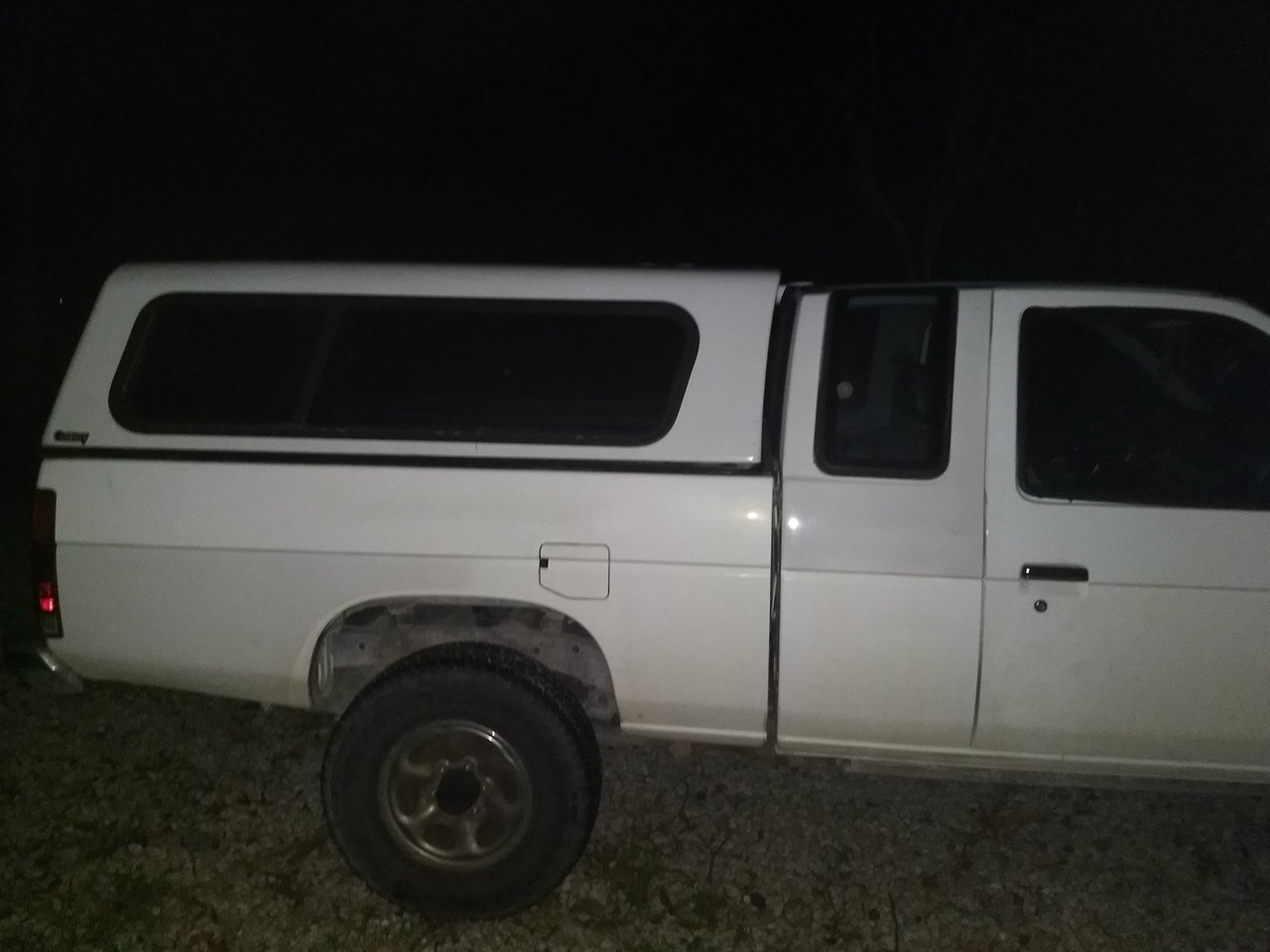

    Here are some photos of the Century shell.
